USER MANUAL TC5315 SOLAC

Two modern sOlač cooktop holders standing upright, no visible text or symbols on the devices themselves.

TOSTADOR

INSTRUCCIONES DE USO

TOASTER

INSTRUCTIONS FOR USE

GRILLE-PAIN

MODE D'EMPLOI

TOASTER

GEBRAUCHSANLEITUNG

TORRADEIRA

INSTRUÇÕES DE USO

TOSTA PANE

ISTRUZIONI PER L'USO

BROODROOSTER

GEBRUIKSAANWIJZING

OPÉKAČ TOPINEK

NÁVOD K POUZITÍ

OPIEKACZ

INSTRUKCJA OBSŁUGI

HRIANKOVAČ

NÁVOD NA POUŽITIE

KENYÉRPIRÍTÓ

HASZNÁLATI UTASÍTÁS

TOCTEP

Solac is a registered Trade Mark

A A

B C

E F G I 3 4 5 2 6 1 7 D

Simple line drawing of a container with a handle and a labeled point H (no text or symbols beyond the label)

ESPAÑOL ES

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

DESCRIPTION

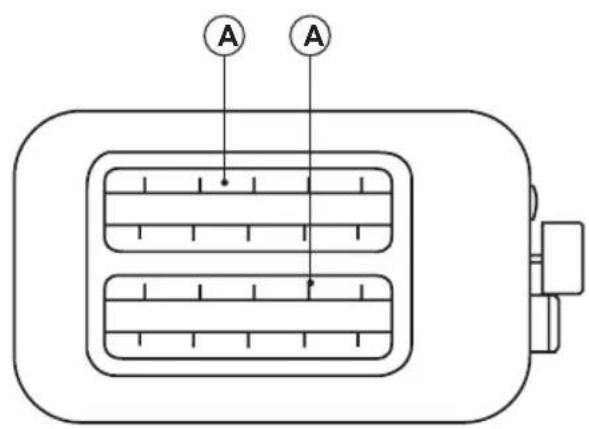

A Toaster Slots

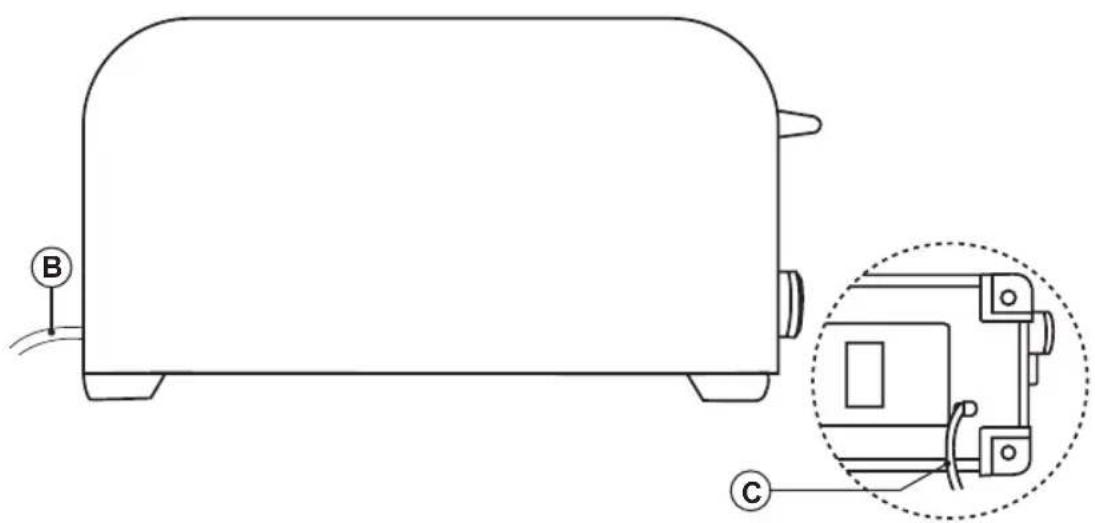

B Power cord

C Cable storage

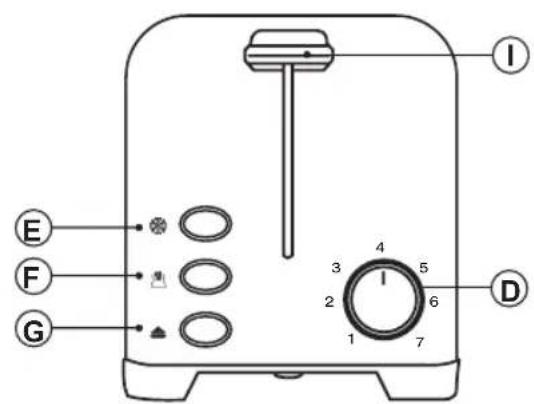

D Selection Knob

E Defrost button

F Reheat button

G Cancel button

H Crumb tray

I Loading lever (Toaster start-up)

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years of age.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

. The temperature of the accessible surfaces may be high when the appliance is in use.

Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- Bread can catch fire therefore the appliance must not be used near to inflammable materials such as curtains, furniture, etc.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors

EN

• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not become trapped or tangled
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak
• The appliance is not suitable for outdoor use.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
• WARNING: In order to prevent overheating do not cover the appliance.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the tray is not properly fitted underneath the heating element.
• Do not use the appliance if the on/off switch does not work.
• Do not move or transport the appliance while in use.
• Do not turn the appliance over while it is in use or connected to the mains.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store the appliance if it is still hot.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Before using this product for the first time, it is advisable to test it without bread.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Put the slice/slices of bread into the appliance.
• Use the select knob to reach the desired toasting level.
• Start the appliance by sliding the loading lever down until a "click" is heard
• The slice/slices will be automatically centred for a uniform toasting.
• Avoid to reach dark brown colours on the toasted bread.
• After the selected toasting time the appliance will switch off automatically.

CANCEL FUNCTION:

- The cancel function allows the interruption of the use of the appliance. To do this, press the button (G).

REHEAT FUNCTION:

- The reheat function is for reheating previously toasted bread. To do this, place the toast, move the loading lever (I) down and press the corresponding function button (F)

DEFROST FUNCTION:

- The defrost function is for defrosting slices of bread. To do this, place the frozen slice of bread, move the loading lever (I) down and press the corresponding function button (E)

EN

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Unplug the appliance from the mains.
• Put the cable back in the cable housing.
• Clean the appliance.

CABLE COMPARTMENT

- This appliance has a cable compartment situated on its underside (C)

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

CRUMB TRAY:

• This appliance has a tray which allows the crumbs to be caught inside the appliance (H)
• Remove the appliance's tray
• Pour away the contents of the tray.
• Gently shake the appliance to remove any other remaining crumbs from inside the appliance.
• Replace the tray inside the appliance.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you

wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
