HX290 - Heating BLACK & DECKER - Free user manual and instructions

Product type	Fan heater
Brand	Black & Decker
Model	HX290
Supply voltage	220-240 V AC
Frequency	50 Hz
Rated power	2000 W
Weight	1.5 kg
Operating modes	Fan only, warm air, hot air
Adjustable thermostat	Yes
Double insulation	Yes
Overheat protection	Yes, automatic shut-off
Minimum room size	4 m²
Intended use	Domestic supplementary heating
Maintenance	Clean the grilles with a vacuum cleaner, motor unit with a damp cloth
Safety	Do not cover, do not use with a timer, do not block air intakes
Warranty	24 months
After-sales service	www.2helpU.com

Frequently Asked Questions - HX290 BLACK & DECKER

How to adjust the temperature?

Turn the thermostat knob clockwise to the max position to heat, then slowly turn counterclockwise until you hear a click to set the desired temperature.

What to do if the appliance stops suddenly?

This may be due to overheating. Unplug the appliance, let it cool down completely, then reuse it. Make sure the ventilation grilles are not blocked.

Can I use the heater in a bathroom?

No, never use this heater in a room where it could come into contact with water, such as a bathroom, shower, or near a pool.

What is the weight of the HX290?

The heater weighs about 1.5 kg, making it easy to move.

How to clean the appliance?

Unplug the appliance. Use a vacuum cleaner to clean the ventilation grilles. Clean the motor unit with a damp cloth, never immerse it in water.

What is the power of the heater?

The rated power is 2000 W at a voltage of 220-240 V.

Can the appliance be used with an extension cord?

No, it is not recommended to use an extension cord. Plug the appliance directly into a wall outlet.

What does the red light mean?

The red light indicates that the heating mode is on.

How to set the operating mode?

Turn the rotary knob to the positions: 0 (off), fan only, warm air, or hot air.

Where can I get my heater repaired?

Contact Black & Decker after-sales service via www.2helpU.com to find an authorized repair shop near you.

USER MANUAL HX290 BLACK & DECKER

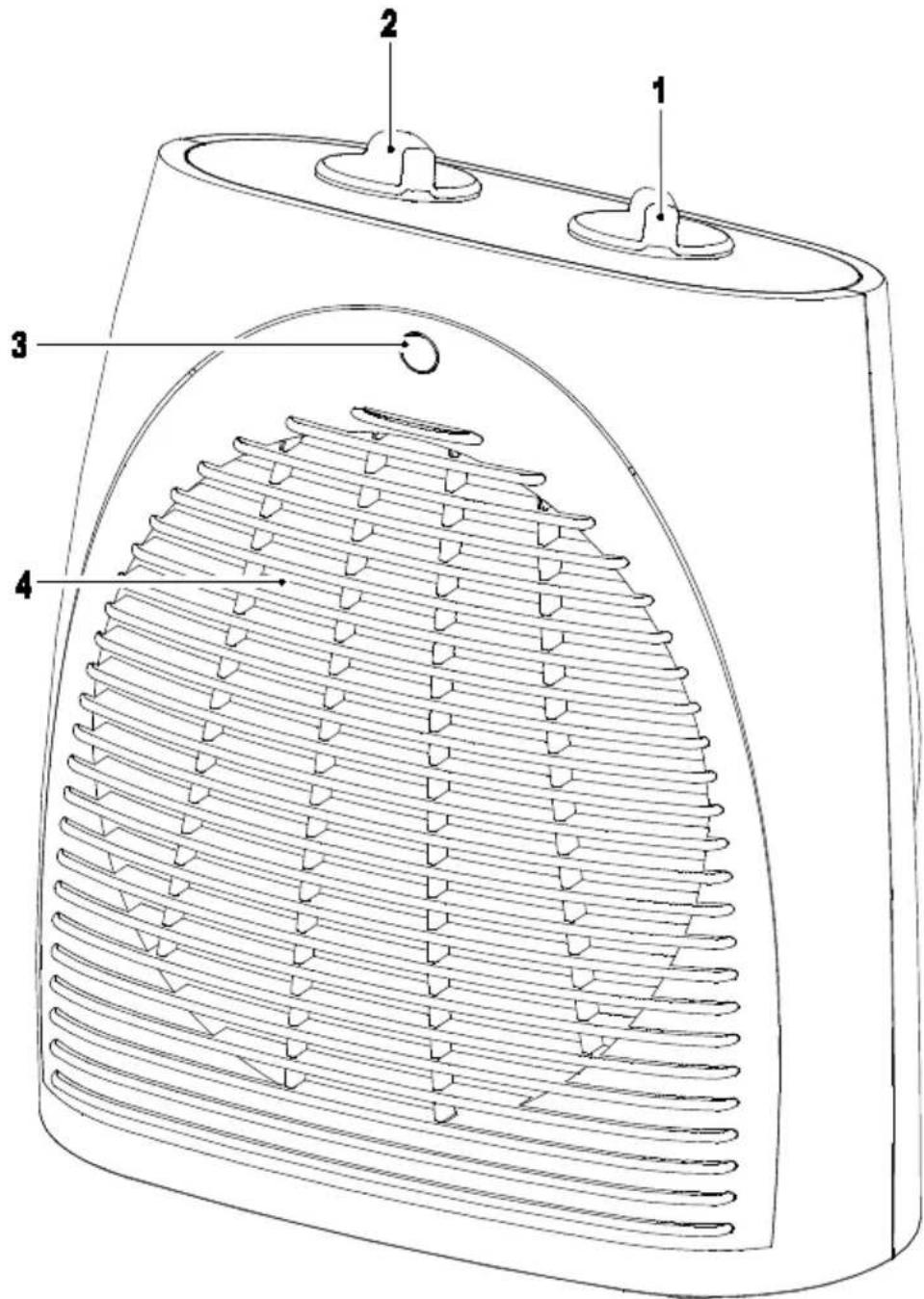

Parts Identification

1. Mode setting switch
2. Thermostat control switch
3. Indicator
4. Outlet grill

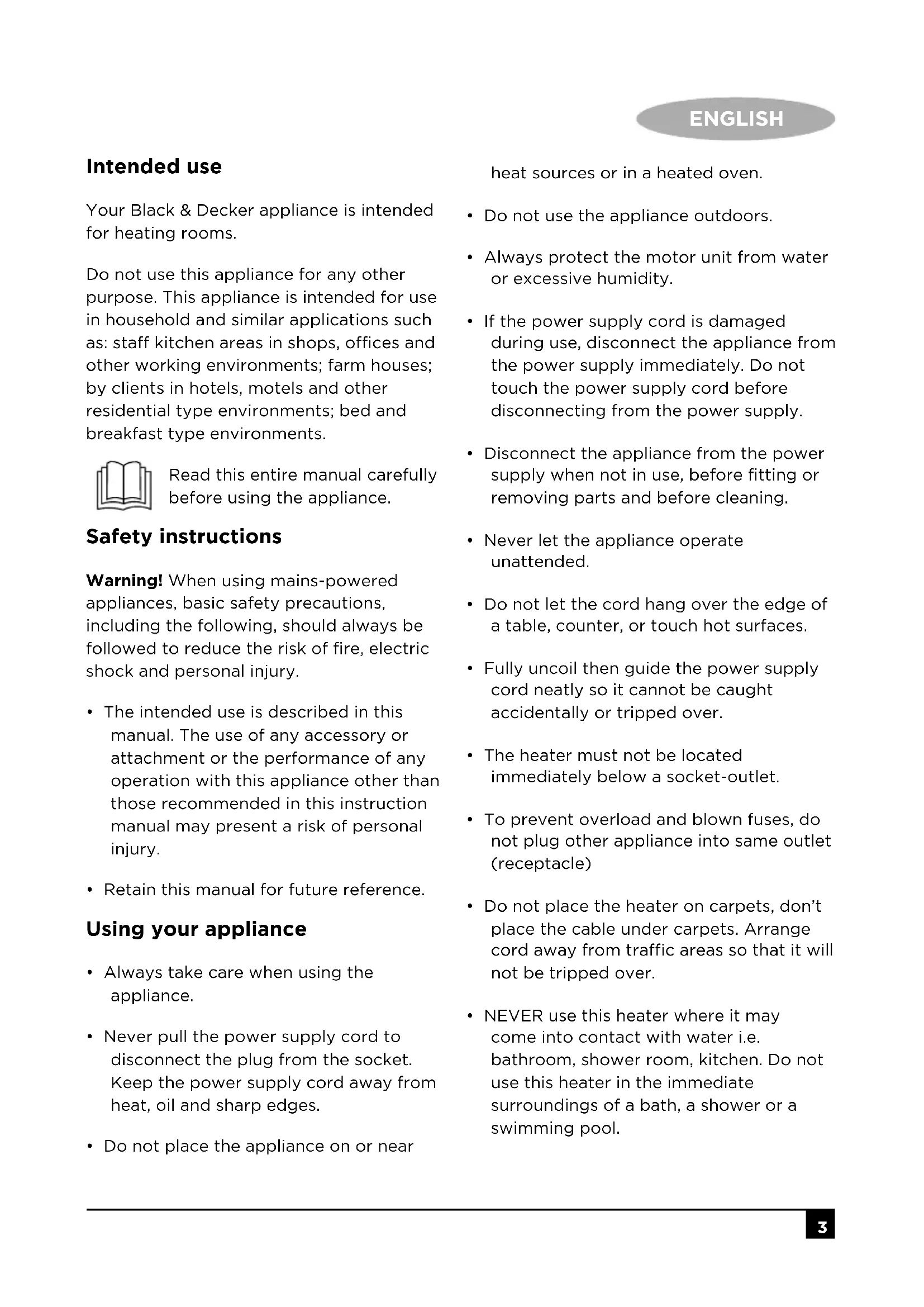

Intended use

Your Black & Decker appliance is intended for heating rooms.

Do not use this appliance for any other purpose. This appliance is intended for use in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

Read this entire manual carefully before using the appliance.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
• Do not place the appliance on or near

heat sources or in a heated oven.

• Do not use the appliance outdoors.
• Always protect the motor unit from water or excessive humidity.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• Never let the appliance operate unattended.
• Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.
• Fully uncoil then guide the power supply cord neatly so it cannot be caught accidentally or tripped over.
• The heater must not be located immediately below a socket-outlet.
• To prevent overload and blown fuses, do not plug other appliance into same outlet (receptacle)
• Do not place the heater on carpets, don't place the cable under carpets. Arrange cord away from traffic areas so that it will not be tripped over.
• NEVER use this heater where it may come into contact with water i.e. bathroom, shower room, kitchen. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

ENGLISH

Warning! In order to avoid overheating, do not cover the heater. NEVER use the heater to dry clothes or similar articles.

• Don't touch the hot surfaces.
• Do not position the appliances in close proximately to curtains or other combustible materials. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 1.0m away from the heater.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• Do not store away until the heater cools down, store the heater in cool dry location when not in use.
• Don't use extension cable
• Always operate on a flat horizontal surface.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not operate in areas where gasoline, paint or other flammable liquids are used

or stored.

• The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.
• Always use the heater in an upright position.
• Do not use the appliance in rooms less than 4m^2 area.
• To disconnect the appliance, switch it "OFF" then remove the plug from outlet. Do not pull out the cord because this could damage it.
• The temperature of accessible surfaces may be high during use and for some time afterwards.

Warning! This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• Always leave sufficient space around the heater for ventilation.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not allow children or any person unfamiliar with these instructions to use the appliance.

• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
• Close supervision is necessary when the appliance is used near children.

CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
- Children should be supervised to ensure that they do not play with the appliance.

After use

• Remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Switch off the appliance before cleaning, changing accessories or approaching parts which move in use
• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.

• Before use, check the power supply cord for signs of damage, ageing and wear.

• Do not use the appliance if the power supply cord or mains plug is damaged or defective.

• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

Before use, check the mains voltage corresponds to the voltage on the rating plate.

This appliance is double insulated therefore no earth wire is required.

• To avoid the risk of electric shock, do not immerse the cord, plug or motor unit in water or other liquid.
• Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

Warning: In order to avoid overheating, do not cover the heater.

Caution: Hot Surface.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug
• Connect the brown lead to the live terminal of the new plug

ENGLISH

• Connect the blue lead to the neutral terminal
• If the product is class I (earthed), connect the green/yellow lead to the earth terminal

Warning! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal

• Follow the fitting instructions supplied with good quality plugs
• Any replacement fuse must be of the same rating as the original fuse supplied with the product

Mode setting:

The fan heater incorporates a rotate on switch you can select the different air by turning the switch clockwise to:

0 Off

Fan only

Wai

Hot air

Thermostat

When heating mode is selected

• Turn the thermostat knob in a clockwise direction to the max position.
• Once the room has reached the desired temperature, turn the thermostat knob slowly in an anti-clockwise direction until a "click" sound is heard. That is the setting temperature. Now, the thermostat is switched off.

• The thermostat will automatically maintain the set temperature. It will switch on when the room temperature is below and switch off if above the setting.

• The indicator lamp shows that heating mode is switched on.

Use

Your appliance is fitted with a thermostat for your safety. Using the appliance continuously for very long periods may cause the appliance to overheat and stop working. It is therefore recommended that you disconnect the appliance from the mains supply and allow to fully cool before continuing use.

1. Place the appliance on a flat, stable surface.
2. Connect it to the electricity supply.
3. Select the operating mode.
4. Set the thermostat to the required setting.

Maintenance & cleaning

• Switch the appliance off then remove the plug from the power socket.
• The appliance is easier to clean if you do so immediately after use.
• Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.
• Clean the motor unit with a damp cloth. Never immerse the motor unit in water nor rinse it under the tap.

Technical data

HX290

Voltage 220 - 240 Volts

Supply 50 Hz

Power consumption 2000 W

Weight 1.5 Kg

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used

again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

• Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
• Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service, please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

FRANÇAIS

Identification des pieces

glll aillll g 1n nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

Jn Jnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn no

aaiia

iill lio no oal sll pac pJ .Jaoill g031

J 15

golgl glll Jnaiil gaoi j 5
GolsswglgslgjosLc!oossi wll
sallglplsswosLc!clwsi

pI 1gllglc llll jia jlc Lrgd

a1ySllgjg2xglcaglglgjj

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

Arabic

Jgogll i y Lo gog aab" cG eLw j ic LwJ

a1j1abio g 2g. a0g

aJ 1

gaii gaii j 1

Jae aiee eeg jao 1

p1

pLwJ 100

aagllg aedill lgl ywly algol yjal j

a 10000000000000000000000000000000000

1 2

gimog chw jglz

1

Jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

a:blg ail

Jgiaio no jaiall aJIg JgIgIgIgIgIg

.

.0olssw 1jg1 jhjj g8j 0

.

Jg 1 Jg

a,b,lae ae bae piaaew L aee

A

HX290

12 × 9 × 2 - 5 × 3

a_i a b

1g 1 aBbJ dLg

1.0 1

J 1

1 1

（）1

y 1

（）

jll jwgl q 2. (dLwX acgao g h

21

oogdl 13 wlll o oegill k jll Loei

aai

palaJIaiee nn no n 1

ciill 20 jgill

#

j 1

JcLwJbocolgeClljdsJLS

Lai 0

bn + 1 = bn + b_n

1

1

#

aixilgjisic

aclwll aoc al 1011 200

J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J.

aLoc s1s1g jgs1 Loo no sP

J 1

auiuui u!

Laa aJgJJJIgJia

jLg#p#

jLg1pLxwLc Ls, jd1 90

Jaiy 11 Jaii 11 Laiu Jg3

jLg<lllJllllllllllllllll

.0531 0g31g cJg 0j31 j

Arabic

1,2,3,4,5,6 , 1,2,3,4,5,6

2.1.1

1

a

Names & Addresses for Black & Decker Service Concessionaries

ALGERIA: SARL Outilage Corporation, After Sale Service Center-08, Rue Mohamed Boudiaf - Cheraga, Algiers, Algeria, Tel: [phone], Fax: [phone]. AZERBAIJAN: Kontakt - NN LLC, M.Qashqay 43, Baku, Azerbaijan Az1000. Tel: [phone], Fax: [phone]. BAHRAIN: Alfouz Services Co. WLL., P.O. Box 26562, Tubli, Manama, Tel: [phone], Fax: [phone]. Kewalram & Sons Co. WLL P.O. Box 84, Manama, Kingdom of Bahrain, Tel: [phone], Fax: [phone]. BANGLADESH: Ultra Corporation, 8, Kushol Centre, Uttara, Dhaka 1230. Tel: [phone], Fax: [phone]. EGYPT: Anasia - Egypt for Trading S.A.E., 9, Mostafa Refaat St., Sheraton Heliopolis Bldgs., Cairo, Egypt, P.O.Box 2443 Heliopolis 11361, Tel.: [phone], Fax.: [phone], www.anasia.com. ETHIOPIA: Seif Sherif Trade PLC -Arada Sub City, Kebele 01-02, Global Insurance Bldg., 2nd Flr. Room 43, P.O.Box 2525, Addis Ababa, Ethiopia, Tel: [phone], Fax: [phone]. INDIA: Gryphon Appliances Ltd., D-6/4, Okhla Industrial Area, Phase-I, New Delhi-110020, Tel: [phone], Fax: [phone]. JORDAN: Bashiti Hardware, 93 King Abdullah 2nd St., Opp ELBA House, P.O. Box 3005, Tel: [phone] ext.11, Fax: [phone]. KENYA: Leading Concepts, P.O. Box: 40877-00100, Nairobi, Kenya. Tel: [phone], Fax: [phone]. KUWAIT: Al Omar Technical Co., P.O. Box 4062, Safat 13041, Kuwait, Tel: [phone], Fax: [phone]. The Sultan Centre, P.O. Box 26567-13126 Safat, Kuwait, Tel: [phone] Etn. 432, Fax: [phone]. LEBANON: Aces Service Centre, P.O. Box 90-102, Nahr El Mot, Seaside Highway, Pharaoh Building, Beirut. Tel: [phone], Fax: [phone]. LIBYA: Homeworld Co., Building No.5, Senidal St., Amr Ibn Elaa's Road, Benghazi, Libya. Tel: [phone]. Service Center1 - Benghazi; Tel: [phone], Fax: [phone], Service Center2 - Tripoli; Tel: [phone], Fax: [phone]. MALTA: John G Cassar Ltd. 36-Victory Street, Qormi QRM 06, Malta. Tel: [phone], Fax: [phone]. MAURITIUS: J.M. Goupille & Co. Ltd., Rogers Industrial Park 1, Riche Terre, Mauritius, Tel: [phone], Fax: [phone]. MOROCCO: UATS 26 Rue Ennariesse, Hay Erraihan, Beausejour - Hay Hassani-Casablanca, Morocco. Tel: [phone], Fax: [phone]. NEPAL: Universal Electrocom, Tripureshwor, Kathmandu, Nepal. Tel:[phone]. NIGERIA: Dana Electronics Ltd. (Lagos) 116/ 120, Apapa Oshodi Express Way, Isolo, Lagos,Nigeria. Tel:[phone]. (Abuja) 18,A.E. Ekukinam Street Off Obsfemi Awolowo Road,Utako,Abuja Nigeria.Tel:[phone].(Kano) 9A - Mai Malari Road,Bompai,Kano,Nigeria.Tel:[phone]. OMAN: Oman Marketing & Service Co. (Omasco), P.O.Box 2734,Behind Honda Showroom,Wattayah,Oman,Tel:[phone],Fax:[phone].Oman Marketing & Service Co.(Omasco),Al Ohi,Sohar,Oman,Tel:[phone],Fax:[phone].Oman Marketing & Service Co.(Omasco)- Sanaya,Salahah,Oman,Tel: [phone],Fax:[phone].PAKISTAN: Ammar Service & Spares - 6Bank Arcade,Serai Road,Karachi,Pakistan,Tel: [phone],Fax: [phone].PHILIPPINES: 476 J.P.Rizal St., cor Kakarong St.Brgy Olympia,Makati CityTel:[phone].QATAR: Al Mufah Service Centre - Al Wakrah Road,P.O.Box 875,Doha,Qatar.Tel: [phone],Fax: [phone].SAUDI ARABIA:(Al Khobar) Al-Suwaiket Catering & Trading Co., P.O.Box 4228,King A.Aziz Street,Ah Khobar,Tel:[phone],Fax:[phone].Fawaz Ebrahim Al Zayani Trading Est.P.O.Box 76026,Ah Khobar #3l952,Tel:+966-3-8l4o9l4,Fax:+966-3-8l4o824. (Jeddah) Banaja Trading Co.Ltd,P.O.Box 366,Jeddah-2l4l+Tel:+966-2-65llll+Fax:+966-2-65o366B.(Riyadh) Banaja Trading Co. Ltd,P.O.Box 566,Riyadh-1l4l+Tel: [phone]l24444,Fax:+966-1-4o33378.SOUTH AFRICA:Trevco Power Tool Service 1 Steenbok Street,Koedoespoort, O186,Pretoria South Africa,Tel:[phone],Fax:+27-86-5oo177.I SR LANKA:Delmege Construction Products (Pvt) Ltd.No 101 Vinayalankara MawathaColombo-l,Sri Lanka,Tel:+94-ll-269336l-7Service hotline:+94-77-22lllllll.TUNISIA:Societe Tunisienne De Manutention - Rue de la Physique,Nouvelle Zone Industrielle de Ben Arous-2o13 TunisiaTel:+2l-l7l-ll l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l I Ware House No.5 Plot No 1o! , 3rd Street Industrial Area,Jinja Road,Kampala,Tel:+256-4l4o37l o.. UAE:(Abu Dhabi) Light House Electrical,P.O.Box 1oO Abu Dhabi,Tel:+97l-2-67o3l+Fax:+97l-2-67oOoG.. (Al Ain) Zillion Equipment and Spare Parts Trading LLC,P.O.Box 197oDoppinBsinadTrimixRedymixSanaia,YAltinTel:+97l-3-7ZlOoCpN,Fax:+97l-3-ZlOoCpN(McCoy Middle East LLC,P.O.Box MulaSt.Tel:+9e?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo?Zo？Zo?Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？Zo？

WARRANTY REGISTRATION CARD

YOUR NAME

YOUR ADDRESS

POSTCODE

DATE OF PURCHASE

DEALER'S NAME & ADDRESS/
