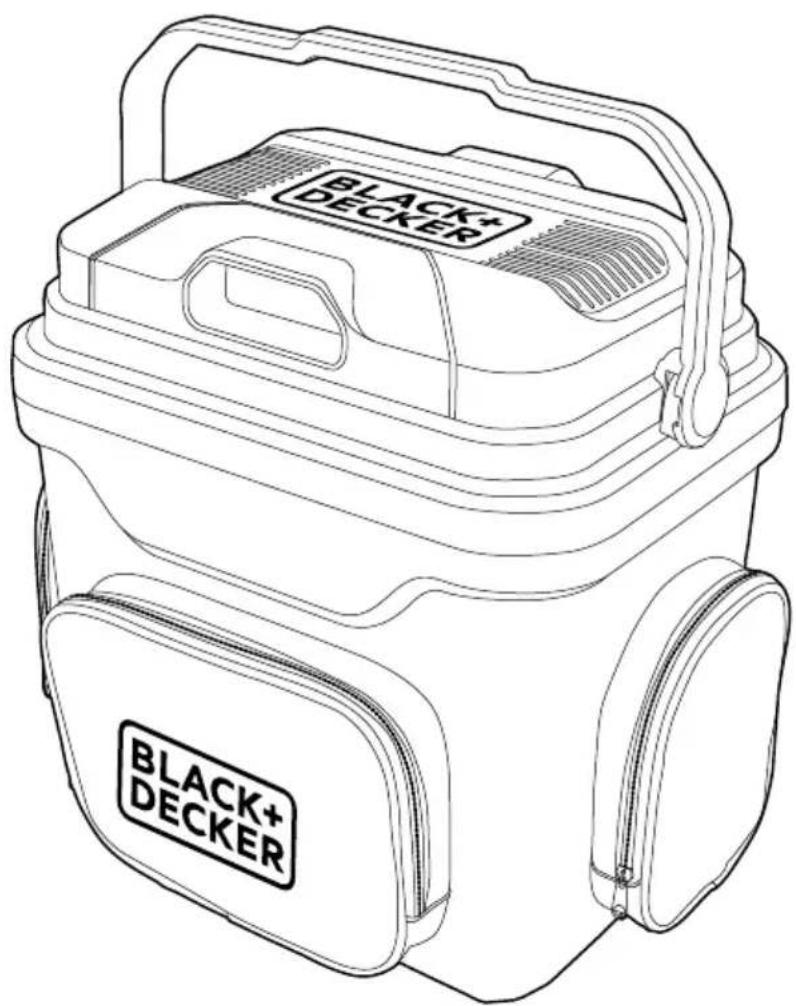

FIG. A 13 14 15 2 3 4 5 6 7 8 9 10 BLACK+ DECKER 11 12 13 14 15 16 17 18 19 20 21 BLACK+ DECKER V- CC CC CA HOT COLD

FIG. B1 cc (a) (b) 14

FIG. B2 CA (a) (b) 13

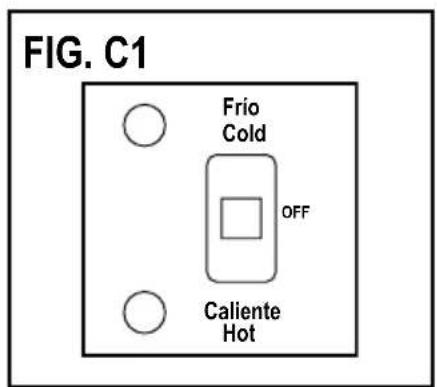

FIG. C1 Frio Cold OFF Caliente Hot

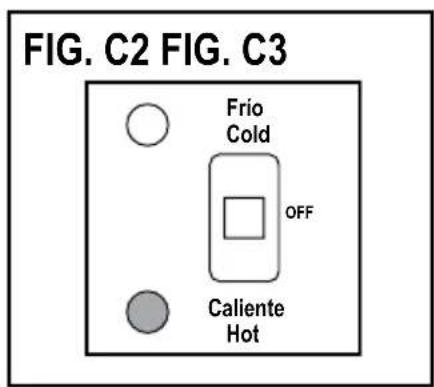

FIG. C2 FIG. C3 Frio Cold OFF Caliente Hot

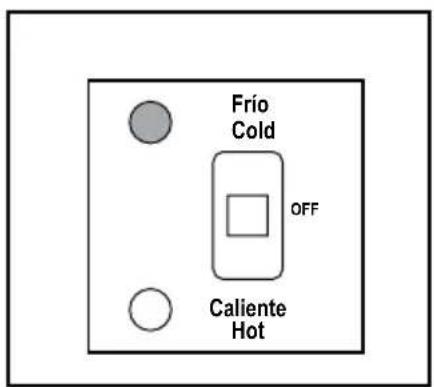

Frio Cold OFF Caliente Hot

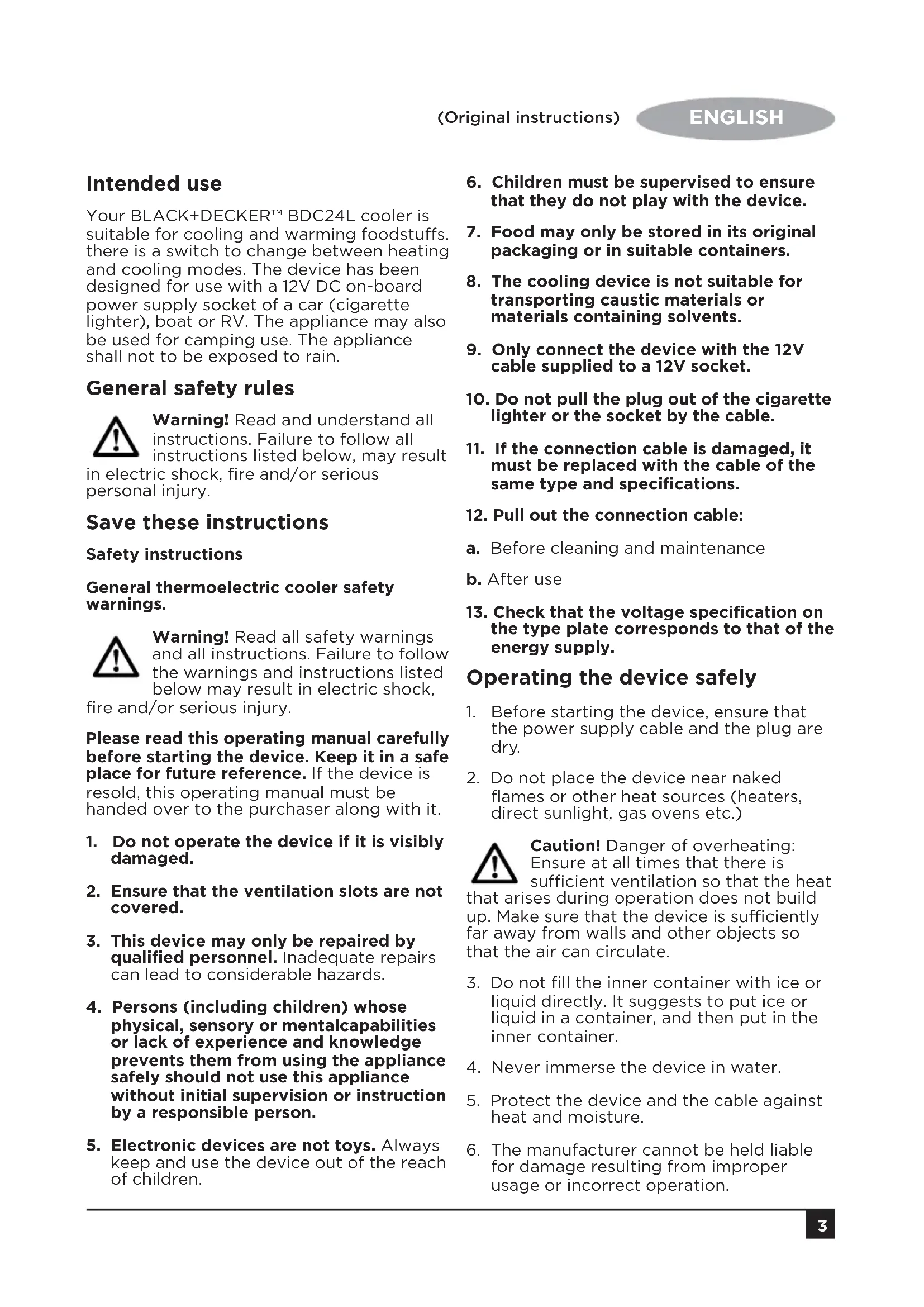

Intended use

Your BLACK+DECKER™ BDC24L cooler is suitable for cooling and warming foodstuffs. there is a switch to change between heating and cooling modes. The device has been designed for use with a 12V DC on-board power supply socket of a car (cigarette lighter), boat or RV. The appliance may also be used for camping use. The appliance shall not be exposed to rain.

General safety rules

Warning! Read and understand all instructions. Failure to follow all instructions listed below, may result

in electric shock, fire and/or serious personal injury.

Save these instructions

Safety instructions

General thermoelectric cooler safety warnings.

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock,

fire and/or serious injury.

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it.

1. Do not operate the device if it is visibly damaged.

2. Ensure that the ventilation slots are not covered.

3. This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.

4. Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely should not use this appliance without initial supervision or instruction by a responsible person.

5. Electronic devices are not toys. Always keep and use the device out of the reach of children.

6. Children must be supervised to ensure that they do not play with the device.

7. Food may only be stored in its original packaging or in suitable containers.
8. The cooling device is not suitable for transporting caustic materials or materials containing solvents.
9. Only connect the device with the 12V cable supplied to a 12V socket.
10. Do not pull the plug out of the cigarette lighter or the socket by the cable.
11. If the connection cable is damaged, it must be replaced with the cable of the same type and specifications.
12. Pull out the connection cable:

a. Before cleaning and maintenance
b. After use
13. Check that the voltage specification on the type plate corresponds to that of the energy supply.

Operating the device safely

1. Before starting the device, ensure that the power supply cable and the plug are dry.
2. Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

Caution! Danger of overheating: Ensure at all times that there is sufficient ventilation so that the heat

that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

1. Do not fill the inner container with ice or liquid directly. It suggests to put ice or liquid in a container, and then put in the inner container.
2. Never immerse the device in water.
3. Protect the device and the cable against heat and moisture.
4. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Caution! If you wish to cool medicines, please check if the cooling capacity of the device is

suitable for the medicine in question.

General safety rules

Warning! Do not switch from cold to hot or from hot to cold. The instant 100 degree change can damage the unit. You need to turn off the unit,

wait 10 minutes and then slide the main switch to the desired function heat or cool.

Warning! Read carefully and understand all assembly and operation instructions before

operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Caution! Do not allow persons to operate or assemble this cooler and warmer until they have read this

manual and have developed a thorough understanding of how the cooler and warmer works.

Warning! The warnings, cautions, and instructions discussed in this instruction manual cannot cover all

possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

Electric safety instructions for power supply

In order to comply with the safety requirements set forth in several international publications, the following measures must be followed when using this unit:

1. The maximum room temperature around the power supply must not exceed the one indicated on its label.
2. When connecting the unit to the electric supply and to the equipment, respectively, you must check if the voltage is the same indicated in the unit.

3. The consumption of the equipment connected to the source output must not exceed the one indicated in the unit.

4. This product can be used for outdoor, just make sure not make it wet.

5. If the power supply cable is damaged, it

must be fixed by the supplier, by its representative or by qualified personnel to avoid danger.

1. If the unit was hit and it is noticed any damage in the protection cover or failures, the unit must not be used and must be fixed exclusively by technically qualified personnel assigned by the product importer and/or legal representative.

2. The equipment must be connected to a visible and easy access socket.

3. This product is not a toy. It is not intended for use by children under 8 years.

Important safety precautions

Note: There is a replaceable 10A glass fuse in the cigarette lighter adapter. Replace a blown fuse by gently unscrewing the tip of the lighter plug and inserting in a new one of comparable Amperes rating. Do Not replace fuse with a higher amp rated fuse.

• Do not immerse the cooler/warmer 12V plug in water.
• Do not insert foreign objects into the cooler/warmer vent openings. The ventilation openings should not be covered at any time while the cooler/warmer is operating.
• Do not use the cooler/warmer in the open air when it is raining or snowing; it is not designed to be waterproof.
• Do not place cooler/warmer near heat sources: heating vents, radiators, sunlight and/or any other sources of heat.
• Do not use the cooler/heater in the presence of flammable fumes or gases, such as propane.
• Do not use for cooking.
• Do not use for medical reasons or storage of medicine.
• Do not operate the cooler/warmer if it has received a sharp blow, been dropped or otherwise damaged in any way.
• Do not place liquids or foods in direct contact with this unit.
• Keep out of Reach of Children. The interior becomes very hot or cold and could cause injury.

Labels on tool

The label on your tool may include the following symbols along with the date code:

Read Instructions Manual

Hz ..... Hertz

W ..... Watts

Use Eye Protection

min ..... minutes

Use Ear Protection

\~..... Alternating Current

V ..... Volts

____ Direct Current

A ..... Amperes

n_0 ..... No-Load Speed

Position of date barcode

The Date Code, which also includes the year of manufacture, is printed into the housing. Example:

2017 XX JN

Year of manufacturing

Do not put electrical appliances inside the storage compartment of the unit.

To avoid the electric shock, do not spill any liquid on the surface of the unit when using. And do not disconnect plug from outlet with wet hand.

Non-qualified people are not allowed to re-model, dismantle or repair the unit prinately.

(For AC120V type only) To reduce the risk of electric shock, this unit has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Attention! Do not Pull out the cord to disconnect the unit from a wall outlet. hold the plug when disconnecting, pulling the power cord may cause an electric shock.

Please disconnect the plug from the wall outlet when the unit is not in use. Constant connection to the

power source may cause the isolator to age and may lead to electric shock or fire.

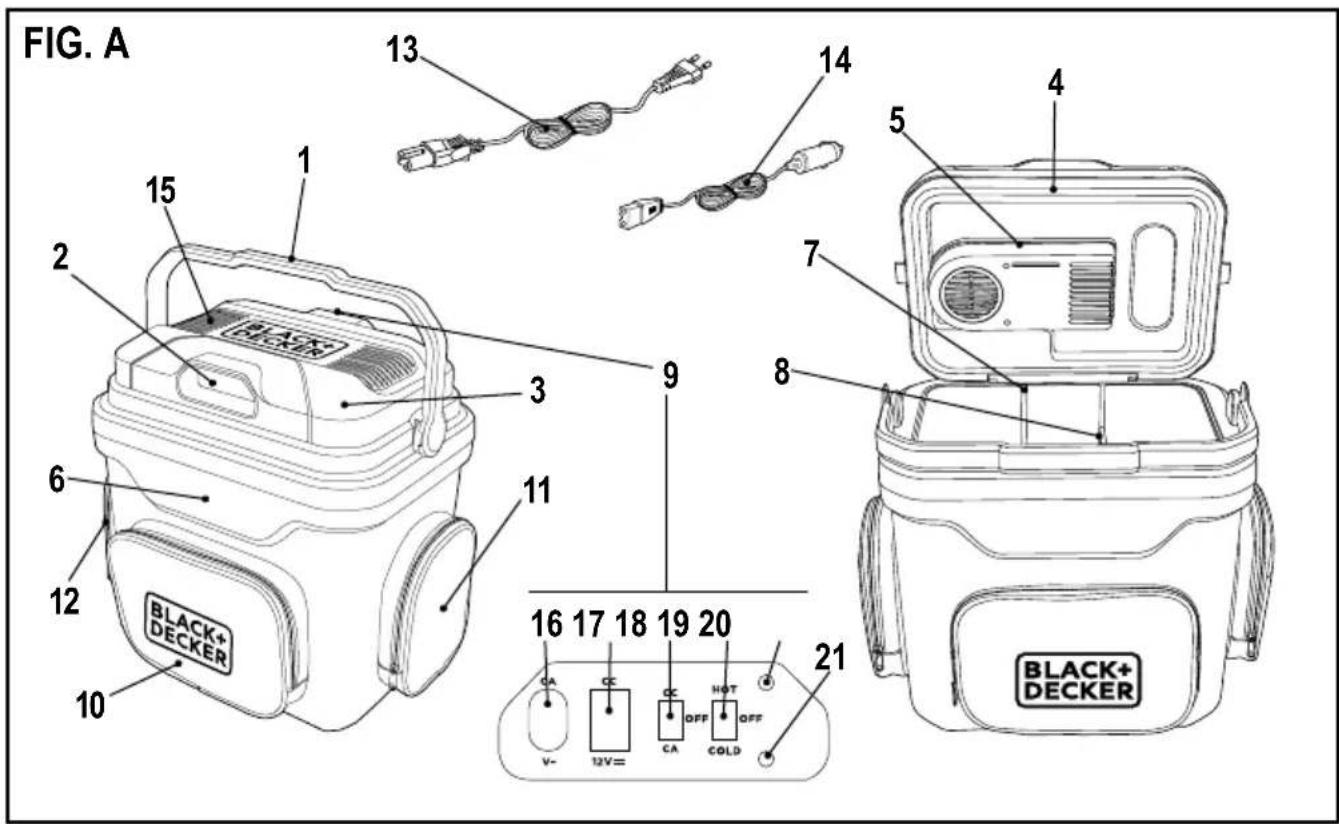

Feature (Fig. A)

1. Handle

2. Handle grip

3. Outer lid

4. Inner lid

5. Internal fan

6. Main body

7. Inside case

8. Extra tray

9. Control Panel

10. Front soft bag

11. Side small bag

12. Side small bag

13. AC power cord

14. 12V power cord

15. Ventilator

16. AC socket

17. DC socket

18. AC/DC switch

19. Hot/Cold switch

20. Red LED indicating Hot

21. Green LED indicating Cold

Attention

- This appliance is not intended for use by persons (including childrens) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Please ensure the 12V plug is disconnected from the DC socket after the engine is turned off.

- Please unplug the 12V plug from the DC socket when the cooler is not in use.

ENGLISH

(Original instructions)

• Prevent any obstructions to the fan. If the fan becomes blocked, it can overheat and cause fire. Avoid covering with towels or cloths.
• Please ensure the sockets of the cords are inserted firmly. A loose fitting can result in the cord and sockets over-heating and failing.
• Keep the appliance away from flammable items and dampness to prevent any electrical failure and fire.
• Avoid direct sunlight.
• Do not wash the unit with water directly.
• Do not disassemble the appliance.
• Do not switch the setting from cool to warm immediately, Change between the settings only after the cooler has been OFF 30 minutes.
• Do not rinse your cooler in water.
• Avoid turning the cooler upside down.
• Avoid dropping your cooler.
• The appliance shall not be exposed to rain.
• Children or adult are not allowed to site on the unit. The unit is not intended for use by children under 8 years old without supervision. Children should be supervised to ensure that they do not play with the appliance.
• Do not wipe the unit with alcohol or abrasive detergents to avoid sicoloration.
• The unit should be keep away from strong collision, which may cause damage on unit and destroy the inner electronic parts and circuits.
• Power cord cannot be pressed under heavy. Cannot be used in such conditions as knitting, breakage, otherwise, it may result in electric shock or fire disaster.
• When used in high ambient temperature or humidity, there will be dew drops inside the unit. This is not a malfunction, and please wipe them with dry cloth.
• The unit should have good ventilation.

Do not run the unit in a closed compartment such as car boot.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Note: Please read the operation manual carefully before using and operating the unit. This ensures the best results and maximum safety for the user. Please keep this manual carefully for future reference.

Use

1. Cooling: This cooler and warmer is designed to make food and beverage cool, it can offer you cold food and beverage. The best effect will achieve when you fill your cooler with food and beverage already refrigerated. They will then stay cool and even become cooler still. It will take a period time to cool food or beverage with ambient temperature; of course it will take longer for hot food or hot beverage.
2. Heating: This cooler and warmer is also designed to make food and beverage warm, it can offer you warm food and beverage.

Operation

How to connect the power cords

Attention! Slider the Cold/Hot switch to OFF position before putting power cord into power socket.

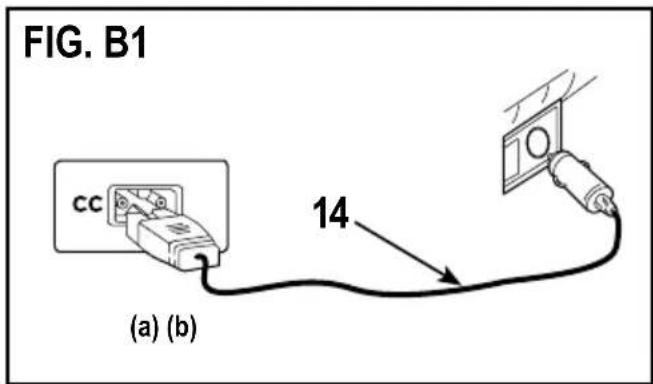

12V Power cord (Fig. B1):

Connect one end of DC power cord into the DC socket of the unit (a), and the other end to the cigarette lighter socket in the car or boat (b).

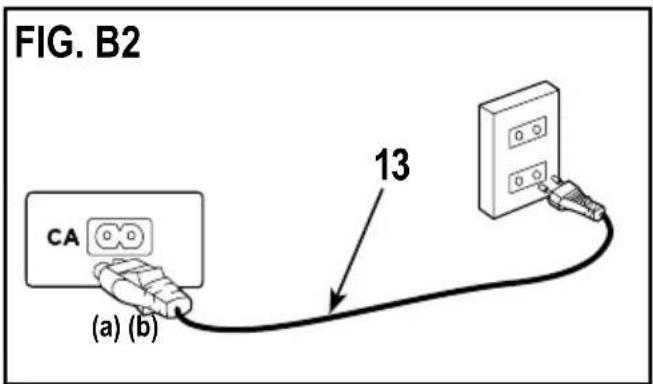

AC Power cord (Fig. B2):

Connect one end of AC power cord into the AC socket of the unit (a), and the other end to the indoor mains (b). Attention! Do not use any other method of connecting your unit to AC current. Fire or shock may occur.

How to use the Cold/Hot switch (Fig. C):

C1 Connect the power cord, the unit start in standby mode. C2 Slide the power switch to COLD position, the unit begins cooling and the indicator light in green color. C3 Slider the power switch to HOT position, the unit begins heating and the indicator light in red color.

Attention! Do not switch immediately from Cold to Hot or Hot to Cold, please stay the switch at OFF position for about 3 minutes before change EMPLOY mode. Otherwise that may influence or damage the inside cooling system.

Maintenance

1. Unplug AC or DC power cord before cleaning unit.
2. Dust or anything else blocking the ventilator will reduce the cooling effect. Vacuum it if necessary. For the dirt on the inlet and outlet of the ventilator, you can clean it by vacuum cleaner or brush.

Attention! Periodically clean dust from the plug. Excessive dust may cause a fire disaster.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

BDC24L

Voltage 220-240V

Frequency 50/60Hz

Power consumption

DC Cold mode: 50W

Hot mode: 49W

AC Cold mode: 39W

Hot mode: 37W

Climate Class T

Volume 24L

Cooling Capacity 18^+/-3^

Below ambient temperature

Heating Capacity 55^+/-10^

AC Power Cord 1.8m

DC Power Cord 2m

Guarantee

BLACK+DECKER is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights.

If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes.
• The product has been subjected to misuse or neglect.
• The product has sustained damage through foreign objects, substances or accidents.
• Repairs have been attempted by persons other than authorised repair agents or BLACK+DECKER service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our aftersales service and contacts are available on the Internet at: www.2helpU.com

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Cooling function does not work.	Loose contact between plug and unit socket.	Plug firmly into unit socket and wall outlet.
	Unit is exposed to direct sunlight.	Place the unit in a shady, cool place with good airflow.
	Ventilator or propeller is blocked.	Clean the ventilator and the propeller.
	The unit is too closed to the wall or an object.	Move the unit away from the wall or other objects.
There is a strange noise or vibration during operation	Unit is malfunctioning	To prevent breakdown, tur the unit off immediately and unplug it from wall outlet. Contact a local repair center.
There is a burning smell or the case is deformed	Unit is overheating	To prevent breakdown, turn the unit off immediately and unplug it from wall outlet. Contact a local repair center.
