USER MANUAL Arctic 7 STEELSERIES

PRODUCT INFORMATION GUIDE

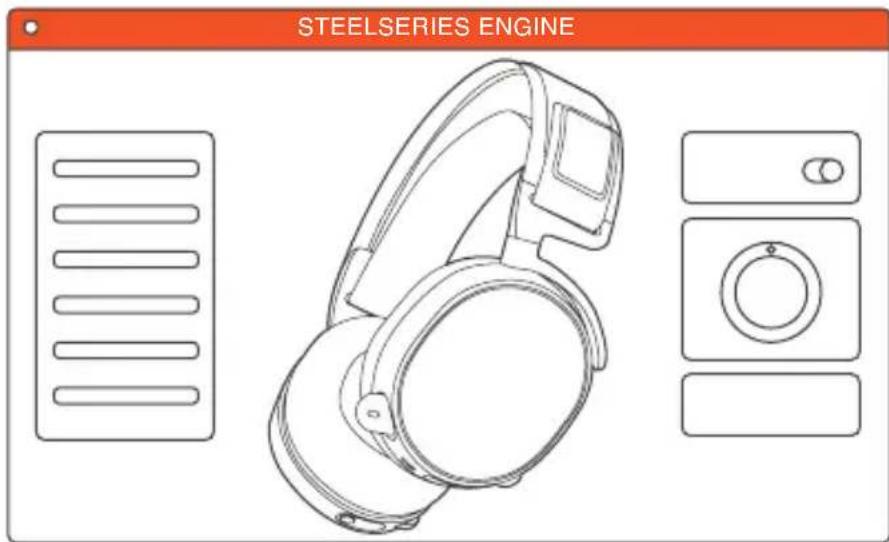

STEELSERIES ENGINE

To enjoy DTS Headphone:X 7.1, and custom audio effects on your new Arctis 7 headset, download SteelSeries Engine at steelseries.com/engine

WELCOME TO ARCTIS.

Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into making your new Arctis, giving it the best gaming mic available, 7.1 surround sound and comfort and style unlike anything you've experienced before.

a.

PACKAGE CONTENTS

Product Information Guide

Arctis Card

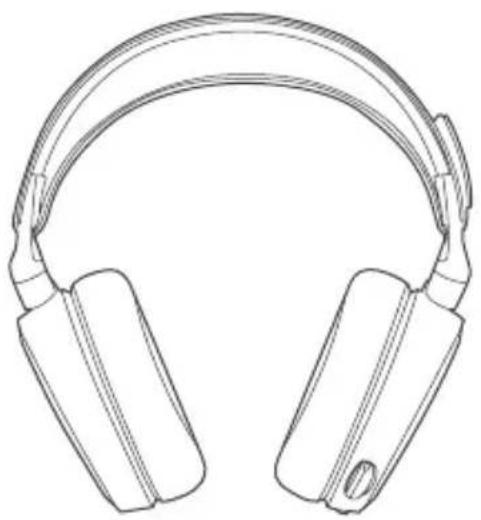

Headset

Wireless Transmitter

Mobile / Console Cable

Micro-USB Charging Cable

SOFTWARE REQUIREMENTS

Platforms:

Windows 7 - Windows 10

120 MB of free hard drive space

for installation

SYSTEMCOMPATIBILITY

PC/MAC/MOBILE/

PS4/XBOX ONE/VR

DTS Headphone: X 7.1 is available

for Windows 7-10 only. Software

installation required

CONTENTS

SteelSeries Engine 1
Welcome 2
a. Info and Table of Contents 3-4
b. Product Overview 5-6
Setup 7
c. Charging 8
d. Power on/off 9
e. Pairing 10
f. Line in / Line out 11
g. Microphone 12
h. Ski Goggle Headband 13
i. System Setting: Windows 14
j. System Setting: Mac 15

Translations
Espanol 16
简体中文 18
繁體中文 21
日本語 24
27
Deutsch 29
Pycckn 32
Francais 35
Italiano 38
Portugues 41

Regulatory

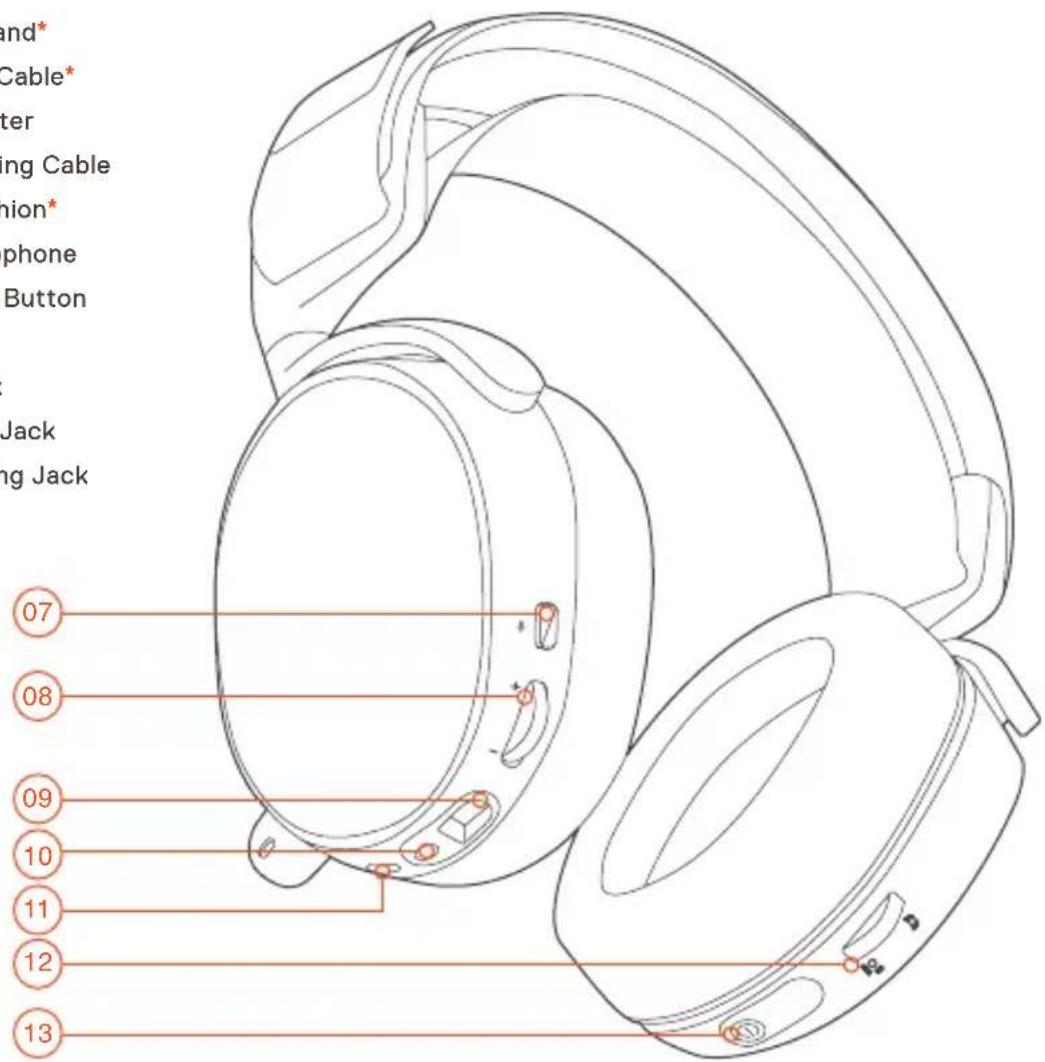

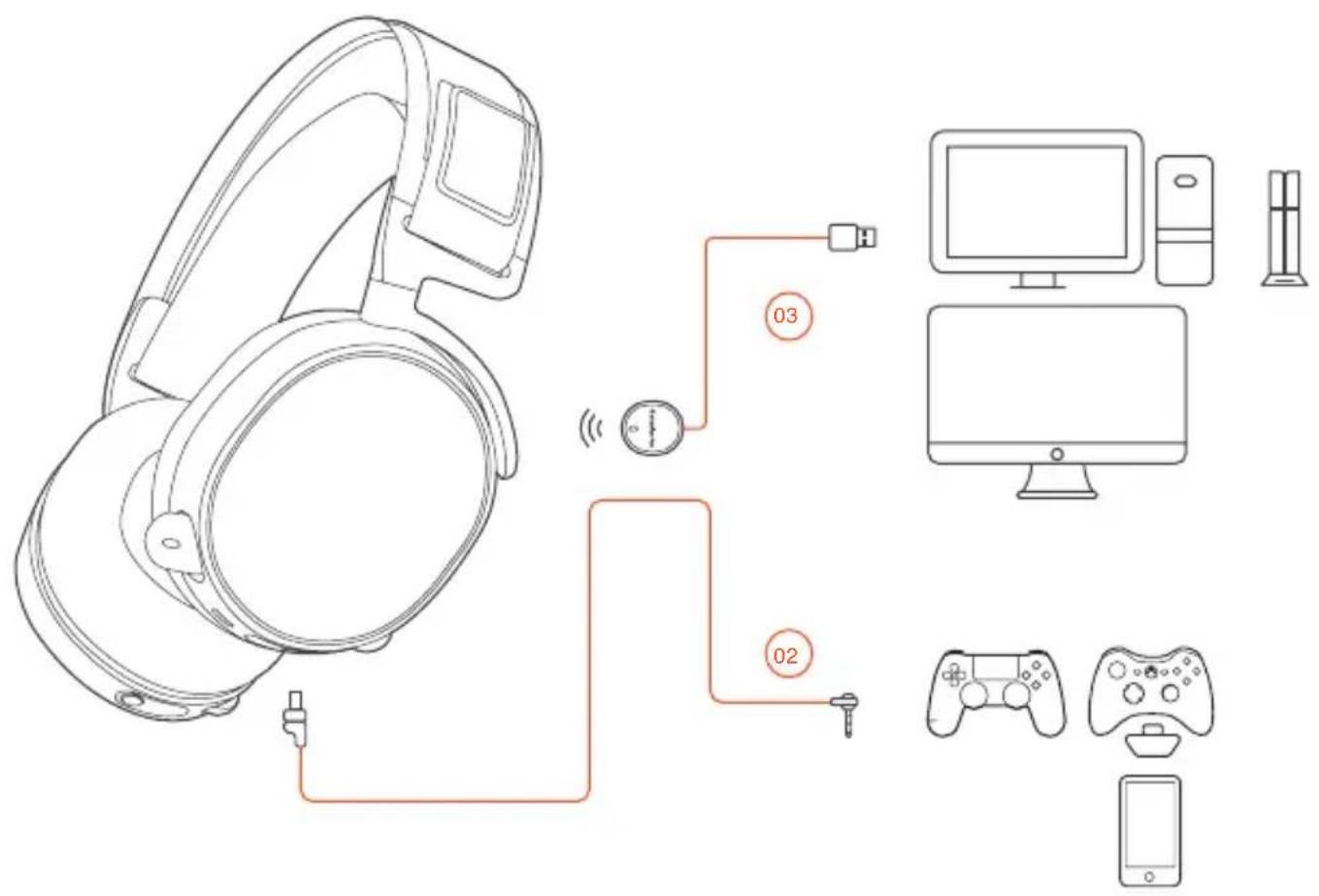

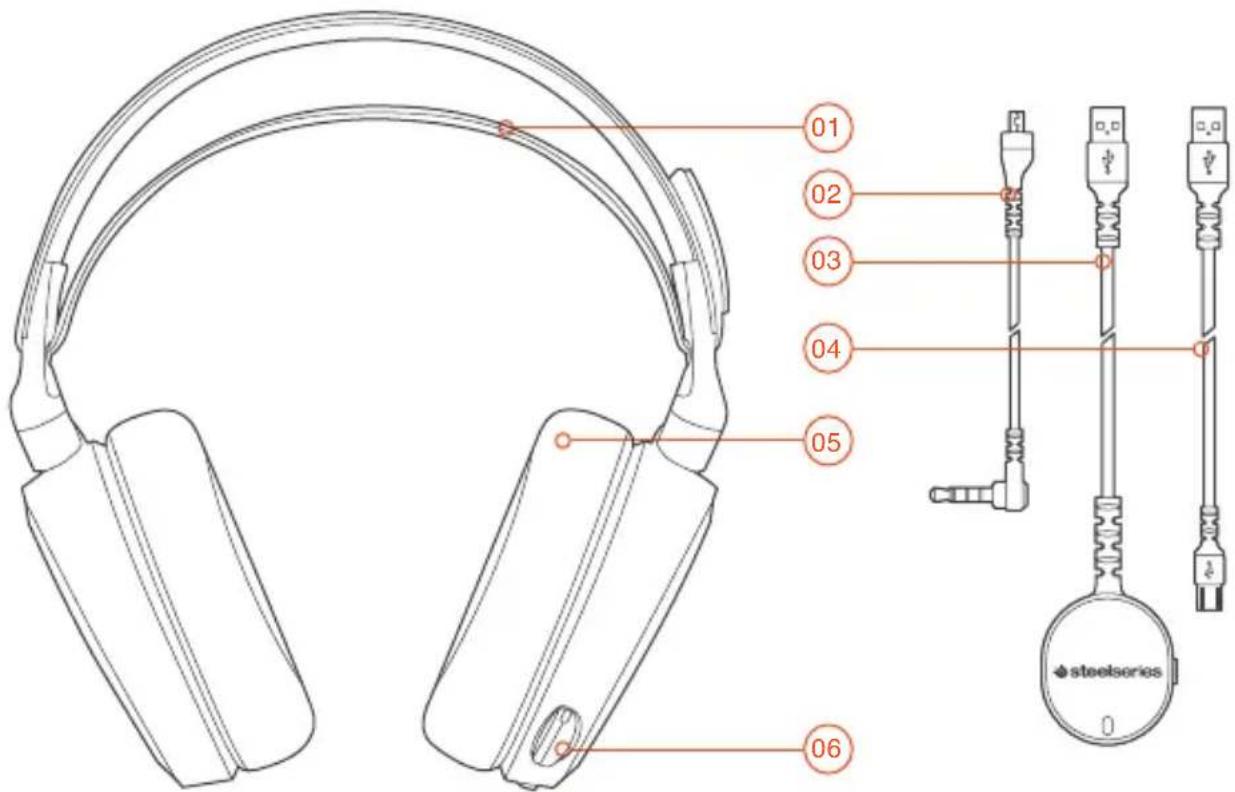

b. PRODUCT OVERVIEW

*selected accessories available at steelseries.com

01 Ski Goggle Headband
02 Mobile / Console Cable
03 Wireless Transmitter
04 Micro-USB Charging Cable
05 Airweave Ear Cushion*
06 Retractable Microphone
07 Microphone Mute Button
08 Volume Control
09 Mobile Cable Jack
10 Headphone Share Jack
11 Micro-USB Charging Jack
12 ChatMix Dial
13 Power Button

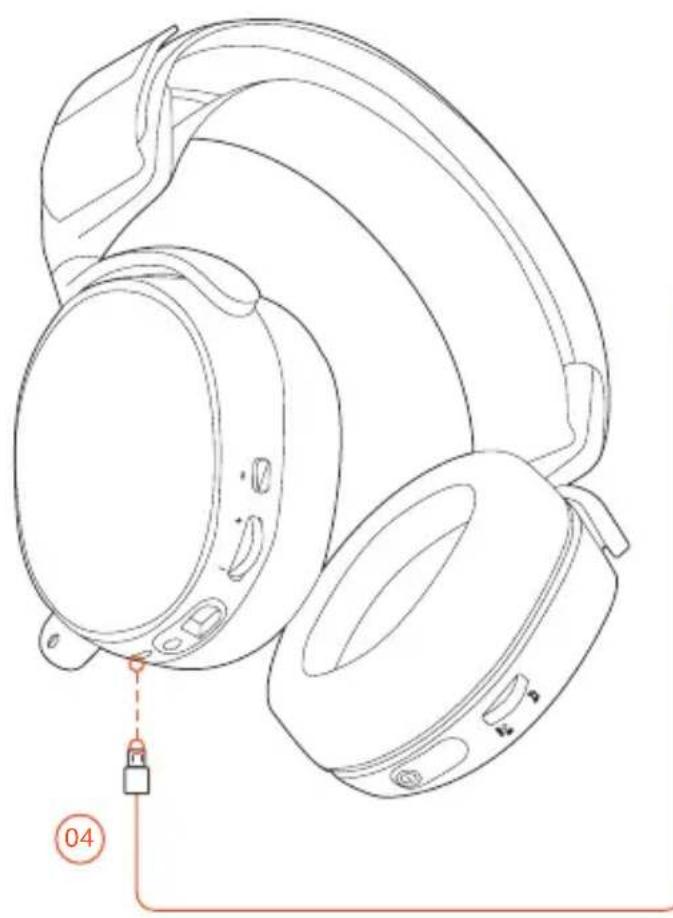

C. CHARGING

To charge the headset connect the micro-USB cable to the charging port on the headset, and plug the other end into any USB power source.

The color of the power button indicates the battery level.

Green = 100 - 50%

Yellow = 49-20%

Red = 19-10%

Red (fast blink) = 9-1%

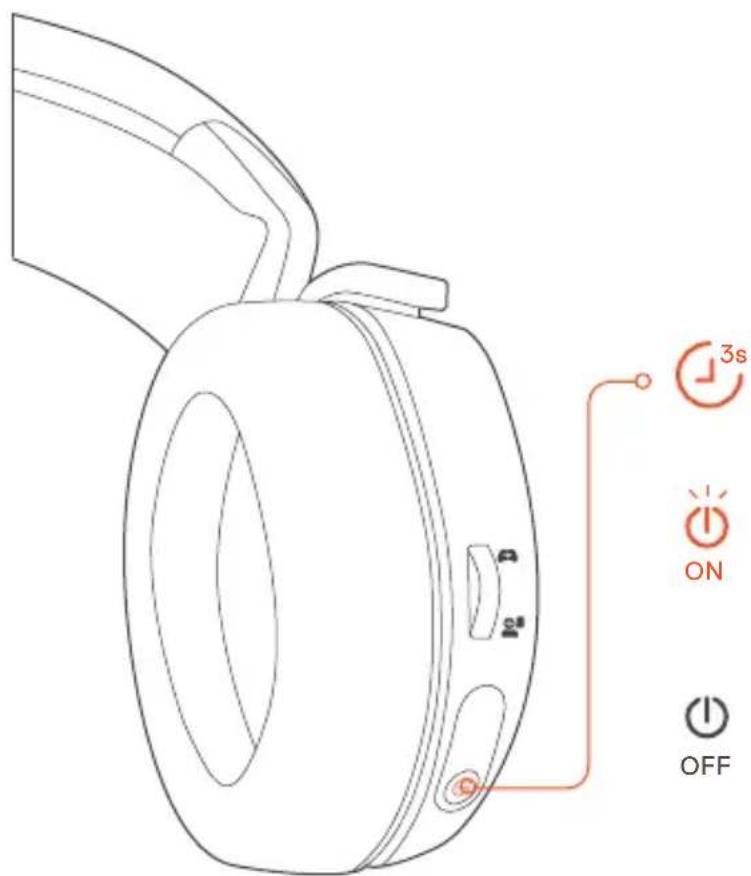

d. POWER ON / OFF

find help at support.steelseries.com

To power on the headset press and hold the power button for at least 3 seconds. You will hear a tone, and the power button will illuminate.

To power off the headset press and hold the power button for at least 3 seconds

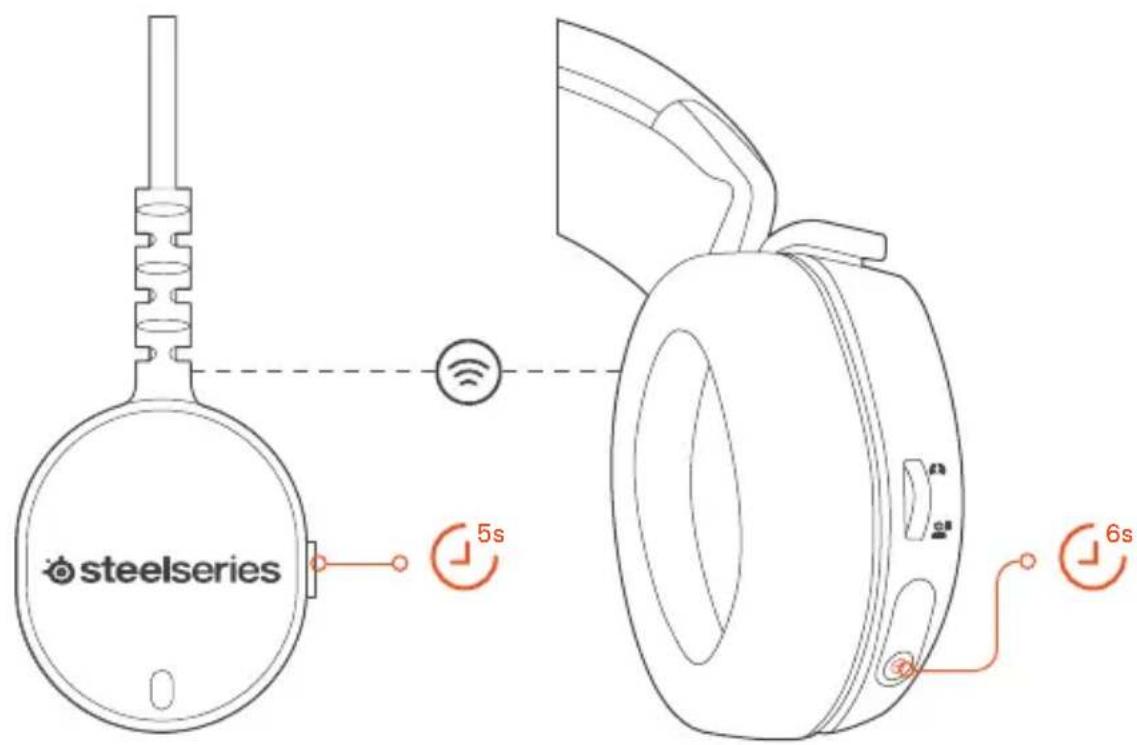

PAIRING

The headset is already paired to the transmitter when it arrives.

e-1 e-2

Press and hold the transmitter pairing button for 5 seconds until the LED begins blinking rapidly

With the headset off, press and hold the power button for 6 seconds.

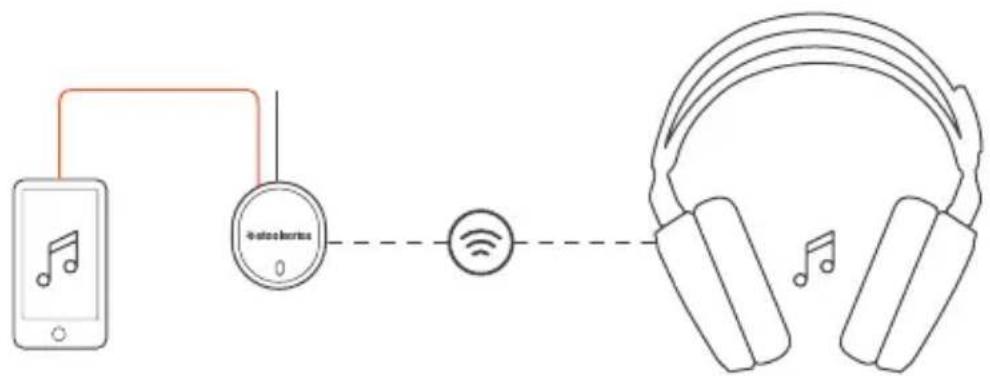

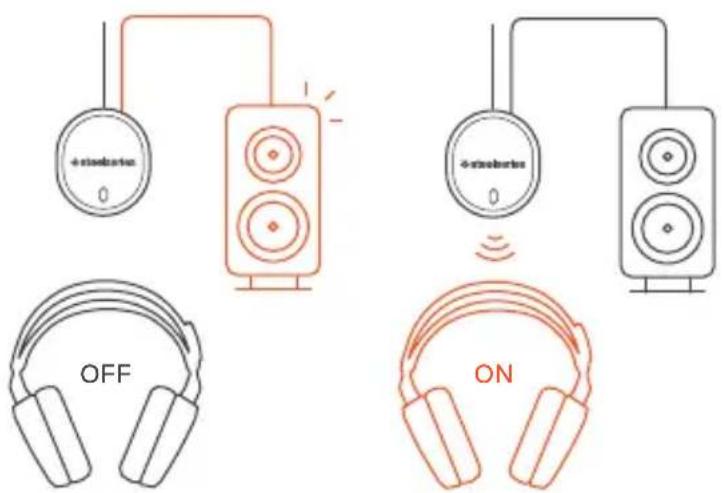

LINE IN / LINE OUT

find help at support.steelseries.com

LINE IN

LINE OUT

When headset is off, audio can be sent to speakers via Line Out. When headset is powered on Line Out is automatically muted.

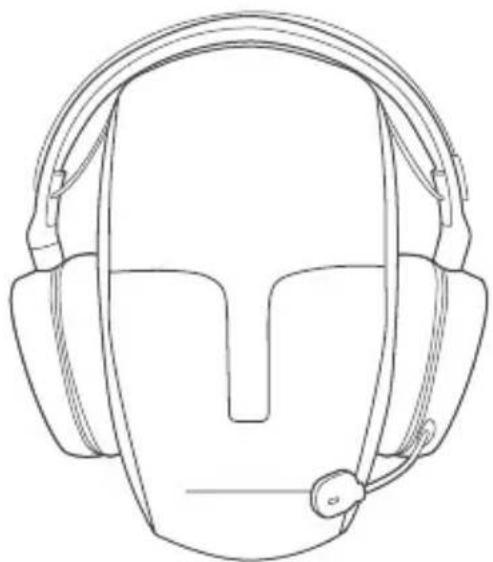

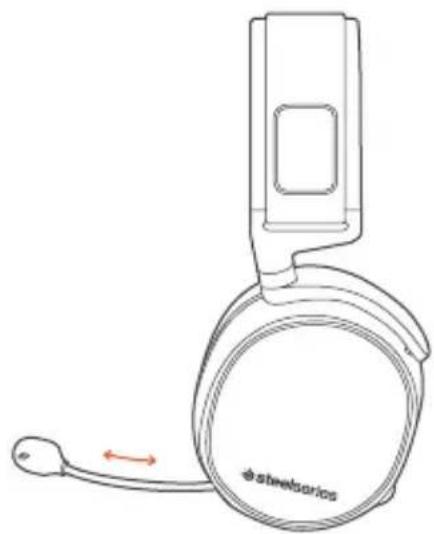

9. MICROPHONE

Retractable microphone

Positioning

top view

front view

Position the microphone close to the corner of your mouth with the flat surface facing you

accessory headbands available at steelseries.com

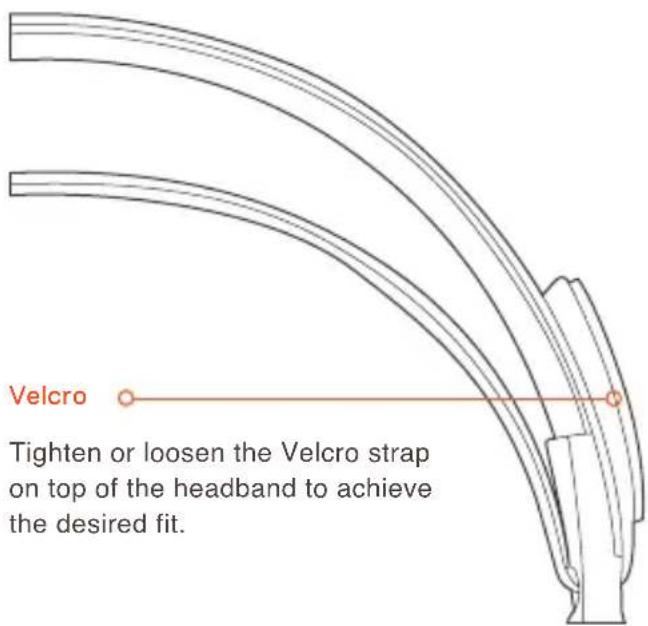

Install

Direction of headband installation.

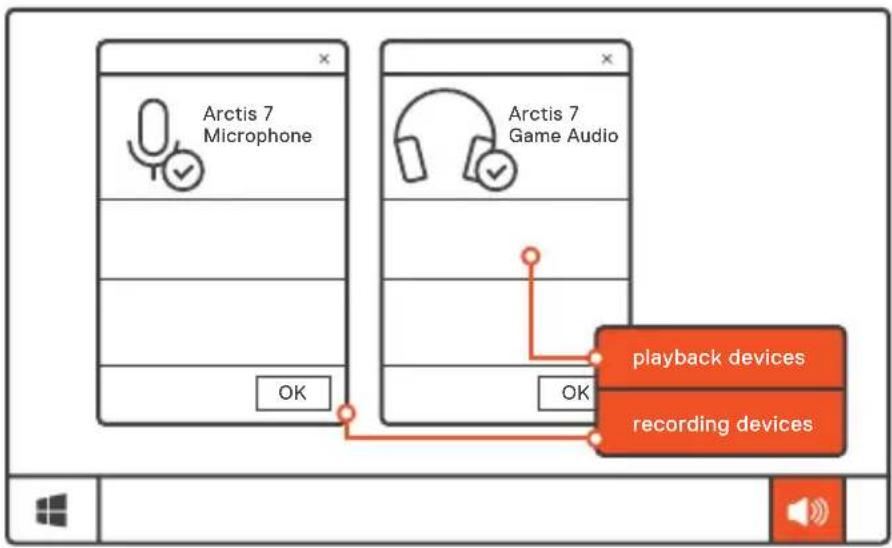

SYSTEM SETTING:WINDOWS

01 Go to Sound Settings
02 Under 'Playback' highlight Arctis 7 Game Audio and select 'Set Default'
03 Under 'Recording' highlight Arctis 7 Microphone and select Set Default
04 In your VoIP (chat) application select Arctis 7 Chat Audio as the default audio device

SYSTEM SETTING: MAC

find help at support.steelseries.com

01 Go to System Preferences > Sound
02 Under 'Output' select Arctis 7 Game Audio
03 Under 'Input' select Arctis 7 Microphone
04 In your VoIP (chat) application select Arctis 7 Chat Audio as the default audio device

ESPÁNOL

a. Contenso Del Paquete

steelseries.com/engine

support.steelseries.com

简体中文

a. 包装内含

产品信息指南 无线发射器

Arctis卡 手机/手柄控制线

耳机 Micro-USB充电线

适用平台

Windows 7 - Windows 10

Mac OS X 10.8 - 10.11

安装需要120MB磁盘空间

系统兼容性

PC/MAC/手机/

PS4/XBOX ONE/VR

SteelSeries7.1环绕音效只兼容

Windows7-10。需要安装软件。

访问 steelseries.com/engine 下载

b. 产品概览

SteelSeries7.1sulwnt

DTS Headphone: X 7.1 Windows

7-10.7-10

责任编辑

steelseries.com/engine

對此，您應該首先先看看它是否會出現。

b. 译音

01 小川圭がド連広

02 麻布片 / 凯洛·贝尼蒂

03 服务器安全

04 Micro-USB 馆庭 KeiI

05 Airweave 1epe

06 请在上面的方格内填上数字。

07 马氏克隆多夫贝特

08 覆蓋式

09.罗马日制

10 哉德邦官网

11 Micro-USB 首页

12 ChatMix daIeIe

support.steelseries.com

FRANÇAIS

Europe - EU Declaration of Conformity

Products with CE marking complies with the R&TTE Directive (99/5/EC) and R.E.D (2014/53/EU), the EMC Directive (2004/108/EC; 2014/30/EU), and the Low Voltage Directive(2006/95/EC; 2014/35/EU) issued by the Commission of the European Community.

EN60950-1

Safety of Information Technology Equipment

EN62311

Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz)

EN 300 328 (For 802.11b/g/n)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum

modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN301489-17

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility

(EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance WLAN equipment

EN301489-1

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility

(EMC) standard for radio equipment and services; Part 1: Common technical requirements

The product is EEE product and contained in the Li-Ion Battery Cell. This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5GHz products are restricted to indoor usage only.

Industry Canada Statement:

This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

Taiwan: For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations "STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOME TOXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS"

Restriction on Hazardous Substances statement (India) This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent, chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

《废弃电器电子产品回收处理管理条例》

Coarse Classification,	Chemical Substance Table
	Pb Hg Cd Cr6+ PBBs PBDEs
Plastic	○	○	○	○	○	○
PCBA Exempted		○	○	○	○	○
Cable	Exempted	○	○	○	○	○
*PCBA consisted of bare printed circuit board, soldering and its surface-mounted elements, such as resistors, capacitors, arrays, connectors, chips, etc. NOTE1: The “○” indicates taht the percentage content of the substance to be calculated is not exceeding the reference percentage content. NOTE2: The “Exempted” item means that the specified chemical substance corresponds to the items exempted by the standard of JIS C 0950.

Environmental conditions for transport and storage:

Temperature: -20 °C to +60 °C

Humidity: 0% to 90% RH

Altitude: 0 - 3000m

I OndTBePckDHeHne COOTBETCTBnA

MHHKOMCBA3NPOCCN;

DeknapauncooBteCTbnaN D-PDL-xxxxOTDD.MM.YYYYrOda, deIcTBnTeNbHa doDD.MM.YYYYrOda,

3apernctpnpobabaBΦepaIbHOM aReHTCTBe CBA3N DD.MM.YYYY roda

Custom Union Compliance. (Russia / Belarus / Kazakhstan)

FCC Compliance. (USA)

Direct Current

To prevent possible hearing damage, do not listen at high volume levels for long periods.

BSMI Compliance. (Taiwan)

ACMA Compliance (Australia/ New-Zealand)

EMC Directives 2014/30/EU and Low Voltage Directives 2014/35/EU Compliance. (European Commission)

Regions	Cocontact Information
Asia	23511 新北市中和區建一路150號16樓	[phone]
USA	656 W Randolph St, Suite 3E Chicago, IL 60661, USA	[phone]
Europe	Dirch Passers Allé 27, 5.Sal 2000 Frederiksberg, Denmark	[phone]

Parts	Substance Name	EC Number CAS Number		Contained (PPM)
LED	Hexahydromethylphthalic	247-094-1 2555	0-51-0	181125
· Please do not open the product and touch LED directly.
