USER MANUAL FA8060 FoneStar

THIS MANUAL CORREPONS TO THE FOLLOWING MODELS:

FA-8060 Wireless Hi-Fi stereo headphones via UHF radio frequency. Composed of a transmitter (FA-8055T) and wireless stereo Hi-Fi receiver headphones (FA-8060R).

FA-8055T Transmitter by UHF radio frequency. For the extension or replacement of FA-8060.

FA-8060R Wireless headphones UHF. For the extension or replacement of sets FA-8060.

DESCRIPTION

Wireless headphones via UHF radio frequency. The model FA-8060 is characterized by the headphones fitting firmly on the head allowing freedom of movement.

The transmitter FA-8055T is equipped with an audio stereo input and 3 selectable transmission channels (863.5, 864 and 864.5 MHz).

They allow total mobility and comfort, with maximum transmission distance in favourable conditions.

Several wireless Hi-Fi stereo headphones can be used (FA-8060R) with the same transmitter (FA-8055T) and up to 3 transmitters (FA-8055T) simultaneously (one in each transmission channel).

CONTROLS AND FUNCTIONS

TRANSMITTER (mod. FA-8055T)

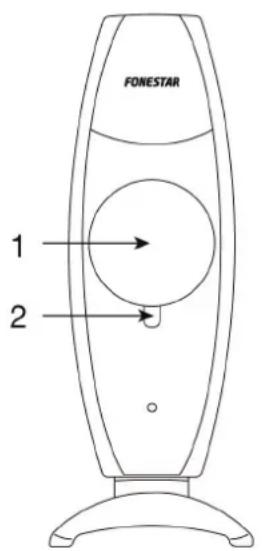

1. LED audio level indicators. Show the audio signal level going into the transmitter coming from the audio source.
   2.- LED power indicator. It lights up automatically when an audio signal goes into the transmitter. It switches off automatically after 3 minutes without receiving a signal.

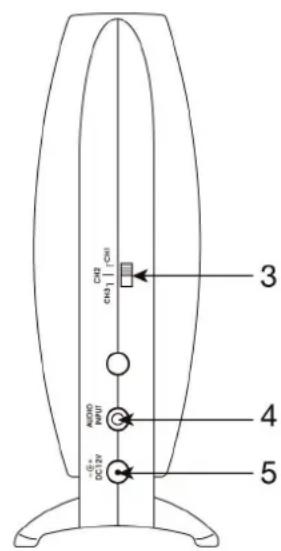

   3.- CH1/CH2/CH3: UHF radio frequency transmission channel switch. 3 available channels: 863.5, 864 and 864.5 MHz.
2. • AUDIO INPUT: stereo audio input, 3.5 mm jack stereo connector for connection to a CD player, Hi-Fi system, etc.
     5.- DC 12 V: 12 V DC power supply input, for the mains adapter provided.

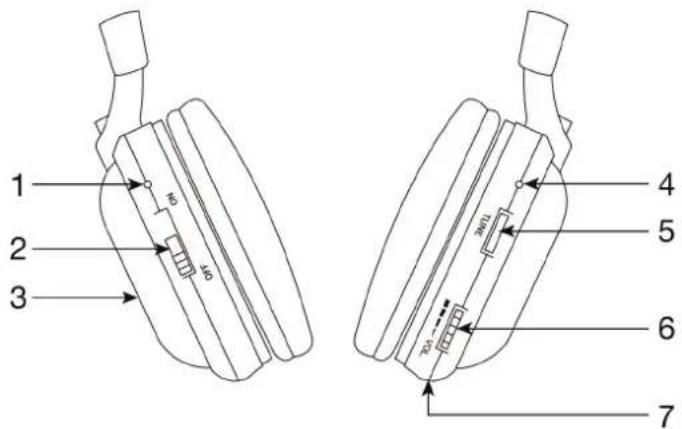

1.- LED power indicator. Remains lit if the headphones are in use.
2.- ON/OFF: headphone on/off switch.
3. Battery compartment, uses two alkaline or rechargeable 1.5 V batteries type LR03-AAA. When inserting the batteries, make sure that the polarity is correct.
4.- LED signal reception indicator: it lights up when a signal is received coming from the transmitter.
5.- TUNE: press this button to automatically tune the transmission channel.
6.- VOL: .volume control. Increases or decreases the audio level.
7.- Audio input, 3.5mm stereo jack connector to use as wired headphone.

CONNECTION

• Connect the audio source stereo audio output signal to the transmitter's AUDIO INPUT with the corresponding cable.
• Power the transmitter with the mains adapter provided.
• Insert two alkaline or rechargeable 1.5 V batteries type LR03-AAA in the Hi-Fi stereo headphone receiver, making sure that the polarity is correct.

INSTRUCTIONS FOR USE

1.- Make the transmitter connections according to the Connection section.
2.- The transmitter will switch on automatically when the audio signal is received, activating the LED power indicator

Note: if it does not receive an audio signal, the transmitter will automatically switch itself off after 3 minutes

3.- Switch on the headphone receiver by placing the power switch in the ON position. The headphone LED power indicator will light up.
4.- Press the TUNE button to automatically tune the transmission channel.
5.- In the event that no clear or strong signal is received or a signal with interference is received, change the transmission channel with the transmitter's CH1/CH2/CH3 switch. Then repeat step 4 to tune the new transmission channel.
6.- Adjust the volume of the signal received until an adequate level is reached using the headphone VOL control.

	FA-8060
CHARACTERISTICS Wireless stereo Hi-Fi headphone system via UHF radio frequency. Transmitter with audio stereo input and 3 selectable transmission channels. Allows freedom of movement and comfort when listening, even through walls and ceilings. 100m maximum transmission distance in perfect conditions. 3 transmitters can be used simultaneously with 3 different programs selectable from the headphones. Several receiver headphones can be used with the same transmitter.
TRANSMITTER Transmission: via UHF radio frequency Modulation: FM stereo Power < 10 mW Input: audio, 3.5 mm stereo jack Channel selector (3 selectable channels): 863.5, 864 and 864.5 MHz LED indicators: power and audio signal level Power supply: 12 V DC, 150 mA with adapter included
HEADPHONE RECEIVER Response: 30-20,000 Hz Input: 3.5 mm stereo jack to use as a cabled headphone Power switch: on/off Controls: volume and automatic tuning for 3 channels: 863.5, 864 and 864.5 MHz LED indicators: power on/off and signal reception Power supply: 2 x 1.5 V LR03-AAA type batteries
ACCESSORIES 1 3.5 mm stereo jack cable to 3.5 mm stereo jack and 2 x RCA
