USER MANUAL SL-400V FoneStar

We take this opportunity to thank you for buying this product.

We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference.

SECURITY AND THE ENVIRONMENT

ELECTRICAL SECURITY

Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the cable.

Always do this with dry hands.

Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.

Clean dust and dirt off the power supply cable regularly.

Do not open the machine; you could get an electric shock.

CAUTION

While installing the machine, make sure it is switched off and unplugged.

Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.

The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.

Do not place anything inside the machine.

LOCATION

Place the equipment on a horizontal surface with enough space around it to allow ventilation.

Avoid direct sunlight, heat sources and excessive dust.

Do not place the machine near magnetic fields or static electricity.

Do not use surfaces which vibrate or receive impact.

Do not pile machines on top of one another.

VENTILATION

Never block or cover the ventilation slits on the machine.

Do not expose it to direct sunlight or place it near sources of heat.

PERIODS OF INACTIVITY

When the machine is not going to be used for a long period of time, disconnect it from the mains.

If you are using an adapter, take into account that it will continue using electricity even if the machine is switched off. If it is not going to be used for a long period of time, disconnect it from the mains.

THE ENVIRONMENT

To save energy, switch the machine off when you are not going to use it for a long time. The machine could contain substances that are harmful to the environment or human health. To minimize the effect of these substances the machine must be correctly managed and recycled when you decide to dispose of it.

When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.

If it contains or uses batteries, these must be disposed of separately.

The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase similar equipment, so that the dealer can dispose of it correctly (at no added cost).

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE\*

The symbol formed by the expression “Class 1 laser product” written in a rectangle indicates that visible or invisible laser radiation could be produced. Avoid direct exposure to the laser.

The symbol formed by a ray of lightening inside a triangle shows that the machine has connection terminals or a circuit with areas with a current which could cause an electric shock, even in normal working conditions.

The symbol formed by an exclamation mark in a triangle shows that the instruction manual must be referred to for information on how the machine works and its use.

The symbol formed by one square inside another square shows that the machine has double electrical insulation.

The European Community symbol shows that the machine complies with the current European Union legislation, as well as its transposition to local legislation.

The symbol of a rubbish bin crossed out and over a horizontal line shows that when the product is disposed of it must be done properly, placing it in a special selective electronic and electrical equipment container or through a dealer when purchasing a similar product, at no additional cost. It also shows that the machine was put on the market after 13th August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic recycling, and its Spanish equivalent R.D.208/2005).

In accordance with what is set out in the aforementioned decree, FONESTAR is registered in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI (Registro de establecimientos Industriales), with the entry number 001851.

The symbol RoHS (Restriction of Hazardous Substances) shows that the product has been designed and manufactured restricting the use of certain dangerous material(Directive 2009/95/CE on the restriction of certain dangerous substances in electrical and electronic appliances, and its transferal to the Spanish regulations, R.D. 208/2005).

*It is possible that some of these symbols do not appear on the machine.

EXEMPTION OF LIABILITY

The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

All rights reserved by FONESTAR, S.A.

DESCRIPTION

• 4 line 100 V mono loudspeaker connector with independent volume control and A and B input selector.
• Attenuation with autotransformer.
• Power: 300 W maximum, 150 W RMS per channel.

CONTROLS AND FUNCTIONS FRONT PANEL

1.- Outputs 1-4 volume control: 12-position individual volume control for each loudspeaker line.
2.- ON/OFF: activates and deactivates each of the loudspeaker lines. If the button is pressed the selected line is activated, and if it is not pressed, the selected line is deactivated.
3.- INPUT A-B: allows selection of the amplifier input A or B for each of the loudspeaker lines.

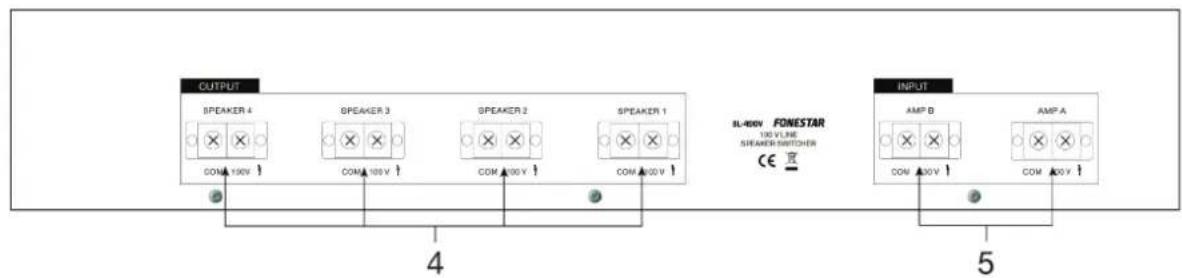

REAR PANEL

4.- SPEAKER 1-4: 100 V line loudspeaker output terminals.
5.- AMP A-B: 100 V line amplifier input terminals.

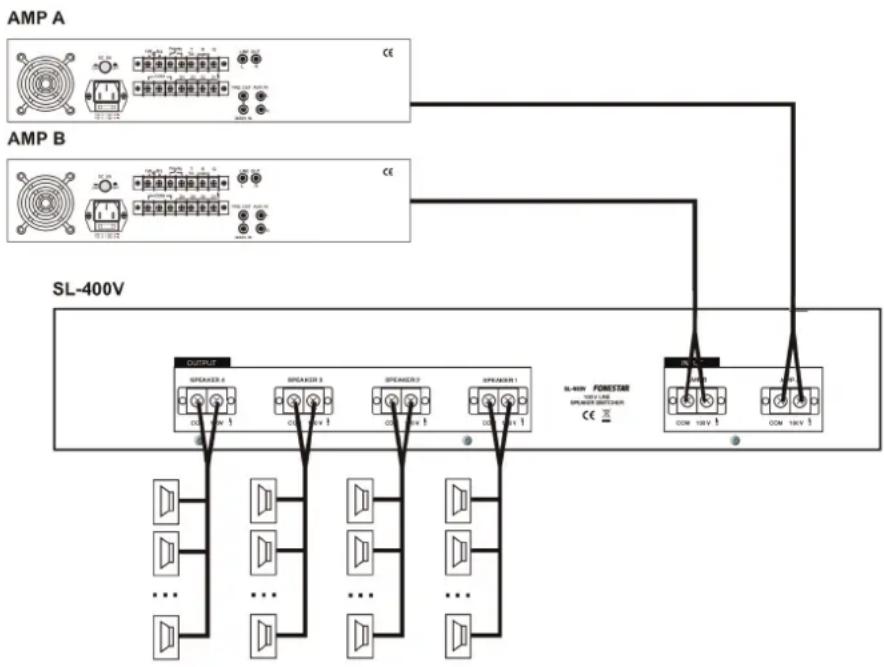

CONNECTION

Make the connections with the amplifier and all the audio system components switched off and disconnected from the mains.

Connect the 100 V line amplifiers to the A and B inputs.

Connect the loudspeakers to the corresponding loudspeaker output in parallel. Additionally, you should take into account that the sum of the power of all the loudspeakers in each line must not exceed the power supplied by that line (150 W RMS).
    subgraph_AMP_A["AMP A"]
        A1["AC 20"] --> A2["AC 18"] --> A3["AC 16"] --> A4["AC 14"] --> A5["AC 12"] --> A6["AC 10"] --> A7["AC 8"] --> A8["AC 6"] --> A9["AC 4"] --> A10["AC 2"] --> A11["AC 0"] --> A12["AC 2"] --> A13["AC 4"] --> A14["AC 6"] --> A15["AC 8"] --> A16["AC 10"] --> A17["AC 12"] --> A18["AC 14"] --> A19["AC 16"] --> A20["AC 18"] --> A21["AC 20"] --> A22["AC 22"] --> A23["AC 24"] --> A24["AC 26"] --> A25["AC 28"] --> A26["AC 30"] --> A27["AC 32"] --> A28["AC 34"] --> A29["AC 36"] --> A30["AC 38"] --> A31["AC 40"] --> A32["AC 42"] --> A33["AC 44"] --> A34["AC 46"] --> A35["AC 48"] --> A36["AC 50"] --> A37["AC 52"] --> A38["AC 54"] --> A39["AC 56"] --> A40["AC 58"] --> A41["AC 60"] --> A42["AC 62"] --> A43["AC 64"] --> A44["AC 66"] --> A45["AC 68"] --> A46["AC 70"] --> A47["AC 72"] --> A48["AC 74"] --> A49["AC 76"] --> A50["AC 78"] --> A51["AC 80"] --> A52["AC 82"] --> A53["AC 84"] --> A54["AC 86"] --> A55["AC 88"] --> A56["AC 90"] --> A57["AC 92"] --> A58["AC 94"] --> A59["AC 96"] --> A60["AC 98"] --> A61["AC 100"]
    end
    subgraph SL-400V
        B1["SPEAKER 1"]
        B2["SPEAKER 2"]
        B3["SPEAKER 3"]
        B4["SPEAKER 4"]
        B5["SPEAKER 5"]
        B6["SPEAKER 6"]
        B7["SPEAKER 7"]
        B8["SPEAKER 8"]
        B9["SPEAKER 9"]
        B10["SPEAKER 10"]
        B11["SPEAKER 11"]
        B12["SPEAKER 12"]
        B13["SPEAKER 13"]
        B14["SPEAKER 14"]
        B15["SPEAKER 15"]
        B16["SPEAKER 16"]
        B17["SPEAKER 17"]
        B18["SPEAKER 18"]
        B19["SPEAKER 19"]
        B20["SPEAKER 20"]
        B21["SPEAKER 21"]
        B22["SPEAKER 22"]
        B23["SPEAKER 23"]
        B24["SPEAKER 24"]
        B25["SPEAKER 25"]
        B26["SPEAKER 26"]
        B27["SPEAKER 27"]
        B28["SPEAKER 28"]
        B29["SPEAKER 29"]
        B30["SPEAKER 30"]
        B31["SPEAKER 31"]
        B32["SPEAKER 32"]
        B33["SPEAKER 33"]
        B34["SPEAKER 34"]
        B35["SPEAKER 35"]
        B36["SPEAKER 36"]
        B37["SPEAKER 37"]
        B38["SPEAKER 38"]
        B39["SPEAKER 39"]
        B40["SPEAKER 40"]
        B41["SPEAKER 41"]
        B42["SPEAKER 42"]
        B43["SPEAKER 43"]
        B44["SPEAKER 44"]
        B45["SPEAKER 45"]
        B46["SPEAKER 46"]
        B47["SPEAKER 47"]
        B48["SPEAKER 48"]
        B49["SPEAKER 49"]
        B50["SPEAKER 50"]
        B51["SPEAKER 51"]
        B52["SPEAKER 52"]
        B53["SPEAKER 53"]
        B54["SPEAKER 54"]
        B55["SPEAKER 55"]
        B56["SPEAKER 56"]
        B57["SPEAKER 57"]
        B58["SPEAKER 58"]
        B59["SPEAKER 59"]
        B60["SPEAKER 60"]
        B61["SPEAKER 61"]
        B62["SPEAKER 62"]
        B63["SPEAKER 63"]
        B64["SPEAKER 64"]
        B65["SPEAKER 65"]
        B66["SPEAKER 66"]
        B67["SPEAKER 67"]
        B68["SPEAKER 68"]
        B69["SPEAKER 69"]
        B70["SPEAKER 70"]
        B71["SPEAKER 71"]
        B72["SPEAKER 72"]
        B73["SPEAKER 73"]
        B74["SPEAKER 74"]
        B75["SPEAKER 75"]
        B76["SPEAKER 76"]
        B77["SPEAKER 77"]
        B78["SPEAKER 78"]
        B79["SPEAKER 79"]
        B80["SPEAKER 80"]
        B81["SPEAKER 81"]
        B82["SPEAKER 82"]
        B83["SPEAKER 83"]
        B84["SPEAKER 84"]
        B85["SPEAKER 85"]
        B86["SPEAKER 86"]
        B87["SPEAKER 87"]
        B88["SPEAKER 88"]
        B89["SPEAKER 89"]
        B90["SPEAKER 90"]
        B91["SPEAKER 91"]
        B92["SPEAKER 92"]
        B93["SPEAKER 93"]
        B94["SPEAKER 94"]
        B95["SPEAKER 95"]
        B96["SPEAKER 96"]
        B97["SPEAKER 97"]
        B98["SPEAKER 98"]
        B99["SPEAKER 99"]
    end
    Note: The diagram shows connections between the four speakers and the corresponding output lines. The labels 'SL-400V FORESTAR' and 'COM SREV' are not part of the diagram.

TECHNICAL SPECIFICATIONS

	SL-400V
CHARACTERISTICS	4-line 100 V mono loudspeaker selector with independent volume control and A or B input selector.Attenuation with autotransformer.Each output can be individually activated/deactivated.
POWER 300 W maximum, 150 W RMS per channel
INPUTS 2 x 100 V line amplifiers
OUTPUTS 4 x 100 V loudspeaker lines
CONTROLS	On/off, A/B input selector and 12-position independent volume control, 42 dB attenuation
DIMENSIONS 432 x 76 x 190 mm depth. 1.7 U 19" rack
ACCESSORIES 19" rack	mounts

WARRANTY

This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law 'La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.

The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being sold with that problem.

This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and purpose of the product.

If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.

To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.

This document adds information, and never decreases the consumers' rights, which in all cases are protected by the Spanish law 'La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre'.
