USER MANUAL Perfect Catch Spin 2402 CRIVIT

Instructions for use

1. The reel foot (1C) must be inserted in the reel

holders (1A) and the screw lock (1B) is fixed in a clockwise direction.

2. Bring the crank (1G) to the desired position

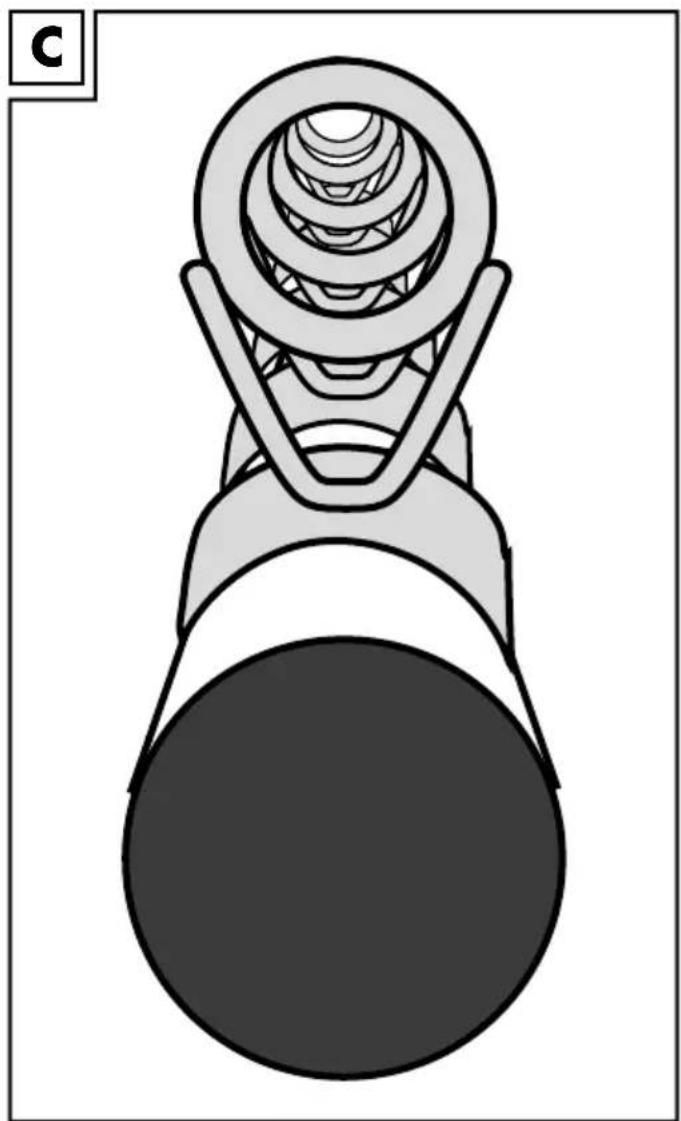

by releasing the opposite crank fixing bolt (1F) in an anti-clockwise direction and then tightening it again once the corresponding position is reached. Insert the individual seg- ments of the fishing rod into one another so that the joints are fixed securely. Make sure that the rings in the individual segments are aligned (see figure C).

3. Release the brake (1H) by turning it anti-

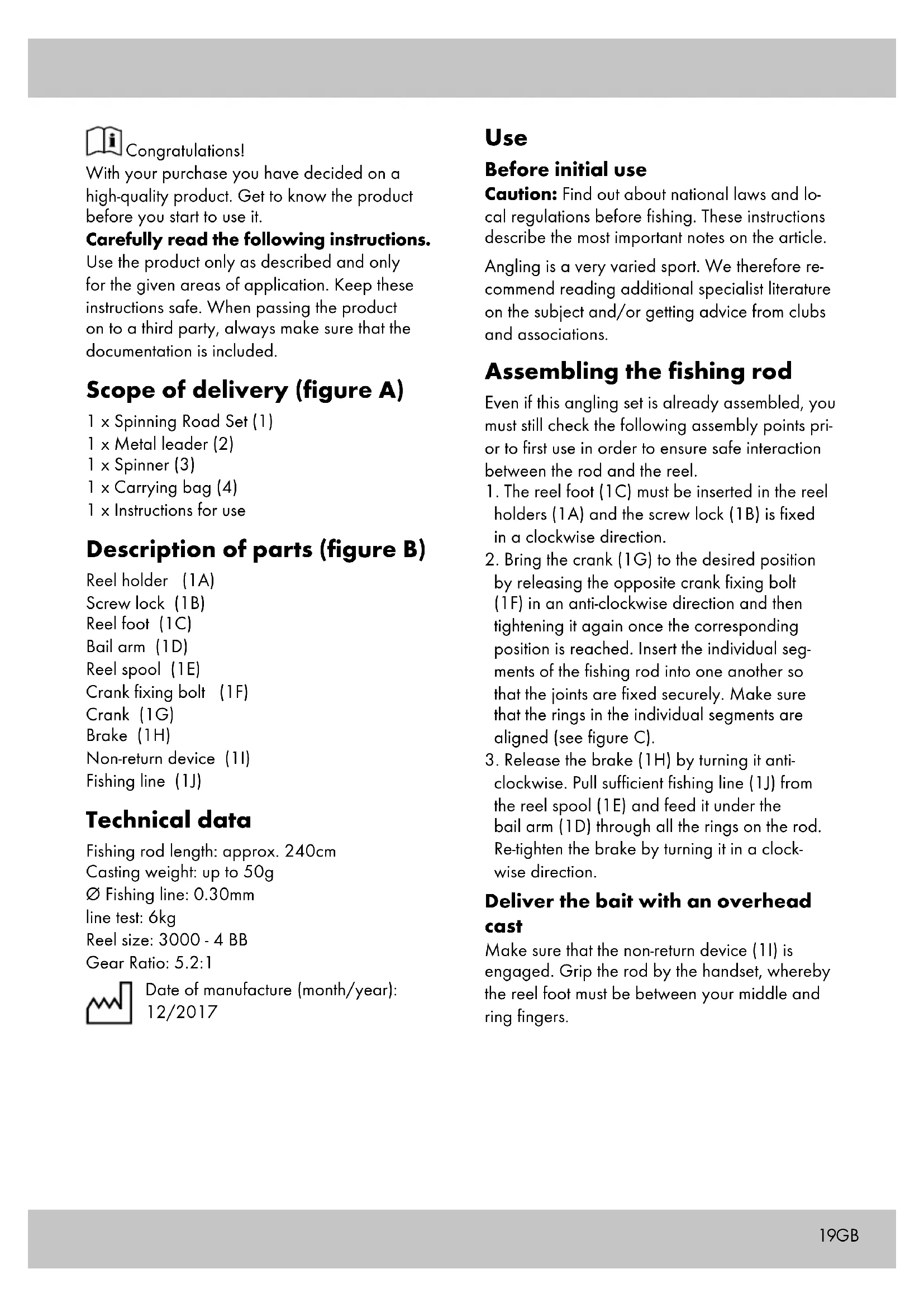

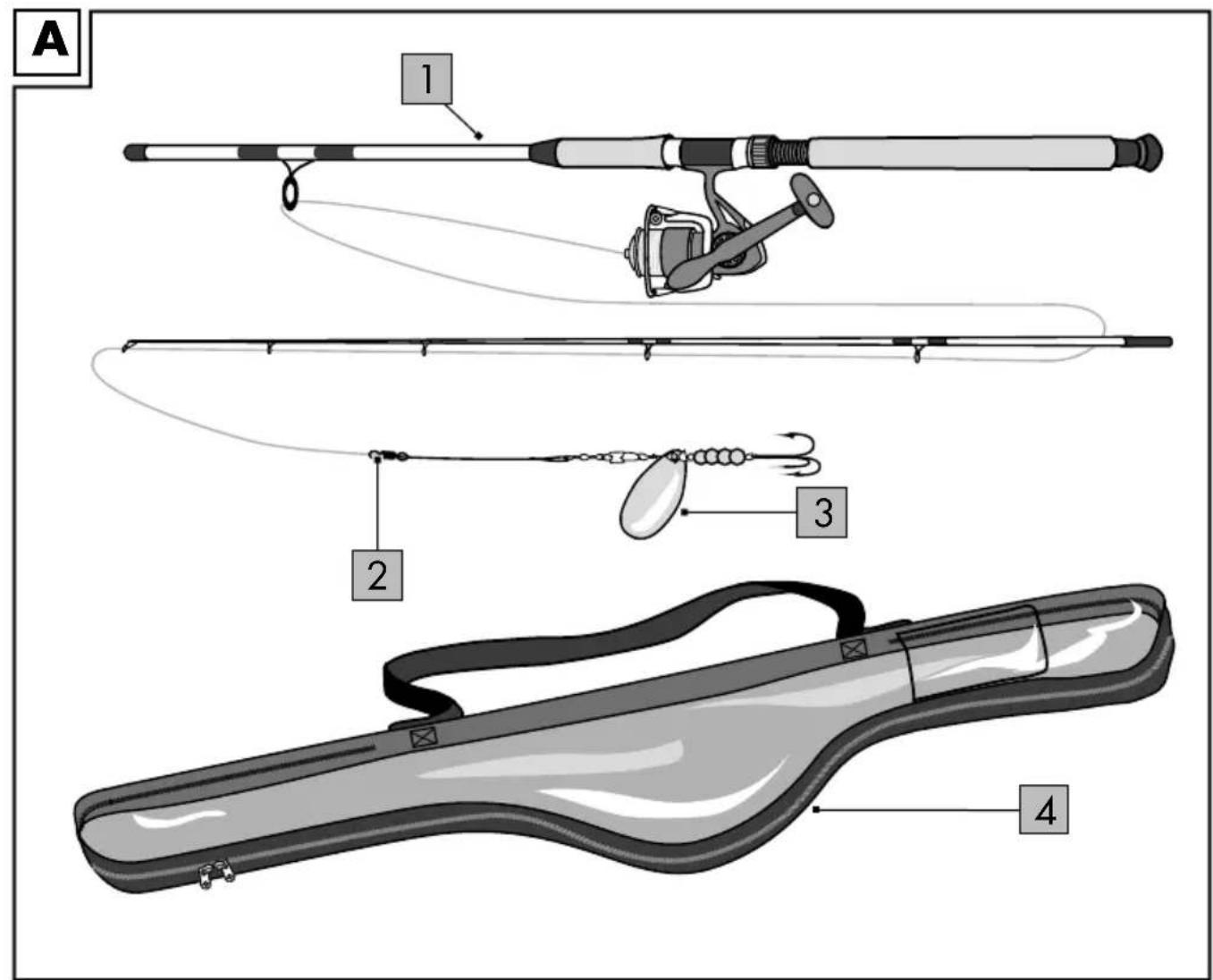

clockwise. Pull sufficient fishing line (1J) from the reel spool (1E) and feed it under the bail arm (1D) through all the rings on the rod. Re-tighten the brake by turning it in a clock- wise direction. Deliver the bait with an overhead cast Make sure that the non-return device (1I) is engaged. Grip the rod by the handset, whereby the reel foot must be between your middle and ring fingers. Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included. Scope of delivery (figure A) 1 x Spinning Road Set (1) 1 x Metal leader (2) 1 x Spinner (3) 1 x Carrying bag (4) 1 x Instructions for use Description of parts (figure B) Reel holder (1A) Screw lock (1B) Reel foot (1C) Bail arm (1D) Reel spool (1E) Crank fixing bolt (1F) Crank (1G) Brake (1H) Non-return device (1I) Fishing line (1J) Technical data Fishing rod length: approx. 240cm Casting weight: up to 50g Ø Fishing line: 0.30mm line test: 6kg Reel size: 3000 - 4 BB Gear Ratio: 5.2:1 Date of manufacture (month/year): 12/201720 Your index finger holds the fishing line while the operating lever is closed and presses it down onto the fishing rod. Open the bail arm and guide the rod backwards past the side of your head: your free hand is holding the grip end of the fishing rod, thus giving additional stability and control. The fishing rod with the bait should no longer swing and the distance between the bait/ground weight and the tip of the rod should be sufficient to produce a harmonious swing. Look at the place in the water you wish to cast to and swing the fishing rod forwards with steadily increasing speed. Your index finger should re- lease the fishing line at the moment when the tip of the fishing rod is pointing to the target point. Close the bail arm when the bait touches the water or it reaches the desired water depth. Correct use / Tips for successful angling The spinning set was developed for moderately heavy spin fishing in lakes, ponds, rivers, and the sea. With a maximum lead weight of 50g it is particularly suited for angling pike and zander in fresh water. But you can also enjoy using this set for spin fishing for cod and sea trout in salt water. The reel is equipped with a monofilament fishing line with a diameter of 0.30mm, and the maximum load capacity has been calculated at 6kg. In practice, however, it has been shown that substantially heavier fish can often be landed safely. The angling set is pre-assembled with a metal leader and a spinner especially for pike fishing. Cast the bait, allow it to sink briefly, and then begin smooth reeling so that the spinner starts rotating thus imitates a prey fish. Always fish in promising areas (so-called ‘hotspots’) of water where the pike can find protection and prey fish. These hotspots are tree trunks or reed belts in the water in spring and autumn, in troughs in flowing water, that are often oval, deep depressions on the bed, created by specific currents, upstream obstacles or the natural course of the river. Even though the spinning rod has very soft bending properties that can withstand violent bites by fish as much as possible, the brake on the reel must be turned slightly to the left on the knob so that you are able to pull line slowly from the spool at moderate tensile force with the bail arm closed. This prevents the bait from tearing off or even the line from breaking during play. Sportsmanlike conduct While enjoying your angling please remain respectful of the fish and of nature. You must observe some important basic rules of angling alongside the national laws and local regulations.

• Bring the necessary fishing accessories with you in order to safely land the fish, gently remove the fishing hook, and throw the fish back, or kill it quickly and in accordance with hunting principles. The particular items of equipment for this are, for many types of angling, a landing net, measuring tape, a stunning device, knife, protection spreader, disgorger, and fishing pliers.

• Do not pull the caught fish above the ground or through the sand on the fishing line as such quickly leads to injury to the sensitive mucous membranes. This is why you must always hold the fish with wet hands.

• Gently return undersized fish and fish that are in the spawning phase.

• Fish that are taken for consumption must be professionally stunned immediately and killed with a knife thrust.

• Even if you have an ‘hour of glory’ at the waterside and the fish are biting well do not be over indulgent and do not take more fish than is really necessary.

• Always leave the fishing location as clean as you would like to find it. GB21GB Safety notes Risk to life! Do not fish near high-voltage power lines. Pay attention to any low overhead lines while fishing and avoid contact. Otherwise there is risk to life through electric shock. Risk to life during storm! Do not fish during storms. If lightning strikes the fishing rod or fishing line it can lead to life-threa- tening injury or even to death. Otherwise there is risk to life through electric shock. Risk of injury! Examine the article for damage before each use. Never use a damaged article. Otherwise safe use is no longer guaranteed. Risk of injury and accident! This article contains sharp hooks that can cause substantial injury to the angler and other persons. You must therefore handle the article with care.

• Pay attention to other anglers and persons and maintain a safe distance. If the line is cast incorrectly then an energetically swung hook represents a certain risk of injury.

• Wear suitable glasses and head protection to protect yourself from injury from the hook.

• Do not carry out repairs yourself. Contact a service office.

• Store the article out of the reach of children.

• Only allow children to use the article with the instruction and supervision of an adult. Use the QR code The angling set in use. Please scan the QR code for a video on deployment and use.

1. Open the QR code app.

2. Hold your mobile/tablet and scan the

displayed QR code. Maintenance and cleaning Rinse the rod and reel briefly with lukewarm water after use in salt water. Once the reel is dry please add one or two drops of oil to all moving parts in order to maintain functionality and lifespan. Storage Always store the product in clean and dry condi- tion at room temperature. Disposal Dispose of the article and the packaging materi- als in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packa- ging materials out of the reach of children. Notes on the guarantee and service handling The product was produced with great care and under constant supervision. You receive a three- year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, espe- cially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory gua- rantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.22 IAN: 292952 Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: deltasport@lidl.co.uk GB23IAN 292952
