USER MANUAL LED24SCP090HDVD SCHNEIDER

utilisation de 4 heures par jour pendant 365 jours. La consommation réelle peut varier en fonction de la durée de fonctionnement et les réglages de contraste ou de luminosité. SCHNEIDERSAV ADMEA / LOGISAV ZI du clos des charmes 26 rue du clos des charmes 77090 COLLEGIEN - FRANCEImportant safety instructions To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside. Use of controls, adjustments, or performance of procedures other than those specified herein may result in dangerous radiation exposure. This product is rated as LASER CLASS 1 PRODUCT. CAUTION: Laser radiation when open - never stare into the laser beam. CAUTION Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product. If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger. The product must be installed in accordance with local laws. Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire). Where to install the product - Place the product on a straight, rigid and stable place. Do not place the product on a carpet. - Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier). - Do not place anything underneath the product (for example, CDs or magazines). Proper ventilation - Place the product in a sufficientlyaerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating. - Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

38Do not expose the product to high temperatures, moisture, water and dust. - The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus. - Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles). - No naked flame sources, such as lighted candles, should be placed on the apparatus. Electric supply - Please unplug the product in case of prolonged non-use. - If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. - This product must be connected to an electrical supply 230V ~ 50Hz. - The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

WARNING Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - Using cabinets or stands recommended by the manufacturer of the television set. - Only using furniture that can safely support the television set. - Ensuring the television set is not overhanging the edge of the supporting furniture. - Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. - Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. - Educating children about the dangers of climbing on furniture to reach the television set or its controls. - In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.User manual x1 Remote control x1 Accessories

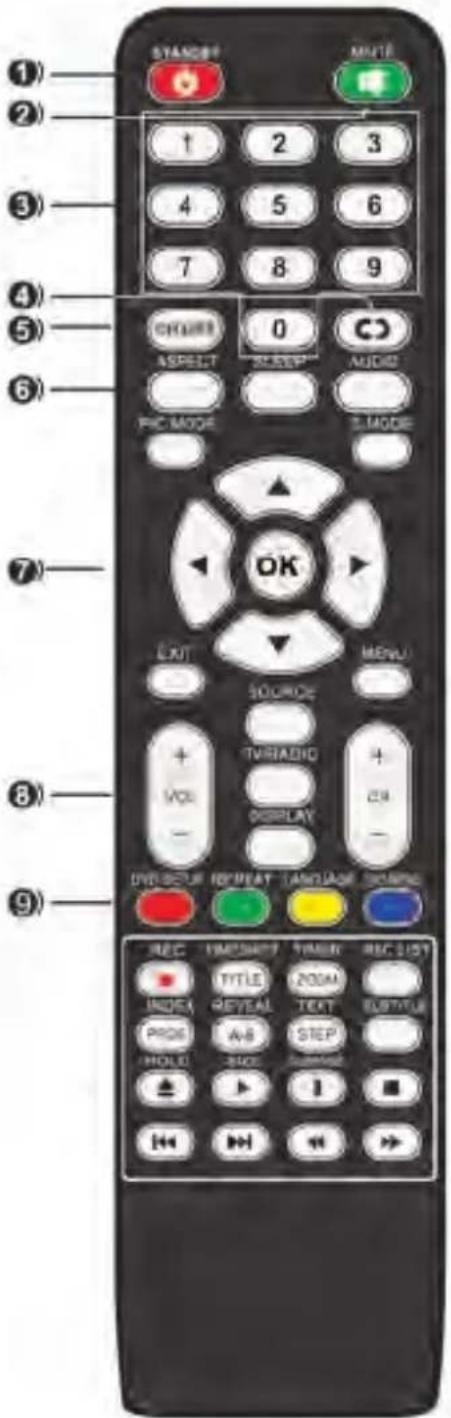

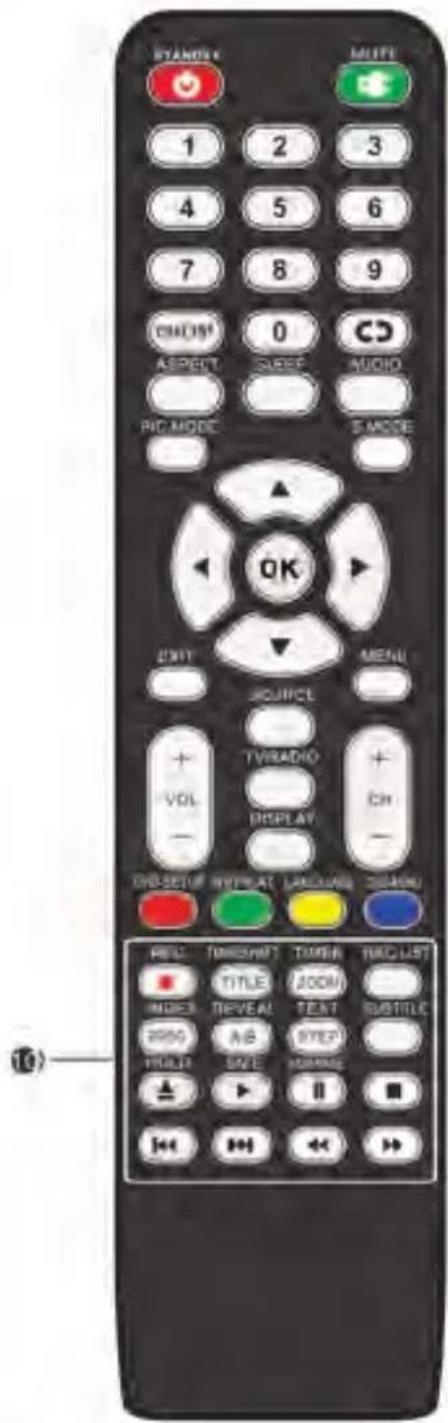

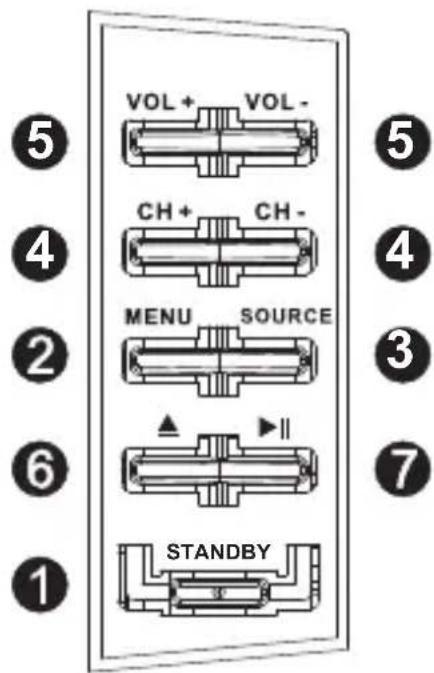

7. Play/Pause button : To start / pause the playing.

Product Introduction Congratulations! Your have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power- saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

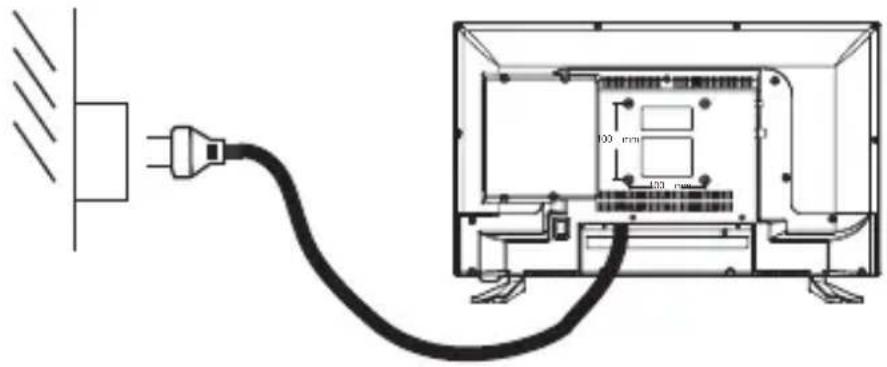

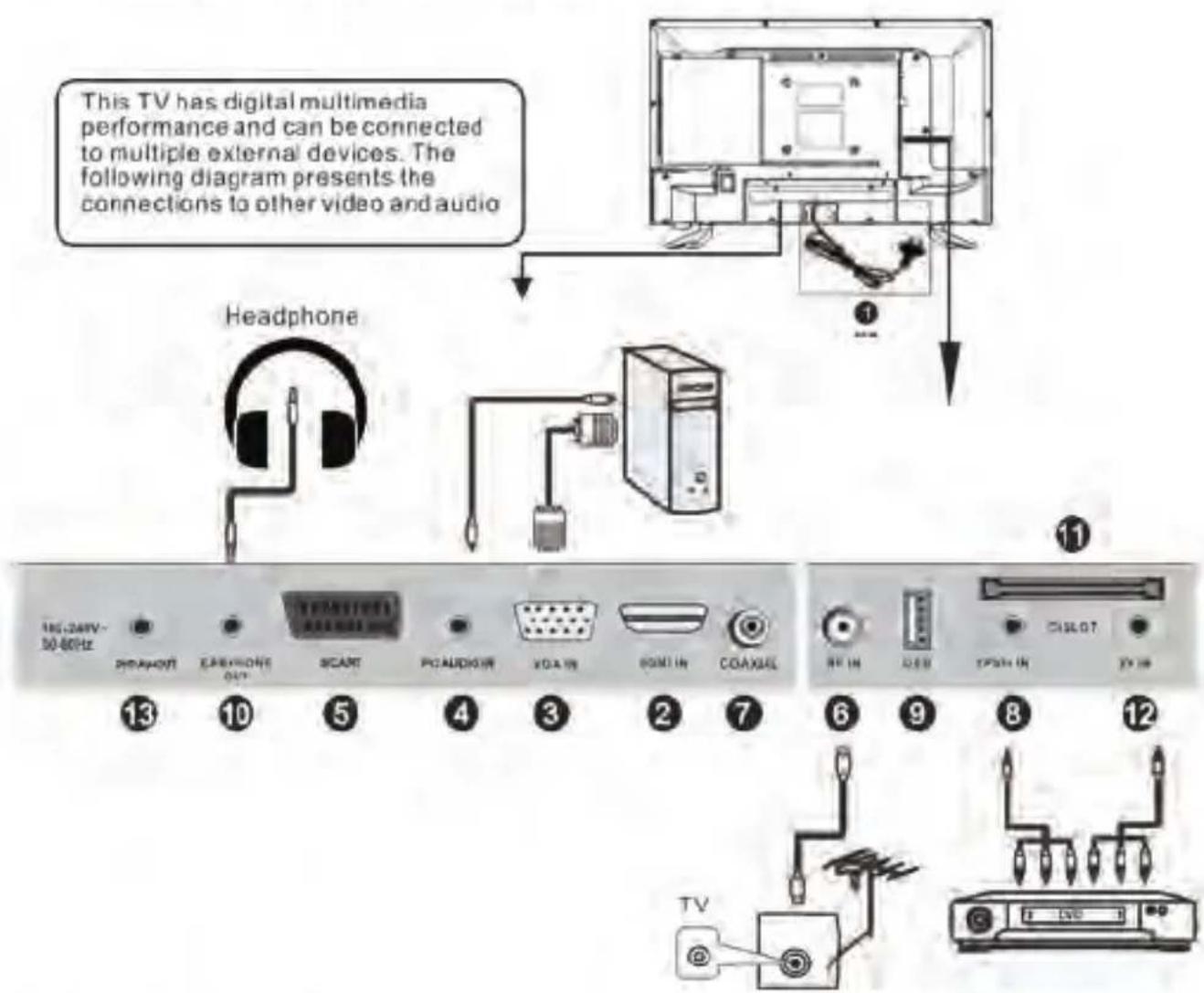

5Connecting to power source 100 mm 100 mm Connecting external antenna to the unit 1.The television is in standby state when no images arise and the red indicating lamp shines.

2. Press the standby button again on the remote control for the television the

indicating lamp becomes green. Cable television We recommend you use a 75Ω antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord. Directly insert the 75Ω antenna cable plug into the antenna socket when applying cable television. Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

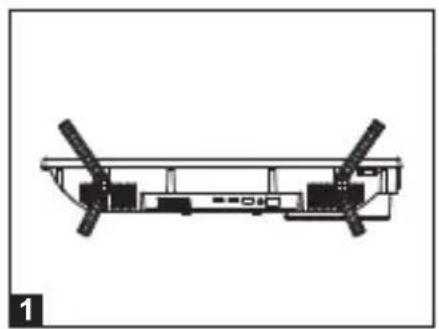

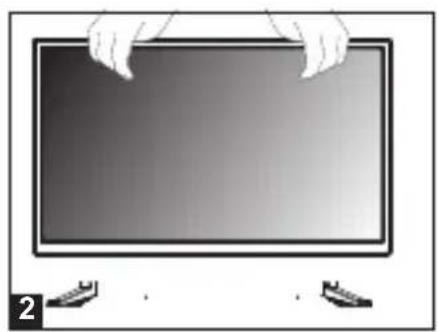

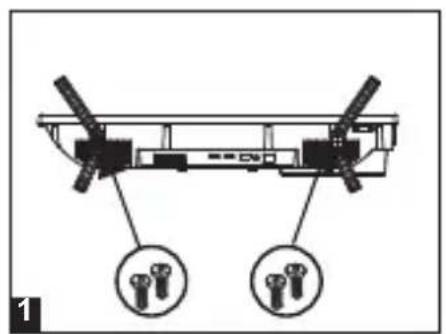

Connecting Cables1. Loose the screws between the machine and stand (Figure 1).

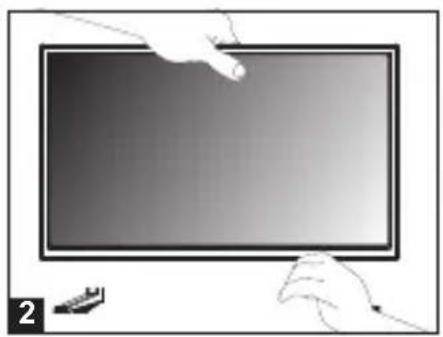

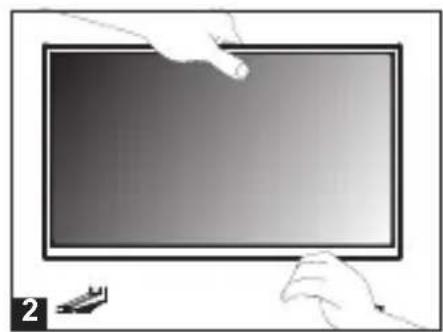

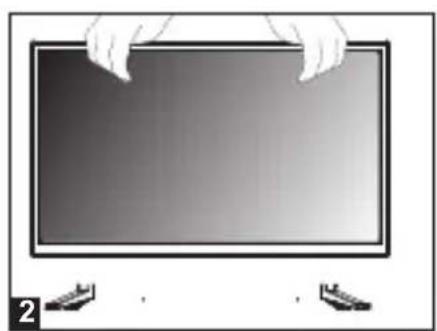

2. Remove the 2 stands from the machine (Figure 2).

1. Place the machine flat on a desktop (Caution: put a foam cushion under the

machine to avoid it from scratching.)

2. Align the screw holes on stand and TV bottom (Figure 2)

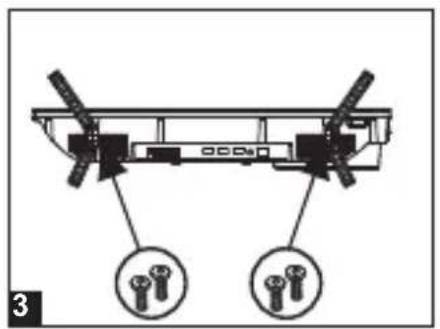

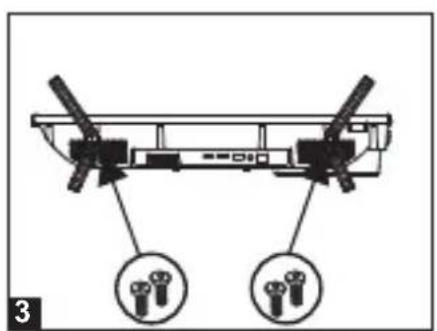

3. Fix the stand and the screen with 4 screws (Figure 3)

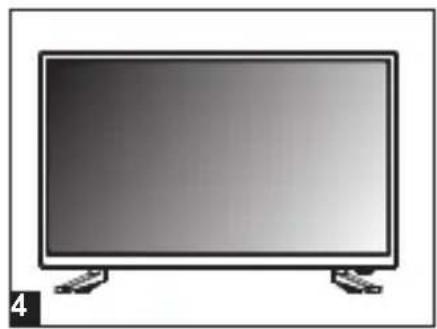

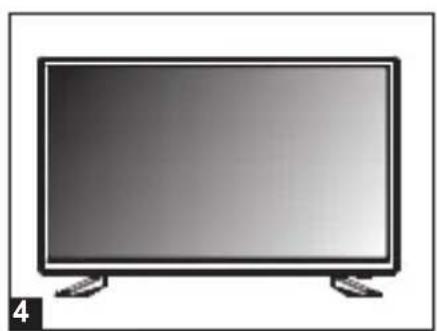

4. The rendering after installed. (Figure 4)

Disassembly of the stand Mounting of the stand Base Installation

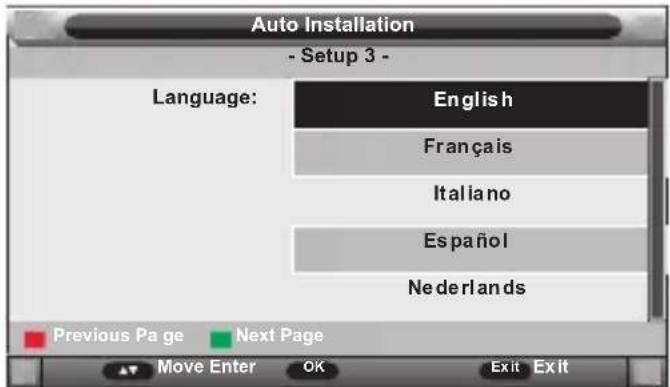

Exit Exit Next Page Language:Auto InstallationPrevious Pa ge - Setup 3 -Move Enter

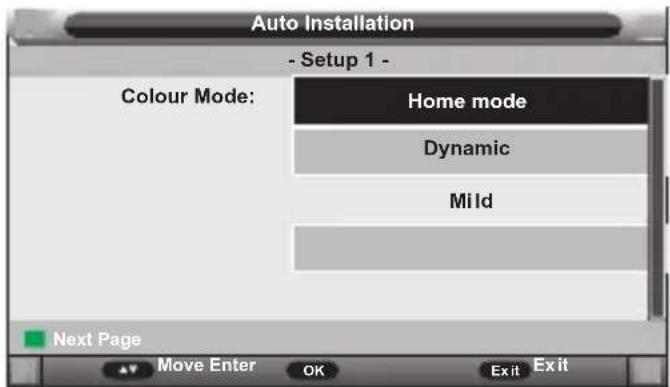

Exit Exit Next Page Colour Mode:Auto InstallationNext Page Home modeDynamic Mild - Setup 1 -Move Enter

Exit Exit Home Mode: Auto InstallationNext Page Home Dynamic Standard Mild- Setup 1 -Move Enter

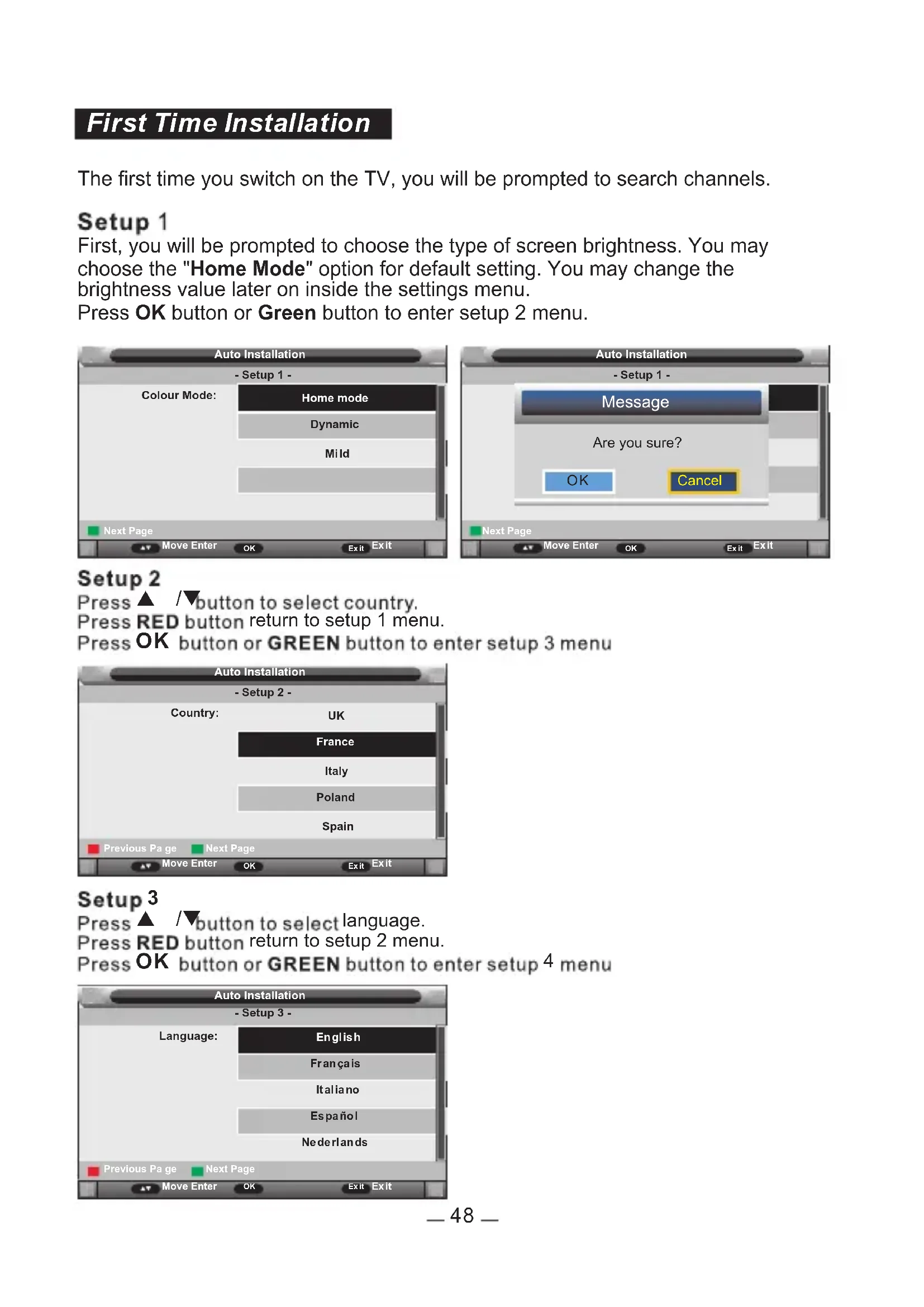

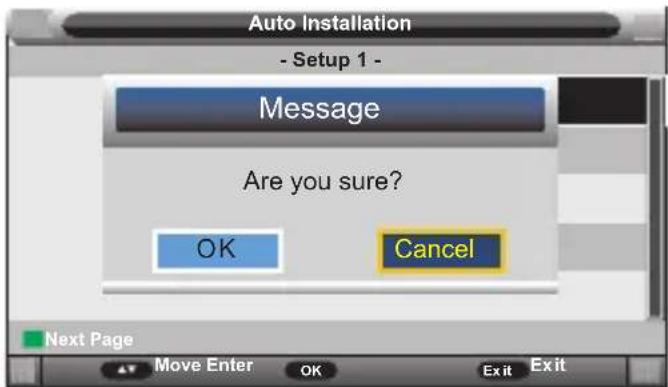

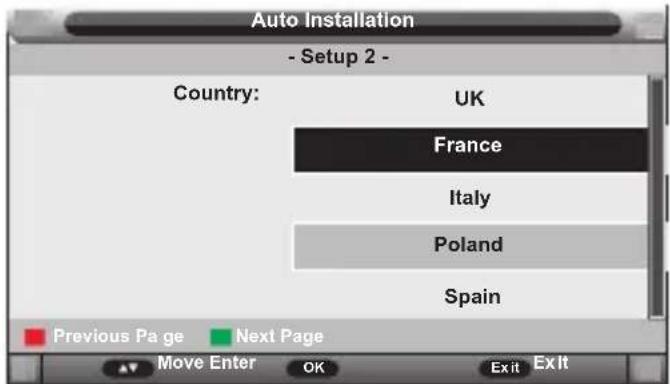

Exit Exit MessageAre you sure? Cancel The first time you switch on the TV, you will be prompted to search channels. First, you will be prompted to choose the type of screen brightness. You may choose the "Home Mode" option for default setting. You may change the brightness value later on inside the settings menu. Press OK button or Green button to enter setup 2 menu. p /q

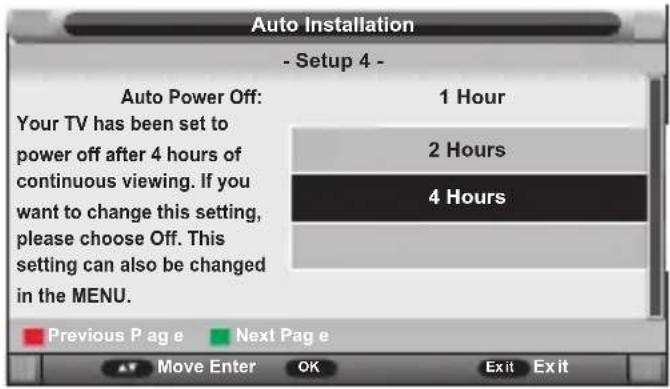

language. return to setup 2 menu. English Français Italiano Español Nederlands First Time Installation 48Your TV has been set to power off after 4 hours ofcontinuous viewing. If youwant to change this setting,please choose Off. Thissetting can also be changedin the MENU.Auto InstallationPrevious P ag e - Setup 4 -Move Enter

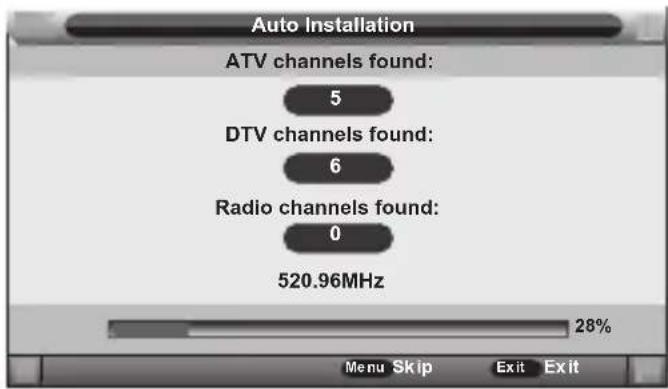

Exit Exit 28% ATV channels found:DTV channels found:Radio channels found:520.96MHz p /q

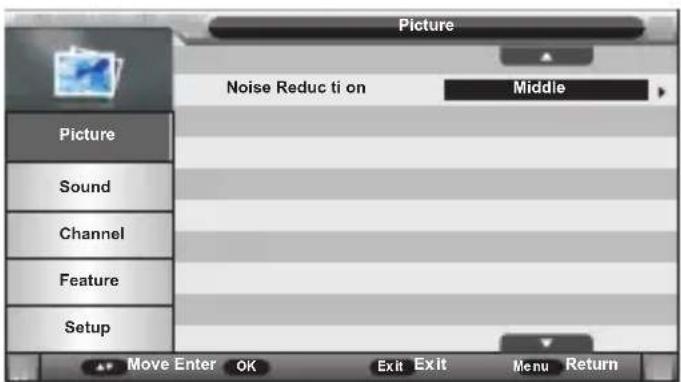

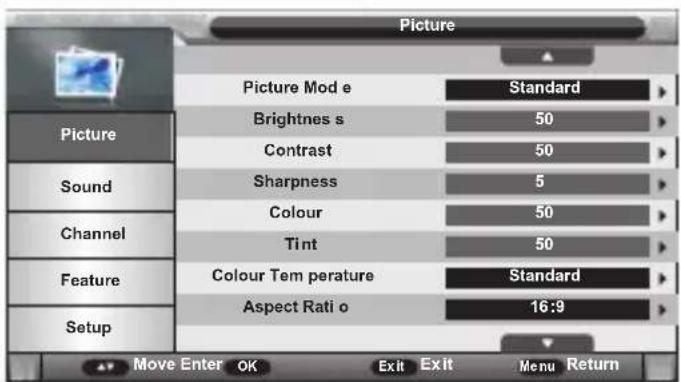

Return Menu Exit Exit Picture Menu Picture Mode Available options: User, Mild, Standard, Dynamic. Brightness The brightness value of picture can be adjusted from 0-100. Contrast The contrast value of picture can be adjusted from 0-100. Sharpness The sharpness value of picture can be adjusted from 0-10. NOTE: The value of Brightness, Contrast, Color, and Sharpness is adjustable only in User picture mode. Colour The colour saturation value of picture can be adjusted from 0-100. Tint This item is used to adjust the tone of color in NTSC system from 0-100. Colour Temperature This item is used to adjust the optimum colour temperature for suitable viewing. Available options: Standard, Cold, Warm. p /q p /q 50Aspect Ratio This option allows to select the display mode among Panorama, 16:9, 4:3, Just Scan, Zoom1 and Zoom2. Noise Reduction This item is used to eliminate the image noise to gain better image effect. Available options: Off, Low, Middle, High. Sound Mode Available options: Standard, Movie, Music, Speech, User. Bass This item is used to adjust the level of lower-pitched sounds from 0-100. Treble This item is used to adjust the level of higher-pitched sounds from 0-100. NOTE: The value of Bass and Treble is adjustable only in User sound mode. Balance This item is used to adjust the audio output between left and right speaker from -50 to 50. Surround Press the "p /q "button to select the "Surround" item, and then use "►" button to turn the surround sound function on/off. AVL An automatic volume control (AVL) automatically adjusts the volume or loudness, set it “ON” for an ambient volume to make the audio signal better heard. SPDIF SPDIF mode allows you to adjust the coaxial audio outputs. Sound Mode Bass Treble Balance Surround AVL SPDIF Sound Picture Sound Channel Feature Setup Standard

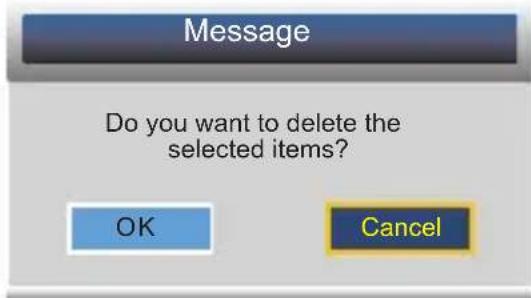

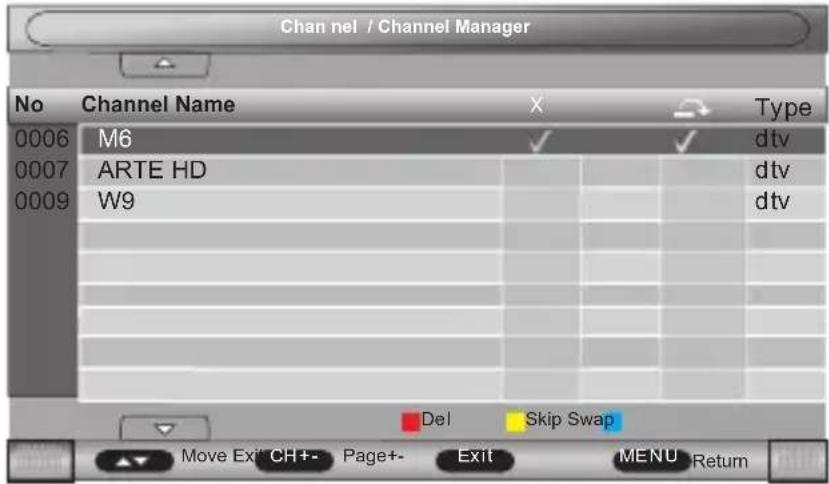

Return Menu Exit Exit Sound Menu 51Channel Management Press "p /q " button to select Channel Management, then press OK button or "►" button to enter. Message Do you want to delete the selected items?

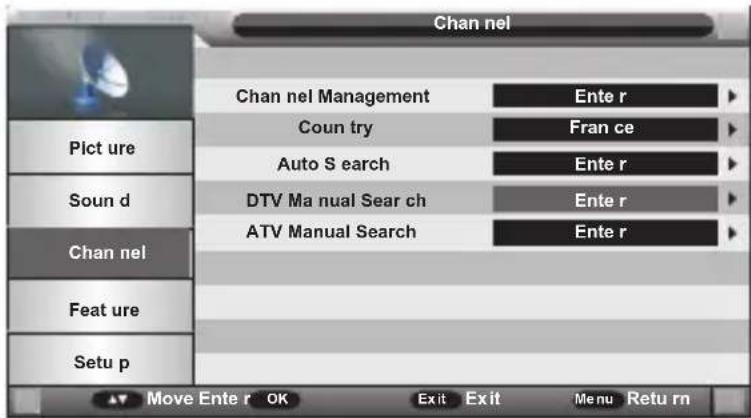

Cancel Pict ureSoun dChan nelFeat ureSetu pChan nelMove Ente r Retu rn Menu Exit Exit Chan nel ManagementCoun tryAuto S earchDTV Ma nual Sear chATV Manual SearchEnte rFran ceEnte rEnte rEnte r Channel Menu - Press "p /q " navigation button to select preferred program. a) Press RED button on remote control and use number buttons to input the password. Then press RED button to add/remove a delete mark on highlighted program. After that, press OK button to enter a dialogue box. Select OK to delete it; select Cancel to cancel this operation. b) Press YELLOW button on remote control to add/remove skip mark. c) Press BLUE button on remote control to enter MOVE mode. Then use "p /q " navigation button to select preferred position and press OK button to move it.

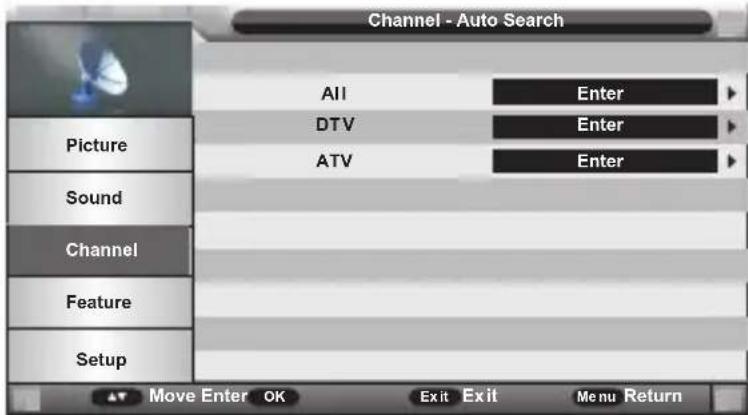

Country This item is used to choose the country. Auto Search Press button to select Auto Search, then press OK button or button to enter. All Mode: Select “All” item to scan all digital channels carried by current signal mode firstly and then switch to scan all analog channels in selected country automatically. User can skip digital search to analog search directly by pressing “EXIT” key and can also stop auto-scanning directly by pressing “EXIT” during analog scanning. Digital Mode: Select “DTV” item to search all digital channels in selected country carried by current signal mode. User can stop searching directly by pressing “EXIT” key. Analog Mode: Select “ATV” item to search all Analog channels in selected country carried by current signal mode. User can stop searching directly by pressing “EXIT” key. PictureSoundChannelFeatureSetup Channel Tuning ATV channels found:

Radio channels found:

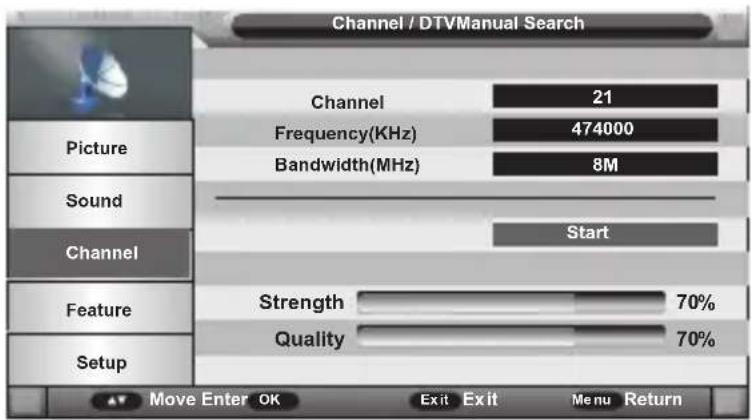

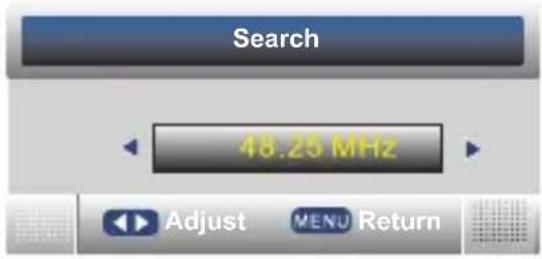

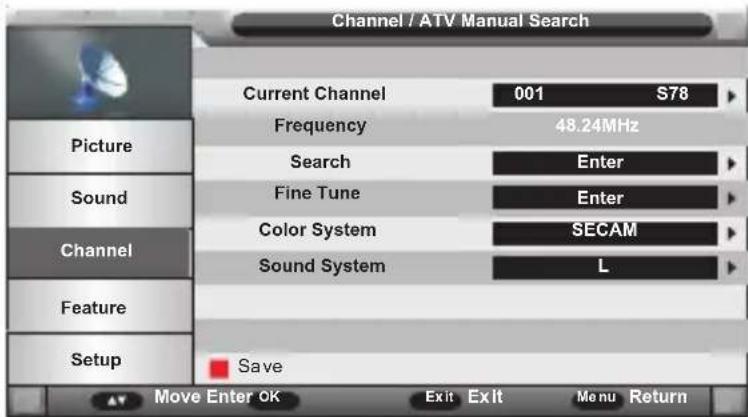

Save Move Enter Return Menu Exit Exit DTV Manual Search Press p /q button to select DTV Manual Search, then press OK button or u button to enter. Channel Press t /u button to select Channel. Move the cursor to the start, Press OK button or u button, the channel tuning menu will appear a few second. ATV Manual Search Press p /q button to select ATV Manual Search, then press OK button or u button to enter. Current Channel Press p /q button to select Current Channel then press u button to select. 54Search Adjust Return Search Press p /q button to select Search, then press OK button or u button to enter, the menu will appear as follows: Press t /u button shortly to adjust program frequency, and press for a long time to begin search until the units found. Press MENU button to return back to the previous menu. Fine Tune Press u to fine tuning when the signal of the current channel is weak. Colour System Pressp /q button to select Colour System, then press u button to select Auto, PAL, SECAM. Colour System Press p /q button to select Colour System, then pressu button to select Auto, PAL, SECAM. Sound System Pressp /q button to select Sound System, then press u button to select BG, DK, L,L’,I. 55Lock Language Clock Sleep Timer Auto Power Off Hearing Impaired CI Info REC/Timeshift Feature Picture Sound Channel Feature Setup Enter Enter Enter Off 4 Hours Off Enter Enter Move Enter

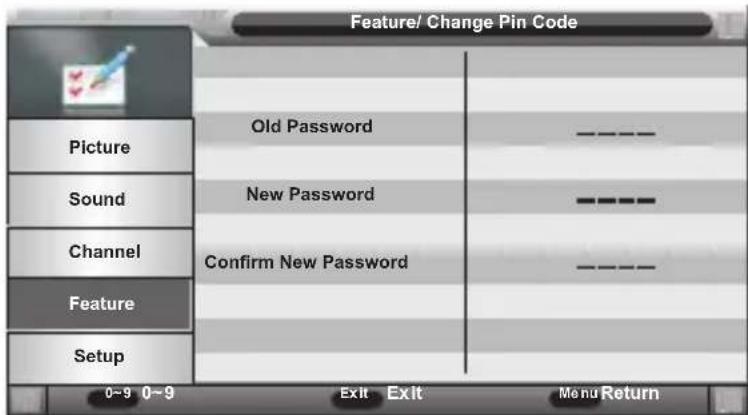

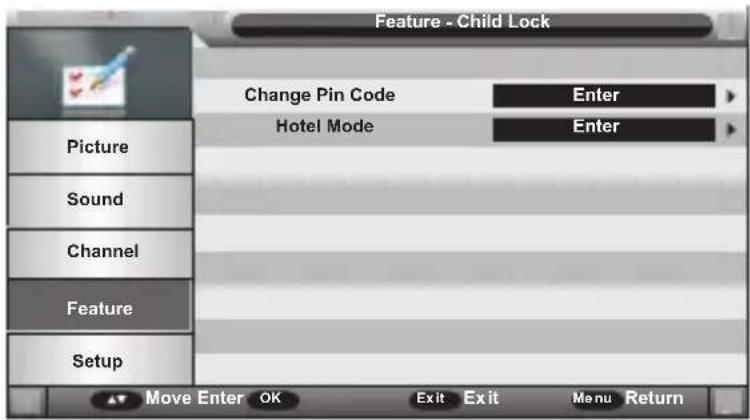

Return Menu Exit Exit Lock Press the p /q button to select the Lock item, and then use OK button or u button to enter. Default password is 0000. Password Change Pin Code Hotel Mode Feature - Child Lock Picture Sound Channel Feature Setup Enter Enter Move Enter

Hotel Mode Hotel setting allows you to restrict access to some functions by means of password, so that end user cannot change the TV settings. In this menu you will be able to restrict access to such functions such as channel settings and volume control.Available options are: OSD Language, Preferred Subtitle, Preferred Audio, DTV Teletext Language, ATV Teletext Language. You can choose your preferred menu language, subtitle, audio and teletext language. OSD Languag e Preferred S ubti tle Preferred Aud io DTV Teletex t Lang uage ATV Teletex t Lang uage Feature / Lan guag e Picture Sound Channel Feature Setup French French French English Move Enter

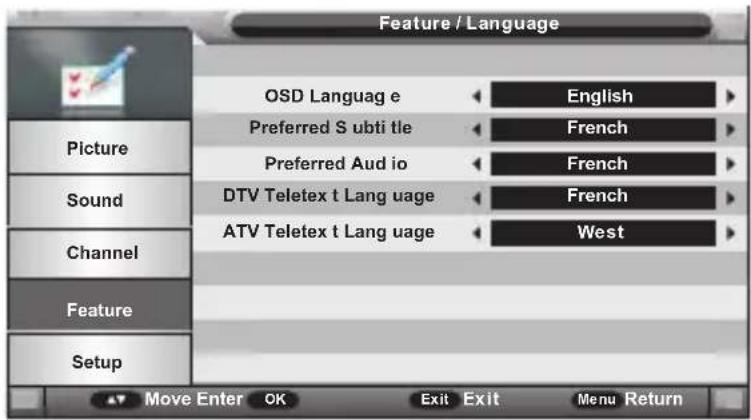

Return Menu Exit Exit West Language Clock It is used to check out the current system time and set time zone/DST. Sleep Timer Press thep /q button to select the "Sleep Timer" item, and then use u button to select sleep Time 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min or off. Auto Power Off In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode. Hearing Impaired This function helps the hearing impaired users enjoy the programs with the gestures and symbols on the screen while the signal is available. 57CI Info Ensure a CI card is inserted in the slot provided. Press ▲/▼ button to select CI Info, then press OK button or ► button to enter. Press OK button or ► button to enter. Notes:

1. This is just an example for reference, different CI module will have different

2. Other menu and description are the same as that for TV source.

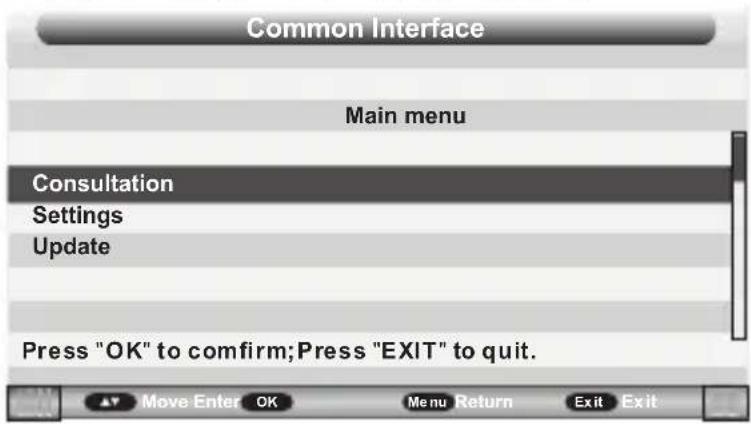

Common Interface Consultation Settings Update Main menu Press "OK" to comfirm;Press "EXIT" to quit. Move Enter

Return Menu Exit Exit Recording Function With this product you can easily record your favorite programs on your USB stick. This unit has two recording modes: immediate recording and scheduled recording (for use in case of absence). Preparation for the first recording When using a USB stick with this unit for the first time, you should first format it using this unit. Formattingyour USB stick directly on the receiver improves compatibility of the device with the unit. More particularly, FAT file system will be converted into FAT 32. This helps improve recording quality and fluidity. Caution: formatting will deletes all the files on the USB device! You should create a backup of all the files you want to keep beforehand. 58Record File FormatPartiton SelectTimeshift BufferTimerRecord ListRecorder Start Feature - REC/Timeshift Picture Sound Channel Feature Setup

/udska1 Partition List a) Format partition: Press RED button to format the focus partition. Before format, there is a prompted popup window to confirm；If format successfully there is a message “Format Success!”, otherwise, there is a “Format Fail!”. b) Set default partition: Press GREEN button to set the focus partition as the default partition. The recorders are stored in the default partition. It need to be reset if the default partition is full in recording progress. Recording a program by using a USB This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices. Notes: Do not remove your USB stick while playback is in progress; otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and then remove your USB stick.

3. Choose “Partition Select”

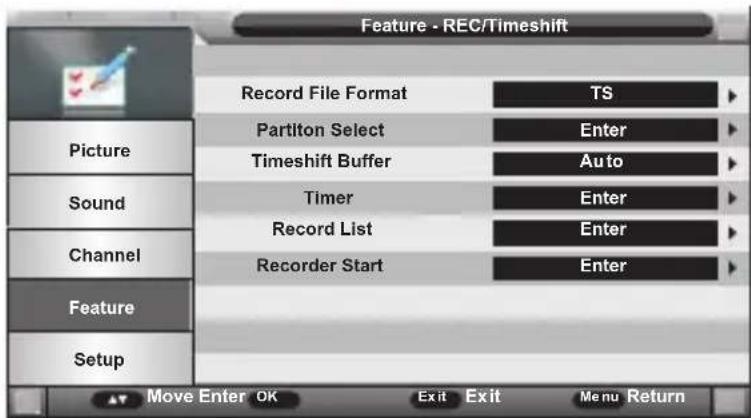

How to access "Format Disk"?

1. Press the "MENU" button on the remote control to enter the OSD menu, then

press p /q button to select the "Feature" menu.

2. Press the ► button to enter the "feature" menu setting, use p /q to choose

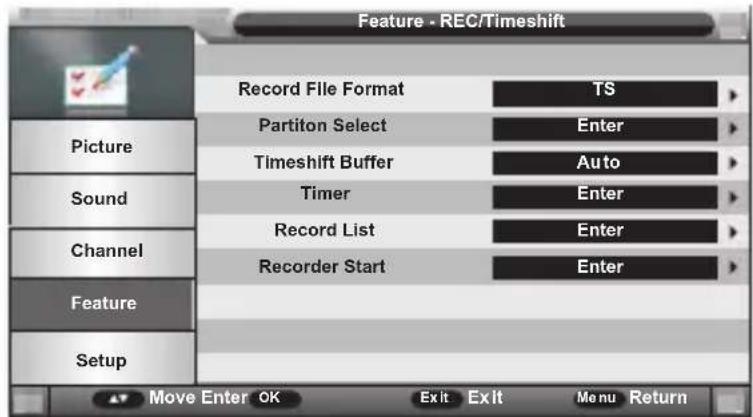

“REC/Timeshift” setting as below: 59During recording, the icon is displayed on the left. Rec Duration Time Press REC again to set the recording time. Use numeric keys to enter values and direction keys to move from a field to another. Press on the remote control to stop recording. Message Do you want to stop Recording?

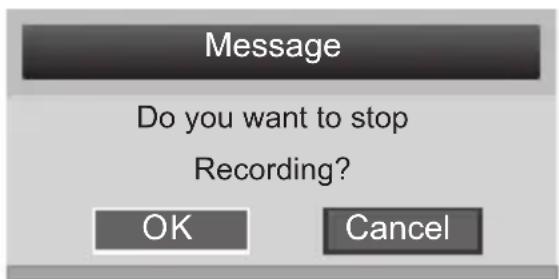

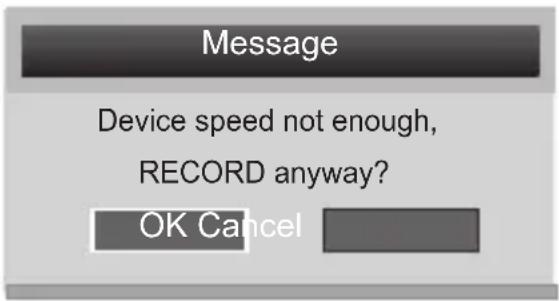

Cancel To stop recording choose "OK", to continue recording choose "Cancel". If your device speed is not enough, there will be a dialog as follows: You'd better change a high speed device or select "OK" to continue. Select "OK" to start recording. You'll see the dialog: Message Device speed not enough, RECORD anyway? OK Cancel Initializing Recorder... Message Immediate Recording Insert a compatible USB device which has been previously formatted by the TV (please refer to previous section). Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording. Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded. 60Timer (Scheduled Recording) The scheduled recording mode allows you to set the channel to be recorded, start time and duration. You can also program one or more weekly recordings. Press ▲/▼ button to select Timer, then press OK button or ► button to enter. (Tips: You can press "TIMER" button on the remote control to enter.) Return back to the previous menu if you select "Cancel" and press OK button. Select "OK" and press OK button to delete the selected program from the timer list. Press Green button to delete all timers, the menu will appear as follows: Press▲/▼ button to select CH No, then press Red button to delete selected channel, the menu will appear as follows: Message Delete Selected Timer?

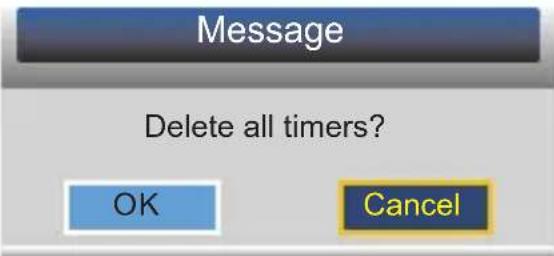

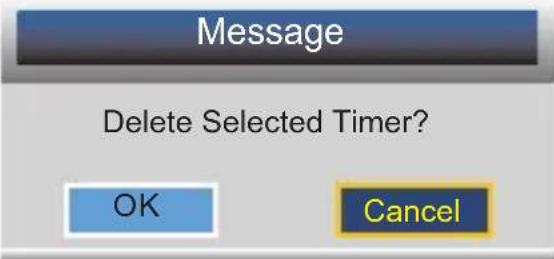

Cancel Message Delete all timers?

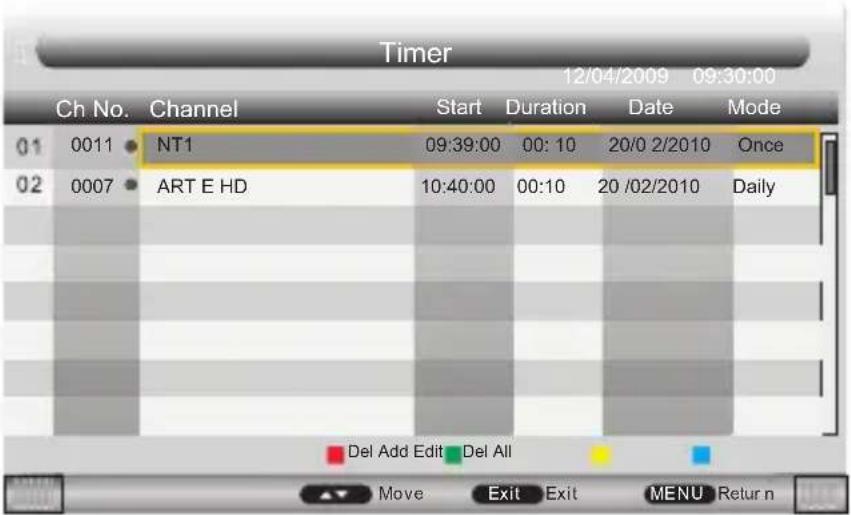

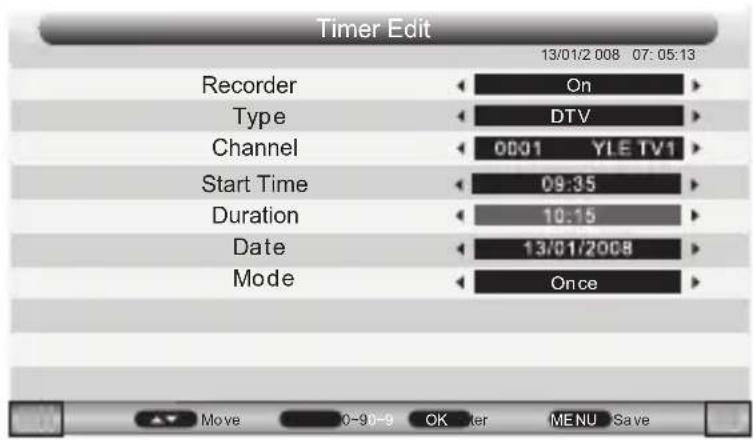

Cancel Return back to the previous menu if you select "Cancel" and press OK button. Select "OK" and press OK button to delete all timers. Press▲/▼ button to select channel that you want to edit, Press Blue button to edit selected channel, the timer edit menu will appear. Press Yellow button to add channel to the timer list, the menu will appear as follows:

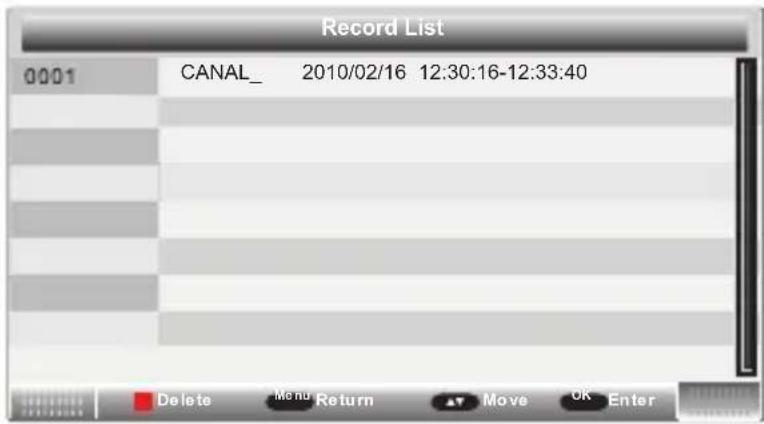

3. Choose “Recorded List”

Record List menu manages the Recorded programs, User can playback recorders in this menu.(Tips: You can press "REC.LIST" button on the remote control to enter.) CANAL_ 2010/02/16 12:30:16-12:33:40 Record List Enter

Return Menu MoveDelete View recorded programs

2. Pess the► button to enter the Feature menu setting, use p /q to choose

REC/Timeshift setting as below: 62Notes on recording and USB functions - Information on the recording format: Recording is done in MPEG-TS format which allows recording in HD quality identical to the signal received. To play your recordings on another multimedia device, it may be necessary to install a compatible video codec. - If you want to record a film or a long program, use a memory stick of larger capacity (eg. 4GB). If you want to save several films, opt for external hard drives of large capacity. - The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple sub- directories in your USB disk. Avoid such multiple-subdirectories like “Directory/Subdirectory/Sub- subdirectory/....” and store files in a single simple directory. USB Device Recognition Problems - After connecting your USB device to the unit, you may need to turn the device on before it can be detected. - This unit does not support direct USB connection with computer. It is necessary for you to transfer your data/files on a USB stick or MP3 player. - If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit. If you are using a portable video player with hard drive, you must make sure that the internal battery is fully charged. - Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit. Please refer to the manual of your USB device to ensure that formatting is possible without altering its functionality. - The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem. Recording Quality - If your recording is shaky or choppy The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved. 63Time Shift Function This TV presents a function called "Time Shift" which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the "Time Shift" function, which records the TV program during your phone call or your coffee break. With "Time Shift", you will not miss anything anymore! Note: This Function only works in DVB-T mode.

HOW TO USE THE SERVICE TIMESHIFT

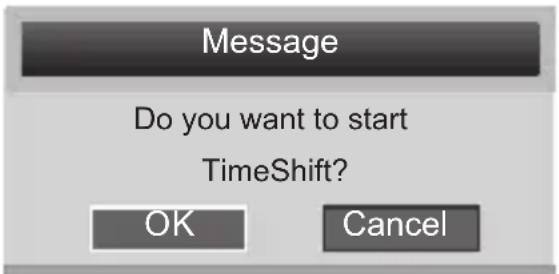

1)Please insert a USB key into USB port before you activate TIMESHIFT function. 2)Press the button TIMESHIFT once, it will pop up below menu, choose "OK" to confirm Time Shift. Note on Use of the Time Shift Function The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as choppy or blocked image, you may also try to format your USB device. The broadcasting TV program is stopped and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.

3) Press button to resume the TV program from the point is was paused,

and the recording will continue. During playback, you can: - Press PAUSE button to pause the playback, press PLAY button to resume playback. - Press or to scan backward or forward. - If you want to stop the recording and playback, please press STOP button. Message Do you want to start TimeShift?

Cancel Message Do you want to stop TimeShift?

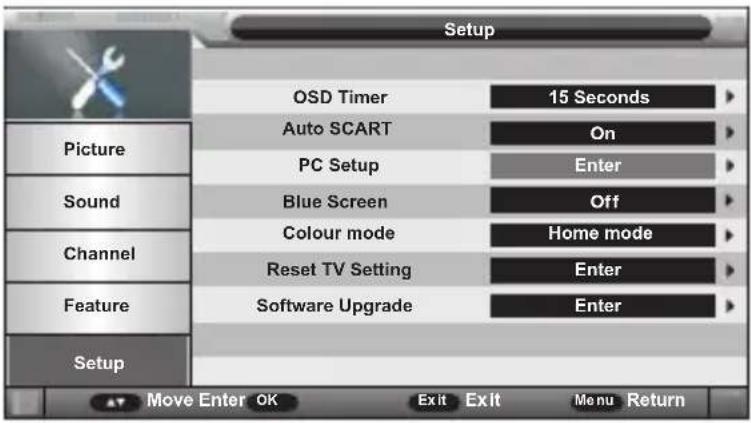

Cancel Menu Timer Available Timer: 5 Seconds, 10Seconds, 15Seconds, 20Seconds, 25Seconds, 30Seconds. Auto Scart This items allows you to view the programs by Scart automatically while Scart cable is connected. Blue Screen This item is used to set the blue background ON or OFF. The screen background will turn blue at very weak or no signal condition, if Blue is ON. Colour Mode This item allows you to change the screen brightness effect. Reset TV Setting This item is used to reset the unit to factory default settings. The menu will appear as follows: 15 Seconds

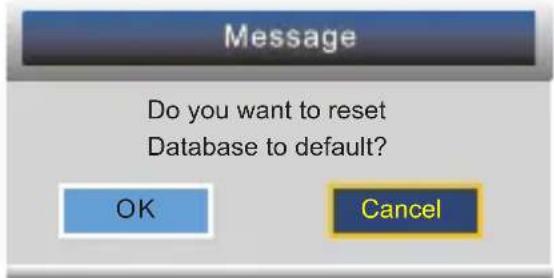

Return Menu Exit Exit Software Upgrade: Update the software via the USB port. Making an update always involves some risks. Use only the update software provided by the manufacturer and adapted to this unit. The use of any other updates software not only makes the unit inoperable and irreparable but also voids the warranty. Setup Menu Return back to the previous menu if select “Canel” and press OK button. If select“OK” and press OK button, the resetting menu will appear a few second. Then the first time installation menu will appear. 65Before operating MEDIA menu, plug in USB device, then press SOURCE button to set the input source to Media. Press button to highlight your preferred submenu: Photo, Music, Movie and e-Book, press OK button to confirm. Media Player Basic operation for photo, music and movie:

1) RED: Delete highlighted files.

2) GREEN: Add/remove all the files to play list

3) OK:Add/remove highlighted file from play list.

*.MKV,*.MPG, *.DAT (MPEG1/MPEG2),*.TS*.AVI (MPEG-4),*.MP4*.VOB (MPEG-2MP@ML) BMP 1080*1080*1080* Remark: Depending on the capacity of the device, the reading can take more than 1 minute before lauching the video. The unit cannot read my USB device. - Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate. - This unit does not support a direct USB connection with a computer. You need to use a USB device, a MP3 player or a PMP (Portable Multimedia Player with hard disk). - If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self- powered PMP, make sure that the battery is sufficiently loaded. - Check that the files system of your USB device is formatted into the FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data. Please refer to your USB device's instruction manual first. - Warning: Connect your USB device directly to the USB port of the device. Using an extension cable is not recommended and may cause interference and failure of data transfer. E-book Txt(*.txt) 66DVD Player 2.Put the disc into TV Insert the disc into TV gently, the disc will be inbreathed and read automatically. Note: - Please insert the DVD with the mirror side in front. - To eject a disc, press key from the remote control. Input DTV ATV

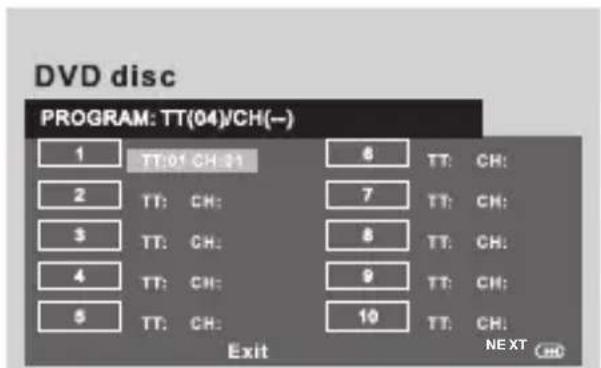

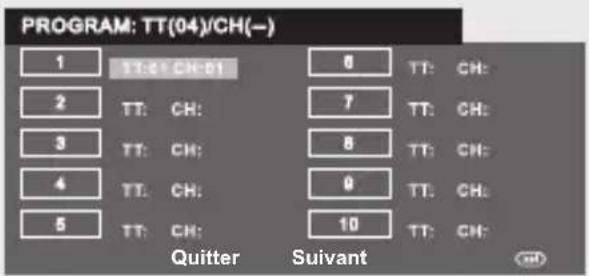

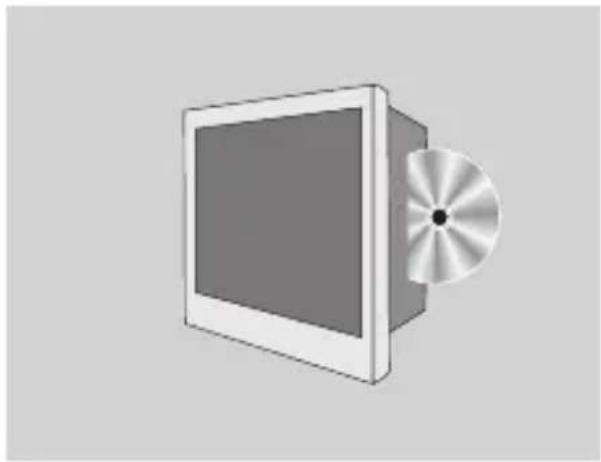

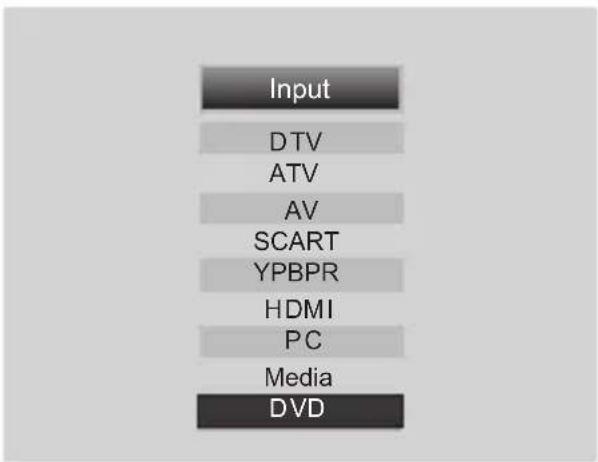

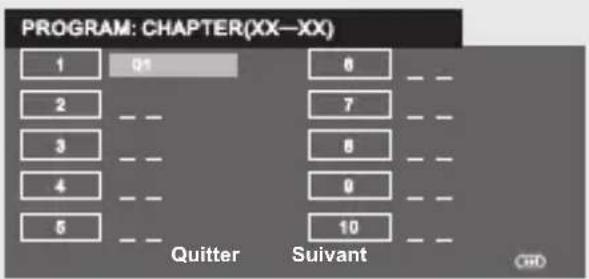

Media DVD NEXT NEXT 1.Enter DVD mode Press the “SOURCE” button on remote control or “SOURCE” button on front panel to open the source list, use the to select DVD item then press to enter into DVD mode. p /q 3.Program play 1).Press the “PROG” button on the remote control to come into program status, enter the desired track number, then using navigation buttons to move the cursor to “start “, then press “OK” button to starting playing, it will stop automatically when played over. You can choose 20 programs at most. 2).Select the “ ”, then press “OK” button to enter the second page. 3).Select the “ ”, then press “OK” button to return to the first page. 4).Select the “EXIT”, then press “OK” button to exit the programmed play mode. 67ENG

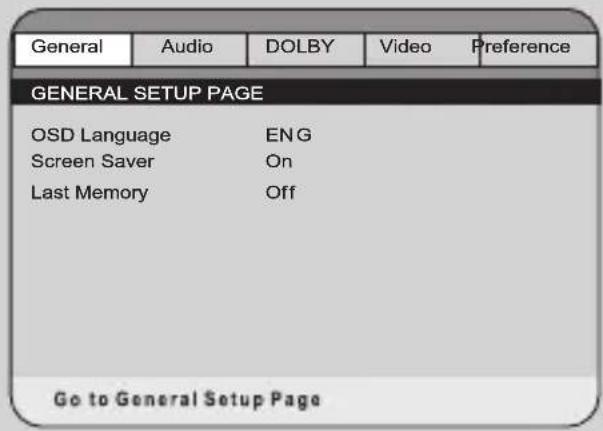

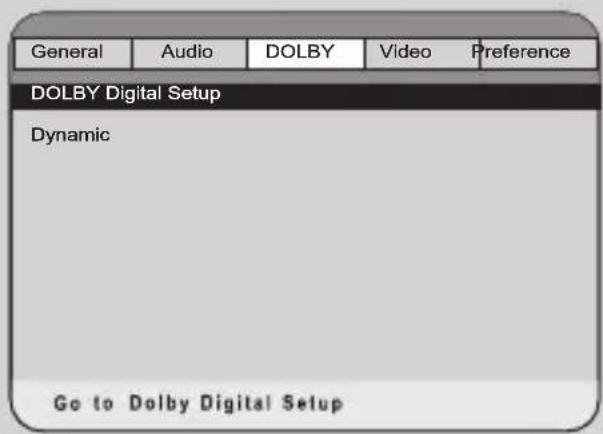

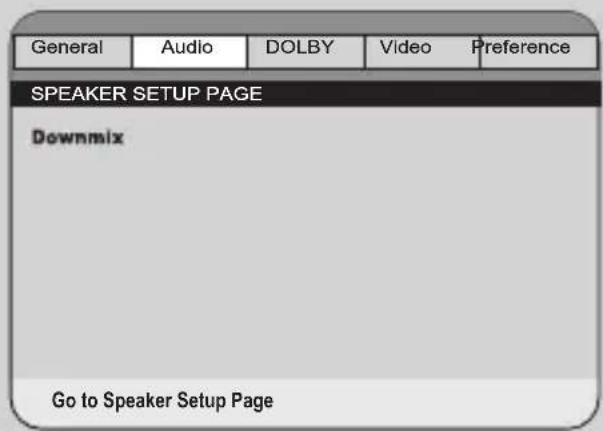

Go to Speaker Setup Page General Audio DOLBY Video Preference DOLBY Digital Setup Dynamic General Audio DOLBY Video Preference DOLBY Digital Setup Dynamic 4.DVD SETUP Press the “DVD-SETUP” button to enter DVD setting menu, use the / buttons to select the different menu page, and use / buttons to select the items in each menu, then use button to enter the selected item, at last press “OK” button to confirm the value you changed. Press the button to return to the upper menu. General setup page OSD language: Set the language of the setup menu on screen display. Screen saver: Set the screen protection. Last memory: Remember the last program you watched. Analog audio setup page Downmix: This setting it suitable for films. If you only need two channels to enjoy music, it's recommended to select the second option. Where 5.1 theater sound is available, the third option is recommended. Dolby Digital Setup Dynamic: Adjust sound dynamic range. 68General Audio DOLBY Video Preference

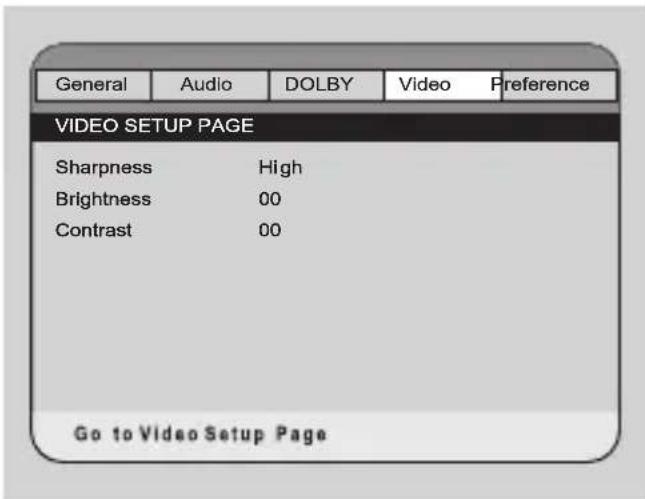

Sharpness Brightness Contrast High

Sharpness Brightness Contrast High

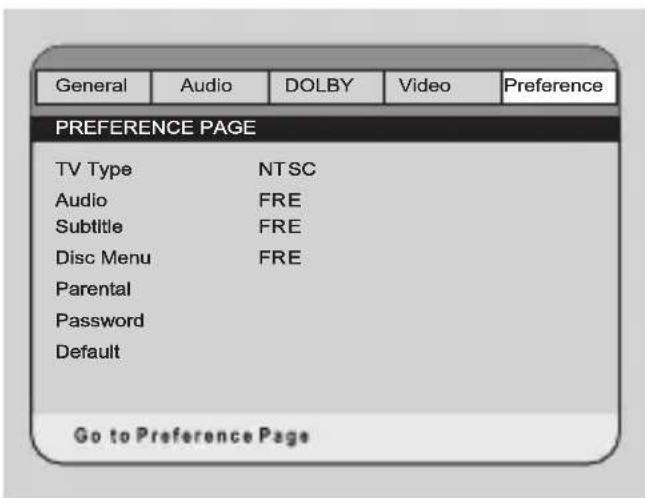

Preference General Audio DOLBY Video PREFERENCE PAGE TV Type Audio Subtitle Disc Menu Parental Password Default NTSC FRE FRE FRE Preference General Audio DOLBY Video PREFERENCE PAGE TV Type Audio Subtitle Disc Menu Parental Password Default NTSC FRE FRE FRE Video setup page Sharpness: Adjust the sharpness of the image. Brightness: Adjust the brightness of the image. Contrast: Adjust the contrast of the image. Preference page (Note: this menu page will pop up before putting the disc into the DVD.) TV type: Select the local TV system (such as PAL, NTSC, Auto) Audio: Provides the built-in disc dubbing language options. Subtitle: Select the preset subtitle language. Disc menu: Select the language of the disc menu. Parental: For a film to be restricted for children, provides parental guide function. (Note: the initial password is 0000.) Password: Change the password. Default: This option will resume the original settings.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.Solutions: 5 seconds Solutions: Solutions: positioning Solutions: positioning Troubleshooting 70SAV ADMEA / LOGISAV ZI du clos des charmes 26 rue du clos des charmes

1. Energy efficiency class: A++ (most efficient) to E (least efficient)

2. Annual energy consumption in kWh per year, based on the power consumption

of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness,operating mode....etc
