USER MANUAL LED65SCP200K SCHNEIDER

Important Safety Instructions....38

Control Panel....43

Connecting Cables....44

Remote Control....47

Base Installation....49

Wall Mounting Instructions....50

Operations

First Time Installation....51

1. Quick Settings....53
2. Picture....54

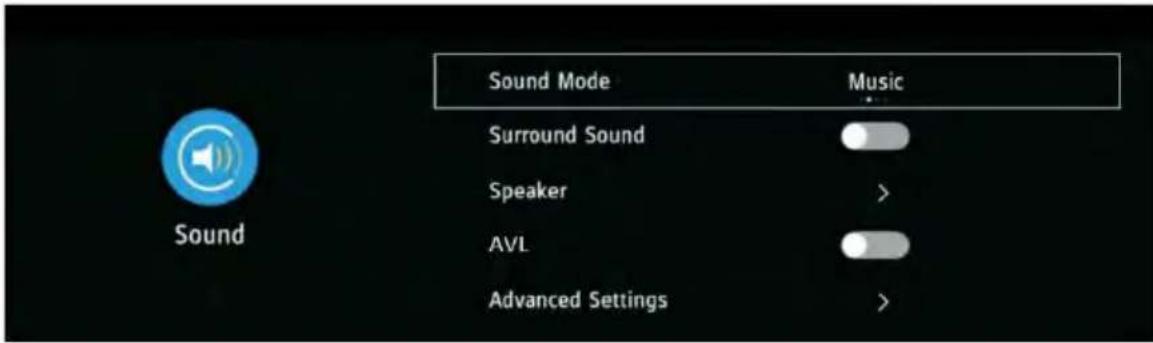

3. Sound....55
4. Channel....56
5. Time....57

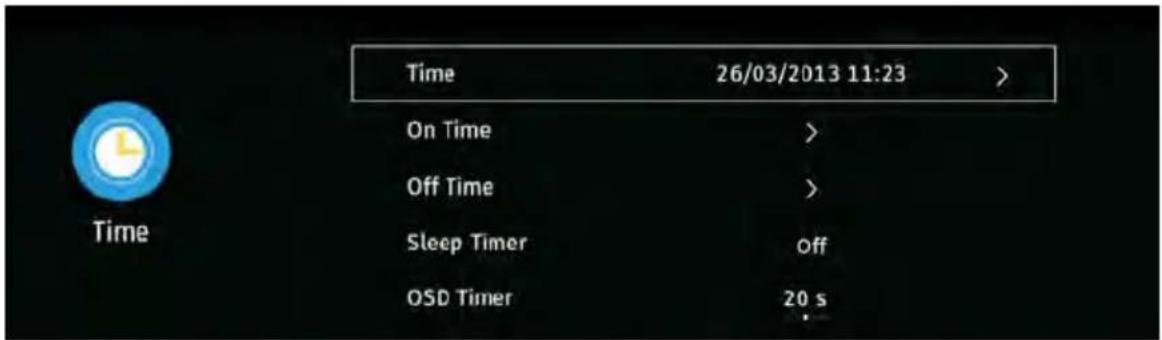

6. System....58

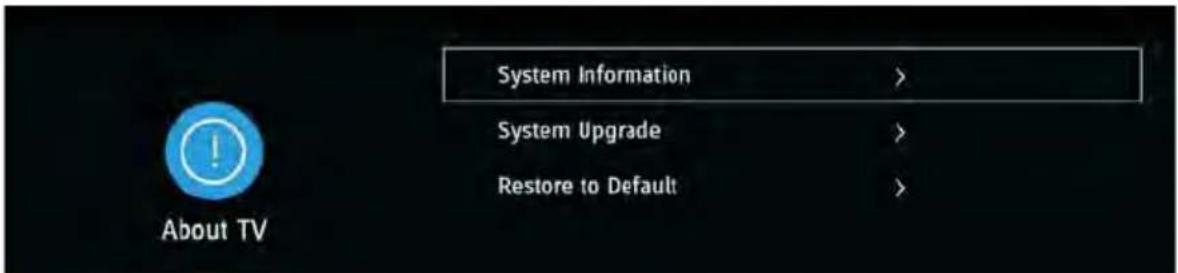

7. About TV....61
8. Recording Function.... 62

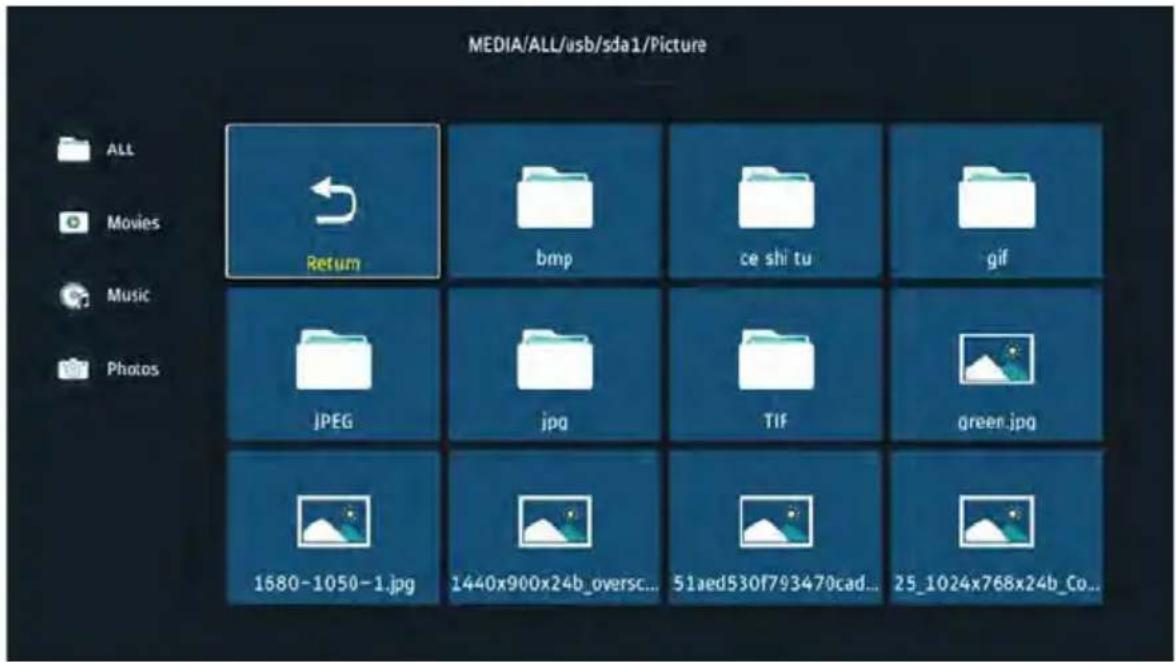

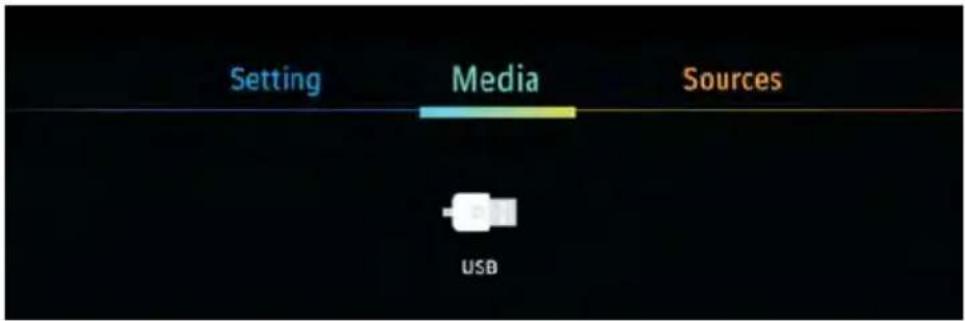

9. Media Player....66

For Reference

Troubleshooting....68

Black triangular warning symbol with a lightning bolt inside, no text or numbers present.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Technical line drawing of a TV unit with cable and power outlet, no text or symbols present

Cable television

Black remote control with colored buttons and a 6M angle indicator (no text or symbols on the device itself)

Architectural floor plan showing room layout with grid and stairwell (no text or labels)

Simple line drawing of a mechanical or structural component with two vertical supports and a horizontal beam, no text or symbols present.

Diagram of a beam supported by two supports with directional arrows indicating force or movement (no text or symbols)

Architectural floor plan showing room layout with walls, doors, and furniture (no text or labels)

Simple line drawing of a beam supported by two supports, with no text or symbols present.

Simple line drawing of a beam supported at both ends with red arrows indicating force or displacement (no text or symbols)

Blank gray rectangle with black border (no text or symbols)

Cause possible :

Simple line drawing of a sad face with eyes and mouth (no text or symbols)

Cause possible :

Illustration of a stylized eye with visible eyelashes and eyebrow, set against a striped background (no text or symbols)

Cause possible :

Simple 3D geometric shapes including cube, pyramid, cone, and sphere (no text or symbols)

Cause possible :

Black remote control with multiple function keys and a red X mark (no text or symbols on the device itself)

Cause possible :

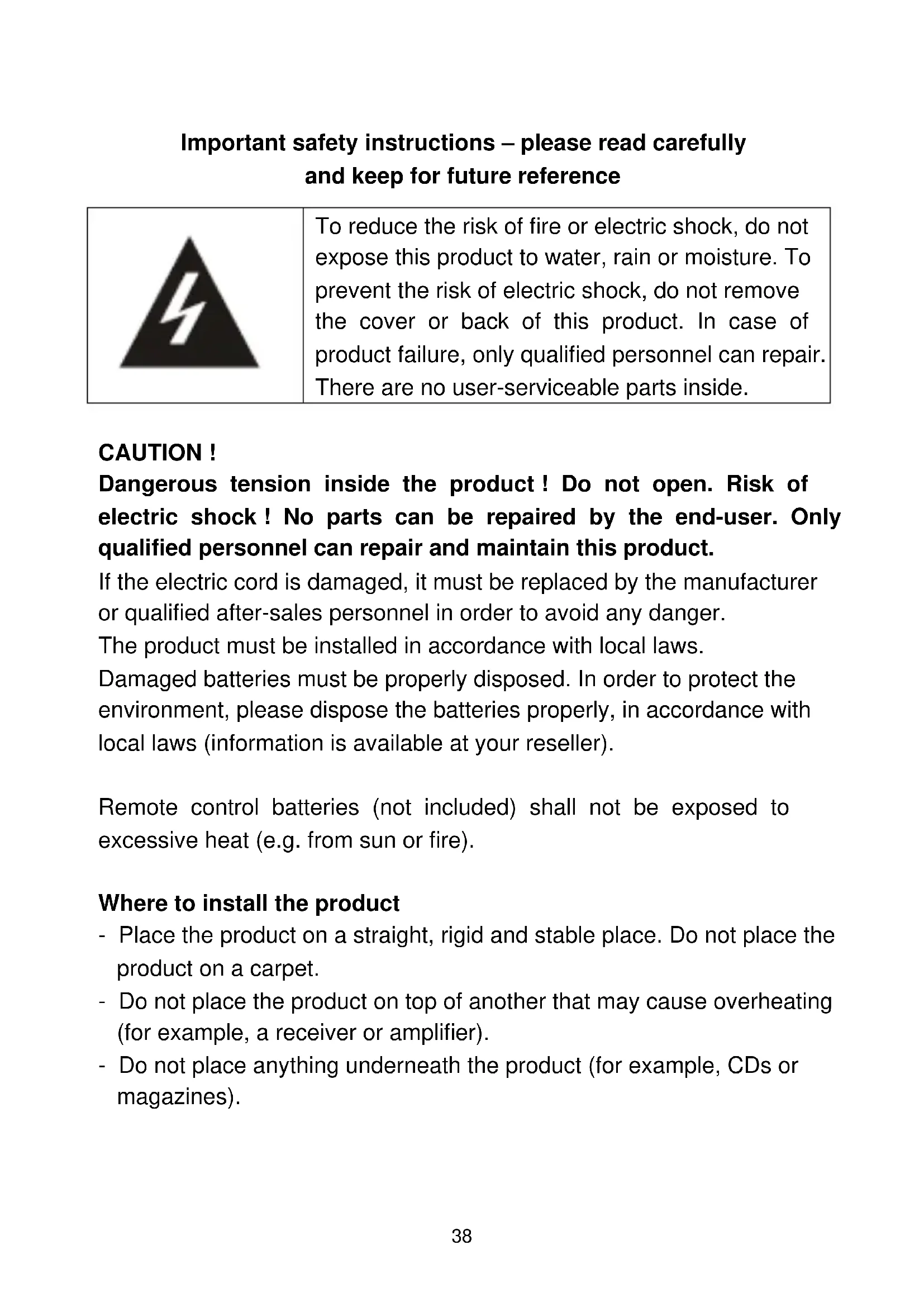

Important safety instructions – please read carefully and keep for future reference

Black triangular warning symbol with a lightning bolt symbol (no text or numbers)

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION!

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 230V \~ 50Hz.
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Declaration of conformity

This appliance is Television complies with the essential requirements and other provisions of Directive 2014/35/EU & 2014/30EU and the Radio Equipment Directive (RED) 2014/53/EU that goes into effect on 12 June 2016. The declaration of conformity is available on website:

http://www.schneiderconsumer.com

C€

Technical Specification:

Name: Television Product

Net Weight: 19Kg

Operation Temperature: 0 \~40°C ℃

TV Reception System: DVB-T

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.
• As the end user, your role is of prime importance in the cycles re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.
• You have the obligation to use the selective waste collection systems put in place by your local authorities.

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! You have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

Control Panel

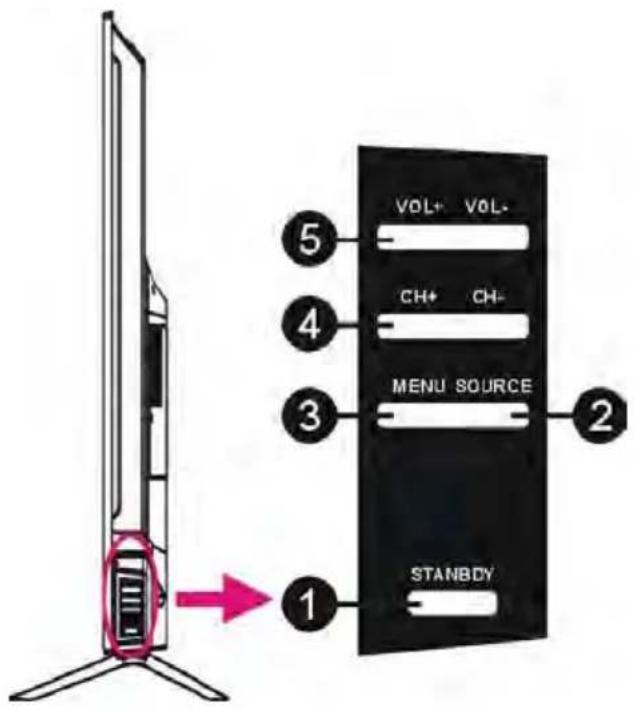

VOL+ VOL- CH+ CH- MENU SOURCE STANBDY 1 2 3 4 5

1. Standby button: To turn the TV ON/OFF.
2. Source button : To select the input source.
3. Menu button: To enter menu setting page.
4. CH+/- button: To select next/previous channel or move up/down.
5. VOL +/- button: To increase/decrease the volume level or move left/right.

Connecting Cables

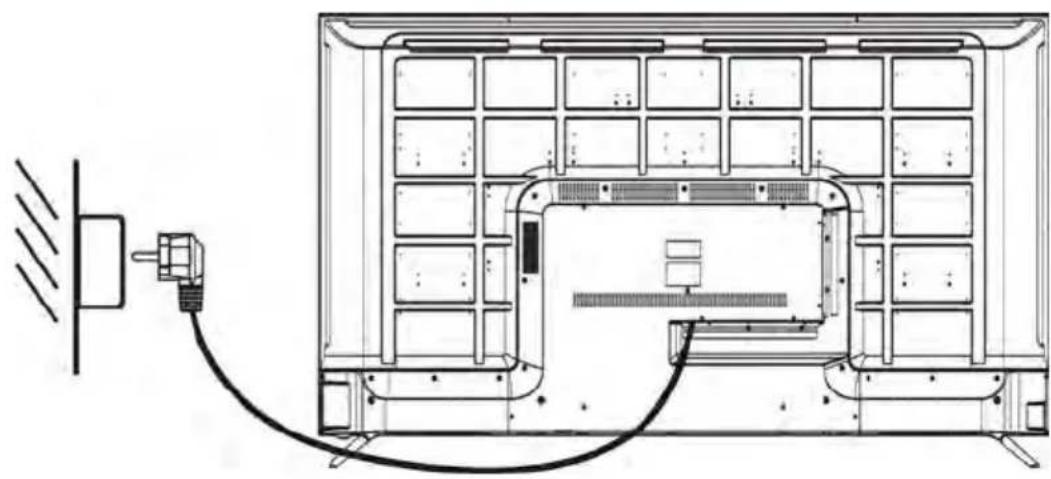

Connecting to power source

Technical line drawing of an electrical panel installation with a cable and wiring, no text or symbols present

1. The television is in standby state when no images arise and the red indicating lamp shines.
2. Press the standby button again on the remote control for the television the indicating lamp becomes green.

Connecting external antenna to the unit

Cable television

We recommend you use a 75Ω antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75Ω antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

Connecting Cables

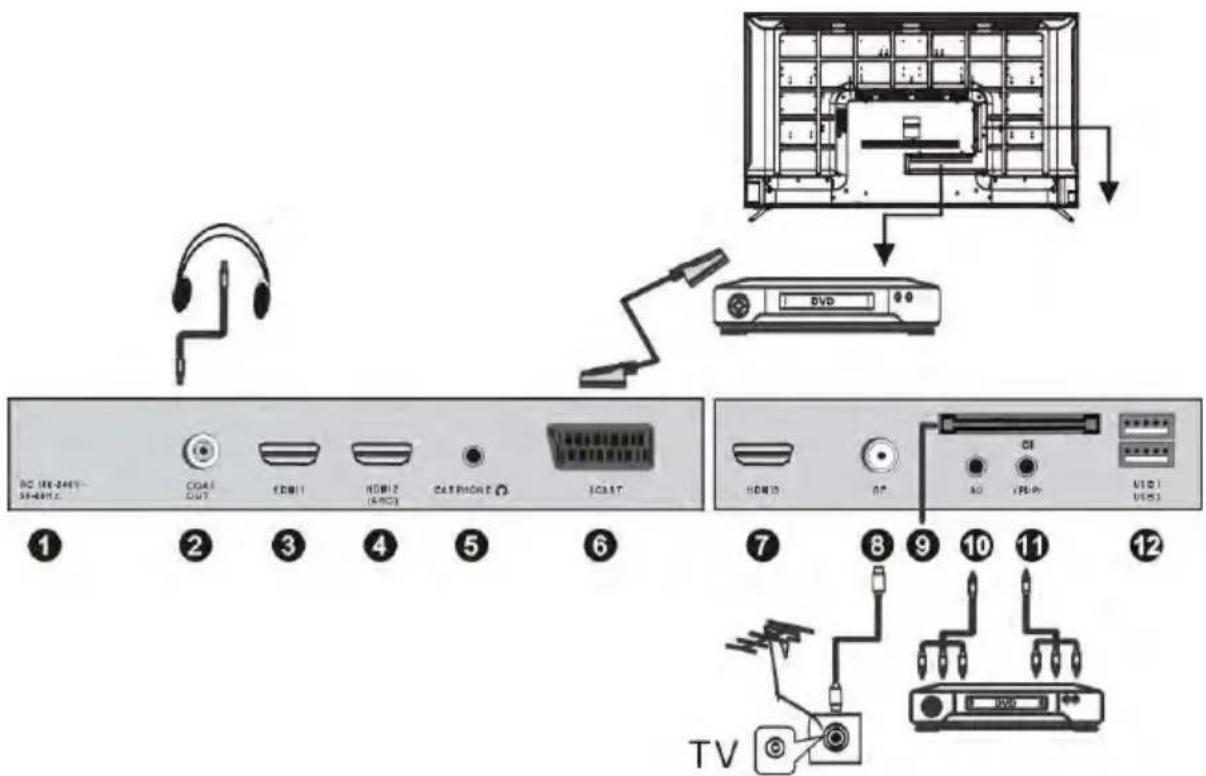

This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio.

DC 18K-246V 59-40Hz ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ TV HDMI RST AC VPS-P VDD1 VMS3

1. AC IN
2. COAXIAL output : Digital TV sound output.
3. HDMI UHD: The HDMI port is compatible with the UHD resolution.
4. HDMI UHD / ARC: The HDMI port is compatible with resolution UHD (Ultra High Definition, known as '4K'), 3840 x 2160. Also use the HDMI port to benefit from the ARC (Audio Return Channel) feature. With the

ARC, you can simplify the cable connections in your installation! If you have an ARC-enabled home theater, simply connect it to the HDMI port of this TV. From the home cinema, the picture and the sound of the video player will be transmitted to the TV; and vice versa, from the TV (DTV mode for example), the sound will be transmitted to the home theater, all in one cable.

1. EARPHONE OUTPUT
2. SCART INPUT
3. HDMI UHD: The HDMI port is compatible with the UHD resolution.
4. RF IN: Connect to external aerial.
5. CI SLOT: Insert a CI (common interface) card.
6. AV INPUT: Connect to the left/right RCA video out connection of any video resource.
7. YPbPr IN: Component input terminal.
8. USB IN: Access multi-media files stored in the USB device.

(Note: compatible format includes: *.dat, *.vob, *.ts, *.mpg, *.a vi, *.mkv, and *.mp4 for video, *.jpg for photo, *.mp3 for music.)

Remote Control

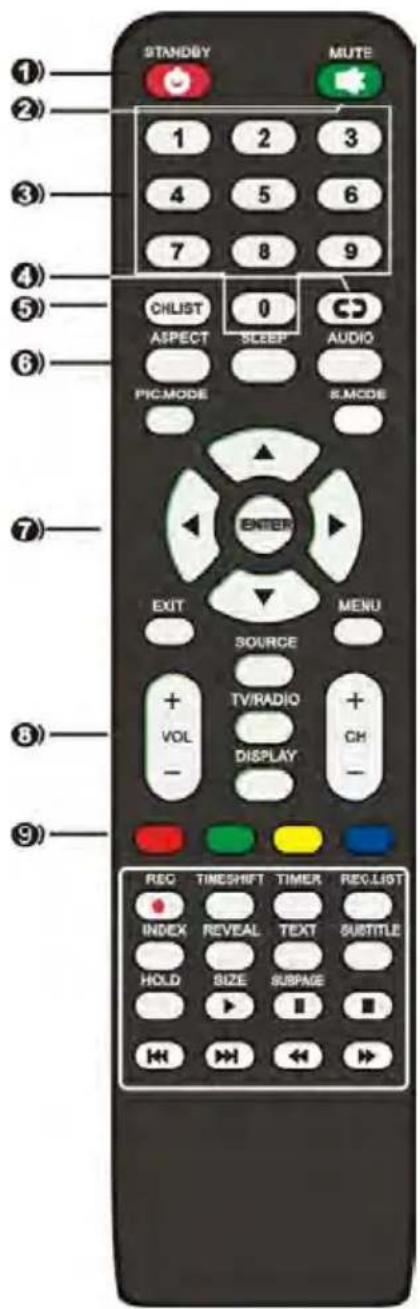

STANDBY MUTE 1 2 3 4 5 6 7 8 9 CHLIST ASPECT SLEEP AUDIO PIC:MODE S:MODE ENTER EXIT MENU SOURCE TV/RADIO + VOL + CH - DISPLAY - REC TIMEShift TIMER REC.LIST INDEX REVEAL TEXT SUBTITLE HOLD SIZE SUBPAGE << >> << >

6M 30° 30° 6M 30° 30°

1.STANDBY: To turn the TV ON/OFF
2.MUTE: Mute the sound.
3.0\~9: Input the number information, such as channel number and so on.

4.RECALL: Recall the last program you watched.

5.CH.LIST : Display a list for available channels.

6.ASPECT : Select available screen mode. SLEEP : Set desired sleep time.

AUDIO : Select available sound-track.

PIC.MODE : Switch the picture mode.

S.MODE : Switch the sound mode.

1. ▲/▼/◄/► : Navigation buttons

OK : Confirm selection.

EXIT : Exit the menu page.

MENU : Call out the main menu or return to previous menu.

8.VOL +/- : Increase/decrease the volume level.

CH +/- : Play the next/previous program.

SOURCE : Select desired input source.

TV/RADIO : Switch the unit between TV and Radio.(Digital radio is not available in countries such as France.)

DISPLAY : Display the available program information.

RED \GREEN \ YELLOW \BLUE: available in teletext, DVB-T and TV

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

Remote Control

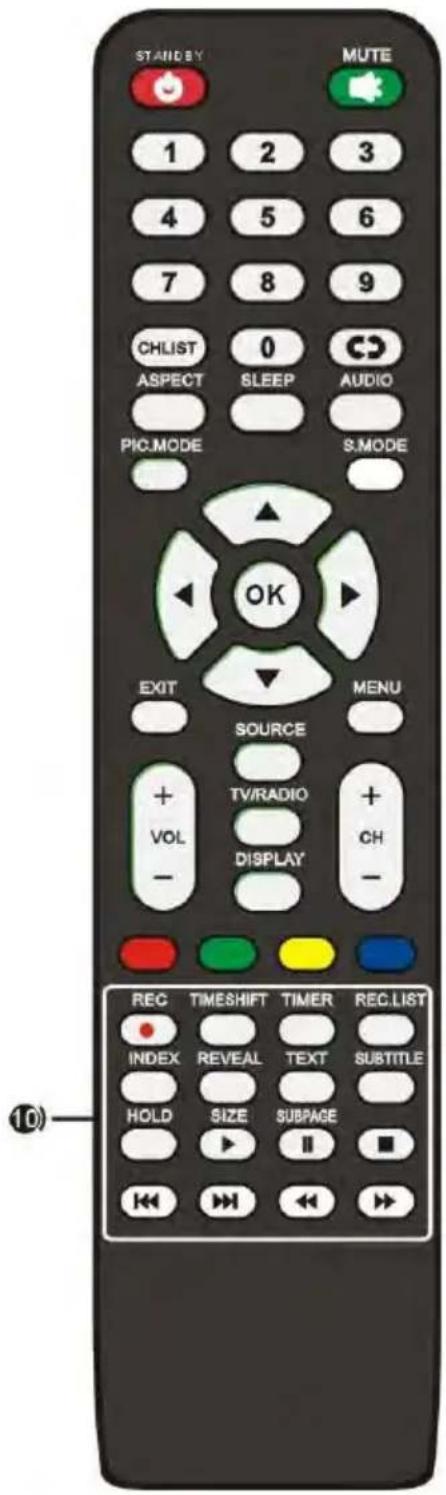

STAND BY MUTE 1 2 3 4 5 6 7 8 9 CHLIST 0 CD ASPECT SLEEP AUDIO PIC.MODE S.MODE OK EXIT MENU SOURCE + TV/RADIO + VOL + CH - DISPLAY - REC TIMESHIFT TIMER REC.LIST INDEX REVEAL TEXT SUBTITLE HOLD SIZE SUBPAGE << >> << >

1. REC (for DTV mode only) :Start RECORDING when watching available digital programs.

TIMESHIFT (for DTV mode only): Start Time-shift when watching available digital programs.

TIMER (for DTV mode only): Enter the menu of timer recording.

REC.LIST : display the list of recorded programs.

INDEX : Display the Teletext index.

REVEAL : Hide or display some characters in Teletext.

TEXT : Display available teletext..

SUBTITLE : Enable/disable subtitles in digital mode.

HOLD : Hold the Teletext;

SIZE : Switch Teletext size;

SUBPAGE : Enter Teletext sub-page;

▶ : Start playback in USB\Media mode.
II : Pause playback in USB\Media mode.
■ : Stop playing in USB\Media mode.
◀ Fast backward\forward in USB\Media mode.
Play previous\next file in USB\Media mode.

Prepare the remote control

Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

Base Installation

- Mounting of the stand

Architectural floor plan showing room layout with furniture and pathways (no text or labels)

Simple line drawing of a structural beam with supports and load arrows (no text or symbols)

Simple line drawing of a beam with supports and load indicators (no text or symbols)

Architectural cross-section diagram of a room with walls, doorways, and furniture (no text or labels)

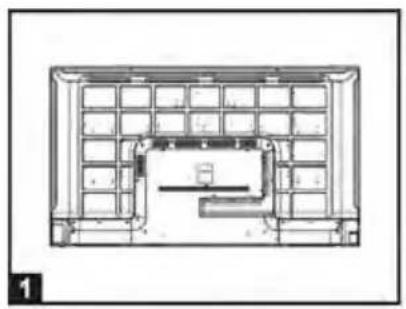

1. Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.)
2. Align the screw holes on stand and TV bottom (Figure 2)
3. Fix the stand and the screen with 6pcs provided screws. (Figure 3)

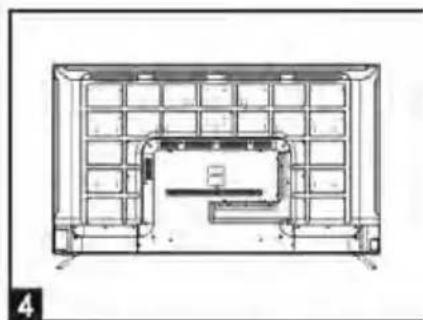

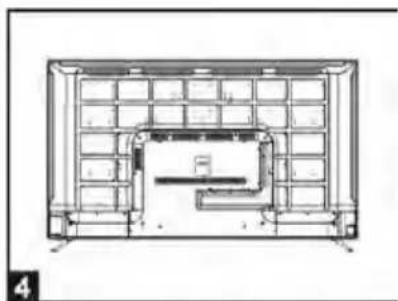

4. The rendering after installed. (Figure 4)

• Disassembly of the stand

Simple line drawing of a beam supported at both ends with supports at the base (no text or symbols)

Simple line drawing of a table with supports and a ruler, no text or symbols present

1. Loose the screws between the machine and stand (Figure 1).
2. Remove the 2 stands from the machine (Figure 2).

Wall Mounting Instructions

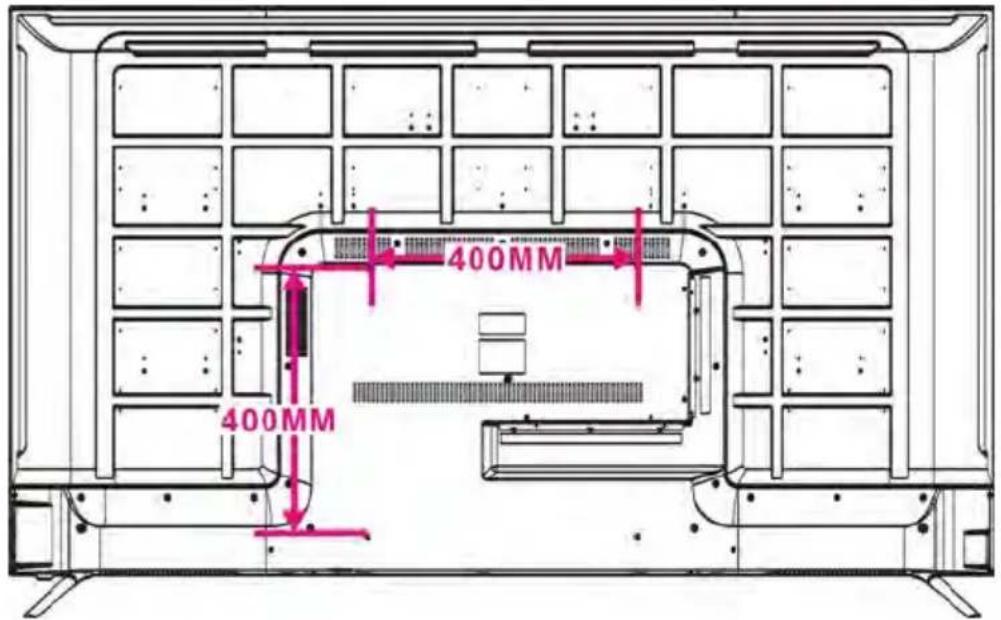

• Use standard M6*12mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.
• Contact a professional technician for assistance when wall mounting your TV.
• Do not wall mount the TV while TV is turned on.
  • Refer to the instruction of your wall mounting bracket.

400MM 400MM

First Time Installation

• Connect to power source and turn on this TV, welcome page will display on the screen.
• Press OK button on remote control to start setting.
• Press LEFT/RIGHT/UP/DOWN navigation buttons on remote control to select an option.
• Press OK button on remote control to confirm selection.

Choose Your Language Deutsch English Español Français Italiano Portuguis

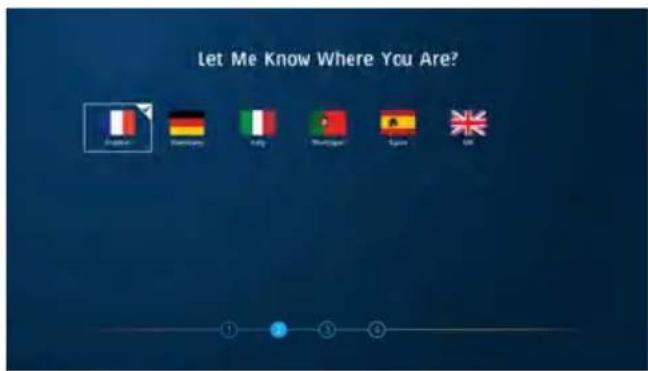

Let Me Know Where You Are?

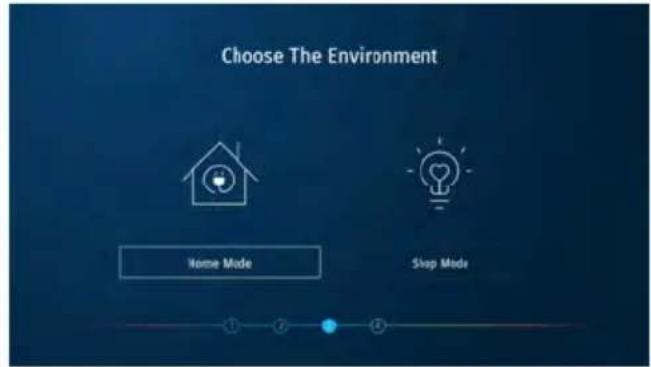

Choose The Environment Home Mode Step Mode

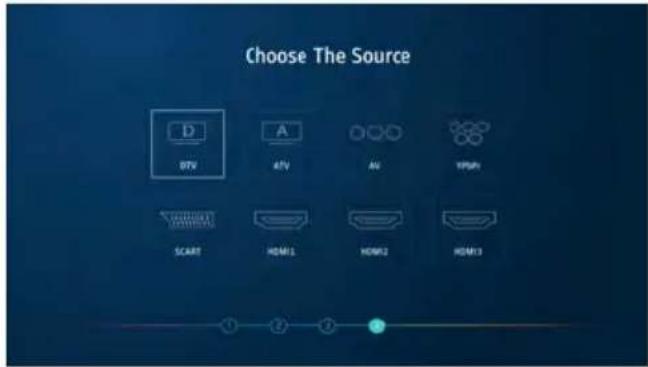

Choose The Source D DTV A ATV AV YPUM SCART HDMI5 HDMI2 HDMI3

Step 1

- Select desired on-screen display language.

Step 2

- Choose the country you are living in.

Step 3

- Choose Home or Shop mode.

Step 4

- Choose an input source to visit.

Input

Press STANDBY button to power on the TV, then press SOURCE button to select different input sources.

Settings

- Press the MENU button on remote control to open main menu.

Setting Media Sources Quick Settings Picture Sound Channel Time System About TV

Notes:

- If Setting is not highlighted on menu title, press UP navigation button to move the cursor to title. Select Setting and press DOWN navigation button to enter it.

- Some options under “Settings” only appear when TV received available signals.

Common procedure for initial settings

- Press the MENU button on remote control to display the main menu.

- Press the UP/DOWN/LEFT/RIGHT navigation buttons to move the cursor.

- Press the OK or RIGHT navigation button to enter the submenu.

- Press the MENU button to save current setting and return to the previous menu page.

- Press the EXIT button to exit the menu page.

1. Quick Settings

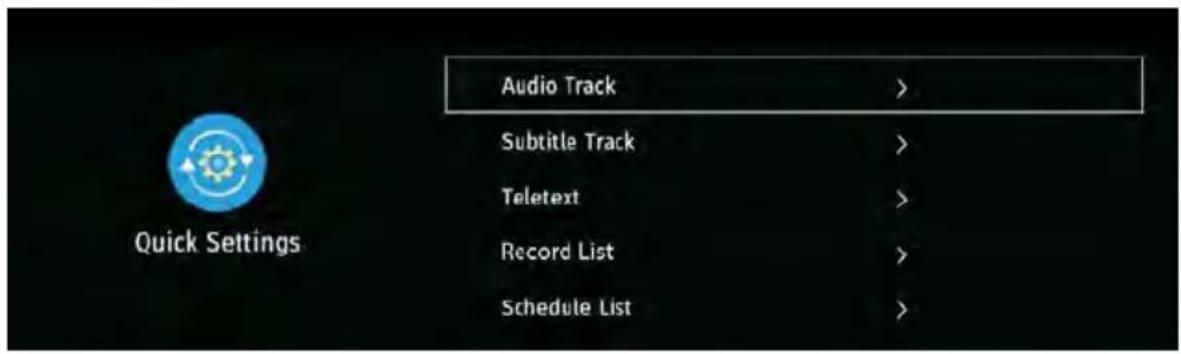

Audio Track > Subtitle Track > Teletext > Record List > Schedule List >

1.1 Audio Track

- Select available audio track.

1.2 Subtitle Track

- Select available subtitle track.

1.3 Teletext

- Show teletext information if available.

1.4 Record List

- Show recorded list if you have recorded a program before.

- You can watch all recorded programs here.

1.5 Schedule List

- Show schedule list if you have scheduled a program by pressing TIMER button on Remote Control.

2. Picture

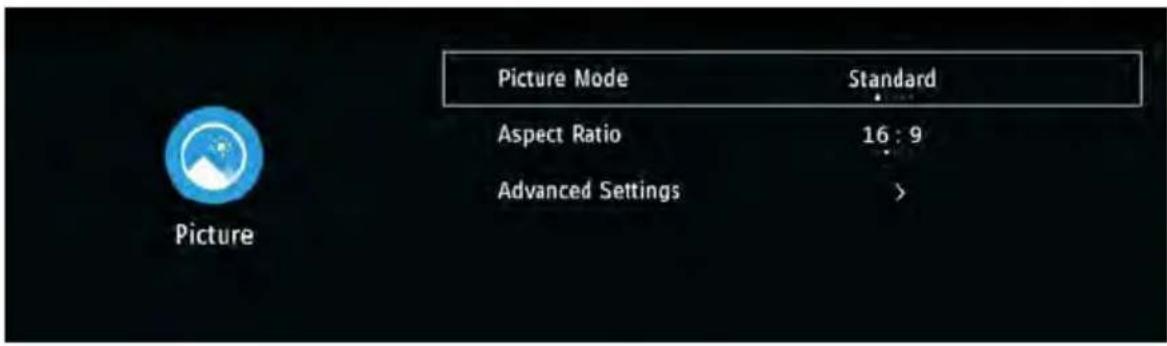

Picture Mode Standard Aspect Ratio 16:9 Advanced Settings >

2.1 Picture Mode

- Press the LEFT/RIGHT navigation buttons to select an option.

Picture Mode: available options: Standard, User, Mild, Dynamic, Vivid, Eco.

Note: When Picture Mode is User, you can see and adjust Brightness, Contrast, Colour, Tint, Sharpness and Backlight.(Tint is only for NTSC system.)

2.2 Aspect Ratio

This item is used to adjust the video size.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

Note: The available video size may be different for different input source.

2.3 Advanced Settings

OverScan: turn on/off OverScan.

Colur Temp: adjust the optimum color temperature for suitable viewing (Normal, Warm, Cool).

Dynamic Contrast: select dynamic contrast level (Off, Low, High).

Noise Reduction: select noise reduction level (Off, Low, Medium, High).

3. Sound

Sound Mode Surround Sound Speaker AVL Advanced Settings Music

3.1 Sound Mode

- Press the LEFT/RIGHT navigation buttons to select an option.

Picture Mode: available options: Standard, Music, Theater, User.

3.2 Surround Sound

- Turn on/off surround sound.

3.3 Speaker

Digital Audio Output: Auto, PCM, RAW.

Digital Audio Delay: adjust this item if Digital Output and TV picture are not simultaneous.

Lip Sync: adjust the lip synchronization.

3.4 AVL (Auto Volume Level)

- Turn on/off Auto Volume Level.

3.5 Advanced Settings

Note: Only when Sound Mode is Personal, you can see and adjust Balance and Equalizer.

Balance: adjust the balance of audio left and right.

Equalizer: adjust different frequency to get the most satisfied sound.

Audio Description: For Visually Impaired users, this function enables a user to know a certain scene or action through the narration, instead of seeing it. (AD Switch function works only when you are viewing programs that contain related narration information.)

4. Channel

DVB Antenna Air Auto Scan > Manual > CAM Setting > Signal Information >

4.1 DVB Antenna

- Select Air or Cable DVB antenna type according to which kind of antenna you have connected.

4.2 Auto Scan

• Choose DTV or ATV tuning mode firstly.
• Then enter "Auto Tuning" to scan available channels.

4.3 Manual

• Press LEFT/RIGHT navigation button to select the channel.
• Then enter "Start Scan" to scan available channels.

4.5 CAM Setting

When an available CAM (Conditional Access Module) card is connected to the CI slot, you can view related information or manage the CAM card.

4.6 Signal information

- Display signal details, for example: channel number and strength.

5. Time

Time 26/03/2013 11:23 > On Time > Off Time > Sleep Timer Off OSD Timer 20 s

5.1 Clock

- It displays the current system time when an available channel was saved.

Auto Sync: turn on/off auto synchronization. If it's off, you can see and adjust date and time using navigation buttons.

Time Zone: select correct time zone.

Daylight Savings: When auto sync is enabled, you can see and turn on/off Daylight Savings.

5.2 On Time

On Time: set the hour, minute and day using navigation buttons.

Input Source: select power on input source.

DTV Channel Type: select DTV channel type.

Channel: select the channel.

Volume: adjust the volume.

5.3 Off Time

Off Time: set the hour, minute and day using navigation buttons.

5.4 Sleep Timer

- Set the automatic sleep time.

- Select a desired OSD menu duration.

Available options: Never, 10/20/30/60 seconds.

5.6 Auto Standby

- Select a desired Auto Sleep (standby) duration when no operations are done through the remote control.

Available options: Off, 3/4/5 hours.

6. System

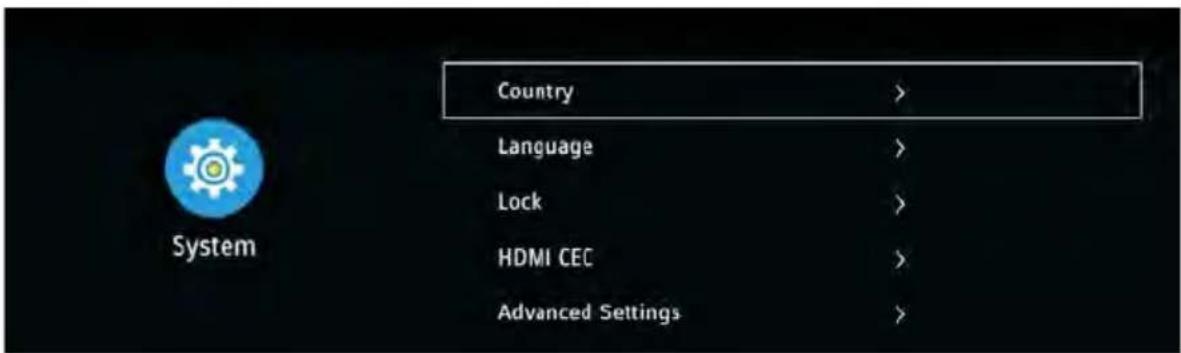

Country > Language > Lock > HDMI CEC > Advanced Settings >

6.1 Country

- Select the country you are living in.

6.2 Language

- Select the OSD menu language, Audio and Subtitle languages.

6.3 Lock

- Input the factory default password “1417” using number buttons on remote control.

- Then highlight "OK" on screen and press OK to enter it.

Note: If you forget the password, please use the universal password "8899".

Lock Set Password > Channel Lock > Key Lock > Hotel Mode >

Lock: turn on/off lock.

Set password: input the old password using number buttons and then input your private password twice to finish it.

Channel Lock: when entered, press GREEN button to lock/unlock a channel.

Key Lock: turn on/off key lock.

Hotel Mode: enter Hotel Mode.

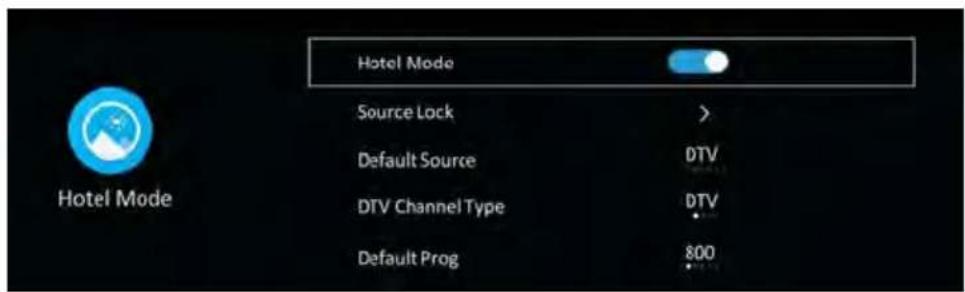

Hotel Mode Source Lock > Default Source DTV DTV Channel Type DTV Default Prog 800

Hotel Mode: turn on/off Hotel Mode.

Source Lock: turn on/off the lock of available sources.

Default Source: set the default source.

DTV Channel Type: set the DTV channel type.

Default Prog: set the default digital program.

Default Volume: set the default volume level.

Max Volume: set the maximum volume level.

CH Table Import: import CH data from USB device.

CH Table Export: export CH data to USB device.

Clear Lock: Clear above settings.

USB Clone to TV: clone data from USB device.

TV Clone to USB clone data to USB device.

6.4 HDMI CEC

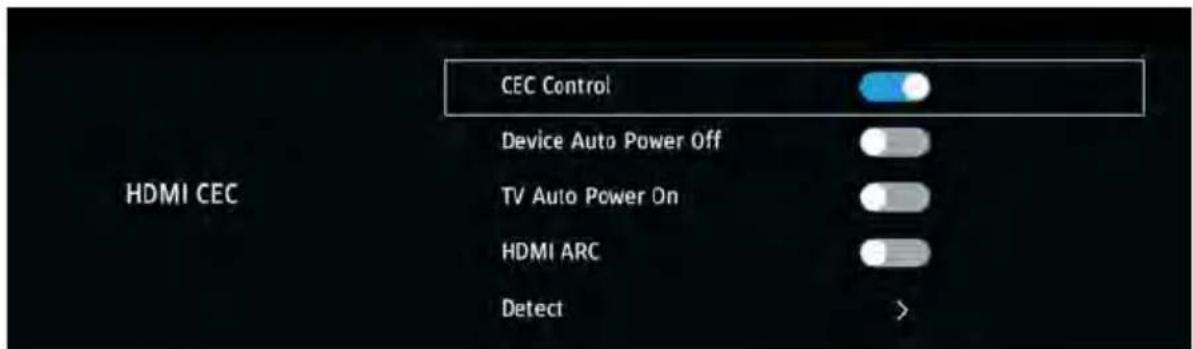

CEC Control Device Auto Power Off TV Auto Power On HDMI ARC Detect >

To use the HDMI CEC function:

• Make sure the HDMI device (Amplifier, etc.) is connected correctly.
• Press the SOURCE button on the unit or remote control to select the HDMI input source.

Note: HDMI ARC in "HDMI 2" only.

HDMI CEC: turn on/off HDMI CEC.

Device Auto Power Off: if this function is enabled, external connected CEC device will power off automatically when turn off this TV.

TV Auto Power On: if this function is enabled, this TV will power on automatically when turn on external connected CEC device.

HDMI ARC (Audio Return Channel): if this function is enabled, the users can use external amplifier or audio decoding device which featured with ARC.

Detect: detect available device.

6.5 Advanced Settings

PVR & Time-Shift Settings: you can select a desired disk, partition, Time-Shift size, format USB device and check USB speed.

Hearing Impaired: for Hearing Impaired users, this function provides captions to supplement the audio (Hearing Impaired function works only when you are viewing programs that contain related caption information)

Setup Wizard: open the first time setup wizard.

Store Mode: turn on/off store (shop) mode.

Blue Screen: turn on/off blue screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON.

7. About TV

System Information > System Upgrade > Restore to Default >

7.1 System Information

- Show TV system information.

7.2 Software Update

- Update software through the USB memory device.

Note: Only technicians are authorized to update the software.

7.3 Restore to Default

- Restore OSD menu to default settings.

8. Recording Function

With this product, you can easily record your favorite DVB-T programs on your USB stick. This unit has 2 recording modes: immediate recording and scheduled recording (for use in case of absence).

Recording a program by using a USB

This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices.

Notes: Do not remove your USB stick while playback is in progress, otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and them remove your USB stick.

Preparation for the first recording

When using a USB stick with this unit for the first time, you should first format it using this unit. Formatting your USB stick directly on the receiver improves compatibility of the device with the unit. More particularly, FAT file system will be converted into FAT 32. This helps improve recording quality and fluidity. Caution: formatting will deletes all the files on the USB device! You should create a backup of all the files you want to keep beforehand.

How to access "Format Disk"?

Press the "MENU" button on the remote control to enter the OSD menu, then press navigation button to select the "System>>Advanced Settings>>PVR&Time-shift Settings".

Immediate recording

Insert a compatible USB device which has been previously formatted.

Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording.

Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded.

Timer (Scheduled recording)

Simply press TIMER button on the remote control to enter.

View recorded programs

You can simply press REC.LIST button on the remote control to view the recorded programs.

Notes on recording and USB functions

- If you want to record a film or a long program, use a memory stick of larger capacity (eg. 16GB). If you want to save several films, opt for external hard drives of large capacity.

- The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and, above all, the complexity of its directories. You can reduce loading time

by avoiding the use of multiple sub-directories in your USB disk. Avoid such multiple-subdirectories like “Directory/Subdirectory/Sub-subdirectory/....” and store files in a single simple directory.

- USB Device Recognition Problems

4) After connecting your USB device to the unit, you may need to turn the device on before it can be detected by the receiver.
5) This unit does not support direct USB connection with computer. It is necessary for you to transfer your data/files on a USB stick or MP3 player. If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit.
6) If you are using a portable video player with hard drive, you must make sure that the internal battery is fully charged. Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit. The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem.

- Recording Quality

If your recording is shaky or choppy – The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved.

Time Shift Function

This TV presents a function called “Time Shift” which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the “Time Shift” function, which records the TV program during your phone call or your coffee break. With “Time Shift”, you will not miss anything anymore! Notes: This function is only available in DVB-T mode.

How to use the service Timeshift

1. Insert a USB key into USB port before you activate Timeshift function.
2. Press the button Timeshift once to start recording. The broadcasting TV program is stop and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.
3. Press the ■ button to exit recording.

Note on use of the Timeshift function:

1. Please make sure the Timeshift mode is set ON in record setting menu.
2. The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as choppy or blocked image, you may also try to format your USB device.

9. Media Player

Before operating MEDIA menu, plug in USB device. Press the MENU button on remote control to open main menu. Then press UP navigation button to move the cursor to title. Select Media and press DOWN navigation button to highlight USB.

Setting Media Sources USB

Press ◀/▶ ▲/▼ button to highlight your preferred submenu: Photo, Music and Video, press OK button to confirm. Press MENU button to enter key operation in your preferred submenu.

MEDIA/ALL/usb/sda1/Picture ALL Movies Music Photos Return bmp ce shi tu gif JPEG jpg TIF green jpg 1680-1050-1.jpg 1440x900x24b_oversc... 51aed530f793470cad... 25_1024x768x24b_Co...

Remark: Depending on the capacity of the device, the reading can take more than 1 minute before launching the video.

The unit cannot read my USB device.

• Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate.
• This unit does not support a direct USB connection with a computer. You need to use a USB device, a MP3 player or a PMP (Portable Multimedia Player with hard disk).
• If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self-powered PMP, make sure that the battery is sufficiently loaded.
• Check that the files system of your USB device is formatted into the FAT or FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data. Please refer to your USB device's instruction manual first.
• Warning: Connect your USB device directly to the USB port of the device. Using an extension cable is not recommended and may cause interference and failure of data transfer.

Troubleshooting

No image and voice

Blank gray rectangle with black border (no text or symbols)

Possible causes:

• Power cord, antenna or input devices are not connected;
• The TV set is not powered on.
• Check Power cord, antenna and input devices;
• Press Power key on the remote control;
• Press Power key on the set to power it off for 5 seconds and then re-power it on.

Solutions:

No voice

Simple line drawing of a sad face with large eyes and a frowning expression (no text or symbols)

Possible causes:

• The volume is too low; Muted or cancelled;
• Incorrect sound system.

Solutions:

• Press Volume key to turn up the volume;
• Press Mute key to cancel Mute mode.
• Well connect connection to the background sound;
• Change the sound system in the menu.

Snows and noises

Abstract sketch of two stylized eyes with curved lines, set against a striped background (no text or symbols)

Possible causes:

• The cable is damaged or gets loose;
• Incorrect channel preset;
• Improper antenna positioning.
• Check whether the connection of the antenna cable, DVD and the cables is correct;
• Reset channels or fine tune the channel;
• Adjust the direction of the antenna.

Solutions:

Achromatic colour

Illustration of geometric shapes including cube, cone, sphere, and speaker icon (no text or symbols)

Possible causes:

• Incorrect Colour system settings; Low chroma level setting;
• Improper antenna positioning.

Solutions:

• Change the colour system into the local system in the menu;
• Increase chroma level;
• Adjust the direction of the antenna.

Remote control has no response

Black remote control with multiple function keys and a red X mark (no text or symbols on the device itself)

Possible causes:

• Battery runs up;
• Incorrect battery loading;

Solutions:

• Check the battery electricity or replace the battery;
• Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Important Notice

The display of this television is made up of a large number of colour. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Technical data sheet

Sheet of household television according to EU directive 1062/2010

Trade mark SCHNEIDER
Model no. LED65-SCP200K
Energy efficiency class A
Visible screen diagonal 165.1cm / 65 inches
On mode power consumption 149W
Annual energy consumption 218KWh
Power consumption in off mode 0 W
Standby power consumption	<0.5W
Screen resolution (pixel)	3840(H) x 2160 (V)

Note:

1. Energy efficiency class: A++ (most efficient) to E (lease efficient)
2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days.
   The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc.

SAV

ADMEA / LOGISAV

Position: Quality Assurance Engineer

Signature:

ADMEA

en renel du 1328.501 euros 7, rue Julas Ferry ROSNY SOUS BOIS Solammy 39-323 677 0067 18.52.294.322 677 - APE: 4091 €

Date: 26 January 2018
