USER MANUAL UDT555SAHP WHIRLPOOL

DISHWASHER USER INSTRUCTIONS Dishwasher Safety Table of Contents THANK YOU for purchasing this high-quality product. Register your new dishwasher at www.whirlpool.com. In Canada, visit our website at www.whirlpool.ca. Get Internet connection instructions, terms of use, and privacy policy at www.whirlpool.com/connect. If you have any problems or questions, call the Whirlpool Connected Appliance Team at 1-866-333-4591. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool

Connected Appliances link. For future reference please make a note of your product model and serial numbers. These can be located near the door on the right-hand or left-hand side of the dishwasher interior. Model Number _____________________________________________ Serial Number _____________________________________________ W10901525B DISHWASHER SAFETY ..............................................................1

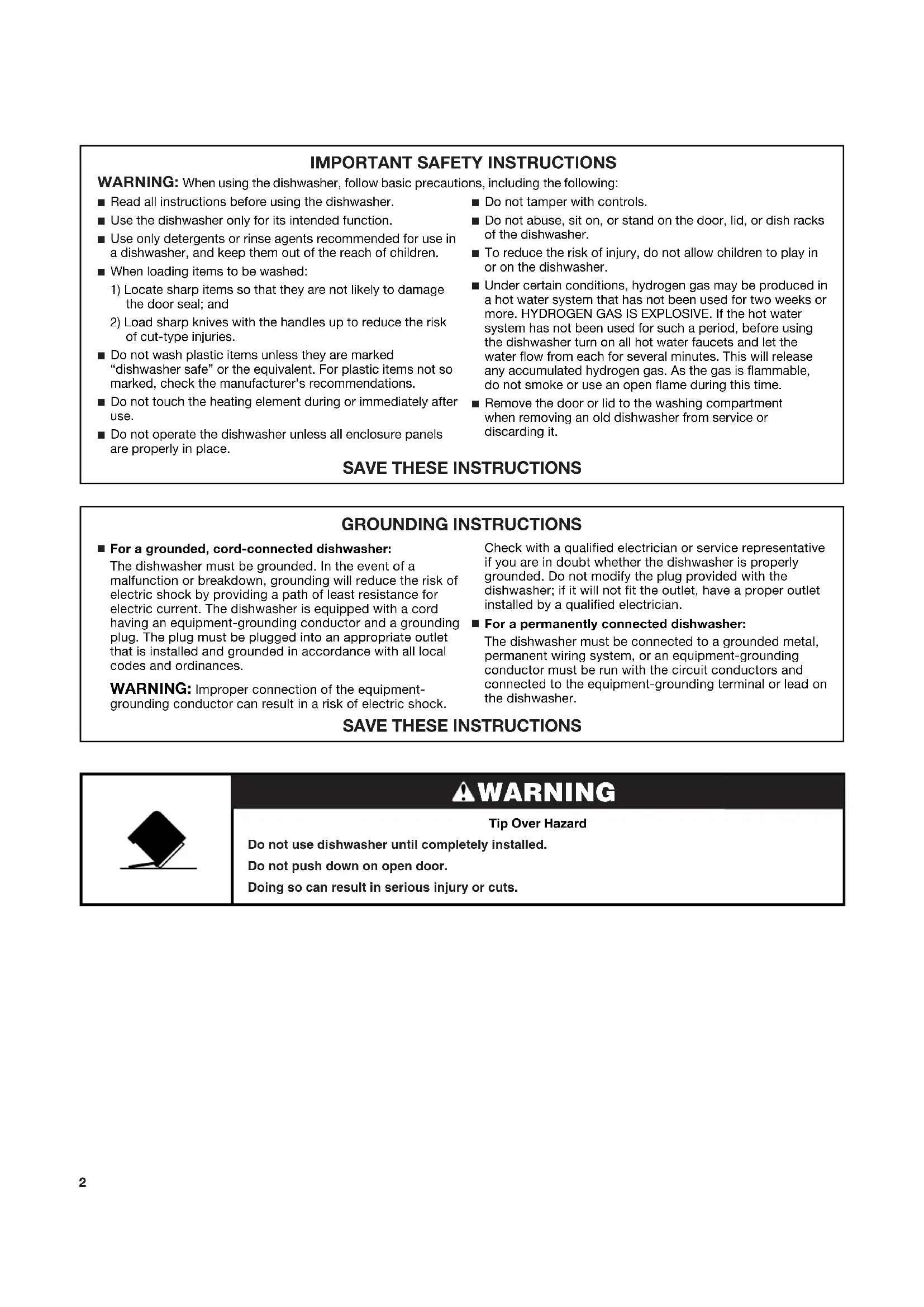

WARNING: When using the dishwasher, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

■ Read all instructions before using the dishwasher. ■ Use the dishwasher only for its intended function. ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children. ■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage

2) Load sharp knives with the handles up to reduce the risk

of cut-type injuries. ■ Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. ■ Do not touch the heating element during or immediately after use. ■ Do not operate the dishwasher unless all enclosure panels are properly in place. ■ Do not tamper with controls. ■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. ■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. ■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it. GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher: The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher. Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts. WARNING3 Connected Appliance Regulatory Notices Federal Communications Commission (FCC) Compliance Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ■ Reorient or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure Information To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20 cm separation distance between the antenna and all persons. To comply with FCC/IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada (IC) Compliance Notice This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,

2. This device must accept any interference, including

interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. The radio transmitters IC: 10248A-WICHAM01 and 10248A-FLDAAM01 have been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna Type Maximum Permissible Antenna Gain (dBi) Required Impendance (OHM) Slot 1.2 50 Monopole (WICHAM01 only)

1. The antenna(s) must be installed such that a minimum

separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times.

2. The transmitter module must not be co-located or operating in

conjunction with any other antenna or transmitter. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for certain congurations or co-location with another transmitter), then the FCC and Industry Canada authorizations are no longer considered valid and the FCC ID and IC Certication Number cannot be used on the nal product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC and Industry Canada authorization. End Product Labeling The WICHAM01/FLDAAM01 Modules are labeled with FCC ID and IC Certication Number. If the FCC ID and IC Certication Number are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the nal end product must be labeled in a visible area or display the following: “Contains FCC ID: A5UWICHAM01” “Contains IC: 10248A-WICHAM01”

“Contains FCC ID: A5UFLDAAM01” “Contains IC: 10248A-FLDAAM01” The OEM of the WICHAM01/FLDAAM01 Module must only use the approved antenna(s), which have been certied with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product. The user manual for the end product must include the following information in a prominent location: “To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.”4 What’s New in Your Dishwasher Energy Congratulations on purchasing your water and energy efcient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and pauses for exceptional cleaning. Your dishwasher contains an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. Efcient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. The rst cycle using the sensor will run longer to calibrate the optical sensor. Performance Rinse Aid Using rinse aid will optimize your drying and wash performance. This dishwasher is specically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efcient dishwashers use less water and energy, so they depend on the water “sheeting” action of rinse aid for total optimal performance. SLIDE Detergent The United States and Canada have passed regulations limiting the amount of phosphorus (phosphates) in the household dishwasher detergents. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these changes, we recommend quality tablets and packs for convenience and improved performance. SLIDE Filtration System Your dishwasher has the latest technology in dishwasher ltration. This triple ltration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Maintenance of your lters regularly will sustain peak cleaning performance. We suggest you clean both your upper and lower lters and rinse under running water at least once a month.

Parts and Features Upper level wash Water feed tube Model and serial number label Water inlet opening Detergent dispenser Heating element Fold-down tines BOTTOM RACK TOP RACK Silverware basket Cup shelf Overfill protection float SAID and MAC ID numbers Cup shelf (on some models) Fold-down tines Upper spray arm THIRD LEVEL RACK (on some models) Total Coverage Spray Arm (on some models) cleans with twice the jets for more coverage. A smarter sequence of spray patterns from multiple nozzles hits dishes throughout the cycle. Rinse aid dispenser reduces spotting and improves drying. Resource Efficient Wash System removes soil from water and improves cleaning action.6

Remove bulk food and load dishwasher. Scrape off excess food into garbage or food disposer. Load dishes so that water spray will reach every surface.

Select a cycle and options (varies by model).

Start dishwasher. To start and resume a cycle, press the (Start) keypad and close the door within 4 seconds. If the door is not closed within 4 seconds, the Start keypad LED will ash, an audible tone will sound, and the cycle will not start.

Unload dishwasher and clean the lter. See “Recommended Time Interval to Clean Your Filter” in the “Filtration System” section for the recommended cleaning schedule. Connectivity Features Wi-Fi connectivity allows your Smart dishwasher to connect to the Internet and interact with the Whirlpool

app from your smartphone or mobile device. This connection opens up several Smart options to you. App features and functionality are subject to change. The options described are typical and may change. Please refer to the Whirlpool

app for up-to-date connectivity features. SMART FEATURE Smart features help make your every day more efcient by letting you remotely monitor, manage, and maintain your dishwasher. Your dishwasher may have additional features not mentioned here. Please refer to your app for a complete listing of additional features. Use of your dishwasher for observance of the Sabbath. GET STARTED Refer to the “Connectivity Setup” section in this User Instructions and follow the instructions to get connected. Check the Whirlpool

app frequently for additional information and features. Quick Steps7 SET UP Connectivity Setup Get the App and Get Connected With your mobile device, get the app, connectivity setup instructions, terms of use, and privacy policy at: www.whirlpool.com/connect In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool

Connected Appliances link. IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the Installation Instructions that came with your appliance. Connectivity requires Wi-Fi and account creation. App features and functionality subject to change. Data rates may apply. If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591. You Will Need: Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your appliance. If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591. ■ A home wireless router supporting Wi-Fi, 2.4Ghz preferably with WPA2 security. If you are unsure of your router’s capabilities, refer to the router manufacturer’s instructions. ■ The router to be on and have a live internet connection. ■ The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or can be found on the LCD screen. Refer to the appliance User Guide for the location.8 Dishwasher Use – Basic Operation STEP 1 Prepare and Load the Dishwasher IMPORTANT: Remove leftover food, bones, toothpicks, and other hard items from the dishes. Remove labels from containers before washing. Upper rack Lower rack ■ Check that nothing blocks the upper or lower spray arm. Items in rack can block the spray arms. ■ Check that when the dishwasher door is closed, no items are blocking the detergent dispenser. ■ Tough soiled items should be loaded with soiled surfaces facing down and inward to the spray. This will improve cleaning and drying results. ■ Avoid overlapping items like bowls or plates that may trap food. ■ Place plastics, small plates, and glasses in the upper rack. Wash only plastic items marked “dishwasher safe.” ■ To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks. ■ When loading silverware, always place sharp items pointing down. Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items. ■ Use slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash. PUSH NOTE: The AnyWare™ silverware basket will t on the inner door, on the front of the lower rack, and inside the lower rack. STEP 2 Add Detergent Premeasured DetergentsSLIDE SLIDE High-quality premeasured tablets and packs are recommended for improved performance. Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing lming on dishes. Using tablets and packs over time will start to reduce or eliminate white lm. They are suitable for all hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white lm (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and slide lid closed. NOTE: Follow instructions on the package when using other dishwasher detergent types. ■ Use automatic dishwasher detergent only. Add detergent just before starting a cycle. ■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool dry place. To close lid To open lid SLIDE SLIDE Place selected detergent in the dispenser. Place nger, as shown, and slide lid closed. Press rmly until it clicks. Push OPEN, as shown, and the lid will slide open.9 Powders and Gels Water Hardness Soil Level Prewash Compartment* Main Wash Compartment Soft (0–4 grains per U.S. gallon) Light None “Soft” ll line Normal None “Soft” ll line Heavy Full “Soft” ll line Medium (5–9 grains per U.S. gallon) Light None “Soft” ll line Normal Full Full** Heavy Full Full** Hard (10–14 grains per U.S. gallon) Light Full Full** Normal Full Full** Heavy Full Full** *The prewash compartment is on top of the sliding door of the dispenser. **A full main wash compartment contains 2 Tbsp (30 ml). IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difcult to achieve good results. A water softener is recommended to avoid damage and achieve good results. NOTE: Follow instructions on the package when using other dishwasher detergent types. STEP 3 Rinse Aid SLIDE IMPORTANT: Your dishwasher is designed to use rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the nal rinse. Rinse aid also keeps water from forming droplets that can dry as spots or streaks. Filling the dispenser Full Add The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions, this will last 1 to 3 months. NOTE: Indicator reads correct ll level when door is completely opened.

Pre Wash OPEN SLIDE To add rinse aid, open the rinse aid dispenser lid by gently pushing in the center of the lid with your thumb and pulling up on the edge.

2. Pour rinse aid into the

opening until the dispenser is full. Do not overll.

3. Clean up any spilled rinse

aid. Spilled rinse aid can create excessive suds.

4. Close the dispenser by pushing down gently on the lid.

Rinse Aid Setting Your rinse aid dispenser is adjustable. For most water conditions, the factory setting will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting. To adjust the setting: Turn the arrow adjuster to a higher number to increase the amount of rinse aid. STEP 4 Select a Cycle (varies by model) Efcient dishwashers run longer to save water and energy, just as driving a car slower saves gas. Cycle times may increase or decrease depending on selections. Estimated cycle times after calibration are listed in the “Cycles” chart in the “Cycle and Option Descriptions” section. Select the desired cycle by pressing a cycle keypad. Select Options (varies by model) See the “Options” chart in the “Cycle and Option Descriptions” section. You can customize the cycles by selecting the options desired. STEP 5 Start or Resume a Cycle ■ If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water. ■ For best dishwashing results, water should be 120ºF (49ºC) as it enters the dishwasher. ■ Select the wash cycle and options desired. Within 4 seconds of pressing Start/Resume you must rmly push the door closed. If the door is not closed within 4 seconds, the Start/Resume LED will ash, an audible tone will be heard, and the cycle will not start. ■ You can add an item at the beginning of the cycle. Open the door slowly and add the item. Press START/RESUME and close the door rmly within 4 seconds. If the door has been open more than 4 seconds, the LED will ash, a tone will sound and the dishwasher will not resume unless you press Start/Resume again. IMPORTANT: If the door has been opened after starting a cycle (even during the Delay Hours option), the Start/Resume keypad must be pressed again.10 Dishwasher Use – Smart Operation NOTE: You must have successfully completed the “Connectivity Setup” section for the following features to function. Verify that the Wireless Status icon and either the Amber House icon or Blue House icon are illuminated. Check the Whirlpool

app for additional dishwasher features, including Remote Enable (B). Set a Remote Enable Remote Enable requires Wi-Fi and account creation. App features and functionality subject to change. Subject to Terms of Service are available at: www.whirlpool.com/connect. Data rates may apply. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool

Connected Appliances link. Remote Enable mode allows you to start your dishwasher remotely from the Whirlpool

app. After loading the dishwasher and selecting your cycle settings, press and hold DOWNLOAD & GO for 3 seconds. The Remote Enable icon will be solidly lit. When a remote start command is received from the app, the dishwasher will start the cycle. The Remote Enable icon will remain lit. NOTE: If no Wi-Fi connection is available, the Remote Enable will not be set and the Wireless icon will blink for 2 seconds, then go out. HELPFUL TIP: Make sure that your dishwasher door remains closed and the cycle is not changed until you start the cycle. Opening the door after a Remote Enable has been set will cancel the Remote Enable. The Remote Enable will need to be reinitiated. Follow Cycle Progress Follow Cycle Progress lets you remotely monitor your dishwasher and anticipate when it will nish the current cycle. Open the app and select DISHWASHER. The cycle progress is displayed in the app. Select or Deselect Push Notications Push notications let you choose which events will be announced with a text message. Open the app and select DISHWASHER, then open PREFERENCES. Turn on the push notications you want to receive. Download a Specialty Cycle or My Cycle The Download & Go™ feature lets you select a Specialty cycle or you can design a My Cycle on the Whirlpool

app and send it to your dishwasher. When the dishwasher receives the cycle, the Download & Go LED lights up for several minutes to indicate the cycle has been received. When you want to use this cycle, press DOWNLOAD & GO to select the cycle, just as you would do for any other cycle. Press the Start/Resume keypad and close the door within 4 seconds to start the cycle. HELPFUL TIP: The cycle will be remembered for future use until a different cycle is downloaded to the dishwasher. NOTE: If Download & Go is pressed without a cycle ready for selection, the LED will blink and you will hear an “invalid key press” sound (if key activation sounds are turned on). When a remote start command is received from the app, the dishwasher will start the cycle. The Remote Enable icon will remain lit. Enable Quiet Mode Enable Quiet mode lets you remotely silence the on-dishwasher tones such as the end-of-cycle signal. Open the app and select QUIET MODE. Issue Alerts Issue Alerts lets you know by text message if something needs your attention and provides guidance about what to do. You may turn off Issue Alerts from the app by going to the Appliance Details page, choosing the Preferences option, and toggle off all notications, and click save in the top right corner. Smart Delay (Opt-in through Whirlpool

app and when supported by your local utility) During times of peak electrical rates (if you have opted in), you may see the Smart Delay icon. When this occurs, your dishwasher will delay according to your opt-in choices to help alleviate peak power demands on the local utility. The dishwasher will start up automatically when the peak power demand has decreased. You may override Smart Delay through the app. Wireless icon Remote Enable icon Amber House icon (peak electric rate) Blue House icon (normal electric rates) Remote Enable11 Cycle and Option Descriptions Estimated cycle times may increase or decrease depending on water temperature, soil conditions, dish load size, and options selected. You can customize your cycle by selecting an option. See option selections. If you change your mind, press the option again to turn off the option, or select a different option. You can change an option anytime before the selected option begins. At each stage of the wash cycle, you may hear noises that you are not used to hearing in your previous dishwasher. Each cycle will provide a series of pauses and water sprays throughout the wash cycle. This is normal and will provide optimal cleaning performance. CYCLE SELECTIONS This information covers several different models. Your dishwasher may not have all of the cycles and options described. IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed. CYCLES ESTIMATED WASH TIME

(HH:MM) WATER USAGE GALLONS (LITERS) This cycle senses the load size, soil amount, and toughness of soil to adjust the cycle for improved cleaning, using only the amount of water and energy needed. The Sensor cycle is automatically selected if you rst press the Start/Resume keypad.* 2:10 to 3:15 3.38 to 7.4 (12.8 to 28.0) Use for hard-to-clean, heavily soiled pots, pans, casseroles, and tableware. 2:45 to 3:25 7.4 (28.1) This cycle is recommended for daily, regular, or typical use to completely wash and dry a full load of normally soiled dishes. This dishwasher’s government energy certications were based on the Normal cycle with only the Heated Dry option selected.** 2:00 to 3:10 2.4 to 7.4 (9.09 to 28) For fast results, 1-Hour Wash will clean dishes using slightly more water and energy. Select the Heat Dry or Extended Dry options for better drying performance. 0:55 to 1:05 7.87 (29.8) This cycle quietly soaks dishes with an extended prewash, which eliminates the need to presoak dishes, saving personal time and effort. For optimal cleaning results during the Soak & Clean cycle, add prewash detergent. Use this cycle for loads with heavy amounts of dried-on or hard to clean baked-on food. 6:45 to 7:25 7.4 (28.0) This is a specialty cycle that you select from the Whirlpool

app and download to your dishwasher. Your dishwasher remembers this cycle until you replace it by downloading another cycle from the Whirlpool

app. Variable Variable up to

*The government energy certications are not based on this cycle. See the Normal cycle description for the government energy certication cycle. Using the Sensor cycle may increase your energy usage. **No other washing and drying temperature options were selected, and it was not subject to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash.12 OPTION SELECTIONS

SELECTED WITH WHAT IT DOES ADDED TIME TO CYCLE ADDED WATER GALLONS (LITERS) (varies by model) Runs dishwasher at a later time. Select a wash cycle and options. Each time you press the Delay keypad, it will display the next available delay time. Press START/RESUME, then close the door rmly. NOTES: ■ The dishwasher remembers the last delay you selected. To reset the delay time to something other than what is displayed, continue to press the Delay keypad until the desired delay time is reached. ■ Anytime the door is opened (such as, to add a dish), the Start/Resume keypad must be pressed again to resume delay countdown. Available with any cycle Delays start of a cycle up to 24 hours. N/A N/A Raises main wash temperature to improve cleaning for loads containing tough, baked-on food. Sensor Heavy Normal Soak & Clean Raises the main wash temperature to 135°F (57°C). 0:05 to 0:13 0 to 3.86 (0 to 14.6) Dries dishes with heat. This option, with the use of rinse aid, will provide better drying performance. Plastic items are less likely to deform when loaded in the top rack. Use Heat Dry for optimum dry performance. Turn the Heat Dry option off for air dry. Extended Dry lengthens the time that Heat Dry is active. This option with the use of rinse aid will provide better drying performance. Sensor Heavy Normal Soak & Clean Uses heating element to speed drying times. Heat Dry option defaults to on when any cycle is selected, except for 1-Hour Wash. 0:08 to 0:46 0 (location of “Sanitized” indicator varies by model) Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certied residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efcacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certied dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efcacy. At end of the cycle, the “Sanitized” indicator will glow. If your load did not properly sanitize, the indicator will ash at the end of the cycle. This can happen if the cycle is interrupted or if the water does not reach the required temperature. The light goes off when you open and close the door or press CANCEL. Sensor Heavy Normal Raises the main wash temperature to 135°F (57°C) and the nal rinse temperature to 156°F (69°C). 0:05 to 1:06 0 to 3.86 (0 to 14.6) Avoids unintended use of dishwasher between cycles, or cycle and option changes during a cycle. To turn on Lock, press and hold CONTROL LOCK for 3 seconds. Control Lock light will stay on for a short time, indicating that it is activated and all keypads are disabled. If you press any keypad while your dishwasher is locked, light ashes 3 times. Dishwasher door can still be opened/closed while the controls are locked. To turn off Lock, press and hold CONTROL LOCK for 3 seconds. Light turns off.13

CONTROLS AND CYCLE STATUS

Press to start or resume a wash cycle. If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator LED ashes. The cycle will not resume until door is closed and the Start/Resume keypad is pressed. NOTE: Push door rmly closed within 4 seconds of pressing the Start/Resume keypad or the dishwasher will not start. If door is not closed within 4 seconds, the Start/Resume LED will ash and an audible tone will sound when the door is closed. Press to cancel a wash cycle. Close the door rmly. The dishwasher starts a 2-minute drain (if needed). Let dishwasher drain completely. Display varies by model The display allows you to follow the progress of the dishwasher cycle. Models with a numeric display count down while the cycle is running. If you open the door to view this display, you must resume the cycle by pressing the Start/Resume keypad and closing the door within 4 seconds. Models without a numeric display have indicators that glow for Drying, Clean, and Sanitized. If you select Sani Rinse option, when cycle is nished, the “Sanitized” indicator glows. If your dishwasher did not properly sanitize your dishes, the light ashes at the end of the cycle. This can happen if the cycle is interrupted or water could not be heated to required temperature. The light goes off when you open and close door or press Cancel. The exterior status light on the front of the door panel will glow blue when washing, red while it is drying, and white when the cycle is complete.14 Dishwasher Features AnyWare™ Silverware Basket The AnyWare™ silverware basket can be hung on the door, the bottom rack, or placed inside the bottom rack. Door position Rack position Rack position side To open the AnyWare™ silverware basket: To unlock, grasp the front panel, pull up, and rotate 90° as shown. Make sure the front panel is up all the way before rotating. To unlock and rotate the front panel, grasp the front panel as shown and pull it up and out. PUSH NOTE: Be sure the front panel of the silverware basket is completely locked into place before pulling out the bottom rack and before closing the dishwasher door. To remove the basket from the door:

1. Grasp the silverware basket by the handle. Slide it toward the

2. Lift the basket off the holding buttons.

To replace the basket in the door:

3. Slide the basket toward the bottom of the door until it locks into

place. Cup Shelves Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups, stemware, or long items such as utensils and spatulas. For best results on cups, stagger the spacing so that the cups on the shelf are not directly above the cups below. Fold-Down Tines The row of tines on the left-hand and right-hand sides of the upper, or in the back of lower rack can be adjusted to make room for a variety of dishes. To adjust the fold-down tines:

1. Grasp the tip of the tine that is

2. Gently push the tine out of the

3. Lay the tines down, toward the

center of the rack. EZ-2-Lift™ Top Rack Adjuster You can raise or lower the top rack to t tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. To raise the rack: Press both rack adjuster thumb levers and lift the rack until it is in the Up position and level. To lower the rack: Press both rack adjusters thumb levers and slide the rack to its Down position and level. NOTE: The top rack must be level. Easy-to-Remove Third Level Rack (on some models) If additional space is needed in the upper rack, the third level rack can easily be removed. To remove, fully extend rack until it stops. Then, open the track stops on each side and slide the rack out to remove. Low-prole items, such as serving utensils and silverware, may be loaded on the third level rack. A. Track stop B. Track15 Removable Top Rack The removable top rack allows you to wash larger items, such as pots, roasters, and cookie sheets in the bottom rack. IMPORTANT: Remove dishes prior to removing the top rack from dishwasher. To remove the rack:

1. To gain access to the track stops, pull the upper rack forward

about halfway out of the tub.

2. Press on the edge of the ridged area on the track stop while

tipping the track stop toward the center of the dishwasher. This action releases a small retaining tab that locks the track stop to the track (see Track stop – left). NOTE: It is helpful to use 2 hands. Take special note of the orientation of the track stops. Track stop – left

3. With the retaining tab released, pull the track stop straight

toward the opposite track to remove it.

4. After removing both track stops, gently pull the top rack out of

the tracks by rolling it toward you.

5. Replace the track stops by coming up from under the track

and slipping the lower tab of the track stop into the lower slot of the track (see Track stop – right) and rotate the track stop into place. Then press on the edge of the ridged area while pushing the track stop straight toward the track. This action locks the retaining tab back into place. Track stop – right

6. Test the track stop by pulling it toward the opposite track to

ensure that it is locked in place. To replace the rack:

1. Gently pull the tracks forward in dishwasher until they stop.

Remove track stops. See steps 1 through 3 above.

2. Place the back wheels on each side of the rack into the track

and roll the rack into the tracks, but do not push the rack all the way into the tub.

3. Insert front rack wheels on each side of the rack into the

4. Slide the rack into the dishwasher.

5. Replace the track stops. See steps 5 and 6 above.

IMPORTANT: Be sure that the track stops are locked in place and cannot be easily removed. They keep the rack from coming out of the track.16 Filtration System Your dishwasher has latest technology in dishwasher ltration. This ltration system minimizes sound and optimizes water and energy conservation while providing superior cleaning. The lter system consists of 2 parts an upper lter assembly and a lower lter. IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without lters properly installed. Be sure lower lter is securely in place and upper lter assembly is locked into place. If upper assembly turns freely, it is not locked into place. The lters may need to be cleaned when: ■ Visible objects or soils are on the upper lter assembly. ■ Dishes feel gritty to the touch. Lower filter Upper filter assembly It is very easy to remove and maintain the lters. The chart below shows the recommended cleaning frequency. RECOMMENDED TIME INTERVAL TO CLEAN YOUR FILTER Number of Loads Per Week If you only scrape before loading* If you scrape and rinse before loading If you wash before loading 8–12 Every 2 months Every 4 months Once per year 4–7 Every 4 months Once per year Once per year 1–3 Twice per year Once per year Once per year *We recommend this practice because it will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort. Very Hard Water If you have hard water (above 15 grains), clean your lter at least once per month. Buildup of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the “Troubleshooting” section. Filter Removal Instructions

1. Turn the upper lter assembly 1/4 turn counterclockwise and

lift out. Locating tab To remove upper filter assembly

2. Separate the upper lter assembly by gently pulling apart.

3. Clean the lters as shown.

Cleaning Instructions IMPORTANTE: Do not use wire brush, scouring pad, etc., as they may damage the lters. Rinse lter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

1. Noting the previous illustrations, place the lower lter under

the locating tabs in the bottom of the dishwasher, so the round opening for the upper lter assembly lines up with the round opening in the bottom of the tub.

2. Insert the upper lter assembly into the circular opening in the

3. Slowly rotate the lter clockwise until it drops into place.

Continue to rotate until the lter is locked into place. If the lter is not fully seated (still turns freely), continue to turn the lter clockwise until it drops and locks into place. NOTE: The upper lter assembly arrow does not have to align with the arrow in the lower lter as long as the lter is locked. IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the lters properly installed. Be sure the lower lter is securely in place and the upper lter assembly is locked into place. If the upper lter assembly turns freely, it is not locked into place. Dishwasher Care Cleaning the Exterior Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless steel cleaner, such as affresh

† Stainless Steel Cleaner is recommended. Avoid using abrasive cleaning products on the exterior of the dishwasher. Cleaning and Maintaining the Interior Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh

Dishwasher Cleaner can help to remove the residue. Monthly use of affresh

Dishwasher Cleaner is recommended to help maintain the dishwasher. To Use:

1. If cleaning without dishes, place one tablet in the detergent

dispenser. Do not add detergent (If signicant buildup is noticeable, a second tablet can be placed in the bottom of the dishwasher.)

2. If cleaning with dishes, place one tablet in the bottom of the

dishwasher. Place detergent in the dispenser.

3. Run a Normal wash cycle.

Another method to remove white residue is to use a vinegar rinse. However, vinegar is an acid and using it too often could damage your dishwasher. Place (do not pour), 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water. NOTE: Whirlpool recommends the use of high-quality, premeasured detergent tablets or packs, and the use of rinse aid for dishwasher cleaning and daily care. If you have a drain air gap, check and clean it if the dishwasher isn’t draining well. To Reduce Risk of Property Damage During Vacation or Extended Time Without Use ■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher. ■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. ■ Damage from freezing is not covered by the warranty. ■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.18 Troubleshooting – Connectivity First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the “Connectivity Setup” section in this manual or contact the Connected Appliance Team. In the U.S.A., contact the Connected Appliance Team: Visit www.whirlpool.com/connect Call: 1-866-333-4591 M–F 8 am – 8 pm EST Email: Connected_appliance@Whirlpool.com In Canada, contact the Connected Appliance Team: Visit: www.whirlpool.ca/en_CA and click on the Whirlpool

Connected Appliances link Call: 1-866-333-4591 M–F 8 am – 8 pm EST Email: Connected_appliance@Whirlpool.com By mail: By mail: Connected Appliance Team Whirlpool Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Connected Appliance Team Whirlpool Customer eXperience Centre 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 Please include a daytime phone number in the correspondence. A. Wireless Status icon B. Remote Enable icon C. Amber House icon (peak electric rates) D. Blue House icon (normal electric rates)

CONNECTION STATUS CONTROL PANEL INDICATOR LIGHTS

Dishwasher is not connected All icons are off. Dishwasher is attempting to connect to home Wi-Fi router Wireless icon is blinking slowly. Dishwasher is connected to home Wi-Fi router, but Whirlpool

app or Smart Grid functions do not work Wireless icon is on. Blue Internet icon is blinking slowly. Dishwasher is connected to home Wi-Fi router and the Whirlpool

app works Wireless icon is on. Blue or Amber House icon is on – it is not blinking PROBLEM SOLUTION DISHWASHER IS NOT CONNECTED TO HOME WI-FI ROUTER (WIRELESS ICON IS OFF) The dishwasher may be in Standby mode. Press POWER on the dishwasher and observe indicators. All indicator lights are off when in Standby mode. Check that the dishwasher has been connected to the home Wi-Fi router. See the “Connectivity Setup” section. Press and hold CONNECT for 3 seconds. The Wireless Status icon should blink while connecting (this may take up to 2 minutes). Check whether the router connection is on and working with other computers or devices in the home (able to access the Internet). Have you changed the router or its password? There may be weak signal strength or signal interference between the dishwasher and router. Try to place the wireless router closer to the dishwasher. It may be necessary to install a Wi-Fi range extender. Check the mobile app to verify that the dishwasher is not ofine. If it is ofine, do the following to reconnect:

1. Go to “Preferences” in the mobile app nd and select DELETE

2. Follow the mobile app instructions to add an appliance.

KEYPAD Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING Unplug or disconnect dishwasher power for 30 seconds, then reconnect power. Repeat Wi-Fi connect process. If there is no connection after several attempts, use alternate setup instructions available at www.whirlpool.com/connect. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool

Connected Appliances link. Appliance may be assigned to a Wi-Fi network that is not active. Verify that the network it is assigned to is operating properly. Verify that the dishwasher operates correctly, except for not being able to connect. Call for service. DISHWASHER IS

WI-FI ROUTER (WIRELESS

Check whether either the Blue or Amber House icon is on continuously; if not, press CONNECT to reestablish wireless connection. Connection to the Whirlpool

app and Smart Grid service may be unavailable. Check if the Blue House icon is off or blinking. Check that your user account is set up. See the “Connectivity Setup” section or the Whirlpool

app directly for account setup and dishwasher registration instructions. Verify that the dishwasher is paired with your account in the app.20 PROBLEM SOLUTION

RUN NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle. If the Start/Resume light is blinking, press Start/Resume and close the door within 4 seconds. Be sure the door is closed and latched. ■ Check that there is not an interference with large casserole dishes and the wash system at the back of the dishwasher. ■ Check to see if any items are protruding through the bottom or back of the rack. Also check to see if tall items are hitting the upper rack or spray arm. Adjust loading as necessary to ensure door is closed and latched. Press the Start/Resume or Cancel keypad or open and close the door before selecting your cycle/ option. Controls must be awakened after a period of inactivity. Be sure the Control/Lock feature is not on. If the control lock indicator is lit, press and hold SANI RINSE for 3 seconds. The Control Lock LED will turn off and you can then operate the controls. Be sure you have selected a cycle. See the “Cycle and Option Descriptions” section. Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped. If lights other than Start/Resume blink and the unit will not run, you will need to call for service. If the numeric display shows a code “F2E2”, you will need to call for service. DETERGENT REMAINS

TUB Check for dishware, such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly. Be sure your detergent is fresh and lump free. Be sure the cycle has completed (the Clean light is on). If it has not completed, you will need to resume the cycle by pressing the Start/Resume keypad and closing the door within 4 seconds. CYCLE RUNS TOO LONG NOTES: ■ To use less water and reduce energy consumption, you will encounter cycles that typically run for up to 3 hours. ■ A water heater setting of 120°F (49°C) is best the dishwasher will delay longer while heating cooler water. ■ Some options will add time to the cycle. See the “Cycle and Option Descriptions” section. The Heat Dry option adds approximately 45 minutes. Try the 1-Hour Wash cycle. Run the hot water at a faucet close to the dishwasher before starting the cycle. DISHWASHER NOT DRYING NOTE: Plastic and items with nonstick surfaces are difcult to dry because they have a porous surface, which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Heat Dry option is needed for proper drying. Proper loading of items can affect drying. (See specic loading instructions within this guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading. ■ Unload the bottom rack rst. ■ Locate these items on the more slanted side of the rack for improved results. WILL NOT FILL Be sure the water to the dishwasher is turned on. Check that the overll protection oat is free from obstructions. See the “Parts and Features” section. Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not ll with water. See “Blinking Lights” in the “Troubleshooting” section. Troubleshooting If you have successfully connected your dishwasher previously and are experiencing difculties, rst try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device, or visit www.whirlpool.com/product_help. In Canada, visit www.whirlpool.ca.Contact us by mail with any questions or concerns at the address below: In the U.S.A.: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 In Canada: Whirlpool Brand Home Appliances Customer eXperience Centre 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 Please include a daytime phone number in the correspondence.21 PROBLEM SOLUTION

Be sure the cycle has completed (the Clean indicator is on). If it has not, you will need to resume the cycle by pressing the Start/Resume keypad and closing the door within 4 seconds. If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet. Check for kinks in the drain hose. Check for food obstructions in the drain or disposer. Check your house fuse or circuit breaker. HARD WATER

GLASSWARE) NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difcult to achieve good cleaning. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help: Use a commercial cleaner designed for dishwashers once per month. Clean the upper and lower lters at least once per month. See “Cleaning Instructions” in the “Filtration System” section. Always use a rinse aid. Always use a high-quality, fresh detergent. Use a detergent booster/water softener additive designed for dishwashers. ODORS NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run. Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. Do not use detergent. The dishwasher may not be draining properly. See “Water Remains In The Tub/Will Not Drain” in the “Troubleshooting” section. NOISY Surging sounds can occur periodically throughout the cycle while the dishwasher is draining. Normal water valve hissing may be heard periodically. A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle. Improper installation will affect noise levels. Be sure the lters are properly installed. A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.

ON DISHES Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. See the “Dishwasher Use” section. Check lter to ensure it is properly installed. Clean it if needed. See “Cleaning Instructions” in the “Filtration System” section for details. Select the proper cycle and option for the type of soils. The Heavy cycle with the Hi Temp Wash option can be used for tougher loads. Be sure the incoming water temperature is at least 120°F (49°C). Use the proper amount of fresh detergent. More detergent is needed for heavier soiled loads and hard water conditions. Scrape food from dishes prior to loading (do not prerinse).

DISHES DIRTY/SUDS IN

DISHWASHER/CYCLE NOT COMPLETE If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not ll with water. Suds can come from: ■ Using the incorrect type of detergent, such as dish detergent for hand washing dishes, laundry detergent, or hand soap. ■ Not replacing the rinse aid dispenser cap after lling (or relling) the rinse aid. ■ Using an excessive amount of dishwasher detergent. ■ Inadequate rinsing off detergent from dishes washed by hand before loading them into the dishwasher. Call for service. If no water was present in the machine at any time during a heated wash cycle, the cycle will end and the Clean indicator will not come on. See “Will Not Fill” in the “Troubleshooting” section. DID NOT SANITIZE If the Sanitized light is blinking, the load is NOT sanitized. The cycle was interrupted in the nal rinse or the temperature for your water heater is set too low. Set your water heater to 120ºF (49°C). DAMAGE TO DISHWARE Improper loading can cause dishes to become chipped or damaged. (See specic loading instructions within this guide.)22 PROBLEM SOLUTION BLINKING LIGHTS Blinking indicators will occur when the cycle is paused or when the cycle has been interrupted by opening the door. If the Start/Resume light is blinking, press the Start/Resume keypad and close the door within 4 seconds. See “Start or Resume a Cycle” in the “Dishwasher Use” section. If the Clean light or any other lights are blinking and the dishwasher will not run, call for service.

WATER SOLUTION) Add or adjust the amount of liquid rinse aid for better drying and to reduce spotting. See the “Detergent and Rinse Aid” section. Use the correct amount of detergent. Conrm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See “Hard Water (White Residue on Dishwasher Interior or Glassware)” in the “Troubleshooting” section. If it does not come clear, it is due to etching (see below). Be sure the incoming water temperature is set at 120°F (49°C). Try using the Hi Temp Wash and Sani Rinse options. To remove spotting, run a vinegar rinse through the dishwasher. ■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. No detergent is needed. ETCHING (PERMANENT CLOUDINESS) This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water, or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C). LEAKING WATER Be sure dishwasher has been installed properly and is level. Suds can cause the dishwasher to overow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues. To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overlling. TUB IS DISCOLORED High iron content in the water can discolor the tub. Tomato-based foods can discolor the tub or dishware. Large amounts of tomato-based foods should be removed from the dishes before loading. A citrus-based cleaner can be used to clean.23 Open Source License Usage The following statements refer to the portions of this software based in part on FreeRTOS v7.0.2, http://www.freertos.org. The use of this software is governed by the terms of GNU General Public License v. 2, which is available at: http://www.gnu.org/licenses/gpl-2.0.html. A copy of the source code may be obtained by written request for the software by name to opensource@whirlpool.com, along with the address for delivery. The following statements refer to those portions of the software copyrighted by Eclipse Foundation, Inc. Copyright (c) 2007, Eclipse Foundation, Inc. and its licensors. All rights reserved. Redistribution and use in source and binary forms, with or without modication, are permitted provided that the following conditions are met: ■ Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer. ■ Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution. ■ Neither the name of the Eclipse Foundation, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specic prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Portions of this software are copyright (c) Sawtooth Consulting Ltd. 2006-2015 All rights reserved. Portions of this software are copyright (c) Arrayent, Inc. 2015 All rights reserved. The following statements refer to those portions of the software copyrighted by Swedish Institute of Computer Science. Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved. Redistribution and use in source and binary forms, with or without modication, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions, and the following disclaimer.

2. Redistributions in binary form must reproduce the above

copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or

promote products derived from this software without specic prior written permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS”’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED

AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The following statements refer to those portions of the software copyrighted by Marvell International Ltd. Copyright (c) Marvell International Ltd. All rights reserved. DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE

COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS”

AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.24 03/17 IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpool.com. 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience CenterIn the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies. WHIRLPOOL

MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase, including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator,

or installation instructions. 2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance with

electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).

4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of products from natural gas or propane gas.

7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,

alteration, or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes,

unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including,

but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.11. Food or medicine loss due to product failure.

12. Pickup or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool

servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels,

flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered, or not easily

determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.25
