ACE119PR0 - Air-conditioner WHIRLPOOL - Free user manual and instructions

Brand	Whirlpool
Model	ACE119PR0
Appliance type	In-wall air conditioner (without window)
Cooling capacity	Approximately 11,900 BTU/h
Power supply	115 V, 60 Hz, 15 A, dedicated circuit with time-delay fuse
Appliance dimensions (W × H × D)	64.8 × 38.7 × 44.5 cm (for standard sleeve)
Operating modes	Cooling, Heating (on some models), Fan only, Power Saver
Fan speeds	Auto, Low, High, Turbo
Timer	Delayed on/off from 0.5 to 24 h
Remote control	Yes, with included AA batteries
Air exhaust	OPEN position (exhaust) or CLOSED position (recirculation)
Air filter	Washable, removable, check every 2 weeks
Cleaning	Front panel: warm water and mild detergent; filter: vacuum or soapy water
Annual maintenance	Recommended by a certified technician (fee applies)
Electrical safety	3-prong grounded outlet; cord with protection device (Reset/Test)
Installation	Into an existing or new wall sleeve (sleeve sold separately)
Warranty	5 years on sealed system (compressor, evaporator, condenser, etc.); 30 days on filter
Customer service (Canada)	1-800-461-5681 (questions) / 1-800-807-6777 (service)

Frequently Asked Questions - ACE119PR0 WHIRLPOOL

How to install the Whirlpool ACE119PR0 air conditioner in an existing wall sleeve?

Measure the sleeve (height, width, depth). Remove the old grille, clean the sleeve, then install the new grille provided, securing it with No. 8-32 screws. Add insulation strips if necessary. Insert the air conditioner into the sleeve and mount the universal trim frame. Ensure the unit is slightly tilted outward for condensate drainage.

What are the required electrical specifications for this air conditioner?

The air conditioner operates on a 115 V, 60 Hz outlet, with a dedicated 15 A circuit protected by a time-delay fuse. The power cord is equipped with a ground fault circuit interrupter (Reset/Test buttons). Never use an extension cord or adapter.

How to clean the air conditioner air filter?

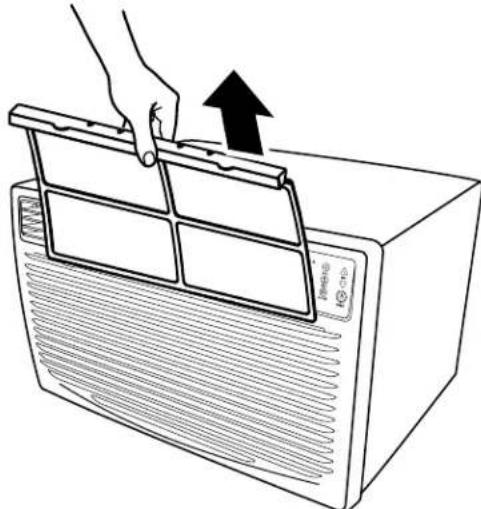

Turn off the unit, then remove the filter by sliding it upward. Vacuum or wash it with warm water and mild detergent. Do not put it in the dishwasher. Dry it completely before reinstalling. Check the filter every 2 weeks.

Why does my air conditioner turn on and off too often?

This may be due to Power Saver mode, which turns off the fan with the compressor. For better comfort, use Cool mode with high fan speed. Also check if the filter is dirty, the louvers are obstructed, or the room is too hot or humid.

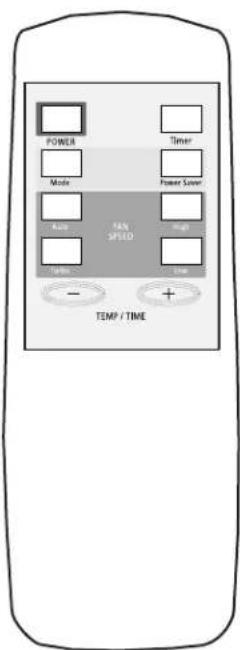

How to use the air conditioner remote control?

Insert two AA batteries (included) into the remote. Press POWER to turn on/off. Use MODE to select Cool, Heat (if available), Fan Only, or Power Saver. Set fan speed with AUTO, TURBO, HIGH, or LOW. The + and - buttons adjust the temperature from 66°F to 88°F (19°C to 31°C). The timer is set with the TIMER button.

Is it normal for noise to occur during operation?

Yes, the air conditioner makes several normal sounds: clicks from water droplets on the condenser, hum from the high-efficiency compressor, thermostat click, or wall vibrations. These noises are normal and do not indicate a malfunction.

How to set the timer for delayed start?

Turn off the air conditioner, then press TIMER. The indicator blinks. Use + or - to set the delay (0.5 to 24 hours). Press TIMER again or wait 10 seconds to confirm. The air conditioner will automatically turn on at the set time with the last used settings.

What to do in case of water leakage inside?

Make sure the air conditioner is slightly tilted outward (not perfectly level). Check that the drainage hole is not clogged. Do not drill the bottom of the unit. If the leak persists, contact a certified technician.

What is the procedure for testing the power cord?

Plug the cord into a 3-prong grounded outlet. Press TEST (the Reset button should trip with a click). Then press RESET to reset it. If the button does not stay pressed or the unit does not work, replace the cord with a new one from the manufacturer.

What is the warranty coverage for this air conditioner?

The full 5-year warranty covers defects in materials and workmanship of mechanical/electrical controls and the sealed refrigeration system (compressor, evaporator, condenser, etc.). The air filter is warranted for 30 days. Repairs are performed in-home by a Whirlpool authorized service. Travel costs and incidental damages are not covered.

USER MANUAL ACE119PR0 WHIRLPOOL

THROUGH-THE-WALL AIR CONDITIONER

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service call: 1-300-253-1301.

In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777

or visit our website at... www.whirlpool.com

or...www.whirlpoolappliances.ca

CLIMATISEUR ENCASTRÉ DANS LE MUR

AIR CONDITIONER SAFETY 2

INSTALLATION REQUIREMENTS. 3

Tools and Parts 3
Location Requirements. 4
Electrical Requirements 4

INSTALLATION INSTRUCTIONS. 5

Unpack the Air Conditioner. 5
Before Installing Air Conditioner 5
Install Air Conditioner in Existing Wall Sleeve 5
Plastic Grille Installation. 6
Install Air Conditioner in New Wall Sleeve 7
Complete Installation 8

AIR CONDITIONER USE. 9

Starting Your Air Conditioner 9

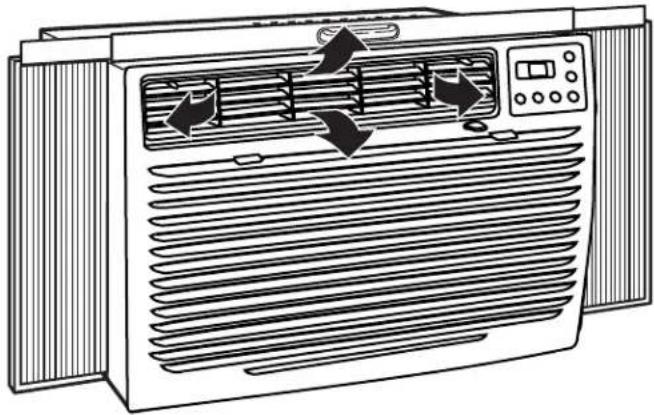

Changing Air Direction 12
Normal Sounds. 12

AIR CONDITIONER CARE 12

Cleaning the Air Filter 12

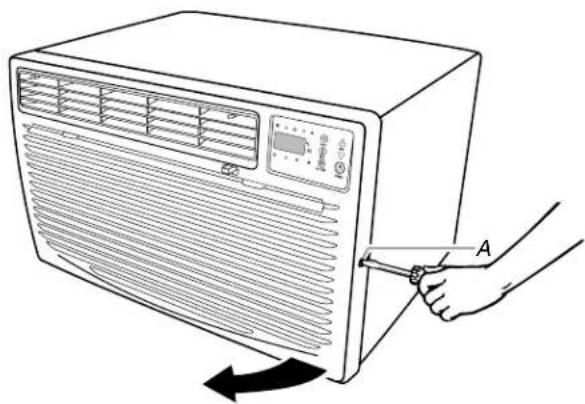

Cleaning the Front Panel. 13
Annual Maintenance. 13

TROUBLESHOOTING 13

ASSISTANCE OR SERVICE 14

In the U.S.A. 14
In Canada 14

WARRANTY 15

TABLE DES MATIÈRES

SECURITE DU CLIMATISEUR 17
EXIGENCES D'INSTALLATION 18

AIR CONDITIONER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

Plug into a grounded 3 prong outlet.

Do not use an extension cord.

Do not remove ground prong.

Unplug air conditioner before servicing.

• Do not use an adapter.

Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

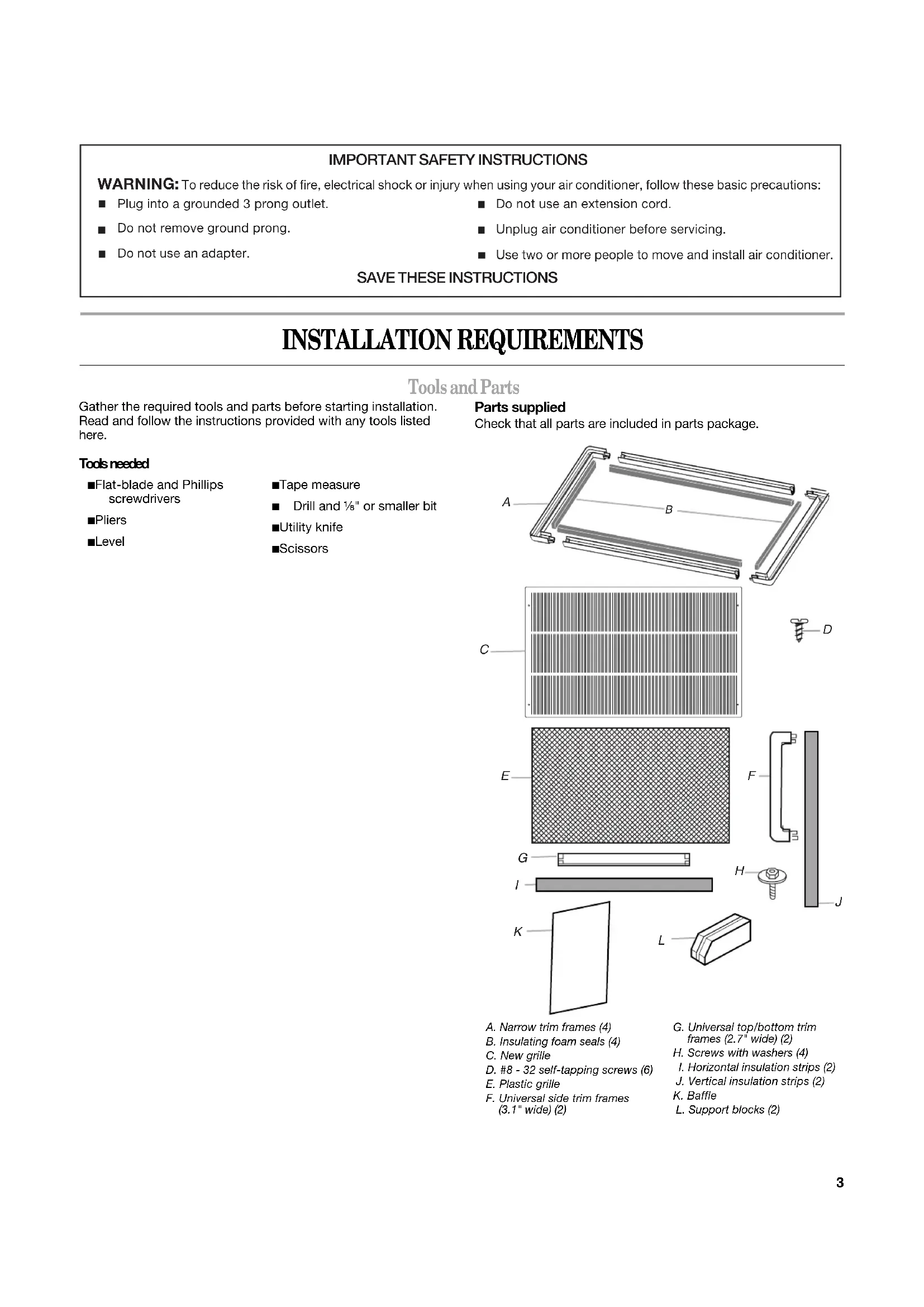

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Flat-blade and Phillips screwdrivers

Tape measure

■Pliers

Drill and 1 / 8 or smaller bit

Utility knife

Level

Scissors

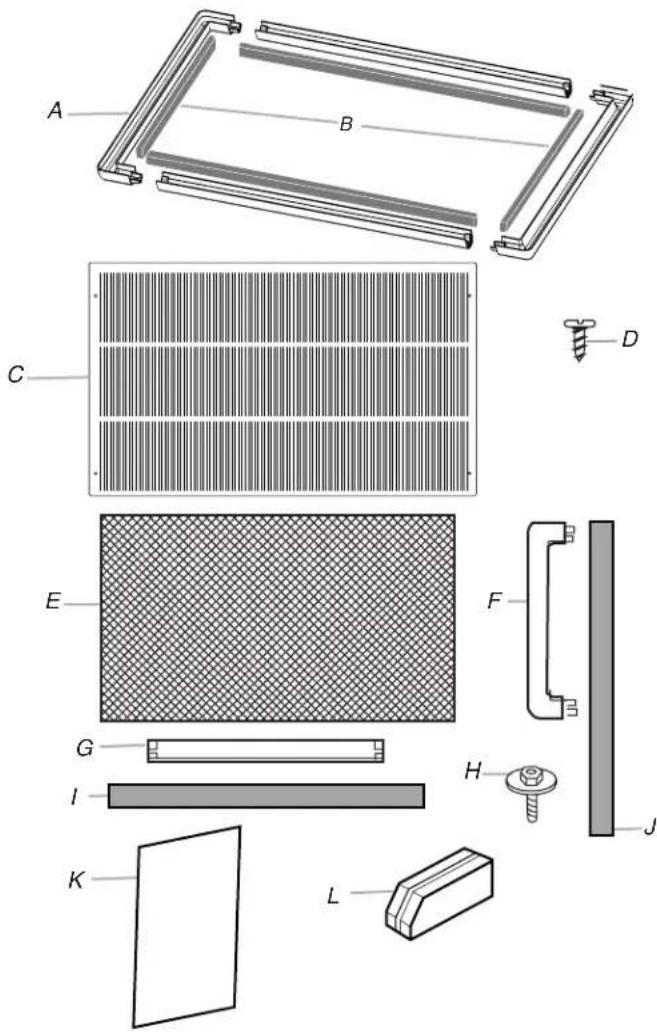

Parts supplied

Check that all parts are included in parts package.

A. Narrow trim frames (4)

B. Insulating foam seals (4)
C. New grille
D.#8-32 self-tapping screws (6)
E. Plastic grille
F. Universal side trim frames (3.1" wide) (2)

G. Universal top/bottom trim
frames (2.7" wide) (2)
H. Screws with washers (4)
I. Horizontal insulation strips (2)
J. Vertical insulation strips (2)
K. Baffle
L. Support blocks (2)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Check the location where the air conditioner will be installed. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.

The location should provide:

Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.

NOTE: Do not use an extension cord.

Free movement of air in room to be cooled.
A large enough opening for the air conditioner and sleeve (sold separately).
Adequate wall support for weight of air conditioner.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located behind the front panel on the front flange above the coil area.

Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

Power supply cord Wiring requirements

115-volt (103.5 min. - 126.5 max.)
0-7.5 amps
15-amp time-delay fuse or circuit breaker
Use on single outlet circuit only.

Power supply cord Wiring requirements

1/4" (0.6 cm)

115-volt (103.5 min. - 126.5 max.)
7.6-12 amps
15-amp time-delay fuse or circuit breaker
Use on single outlet circuit only.

230/208 volt (197.6 min. - 253 max.)
0-12 amps
■15-amp time-delay fuse or circuit breaker
Use on single outlet circuit only.

Recommended ground method

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a grounded 3 prong plug. To minimize possible shock hazard, the cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrical installer.

It is the customer's responsibility:

To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association One Batterymarch Park

Quincy, MA 02269

Power Supply Cord

NOTE: Your unit's device may differ from the one shown.

A. Reset button
B. Test button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed, the electronics detect leakage current and power will be disconnected in a fraction of a second.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET.
3. Press TEST (listen for click; Reset button will trip and pop out).
4. Press and release RESET (listen for click; Reset button will latch and remain in). The power supply cord is ready for operation.

NOTES:

The Reset button must be pushed in for proper operation.
The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset.
Do not use the power supply cord as an off/on switch. The power supply cord is designed as a protective device.
A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.
The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims.

INSTALLATION INSTRUCTIONS

Unpack the Air Conditioner

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Remove packaging materials

■Remove and properly dispose of packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.
■ Handle air conditioner gently.

Before Installing Air Conditioner

This air conditioner has been designed for installation through the wall in a sleeve. It is the responsibility and obligation of the customer to have this product installed by a qualified technician familiar with through-the-wall installation.

OR

If you choose to install the air conditioner yourself, read all installation instructions, as well as the electrical requirements and operating instructions, before installing your unit. This will help to avoid any installation problems and will help ensure trouble-free performance of your new air conditioner.

Install Air Conditioner in Existing Wall Sleeve

Remove existing rear grille and install the new grille that came with your air conditioner.
NOTE: If the new rear grille is not installed in the existing wall sleeve, your air conditioner will not operate correctly and the warranty will be void.
■ Handle air conditioner gently.
■Be sure your air conditioner does not fall out of the opening during installation or removal.
The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet.
■Be sure the wall where the air conditioner will be installed will support the weight of the unit.
■Do not install the air conditioner where the plastic cabinet front will be exposed to a heat source that raises the surface temperature above 120^ (49^) .
Do not block the louvers in the front panel.

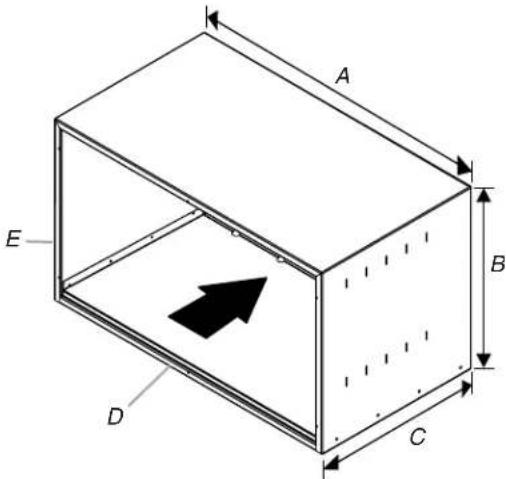

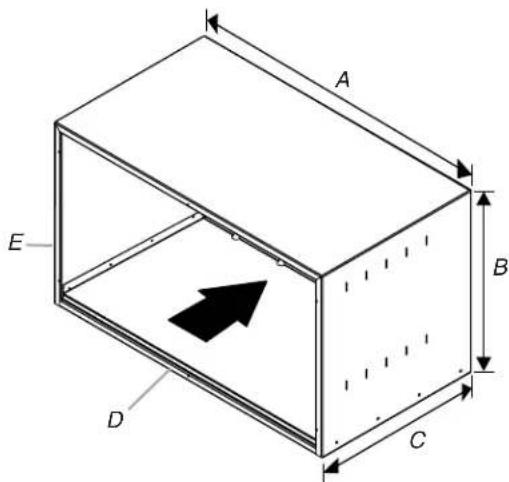

1. Measure the existing wall sleeve.
2. See the section that matches the dimensions of the existing wall sleeve.

A. Width (W)
B. Height (H)
C. Depth (D)

D. Horizontal insulation strip
E. Vertical insulation strip

Wall sleeve dimensions (W x H x D):

2512'' × 1514'' × 1712'' (64.8 cm × 38.7 cm × 44.5 cm),

25%^ × 167% × 18% (65.4 cm x 42.9 cm x 47.3 cm),

25% x 1612 x 1712 (65.7 cm x 41.9 cm x 44.5 cm) or

26'' × 15%'' × 167%'' (66 cm × 39.7 cm × 42.9 cm)

1. Remove the existing grille from the wall sleeve.
2. Remove all debris from inside the wall sleeve.
3. Insert new grille into wall sleeve.

NOTE: Make sure that the word "Top" is readable from inside the room.

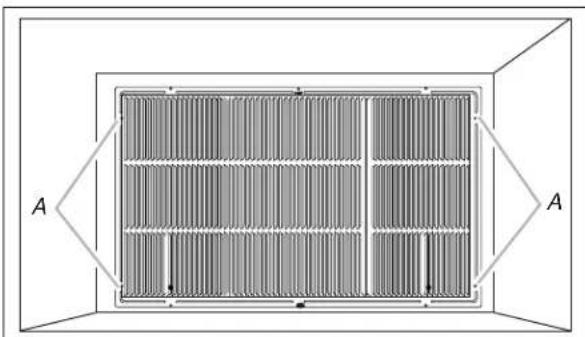

1. Using the grille as a template, mark locations of 2 holes on each side of the wall sleeve. Drill 18 " holes into the wall sleeve.

A. Drill 18 holes into the wall sleeve.

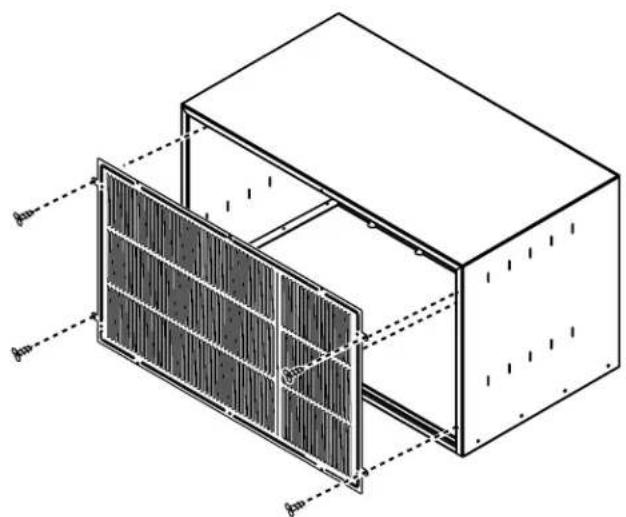

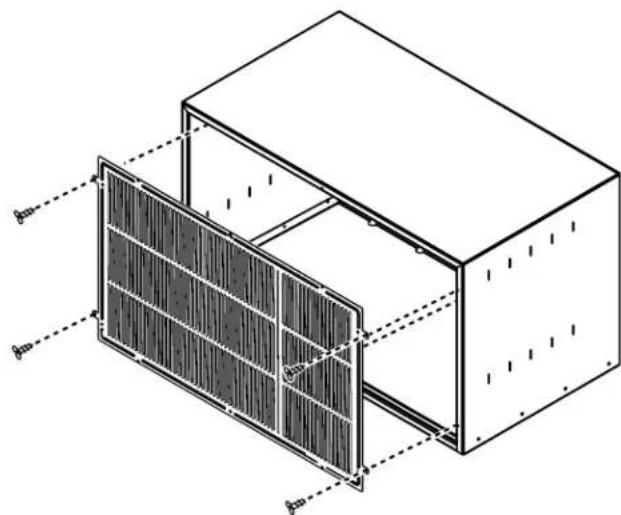

1. Attach the rear grille using #8 - 32 sheet metal screws (provided).

Insert the 4 - #8 - 32 sheet metal screws (provided) through the holes in the grille and into the wall sleeve.

Wall sleeve dimensions:

26% 1 x15% 1 x15'' (68 cm x 40 cm x 38.1 cm),

27^ × 1634^ × 1634^ (68.6cm× 42.6cm× 42.6cm) or

27'' × 16%'' × 19%'' (68.6 cm x 42.6 cm x 50.2 cm)

These sleeves require a larger rear grille and installation parts than the ones provided with this air conditioner. See your local supplier for a kit to fit this size wall sleeve.

NOTE: If you install your new air conditioner into this size wall sleeve without using the kit, you will cause damage to your new air conditioner and the warranty will be void.

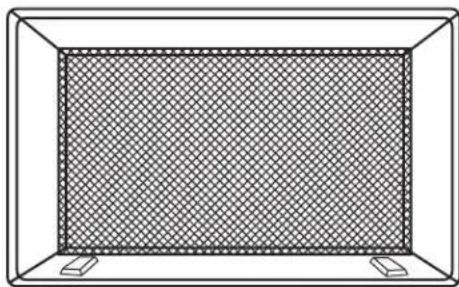

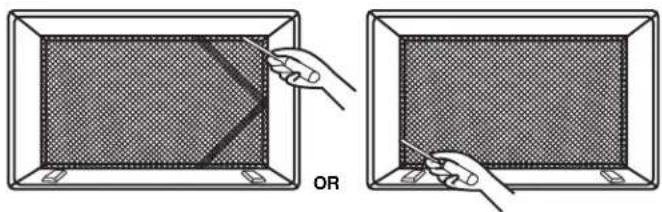

Plastic Grille Installation

1. Cut the plastic grille 26 12 (67.3 cm) wide and 15 12 (39.4 cm) high.
2. Place the plastic grille inside the wall sleeve at the rear flange.

1. If needed, drill 1/8 holes into the wall sleeve. Then fasten the grille to the wall sleeve with the screws with washers.

1. If existing wall sleeve has insulation that does not need to be replaced, skip to Step 7. Otherwise, replace the insulation.
2. Remove the backing from the horizontal insulation strip and attach it to the inside of the wall sleeve.
3. Remove the backing from the vertical insulation strip and attach it to the inside front of the wall sleeve as shown below.

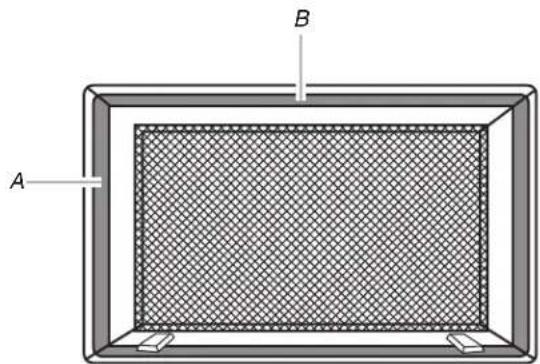

A. Vertical insulation strip
B. Horizontal insulation strip

1. If the depth of your existing sleeve is less than or equal to 18" (45.7 cm), go to Step 10. Otherwise, cut the baffle and support blocks according to the lengths in the following table.

A. Length (see chart below)
B. Support block
C. Baffle

Depth (D) of existing wall sleeve Length (A)
18" (45.7 cm) < D < 18%'' (47.3 cm)	3¼" (1.9 cm)
18%'' (47.3 cm) < D < 19¾'' (50.2 cm)	1¾" (4.5 cm)
19¾'' (50.2 cm) < D < 22 (55.9 cm) 4 (10.2 cm)

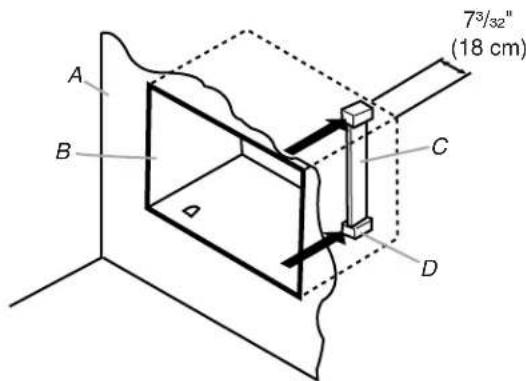

1. Slide the baffles into the slots of the support blocks.
2. Slide the baffle and support block assemblies inside the wall sleeve as shown.

A. Wall
B. Front of wall sleeve
C. Baffle
D. Support block

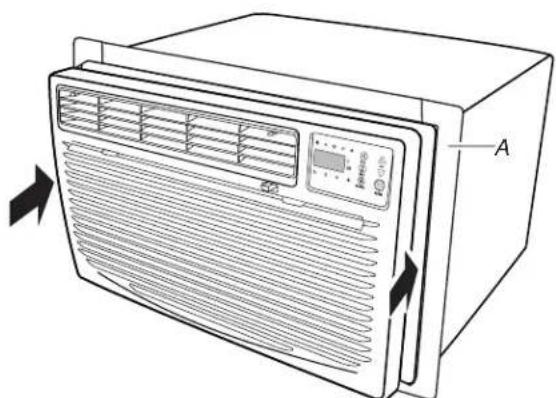

1. Install the air conditioner into the wall sleeve.
2. The universal trim frame must be used with this wall sleeve assembly. To assemble the universal trim frame, see "Complete Installation."

Install Air Conditioner in New Wall Sleeve

NOTE: Wall sleeve must be purchased separately.

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Install the new grille that came with your air conditioner or new wall sleeve.
NOTE: If this grille is not installed in the wall sleeve, your air conditioner will not operate correctly and the warranty will be void.
■ Handle air conditioner gently.
■Be sure your air conditioner does not fall out of the opening during installation or removal.
The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet.
■Be sure the wall where the air conditioner will be installed will support the weight of the air conditioner.
■Do not install the air conditioner where the plastic cabinet front will be exposed to a heat source that raises the surface temperature above 120^ (49^)
Do not block the louvers in the front panel.

A. Width (W)
D. Horizontal insulation strip
B. Height (H)
E. Vertical insulation strip
C. Depth (D)

Wall sleeve dimensions (W x H x D): 25% 15'32" x 16'32" (65.7 cm x 39.5 cm x 42.5 cm)

1. Remove the front and back covers from the new wall sleeve. NOTE: Save the covers for future use to seal the wall sleeve if the air conditioner is removed.
2. See instructions provided with wall sleeve for complete installation of wall sleeve and grille.

Insert the 4 - #8 - 32 sheet metal screws (provided) through the holes in the grille and into the wall sleeve.

Complete Installation

1. Assemble trim frame by laying the 4 frame pieces face down on a flat surface and snapping them securely together.

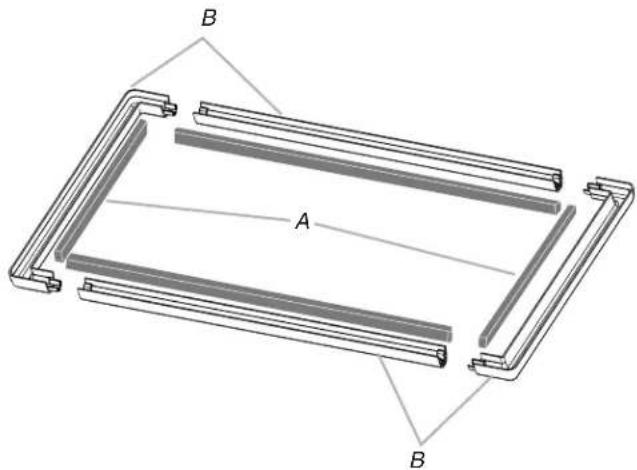

1. Install the 16 insulating foam around the inside edge of the trim frame. Begin in the bottom left corner and place the insulating foam around the entire inside of trim frame. Check to be sure foam is flush with the bottom edge of the trim frame.

A. Insulating foam seals
B. Trim frame

1. Slide the trim frame onto the air conditioner until the foam makes a seal with the wall sleeve.

A. Trim frame against wall sleeve

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.
2. Press RESET on power supply cord.

AIR CONDITIONER USE

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.
Do not try to operate your air conditioner in the cooling mode when outside temperature is below 66^ (19^) . The inside evaporator coil will freeze up, and the air conditioner will not operate properly.

NOTES:

In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored.
If the electronic control will not respond to touch pad or remote control commands, it is necessary to unplug the unit from the electrical outlet for 5 seconds before plugging back in.

Starting Your Air Conditioner

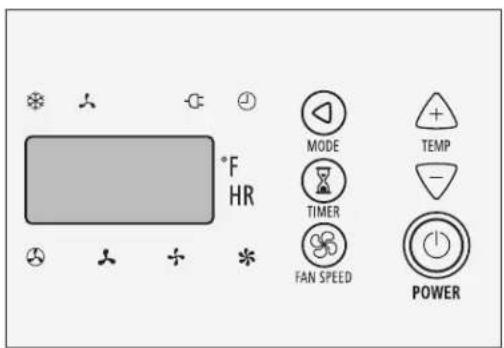

Models without heat

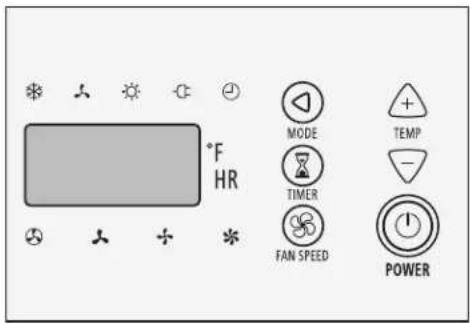

Models with heat

1. Remove clear protective film from control panel.
2. Press POWER to turn on air conditioner.

POWER

NOTE: When the air conditioner is turned on, it will display the previous settings for the mode, fan speed and temperature.

1. Choose mode. See "Mode."
2. Choose fan speed. See "Fan Speed."
3. Choose temperature. See "Temperature."

Display Symbols

A

来

F

B

六

人

G

C

·

H

D

￥

1

E

A. Cool mode indicator
B. Fan only mode indicator light
C. Heat indicator light (on some models)
D. Power Saver indicator light

E. Timer indicator light
F. Auto fan mode indicator light
G. Low fan mode indicator light
H. High fan mode indicator light
1. Turbo fan mode indicator light

Exhaust Air

The Exhaust Air feature allows the air conditioner to either recirculate inside air (CLOSED) or exhaust air to the outside (OPEN).

CLOSED—used when maximum cooling is desired. It may also be used for air recirculation without cooling when the air conditioner is set to Fan mode.
- OPEN—removes stale air from the room and exhausts it to the outside.

NOTE: The OPEN or CLOSED position can be used with any mode selection.

Mode

1. Press MODE until you see the indicator light come on for the setting you desire.
2. Choose Cool, Heat (on some models), Fan Only or Power Saver.

Cool-Cools room. Press FAN SPEED to choose fan speed. Then adjust the temperature by pressing the plus or minus buttons.
Heat (on some models)—The unit will circulate and heat the air.

When heater is powered off, Low fan will automatically stay on and run for 30 seconds.

Fan Only-Operates the fan at Low, High or Turbo speed, without cooling. Display will show the current room temperature.
Power Saver—The fan will switch off whenever the compressor turns off in response to the set temperature. When the compressor cycles back on, the fan will return to the set fan speed.

MODE

※

人

Fan Speed

1. Press FAN SPEED until you see the indicator light come on for the setting you desire.
2. Choose Auto, Low, High or Turbo.

When Auto is selected, the fan speed will change automatically as the temperature in the room changes.

7^ or more above the set temperature will use Turbo.
4^ - 7^ above the set temperature will use High.
4^ or below the set temperature will use Low.

FAN SPEED

人

+

※

Temperature

Press the TEMP plus pad. Display shows the Temperature control setting. Each time you press or hold the plus button, the temperature will increase 1^ until it reaches 88^ (31^) .

NOTE: After 3 seconds, display will show the set room temperature.

TEMP

Press the TEMP minus pad. Display shows the Temperature control setting. Each time you press or hold the plus button, the temperature will decrease 1^ until it reaches 66^ (19^) .

NOTE: After 3 seconds, display will show the set room temperature.

To change the temperature display from ^ F to ^ C

Press both pads at once to switch the display from ^ F to ^ C .

Timer Delay

To set Timer for a 0.5- to 24-hour delay before air conditioner turns Off (air conditioner must be On):

1. Press TIMER. Timer indicator light will remain on. Display will show remaining hours before air conditioner will turn off.

TIMER

1. Press the plus or minus pad to change the delay time from 0.5 to 24 hours.
2. Press TIMER again or wait 10 seconds. Timer indicator light will remain on. Display will show remaining hours before air conditioner will turn off.
3. To turn Timer off, press TIMER again, or press POWER to turn off the air conditioner.

To set Timer to turn on air conditioner, keeping previous settings:

1. Turn off air conditioner.
2. Press TIMER. Timer indicator light will flash. Display will show remaining hours before air conditioner will turn off.
3. Press the plus or minus button to change delay time (0.5 to 24 hours).
4. Press TIMER again or wait 10 seconds. Timer indicator light will remain on.

To set the Timer delay for a 0.5- to 24-hour delay until the air conditioner turns on, changing the previous settings:

1. Turn on air conditioner.
2. Adjust Mode to Cool, Heat (on some models), Fan Only, or Power Saver.
3. Adjust Fan Speed to Auto, Turbo, High or Low.
4. Adjust temperature between 66^ (19^) and 88^ (31^) .
5. Wait 3 seconds before turning off air conditioner.
6. Press TIMER. Timer indicator light will flash. Display will show remaining hours before air conditioner will turn on.
7. Press the plus or minus button to change delay time (0.5 to 24 hours).
8. Press TIMER again or wait 10 seconds. Timer indicator light will remain on. Display will show current room temperature.

To operate air conditioner with remote control

NOTE: Remote control may vary in appearance.

NOTE: Two AA batteries (included) power the remote control. Replace batteries after 6 months of use, or when the remote control starts to lose power.

To turn the air conditioner on or off:

Press POWER.

To select the mode:

1. Press MODE to choose Cool, Heat (on some models) or Fan Only.
2. Press POWER Saver to choose Power Saver mode.

Cool, Heat (on some models), Fan Only or Power Saver you can adjust the fan speed.

To raise the temperature:

Press the plus button. Display on air conditioner shows the Temperature control setting. Each time you press or hold the plus button, the temperature will increase 1^ until it reaches 88^ (31^) .

NOTE: After 3 seconds, display on air conditioner will show the set room temperature.

To lower the temperature:

Press the minus button. Display on air conditioner shows the Temperature control setting. Each time you press or hold the minus button, the temperature will decrease 1^ until it reaches 66^ (19^) .

NOTE: After 3 seconds, display on air conditioner will show the set room temperature.

To set Timer for a 0.5- to 24-hour delay before air conditioner turns Off (air conditioner must be ON):

1. Press TIMER. Timer indicator light on air conditioner will flash. Display on air conditioner will show remaining hours before air conditioner will turn off.

1. Press the plus or minus pad to change the delay time (0.5 to 24 hours).
2. Press TIMER again or wait 10 seconds. Timer indicator light on air conditioner will remain on.

To set Timer to turn on air conditioner, keeping previous settings:

1. Turn off air conditioner.
2. Press TIMER. Timer indicator light on air conditioner will flash. Display on air conditioner will show remaining hours before air conditioner will turn off.
3. Press the plus or minus button to change delay time (0.5 to 24 hours).
4. Press TIMER again or wait 10 seconds. Timer indicator light on air conditioner will remain on.

To set Timer to turn on air conditioner, changing the previous settings:

1. Turn on air conditioner.
2. Adjust Mode to Cool, Heat (on some models), Fan Only, or press POWER SAVER.
3. Adjust Fan Speed to Auto, Turbo, High or Low.
4. Adjust temperature between 66^ (19^) and 88^ (31^) .
5. Wait 3 seconds before turning off air conditioner.

6. Press TIMER. Timer indicator light on air conditioner will flash. Display on air conditioner will show remaining hours before air conditioner will turn on.

7. Press the plus or minus button to change delay time (0.5 to 24 hours).

8. Press TIMER again or wait 10 seconds. Timer indicator light on air conditioner will remain on.

Changing Air Direction

Use the tabs to direct the air up, down, right, left or straight ahead.

Normal Sounds

When your air conditioner is operating normally, you may hear sounds such as:

• Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser.
  Air movement from the fan.
  ■Clicks from the thermostat cycle.
  Vibrations or noise due to poor wall or window construction.
  A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember... the cost of this service call is your responsibility.

Cleaning the Air Filter

The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter every 2 weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the filter in place.

1. Turn off air conditioner.
2. Grasp air filter at tabs. Slide air filter up and out of filter slot.

1. Use a vacuum cleaner to clean air filter. If air filter is very dirty, wash it in warm water with mild detergent. Do not wash air filter in the dishwasher or use any chemical cleaners.
   NOTE: Air dry filter completely before replacing to ensure maximum efficiency.
2. Slide air filter down into filter slot.

Cleaning the Front Panel

1. Unplug air conditioner or disconnect power.
2. Remove the air filter and clean it separately. See "Cleaning the Air Filter."
3. Remove the screws from both sides of the air conditioner cabinet.

A. Screw

1. Remove the front panel.
2. Clean the front panel using a soft cloth with a mild detergent and warm water. Rinse with clear water and dry.
3. Rinse the control panel and dry thoroughly with a soft, dry cloth.
4. Replace the front panel. Replace screws.
5. Plug in air conditioner or reconnect power.

Annual Maintenance

Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility.

TROUBLESHOOTING

You can solve many common air conditioner problems easily, saving you the cost of a service call. Try the suggestions below to see whether you can solve your problem without outside help.

Air conditioner will not operate

The power supply cord is unplugged. Plug into grounded 3 prong outlet. See "Electrical Requirements."
The power supply cord has tripped (Reset button has popped out). Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
A household fuse has blown, or a circuit breaker has tripped. Replace the fuse or reset the circuit breaker. See "Electrical Requirements."
The Power button has not been pressed. Press POWER.
The local power has failed. Wait for power to be restored.

Air conditioner blows fuses or trips circuit breakers

Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit.
■Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See "Electrical Requirements."
An extension cord is being used. Do not use an extension cord with this or any other appliance.
■You are trying to restart the air conditioner too soon after turning off the unit. Wait at least 3 minutes after turning off the unit before trying to restart the air conditioner.

Air conditioner power supply cord trips (Reset button pops out)

Disturbances in your electrical current can trip (Reset button will pop out) the power supply cord. Press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.
An electrical overloading, overheating, pinching or aging can trip (Reset button will pop out) the power supply cord. After correcting the problem, press and release RESET (listen for click; Reset button will latch and remain in) to resume operation.

NOTE: A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.

Air conditioner seems to run too much

The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the "blast" of cold air you may be accustomed to from older units, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in BTU/hr.) marked on the air conditioner.
The air conditioner is in a heavily occupied room, or heat-producing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heat-producing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled.

Air conditioner cycles on and off too much

The Mode is set to Power Saver. Use Power Saver only when you are asleep or away from home. Use Cool and a higher fan setting for your best comfort.
- The air conditioner is not properly sized for your room. Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms.
The filter is dirty or obstructed by debris. Clean the filter.
There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heat-producing appliances during the hottest part of the day.
The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc.
The outside temperature is below 66^ (19^) . Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66^ (19^) .
The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room.
Windows or doors to the outside are open. Close all windows and doors.

The Air Exchanger is set to OPEN (on some models). Set the Exhaust control to CLOSED for maximum cooling and/or heating.
■Temperature control is not at a cool enough setting. Adjust the Temperature control to a cooler setting. Press the TEMP minus pad to reduce the temperature by 1^ until it reaches 66^ (19^) . Set the Fan Speed control to High or Turbo (on some models).

Water drips from cabinet into your house

The air conditioner is not properly leveled. The air conditioner should slope slightly downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions.

NOTE: Do not drill a hole in the bottom of the metal base and condensate pan.

Air conditioner cooling, but room is too warm—Ice forming on cooling coil behind intake grille

The outside temperature is below 66^ (19^) . Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 66^ (19^) .
The filter is dirty or obstructed by debris. Clean the filter.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only FSP® replacement parts. FSP® replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance.

To locate FSP replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
■Installation information.
Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to Whirlpool

Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

For product related questions, please call the Whirlpool

Canada LP Customer Interaction Centre toll free:

1-800-461-5681

Monday to Friday 8:00 a.m. - 6:00 p.m. (EST).

Saturday 8:30 a.m. - 4:30 p.m. (EST).

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Referrals to local dealers.

For parts, accessories and service in Canada

Call 1-800-807-6777. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Customer Interaction Centre

Whirlpool Canada LP

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

WHIRLPOOL® AIR CONDITIONER WARRANTY

FIVE YEAR FULL WARRANTY

For five years from the date of purchase, when this air conditioner (excluding air filter) is installed, operated and maintained according to instructions attached to or furnished with the product, we at Whirlpool Corporation or Whirlpool Canada LP will repair or replace the product at our discretion to correct defects in materials or workmanship in the mechanical or electrical controls and in the sealed refrigeration system, including the compressor, evaporator, condenser, dry-strainer and connection tubing. Service must be provided by a Whirlpool designated service company.

30 DAY LIMITED WARRANTY ON AIR FILTER

For 30 days from date of purchase, when this air conditioner is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP will pay for replacement air filter to correct defects in materials or workmanship.

Whirlpool Corporation or Whirlpool Canada LP will not pay for:

1. Service calls to correct the installation of your air conditioner, instruct you on how to use your air conditioner, to replace house fuses or correct house wiring or reset circuit breakers, or to clean or replace owner accessible air filters.
2. Repairs when your air conditioner is used in other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation not in accordance with local electrical and plumbing codes, or use of products not approved by Whirlpool Corporation or Whirlpool Canada LP.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. Your air conditioner is designed to be repaired in the home.
6. The removal and reinstallation of your air conditioner if it is installed in an overhead or other inaccessible location or is not installed in accordance with published installation instructions.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.

WHIRLPOOL CORPORATION OR WHIRLPOOL CANADA LP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and province to province.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see "Troubleshooting." Additional help can be found by checking "Assistance or Service," or by calling our Customer eXperience Center at 1-800-253-1301, from anywhere in the U.S.A. or write: Whirlpool Corporation, Customer eXperience Center, 553 Benson Road, Benton Harbor, MI 49022-2692.

For service in Canada, call 1-800-807-6777. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer Interaction Centre, Whirlpool Canada LP, 1901 Minnesota Court, Mississauga, Ontario L5N 3A7. Please include a daytime phone number in your correspondence.

11/04

Keep this warranty and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your air conditioner to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number.

Dealer name

Address

Phone number.

Model number

Serial number

Purchase date

Notes

SECURITE DU CLIMATISEUR

National Fire Protection Association

One Batterymarch Park Quincy, MA 02269

26% 1 15% 1 15^ 68cmx40cmx38,1cm

27^ × 16^3 / 4^ × 16^3 / 4^ (68,6cm× 42,6cm× 42,6cm), ou

27'' × 16^3/4'' × 19^3/4'' (68,6 cm x 42,6 cm x 50,2 cm)

FAN SPEED
High
Turbo

Low

ASSISTANCE OU SERVICE

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

WHIRLPOOL CORPORATION OU WHIRLPOOL CANADA LP N'ASSUME AUCUNE RESPONSABILITE POUR LES DOMMAGES FORTUIS OU INDIRECTS.

© 2005 Whirlpool Corporation.

All rights reserved.

Registered Trademark/TM Trademark of Whirlpool, U.S.A., Whirlpool Canada LP Licensee in Canada
