Product type	Electric kettle
Brand	Wilfa
Model	SVART Format WSDK2000S
Power supply	220-240 V ~ 50/60 Hz
Adjustable temperatures	40 °C, 70 °C, 80 °C, 90 °C, 100 °C
Keep warm function	25 minutes
Automatic shut-off	Yes, when the target temperature is reached
Material	Stainless steel and plastic
Limescale filter	Removable, located upstream of the spout
Base	With rotating connector
Lid opening	Via opening button
Water level gauge	Yes, with MIN and MAX markings
Warranty	5 years, according to conditions
Recommended use	Cold water, level between MIN and MAX
Maintenance	Regular descaling with citric acid
Cleaning	Exterior with damp cloth, do not immerse

Frequently Asked Questions - SVART Format WSDK2000S WILFA

How to adjust the water temperature?

On the base, press the '8' button to select the desired temperature from 40°C, 70°C, 80°C, 90°C or 100°C. Flashing indicates the temperature has not yet been reached; a steady light indicates it has.

How to use the keep warm function?

Press '8', select a temperature (40/70/80/90/100 °C), then press the 'Wilfa' button. The kettle will keep the water at this temperature for 25 minutes.

How to descale the kettle?

Use a conventional descaling agent based on citric acid. Follow the manufacturer's instructions for dosage. The limescale filter can be removed and cleaned with hot water.

How much water to put in the kettle?

Fill the kettle with cold water respecting the MIN and MAX markings on the gauge. Do not exceed the MAX level to avoid ejection of boiling water.

What to do if the appliance does not turn on?

Check that the kettle is correctly placed on its base and that the lid is properly closed. Make sure the plug is connected and the mains voltage corresponds to that indicated on the label.

How to clean the limescale filter?

Open the lid, lower the plastic edge and remove the filter. Clean it with hot water, then reinsert it into the guide rail ensuring it is securely in place.

Does the warranty cover breakdowns?

Wilfa offers a 5-year warranty from the date of purchase, covering production anomalies or defects. It does not apply in case of misuse, negligence, or unauthorized repair.

Can I use the kettle without its base?

No, the kettle can only operate on the supplied base. The appliance turns off automatically when removed from the base.

Why does the water overflow?

This may be due to overfilling. Always respect the MAX level. Overfilling poses a risk of ejection of boiling water and steam.

How to open the kettle lid?

Press the opening button on the lid. To close, lower the lid until it locks.

USER MANUAL SVART Format WSDK2000S WILFA

WATER KETTLE WSDK-2000X

EN · Instruction manual

NO·Bruksanvisning

SE · Bruksanvisning

IPEEDNcNoJIb3OBAHnEM IPOQTNTE BCE INHCTPyKlUN

EN

NO

SE

DK

FI

DE

NL

PL

FR

IT

ES

RU

EN

INSTRUCTION MANUAL·WILFA FORMAT

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
6 SPECIAL SAFETY INSTRUCTIONS
7 PRODUCT OVERVIEW
8 FIRST USE OF THE MACHINE
8 ELECTRICAL CONNECTION
8 USE
8 KEEP WARM
9 DESCALING AND CLEANING
10 GUARANTEE
11 PRODUCT SPECIFICATIONS
11 SUPPORT AND SPARE PARTS
11 RECYCLABILITY

EN

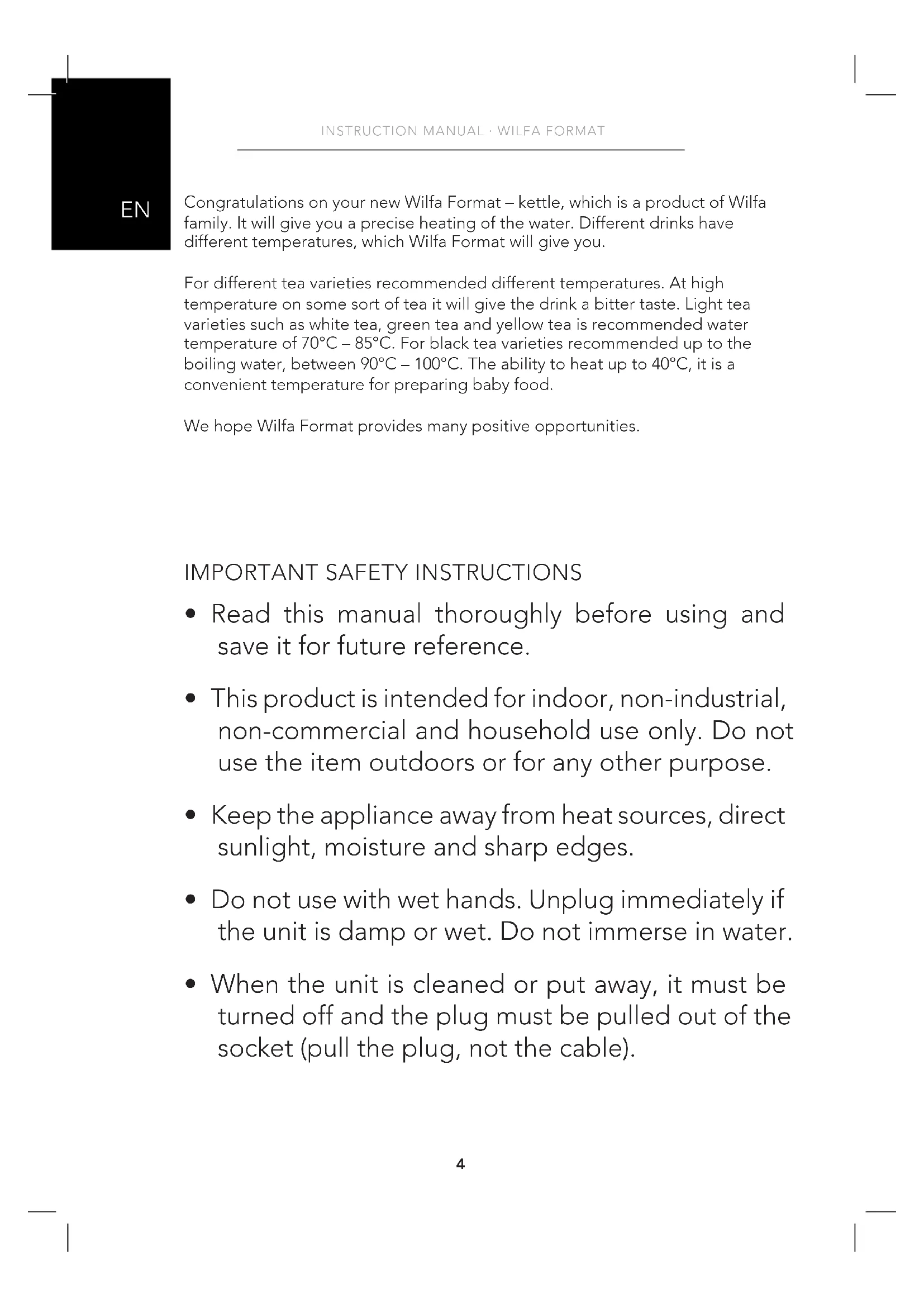

Congratulations on your new Wilfa Format - kettle, which is a product of Wilfa family. It will give you a precise heating of the water. Different drinks have different temperatures, which Wilfa Format will give you.

For different tea varieties recommended different temperatures. At high temperature on some sort of tea it will give the drink a bitter taste. Light tea varieties such as white tea, green tea and yellow tea is recommended water temperature of 70^ - 85^ . For black tea varieties recommended up to the boiling water, between 90^ - 100^ . The ability to heat up to 40^ , it is a convenient temperature for preparing baby food.

We hope Wilfa Format provides many positive opportunities.

IMPORTANT SAFETY INSTRUCTIONS

• Read this manual thoroughly before using and save it for future reference.
• This product is intended for indoor, non-industrial, non-commercial and household use only. Do not use the item outdoors or for any other purpose.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
• Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.

• When the unit is cleaned or put away, it must be turned off and the plug must be pulled out of the socket (pull the plug, not the cable).

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the kettle is overfilled, boiling water may be ejected.
• Use only original spare parts.
• To protect against risk of electrical shock, do not immerse the cord, plug or appliance in water or other liquid.

EN

• The appliance is only to be used with the stand provided.
• Avoid spillage on the connector.
• Be especially aware of "special safety instructions" below.

SPECIAL SAFETY INSTRUCTIONS

• The device must only be filled with cold water.
• Water level must be between the MAX and MIN marks. If the water level exceeds the maximum level, the boiling water and steam may be ejected, which might arise a hazard to the user.
• The device switches off automatically when removed from the base plate. Kettle must only be used with the included base plate.
• Always make sure that the lid is properly closed.
• Unplug when not in use.

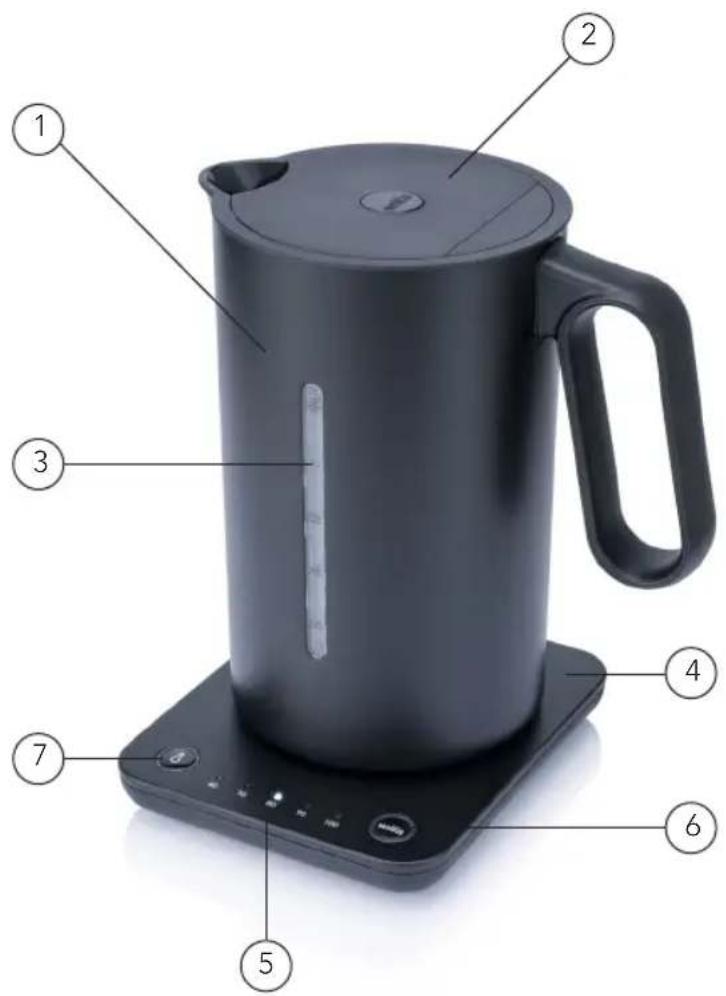

PRODUCT OVERVIEW

EN

1. Kettle
2. Lid
3. Water scale

4. Base plate

5. Regulation of heat on the
   water, 40^, 70^, 80^, 90^ and 100^ .

6. On / off switch
7. Keep warm

EN

FIRST USE OF THE MACHINE

Please read these instructions carefully and keep them in a safe place. Boil fresh water in the kettle at least twice before it is used for the first time. Use only plain water with no additives or ingredients.

ELECTRICAL CONNECTION

Check the voltage where you use the device is the same as specified on the appliance. For details on the label on the base plate.

USE

• Press the opening button to open the lid. Then fill the kettle with cold water and close the lid by pressing down the cover until it locks.
• Important note: On the kettle body there is a water level gauge. Please make sure not to fill in more than the maximum level as marked on the gauge. If the kettle is overfilled, boiling water can be spilled out. Put the kettle on the base. On the base station there is the "8" button for selecting different water temperatures.
• Note: flashing light indicates current water temperature in kettle, steady light means the target temperature.
• Press the " " button which corresponds to your desired temperature. Press the "wilfa" button to light up and the boiling process begins. As soon as the water reaches the target temperature, the boiling stops and the "wilfa" button light off. The heating element switches off automatically and the process has been completed. Now the unit can be lifted up and the water can be used.

KEEP WARM

• The "KEEP WARM" function allows you to maintain a specific temperature. Press "8" and select a temperature between 40/70/80/90/100°C. Once you have selected your desired temperature, press the "wilfa" button. Then the kettle heats up to the previously set value and holds it for 25 minutes.

DESCALING AND CLEANING

• We recommend decalcifying the kettle in regular intervals, depending on the intensity of use. Before cleaning, it is essential to remove the power plug from the socket and wait until the device is completely cooled down.
• The scale filter is located prior to the spout. To remove the filter, open the cover and push the plastic flap downwards. Then deep clean the taken filter with warm water and insert it into the holder again. When inserting the filter, take care that the retaining lug is fixed to the guide rail.
• Only use conventional descaling agents based on citric acid. Please follow the manufacturer's instructions for dosing the respective product you have chosen.
• The heating element must not be cleaned and never be processed with sharp or hard objects.
• For cleaning the outer surface of the kettle, only use a damp cloth. Never use hard or abrasive objects like a wire brush or a steel-sponge for cleaning.
• Please do not use any aggressive cleaning agents which could be harmful for human consumption or damage the surface.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual
  Overloading of product

PRODUCT SPECIFICATIONS

220 - 240V ~ 50/60Hz, 2.000-2.400W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and on systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.
