USER MANUAL IS 60 V (EX) PAI INDESIT

Where to put your dryer

Ventilation

Electrical connection

Before you start using your dryer

Dryer description, 4

The front

The back

Control panel

Start and programmes, 5

Choosing a programme

Laundry, 6-7

Sorting your laundry

Wash care labels

Special clothing items

Drying times

Warnings and Suggestions, 8

General safety

Disposal

Saving energy and respecting the environment

Maintenance and Care, 9

Switching off the electricity

Cleaning the filter after each cycle

Check the drum after each cycle

Cleaning the dryer

Troubleshooting, 10

Service, 11

Spare parts

GB

! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and, should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the dryer works.

! Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works.

Where to put your dryer

• Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance.
• If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. Make sure that the back vents are not obstructed.
  Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout.

Ventilation

The Dryer dries your laundry by drawing in cool, clean and relatively dry air, heating it, and then distributing it through the clothes as they are gently tumbled. For optimum performance, the moist air is then blown out through a vent tube at the back of the dryer.

When the dryer is in use, there has to be adequate ventilation to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Mobile venting

A vent tube must always be fitted when the dryer is used in conjunction with Mobile Venting. The tube must be fitted securely into the back of the dryer (see Dryer Description). If possible, it is always best to connect the tube to a permanent outlet close to the dryer. If permanent installation is not possible, the dryer will work just as well with the tube passing through a partly-opened window.

! Ensure that the end of the tube is not directed toward the air intake vent at the rear of the dryer.
! The vent tube should not exceed 2.4 metres in length and should be kept free of any possible accumulation of fluff, lint and water by shaking it out frequently. Always ensure that the tube is not squashed.

Permanent venting

In conjunction with the vent tube we recommend using a Wall/Window Vent Kit, available at a retail location or the nearest Spare Parts Dealer.

Wall mounting

1. Leave an opening in the wall to the left of the dryers proposed position.
2. Keep the tube as short and straight as possible to prevent condensed moisture from backing up into the dryer.
3. Similarly, the duct in the wall should slope downwards towards the outside.

Window mounting

1. With a stacked dryer the hole in the window should ideally be made below the vent.
2. The tube should be kept as short as possible.

Depending on how often you use your dryer, it is essential that areas A and B are checked periodically to remove lint or debris.

The vent tube adaptor must be fitted securely thus preventing any humid air from being emitted back into the room.

The Dryer should not be pushed so far back that the tube adaptor is pulled out of position or the tube is squashed or bent.
The tube should be kept clear of the air intake vent and kinks or 'U' bends must be avoided as these will obstruct the tube or trap condensation.

Open window venting

The end of the tube should be directed downwards, to prevent warm moist air from condensing in the room or in the dryer.

! Ensure that the dryer is adequately ventilated and that the end of the vent tube is not directed towards the air intake duct.
The vent tube must always be fitted for optimum performance.
!Make sure that the vent tube and air intake vents are not obstructed or blocked.
! The dryer must not recycle exhaust air.
! Misusing a tumble dryer may create a fire hazard.
! Do not discharge exhaust air into a flue which is used for exhaust fumes from other appliances that burn gas or other fuels.

Electrical connections

Make sure of the following before you insert the plug into the the electrical socket:

• The socket must be grounded.
• The socket must be able to sustain the machines maximum power, which is indicated on the rating label (see Dryer Description).
• Power voltage must be within the values indicated on the rating label (see Dryer Description).
• The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket.

The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if it is exposed to rain or storms.

! Once installed, the dryers electrical wire and plug must be within easy reach.

! Do not use extension cords.
The power cord must not be bent or squashed.
The power supply cord should be checked periodically and replaced by a cord specially prepared for this dryer and fitted only by authorised technicians (see Service). New or longer power cords are supplied at an extra charge by authorised dealers.
The manufacturer denies any responsibility should any of these rules not be followed.
If in doubt about any of the above consult a qualified electrician.

Levelling your dryer

The dryer must be installed level for correct operation.

When you have installed your dryer in its final location check that it is level first side to side, then front to back.

If the dryer is not level, use a wooden block to support it while adjusting the two front legs up or down, until your dryer is level.

Before you start using your dryer

Once you have installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transport.

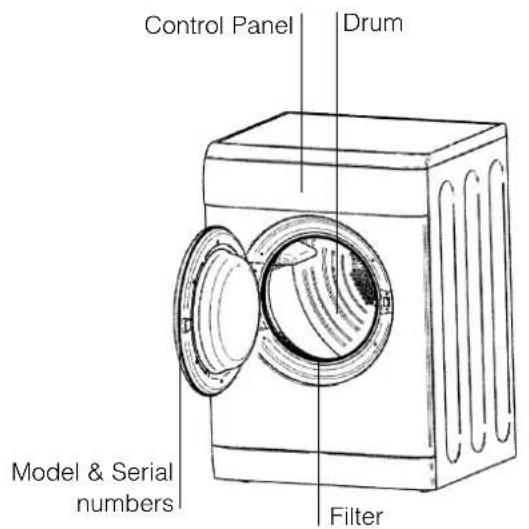

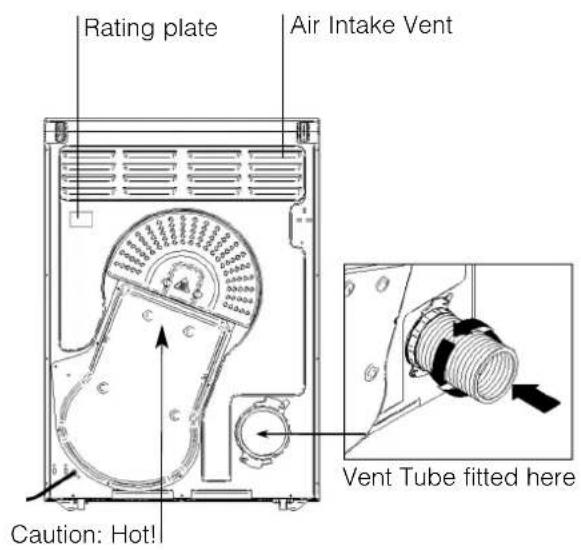

The front The back

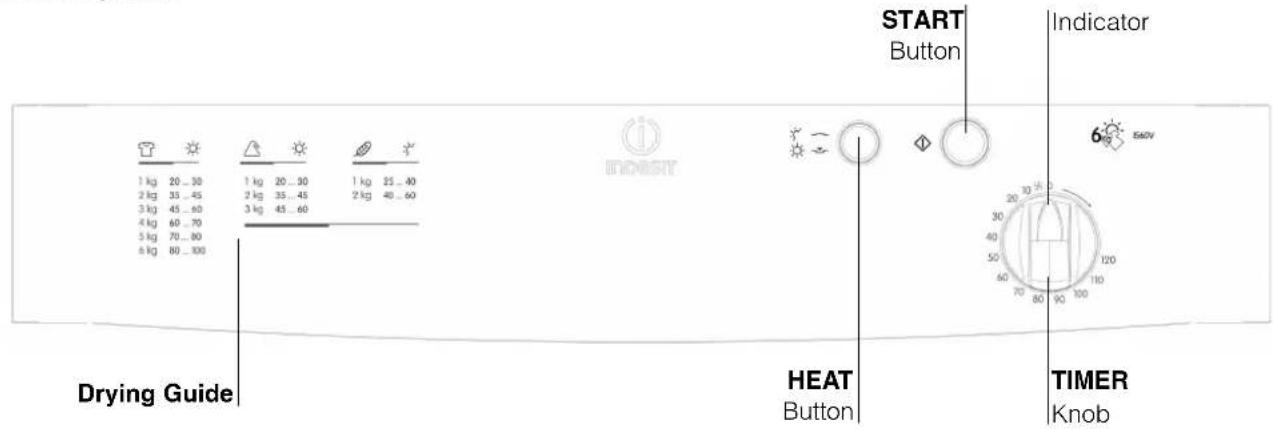

Control panel

The START button begins drying a selected programme (see Start and Programmes).

The HEAT button selects drying temperature (see Start and Programmes).

IN: HIGH heat

OUT: LOW heat

The TIMER knob sets the drying time: rotate it clockwise, never counter-clockwise, until the indicator is pointing to the drying time you want (see Start and Programmes).

The Drying Guide allows you to consult a user friendly table of fabric types and load capacities.

Cotton

Synthetics

or Ayrlics and other delicates

Choosing a programme

1. Plug the dryer into the electrical socket.
2. Sort your laundry according to fabric type (see Laundry).
3. Open the door and make sure the filter is clean and in place (see Maintenance).
4. Load the machine and make sure items are not in the way of the door seal. Close the door.

5. Choose the drying time by checking the Drying Guide table for the type of fabric you are drying (see Laundry).

6. Set the temperature with the HEAT button.

7. Select a drying time by rotating the TIMER knob clockwise.

8. Press the START button to begin. During the drying programme, you can check on your laundry and take out items that are dry while others continue drying. When you close the door again, press the START button in order to resume drying.

9. About 10 minutes before the programme is completed, it enters the final COOL TUMBLE phase (fabrics are cooled), which should always be allowed to complete.
10. Open the door, take the laundry out, clean the filter and replace it (see Maintenance).
11. Unplug the dryer.

GB

Sorting your laundry

• Check symbols on clothing labels to make sure that the articles can be tumble dried.
• Sort laundry by fabric type.
• Empty pockets and check buttons.
• Close zippers and hooks and tie loose belts and strings.
• Wring out each item in order to eliminate as much excess water as possible.

! Do not load dripping wet clothes into the dryer.

Maximum load size

Do not load more than maximum capacity.

These numbers refer to dry weight:

Natural fibres: 6kg max (13lb)

Synthetic fibres: 3kg max (6.6lb)

! DO NOT overload the dryer as this could result in reduced drying performance.

Typical load

Clothes

Blouse Cotton 150g 5oz Other 100g 3oz

Dress Cotton 500g 1lb 2oz Other 350g 12oz

Jeans 700g 1lb 6oz

10 nappies 1000g 2lb 3oz

Shirt Cotton 300g 10oz Other 200g 7oz

T-Shirt 125g 4oz

Household Items
Duvet cover	Cotton 1500g 3lb 5oz
(Double)	Other 1000g 2lb3oz
Large Tablecloth	700g 1lb 6oz
Small Tablecloth	250g 9oz
Tea Towel	100g 3oz
Bath Towel	700g 1lb 6oz
Hand Towel	350g 12oz
Double Sheet	500g 1lb 2oz
Single Sheet	350g 12oz

At the end of a drying cycle, cottons could still be damp if you grouped cottons and synthetics together. If this happens simply give them an additional short period of drying.

Wash Care Labels

Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common:

May be tumble dried

Do not tumble dry

Tumble dry at high heat setting

Tumble dry at low heat setting

Items not suitable for tumble drying

• Articles that containing rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable articles or objects that contain flammable substances (towels soiled with hair spray).
  Glass fibres (certain types of draperies)
• Items which have been dry cleaned
• Items with the ITCL Code (see Special clothing items). These can be cleaned with special at-home dry cleaning products. Follow instructions carefully.
  Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer.

Special clothing items

Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time.

Pleated or creased garments: read the manufacturer's drying instructions on the garment.

Starched articles: do not dry these with non-starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch.

Drying times

The table below presents APPROXIMATE drying times in minutes. Weights refer to dry garments:

Cottons High (full) Heat
Drying times 800-1000rpm in washing machine
		Half Load	Full Load
1kg 2kg	3kg 4kg	5kg 6kg
20-30 35	-45 45-60	60-70 70	-80	80-100
Synthetics High (full) Heat
Drying times on reduced spin in washing machine
		Half Load Full Load
1kg		2kg			3kg
20-30		35-45			45-60
Acrylics A / O Low (gentle) Heat
Drying times on reduced spin in washing machine
Half Load					Full Load
1kg					2kg
25-40					40-60

Times are approximate and can vary depending upon:

Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water.
- Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time.
Quantity of laundry: single items or small loads may take longer to dry.
- Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry.
- Heat setting.
- Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes.
- Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished.

! Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy.

Warnings and Suggestions

GB

The appliance has been designed and built according to international safety standards.

These warnings are given for safety reasons and must be read carefully.

This appliance conforms to the following EEC Directives:

• 72/23/EEC and 93/68/EEC (Low Voltage Equipment)
• 89/336/EEC, 92/31/EEC and 93/68/EEC

(Electromagnetic Compatibility)

General safety

• This tumble dryer has been designed for home, and not professional use.
  This dryer must be used by adults, and the instructions in this booklet should be followed carefully.
• Do not touch the appliance while barefoot or with wet hands or feet.
• Unplug the machine by pulling on the plug, not the cord.
  Children must not be in proximity of the dryer when in use. After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.
• The appliance must be installed correctly and have proper ventilation. The air intake vents behind the machine, the outlet vents and the vent tube should never be obstructed (see Installation).
• Never direct the vent tube outlet towards the air intake at the back of the machine.
• Never allow the tumble dryer to recycle exhaust air.
• Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.
• Check to see if the dryer is empty before loading it.
  The back of the dryer could become very hot. Never touch it while in use.
• Do not use the dryer unless the filter is securely in place (see Maintenance).
• Do not use liquid fabric softeners in the dryer, add it to the final rinse of your wash.
• Do not overload the dryer (see Laundry) for maximum loads.
• Do not load items that are dripping wet.
• Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.
• Carefully check all instructions on clothing labels (see Laundry).
• Do not dry garments that have been treated with chemical products.
• Never dry articles that are contaminated with flammable substances (petrol, oil, paint, hair spray, creams, cooking fat or oils).

• Do not tumble dry rubber, foam rubber, plastic, plastic foam, nappy pants or liners, polythene or paper.

• Do not tumble dry large, very bulky items.

• Do not tumble dry acrylic fibres at high temperatures.
• Complete each programme with its Cool Tumble Phase.
• Do not turn off the dryer when there are still warm items inside.
• Clean the filter after each use (see Maintenance).
• Do not allow lint to collect around the dryer.
• Never climb on top of the dryer. It could result in damage.
• Always follow electrical standards and requirements (see Installation).
• Always buy original spare parts and accessories (see Service).

Recycling and disposal information

As part of our continued commitment to helping the environment, we reserve the right to use quality recycled components to keep down customer costs and minimise material wastage.

• Disposing of the packaging material: follow local regulations, so the packaging can be recycled.
• To minimise risk of injury to children, remove the door and plug - then cut off mains cable, flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

• Wring out items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.
  Always dry full loads - you save energy: single items or small loads take longer to dry.
• Clean the filter after each use to contain energy consumption costs (see Maintenance).

Switching off the electricity

Unplug your dryer when not using it, when cleaning it and during all maintenance operations.

Clean the filter after each cycle

The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. Small items could also become trapped in the filter. When finished drying, therefore, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. It may also damage your dryer.

The filter is found in front of the dryer trim (see diagram).

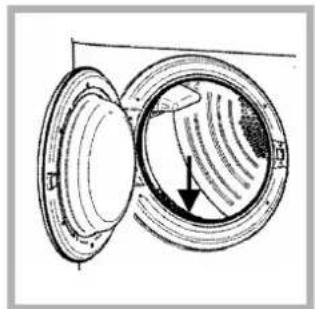

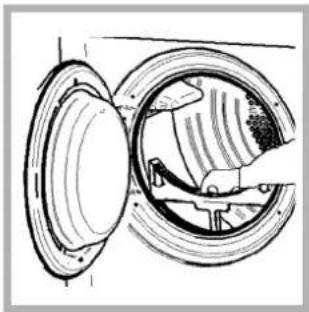

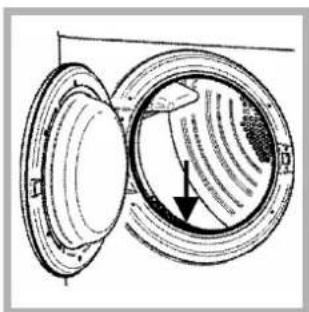

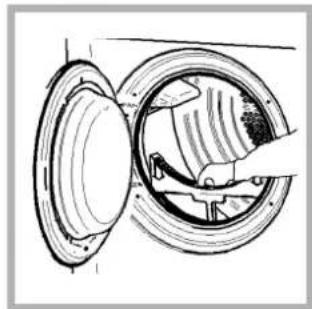

Removing the filter: 1. Pull the plastic grip of the filter upwards (see diagram).

1. Clean the filter and replace it correctly. Ensure the filter is fully located flush into the tumble dryer trim.

! Do not use the dryer without replacing the filter.

Check the drum after each cycle

Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind.

Cleaning the drum

! Do not use abrasives, steel wool or stainless steel cleaning agents to clean the drum.

A coloured film may start to appear on the stainless steel drum, this may be caused by a combination of water and, or cleaning agents such as fabric conditioner from the wash. This coloured film will not affect the dryer performance.

Cleaning

• External parts in metal or plastic and rubber parts can be cleaned with a damp cloth.
  Periodically check the vent tube and any permanent venting fixture to make sure that there has been no accumulation of fluff or lint, and remove it.
• Remove lint that collects around the filter and the outlet vents.
  ! Do not use solvents or abrasives.
  ! Your dryer uses special bearing components which do not need lubrication.
  ! Have your dryer checked regularly by authorised technicians to ensure electrical and mechanical safety (see Service).

GB

One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions:

Problem:

The dryer won't start.

Possible causes / Solution:

• The plug is not plugged into the socket, or not making contact.
  There has been a power failure.
• The fuse has blown. Try to plug another appliance into the socket.
• You are using an extension cord? Try to plug the dryer's power cord directly into the socket.
• The TIMER knob has not been set properly (see Start and Programmes).
• The START button has not been pressed (see Start and Programmes).
• The START button was pressed with the door open. Make sure the door is closed before pressing the START button (see Start and Programmes).

! If the START button is pressed with the door open the dryer will not start. Close the door, wait for a few seconds and then press the START button again (see Start and Programmes).

It is taking a long time to dry.

The filter has not been cleaned (see Maintenance).
- The temperature setting is not ideal for the type of fabric you are drying (see Start and Programmes).
- The correct programme has not been selected for the load (see Start and Programmes).
- The flexible vent tube is obstructed (see Installation).
The air intake vent is obstructed (see Installation).
- The permanent ventilation flap on the storm cover is obstructed (see Installation).
The items were too wet (see Laundry).
- The dryer was overloaded (see Laundry).

Before calling the Service Centre:

• Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).
• If not, turn off the dryer and call the Service Centre closest to you.

What to tell the Service Centre:

name, address and post code.
- telephone number.
the type of problem.
the date of purchase.
the appliance model (Mod.)
the serial number (S/N).

This information can be found on the data label inside the door of the machine.

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty.

Call an authorised technician if you experience problems while using the machine.

The spare parts have been designed exclusively for this appliance and not for other uses.

(Mod.) jorjll aJ J 11 11 11 11 11 11

(S/N) jorjlll lJy Jusuall aRjI
Jzssgall Loglaal aogj Ic Loglaal oia JcK
.aaill

J 1

:

Jai/ alaiaoi Jw

= 5 - 1 或 5 + 1

.

Jai 2yXaI aL

Eglaa yIySll

.

3.3

.

（）

（）aai

gaiy jaii. aai gaiiaai Jao jgaiy jaiy jaii 12

（）

（i）

auiuui 1ygb iaii aai

（）

（）

（）

（）

（）2gnaolglalacagaiyagglal

（）

( 1 1 + 2 2) = 1 1 + 2 2

y

Lgaii ciay auiu uui iieia aiee

.

y

jaiy Ieaii aieil 1c d jaiia jia

( k + 1) ( k - 1) = 0

: jilali

.（）j

jilai gao jia 5g. pui kai qia jilai cabi .2

aill jds sall aik

aill 1 jilal l 1 1 2 2 2 2

JgJ5 Jy jogj

aalaaal aalaaal alalalalalalalal

4.001

Lalai (a) aiai aiinai iiaai la aaiil jaiy

ailll lgs pueo ajo 5 da jullall cabi

aill jg aiaaiy aii 1

y

aayysslll lalal yolal yolal yolal yolal

（）

（aess）a1gssyj

y

jucuay.aaalall yjy jaiil 1

j 1

aaiia aalil no alizll

aaii glc aalalnag alaln

Jie lei jilal all jao yaleill algaiial liy

jai! 1JzAilue Jaiinui ciS i!) ayalai aeil jui

Jx aalglgagjagwla.（acgallg

.

aall jai ayj all oia -alols algoi

gJgblg,glgrrnallalgeellgsaiial

.

ailll 1xaii ciai iai jai jai ai

( a + b) ( a^2 - ab + b^2) = a^3 + b^3

aolll aoyloll agaiial laoag acgianog aaanoo adill oio!

Lgj 20000000000000000000000000000000000000

.

aagaaalgai aai

( ) 25 题型1

2137

（20

1/68/93,1/31/92,1/336/89-

（yollinjgS1/3jy11）

2011 2011

yj jzaii pi ziuuiu a aaiiaai ai i

alil 150s Lioic alil Jia jaiy

Lgawg Lgaii iag y aolil plaiiui Jai

LalbIgaiy 15iaa

aaiia aiee iiaaa

al 1g 10

（）aagglgglglae

（

algallglgllgalygail gai

.2aL.

gall gell yaiyai ai

jgsgaiu slgl jslgl aalil

.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1.

aaiiie 1ai iaiy.1jia jia aaii iia

.2aL

Jai 1

P( 1,0) .

aill l aill l aall 1

（）]gfoaallgaoal algoai jaoai

（

Lally Lelue p aill clll 2 xll lalil

iui i. gill alg jyL Lally gai aig caiil algo

jaii jaiilill jaye aally laluc pa a jsi pal gill aliu

1.63 2

a a a a a a a a a a a a a a a

.

J 1

= = 35

aaii iia aai

#

a aal aal aal aal aal aal aal aal

a 100

(16, 13) a3i a5 c56: a#a#all

(1u6,6) a5 3:aclll cagai

12.12

jaiia jie aegill cixagaggl i jn lal

2 = 2 40^

gaii 1 gaiy jaiy aai i

y

a 25gannall aia 3d Jaoi y jy g aillgannll algai

3ggl 100gj lall 3g j 3g2

auiyjgsluog

1 1

yogaaa a

aaii iiaai aai bai jaoie 1j

.（abai/（aogg）aayjglgge

Lglll lalall gao (aagai) aegs

（a）

15 13. aalil

iill jlll j5 g jia. jiall jia aaiil eao pae

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

glll,dlgl, jlll lal yd aol 120
ylll lal yd aol 120
ylll lal yd aol 120

15 10
15 15
Lao 1
Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao

2. g z\

Caiillgaiieell algllll llyiic aieil 1e aalil Jn
Jkiyai yjw yll jaygi pi. dizwiu wuiu cai jy
zai piaaiaol oia gai iL jyauu .aiulai
aaiiu cali gao aygi uoi jxni no uo yai
aygi liinssi n biyipaiu ulaiaiaai Lsucg
naiaaii jiai ciall caell no ai jialla qaii taia
iiis laiagaii jns rjlcgai jgsi

alaiia1 aygei

Laiic 25yiaagge gao yogao jinyuoyao yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga yagga

A

Ug

86-87

aill gao jll

[2.1 \leq {a}_{0} < 3]

1.2.5.6.11 1.2.5.6.3

ailll Jaeuwy yll

85.

a6 = 1 又 a5 = 1 - 1 = 1

a.s.e.e.

1. 101

82-83

jinni

Jannily aylinai Lox

aolai aiaai jao yxla

auii 10

81

aolal 20x10

aill gic aiallalall alll

80.

y

aJgJS Jy jilall

aJgJ5 uay jogagall

aLiLiLi LiLiLi

79 Jbc

78.

Jaaee

INDESIT
