USER MANUAL PW483318O WOLF

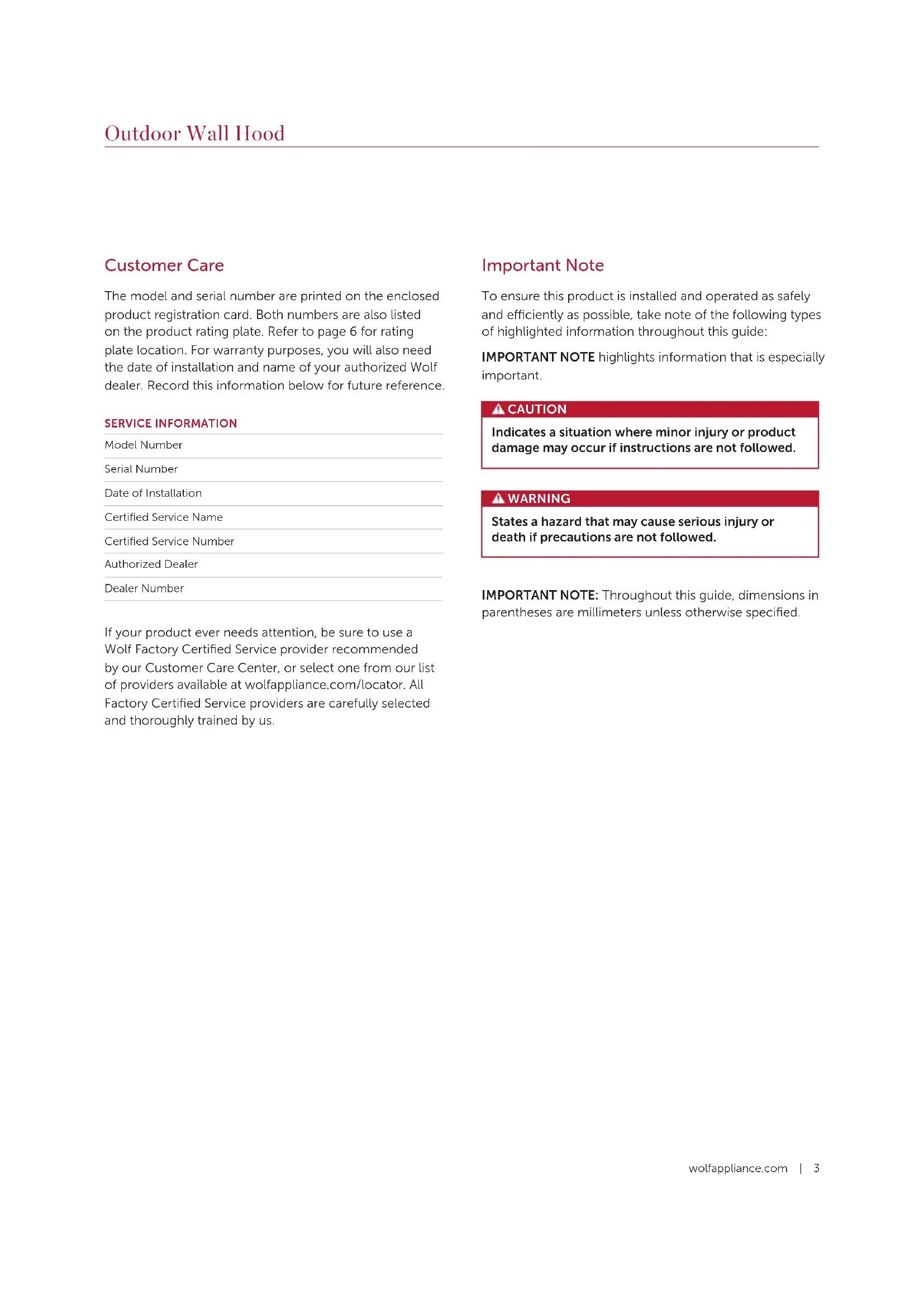

Outdoor Wall Hood Use and Care Guide CLEANING, MAINTENANCE, AND MORE2 | Wolf Customer Care 800.222.7820 Contents 3 Outdoor Wall Hood 4 Safety Precautions 6 Outdoor Wall Hood Features 7 Hood Operation 9 Care Recommendations 10 Troubleshooting 11 Wolf Warranty Outdoor Wall Hoodwolfappliance.com | 3 Customer Care The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to page 6 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference. SERVICE INFORMATION Model Number Serial Number Date of Installation Certified Service Name Certified Service Number Authorized Dealer Dealer Number If your product ever needs attention, be sure to use a Wolf Factory Certified Service provider recommended by our Customer Care Center, or select one from our list of providers available at wolfappliance.com/locator. All Factory Certified Service providers are carefully selected and thoroughly trained by us. Outdoor Wall Hood Important Note To ensure this product is installed and operated as safely and eciently as possible, take note of the following types of highlighted information throughout this guide: IMPORTANT NOTE highlights information that is especially important. CAUTION Indicates a situation where minor injury or product damage may occur if instructions are not followed. WARNING States a hazard that may cause serious injury or death if precautions are not followed. IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.4 | Wolf Customer Care 800.222.7820 Safety Precautions

GENERAL SAFETY PRECAUTIONS

• Sucient air is needed for proper combus- tion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

• Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code author- ities. CAUTION For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

• Ducted fans must always be vented to the outdoors.

• To reduce the risk of fire, use only steel duct- work. CAUTION To reduce the risk of fire and properly exhaust air, be certain to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. IMPORTANT INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

• Read this use and care guide carefully before using your new ventilation hood to reduce the risk of fire, electric shock, or injury to persons.

• Ensure proper installation and servicing. This appliance must be properly installed and grounded by a qualified technician.

• Warranty service must be performed by Wolf Factory Certified Service.

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE

THE FOLLOWING: a) Use this unit only in the manner intended by the manufacturer. If you have ques- tions, contact the manufacturer. b) Before servicing or cleaning unit, unplug the appliance or switch power o at service panel and lock the service discon- necting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the ser- vice panel.wolfappliance.com | 5 IMPORTANT INSTRUCTIONS

GENERAL SAFETY PRECAUTIONS

• Do not repair or replace any part of this appli- ance unless specifically recommended in this guide. All other service should be performed by a qualified technician.

• To avoid motor bearing damage and noisy or unbalanced impellers, keep drywall spray, con- struction dust, etc. o power unit.

• When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

• Please read the specification label on the venti- lation hood for further information and require- ments. WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood on when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out imme- diately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN—You may be burned. c) DO NOT USE WATER, including wet dish- cloths or towels—a violent steam explo- sion will result. d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extin-

guisher, and you already know how to operate it.

2) The fire is small and contained in the

area where it started.

3) The fire department is being called.

4) You can fight the fire with your back to

an exit. *Based on “Kitchen Fire Safety Tips” published by NFPA. WARNING

Product Rating Plate (inside hood shell)

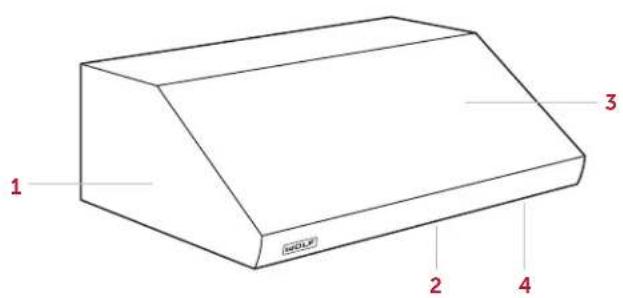

LED Lighting Outdoor Wall Hood Features Outdoor Wall Hood

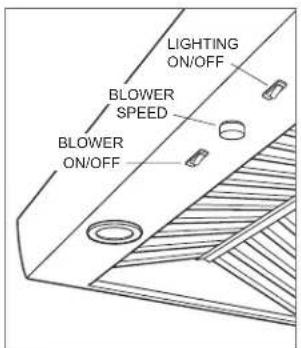

4wolfappliance.com | 7 Hood Controls The controls are located under the front edge of the hood. Refer to the illustration below. LIGHTS Use the On/O switch on the right to turn the lights on or o. BLOWER The blower is operated using two controls. Use the On/O switch on the left to turn the blower on or o. When the blower is on, the switch turns red and the speed control knob operates the blower speed. Turn the control knob clockwise to increase the blower speed and counter- clockwise to decrease the blower speed. Hood Operation

LIGHTINGON/OFF BLOWERSPEEDBLOWERON/OFF

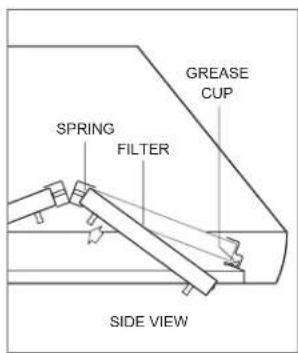

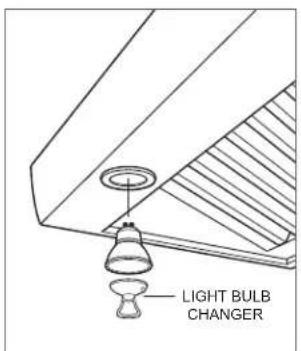

Hood controls Heat Sentry The heat sentry feature automatically turns the blower on or increases the blower speed when the exhaust tem- perature exceeds 200°F (95°C). It automatically adjusts the blower speed to the previous setting once the temperature drops below 186°F (85°C).8 | Wolf Customer Care 800.222.7820 Hood Operation Filter Removal The grease filters are dishwasher safe. Refer to Care Recommendations on the following page. Remove the center filter first. To remove, press the filter upward then rotate the bottom downward. Refer to the illustration below. Remove the grease cups from the bottom edge of the hood. Gloves should be worn when handling the filters. Reinstall the filters using the reverse procedure. Slide the outer filters over slightly to reinstall the center filter. IMPORTANT NOTE: Do not operate the ventilation hood without the filters. This may damage the blower or other internal components of the hood. Lighting LIGHT BULBS The hoods include (3000K) GU10 light bulbs. Replacement bulbs are available through an authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com. A suction-cup-style light bulb changer is provided with the hood. To remove a bulb, use the changer to rotate the bulb clockwise one-quarter turn. Refer to the illustration below. LIGHT BULB CHANGER Light bulb replacement SIDE VIEW SPRING FILTER GREASE CUP Filterswolfappliance.com | 9 Care Recommendations Care Recommendations CLEANING Stainless steel Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel. Control knobs Using a damp cloth, wipe with mild detergent or spray degreaser. Rinse and dry. IMPORTANT NOTE: Do not spray cleaners directly on the control knobs. Filters Grease cups The filters are dishwasher safe and are designed to fit most dishwashers. Wipe the filters and grease cups to remove excess grease before placing in the dishwasher.10 | Wolf Customer Care 800.222.7820 SERVICE

• Maintain the quality built into your product by contact- ing Wolf Factory Certified Service. For the name of the nearest Wolf Factory Certified Service, check the Product Support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.

• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.

• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 3 of this guide. Troubleshooting Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries. Troubleshooting OPERATION Ventilation hood does not operate.

• Verify electrical power to the hood and home circuit breaker is on.wolfappliance.com | 11 Wolf Appliance Residential Limited Warranty

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf Factory Certified Service, unless otherwise speci- fied by Wolf Appliance, Inc. Service will be provided during normal business hours.
