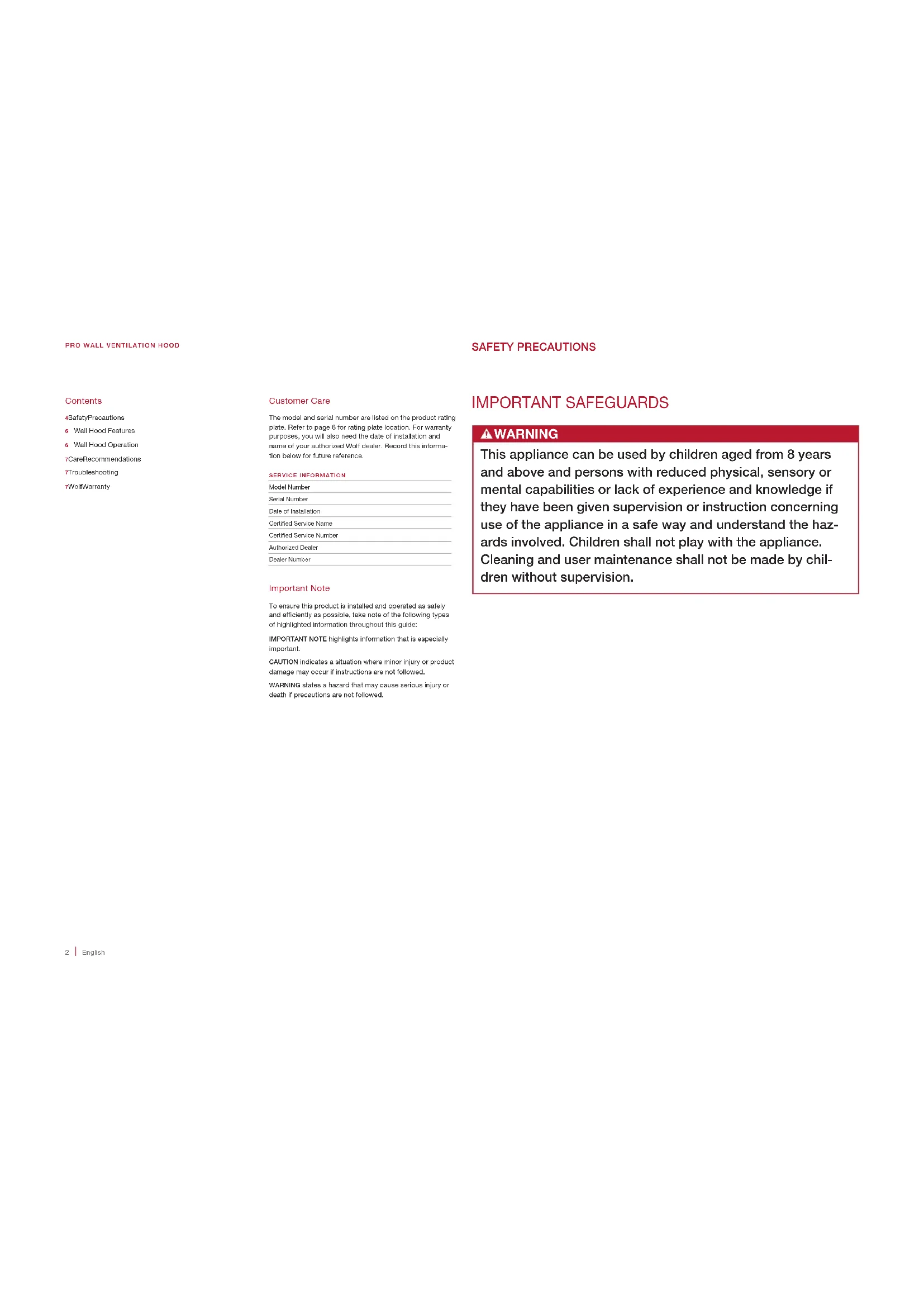

English IMPORTANT SAFEGUARDS WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by chil- dren without supervision. Contents 4 Safety Precautions6 Wall Hood Features6 Wall Hood Operation7 Care Recommendations7 Troubleshooting7 Wolf WarrantyPRO WALL VENTILATION HOOD Customer Care The model and serial number are listed on the product rating plate. Refer to page 6 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this informa-tion below for future reference.SERVICE INFORMATIONModel NumberSerial NumberDate of InstallationCertied Service NameCertied Service NumberAuthorized DealerDealer Number Important Note To ensure this product is installed and operated as safely and efciently as possible, take note of the following types of highlighted information throughout this guide:IMPORTANT NOTE highlights information that is especially important. CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed.WARNING states a hazard that may cause serious injury or death if precautions are not followed. SAFETY PRECAUTIONSwolfappliance.com

• Read this use and care guide carefully before using your new ventilation hood to reduce the risk of re, electric shock or injury to persons.

• Ensure proper installation and servicing. This appliance must be properly installed and grounded by a qualied technician.

• Warranty service must be performed by Wolf factory certied service.

• Installation work and electrical wiring must be done by quali- ed person(s) in accordance with all applicable codes and standards, including re-rated construction codes and standards. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Use this unit only in the manner intended by the manufac- turer. If you have questions, contact the manufacturer. b) Before servicing or cleaning unit, unplug the appliance or switch power off at service panel and lock the service dis- connecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.4

English SAFETY PRECAUTIONS IMPORTANT SAFEGUARDS

• Do not repair or replace any part of this appliance unless spe- cically recommended in this guide. All other service should be performed by a qualied technician.

• To avoid motor bearing damage and noisy or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

• When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

• Please read the specication label on the ventilation hood for further information and requirements. IMPORTANT SAFEGUARDS

• Sufcient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equipment to prevent back drafting.

• Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities. CAUTION For general ventilating use only. Do not use to exhaust haz- ardous or explosive materials and vapors.

• Ducted fans must always be vented to the outdoors.

• To reduce the risk of re, use only steel ductwork. CAUTION To reduce the risk of re and properly exhaust air, be certain to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.wolfappliance.com

WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: a) SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN—You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels— a violent steam explosion will result. d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you

already know how to operate it.

2) The re is small and contained in the area where it

3) The re department is being called.

4) You can ght the re with your back to an exit.

IMPORTANT SAFEGUARDS WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when ambéing food (i.e. Crepes Suzette, Cherries Jubilee, Pep- percorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or lter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. SAFETY PRECAUTIONS6

English Heat Lamps For 686 mm deep wall hoods, two heat lamp receptacles require E27, R125 (250W maximum) bulbs. Bulbs are available at hardware stores or through an authorized Wolf dealer. Allow the heat lamps to cool before replacing bulbs. Unscrew the bulb to replace. CAUTION Use caution when replacing heat lamp bulbs. Adjacent parts of the ventilation hood may retain heat. Filter Removal The lters are dishwasher safe. Refer to care recommend- ations. Remove the center lter rst. To remove, press lter upward then rotate the bottom downward. Refer to the illustration below. Remove grease cups from the bottom edge of the hood. Gloves should be worn when handling lters. Reinstall using the reverse procedure. Slide outer lters over slightly to reinstall the center lter. IMPORTANT NOTE: Do not operate the ventilation hood without lters. This may damage the blower or other internal components of the hood. LIGHT BULBCHANGER Light bulb replacement. Hood Controls Controls for pro wall ventilation hoods are recessed under the front edge of the hood. Refer to the illustration below. LIGHTS The control knob on the left operates the halogen lights. From the (OFF) position, turn the knob to the left for (LOW) and right for the (HIGH) light setting. HEAT LAMP If equipped, the center control knob operates the heat lamps. Each lamp can be controlled independently or simul- taneously. Turn the knob to the left, right or center to select desired setting. BLOWER The control knob on the right operates the blower with innite control of blower speed. To turn the blower off, turn the knob counterclockwise.

LIGHTS HEAT LAMPSBLOWER Hood controls. Heat Sentry The heat sentry feature automatically turns the blower on or increases blower speed when the exhaust temperature exceeds 95°C. It automatically adjust blower speed to the previous setting once the temperature drops below 85°C. Lighting

LIGHT BULB REPLACEMENT

Pro wall ventilation hoods require GU 10 (50W maximum) halogen light bulbs, available through an authorized Wolf dealer. A suction-cup-style light bulb changer is provided with the ventilation hood. To remove a bulb, use the changer to rotate the bulb counterclockwise one-quarter turn. Refer to the illustration below.

• Verify electrical power to hood and home circuit breaker is on. SERVICE

• Maintain the quality built into your product by contacting Wolf factory certied service.

• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.

• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 2. Care Recommendations CLEANING Stainless steel Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water- dampened microber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel. Control knobs Using a damp cloth, wipe with mild detergent or spray degreaser. Rinse and dry. IMPORTANT NOTE: Do not spray cleaners directly on the control knobs. Filters Grease cups Filters are dishwasher safe and are designed to t most dishwashers. Wipe lters and grease cups to remove excess grease before placing in the dishwasher. Wolf Appliance International Limited Warranty

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf factory certied service, unless otherwise specied by Wolf Appliance, Inc. Service will be provided during normal business hours.
