USER MANUAL TSA120D4 PIONEER

Be sure to read this instruction manual before installing this speaker.

Prière de litre obligatoirement ce manuel d'installation avant de monter les haut-parleurs. Antes de instalar el altavoz es importante que lea estas instrucciones.

WARNING

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level - a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can't hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
  Do not use headphones while operating a motorized vehicle ; the use of headphones may create a traffic hazard and is illegal in many areas.

AVERTISSEMENT

The sealed enclosure series subwoofoers are capable of reproducing music at extremely loud levels.

Caution should be exercised to prevent permanent hearing loss.

Additionally, driving with the system at high volume levels could impair your ability to hear emergency vehicles.

AVERTISSEMENT

• To prevent damage to your speakers please observe the following caution.
  At high volume levels if the music sounds distorted or additional sounds are perceived lower the volume.
  PIONEER recommends that this speaker be used in conjunction with amplifiers whose continuous (RMS) output is lower than the nominal input power of this speaker.
• Since this speaker is continuously used being turned on full blast, temperature of the magnetic circuit rises, avoid touching it directly by hand and placing something near it. If it is heated, it may cause a burn, deformation of or damage to peripheral things.
• Never connect only one voice coil of this Dual Voice Coil (DVC) speaker.
  Both voice coils must be connected to the amplifier for correct operation.
  If this product is used in free-air conditions (without an enclosure), insufficient damping causes the sound without accuracy and reduces the power handling capability to 1/4 of its usual levels. It may result in permanent damage to the product.

ATTENTION

DVC (DUAL VOICE COIL) CONNECTION

- CONNEXION DVC (DOUBLE BOBINE MOBILE)

1. Glass fiber and mica reinforced IMPP cone for low distortion and high impact bass
2. Dual-spider and rubber surround provide stability and linearity during high output (TS-A120D4)

Spider and rubber surround provide stability and linearity during high output (TS-A100D4)

1. Powerful motor assembly with extended voice coil for powerful and accurate bass
2. Smooth and seamless integration with Pioneer A-series full-range speakers

CHARACTERISTIQUES

• High power handling and high efficiency
• Powerful and accurate bass
  Frequency matched to Pioneer A-series

FEATURES

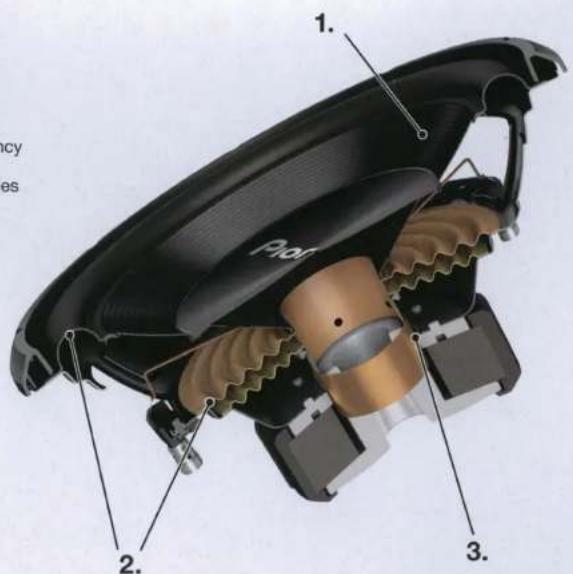

1. Glass fiber and mica reinforced IMPP cone for low distortion and high impact bass
2. Dual-spider and rubber surround provide stability and linearity during high output
3. Powerful motor assembly with extended voice coil for powerful and accurate bass
4. Smooth and seamless integration with Pioneer A-series full-range speakers

TS-A120D4

COMPONENT SUBWOOFER

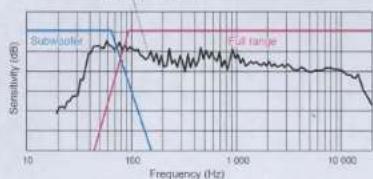

Music source spectrum
Subwoofer supports perfect music reproduction

CarSoundFit

Download on the App Store

GETITON GooglePlay

Pioneer

TS-A120D4

HP D'EXTREME-GRAVE

DIMENSIONS
DIMENSIONS
DIMENSIONS

mm (in.)

Pioneer

TS-A120D4

Be sure to read the attached instruction manual before installing this speaker.

CONCEPTION POUR CAISSON/EVENT (1 event)

OPIONEER CORPORATION 2018 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, JAPAN / JAPON

HOW TO INSTALL MODE D'INSTALLATION INSTALACION

CAUTION: Please be sure to use a gasket.
ATTENION: SUIYUPLIHTAURUEVUSdullerunjnl.
△PRECAUCION:Por favor aseginee de utar una junta

mm (m)

Register your product at

http://www.pioneerelectronics.com

http://www.pioneerelectronics.ca

Pioneer

PIONEER ELECTRONICS (USA) INC.

LIMITED WARRANTY

WARRANTY VALID ONLY IN COUNTRY OF PRODUCT PURCHASE

WARRANTY

Pioneer Electronics (USA) Inc. (Pioneer) warrants that Pioneer® Car Electronics, Speaker, and Accessory Products distributed by Pioneer in the U.S.A. and Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the owner's manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at Pioneer's option, without charge to you for parts or actual repair work. Replacement units and/or parts supplied under this warranty may be new or rebuilt at Pioneer's option.

This Limited Warranty applies to the original or any subsequent owner of this Pioneer product during the warranty period provided the product was purchased from an authorized Pioneer dealer in the U.S.A. or Canada. You will be required to provide a sales receipt or other valid proof of purchase showing the date of original purchase. In the event service is required, the product must be delivered within the warranty period, transportation prepaid, only from within the country of purchase as explained in this document. You will be responsible for removal and Installation of the product. Pioneer will pay to return the repaired or replacement product to you within the country of purchase.

PRODUCT WARRANTY PERIOD (Runs from the date of first retail sale)

Car Electronics, Speakers, and Accessories

Parts

Labor

1 Year

1 Year

WHAT IS NOT COVERED

This Limited Warranty applies to Pioneer products that are purchased from an authorized Pioneer dealer. IF THIS PRODUCT WAS PURCHASED FROM ANY OTHER SOURCE, THERE ARE NOW WARRANTYES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THIS PRODUCT IS SOLD STRICTLY "AS IS" AND "WITH ALL FAULTS", PIONEER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Pione does not warrant any product listed above when it is used in a trade or business or in any industrial or commercial application. This warranty does not apply if the product has been subjected to power in excess of its published power rating. This warranty does not cover cosmetic scratches or any other appearance item; damage or defects resulting from alterations or modifications not authorized in writing by Pioneer; accident, collisions, misuse or abuse; the use of unauthorized parts or labor; improper installation or maintenance; lightning or power surges; subsequent damage from leaking; damage from inoperative batteries; or the use of batteries not conforming to those specified in the owner's manual. This warranty does not cover the cost of parts or labor that would otherwise be provided without charge under this warranty obtained from any source other than Pioneer. Altered, defaced, or removed serial numbers void this warranty.

NO OTHER WARRANTYES

TO THE FULLEST EXTENT PERMITTED BY LAW, PIONEER MAKES NO REPRESENTATIONS OR WARRANTYES OR ACCEPTS ANY CONDITIONS WITH RESPECT TO THIS PRODUCT EXCEPT AS STATED IN THIS DOCUMENT. PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTY AND CONDITIONS INCLUDING, BUT NOT LIMITED TO, WARRANTYES AND CONDITIONS, WHETHER EXPRESS OR IMPLIED, OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTYES OR CONDITIONS SHALL APPLY AFTER THE WARRANTY PERIOD. Some states and provinces do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. To the extent any provision of this limited warranty is deemed invalid or unenforceable under applicable law, such determination will have no effect on the remaining provisions, which will continue in full force and effect.

TO OBTAIN SERVICE

In the U.S.A. or Canada, to receive warranty service, you need to present your sales receipt showing place and date of original owner's transaction. Please contact one of the following to obtain service:

Your Authorized Pioneer Dealer - Your Pioneer Dealer may repair or replace your unit or refer you to an Authorized Pioneer Service Company. Your sales receipt should list the contact information (phone number, fax, email, etc.) for your Dealer.

Pioneer Customer Support - Can advise the optimal service option for your model and geographic location. Please call us at 1-800-421-1404 or visit www.pioneerelectronics.com (for USA) or http://www.pioneerelectronics.ca (for Canada), click on "Support," then select "Contact Us."

Your Authorized Pioneer Service Company - Can perform repairs for most Car Electronics, Speaker and Accessory products and advise other options as applicable. Please visit Pioneer's website, click on "Support," and select "Find a Service Center."

Shipping Your Unit for Service - YOU MUST FIRST CONTACT PIONEER TO GET RETURN AUTHORIZATION. PLEASE DO NOT SEND IN YOUR PRODUCT WITHOUT CONTACTING CUSTOMER SUPPORT. If you have a return authorization number, please package the product carefully and send it transportation prepaid by a traceable, insured method to an Authorized Pioneer Service Company or Pioneer. Use adequate padding material to prevent damage in transit. Include your name, address and a telephone number where you can be reached during business hours.

For questions about your product, please contact Pioneer Customer Support as described above or write to us at:

Customer Support

Pioneer Electronics (USA) Inc.

P.O.Box 1720

Long Beach, California 90801 U.S.A.

DISPUTERESOLUTION

Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. In the U.S.A., you are required to use the Complaint Resolution Program before you exercise any rights under, or seek any remedies, created by the Magnuson-Moss Warranty Act but may be entitled to file suit under state law without using the Complaint Resolution Program. To use the Complaint Resolution Program, call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken to have the product repaired during the warranty period, and the name of the authorized Pioneer Dealer from which the Pioneer product was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within forty (40) days of receiving your complaint, Pioneer will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing you why Pioneer will not take any action.

RECORD THE PLACE AND DATE OF PURCHASE. KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE

ModelNo.

Serial No.

Purchase Date

Purchased From

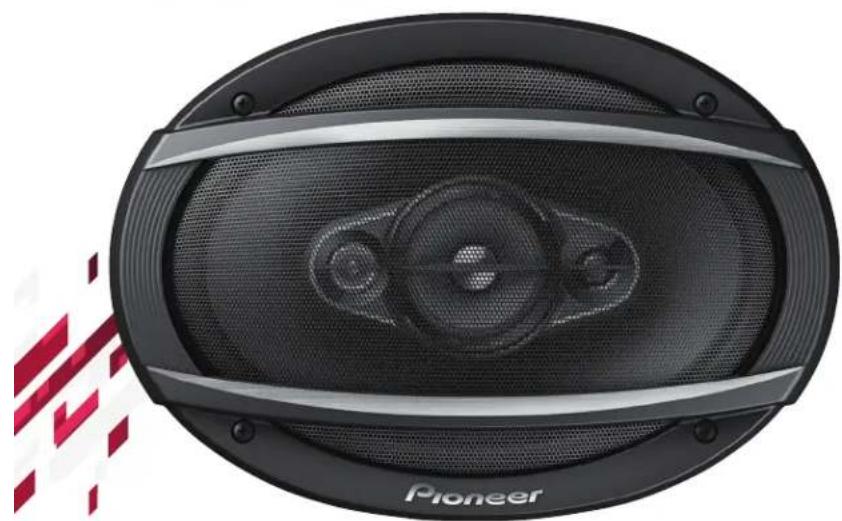

TS-A6960F

6" x 9" 4-Way Coaxial Speaker System

A-series sound design

Powerful and well controlled bass
High sensitivity and wide dynamic range
Natural and clear vocals

• Twin polyethylene terephthalate (PET) hard dome tweeters

• lmm tweeters
  18mm tweeter

2-1/4" cellulose fiber cone midrange
- 6^ × 9^ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction

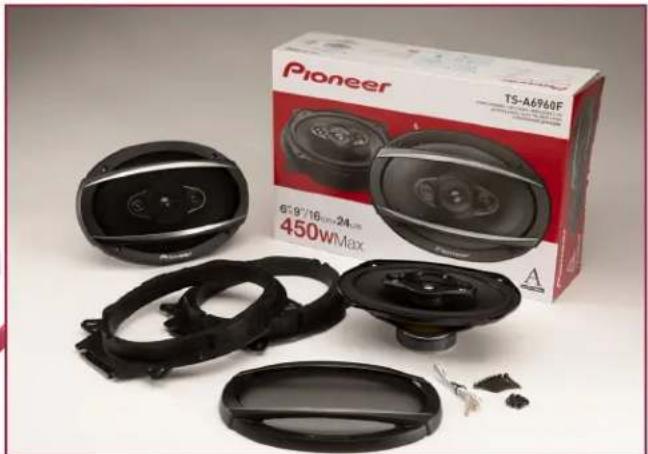

- Included multi-fit installation adapter to optimize fitment in applicable original equipment (OE) speaker locations

FEATURES AND TECHNOLOGY
Carbon

M

TM INJECTION MOLDED CONE

Carbon and mica reinforced IMPP cone provides fast response and solid bass

• Tweeter / midrange bridge with integrated waveguide

Twin lightweight polyethylene terephthalate (PET) piezoelectric crystal tweeters provide extended high frequency response

Cellulose fiber midrange cone produces clear and natural sound with excellent frequency response characteristics

EASILY UPGRADE TO HIGH PERFORMANCE

OPEN & SMOOTH

Upgrade Your Sound

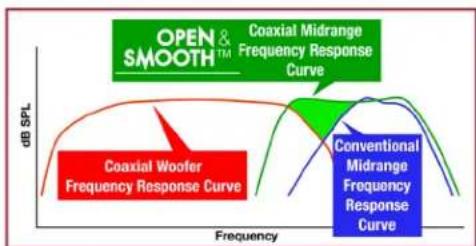

• OPEN & SMOOTH™ delivers smooth frequency response and an expansive soundstage
  Clear high frequencies
  Deep, rich bass
  Low distortion, even at high output

Pioneer's N& SMOOTH found concept hides a seamless smooth transition between the woofer and midrange/ater drivers and drivers uniform axis frequency tone optimized for automotiveifications where more speakers often aimed away on the listeners' ears.

Easy Installation

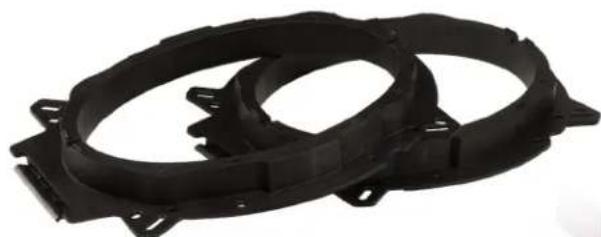

• Included 6'' × 9'' multi-fit installation adapters expand installation flexibility and improve acoustic performance

Included multi-fit installation adapters

TS-A6960F

CarSoundFit

For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

Download on the App Store

GETITON Google Play

Compatibility Examples

MAKE	MODEL
CHEVROLET	SILVERADO / TAHOE
Dodge	RAM1506
FORD	F-150
Jeep	CHEROKEE
TOYOTA	CAMRY / TACOMA

Pioneer Installation Fit Guide For more information about speed and adapter compatibility, scan QR code or visit:

http://www.pioneer-carglobal.com/speakerfitting

Dimensions

Pioneer A-series 6" x 9" Coaxial Speaker Systems	TS-A6960F TS-A6970F	(also available) TS-A6990F (also available)
System Type	4-way Coaxial 5-way Coax	al 5-way Coaxial
Sound Pressure Level (Sensitivity)	89dB (±1.5dB) 89dB (±1.5dB)	90dB (±1.5dB)
Frequency Range	35 Hz to 24 kHz 34 Hz to 25 kHz	kHz 22 Hz to 25 kHz
Continuous Power Handling (RMS)	90 Watts 100 Watts 120 Watts	Watts
Maximum Peak Power Handling	450 Watts 600 Watts 700 Watts	Watts
Nominal Impedance	4Ω 4Ω 4Ω
Woofer Cone Diameter	6" x 9"	6" x 9"	6" x 9"
Woofer Cone Material	Carbon and mica reinforced IMPP	Carbon and mica reinforced IMPP	Carbon and mica reinforced IMPP
Surround Material	Elastic polymer	Elastic polymer	Elastic polymer
Woofer Magnet Material	Ferrite	Ferrite	Ferrite
Woofer Magnet Weight	11.3 oz	12.7 oz	15.2 oz
Mounting Depth	2-7/8"	2-7/8" 3-3/8" (Deep basket)
Tweeter / Midrange Type	lmm PET dome tweeter lmm PET dome tweeter lmm PET dome tweeter lmm PET dome tweeter lmm PET dome tweeter lmm PET cone midrange	9mm PET dome super tweeter lmm PET dome tweeter lmm PET dome tweeter lmm PET cone midrange	9mm PET dome super tweeter lmm PET dome tweeter lmm PET dome tweeter lmm PET cone midrange
Woofer / Midrange Crossover Frequency	3,600 Hz	4,300 Hz	3,600 Hz
Multi-fit Installation Adapters	Included Included	N/A

Pioneer A-series full-range speakers available in additional sizes and applications:

TS-A6970F, TS-A6990F (6"×9") • TS-A6880F (6"×8") • TS-A1670F, TS-A1680F (6-1/2") • TS-A1370F (5-1/4") • TS-A4670F (4"×6")

WARNING: Over time, your hearing "comfort level" adapts to higher volumes of sound, so that what sounds "normal" can actually be doing harm. To protect against hearing loss, set your equipment's volume at a low setting, slowly increase it until you can hear it comfortably and clearly, and leave it there. Do not turn up the volume so high that you can't hear what's around you.

Information provided for reference only and does not imply guaranteed compatibility with each model year of the vehicles shown. Consult your Authorized Pioneer Dealer to confirm vehicle compatibility

Protect your investment. Purchase from an Authorized Pioneer Dealer Only products purchased from an Authorized Pioneer Dealer (or Authorized Pioneer Internet Dealer) qualify for the manufacturer's warranty and manufacturer's rebates. Pioneer Electronics (USA) Inc., Post Office Box 1760, Long Beach, California 90801. Pioneer Customer Service Department: 1-800-PIONEER

Note: Specifications, designs, and user interfaces are subject to modification without notice. Product colors and illumination may differ in photographs from actual appearance due to effects of printing and photography.

PIONEER, OPEN & SMOTH and the Pioneer logo are trademarks or registered trademarks of Pioneer Corporation.

All other brand, product names, or logos are trademarks or registered trademarks of their respective holders.

2018 TS-A696DF-9/18

©2018 Pioneer Electronics (USA) Inc.

Pioneer Electronics (USA) Inc. proudly supports and encourages you to support the Consumer Technology Association (CTA). Mobile Electronics Certification Program (MECP) for installers and the Specialty Equipment Market Association (SEMA).
