Instruction Manual Page 1 of 3 Instruction ManualInstruction Manual Page 2 of 3Instruction Manual Page 3 of 3HOW TO INSTALL TS-A300TW Be sure to read this instruction manual before installing this speaker. The following data

Pioneer's vehicle research and

provided as a guideline only. These installation guidelines are intended to be strictly recommendations and are not complete installation instructions. Model availability varies

region. Please contact your Pioneer Authorized Dealer for specific model availability. ■ Tweeter installation procedure

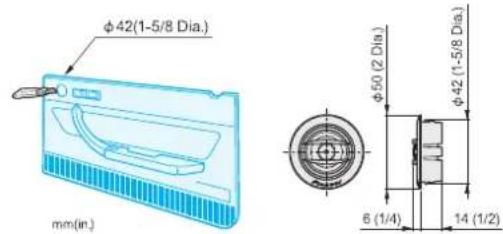

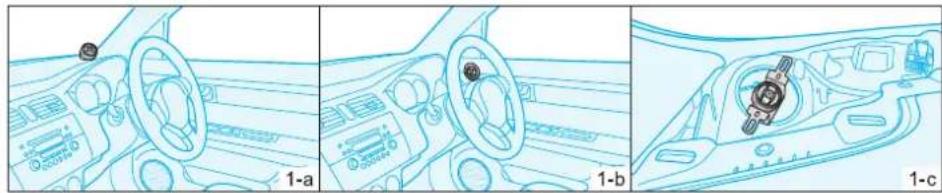

Installing speaker 1-a When installing with the included spacer@ 1-b When installing with included spacer® ¢42(1-5/8 Dia.) (1/4) 14(1/2) • Adjust the spacer® into the preferred direction for the correct sound output, then adhere using the included cushion

Finally tighten the spacer by screw@.

• Install the tweeter to the tweeter adaptor, feeding the tweeter cable through the adaptor hole.
• Install the tweeter to the correct adaptor CV. Then, install the whole assembly into the door trim which has the correct hole.

• For a more secure installation, it

advised to use a hot glue gun (sold separately) to fix the tweeter/adaptor to the door trim.1-c When installing using the included mounting adaptor (J)

MODEL YEAR 2016 - present 2014 - 2020 2014 - 2019 2009 - 2018 2018 - present 2018 - present 2006 - 2018 2013 - present 2015 - present 2009 - present 2011-2017 2011 - 2020 2013 - present 2012-2018 2016 - present

• Bend the adaptor as per the illustration by using the right tool. :x.mend the mounting surface as balanced as possible, to the same plane as the OEM speaker.

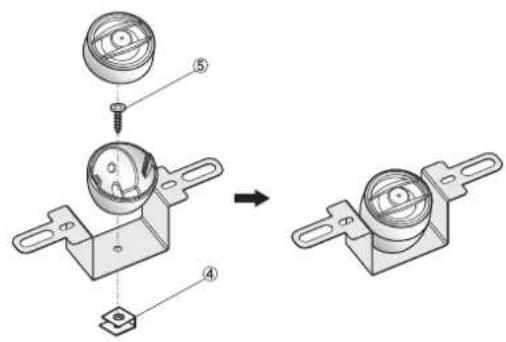

• Tighten Tweeter and adapter

using the included nut@ and screw@

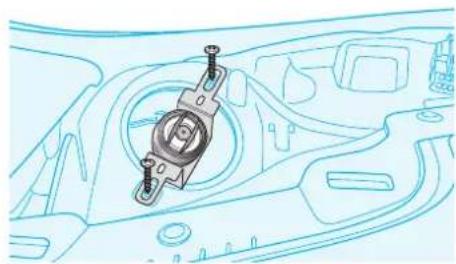

• Install the tweeter into the vehicles genuine dashboard position

using the vehicle pre-fitted screw.

• If the included adaptor interferes with car body, please modify the required parts,

using a cutting tool.

© PIONEER CORPORATION 2018

• Included multi-fit installation adapters optimize fitment in applicable original equipment (OE) speaker locations

• Inline high-pass network for simple installation A-series sound design

• Powerful and well controlled bass

• High sensitivity and wide dynamic range

• Natural and clear vocals

FEATURES AND TECHNOLOGY

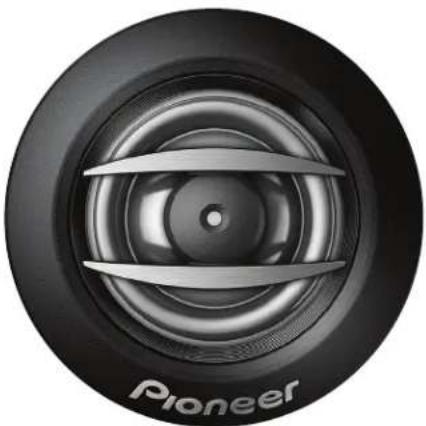

20mm component tweeter

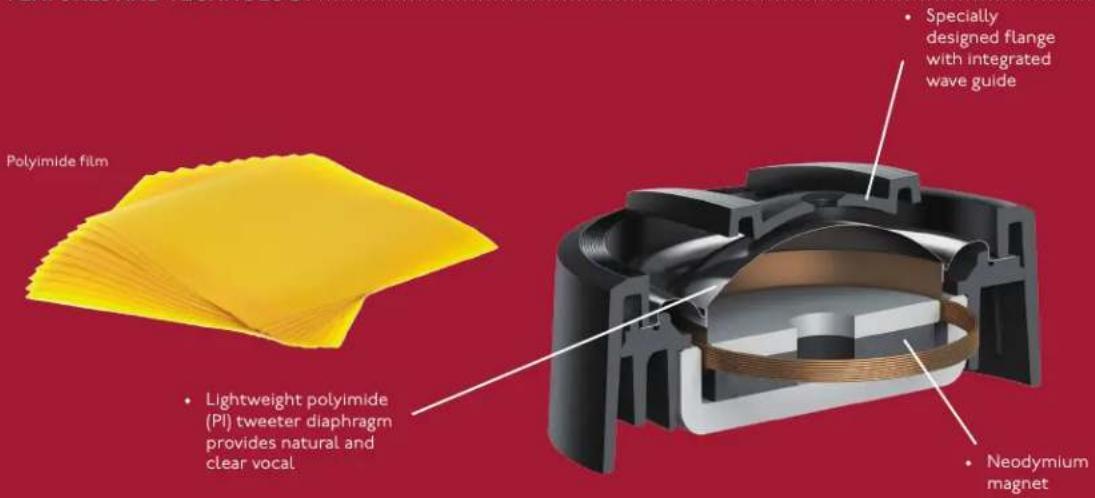

• Lightweight polyimide (PI) tweeter diaphragm provides natural and clear vocal

• Specially designed flange with integrated wave guide

• Neodymium magnet Polyimide film Upgrade Your Sound

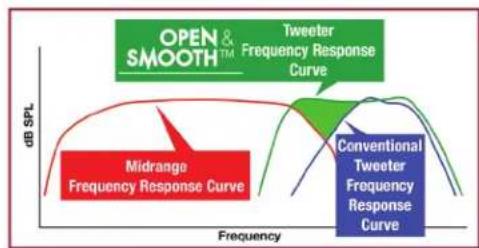

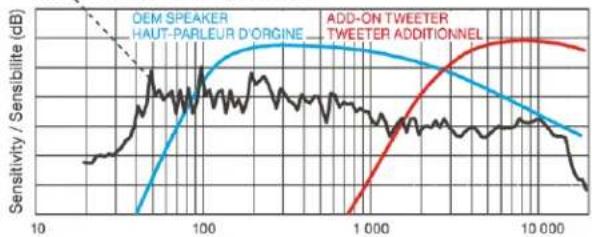

• OPEN & SMOOTH™ delivers smooth frequency response and an expansive soundstage

• Clear high frequencies

• Low distortion, even at high output Easy Installation

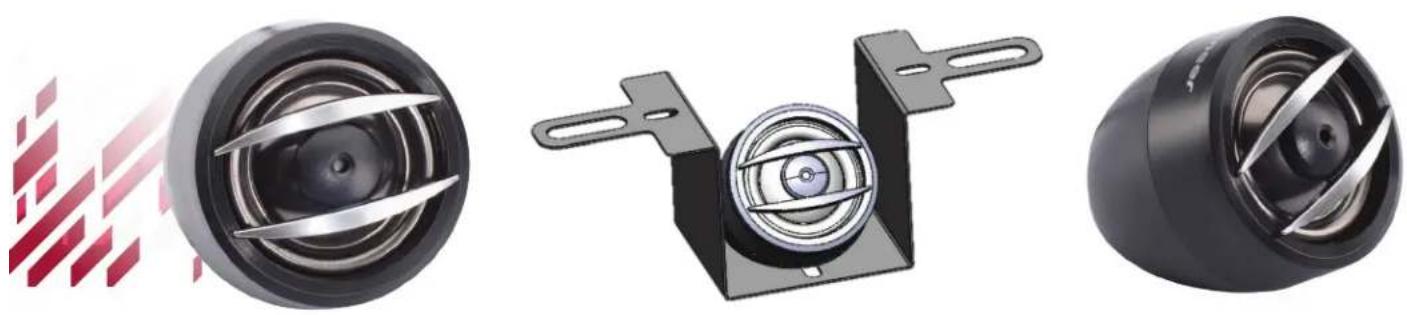

• Included tweeter mounting for surface mounting, flush mounting and specially designed multi-fit adapters for mounting in original equipment (OE) tweeter locations

• Integrated/in-line crossover network eliminates the need for an outboard module to increase installation flexibility Integrated/inline crossover network Included multi-fit installation adapters Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform o-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.Note: Specifications, designs, and user interfaces are subject to modification without notice. Product colors and illumination may dier in photographs from actual appearance due to eects of printing and photography.PIONEER and the Pioneer logo are trademarks or registered trademarks of Pioneer Corporation. All other brand, product names, or logos are trademarks or registered trademarks of their respective holders.2018 TS-A300TW - 11/18©2018 Pioneer Electronics (USA) Inc.

FACEBOOK.COM/PIONEERNORTHAMERICAINSTAGRAM.COM/PIONEERCARAUDIO YOUTUBE.COM/PIONEERELECTRONICSTWITTER.COM/PIONEERUSAPioneer Electronics (USA) Inc. proudly supports and encourages you to support the Consumer Technology Association (CTA), Mobile Electronics Certification Program (MECP) for installers and the Specialty Equipment Market Association (SEMA). TS-A300TW WARNING: Over time, your hearing “comfort level” adapts to higher volumes of sound, so that what sounds “normal” can actually be doing harm. To protect against hearing loss, set your equipment’s volume at a low seing, slowly increase it until you can hear it comfortably and clearly, and leave it there. Do not turn up the volume so high that you can’t hear what’s around you. Protect your investment. Purchase from an Authorized Pioneer Dealer. Only products purchased from an Authorized Pioneer Dealer (or Authorized Pioneer Internet Dealer) qualify for the manufacturer’s warranty and manufacturer’s rebates. Pioneer Electronics (USA) Inc., Post Oice Box 1760, Long Beach, California 90801 Pioneer Customer Service Department: 1-800-PIONEER Pioneer A-series Components TS-A692C (also available) TS-A652C (also available) TS-A300TW System Type2-way Component 2-way Component Component TweeterSound Pressure Level (Sensitivity)87dB (± 1.5dB) 85dB (± 1.5dB) 88dB (± 1.5dB)Frequency Range33 Hz to 49 kHz 34 Hz to 49 kHz 1400 Hz to 69 kHzContinuous Power Handling (RMS)100 Was 80 Was 100 WasMaximum Peak Power Handling450 Was 350 Was 450 WasNominal Impedance4Ω 4Ω 6Ω Woofer Cone Diameter6˝ x 9˝ 6-1/2˝ - Woofer Cone MaterialMultilayer carbon and mica reinforced IMPP in moonstone grayMultilayer carbon and mica reinforced IMPP in moonstone gray Surround MaterialElastic polymer Elastic polymer -Woofer Magnet MaterialFerrite Ferrite -Woofer Magnet Weight11.3 oz 11.3 oz -Mounting Depth2-7/8˝ 2-3/8˝ 17mmTweeter TypeSeparate component 20mm polyimide hard dome tweeterSeparate component 20mm polyimide hard dome tweeter20mm polyimide hard dome tweeterCrossover Frequency3,300 Hz 2,500 Hz 3,800 HzMulti-fit Installation Adapters Woofer and tweeter included Woofer and tweeter included Tweeter included Pioneer A-series full-range speakers available in additional sizes and applications: TS-A692F, TS-A6970F, TS-A6990F (6˝x 9˝) • TS-A682F (6˝x 8˝) • TS-A652F, TS-A1680F (6.5˝) • TS-A1370F (5-1/4˝) • TS-A462F (4˝x 6˝) Dimensions mm (inches)PIONEER ELECTRONICS (USA) INC. LIMITED WARRANTY WARRANTY VALID ONLY IN COUNTRY OF PRODUCT PURCHASE WARRANTY Pioneer Electronics (USA) Inc. (Pioneer) warrants that Pioneer® Car/Marine Electronics, Speaker, and Accessory Products distributed by Pioneer in the U.S.A. and Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the owner’s manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at Pioneer’s option, without charge to you for parts or actual repair work. Replacement units and/or parts supplied under this warranty may be new or rebuilt at Pioneer’s option. This Limited Warranty applies to the original or any subsequent owner of this Pioneer product during the warranty period provided the product was purchased from an authorized Pioneer dealer in the U.S.A. or Canada. You will be required to provide a sales receipt or other valid proof of purchase showing the date of original purchase. In the event service is required, the product must be delivered within the warranty period, transportation prepaid, only from within the country of purchase as explained in this document. You will be responsible for removal and installation of the product. Pioneer will pay to return the repaired or replacement product to you within the country of purchase. PRODUCT WARRANTY PERIOD (Runs from the date of first retail sale) Parts Labor Car/Marine Electronics, Speakers, and Accessories (excluding Blind Spot Detection System).................... 1 Year 1 Year Blind Spot Detection System ................................................................................................................................ 3 Years 3 Years

This Limited Warranty applies to Pioneer products that are purchased from an authorized Pioneer dealer. IF THIS PRODUCT WAS PURCHASED FROM ANY OTHER SOURCE, THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THIS PRODUCT IS SOLD STRICTLY “AS IS” AND “WITH ALL FAULTS.” PIONEER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Pioneer does not warrant any product listed above when it is used in a trade or business or in any industrial or commercial application. This warranty does not apply if the product has been subjected to power in excess of its published power rating. This warranty does not cover cosmetic scratches or any other appearance item; damage or defects resulting from alterations or modifications not authorized in writing by Pioneer; accident, collisions, misuse or abuse; the use of unauthorized parts or labor; improper installation or maintenance; lightning or power surges; subsequent damage from leaking; damage from inoperative batteries; or the use of batteries not conforming to those specified in the owner’s manual. This warranty does not cover the cost of parts or labor that would otherwise be provided without charge under this warranty obtained from any source other than Pioneer. Altered, defaced, or removed serial numbers void this warranty.

TO THE FULLEST EXTENT PERMITTED BYLAW, PIONEER MAKES NO REPRESENTATIONS OR WARRANTIES OR ACCEPTS ANY CONDITIONS WITH RESPECT TO THIS PRODUCT EXCEPT AS STATED IN THIS DOCUMENT. PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES AND CONDITIONS INCLUDING, BUT NOT LIMITED TO, WARRANTIES AND CONDITIONS, WHETHER EXPRESS OR IMPLIED, OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTIES OR CONDITIONS SHALL APPLY AFTER THE WARRANTY PERIOD. Some states and provinces do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. To the extent any provision of this limited warranty is deemed invalid or unenforceable under applicable law, such determination will have no effect on the remaining provisions, which will continue in full force and effect.

In the U.S.A. or Canada, to receive warranty service, you need to present your sales receipt showing place and date of original owner’s transaction. Please contact one of the following to obtain service: Your Authorized Pioneer Dealer - Your Pioneer Dealer may repair or replace your unit or refer you to an Authorized Pioneer Service Company. Your sales receipt should list the contact information (phone number, fax, email, etc.) for your Dealer. Pioneer Customer Support - Can advise the optimal service option for your model and geographic location. Please call us at 1-800-421-1404 or visit www.pioneerelectronics.com (for USA) or http://www.pioneerelectronics.ca (for Canada), click on “Support,” then select “Contact Us.” Your Authorized Pioneer Service Company - Can perform repairs for most Car/Marine Electronics, Speaker and Accessory products and advise other options as applicable. Please visit Pioneer’s website, click on “Support,” and select “Find a Service Center.” Shipping Your Unit for Service – YOU MUST FIRST CONTACT PIONEER TO GET RETURN AUTHORIZATION. PLEASE DO NOT SEND IN YOUR PRODUCT WITHOUT CONTACTING CUSTOMER SUPPORT. If you have a return authorization number, please package the product carefully and send it transportation prepaid by a traceable, insured method to an Authorized Pioneer Service Company or Pioneer. Use adequate padding material to prevent damage in transit. Include your name, address and a telephone number where you can be reached during business hours. For questions about your product, please contact Pioneer Customer Support as described above or write to us at: Customer Support, Pioneer Electronics (USA) Inc. P.O. Box 1720 Long Beach, California 90801 U.S.A. DISPUTE RESOLUTION Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. In the U.S.A., you are required to use the Complaint Resolution Program before you exercise any rights under, or seek any remedies, created by the Magnuson-Moss Warranty Act but may be entitled to file suit under state law without using the Complaint Resolution Program. To use the Complaint Resolution Program, call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken to have the product repaired during the warranty period, and the name of the authorized Pioneer Dealer from which the Pioneer product was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within forty (40) days of receiving your complaint, Pioneer will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing you why Pioneer will not take any action. RECORD THE PLACE AND DATE OF PURCHASE. KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE Model No. __________________________ Serial No. ___________________________Purchase Date ___________________________ Purchased From _______________________________________________________________________________________________PIONEER ELECTRONICS (USA) INC.
