Product Type	Built-in induction cooktop
Brand	Wolf
Model	CI243TFS
Dimensions (W x D x H)	Approximately 60.96 cm x 52.07 cm x 5.08 cm (24" x 20.5" x 2")
Weight	Approximately 12 kg (26.5 lb)
Power supply	240 V, 40 A, 60 Hz (dedicated circuit required)
Number of cooking zones	3 induction zones: 1 x 11" (279 mm, 2600W / Boost 3700W), 2 x 8" (203 mm, 2100W)
Main functions	Induction cooking, Boost mode (overpower) on some zones, Bridge function, digital timer, control panel lock, automatic shut-off
Control type	Touch controls with power level indicators
Timer	Independent timer adjustable from 1 to 99 minutes with audible alarm
Safety	Control panel lock, hot surface indicator, automatic shut-off after 2/6/8 hours depending on level, pan detection (induction)
Surface material	Ceramic glass (Ceran® brand)
Cleaning and maintenance	Non-abrasive ceramic glass cleaner, supplied scraper for stuck-on residues; control panel cleaned with degreaser on a cloth
Compatible cookware	Magnetic stainless steel, cast iron; flat bottom and appropriate diameter
Warranty	2 years parts and labor (residential), 5 years limited on heating elements and circuits
Customer service	Wolf certified service, phone: [phone], website: wolfappliance.com

Frequently Asked Questions - CI243TFS WOLF

What types of pans to use on the Wolf CI243TFS induction cooktop?

Use magnetic stainless steel or cast iron pans. To check, a magnet must stick to the bottom. Pans made of aluminum, copper, or glass do not work.

How to activate Boost mode (overpower)?

On compatible cooking zones, press the Boost key after turning on the zone. The power increases to 3700W for a maximum of 15 minutes, then automatically returns to the normal setting.

The cooktop does not turn on: what to do?

Check that the circuit breaker is on and the cooktop is unlocked (press Lock for 3 seconds). If the problem persists, contact Wolf service.

How to use the Bridge function?

Activate a zone, then press the Bridge key between two zones to link them. This creates an oblong area suitable for fish poachers or griddles. Adjust the power on one of the zones.

How to clean the ceramic glass surface without damaging it?

Let it cool down, then use a special ceramic glass cleaner and a soft cloth. For burnt residues, use the supplied scraper. Never use abrasive products or steel wool.

How to lock the control panel?

Press and hold the Lock key for 3 seconds. The indicator lights up. To unlock, repeat the operation. The automatic lock after 10 minutes of inactivity is adjustable in additional options.

What does the hot surface indicator mean?

An H indicator (or hot surface symbol) lights up when the cooking zone is still hot after being turned off. Stay cautious until it turns off.

How to set the timer?

Press Timer, then use the + or - keys to select a duration from 1 to 99 minutes. The timer counts down and beeps at the end. It is independent of the cooking zones.

Can I use a baking tray or aluminum foil on the cooktop?

No, never place aluminum foil directly on the surface. Only use suitable pans placed on the zones.

What to do if the cooktop displays an error code?

The possible error codes are not detailed in the manual. Turn off the cooktop at the circuit breaker for 30 seconds then turn it back on. If the code persists, contact Wolf service at 800-222-7820.

USER MANUAL CI243TFS WOLF

Induction/Electric Cooktop

Use and Care Guide

CLEANING, MAINTENANCE, AND MORE

Contents

4 Safety Precautions
6 Induction Cooktop Features
7 Electric Cooktop Features
8 Cooktop Operation
17 Care Recommendations
18 Troubleshooting
19 Wolf Warranty

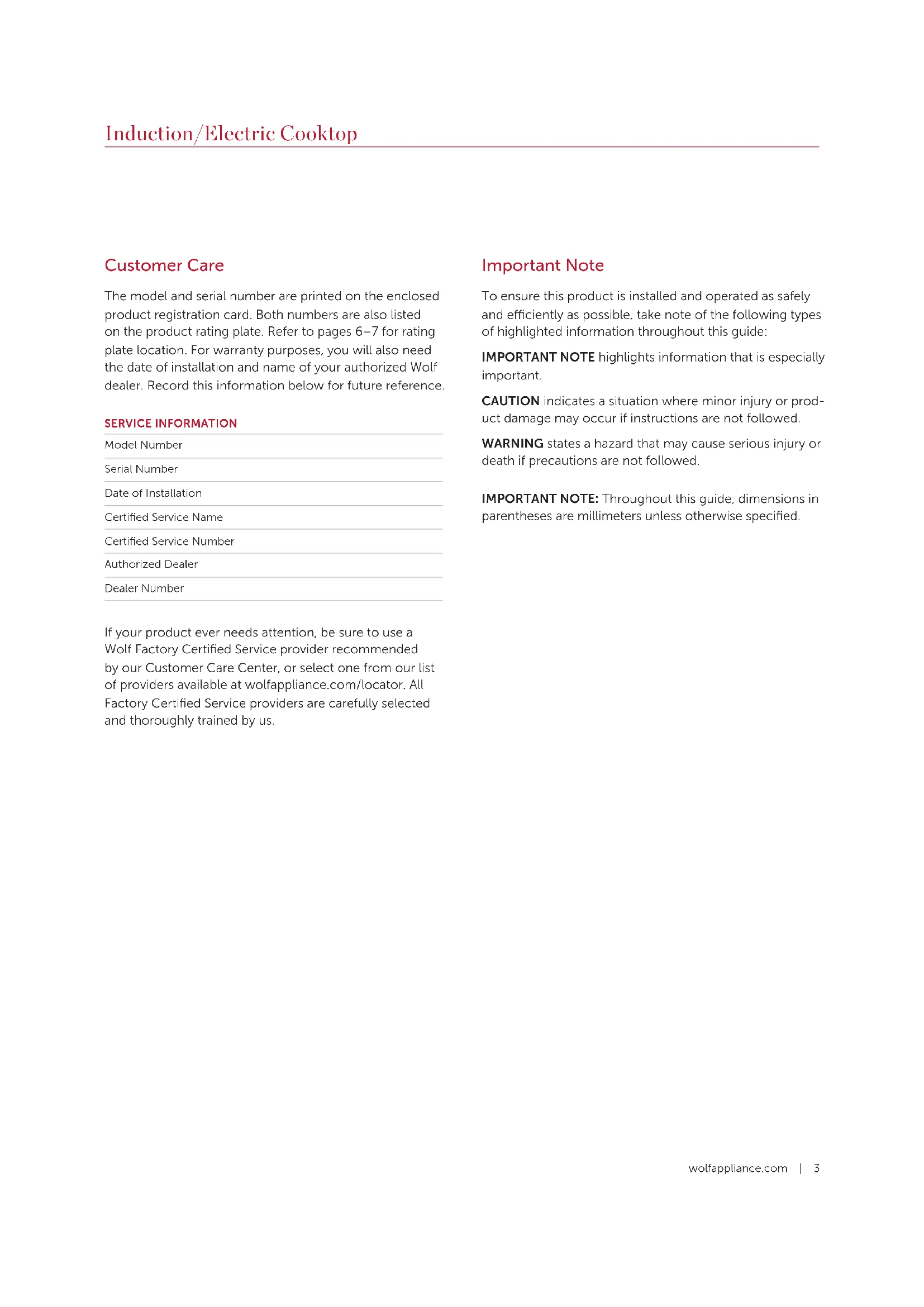

Customer Care

The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to pages 6-7 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certified Service Name

Certified Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a Wolf Factory Certified Service provider recommended by our Customer Care Center, or select one from our list of providers available at wolfappliance.com/locator. All Factory Certified Service providers are carefully selected and thoroughly trained by us.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially important.

CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.

IMPORTANT INSTRUCTIONS

IMPORTANT NOTE: Read all safety instructions before using this appliance.

• Read this use and care guide carefully before using your new cooktop to reduce the risk of fire, electric shock, or injury to persons.
• Ensure proper installation and servicing. This appliance must be properly installed and grounded by a qualified technician. Have the installer show you the location of the circuit breaker or fuse so that you know where to turn off power.
• Warranty service must be performed by Wolf Factory Certified Service.
• Before performing any service, disconnect the power supply to the cooktop by switching off the circuit breaker or removing the fuse.

IMPORTANT NOTE: Performance may be compromised if the electrical supply is less than 240 volts.

GENERAL SAFETY PRECAUTIONS

• Wear proper apparel. Never let loose clothing or other flammable materials come in contact with the elements while in operation. Fabric may ignite and result in personal injury.
• Use only dry pot holders when removing pans from the cooktop. Wet or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements.
• Select cookware of the proper size, material, and construction for the particular type of cooking being done. This unit is equipped with heating elements of different size. Refer to element rating on pages 6-7.
• Always turn pan handles inward so they do not extend over adjacent work areas, heating elements, or edges of the cooktop to reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with pan. Do not turn handles toward the room, where they may be bumped or easily hit.
• Never heat an empty pan. It may damage the cooktop or cookware and overheat the unit.
• Do not heat cookware with water droplets on the outside of the pan. The droplets may begin to boil and splatter. Cookware should always be dry.
• Do not use aluminum foil on the surface of the cooktop.
• Never use the cooktop to warm or heat a room.

IMPORTANT INSTRUCTIONS

GENERAL SAFETY PRECAUTIONS

• When using the cooktop, do not touch the glass surface directly above or adjacent to the heating elements or induction zones. The glass surface may become hot enough to cause burns.
• Do not leave children alone or unattended in the area where the cooktop is in use. Never allow children to sit or stand on the appliance. Do not let children play with the cooktop.
• Do not store items of interest to children above or at the back of the cooktop, as they could climb on the appliance to reach items and be injured.
• Do not repair or replace any part of the appliance unless it is specifically recommended in literature you received. All service should be referred to Wolf Factory Certified Service.
• Do not use water on grease fires. Smother the flame or use a dry chemical or foam-type extinguisher.
• Never leave the cooktop unattended when using high heat settings. Boilovers and greasy spillovers may smoke or ignite.
• Do not operate the cooktop if the glass-ceramic surface is broken or severely pitted. Call Wolf Factory Certified Service to repair the cooktop.

• Do not store flammable materials near hot components or let grease or other flammable substances accumulate on the cooktop.

• Do not clean the cooktop while it is still hot. If using a damp sponge or cloth, wait until the cooktop has cooled sufficiently to prevent steam burns. Also, some cleaners give off noxious fumes when applied to hot surfaces. Refer to Care Recommendations on page 17.

• Do not use a griddle, open roaster, or fish poacher across two heating elements unless the bridge element is turned on. This type of use without the bridge element turned on could damage or crack the glass. Refer to Bridge Element on page 13.
• Do not block the cooling fan exhaust or intake vents. The cooling fan automatically turns on to cool internal parts. It may continue to run even after the cooktop has been turned off.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm—www.P65Warnings.ca.gov

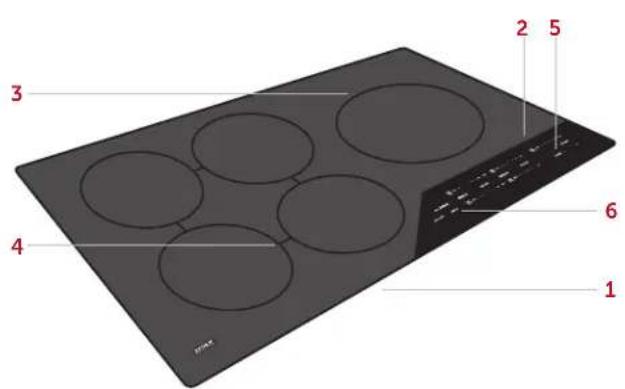

Induction Cooktop Features

FEATURES

1 Product Rating Plate (bottom of cooktop)
2 Control Panel
3 Induction Element
4 Bridge Element
5 Timer
6 Control Panel Lock

36" Induction Cooktop (CI365C shown)

INDUCTION COOKTOP

In induction cooking, the electricity flows through a coil to produce a magnetic field under the glass-ceramic surface. When an induction-compatible pan is placed on the cooktop, currents are induced in the pan and instant heat is generated. Cookware made of magnetic materials, such as cast iron or magnetic stainless steel is required for induction cooking.

ELEMENT RATING

15"INDUCTION COOKTOP W

812 (216) 2300 / 3700 boost

6^*152 1400

24"INDUCTION COOKTOP W

11" (279) 2600 / 3700 boost

8" (203) 2100 / 3700 boost

8' (203) 2100

30"INDUCTION COOKTOP W

11" (279) 2600 / 3700 boost

8° (203) 2100 / 3700 boost

8" (203) 2100

6^* (152) 1400

36"INDUCTION COOKTOP W

11" (279) 2600 / 3700 boost

(2) 8^ (203) 2100 / 3700 boost

(2) 8^ (203) 2100

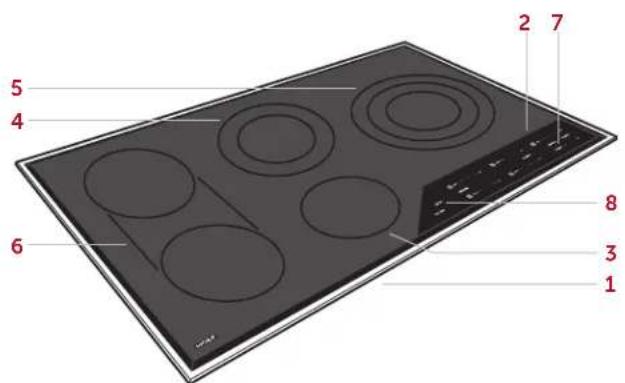

Electric Cooktop Features

FEATURES

1 Product Rating Plate (bottom of cooktop)
2 Control Panel
3 Single Element
4 Dual-Zone Element
5 Triple-Zone Element
6 Bridge Element
7 Timer
8 Control Panel Lock

36" Electric Cooktop (CE365T shown)

ELECTRIC COOKTOP

Wolf electric cooktops operate by using high-frequency pulsation, cycling the heating elements between zero power and full power. As the heat is increased on the control panel, the element will stay at full power for longer periods and have shorter periods of zero power.

ELEMENT RATING

15" ELECTRIC COOKTOP W

8° (203) Dual 700 / 2200

512 (140) Single 1200

30" ELECTRIC COOKTOP W

1012 (267) Triple 1050 / 1950 / 2700

(2) 512 (140) Singles 1200

612 (165) Single with Oval 2400

36" ELECTRIC COOKTOP W

10^1/2 (267) Triple 1050 / 1950 / 2700
8" (203) Dual 700 / 2200
512 (140) Single 1200
(2) 7'' (178) Singles with Bridge 4400

Getting Started

We know you are eager to start cooking, but before you do, please take some time to read this use and care guide. Whether you are an occasional cook or an expert chef, it will be to your benefit to familiarize yourself with the safety practices, features, operation, and care recommendations of your Wolf Induction or Electric Cooktop.

To ensure all residual oil from the manufacturing process has been removed, clean the cooktop thoroughly with hot water and a mild detergent prior to use. Rinse and dry with a soft cloth. Refer to Care Recommendations on page 17.

Cooktop Operation

CONTROL PANEL

The control panel features illuminated touch controls that are invisible when the cooktop is off. A power level indicator for each control displays the heat setting from Sim (Mlt) to Hi. Each control is positioned to the corresponding heating element. Refer to the illustration below.

Indicators on the control panel illuminate to indicate specific cooktop operation. Some indicators are unique to either induction or electric cooktops. Refer to the charts on the following page.

CAUTION

Do not place hot cookware directly over the control panel.

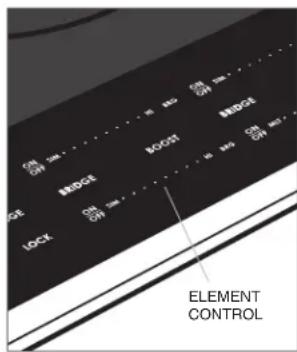

Touch controls

Cooktop Operation

CONTROL PANEL INDICATORS

INDUCTION COOKTOP

Control Panel Lock

Element(s) On

Hot Surface

Timer Set

Boost Mode

Front-to-Back Bridge

Side-to-Side Bridge (36" model only)

All Bridge (36* model only)

CONTROL PANEL LOCK

The control panel lock feature prevents unwanted cooktop operation. Touch and hold Lock for three seconds to lock and unlock the control panel. 品 illuminates when the control panel is locked.

The control panel automatically locks after 10 minutes of inactivity. This automatic lock feature can be disabled through the extended options menu. Refer to page 16.

When the cooktop is powered up for the first time and after a power outage, the cooktop will default to lock mode.

ELECTRIC COOKTOP

Control Panel Lock

Element(s) On

Hot Surface

Timer Set

Zone 2

Zone 3

Oval Element (30" model only)

Bridge (36* model only)

Cooktop Operation

POWER LEVEL INDICATOR

When an element is activated, a power level indicator illuminates above the corresponding control indicating the level of heat. The lowest heat is represented by the small flame, varying levels of heat by additional indicators (dots), and the highest heat by all indicators including the large flame. Refer to the chart and illustration below.

Power level indicator

SETTING POWER LEVEL USES

Melt 1 (small flame) indicator	Melting butter, holding chocolate, and sauces.
Simmer 2–6 indicators Simmering sauces and steaming rice.
Medium 6–7 indicators Making French toast and pancakes, heating milk, cream sauces, soups, and gravies.
Medium High 7–8 indicators Sauteing, browning, and frying.
High 8–10 (large flame) indicators	Boiling water, searing meat, and canning.

Cooktop Operation

SINGLE ELEMENT AND INNER ZONE

Setting controls:

1 To activate a heating element, touch On/Off for the desired single element on the control panel. The power level indicator will flash and all indicators for that zone will flash. Refer to the illustration below.
2 To complete the activation, touch Hi for highest heat, Sim (Mlt) for lowest heat, Boost (induction) to activate boost mode, or touch the desired power level indicator.
3 To change the heat setting while the element is on, touch or slide to the desired power level.
4 To turn the element off, touch On/Off.

IMPORTANT NOTE: For induction cooktops only, if nocookware or an incompatible pan is placed on an induction element after activation, the control will flash for 30 seconds, then the element will turn off automatically.

Element activation

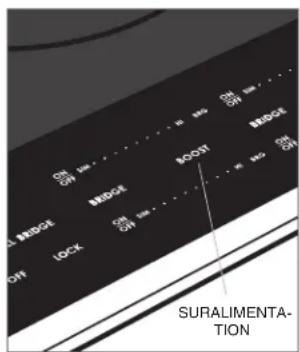

BOOST MODE (INDUCTION)

For induction cooktops, boost mode boosts power on one element by diverting power from an adjacent element. If the adjacent element is on high, the power output will be reduced. The reduction in power is displayed on the power level indicator of the adjacent element. Refer to the illustration below. illuminates when an element is in boost mode.

Boost mode deactivates automatically after approximately 15 minutes of continuous operation and can be reactivated if desired.

Boost mode

Cooktop Operation

DUAL-ZONE OR OVAL ELEMENT (ELECTRIC)

Setting controls:

1 To activate a dual-zone or oval element, touch On/ Off on the control panel. The power level indicator will flash and all indicators for that zone will flash.
2 Set the desired heat level for the inner zone as described on page 11. Outer zones cannot be turned on independently of the inner zone.
3 Touch Zone 2 or Oval. The outer zone will be set to the same heat setting as the inner zone. ② or ① -minates to indicate the outer zone is on. Refer to the illustration below.
4 Change the heat setting for the entire dual-zone or oval element the same as for a single element. Both zones maintain the same heat setting.
5 To turn the outer zone off, touch Zone 2 or Oval. To turn the entire element off, touch On/Off.

Dual-zone element activation

TRIPLE-ZONE ELEMENT (ELECTRIC)

Setting controls:

1 To activate the triple-zone element, touch On/Off on the control panel. The power level indicator will flash and all indicators for that zone will flash.
2 Set the desired heat level for the inner zone as described on page 11. The outer zones cannot be turned on independently of the inner zone.
3 Touch Zone 2. The middle zone will be set to the same heat setting as the inner zone. ② illuminates to indicate the middle zone is on.
4 Touch Zone 3. The outer zone will be set to the same heat setting as the inner and middle zones. (3) Illuminates to indicate the outer zone is on. Refer to the illustration below.
5 Change the heat setting for the entire triple-zone element the same as for a single element. All three zones maintain the same heat setting.
6 To turn the outer zone off, touch Zone 3. To turn the middle zone off, touch Zone 2. To turn the entire element off, touch On/Off.

Triple-zone element activation

Cooktop Operation

BRIDGE ELEMENT (INDUCTION)

Setting controls:

1 To activate bridge, select the desired power level on one of the single elements.
2 Touch Bridge between the corresponding element controls to bridge the elements front to back, Brg to bridge the elements side to side, or All Bridge to bridge all elements. , or illuminates respectively.
3 To change the power level, adjust the power level on any active bridged element.
4 To turn off, touch On/Off on any active bridged element.

For 36" induction cooktops, All Bridge should be used for cookware larger than 12" (305) in diameter. For smaller cookware, use the right rear element.

BRIDGE ELEMENT (ELECTRIC)

Setting controls:

1 To activate bridge, select the desired power level on one of the single elements.
2 Touch Bridge. Illuminates.
3 To change the power level, adjust the power level on either active bridged element.
4 To turn off, touch On/Off on either active bridged element.

Bridge element activation

Cooktop Operation

GRIDDLEUSE

The bridge element provides an oblong heating area for use with a griddle, open roaster, or fish poacher.

To preheat a griddle, set the bridge element power level to high for five minutes, then reduce for cooking.

CAUTION

A griddle, open roaster, or fish poacher should not be used when the bridge element is off or with any other combination of heating elements.

TIMER

The timer can be set in one-minute increments up to 99 minutes. Once a time is set, L illuminates on the control panel and the countdown is visible on the timer display. The timer is independent from the cooktop. Refer to the illustration below.

Setting timer:

1 Touch Timer.
2 Touch and hold + or - until the desired time is shown in the timer display. The timer begins the countdown in minutes.
3 The timer chimes with one minute left and completes the countdown in seconds.
4 When complete, the timer chimes and continues to chime until Timer is touched.

Timer controls

Cooktop Operation

HOT SURFACE INDICATOR

illuminates on the control panel and may remain illuminated even when the cooktop is off.

ALL OFF

When one or more heating elements are on, O illumina nates on the control panel. To turn off all elements at the same time, touch All Off.

Cooktop Operation

EXTENDED OPTIONS

The extended options feature allows the user to set preferences for volume, tone, control panel lock, and Sabbath feature.

Setting adjustment:

1 While the unit is off and unlocked, touch and hold All Off for five seconds.
2 Power level 1 on the rear element control is displayed and "Vo" appears on the timer display. Touch Sim (Mlt) or Hi on the front element control to adjust volume.
3 Touch + on the timer control to adjust tone. Power level 2 on the rear element control is displayed and "Fr" appears on the timer display. Touch Sim (Mlt) or Hi on the front element control to adjust tone.
4 Touch + on the timer control to adjust the automatic control panel lock. Power level 3 on the rear element control is displayed and "Lo" appears on the timer display. Touch Sim (Mlt) or Hi on the front element control to turn the automatic lock feature off or on respectively.
5 Touch + on the timer control to enter Sabbath mode (electric cooktop only). Power level 4 on the rear element control is displayed. Touch Hi on the front element control to initiate Sabbath feature. "Sa" appears on the timer display. Touch Sim (Mlt) on the front element control to activate or deactivate the feature.
6 Touch All Off at any time while in extended options to confirm settings and return the cooktop to idle.

Sabbath

ELECTRIC COOKTOP

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Care Recommendations

CLEANING

Stainless steel	Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel.
Control panel	Use a spray degreer to remove fingerprints and food soil. Spray on a cloth before wiping the control panel.IMPORTANT NOTE: Do not spray cleaners directly on the control panel.
Glass-ceramic surface	Allow to cool. Use a spray degreer to remove fingerprints and a non-abrasive Ceran® cooktop cleaner for food soil. Do not allow any item that could melt to come in contact with the glass-ceramic surface when hot. If this occurs, use the razor blade scraper provided with the cooktop to remove.

Troubleshooting

OPERATION

Cooktop does not operate.

• Verify power is on.
• Verify electrical power to the cooktop and home circuit breaker is on.
• The cooktop is in lock mode. Touch and hold Lock for three seconds to unlock the control panel.
• The cooktop automatically turns off after 2 hours of continual use (high), 6 hours (medium), and 8 hours (simmer), except in Sabbath mode.

Cooktop temperature issue.

• Contact Wolf Customer Care at 800-222-7820 for recommendations.

SERVICE

• Maintain the quality built into your product by contacting Wolf Factory Certified Service. For the name of the nearest Wolf Factory Certified Service, check the Product Support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.
• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to pages 6-7 for rating plate location.
• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 3 of this guide.

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.

Wolf Appliance Residential Limited Warranty

FOR RESIDENTIAL USE

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf Factory Certified Service, unless otherwise specified by Wolf Appliance, Inc. Service will be provided during normal business hours.

LIMITED FIVE YEAR WARRANTY

For five years from the date of original installation, Wolf Appliance will repair or replace the following parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and induction generators. If the owner uses Wolf Factory Certified Service, the service provider will repair or replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certified service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certified service or other sources.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMplied OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights that vary from state to state.

To receive parts and/or service and the name of Wolf Factory Certified Service nearest you, contact Wolf Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the Product Support section of our website, wolfappliance.com, email us at customerservice@ subzero.com or call 800-222-7820.

Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects.
Replacement filters for ventilation hood recirculating kits are not covered by the product warranty.

Contenido

Cancery Dano Reproductive www.P65Warnings.ca.gov

Mode suralimentation

Mode suralimentation

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
