USER MANUAL CQDP133U PANASONIC

• Please read these instructions carefully before using this product and keep this manual for future reference.

(CQ-DP133U)Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.MODEL NUMBER

Label indication and locationModels Features

CQ-DP133U CQ-DP103U CQ-DPX153U

Preamp output connector Rear (L,R), Front (L,R) Rear (L,R) Rear (L,R), Front (L,R) Remote control unit Included Not available Included Sub-Woofer-Out No No Yes Modèle Commande

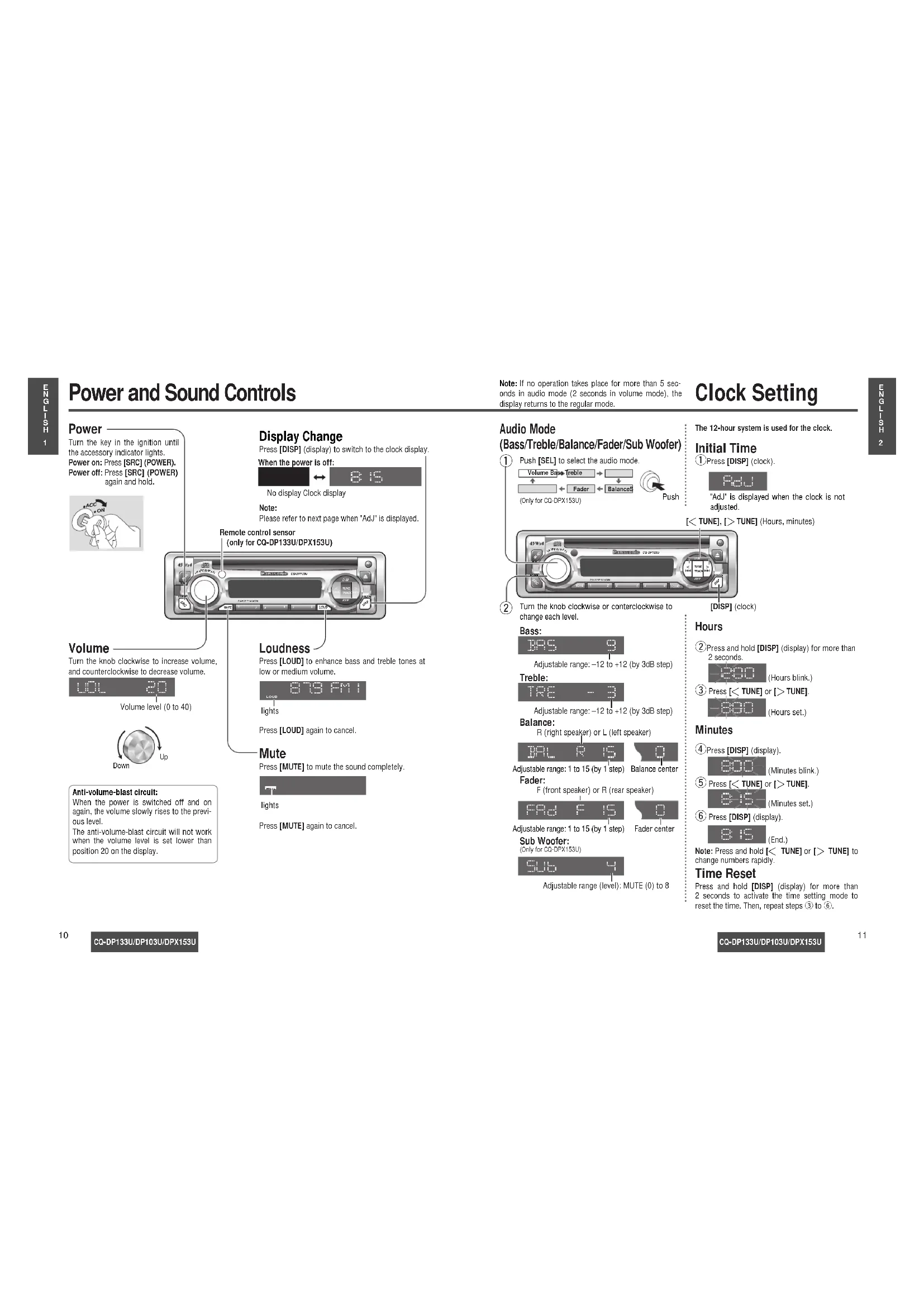

LOUD MUTE SRC Anti-volume-blast circuit: When the power is switched off and on again, the volume slowly rises to the previ- ous level. The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display. Power and Sound Controls Mute Press [MUTE] to mute the sound completely. lights Press [MUTE] again to cancel. Volume Turn the knob clockwise to increase volume, and counterclockwise to decrease volume. Volume level (0 to 40) Loudness Press [LOUD] to enhance bass and treble tones at low or medium volume. lights Press [LOUD] again to cancel. Power Turn the key in the ignition until the accessory indicator lights. Power on: Press [SRC] (POWER). Power off: Press [SRC] (POWER) again and hold. ACC

MUTE LOUD Display Change Press [DISP] (display) to switch to the clock display. Note: Please refer to next page when "AdJ" is displayed. When the power is off: No display Clock display Remote control sensor (only for CQ-DP133U/DPX153U)

TUNE TRACK Hours w Press and hold [DISP] (display) for more than 2 seconds. e Press [k TUNE] or [l TUNE]. Minutes r Press [DISP] (display). t Press [k TUNE] or [l TUNE]. y Press [DISP] (display). Note: Press and hold [k TUNE] or [l TUNE] to change numbers rapidly. Audio Mode (Bass/Treble/Balance/Fader/Sub Woofer) Volume Bass Treble BalanceSub Woofer Fader Note: If no operation takes place for more than 5 sec- onds in audio mode (2 seconds in volume mode), the display returns to the regular mode. Bass: Adjustable range: –12 to +12 (by 3dB step) Treble: Adjustable range: –12 to +12 (by 3dB step) Balance: R (right speaker) or L (left speaker) Fader: F (front speaker) or R (rear speaker) Push [SEL] to select the audio mode.

Clock Setting The 12-hour system is used for the clock. (Hours blink.) (Hours set.) (Minutes blink.) (Minutes set.) (End.) Initial Time q Press [DISP] (clock). "AdJ" is displayed when the clock is not adjusted. Time Reset Press and hold [DISP] (display) for more than 2 seconds to activate the time setting mode to reset the time. Then, repeat steps e to y. [DISP] (clock) [k TUNE], [l TUNE] (Hours, minutes) Adjustable range: 1 to 15 (by 1 step) Balance center Adjustable range: 1 to 15 (by 1 step) Fader center (Only for CQ-DPX153U) Sub Woofer: Adjustable range (level): MUTE (0) to 8 (Only for CQ-DPX153U) Push Turn the knob clockwise or conterclockwise to change each level. wPOWER REP

Caution: To ensure safety, never attempt to preset sta-tions while you are driving.Manual Preset Memory Use manual or seek tuning to find a station.(➡ page 12) Press and hold one of the preset buttons from [1] to [6] until the display blinks once. Band Press [BAND] to select a desired band. ➡ page 12) Auto Preset Memory (APM) Preset Station CallingPress the corresponding preset button from [1] to [6] to tune in a preset station. Press and hold [BAND] (APM: auto preset memory) for more than 2 seconds.

• The 6 stations with good reception will be automatically saved in the memory under preset buttons from [1] to [6].• Once set, the preset stations are sequentially scanned for 5 seconds each.Preset buttons from [1] to [6]

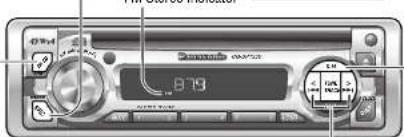

RadioCQ-DP133U/DP103U/DPX153UManual Tuning [l TUNE]: Higher frequency [k TUNE]: Lower frequency RadioCD player(When a CD is inserted.) Seek TuningPress and hold ... [l TUNE]: Higher frequency [k TUNE]: Lower frequency Tuning will automatically stop when the signals of the nextbroadcast station are received.

Band Press [BAND] to change the band. Direct Memory(D

Your favorite FM/AM radio station can be memorized in the [D

M] button and you can call back radio stations just by pressing the button whatever the current sound source is, even if the power is off. Press [D M]. (Press again to cancel)

The direct memoried station is received. Default : FM 87.9 MHz

M] button . Then, frequency display will blink and new station will be overwritten on existing saved station.

Press and hold [D M] until D M indicator blinks.blinks Select the station in Radio mode (a above) Recalling the Direct Memory Memorize D-M Radio ModePress [SRC] (source) to changeto the radio mode. Up to 6 stations each can be saved in the FM1,FM2, FM3 and AM preset station memories.Preset Station SettingNote: Existing saved stations are overwritten withnew stations after following this procedure.Display ChangePress [DISP] (display) to switch to the clock display. Frequency Clock display D-M D-M FM Stereo indicatorblinks oncePOWERREPD•MCLOCKCQ-DP133U

TRACK DISC Track Selection Press [d TRACK]: Advance to the next track. Press [s TRACK]: Back to the beginning of the current track. Back to the previous track. (Press twice.)Cautions:

• Only 5" (12 cm) CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
• This unit does not support CD text display.• This unit does not support MP3 and WMA disc playback.• Refer to page 21 about notes on CD-Rs/RWs.• This unit is not designed for any 3" (8 cm) disc.
• If you insert an 3" (8 cm) disc and can not eject it, turn ACC of your car off once and turn it on again, then press [u] (eject).
• Do not use irregular shaped discs.• Do not use discs that have a seal or label attached.• Do not insert foreign matter into the disc slot. Random play Direct Track Selection
• Press a track number button from[1] to [6].The corresponding track startsplaying.• Press and hold a track number but- ton from [7] to [12] ([1] to [6]) for more than 1 second.The corresponding track startsplaying.• Press and hold [REP] (RANDOM) formore than 2 seconds.All the tracks are played in random order.
• Press and hold [REP] (RANDOM) again to cancel. Scan play

• Press [REP]. The current track is repeated.
• Press [REP] again to cancel. TRACK

lights.blinks.lights.

CQ-DP133U/DP103U/DPX153U

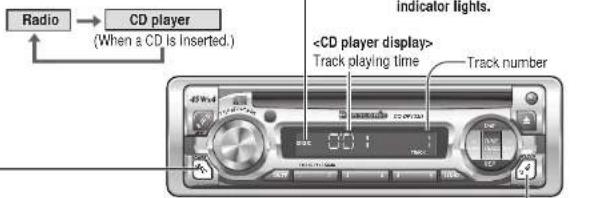

Display Change Press [DISP] (display) to switch to the clock display. Radio CD player (When a CD is inserted.) TRACK DISC CD Player Mode (When a CD is in the player.) Press [SRC] (source) to change to the CD play mode. Playback will start automatically. TRACK DISC Track playing timetrack numberClock display Listening to a CD Press [u] (eject) to stop CD play and eject the disc. During disc ejection, “EJ” (eject) will be displayed. Disc Insert and Playback Stop and Disc Eject Disc insert Playback will start automatically after the playerrecognized the loaded disc as an ordinary musicCD. (When a CD-R or CD-RW which has CD-DAformatted data as the same as an ordinary musicCD is loaded, this player recognizes it as an ordi-nary music CD.)“LOAd” will be displayed until the disc is loaded.Notes:

• Do not insert a disc when “DISC” indicator lights.• The power will be turned on automatically when adisc is loaded. DISC <CD player display>Track playing timeTrack number<Disc indicator>• lights when the disc is loaded.

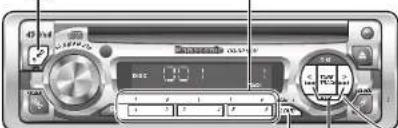

• Do not insert a disc when “DISC” indicator lights. Pause Press [BAND] (y /

to pause.Press [BAND] (y /

again to resumethe playback. Track Search Press and hold ... [d TRACK]: Fast forward [s TRACK]: Fast reverse Release to resume the regular play.• Press and hold [LOUD] (SCAN), for morethan 2 seconds. The first 10 seconds of each track on the disc are played in sequence.

[PWR] (Power) [MODE] (Mode (source)) (➡ pages 12, 14) Preliminary Steps Check and take steps as described in the tables below. If You Suspect Something Wrong Immediately switch the power off. Disconnect the power connector and check that there is nei- ther smoke nor heat from the unit before asking for repairs. Never try to repair the unit by yourself because it is dangerous to do so. No power. Trouble Car’s ignition switch is not on. ➡Turn your car’s ignition switch to ACC or ON. Troubleshooting Tips ❐ Common Cables are not correctly connected. ➡Connect cables correctly. Battery cable is not correctly connected. ➡Connect the battery cable to the terminal that is always active. Accessory cable is not correctly connected. ➡Connect the accessory cable to your car’s ACC source. Grounding wire is not correctly connected. ➡Connect the grounding wire to a metal part of the car. Fuse is burnt out. ➡Call the store where you purchased the unit, or your nearest Servicenter (see the attached sheet) and ask for fuse replacement. No sound. Mute is set to ON. ➡Set it to OFF. Cables are not correctly connected. ➡Connect cables correctly. Condensation (dew). ➡Wait for a while before use. Cautions:

• Do not use the unit if it malfunctions or if there is something wrong.

• Do not use the unit in irregular condi- tion, for example, without sound, or with smoke or foul smell, which can cause ig- nition or electric shock. Immediately stop using it and call the store where you purchased it. Cause/Step A mobile phone is used near the unit. ➡Keep the mobile phone away from the unit. Noise.

Remote Control Unit Preparation Troubleshooting

Battery Installation

Remove the battery holder. Pull the battery holder by the position B while push- ing position A in the direction indicated by the arrow.

Install the battery on the battery holder. Place a battery in the holder with its “+ ” side facing up as shown in the figure.

Insert the battery holder. Push the battery holder back into its original position. Battery Notes Remove and dispose of an old battery immediately. Battery Information:

• Battery type: Panasonic lithium battery (CR2025) (included)

• Battery life: Approximately 6 months with normal use (at room temperature) Back side Lithium battery (included) Battery holder Position A Position B

• Do not disassemble or short the battery. Do not throw a battery into a fire.

• Keep batteries away from children to avoid the risk of accidents.

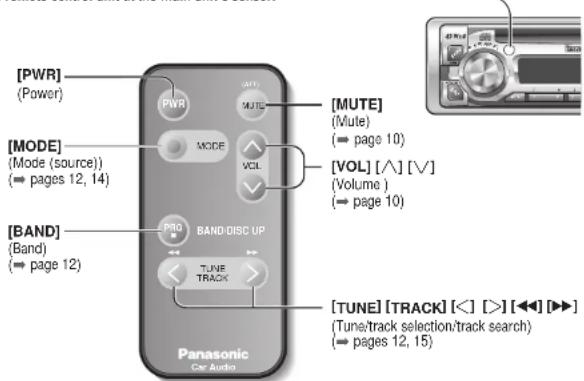

• Be careful to observe proper local disposal rules when you dispose of batteries. Control Reference Guide Buttons of the remote control function in the same way as the controls on the main unit of the reference page. Point the remote control unit at the main unit’s sensor. [MUTE] (Mute)

TRACK ][k][l] [ ][ ] (Tune/track selection/track search) (➡ pages 12, 15) Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit. PWR MODE PRG TUNE TRACKCar AudioBAND/DISC UP VOL MUTE (ATT) Only for CQ-DP133U/CQ-DPX153U [BAND] (Band) (➡ page 12)CQ-DP133U/DP103U/DPX153U

• Mechanical trouble. ➡Press [u] (eject). If normal operation is not restored, call the store where you purchased the unit or the nearest Servicenter to ask for repairs. Disc is not ejected. ❐ CD (Continued) The first track of a mix mode disc was reproduced. (Mix mode is a for- mat in which data except music is recorded on the first track and music data is recorded on other than the first track in a session.) ➡Play back music data recorded on other than the first track. Time is counted but no sound comes out. No sound from left, right, front or rear speakers. Left and right balance, or front and rear balance is off on one side. ➡Adjust balance/fader setting as appropriate. Cables are not correctly connected. ➡Connect the cables correctly. ❐ Sound Setting The right speaker wire is connected to the left speaker and the left speaker wire to the right speaker. ➡Connect the speaker wires to the correct ones. Left and right sounds are reversed in stereo listening. Trouble Cause/Step Trouble Cause/Step Mounting angle is over 30˚. ➡Adjust mounting angle to less than 30˚. Instable mounting. ➡Mount the unit securely with the mounting parts, referring to the section on installation. Sound skips due to vibration.

Troubleshooting (Continued)

CQ-DP133U/DP103U/DPX153U

❐ Radio Much noise in FM stereo and monaural broad- casts. Station is too far, or signals are too weak. ➡Select other stations of higher signal level. Battery cable is not correctly connected. ➡Connect the battery cable to the terminal that is always active. Preset station is reset. Trouble Cause/Step The motor antenna relay control lead is not connected correctly. ➡If there is a motor antenna in the car, connect the motor antenna relay control lead to the motor antenna lead that is installed in the car correctly. The radio antenna is not extended enough. ➡Extend fully the radio antenna.

• Disc has scratches. ➡Clean disc, referring to the section on “Notes on Discs”. Sound skips, bad sound quality. (e.g. caused by noise) Disc is in the CD com- partment but no sound is made, or disc is ejected automatically. Disc is upside down. ➡Place disc in the correct direction with the label side up. ❐ CD

• Disc has scratches. ➡Clean disc, referring to the section on “Notes on Discs”. Trouble Cause/Step A disc that has data other than CD-DA type is loaded. ➡Discs that have CD-DA type data should be used. ➡The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instruc- tions for the concerned devices for details. ➡The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instruc- tions for the concerned devices for details.❐ Cleaning this Unit Use a dry, soft cloth to wipe. ❐ Caution on Cleaning Never use solvents such as benzine, thinner as theymay mar the surface of the unit.Label side<Right> <Wrong>Do not use irregular shaped discs.How to hold the disc• Do not touch the underside of the disc.• Do not scratch the discs.• Do not bend disc.• When not in use, keep the disc in the case.Do not use irregular shaped discs.Do not leave discs on the following places:• Direct sunlight• Near car heaters• Dirty, dusty and damp areas• Seats and dashboardsDisc cleaningUse a dry, soft cloth to wipe from the center outward.Do not attach any seals or labels to your discs.Do not write on the disc label in a heavy pen or ball-point pen stroke. Notes on Discs Do not play any ordinary music CDs with labels other than this one. Notes on CD-Rs/RWs

• You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

• CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage them and make playback impossible.
• The unit may not successfully play back a CD-R/RW that was made by the combination of writing soft- ware, a CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.
• This player cannot play the CD-R/RW discs if the session is not closed.

• This player cannot play the CD-R/RW discs which contains other than CD-DA data.

• Be sure to observe the instructions of CD-R/RW disc for handling it. Care of the Unit

Troubleshooting (Continued) Maintenance CQ-DP133U/DP103U/DPX153UCQ-DP133U/DP103U/DPX153U Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest au- thorized Panasonic Servicenter. The product should be serviced only by a qualified technician. Replace the Fuse Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or con- necting the product directly without a fuse, could cause fire or damage to the unit. If the replacement fuse fails, contact your nearest Panasonic Servicenter for service. Error Display Messages ❐ CD Disc has scratches.➡Check the disc.• Disc is dirty, or is upside down.• A disc that has data other than CD-DA type is loaded.➡Check the disc.No operation by some cause.➡If normal operation is not restored, call the store where you pur-chased the unit or the nearest Servicenter to ask for repairs.Display Cause/StepButtons are invalid foroperation.Battery polarities are reversed.➡Insert the battery correctly. ❐ Remote Control Unit Wrong battery .➡Check the battery.Battery has run down.➡Replace the battery.Remote control unit is in the wrong direction.➡Direct the remote control unit at sensor on the front panel.Trouble Cause/StepOnly for CQ-DP133U/DPX153UThe first step in installation is to identify all the carwires you’ll use when hooking up your sound sys- tem. As you identify each wire, we suggest that you labelit using masking tape and a permanent marker.This will help avoid confusion when making con-nections later.Note: Do not connect the power connector to thestereo unit until you have made all connections. Ifthere are no plastic caps on the stereo hookingwires, insulate all exposed leads with electrical tapeuntil you are ready to use them. Identify the leads inthe following order.Power LeadIf your car has a radio or is pre-wired for one: Cut the connector wires one at a time from the plug(leaving the leads as long as possible) so that youcan work with individual leads. ❐ Identify All Leads If your car is not wired for an audio unit: Go to the fuse block and find the fuse port for thebattery, usually marked BAT.SpeakersIdentify the car speaker leads. There are two leadsfor each speaker which are usually color coded.A handy way to identify the speaker leads and thespeaker they are connected with is to test the leadsusing a 1.5 V AA battery as follows.Hold one lead against one pole of the battery andstroke the other lead across the other pole. You willhear a scraping sound in one of the speakers if youare holding a speaker lead.If not, keep testing different lead combinations untilyou have located all the speaker leads. When youlabel them, include the speaker location for each.Antenna MotorIf your car is equipped with an automatic power an-tenna, identify the car motor antenna lead by con-necting one bulb tester lead to the car battery leadand touching the remaining exposed wires from thecut radio connector plug one at a time. You willhear the antenna motor activate when you touchthe correct wire.AntennaThe antenna lead is a thick, black wire with a metalplug at the end.Turn the ignition on to the accessory position, andground one lead of the test bulb to the chassis. Touch the other lead of the test bulb to each of theexposed wires from the cut radio connector plug.Touch one wire at a time until you find the outletthat causes the test bulb to light.Now turn the ignition off and then on. If the bulbalso turns off and on, that outlet is the car powerlead.If your car is not wired for an audio unit: Go to the fuse block and find the fuse port for radio(RADIO), accessory (ACC), or ignition (IGN).Battery LeadIf your stereo unit has a yellow lead, you will needto locate the car’s battery lead. Otherwise you mayignore this procedure. (The yellow battery lead pro-vides continuous power to maintain a clock, memo-ry storage, or other function.)If your car has a radio or is pre-wired for one: With the ignition and headlights off, identify the carbattery lead by grounding one lead of the test bulbto the chassis and checking the remaining exposedwires from the cut radio connector plug.Now that you have identified all the wires in the car,you are ready to begin connecting them to thestereo unit wires. The wiring diagram (➡ page 28)shows the proper connections and color coding ofthe leads.We strongly recommend that you test the unit be-fore making a final installation.You can set the unit on the floor and make tempo-rary connections to test the unit. Use electrical tapeto cover all exposed wires. ❐ Connect All Leads GroundConnect the black ground lead of the power con-nector to the metal car chassis.Important: Connect the red power lead last,after you have made and insulated all other con-nections.

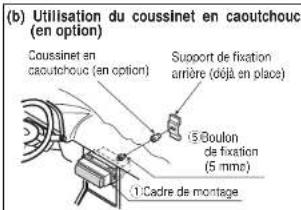

Installation Guide CQ-DP133U/DP103U/DPX153UCQ-DP133U/DP103U/DPX153U ItemNo. Diagram Q’ty WARNING This installation information is designed for experienced installers and is not in- tended for non-technical individuals. It does not contain warnings or cautions of po- tential dangers involved in attempting to install this product. Any attempt to install this product in a motor car by anyone other than qualified in- staller could cause damage to the electrical system and could result in serious per- sonal injury or death. ❐ Installation Hardware If you encounter problems, please consult yournearest professional installer.

Mounting collarHex. nut (5 mmø)Rear support strapTapping screw(5 mmø×16 mm)Mounting bolt (5 mmø)Power connectorRemovable face plate case Trim plateDismounting plate

⁄32" (182 mm)This product should be installed by a professional.However, if you plan to install this product yourself,your first step is to decide where to install it. Theinstructions in these pages will guide you throughthe remaining steps: (Please refer to the “WARNING” statement above.)• Identify and label the car wires.• Connect the car wires to the wires of the powerconnector.• Install the unit in the dashboard.• Check the operation of the unit.Caution: This unit operates with a 12 V DC neg-ative ground auto battery system only. Do notattempt to use it in any other system. Doing socould cause serious damage.Before you begin installation, look for the itemswhich are packed with your unit. Warranty Card…Fill this out promptly.• Panasonic Servicenter List for Service Directory…Keep for future reference in case the productneeds servicing.• Installation Hardware…Needed for in-dash in-stallation.ThicknessCQ-DP133U/DP103U/DPX153U

Installation Guide (Continued)

CQ-DP133U/DP103U/DPX153U

❐ Final Checks SpeakersConnect the speaker wires. See the wiring diagram (➡ page 28) for the proper hookups. Follow the di- agram carefully to avoid damaging the speakersand the stereo unit.The speakers used must be able to handle morethan 45 W of audio power. If using an optionalaudio amplifier, the speakers should be able to han-dle the maximum amplifier output power. Speakerswith low input ratings can be damaged. Speaker impedance should measure 4–8 Ω, which is typi- cally marked on most speakers. Lower or higherimpedance speakers will affect output and cancause both speaker and stereo unit damage.Motor AntennaConnect the car motor antenna lead to the dark bluemotor antenna relay control lead.(Do not confuse the antenna lead with blue/whitestripe lead for a power amplifier.)BatteryConnect the yellow battery lead to the correct radiowire or to the battery fuse port on the fuse block.AntennaConnect the antenna by plugging the antenna leadinto the antenna receptacle.EquipmentConnect any optional equipment such as an amplifi-er, according to the instructions furnished with theequipment. Leave about 12" (30 cm) of distance be-tween the speaker leads/amplifier unit and the an-tenna/antenna extension cord. Read the operatingand installation instructions of any equipment youwill connect to this unit.Power Connect the red power lead to the correct car radiowire or to the appropriate fuse port on the fuseblock.If the stereo unit functions properly with all theseconnections made, disconnect the wires and pro-ceed to the final installation.1. Make sure that all wires are properly connectedand insulated.2. Make sure that the stereo unit is securely held inthe mounting collar.3. Turn on the ignition to check the unit for properoperation.If you have difficulties, consult your nearest author-ized professional installer for assistance. ❐ Preparation

• We strongly recommend that you wear glovesfor installation work to protect yourself frominjuries.• When bending the mounting tabs of themounting collar with a screwdriver, be carefulnot to injure your hands and fingers.• Disconnect the cable from the negative batteryterminal (see cautions below).• Unit should be installed in a horizontal positionwith the front end up at a convenient angle, butnot more than 30°.Caution: Do not disconnect the battery terminalsof a car with a trip or navigational computersince all user settings stored in memory will belost. Instead take extra care with installing theunit to prevent shorts.Less than 30

❐ Final Installation Lead ConnectionsConnect all wires, making sure that each connec-tion is insulated and secure. Bundle all loose wiresand fasten them with tape so they will not fall downlater. Now insert the stereo unit into the mountingcollar.Congratulations! After making a few final checks,you’re ready to enjoy your new auto stereo system. Dashboard Installation Installation Opening (182 mm)(53 mm)

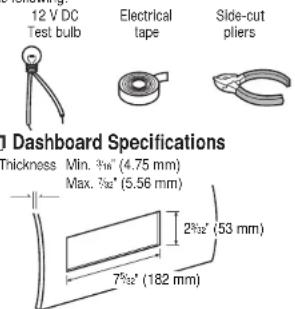

This unit can be installed in any dashboard havingan opening as shown above. The dashboard should

⁄16" (4.75 mm)– ⁄32" (5.56 mm) thick in order tobe able to support the unit.Cautions: ¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure yourhands and fingers.

Mounting Holes t Mounting Bolt Insert Trim Plate i. After installation re- connect the negative (–) battery terminal. First complete the electrical connections, and then check them for correctness.( a page 28) The included Mounting Collar q is designed specially for this unit. Do not use it to attach any other model. Mounting Springs ( y Power Connector Engage the Mounting Springs ( C) in the mounting holes of the Mounting Collar

firmly. Mounting Spring Mounting Hole Insert Mounting Collar q into the dash- board, and bend the mounting tabs out with a screwdriver. The tabs to be bent vary depending on the car. To securely install the unit, fully bend a number of the tabs so that there is no rattling. Example: Tab q Mounting Collar (a) Using the rear support strap e r Tapping screw(5 mmø×16 mm)w Hex. nut(5 mmø)e Rear support strapt Mounting bolt (5 mmø)q Mounting collarFire wall of car3 mmø (b) Using the rubber cushion (option) t Mounting bolt(5 mmø)q Mounting collarRear support bracket(provided on the car)Rubber cushion (option) Establish the rear connection of the unit. After fixing Mounting Bolt t and Power Connector y, fix the rear of the unit to the car body by either method (a) or (b) shown below.q

Slide the left side of the removable face plate inplace. Press the right end of the removable face plateuntil “click” is heard.Cautions:• This face plate is not waterproof. Do not expose it to water or excessive moisture.• Do not remove the face plate while driving your car.

• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.

• Do not touch the contacts on the face plate or the main unit, since this may result in poor electrical con- tacts.
• If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.

• Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be damaged.This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable. Place the Removable Face Plate into Case

Switch off the power of the unit. Remove the removable face plate. (➡ page 26) Gently press the bottom of the case and openthe cover. Place the face plate into the case andtake it with you when you leave the car.

Installation Guide (Continued)

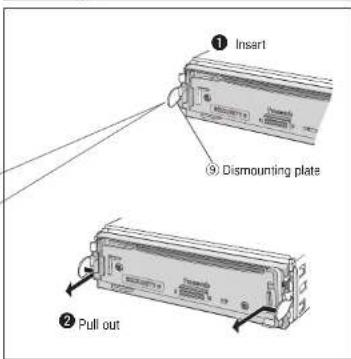

To Remove the Unit Switch off the power of the unit. Remove the removable face plate. q Press []. The removable face plate will be opened. w Push the face plate to either the right or left. e Pull it out toward you. Remove the Trim Plate i with a screwdriver. q Insert the Dismounting plate o along the grooves on both sides of the main unit until

is heard. w Pull out the unit while pushing the plates further inside. Remove the unit pulling with both hands. Contact q Press i Trim Plate Screwdriver o Dismounting plate Insert the tab end in the outer groove.

Insert Pull out w❐ General Power supply: 12 V DC (11 V–16 V), test voltage 14.4 V, negative ground Current consumption: Less than 2.2 A (CD play mode; 0.5 W×4 channels) Maximum power output: 45 W×4 channels at 1 kHz, volume control maximum Tone adjustment range: Bass: ±12 dB at 100 Hz Treble: ±12 dB at 10 kHz Suitable speaker impedance: 4–8 Ω Preamp output voltage: 2.5 V (CD play mode; 1 kHz, 0 dB) Output impedance: 200 Ω Dimensions (W×H×D): 7"×1

/8" (178×50×155 mm) Weight: 3 lbs. 1 oz (1.4 k

75 Ω) Frequency response: 30 Hz–15 kHz (±3 dB) Alternate channel selectivity: 75 dB Stereo separation: 42 dB (1 kHz) Image response ratio: 75 dB IF response ratio: 100 dB Signal/noise ratio: 70 dB ❐ AM Radio Frequency range: 530 kHz–1 710 kHz Usable sensitivity: 28 dB/µV (25 µ

S/N 20 dB) ❐ CD Player Sampling frequency: 8 times oversampling DA converter: 1 bit DAC system Error correction system: Panasonic super decoding algorithm Pick-up type: Astigma 3-beam Light source: Semiconductor laser Wave length: 780 nm Frequency response: 20 Hz–20 kHz (±1 dB) Signal/noise ratio: 96 dB Total harmonic distortion: 0.01 % (1 kHz) Wow and flutter: Below measurable limits Channel separation: 75 dB Above specifications comply with EIA standards. Note: Specifications and the design are subject to modification without notice due to improvements in technol- ogy.

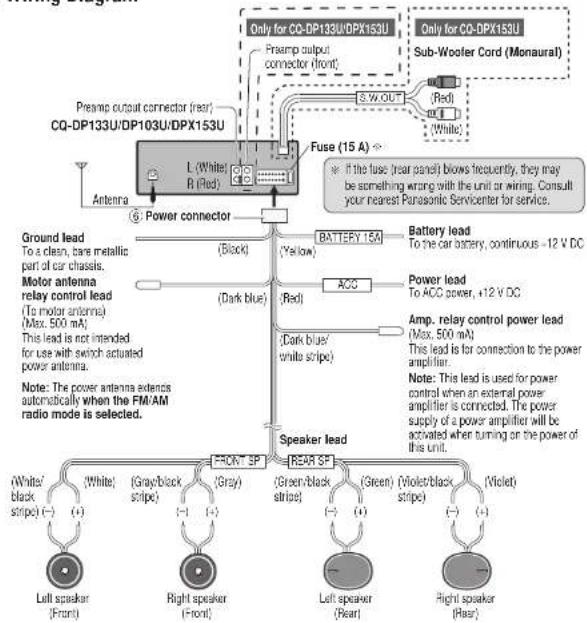

❐ Wiring Diagram No. Item Q’ty y Power connector 1 Power connectorAntenna (Yellow)(Red)(White)Battery leadTo the car battery, continuous +12 V DCSub-Woofer Cord (Monaural)Fuse (15 A)(Red)Power leadTo ACC power, +12 V DC (Dark blue/white stripe)(Dark blue)(Black)Ground leadTo a clean, bare metallic part of car chassis. (+)(–) (+)(–) (+)(–)(+)(–) Left speaker (Front)Right speaker(Front) (White) (Gray) (Green) (Violet)(White/ black stripe)(Green/black stripe)(Violet/black stripe)(Gray/black stripe)FRONT SP REAR SPLeft speaker (Rear)Right speaker(Rear)Speaker leadPreamp outputconnector (front)Preamp output connector (rear)L (White)R (Red) Only for CQ-DP133U/DPX153U

CQ-DP133U/DP103U/DPX153U

Amp. relay control power lead (Max. 500 mA)This lead is for connection to the power amplifier. ACC If the fuse (rear panel) blows frequently, they may be something wrong with the unit or wiring. Consult your nearest Panasonic Servicenter for service.Motor antenna relay control lead(To motor antenna) (Max. 500 mA) This lead is not intended for use with switch actuated power antenna. Only for CQ-DPX153U Note: This lead is used for power control when an external power amplifier is connected. The power supply of a power amplifier will be activated when turning on the power of this unit.Note: The power antenna extends automatically when the FM/AM radio mode is selected.BATTERY 15A

• This product is designed to operate with a 12 V DC, negative ground battery system.

• To prevent damage to the unit, be sure to follow the connection diagram below.

• Strip about 5 mm of the lead ends for connection.

• Do not insert the power connector into the unit until the wiring is completed.

• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

• Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected. Supplied hardwarePOWER REP
