USER MANUAL LM15WINEL LYNX

Exterior view of a white stainless steel kitchen oven with multiple wine bottles on the glass door (no visible text or symbols)

LM15WINE

OUTDOOR WINE CELLAR

CARE & USE/INSTALLATION

CONTENTS AND SAFETY INSTRUCTIONS

Contents

Safety information 2

Unpacking your appliance ....3

Warranty registration ....3

Installing your appliance ....4

Cabinet clearances ....4

Leveling the appliance ....4

Electrical connection 5

Installing the anti-tip device ....6

Product Dimensions 8

Using your Electronic control 10

Starting your appliance 10

Turning your appliance "ON" or "OFF" 10

Adjusting the temperature 10

Wine cellar operation ....10

Alarms....10

Door ajar 10

Temperature sensor fault 10

High and Low temperature 10

Alarm mute 11

Shelving configurations 12

Care and cleaning 13

Long term storage / winterization 14

Stainless steel maintenance 15

Energy saving tips ....16

Obtaining service 16

Troubleshooting 17

The Lynx story 18

Important Safety Instructions

Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Recognize Safety Symbols, Words, and Labels.

WARNING

WARNING-You can be killed or seriously injured if you do not follow these instructions.

CAUTION

CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.

NOTE

NOTE-Important information to help assure a problem free installation and operation.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause cancer.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..

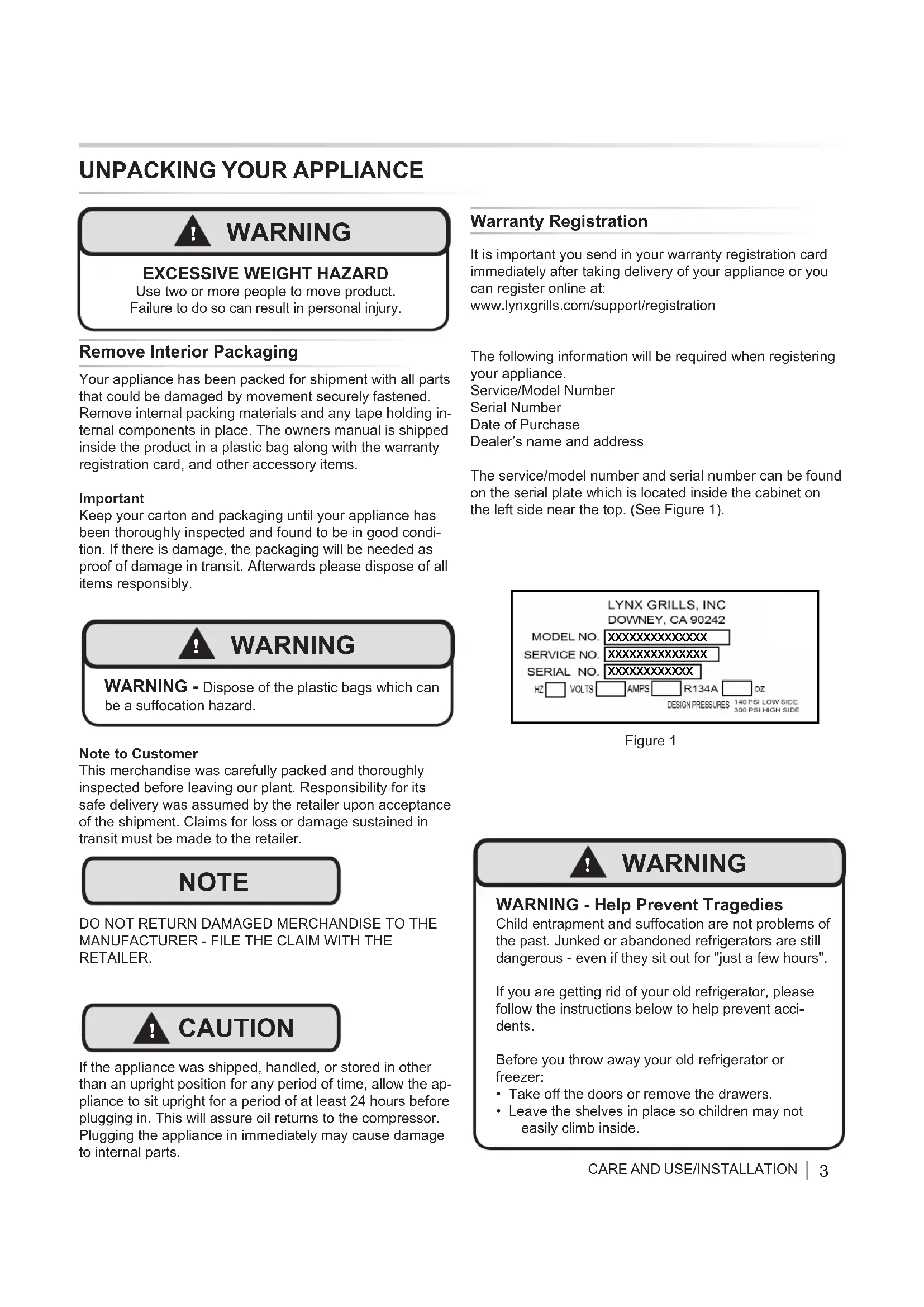

UNPACKING YOUR APPLIANCE

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

WARNING

WARNING - Dispose of the plastic bags which can be a suffocation hazard.

Note to Customer

This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.

NOTE

DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

CAUTION

If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.

Warranty Registration

It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at:

www.lynxgrills.com/support/registration

The following information will be required when registering your appliance.

Service/Model Number

Serial Number

Date of Purchase

Dealer's name and address

The service/model number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. (See Figure 1).

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXXXX HZ VOLTS AMPS R134A OZ DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

WARNING

WARNING - Help Prevent Tragedies

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors or remove the drawers.
- Leave the shelves in place so children may not easily climb inside.

INSTALLING YOUR APPLIANCE

Select Location

The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifications, the recommended installation location temperature range is from 55 to 115°F (13 to 46°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed.

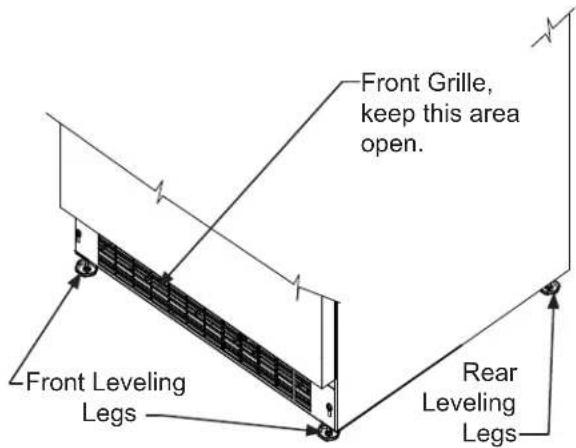

Front Grille, keep this area open. Front Leveling Legs Rear Leveling Legs

Figure 2

Leveling Legs

Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The overall height of your Lynx appliance may be adjusted between the minimum, 33 ^3/4 " (85.7 cm), by turning the leveling leg in (CW ∼) and the maximum, 34 ^3/4 " (88.3 cm) by turning the leveling leg out (CCW ∼).

CAUTION

Front Grille

Do not obstruct the front grille. The openings within the front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area not be obstructed and the grille openings kept clean. Lynx Grills does not recommend the use of a custom made grille as air flow may be restricted. (See Figure 2).

To adjust the leveling legs, place the appliance on a solid surface and protect the floor beneath the legs to avoid scratching the floor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).

INSTALLING YOUR APPLIANCE

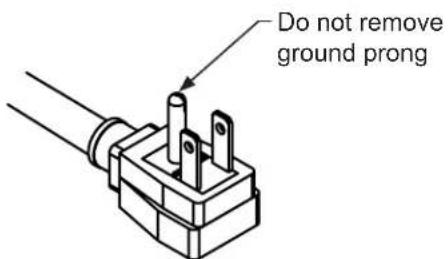

Do not remove ground prong

Figure 3

Symbol of a mechanical switch crossed out by a diagonal line, no text or labels present

Figure 4

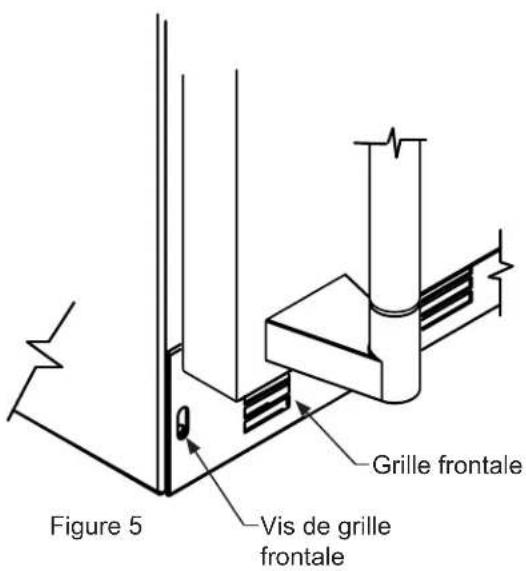

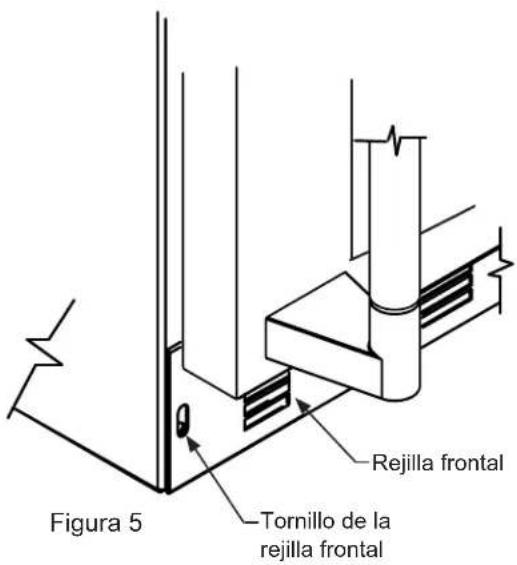

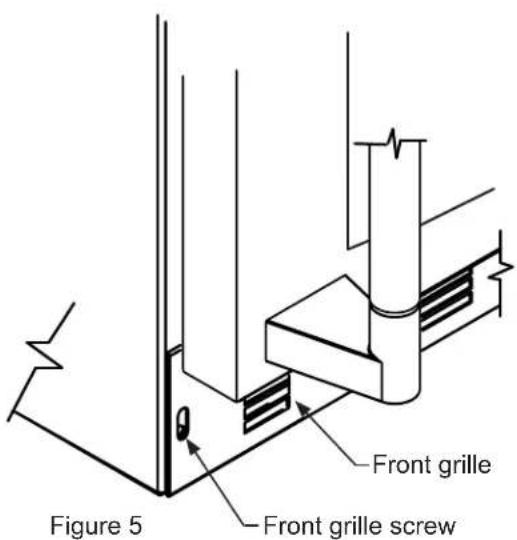

Front grille Front grille screw Figure 5

WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed.

Illustration of a power plug and two separate electrical socket (no text or symbols)

Figure 6

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down. GFCI's are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.

INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS)

WARNING

• ALL APPLIANCES CAN TIP RESULTING IN INJURY.
• INSTALL THE ANTI-TIP BRACKET PACKED WITH THE APPLIANCE.
• FOLLOW THE INSTRUCTIONS BELOW

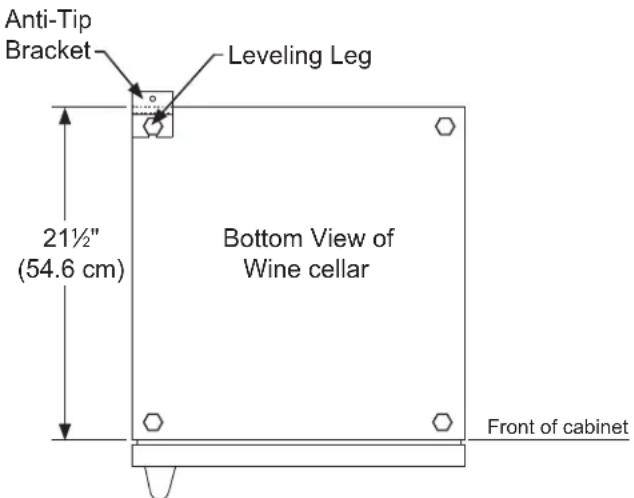

Anti-Tip Bracket Leveling Leg 21½" (54.6 cm) Bottom View of Wine cellar Front of cabinet

Figure 7

Anti-Tip Device

WARNING

If your wine cellar is not located under a counter top (free standing), you must use an anti-tip device installed as per these instructions. If the wine cellar is removed from its location for any reason, make sure that the device is properly engaged with the anti-tip bracket when you push the wine cellar back into the original location. If the device is not properly engaged, there is a risk of the wine cellar tipping over, with the potential for property damage or personal injury.

NOTE

If installing on a concrete floor, concrete fasteners are required, (not included with the anti-tip kit).

CAUTION

Any finished flooring should be protected with appropriate material to avoid damage when moving the unit.

Floor Mount Installation

The anti-tip bracket is to be located on the floor in the left or right rear corner of the wine cellar as shown in Figure 7.

Step by Step Instructions

for locating the position of the bracket:

1) Decide where you want to place the wine cellar. Slide it into place, being careful not to damage the floor, leaving 1" (2.5 cm) of clearance from the rear wall to allow room for the anti-tip bracket.
2) Raise the rear leveling legs approximately 14 " (6 mm) to allow engagement with the anti-tip bracket. Level the unit by adjusting all the leveling legs as required. Turning the leveling leg counterclockwise will raise the unit and clockwise will lower the unit.
3) Make sure the wine cellar is in the desired location, then mark on the floor the rear and side corner of the cabinet where the anti-tip bracket will be installed. If the installation does not allow marking the rear corner of the cabinet, then make temporary lines on the floor marking the front corner of the cabinet, excluding the door. Slide the wine cellar out of the way. From the temporary line extend the sidewall line back 21½" (54.6 cm) as shown in Figure 8.
4) Align the anti-tip bracket to the marks on the floor so the side of the bracket lines up with the side of the cabinet mark, and the "V" notches on the anti-tip bracket line up with the end of the 21½" (54.6 cm) line (Rear of cabinet line).
5) Fasten the anti-tip bracket to the floor using the supplied screw. (See Figure 8).
6) Slide the cabinet back into position, making sure the rear cabinet leveling leg slides under the anti-tip bracket engaging the slot.

INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS)

NOTE

When the floor mounted anti-tip bracket is used the minimum adjusted height of the cabinet is increased by 38 " (9 mm).

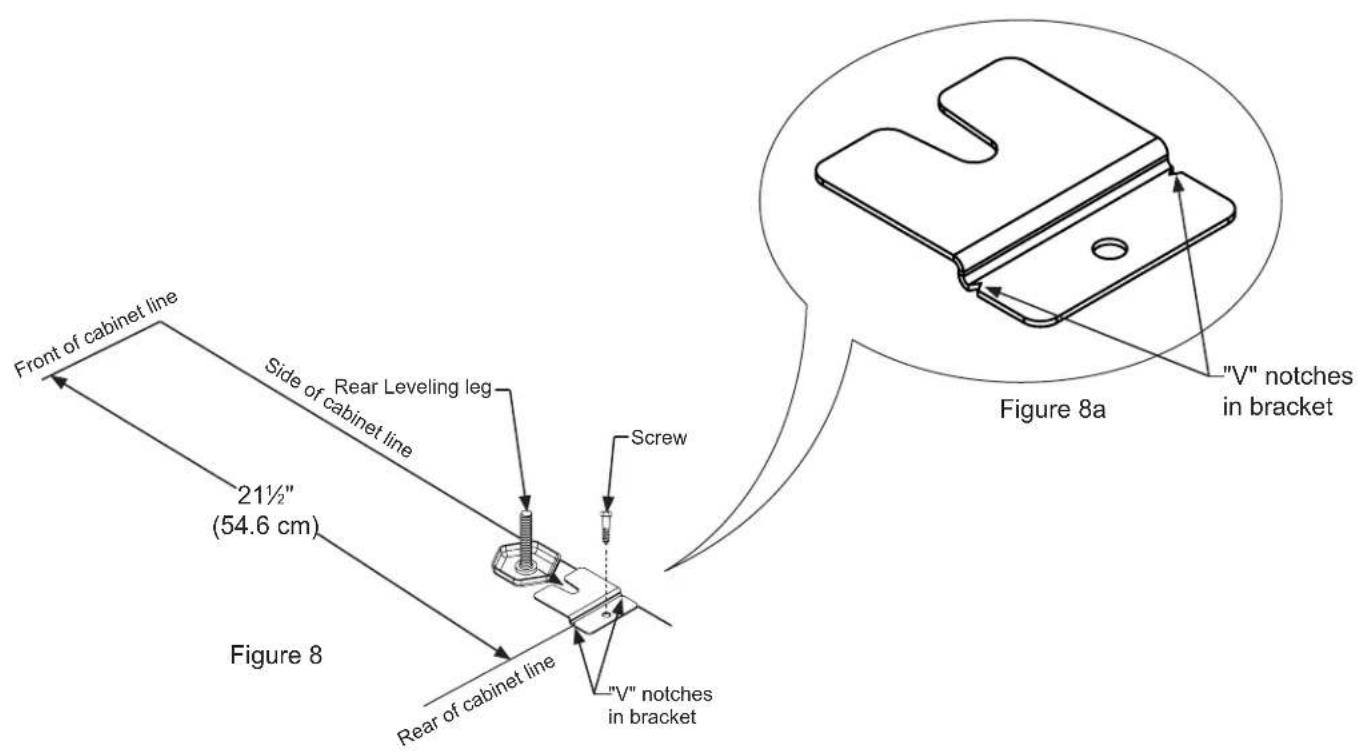

Front of cabinet line Side of cabinet line 21½" (54.6 cm) Figure 8 Rear Leveling leg Screw "V" notches in bracket Figure 8a "V" notches in bracket

PRODUCT DIMENSIONS

MODEL	ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
LM15WINE	15"(38.1 cm)	**34" to 35"(86.4 to 88.9 cm)	*	1478" (37.8 cm)	3334" to 3434" (85.7 to 88.3 cm)	23^23/_52" (60.2 cm)	2634" (67.9 cm)	37^13/_32" (95 cm)	1734" (45.1 cm)

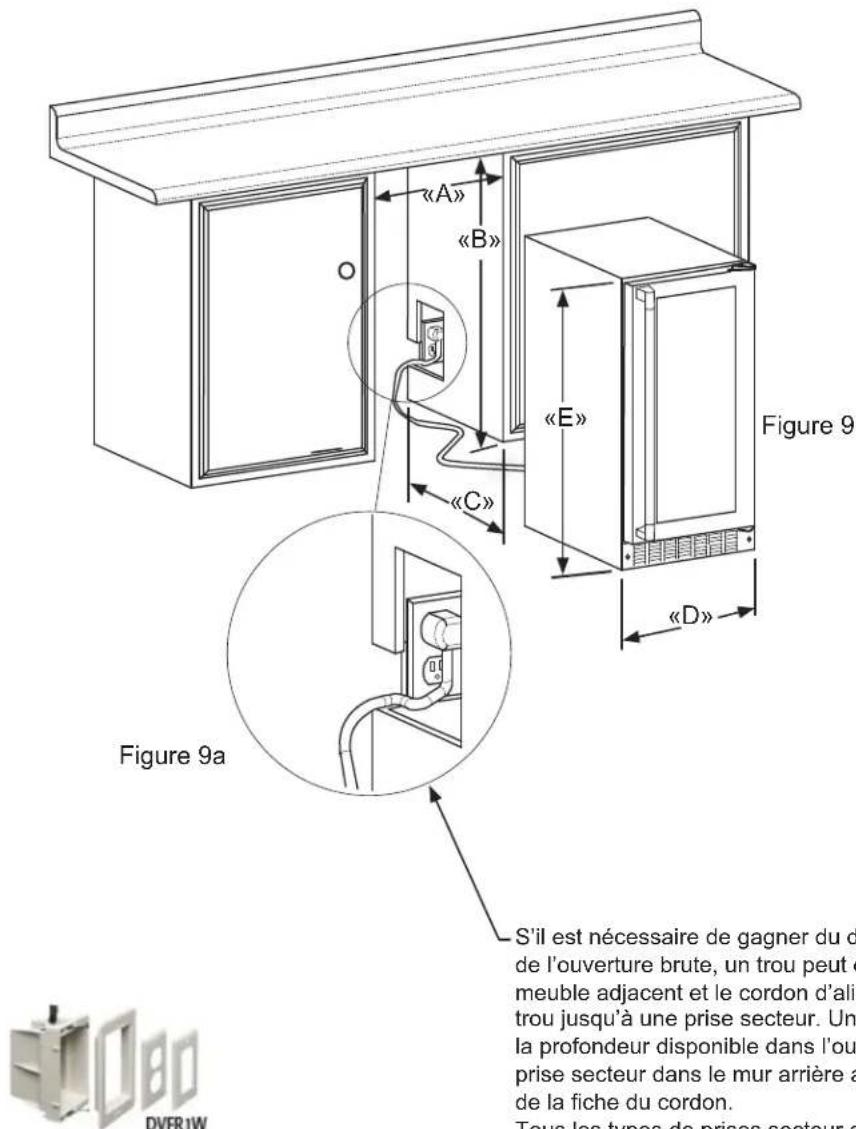

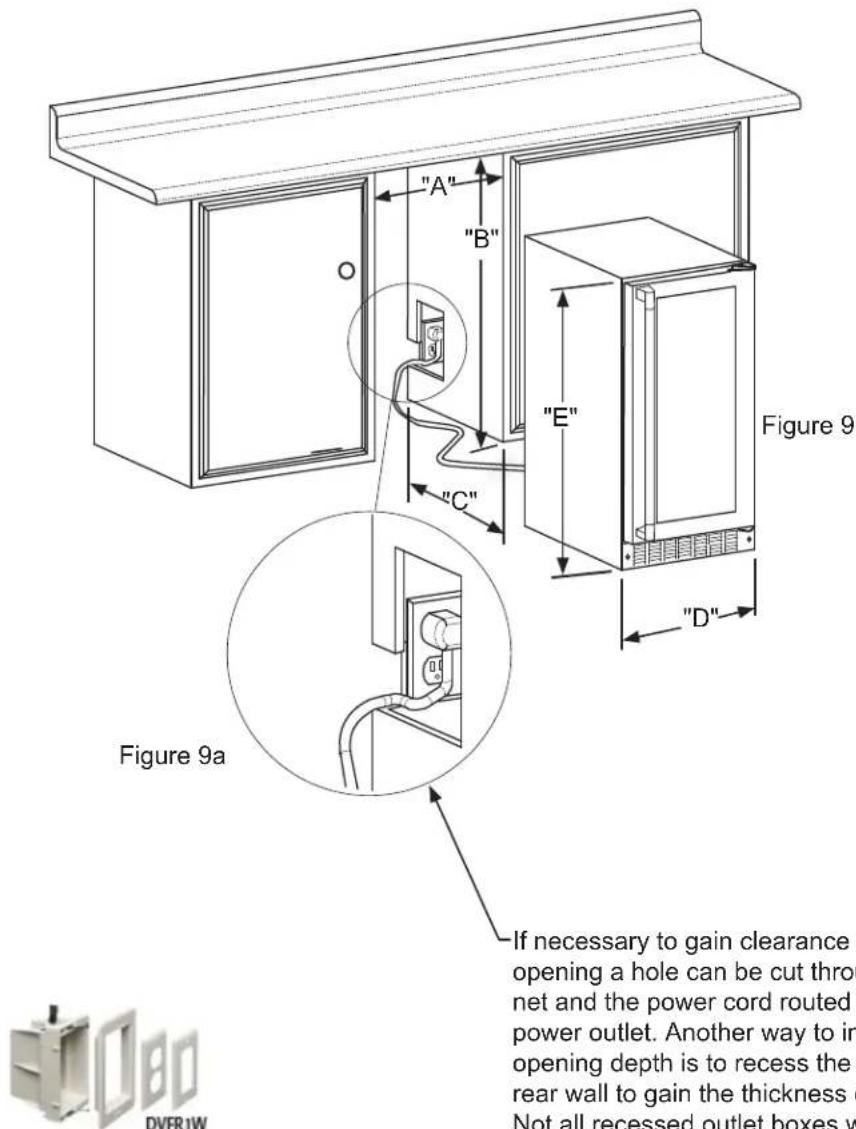

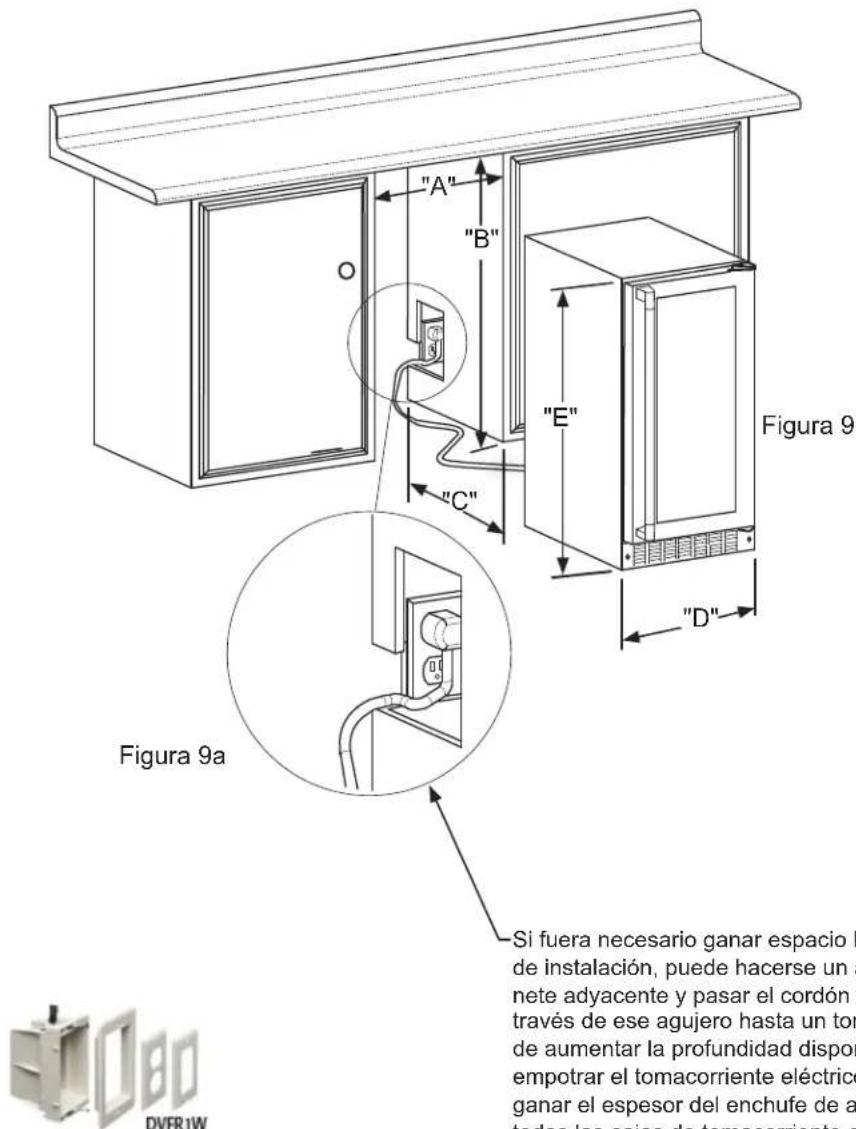

"A" "B" "E" C" Figure 9 D" Figure 9a If necessary to gain clearance opening a hole can be cut through net and the power cord routed power outlet. Another way to in opening depth is to recess the rear wall to gain the thickness of Not all recessed outlet boxes w DVFR1W

Figure 10

-If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 10).

PRODUCT DIMENSIONS

MODEL	PRODUCT DATA
	ELECTRICAL REQUIREMENTS #	PRODUCT WEIGHT
LM15WINE 115	V/60Hz/15A	105 lbs(47.7 kg)

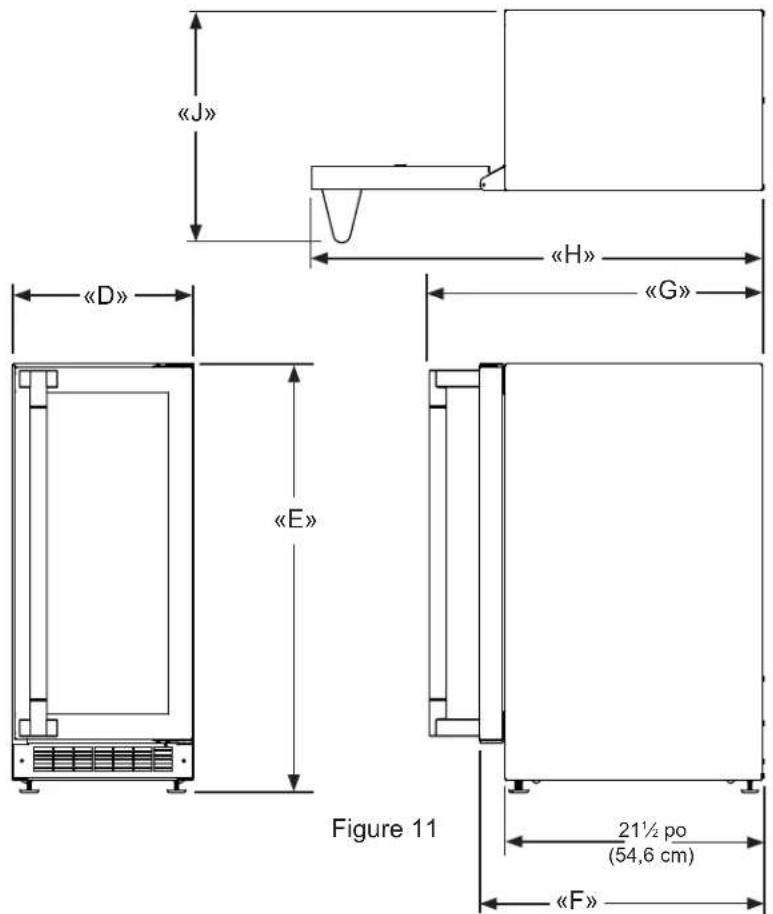

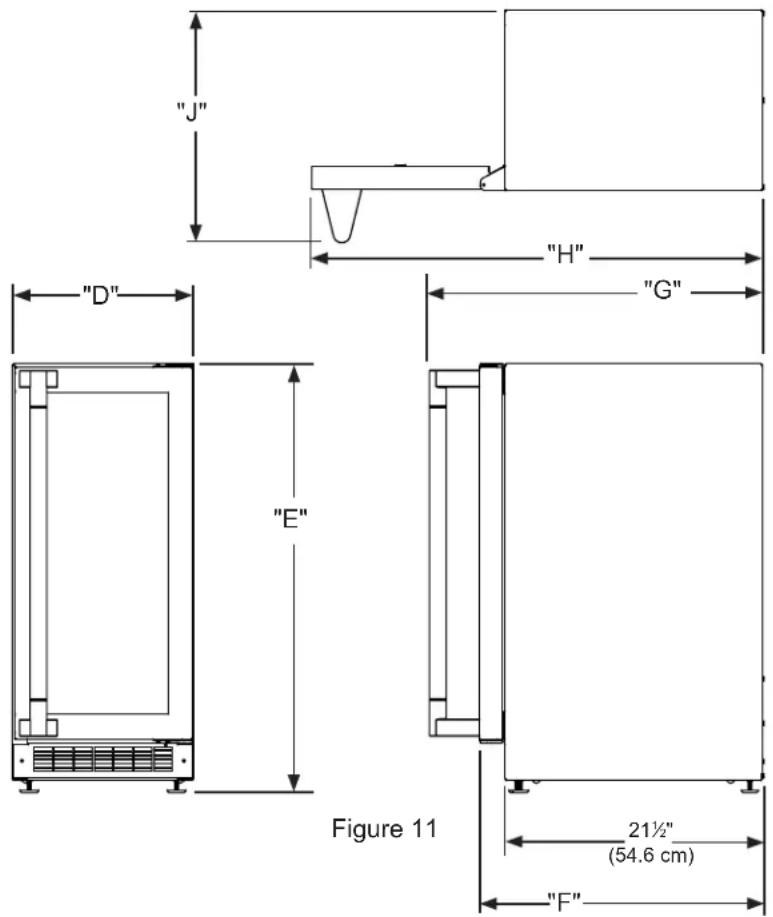

"J" "H" "G" "D" "E" Figure 11 21½" (54.6 cm) "F"

* Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F" dimension plus 1" (2.5 cm) for thickness of power cord plug is required.
** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.

A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.

WARNING

Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications.

USING YOUR ELECTRONIC CONTROL

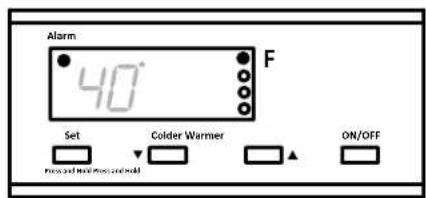

Figure 12 close-up of control

Alarm 40° F Set Colder W warmer ON/OFF

Starting Your Wine cellar

Plug the wine cellar power cord into a wall outlet. Your wine cellar will begin cooling after power is applied. If your wine cellar does not start, check that the wine cellar is turned on and the set temperature is cold enough.

Turning Your Wine cellar ON or OFF

If the wine cellar is on, the wine cellar temperature will be shown on the display. To turn the wine cellar off, press and hold the "ON/OFF" button for three (3) seconds. "OFF" will appear on the display.

If the wine cellar is not on, "OFF" will be shown on the display. To turn the wine cellar on, press and hold the "ON/OFF" button for three (3) seconds. The wine cellar temperature will be shown on the display.

Setting the temperature

To set the wine cellar temperature, press and hold the "SET" button. When the "SET" button is pressed, the display will show the set temperature. While holding the "SET" button, press the "WARMER" or "COLDER" buttons to adjust set temperature.

Wine cellar Operation

The available temperature range of the wine cellar is 40^ F ( 4.5^ C) to 65^ F ( 18.4^ C).

It may take up to 24 hours for your wine cellar to reach desired temperature. This will depend on amount of content loaded and number of door opening and closings.

For best results allow wine cellar to "pull down" to desired set temperature before loading. Once contents are loaded, allow at least 48 hours for temperature to stabilize before making any adjustments to the set temperature.

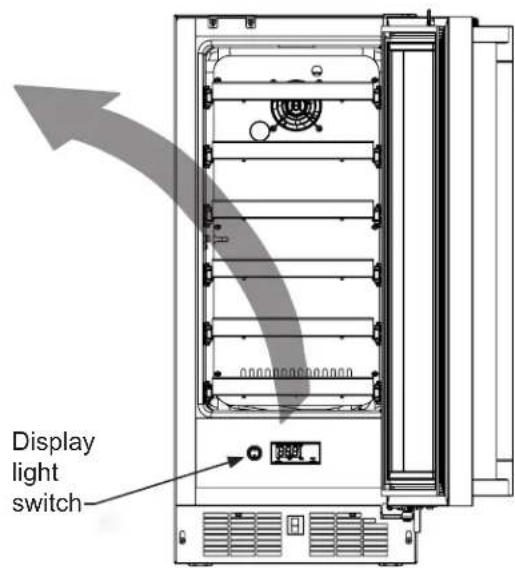

Display light switch

Figure 13

Alarms

Your electronic control will monitor wine cellar function and alert you with a series of audible and visual alarms.

- Door Ajar Alarm: If the door has been left open for over five (5) minutes, the alarm will sound in one (1) second intervals. The

display panel will flash "do" and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminated. This will stop as soon as the door is closed.

• Temperature Sensor Fault: If the controller detects that the temperature sensor is not properly functioning, a temperature

sensor alarm will sound in one (1) second intervals. "E1" will flash on the display panel and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminated. Please call Lynx Grills Customer Service or your dealer if this error code is displayed.

- High and Low Temperature Alarm: If the storage compartment temperature deviates excessively from the set-point temperature, the alarm will sound in (1) second intervals. The display panel will flash either "Hi" or "Lo" depending upon the condition and the Alarm LED light at the top left of the display below the word

"Alarm" will be illuminated. The alarm will remain active until the condition is corrected.

USING YOUR ELECTRONIC CONTROL

NOTE

After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.

NOTE

The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit may require service.

Alarm Mute

Press any key to mute the audible portion of an alarm.

NOTE

This action will only mute the alarm. If the condition that caused the alarm continues, the alarm code will continue to flash and will sound for 20 seconds every 60 minutes.

Interior Light and Switch

The interior light makes it easy to view your wine labels and enhances the display of your collection. To engage the display light feature, press the round light switch, see Figure 13. It is located on the left side of the user panel. The light will come on and stay on with the door closed until the light switch is pressed again. The light will also come on when the door is opened.

SHELVING CONFIGURATION

Shelving Configuration

Your Lynx Grills appliance is equipped with full extension ball bearing shelf glides to provide maximum access and visibility for the product stored on the shelving arrangement listed below.

Single Zone Wine Cellar:

15" (38.1 cm) Wide models:

(6) 4 bottle wire racks

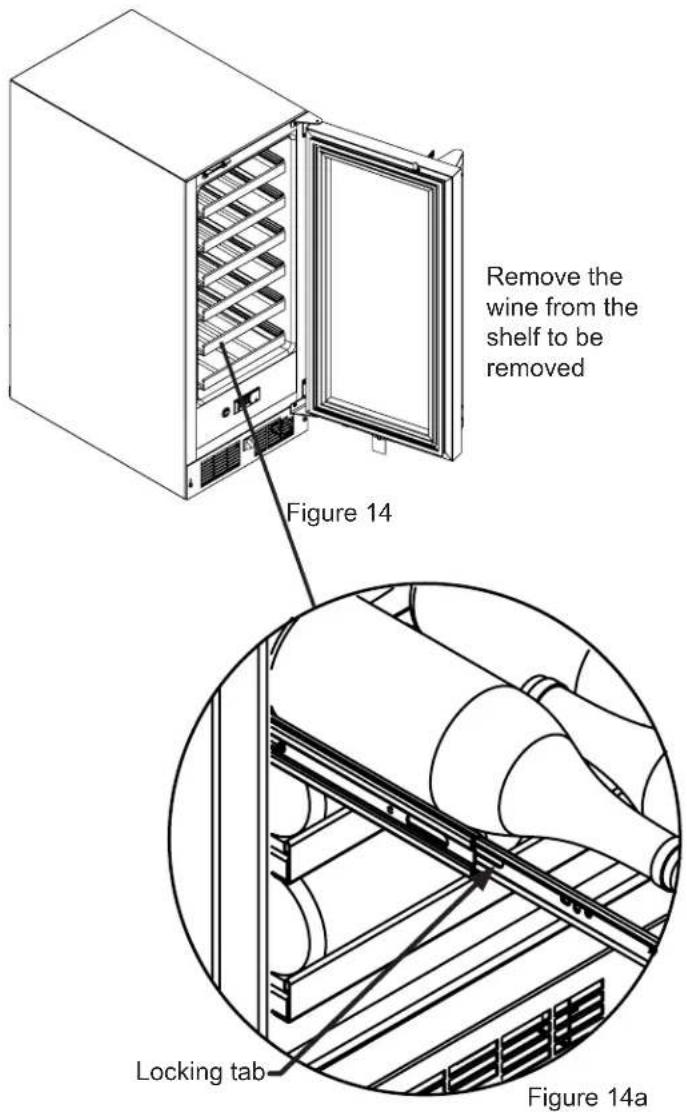

Remove the wine from the shelf to be removed Figure 14 Locking tab Figure 14a

To Add or Remove a Shelf

CAUTION

Never try to remove a loaded shelf, remove everything from the shelf before removing. Use both hands when removing the shelf.

To remove a shelf:

Extend the shelf out of the cabinet until it stops.

Unload the shelf (see Figure 14).

Depress the locking tabs on both sides of the shelf and pull the shelf straight out (see Figure 14a). When the shelf is removed, push the extended cabinet mounted shelf extensions back into the cabinet.

To re-install a shelf:

Pull out the cabinet mounted shelf extensions to assist the engagement with the wire rack shelf.

Insert the wire rack side track into the cabinet mounted shelf extensions on both sides.

Push the wire rack completely into the cabinet to engage the locking tabs.

Pull the shelf out, (unloaded), to verify the wire rack is locked into the side rails. If the wire rack falls out, the locking tabs are not engaged; repeat the installation.

Load the shelf as required.

CARE AND CLEANING

Front Grille

Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).

CAUTION

SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet

The stainless steel cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. See "Stainless Steel Maintenance" on page 15.

Interior

Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.

Care of Appliance

1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the grille can occur.
3. Periodically clean the interior of the appliance as needed.

In the Event of a Power Failure

If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.

Light Assembly Replacement

All models use LED lamps to illuminate the interior of the appliance. This component is very reliable, but should one fail, contact a qualified service technician for replacement of the LED.

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.

Long Term Storage/Winterization

1. Time to Winterize, when the daily low ambient temperature is at or below 38^ F ( 3.3^ C).

CAUTION

Operation of the unit at ambient temperatures below the recommended Winterization temperature will void your warranty.

1. Turn unit off, (see page 10)
2. Remove all contents.
3. If necessary, move the unit so you can gain access to the rear of the product.
4. Unplug the unit from the power outlet.
5. It is also recommended that the power to the outlet be turned-off if the circuit is not required for other items during the Winter season.
6. When cleaning unit pay particular attention to any cracks and crevices that may have accumulated dirt and debris.

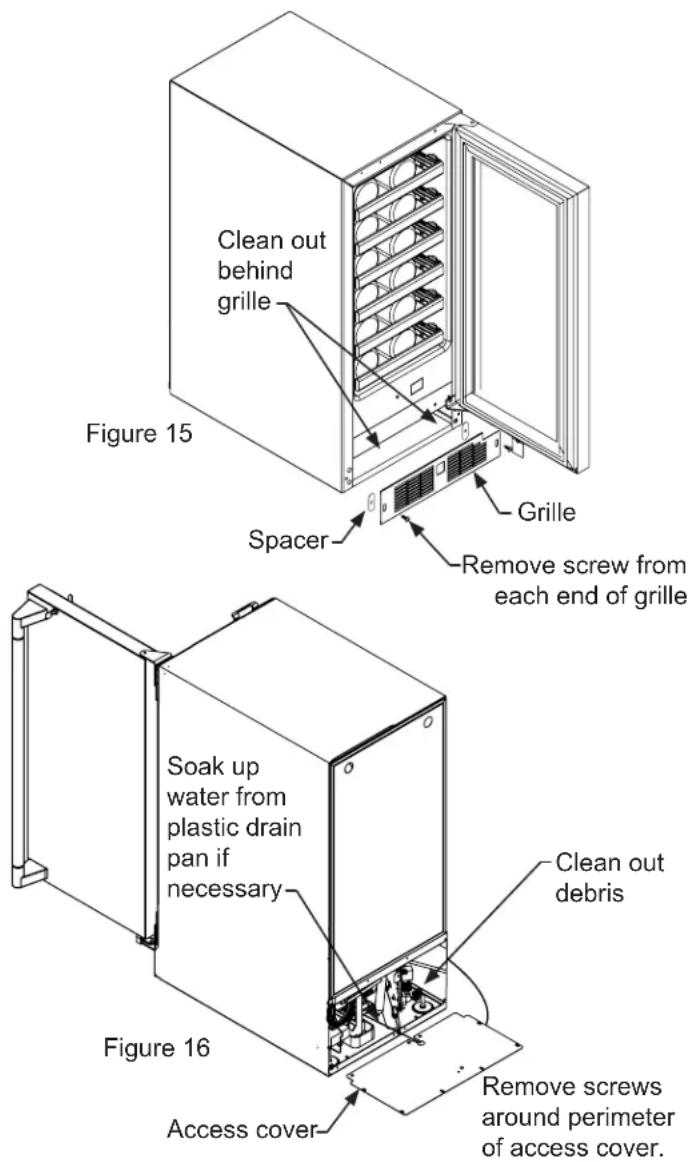

7. Remove the front toe-grille, (see Figure 15), and use a brush and vacuum to clean dirt and debris from beneath the unit.
8. Thoroughly clean the toe-grille and re-install on the unit. (See Figure 15).
9. Remove the rear access cover, (see Figure 16), and use a brush and vacuum to clean dirt and debris from the machine compartment.

- If the plastic defrost drain pan located under the compressor contains water, use a sponge to remove as much water as possible.

1. Thoroughly clean the rear access cover and re-install on the unit.
2. Wipe down all interior surfaces with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals which could cause staining. Do not use any abrasive cleaners or scouring pads.
3. Leave the door open and allow to completely dry out before closing the door.
4. Thoroughly clean the door gasket with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals.
5. Thoroughly clean the exterior with a cleaner approved for stainless steel. Do not use any abrasive cleaners or scouring pads. See "Stainless Steel Maintenance" on page 15.
6. Any mounting hardware / fasteners that are showing signs of corrosion should be replaced.

7. Once the exterior has been thoroughly cleaned, you may want to apply a coating of car wax to help protect against spotting from moisture, dirt, and debris that may accumulate on the surfaces during the Winterization period.

8. Do not place a cover on the unit, as this can trap condensation.

After completion of the above, you may choose to store the unit indoors, although this is not required.

Clean out behind grille Figure 15 Spacer Grille Remove screw from each end of grille Soak up water from plastic drain pan if necessary Clean out debris Figure 16 Access cover Remove screws around perimeter of access cover.

Start-up after Long Term Storage

1. If stored outside, it is recommended that the unit again be thoroughly inspected per the storage instructions above to address any dirt or debris from the weather and/or animals/insects.
2. Connect the unit to electrical power.
3. Turn unit on and confirm your desired control settings.
4. Allow 24-hrs for the unit to stabilize before loading contents.

STAINLESS STEEL MAINTENANCE

Background

Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stainless steels can discolor or corrode if not maintained properly.

Stainless steels differ from ordinary carbon steels by the amount of chromium present. It is this chromium that provides an invisible protective film on the surface called chrome-oxide. This protective chrome-oxide film on the surface can be damaged or contaminated, which may result in discoloration, staining, or corrosion of the base metal.

Care and Cleaning

Routine cleaning of the stainless steel surfaces will serve to greatly extend the life of your product by removing contaminants. This is especially important in coastal areas which can expose the stainless to severe contaminants such as halide salts, (sodium chloride).

It is strongly recommended to periodically inspect and thoroughly clean crevices, weld points, under gaskets, rivets, bolt heads, and any locations where small amounts of liquid could collect, become stagnant, and concentrate contaminates. Additionally, any mounting hardware that is showing signs of corrosion should be replaced.

Frequency of cleaning will depend upon the installation location, environmental, and usage conditions.

Choosing a Cleaning Product

The choice of a proper cleaning product is ultimately that of the consumer, and there are many products from which to choose. Depending upon the type of cleaning and the degree of contamination, some products are better than others.

Typically the most effective and efficient means for routine cleaning of most stainless steel products is to give the surfaces a brisk rubbing with a soft cloth soaked in warm water and a gentle detergent, or mild mixture of ammonia. Rubbing should, to the extent possible, follow the polish lines of the steel, and always insure thorough rinsing after cleaning.

Although some products are called "stainless steel cleaners," some may contain abrasives which could scratch the surface, (compromising the protective chrome-oxide film), and some many contain chlorine bleach which will dull, tarnish or discolor the surface if not completely removed.

After the stainless surfaces have been thoroughly cleaned, a good quality car wax may be applied to help maintain the finish.

NOTE

Stainless steel products should never be installed, or stored in close proximity to chlorine chemicals.

Whichever cleaning product you chose, it should be used in strict accordance with the instructions of the cleaner manufacturer.

ENERGY SAVING TIPS AND OBTAINING SERVICE

Energy Saving Tips

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).
5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.
6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.
11. When on vacation or away from home for extended periods, set the appliance to warmest acceptable temperature for the stored contents.
12. Set the control to the "off" position if cleaning the appliance requires the door to be open for an extended period of time.
13. For wine storage products: When serving temperatures are not required, return the compartment(s) set temperature to the ideal red and white wine long term storage temperature of 13^ C / 55^ F.

If Service is Required:

• If the product is within the first year warranty period please contact your dealer or call Lynx Grills Customer Service at 888.289.5969 for directions on how to obtain warranty coverage in your area.
• If the product is outside the first year warranty period, Lynx Grills Customer Service can provide recommendations of service centers in your area.
• In all correspondence regarding service, be sure to give the service/model number, serial number, and proof of purchase.
• Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.
• Table "A" is provided for recording pertinent information regarding your product for future reference.

For Your Records
Date of Purchase
Dealer's name
Dealer's Address
Dealer's City
Dealer's State
Dealer's Zip Code
Appliance Serial Number
Appliance Service/Model Number
Date Warranty Card Sent (Must be within 10 days of purchase).

Table A

TROUBLESHOOTING

Before You Call for Service

If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualified service technician.

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.

CAUTION

In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualified service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.

Problem Possible Cause	Remedy
Appliance not cold enough(See “setting the temperature” on page 10)	Control set too warmContent temperature not stabilized.	Adjust temperature colder. Allow 24 hours for temperature to stabilize.
	Excessive usage or prolonged door openings.	Allow temperature to stabilize for at least 24 hours.
	Airflow to front grille blocked.	Airflow must not be obstructed to front grille. See “clearances” on page 4.
	Door gasket not sealing properly.	Replace door gasket.
Appliance too cold(See “setting the Temperature” on page 10)	Control set too cold	Adjust temperature warmer.Allow 24 hours for temperature to stabilize.
	Door gasket not sealing properly.	Replace door gasket.
No interior light. • Failed LED light assembly or light switch.		Contact a qualified service technician.
Light will not go out when door is closed	Display light is turned on. (Glass door models only.	Turn off display light, shut door.
	Door not activating light switch.	Appliance not level, level appli-ance, (See page 4, “leveling legs”)
	Failed light switch	Contact a qualified service technician.
Noise or Vibration • Appliance not level		Level appliance, see “Leveling Legs” on page 4.
	Fan hitting tube obstruction.	Contact a qualified service technician.
Appliance will not run. • Appliance turned off		Turn appliance on. See “Starting your wine cellar” on page 10.
		Plug in power cord.
		Check house circuit.

THE LYNX STORY

Lynx began with a vision.

A small group of manufacturing engineers with over a century of collective experience had a dream. They dared to take their extensive commercial manufacturing know-how and create a line of outdoor cooking products that offer commercial elegance and performance to the consumer market.

Black-and-white photo of a worker carrying a large metal tray, standing in front of stacked crates (no visible text or symbols)

Lynx has taken the quality, workmanship, service and innovation of the commercial market and incorporated it into the Lynx Professional Grills line of consumer and commercial products. The combination of creative design, superior materials and exceptional craftsmanship elevates Lynx products to a class of their own.

Lynx original commercial products are used every day in restaurants, hotels and theme parks across the USA:

Lynx Satisfied Customers

• TGI Fridays	• Conrad International
• Applebee's	• Bellagio
• Houston's	• New York New York
• Red Lobster	• MGM Grand
• Hard Rock Café	• Treasure Island
• Wolfgang Puck's	• Mirage
• Cheesecake Factory	• Paris
• Red Robin	• Venetian
• Planet Hollywood	• Excalibur
• Hilton	• Mandalay Bay
• Hyatt	• Riviera
• Four Seasons Marriott	• Desert Inn
Le Meridian	• Hard Rock Hotel
• Sheraton	• Disney World

Lynx®

The best outdoor kitchen products come from: Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 Service: (888)-289-5969 Fax: [phone] www.lynxgrills.com

PROFITEZ AU MAXIMUM DE VOTRE

Exterior view of a modern white stainless steel kitchen appliance with closed doors and glass shelves (no visible text or symbols)

LM15WINE

CELLIER D'EXTÉRIEUR

ENTRETIEN ET UTILISATION / INSTALLATION

CONTENU

Contenu

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXX HZ VOLTS AMPS R134A oz DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

AVERTISSEMENT

Prohibition sign with crossed-out electrical components and a diagonal line, indicating no protection or disapproval.

Figure 4

Figure 5 Vis de grille frontale Grille frontale

AVERTISSEMENT

Simple line drawing of an electrical outlet with two socket covers (no text or symbols)

Figure 6

REMARQUE

DIMENSIONS DU PRODUIT

MODÈLE	DIMENSIONS D'OUVERTURE BRUTE DIMENSIONS D'ARMOIRE
	«A»	«B»	«C»	«D»	«E»	«F»	«G»	«H»	«J»
LM15WINE	15 po(38,1 cm)	**34 po to 35 po(86,4 to 88,9 cm)	*	1478 po(37,8 cm)	3334 po to 3434 po(85,7 to 88,3 cm)	232332 po(60,2 cm)	2634 po(67,9 cm)	371332 po(95 cm)	1754 po(45,1 cm)

DIMENSIONS DU PRODUIT

MODELE	DONNÉES DE PRODUIT
	BESOINS ÉLECTRIQUES #	POIDS DU PRODUIT
LM15WINE 115	V/60Hz/15A	105 lbs (47.7 kg)

Alarm 40° F Set Colder W warmer ON/OFF

Black-and-white photo of a person carrying a large metal crate, standing in front of stacked crates (no visible text or symbols)

Exterior view of a modern white stainless steel kitchen appliance with closed doors and glass shelves (no visible text or symbols)

LM15WINE

BODEGAS PARA VINOS EXTERIOR

LYNX GRILLS, INC DOWNNEY, CA 90242 MODEL NO. XXXXXXXXXXXXXXX SERVICE NO. XXXXXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXXX HZ VOLTS AMPS R134A OZ DESIGN PRESSURES 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figura 1

ADVERTENCIA

Symbol of a mechanical switch crossed out by a diagonal line, representing no protection or disconnection (no text present)

Figura 4

Figura 5 Tornillo de la rejilla frontal Rejilla frontal

ADVERTENCIA

Simple line drawing of an electrical plug and two separate socket (no text or symbols)

Figura 6

NOTA

DIMENSIONES DEL PRODUCTO

MODELO	DIMENSIONES DE LA ABERTURA DE INSTALACIÓN pulgadas (cm) DIMENSIONES DEL GABINETE pulgadas (cm)
	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
LM15WINE	15"(38,1 cm)	**34" to 35"(86,4 to 88,9 cm)	*	14 18 "(37,8 cm)	33 12 " to 34 12 "(85,7 to 88,3 cm)	23 ^2 / _3/2 "(60,2 cm)	26 14 "(67,9 cm)	37 13/2 "(95 cm)	17 14 "(45,1 cm)

DIMENSIONES DEL PRODUCTO

MODELO	DATOS DEL PRODUCTO
	REQUISITOS ELÉCTRICOS #	PESO DEL PRODUCTO
LM15WINE 115	V/60Hz/15A	105 lbs(47.7 kg)

"J" "H" "G" "D" "E" Figura 11 21½" (54,6 cm) "F"

Alarm 40° F Set Colder W warmer ON/OFF

Black-and-white photo of a worker carrying a large metal tray, standing in front of stacked crates (no visible text or symbols)
