| Product Type | Car Radio DVD/CD/MP3 Player |
| Brand | Sony |
| Model | MV101 |
| Dimensions (W x H x D) | Approx. 189 x 70 x 243 mm |
| Weight | Approx. 2.1 kg |
| Power Supply | Car battery 12 V DC (negative ground) |
| Power Consumption | Protection fuse (capacity according to original fuse) |
| Playable Formats | DVD Video, Video CD, Audio CD, CD-R, CD-RW, MP3 |
| Color System | PAL (NTSC configurable) |
| Outputs | Audio (stereo), Composite video, Optical digital output (SPDIF) |
| Frequency Response | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | 90 dB (A) |
| Harmonic Distortion | 0.03% |
| Dynamic Range | 90 dB |
| Laser | Semiconductor (Class 1) |
| Operating Temperature | 0 °C to 45 °C |
| Supplied Accessories | Installation and connection parts, Mini remote control RM-X135, instruction manual |
| Main Functions | Playback DVD, CD, MP3; Parental control; Audio settings (Dolby Digital, DTS); SMART NAVI menu for MP3; Resume playback |
| Maintenance and Cleaning | Clean disc with cloth from center outward; Replace fuse (same rating); Replace CR2025 lithium battery |
| Safety | Follow driving instructions; Do not insert objects into player; Avoid condensation; Class 1 laser safe in normal use |
| Spare Parts and Repairability | Standard fuse, accessible CR2025 battery; Consult Sony dealer for repair |
| General Information | Manufactured under license from Dolby Laboratories; Macrovision copyright protection technologies |
Frequently Asked Questions - MV101 SONY
User questions about MV101 SONY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car stereo in PDF format for free! Find your manual MV101 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MV101 by SONY.
USER MANUAL MV101 SONY
Operating Instructions GB
For installation and connections, see the supplied installation/connections manual.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
CLASS 1 LASER PRODUCT
This label is located on the bottom of the chassis.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
This label is located on the drive unit's internal chassis.
Welcome!
Thank you for purchasing this Sony DVD Player. You can enjoy its various features even more with:
DVD/Video CD/Audio CD playback.
Support DTS/Dolby digital through optical digital output terminal.
- MP3 file playback.
Supplied controller accessory Card remote commander RM-X135
Copyrights
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Macrovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.
"DTS," "DTS Digital Surround" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
Table of Contents
Precautions 4
About this manual 4
About discs this player can play 5
Notes on discs 7
About MP3 files 8
Location of controls 10
Getting Started
Resetting the player 12
DVD/Video CD/CD Player

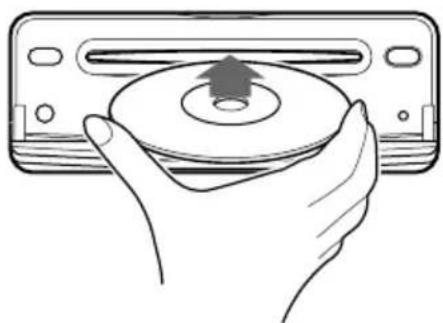

Playing a disc 13
Searching a chapter/title/track directly 14
Resume playback 14
Turning off this player. 14
MP3 file playback with the menu display ....15

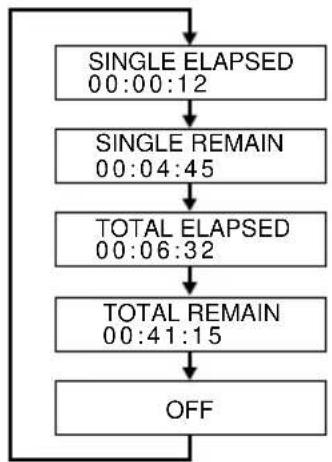

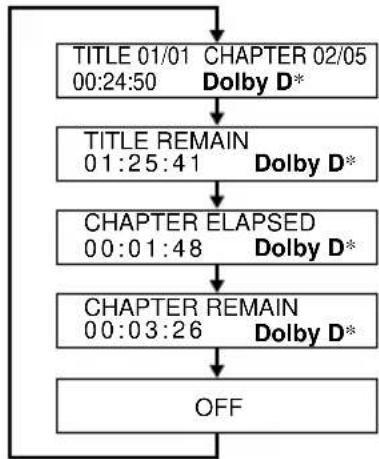

Displaying running time 15

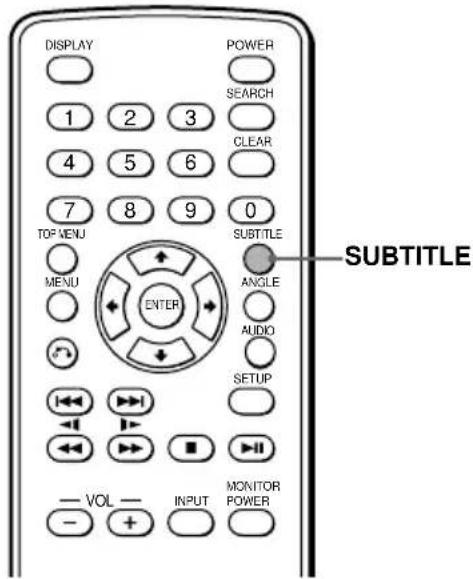

Changing the subtitle language 16
Using a DVD menu 17
Using the TOP MENU button 17
Using the MENU button 17

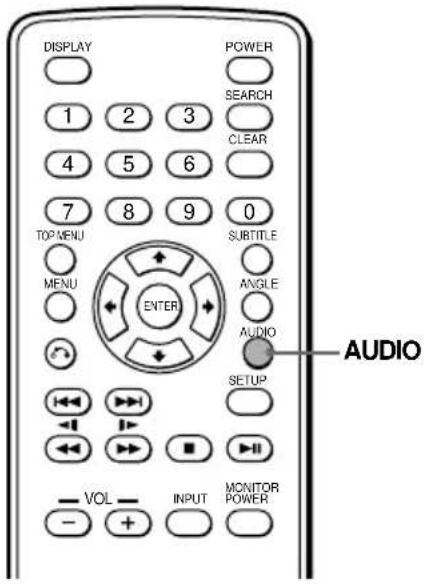

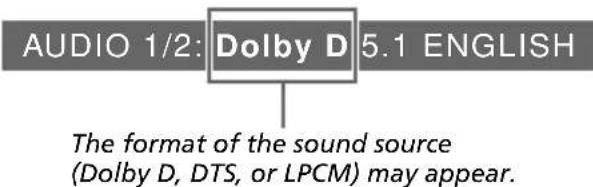

Changing the audio language 18

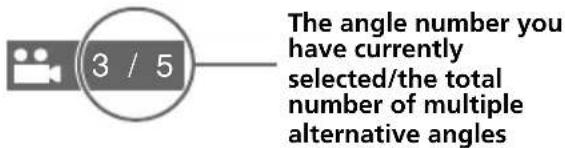

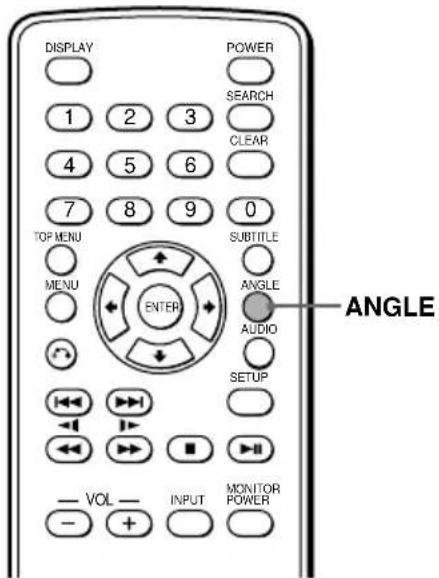

Changing angles 18

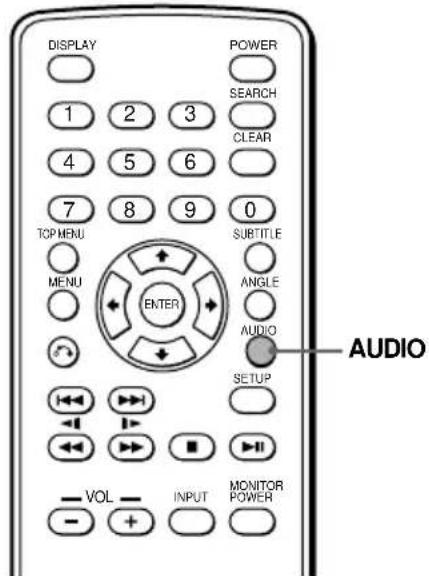

Changing the audio output 19
Using the PBC (playback control) function .... 19

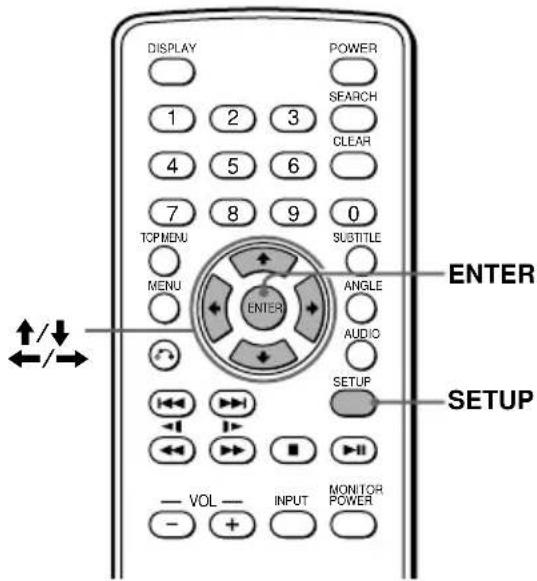

Changing Setup

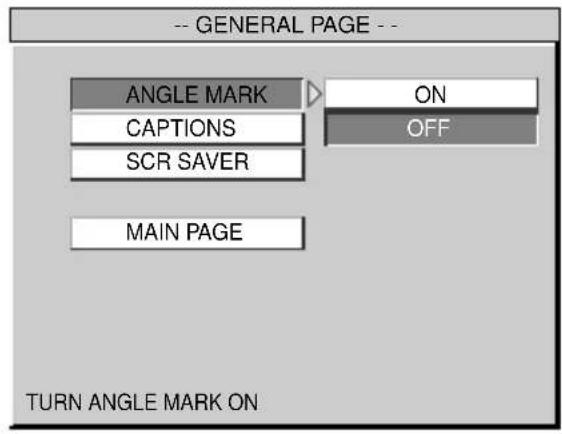

Displaying the multi-angle notice ANGLEMARK 20

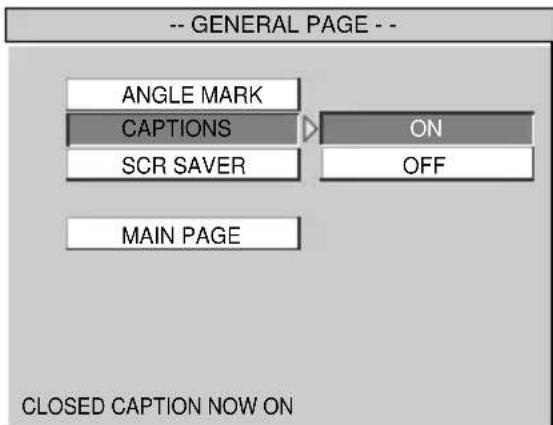

Displaying captions for viewers with hearing difficulties
— CAPTIONS 21

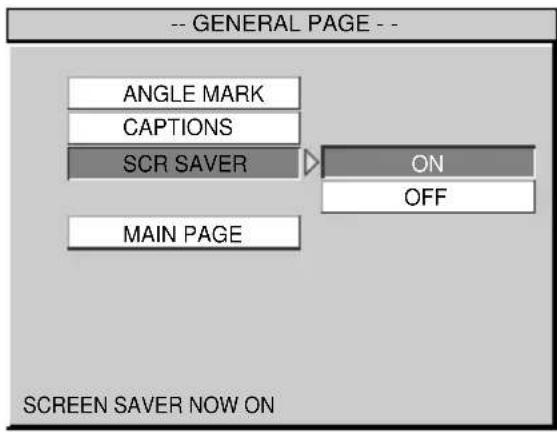

Setting the screen saver SCRSAVER 22

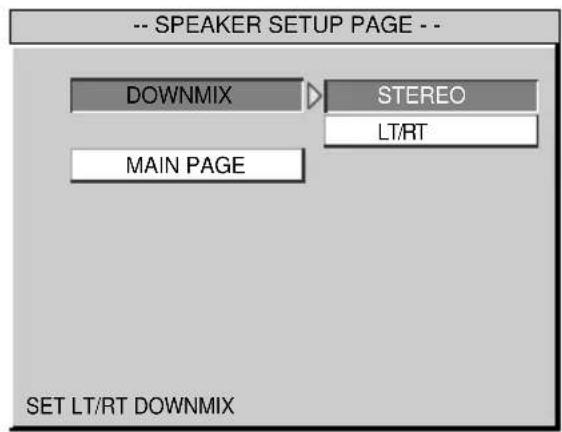

Selecting the speaker mode SPEAKER SETUP 22

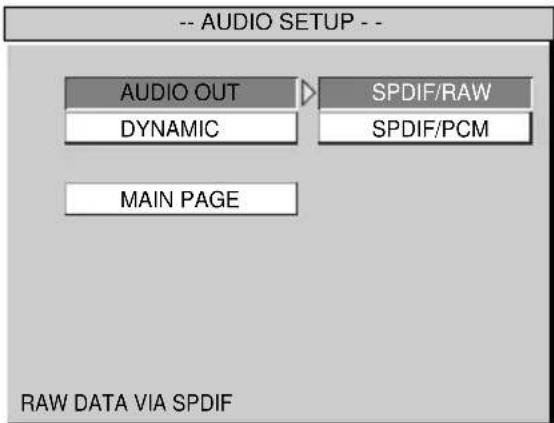

Selecting the audio output mode
— AUDIO OUT 23

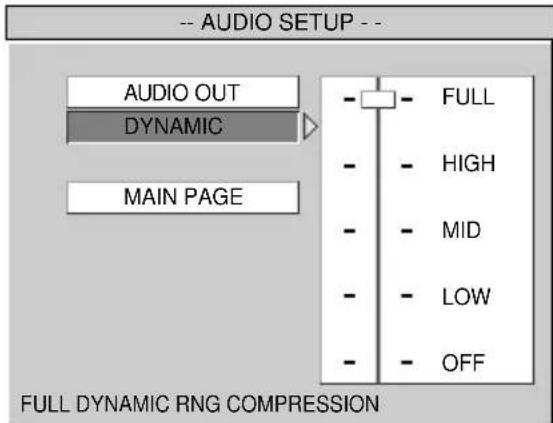

Selecting the compression setting for the sound DYNAMIC 23

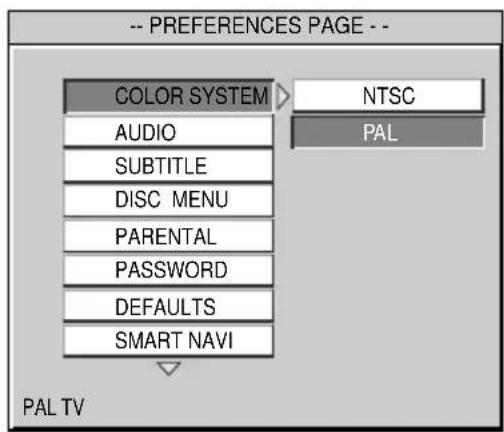

Selecting the TV colour system COLOR SYSTEM 24

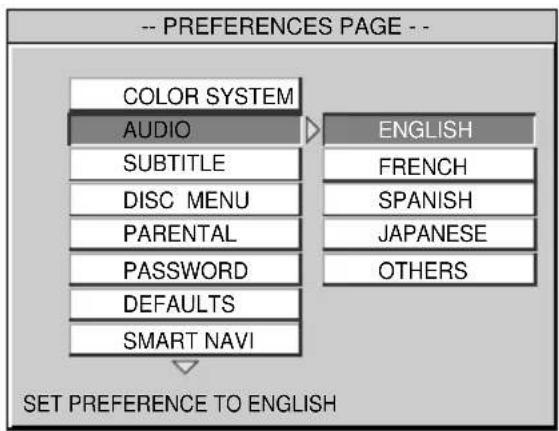

Selecting the audio language for DVD AUDIO 24

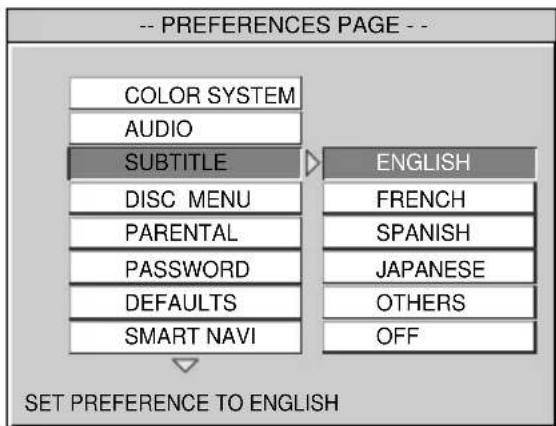

Displaying the subtitles for DVD
— SUBTITLE 25

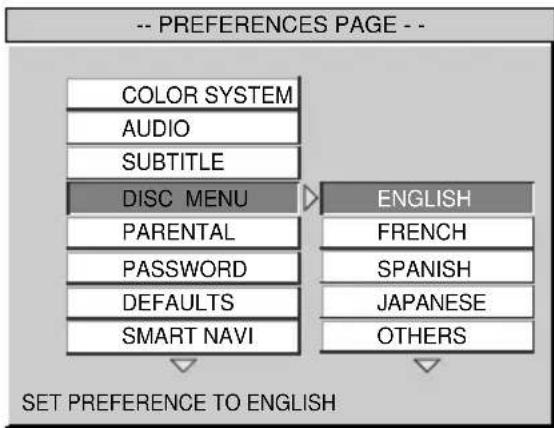

Selecting the DVD menu language DISC MENU 25
Preparing for the initial parental setting 26

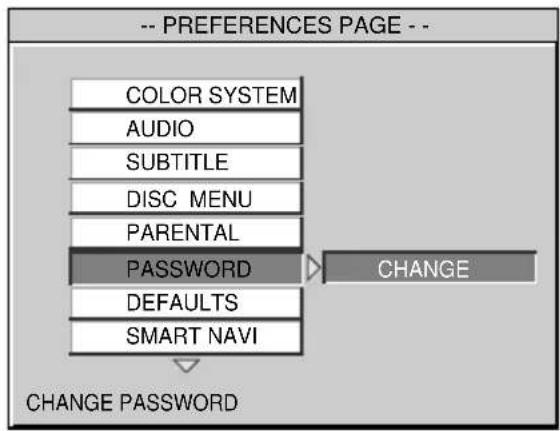

Setting the password 26

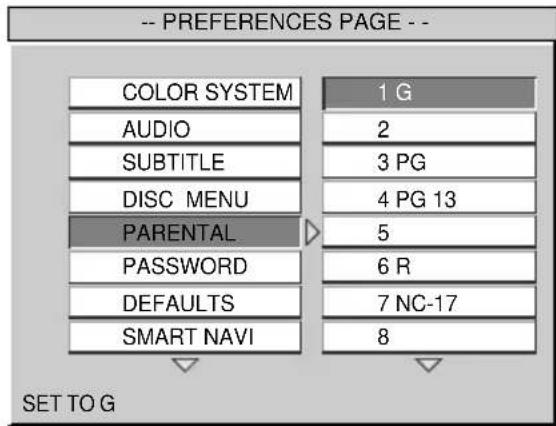

Selecting the desired parental setting PARENTAL 26

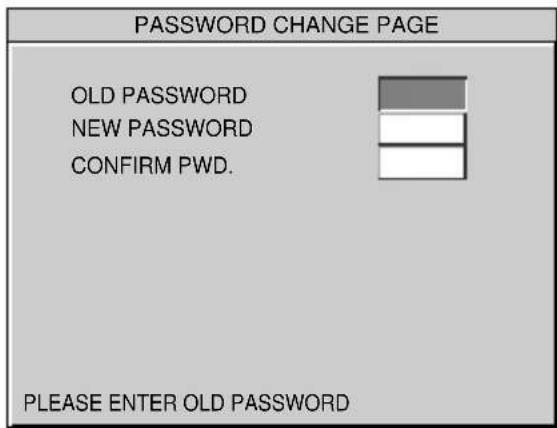

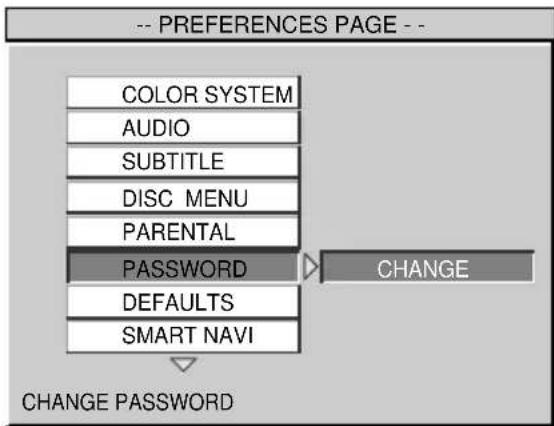

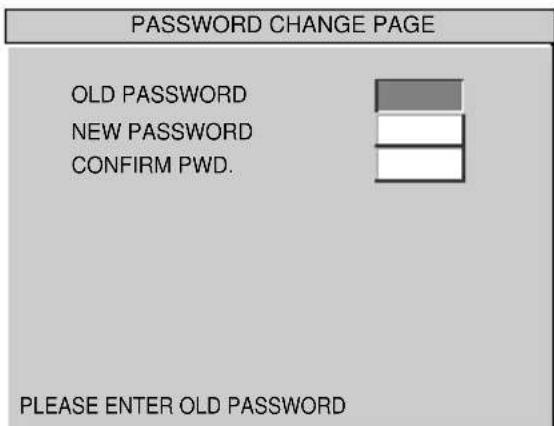

Changing your password
— PASSWORD 27

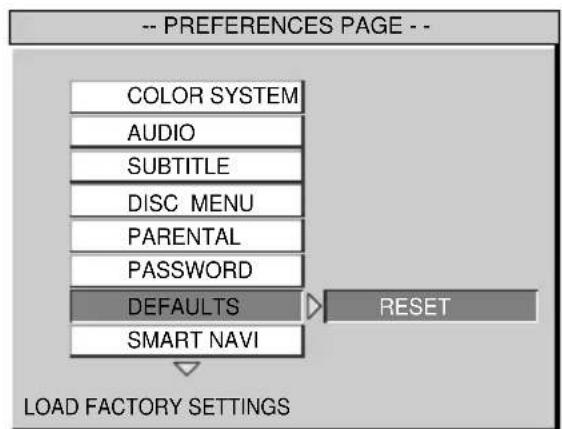

Returning this player to the factory setting — DEFAULTS 28

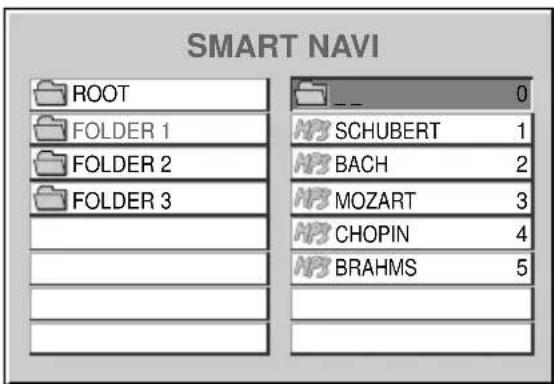

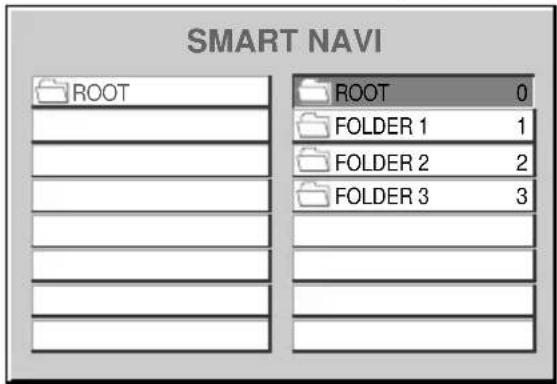

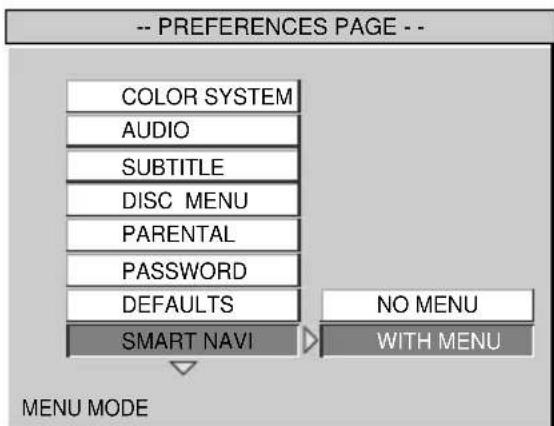

Setting the menu display for MP3 files SMART NAVI 28
Additional Information
Maintenance. 29
Specifications 30
Troubleshooting 31
Error display 33
Language Code List 34

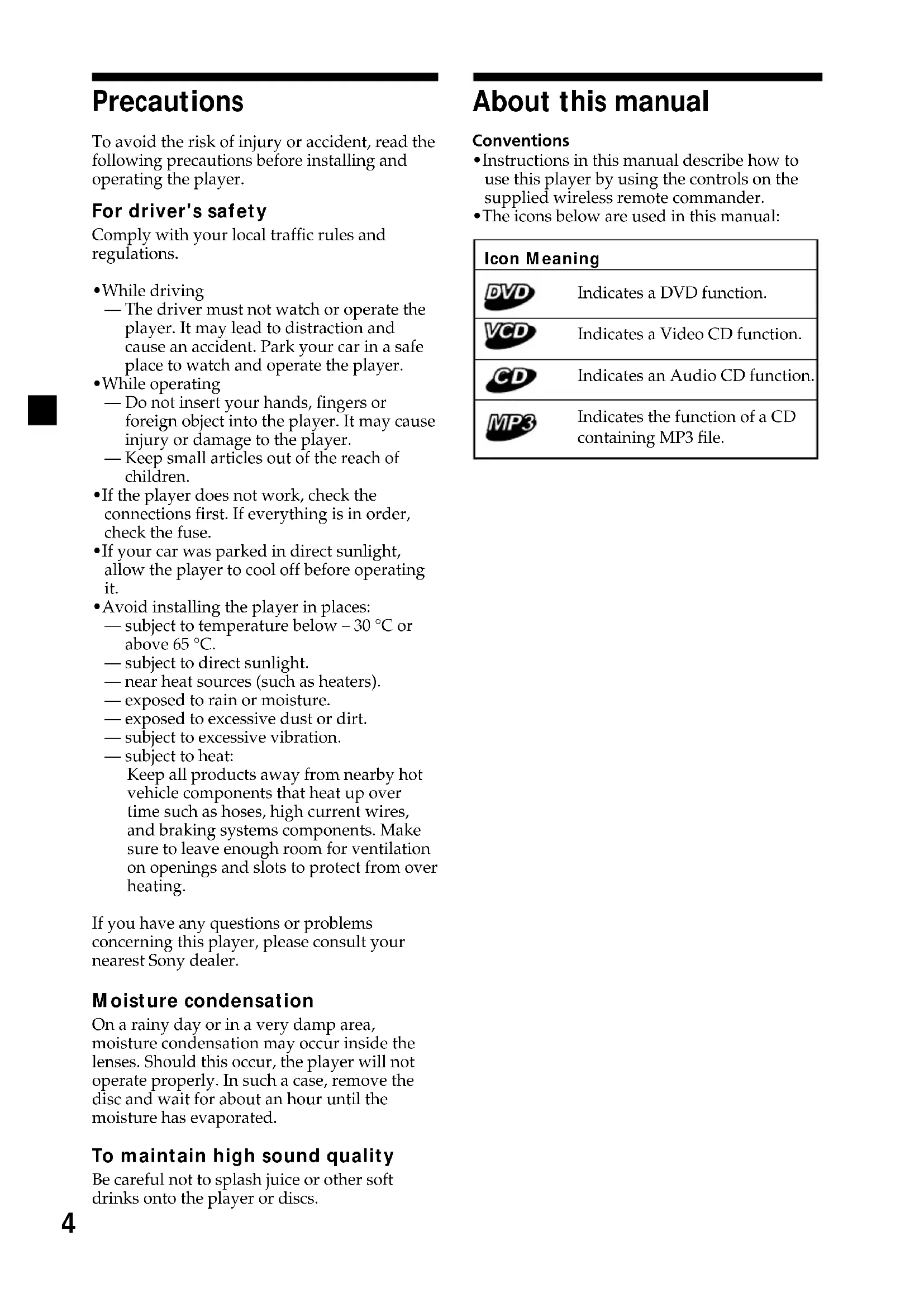

Precautions
To avoid the risk of injury or accident, read the following precautions before installing and operating the player.
For driver's safety
Comply with your local traffic rules and regulations.
While driving
The driver must not watch or operate the player. It may lead to distraction and cause an accident. Park your car in a safe place to watch and operate the player.
While operating
-
Do not insert your hands, fingers or foreign object into the player. It may cause injury or damage to the player.
-
Keep small articles out of the reach of children.
-
If the player does not work, check the connections first. If everything is in order, check the fuse.
-
If your car was parked in direct sunlight, allow the player to cool off before operating it.
-
Avoid installing the player in places:
subject to temperature below -30^ or above 65^ .
subject to direct sunlight.
- near heat sources (such as heaters).
exposed to rain or moisture.
exposed to excessive dust or dirt.
— subject to excessive vibration.
subject to heat:
Keep all products away from nearby hot vehicle components that heat up over time such as hoses, high current wires, and braking systems components. Make sure to leave enough room for ventilation on openings and slots to protect from over heating.
If you have any questions or problems concerning this player, please consult your nearest Sony dealer.
Moisture condensation
On a rainy day or in a very damp area, moisture condensation may occur inside the lenses. Should this occur, the player will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.
To maintain high sound quality
Be careful not to splash juice or other soft drinks onto the player or discs.
About this manual
Conventions
- Instructions in this manual describe how to use this player by using the controls on the supplied wireless remote commander.
The icons below are used in this manual:
| Icon Meaning | |
| DVD | Indicates a DVD function. |
| VCD | Indicates a Video CD function. |
| CD | Indicates an Audio CD function. |
| MP3 | Indicates the function of a CD containing MP3 file. |
About discs this player can play
This player can play 12 cm disc only.
DVD
- Video CD
Audio CD
CD-R/CD-RW
Disc type Label on the disc
| DVD Videos | VIDEO VIDEO | VIDEO |
| Video CDs | COMPACT DISC DIGITAL VIDEO | VIDEO CD |
| Audio CDs | COMPACT DISC DIGITAL AUDIO COMPACT DISC DIGITAL AUDIO ReWritable | COMPACT DISC DIGITAL AUDIO Recordable |
| MP3 files | COMPACT DISC DIGITAL AUDIO ReWritable | COMPACT DISC DIGITAL AUDIO Recordable |
| COMPACT DISC Recordable | COMPACT DISC ReWritable |
Notes on CD-Rs (recordable CDs)/ CD-RWs (rewritable CDs)
Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.
- You cannot play a CD-R/CD-RW that is not finalized.
- You can play MP3 files recorded on CD-ROMs, CD-Rs, and CD-RWs.
A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player.

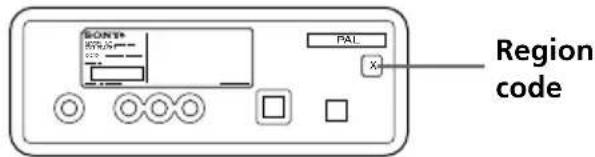

Region code of DVDs this player can play
This player has a region code printed on the rear of the player and will only play DVDs that are labelled with identical region codes. DVDs labelled will also be played on this player. If you try to play any other DVD, the message "WRONG REGION" will appear on the screen. Depending on the DVD, the region code indication may not appear even if the DVD is prohibited by area restrictions.
Cautions
- This player CANNOT play these discs.
DVD-Audio DVD-RAM
DVD-ROM DVD-RW
DVD-R Active-Audio (Data)
Photo-CD VSD
CD-Extra (Data)
-
Mixed CD (Data)
-
CD-ROM (the data other than the MP3 file)
a disc recorded in Multi Session
- This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
continue to next page
Note on PBC (Playback Control) (Video CDs)
This player conforms to Ver. 1.1 and Ver. 2.0 of Video CD standards. You can enjoy two kinds of playback according to the disc type.
| Disc type | You can |
| Video CDs without PBC functions (Ver. 1.1 discs) | Video playback (moving pictures) as well as music. |
| Video CDs with PBC functions (Ver. 2.0 discs) | • Interactive software with menu screens displayed on the monitor (PBC Playback). • Video playback functions. • High-resolution still pictures if they are included on the disc. |
Note on DTS-encoded CDs
When playing DTS*-encoded CDs, excessive noise will be heard from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analogue stereo outputs of this player is connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel DTS Digital Surround™ decoder system must be connected to the digital output of this player.
- "DTS," "DTS Digital Surround" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
Terms for discs
DVD structure
Video CD/Audio CD structure
- Title
The longest section of a picture or music feature on a DVD, e.g., a movie for video software, or an album for audio software, etc.
Chapter
Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.
Track
Sections of a picture or a music feature on a Video CD/Audio CD. Each track is assigned a track number enabling you to locate the track you want.
- Scene
On a Video CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called "scenes." Each scene is assigned a scene number enabling you to locate the scene you want.
Notes on discs
To keep the disc clean, do not touch the surface. Handle the disc by its edge.
- Keep your discs in their cases or disc magazines when not in use. Do not subject the discs to heat/high temperature. Avoid leaving them in parked cars or on dashboards/rear trays.
- Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.
- Do not use any discs with labels or stickers attached.
The following malfunctions may result from using such discs:
Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
- Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.
- Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
- You cannot play 8 cm CDs.
Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the centre out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.
Music discs encoded with copyright protection
This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
About MP3 files
MP3 (MPEG 1 Audio Layer-3) is a standard technology and format for compressing a sound sequence. The file is compressed to about 1/10 of its original size. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed.
Recommended MP3 file format
Sampling frequency 32k, 44.1k, 48k (Hz)
Bitrate (bps) 32k to 256k
Notes on discs
You can play MP3 files recorded on CD-ROMs, CD-Rs, and CD-RWs.
The disc must be in the ISO 9660* level 1 or level 2 format, or Joliet or Romeo in the expansion format.
\*ISO 9660 Format
The most common international standard for the logical format of files and folders on a CD-ROM.
There are several specification levels. In Level 1, file names must be in the 8.3 format (no more than 8 characters in the name, no more than 3 characters in the extension ".MP3") and in capital letters. Folder names can be no longer than 8 characters. There can be no more than 8 nested folder levels. Level 2 specifications allow file names up to 31 characters long.
Each folder can have up to 8 trees.
For Joliet or Romeo in the expansion format, make sure of the contents of the writing software, etc.
Notes
- With formats other than ISO 9660 level 1 and level 2, folder names or file names may not be displayed correctly.
- When naming, be sure to add the file extension ".MP3" to the file name.
- If you put the extension ".MP3" to a file other than MP3, the player cannot recognize the file properly and will generate random noise that could damage your speakers.
The following discs take a longer time to start playback:
-- a disc recorded with complicated tree structure.
-- a disc to which data can be added.
- If you play a high-bit rate MP3 file such as 320 kbps, sound may be intermittent.

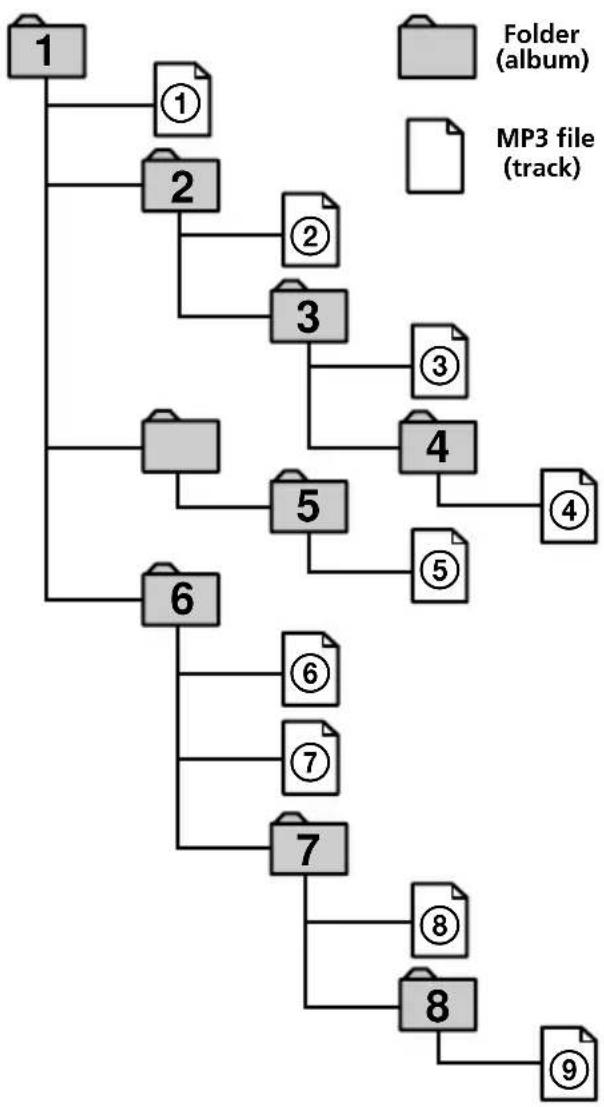

The playback order of the MP3 files
The playback order of the folders and files is as follows:
Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 (root)
Tip
To specify a desired playback order, before the folder or file name, input the order by number (e.g., "01," "02"), then record contents onto a disc (The order differs depending on the writing software).

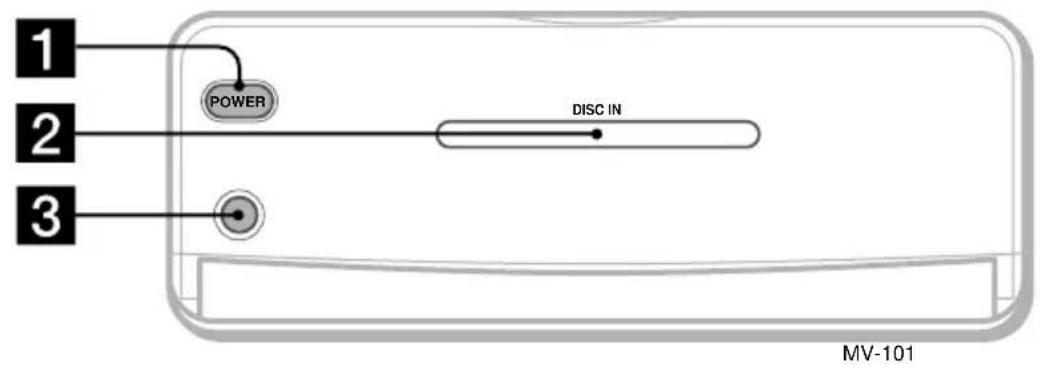

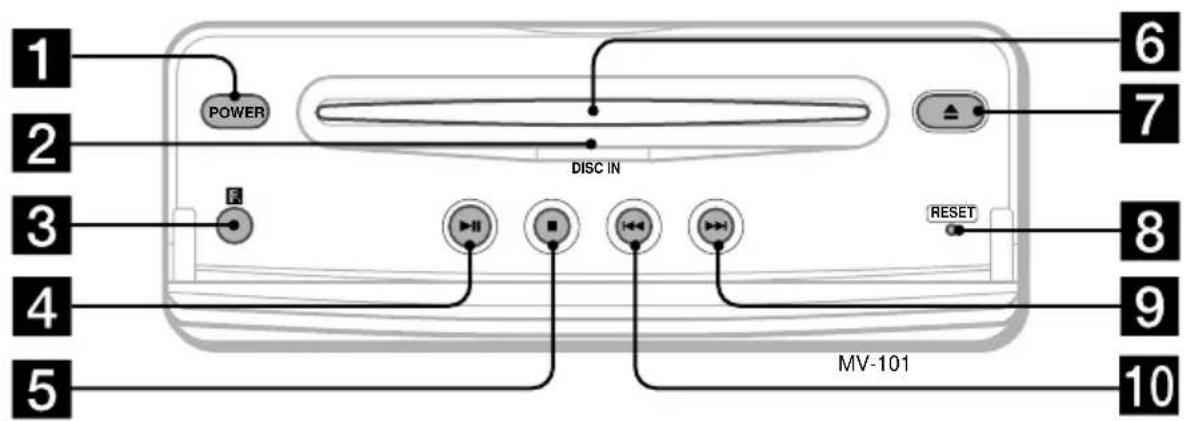

Location of controls
Refer to the pages listed for details.
1 POWER (on/off) button*
To turn on/off the player, press and hold the POWER button until the green light of the button is turned on/off.
DISC IN light
When a disc is in the player, the DISC IN light glows orange.
3 Receptor for the card remote commander
4 II (play/pause) button 13
5 (stop) button 13
6Disc slot
7 (eject) button 13
Available to eject a disc from the player even when the player is turned off.

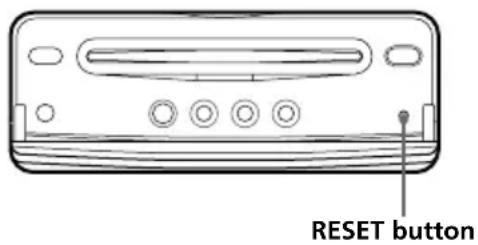

8RESET button 12
9▶I (next) button 13
10I (previous) button 13
- Warning when installing in a car without an ACC (accessory) position on the ignition key switch Be sure to press and hold the POWER button (1) on the player until the green light of the button is turned off.
Otherwise, the player is not turned off and this causes battery drain.
Note
Even when the player is turned off, you can eject a disc from the player, though you cannot insert a disc.

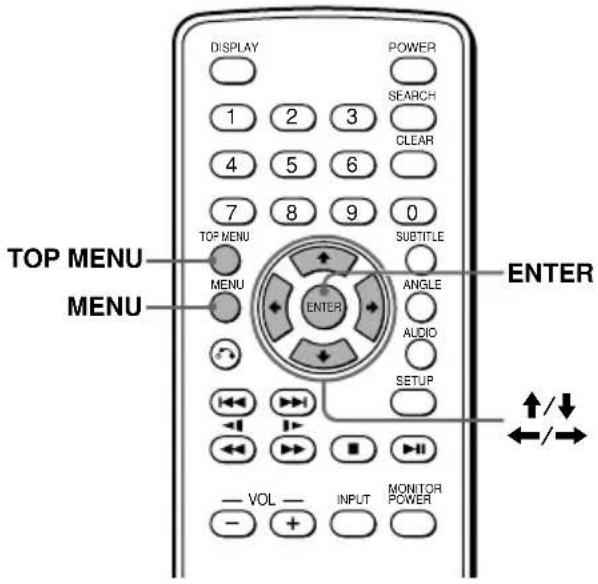

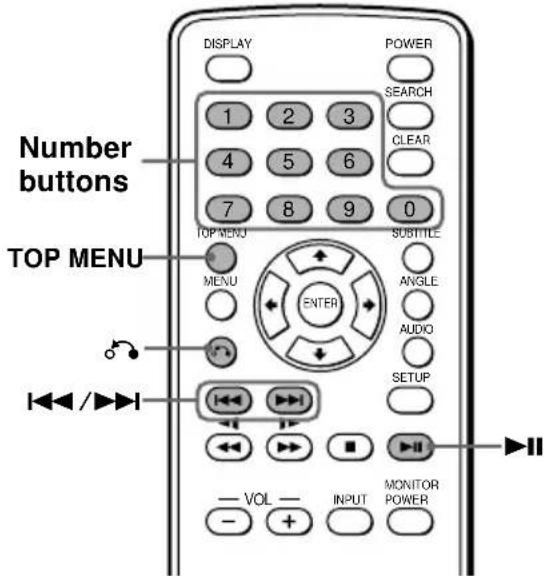

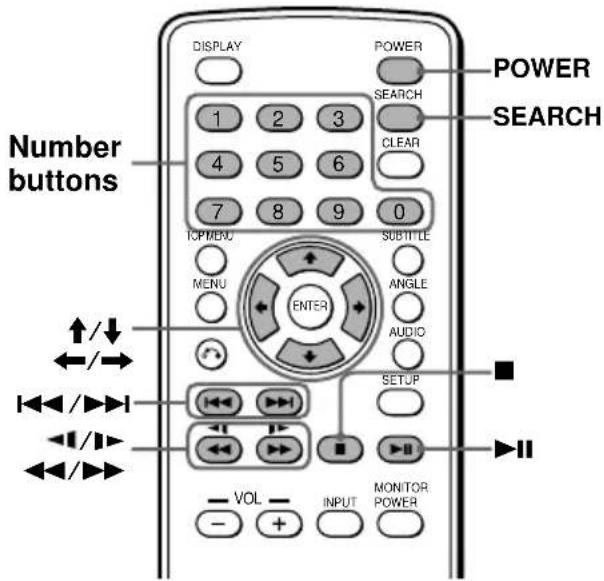

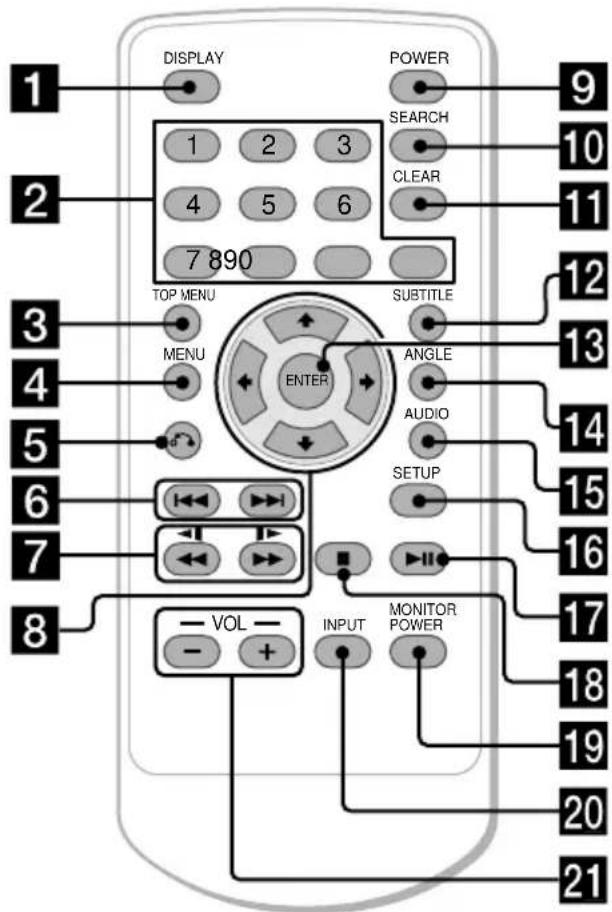

Card remote commander RM-X135
Refer to the pages listed for details.

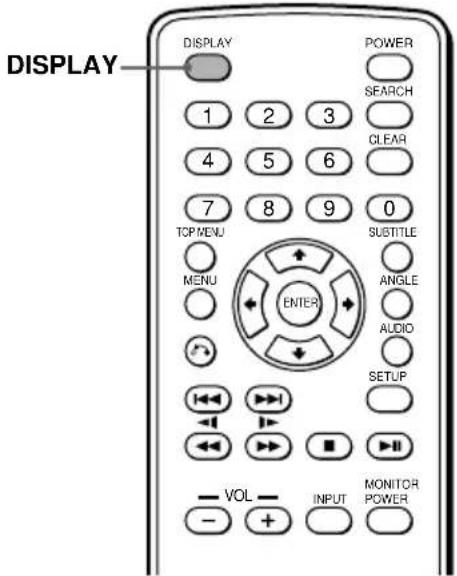

DISPLAY button 15
To display a running time.
2Number buttons 19
3TOP MENU button 17, 19
To display the top menu of a recorded DVD or to turn on/off the PBC (Playback control) menu of a Video CD.
4 MENU button 17
To display the recorded DVD menu.
5 (return) button 19
6 I/previous/next) buttons
7/（fast/slow reverse)/
fast/slow forward) buttons
8 / / / buttons
9 POWER (on/off) button 13
For details, refer to "Cautions about the POWER (on/off) button [9]."
TOSEARCH button 14
To specify a desired point on a disc by chapter, title, or track.
CLEAR button
The corresponding buttons of the card remote commander control the same functions as those on the player.
Instructions in this manual describe how to use the player by mainly using the card remote commander.
Tip

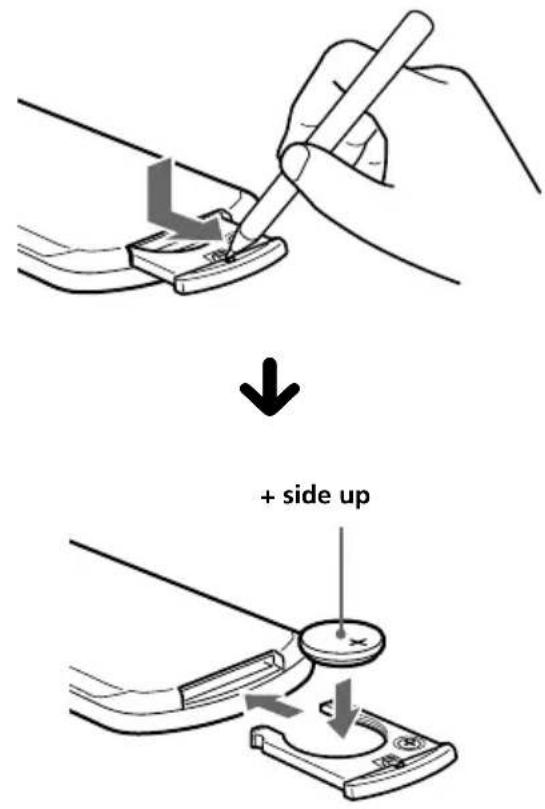

Refer to "Replacing the lithium battery" for details on how to replace the battery (page 29).
Cautions about the POWER (on/off) button (9)
- To turn off the player, press and hold the POWER button for more than 2 seconds. The player is completely turned off. If your car has no ACC position, make sure that the green light of the POWER button (7) on the player (page 10) is turned off. Otherwise it may cause battery drain.
To turn on the player again, be sure to press and hold the POWER button (1) (page 10) on the player until the green light of the button is turned on.
12SUBTITLE button 16
To change the subtitle language while playing a DVD.
ENTER button
To enter a setting.
14 ANGLE button 18
To select the multiple angles of view while playing or pausing a DVD.
15 AUDIO button 18, 19
To change the audio output/audiolanguage.
16SETUP button 20
To enter or quit the setup menu.
17▶II (play/pause) button
18 (stop) button
19MONITOR POWER (on/off) button*
To turn on/off the monitor.
20INPUT button*
To select the input source.
21VOL (- / + ) buttons*
To turn up or down the volume.
- These buttons work for optional Sony monitors other than XVM-R75 and XVM-H6.
Resetting the player
Before operating the player for the first time, or after replacing the car battery, or after changing the connections, you must reset the player.
Open the front panel and press the RESET button with a pointed object, such as a ballpoint pen.
DVD/Video CD/
CD Player
This chapter describes how to play a disc.
Playing a disc
1 Press POWER to turn on the player.
2 Open the front panel.
3 Insert the disc (labelled side up or the surface you want to play down if the disc is a DVD).
If a disc is already inserted, press to start playback.
Note
Even when the player is turned off, you can eject a disc from the player, though you cannot insert a disc.
| To Do this | |
| Stop playback Press■* 1 | |
| Eject the disc Open the front panel, then press ▲ on the player. | |
| Pause Press ▲■ * 2 | |
| Resume playback Press ▲■ after pause | |
| Go to the next chapter, Press ▲■ track, or scene in continuous play mode | |
| Go back to the preceding Press ▲■ chapter, track, or scene in continuous play mode | |
| Fast forward Press ▲■ while playing*3*4 | |
| Fast reverse Press /▲ while playing*3*4 | |
| Slow forward Press ▲■ in (DVD/Video CD only) pause* 4 | |
| Slow reverse Press /▲ in (DVD only) pause |
1 If the resume playback function is activated, you can resume playback later by pressing ▷. For details, see "Resume playback."
*2 DVD/Video CD Both the picture and sound stop during pause and "PAUSE" is displayed on the screen. Audio CD The sound stops and PAUSE" is displayed on the screen.
3 DVD/Video CD/Audio CD
Playback increases to 4 times the speed with no sound.
*4 A disc other than a DVD returns to normal playback when a track/MP3 file finishes.
Notes
Depending on the recording method used on the disc, it may take a minute or more before playing.
Depending on the condition of the disc, it may not play back (page 7).
- If you play a high-bit rate MP3 file such as 320 kbps, sound may be intermittent.
continue to next page
Searching a chapter/title/track directly
1 During playback or pause, press SEARCH to display the search screen.
DVD Each time you press SEARCH, the search screen toggles between Title and Chapter.
Video CD (only when PBC is off)/Audio CD The track search screen appears.
2 Press the number buttons to enter the desired chapter/title/track number.
3 Press ENTER.
Note
You cannot set "0."
Resume playback
1 During playback, press to stop.
The player memorizes the point where playback is stopped.
DVD/Video CD/Audio CD "PRESS PLAY TO CONTINUE" flashes on the screen.
2 Press to start playback.
When resume playback is activated, playback starts from the point where playback is stopped. When resume playback is deactivated, playback starts from the beginning.
MP3
When resume playback is activated, playback starts from the beginning of the MP3 file (track) during which you stopped playback.
Notes
To deactivate the resume function, press again while playback is stopped or eject the disc from the player.
- The player stores the point where you stopped playback for the disc currently in the player.
The resume function will be deactivated when the disc is ejected.
- If the resume function is activated during fast/slow forward or fast/slow reverse playback, normal playback starts when you press
Turning off this player
Press POWER to turn off this player.
MP3 file playback with the menu display MP3
If you have set "SMART NAVI" to "WITH MENU" (page 28) and play a CD containing MP3 files, the menu display for folder names and MP3 file names will appear. You can easily search the desired MP3 file with the "SMART NAVI" menu display.
1 Insert a CD containing MP3 files in this player.
The "SMART NAVI" menu display appears.
2 Press the number buttons to select the desired folder.
/ / / buttons are also available to select the desired folder.
If you select the folder 1, the MP3 file names in the folder 1 appear.
3 Press the number buttons to select the desired MP3 file.
/ / / buttons are also available to select the desired MP3 file.
Playback starts.
To turn off the menu display for MP3 files, set "SMART NAVI" to "NO MENU" (page 28).
Notes
To deactivate the resume function, press again while playback is stopped or eject the disc from the player.
- While playing back, you cannot change a folder or file with the "SMART NAVI" menu display. Only the file in the selected folder can be changed with the button. To change the folder, select from the "SMART NAVI" menu display while playback is stopped (resume playback is deactivated).
Displaying running time
You can display the running time of DVDs, Video CDs and Audio CDs.
During playback, press DISPLAY.
The running time is displayed at the upper left.
DVD
Press DISPLAY while the running time is displayed.
Each time you press DISPLAY, the display changes as follows:
- The format of the sound source (Dolby D, DTS, or LPCM) may appear.
To exit the display for running time, press DISPLAY repeatedly to select "OFF."
continue to next page
Video CD/CD
Press DISPLAY while the running time is displayed.
Each time you press DISPLAY, the display changes as follows:
To exit the display for running time, press DISPLAY repeatedly to select "OFF."
Changing the subtitle language DVD
Some DVDs have recorded subtitles in one or more languages. You can turn the subtitles on or off, or change the subtitle language on such DVDs.
Press SUBTITLE, during playback.
The subtitle language is displayed at the upper left.
Example: a subtitle language display
SUBTITLE 02/32:ENGLISH
Each time you press SUBTITLE, the language switches within the list of subtitle languages recorded on the disc.
When the display for the language code appears, input the language code corresponding to the desired language (page 34).
Notes
- You can also change the subtitle languages by changing Setup*. See "Displaying the subtitles for DVD — SUBTITLE" (page 25).
- You can change to a specific subtitle language using a setup menu, only if the language is included in both the disc and the setup screen.
If you want to hide the subtitles, press SUBTITLE repeatedly to select "OFF." - This function varies or may not work, depending on the DVD.
Using a DVD menu DVD
With some DVDs you can use the original menu such as Title menu and DVD menu. You can play your favorite scene or song by selecting titles of songs and scenes during a DVD playback. You can select an item, subtitle language, audio language etc. by selecting a DVD menu. The contents of title menus and DVD menus differ, depending on the DVD. There may be some DVDs which have no recorded menus.
Using the TOP MENU button
Some DVDs have a title menu. From the title menu you can select a title for playback. Titles are the longest sections of a picture or music feature on a DVD, e.g., a movie, or an album for audio software, etc. The TOP MENU button is available to display the initial menu screen.
1 During DVD playback, press TOP MENU.
The top menu (titles) is displayed.
The contents of the top menu differ, depending on the DVD.
2 Press / / / to select the desired title.
3 Press ENTER
The title you selected starts to play.
Using the MENU button
Some DVDs have more comprehensive Menu that includes such things as the audio languages, subtitle languages, titles, and chapters, etc.
1 During a DVD playback, press (MENU). The DVD menu is displayed.
2 Press / / / to select the desired item.
3 Press ENTER*.
- If additional selection screens appear, repeat step 2 and 3.
Notes
Some DVDs do not have a DVD menu and on some DVDs, the contents of the DVD menu and title menu are the same.
- On some DVDs, "DVD Menu" may be expressed as "MENU."
Some DVDs, "Press ENTER" may be expressed as "Press SELECT" in step 3.
- The contents of the DVD menu differ, depending on the DVD.
- Read the instruction manual supplied with a DVD.
Changing the audio language DVD
Some DVDs have multiple audio languages you can choose from.
During playback, press AUDIO repeatedly to select the desired audio language.
The current audio language is displayed at the upper left.
Example: an audio language display
When the display for the language code appears, input the language code corresponding to the desired language (page 34).
Notes
- You can switch the audio language only if multiple audio languages are recorded on the DVD.
- You can also change the audio languages by using the DVD menu (page 17) or the setup screen* (page 24).
- You can change to a specific audio language using a setup screen, only if the language is included in both the disc and the setup screen.
- This function varies or may not work, depending on the DVD.
Changing angles
Some DVDs have multiple alternative angles recorded for certain scenes. If you have set "ANGLE MARK" to "ON" (page 20), a notice appears for 3 seconds at the scene. If "ANGLE MARK" is not set to "ON," the notice does not appear at the scene.
1 During playback of a DVD having multiple alternative angles recorded, press ANGLE when a notice appears.
The number of the currently selected angle is displayed at the upper right.
2 Press ANGLE repeatedly to select your favorite angle number, while the angle number is displayed.
Each time you press ANGLE, the angle number switches.
Notes
- You can switch the angle only if multiple angles are recorded on the DVD.
- The total number of recorded angles differs depending on the DVD and scene.
- You can only switch the angle during normal playback. You cannot switch the angle during fast forward/reverse playback.
- When the selected scene with multi angles appears, the angle is automatically switched to the angle number you selected in step 2.
Changing the audio output
You can select the desired audio output from "STEREO," "L-MONO," "R-MONO," or "MIX-MONO" during Video CD or Audio CD playback.
1 During playback, press AUDIO.
The current output is displayed at the upper left.
Example: an audio output display
L-MONO
2 Press AUDIO to select the desired output from "STEREO," "L-MONO," "R-MONO," or "MIX-MONO" while the output is displayed.
Each time you press AUDIO, the output switches.
Using the PBC (playback control) function VCD
During playback of a PBC compatible Video CD, you can display the PBC menu and select the item from the menu.
1 Insert a Video CD, then press TOP MENU repeatedly to select "PBC ON."
Depending on the Video CD, the PBC menu may be displayed automatically after inserting a Video CD.
Each time you press TOP MENU, the PBC menu function turns on or off.
2 Press II.
The PBC menu is displayed.
3 While the PBC menu screen is displayed: press the number buttons to select the number of the desired item. press I / to go to the previous/ next page.
Button functions vary or may not work, depending on the Video CD.
Notes
To display the PBC menu during playback of a Video CD, press (TOP MENU) repeatedly to select "PBC ON," then press
- During playback of a Video CD with "PBC ON," press the number buttons or 1 1 to change the item. The PBC menu is not displayed but the item you selected starts to play.
- During playback of a Video CD with "PBC ON," press to display the PBC menu.
- The PBC menus differ, depending on the Video CD. Read the instruction manual supplied with the Video CD.
Changing Setup
You can set up and adjust this player using the on-screen setup menu. Most settings need to be set when you first use this player.
Displaying the multi-angle notice ANGLEMARK DVD
If various angles (multi-angles) for a scene are recorded on the DVD and you have set the "ANGLE MARK" to "ON," a notice appears at the scene.
1 Press

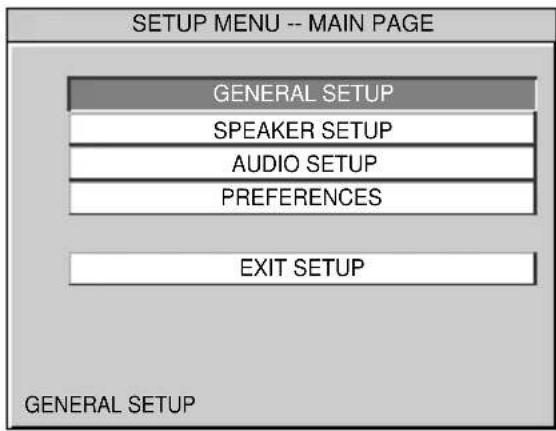

The main page for setup appears. "PREFERENCES" is only available when playback is stopped.
2 Press or repeatedly to select "GENERAL SETUP," then press ENTER.
3 Press or repeatedly to select "ANGLE MARK," then press .
4 Press or repeatedly to select "ON."
5 Press ENTER.
"ANGLE MARK ON" is displayed at the lower left on the monitor.
To turn off the multi-angle notice, select "OFF" in step 4.
To return to normal play screen, press SETUP anytime.
Note
To return to the main page for setup, press ↑/↓← repeatedly to select "MAIN PAGE," then press ENTER.
Displaying captions for viewers with hearing difficulties CAPTIONS DVD
Captions are the words displayed on the monitor that describe the audio or sound portion of a DVD. Captions allow viewers with hearing difficulties to follow the dialog and the action of a scene simultaneously. This function is only available when a DVD containing captions is played.
1 Press

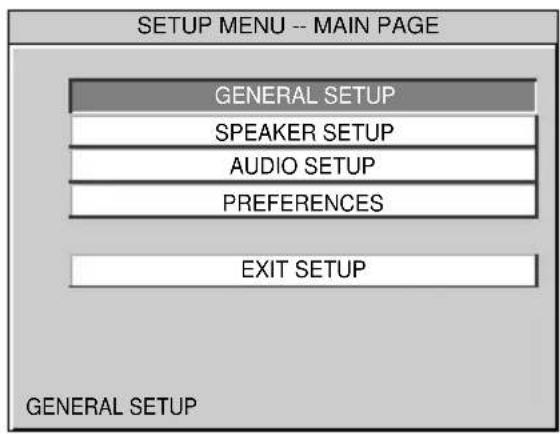

The main page for setup appears. "PREFERENCES" is only available when playback is stopped.
2 Press or repeatedly to select "GENERAL SETUP," then press ENTER.
3 Press or repeatedly to select "CAPTIONS," then press .
4 Press or repeatedly to select "ON."
5 Press ENTER.
To turn off the captions, select "OFF" in step 4.
To return to normal play screen, press (SETUP) anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Setting the screen saver
SCRSAVER
If you set the "SCR Saver" setting to "ON," the screen saver image appears when you leave the player in pause or stop mode for more than 15 minutes. The screen saver will help prevent the monitor from becoming damaged.
1 Press (SETUP).
The main page for setup appears.
2 Press or repeatedly to select "GENERAL SETUP," then press ENTER.
3 Press or repeatedly to select "SCR Saver," then press .
4 Press or repeatedly to select "ON."
5 Press ENTER.
To turn off the screen saver setting, select "OFF" in step 4.
To return to normal play screen, press SETUP anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Selecting the speaker mode - SPEAKER SETUP DVD
You can select the speaker mode setting from "LT-RT" or "STEREO." The downmix function is used to create stereo (2-channel) signals from more than 5 separated digital signals of a source.
LT-RT: theater downmix mode.
STEREO: stereo downmix mode.
1 Press
The main page for setup appears.
2 Press or repeatedly to select "SPEAKER SETUP," then press ENTER.
3 Press or repeatedly to select "DOWNMIX," then press .
4 Press or repeatedly to select the desired item from "LT/RT" or "STEREO."
5 Press ENTER
"LT/RT DOWNMIX" is displayed at the lower left on the monitor, for example if you select "LT/RT" in step 4.
To return to normal play screen, press SETUP anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Selecting the audio output mode — AUDIO OUT
You can select the audio output setting from "SPDIF/RAW" or "SPDIF/PCM."
SPDIF (Sony/Philips Digital Interface) is a standard of audio transfer file format. SPDIF allows the transfer of audio, however, signal quality may be degraded.
SPDIF/RAW: outputs the original audio data in SPDIF format.
SPDIF/PCM: outputs the sampling of the original audio data in SPDIF format.
1 Press
The main page for setup appears.
2 Press or repeatedly to select "AUDIO SETUP," then press ENTER.
3 Press or repeatedly to select "AUDIO OUT," then press .
4 Press or repeatedly to select the desired item from "SPDIF/RAW" or "SPDIF/PCM."
5 Press ENTER.
"SPDIF/RAW OUTPUT" is displayed at the lower left on the screen, for example if you select "SPDIF/RAW" in step 4.
To return to normal play screen, press (SETUP) anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Selecting the compression setting for the sound
DYNAMIC
You can select the compression setting for the sound. If you set the DYNAMIC setting to "OFF" and watch an exciting movie, you can enjoy dynamic sound to its best effect. However, for example, if the sound is too dynamic and loud to hear low level sound such as human voices, try adjusting the dynamic range.
1 Press
The main page for setup appears.
2 Press ↑
or repeatedly to select "AUDIO" then press ENTER.
3 Press↑
or repeatedly to select
"DYNAMIC," then press
4 Press
or repeatedly to select the item from "FULL," "HIGH," "MID" V."
5 Press E
ENTER).
To turn off the dynamic range of sound volume, select "OFF" in step 4.
To return to normal play screen, press setup anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Selecting the TV colour system — COLOR SYSTEM
The colour system differs, depending on your country. You can change the TV colour system for the monitor.
1 Press The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "COLOR SYSTEM," then press .
4 Press or repeatedly to select the desired item from "PAL" or "NTSC."
5 Press ENTER. "SET TO PAL" is displayed at the lower left on the screen, for example if you select "PAL" in step 4.
To return to normal play screen, press SETUP anytime.
Notes
To return to the main page for setup, press ↑/↓/ ← repeatedly to select "MAIN PAGE," then press ENTER.
If your connected monitor is not NTSC compatible, do not set "COLOR SYSTEM" to "NTSC," as your monitor will not display, and operations will not be possible.
Selecting the audio language for DVD
Some DVDs have multiple audio languages you can select from.
1 Press (SETUP). The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "AUDIO," then press .
4 Press or repeatedly to select the desired item from "ENGLISH," "FRENCH," "SPANISH"or "JAPANESE."
If you select "OTHERS," select and enter a language code from "Language Code List" (page 34).
5 Press ENTER).
"PREFERENCE SET TO ENGLISH" is displayed at the lower left on the screen, for example if you select "ENGLISH" in step 4.
To return to normal play screen, press SETUP anytime.
Notes
To return to the main page for setup, press ↑/↓/ ← repeatedly to select "MAIN PAGE," then press ENTER.
- Regardless of setting to the desired language, other language may be automatically activated, depending on the DVD.
Displaying the subtitles for DVD - SUBTITLE DVD
If subtitles are recorded on the discs, you can change the subtitles or turn the subtitles on and off when playback is stopped or the disc is ejected.
1 Press
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "SUBTITLE," then press .
4 Press or repeatedly to select the desired item from "ENGLISH," "FRENCH," "SPANISH"or "JAPANESE."
If you select "OTHERS," select and enter a language code from "Language Code List" (page 34).
5 Press ENTER.
"PREFERENCE SET TO ENGLISH" is displayed at the lower left on the screen, for example if you select "ENGLISH" in step 4.
To turn off the subtitle select "OFF" in step 4.
To return to normal play screen, press setup anytime.
Notes
To return to the main page for setup, press ↑↓/← repeatedly to select "MAIN PAGE," then press ENTER).
- Regardless of setting to the desired language, other language may be automatically activated, depending on the DVD.
Selecting the DVD menu language DISC MENU DVD
You can select the display language for the DVD menu.
1 Press
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "DISC MENU," then press .
4 Press or repeatedly to select the desired item from "ENGLISH," "FRENCH," "SPANISH" or "JAPANESE."
If you select "OTHERS," select and enter a language code from "Language Code List" (page 34).
5 Press ENTER.
"PREFERENCE SET TO ENGLISH" is displayed at the lower left on the screen, for example if you select "ENGLISH" in step 4.
To return to normal play screen, press SETUP anytime.
Notes
To return to the main page for setup, press ↑/↓/ ← repeatedly to select "MAIN PAGE," then press ENTER.
- Regardless of setting to the desired language, other language may be automatically activated, depending on the DVD.
Preparing for the initial parental setting DVD
Playback of some DVDs can be limited according to a predetermined level, such as the age of the viewer. The Parental control function allows you to set a playback limitation level. When you use the unit for the first time, set a password and parental level as described below.
Setting the password
1 Press
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "password," then press .
4 Press ENTER
The setup screen for setting your password is displayed.
5 Press the number buttons to enter 5370 at "OLD PASSWORD."
6 Press the number buttons to enter your desired 4-digit number at "NEW PASSWORD."
7 Press the number buttons to enter your password* (the same 4-digit number in step 6) again at "CONFIRM PWD."
- If you enter a wrong number, press ENTER. All the numbers are cleared.
8 Press ENTER
Selecting the desired parental setting — PARENTAL
1 Press
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "PARENTAL," then press .
4 Press or repeatedly to select the desired item from "1 G," "2," "3 PG," "4 PG-13," "5," "6 R," "7 NC-17," "8" or "OFF."
5 Press ENTER.
The screen for password appears.
6 Press the number buttons to enter your 4-digit password number.
The parental setting is completed.
7 Press ENTER
Notes
- If you forget your registered 4-digit password number, press 5370.
- Parental levels in the table are displayed according to MPAA (Motion Picture Association of America) rating system.
Refer to the following table. Parental levels of the table are on the MPAA (Motion Picture Association of America) rating system. If you set this player to level "4" for example, DVDs with levels "5," "6," and "7" cannot be played.
This Player MPAA Rating System
"OFF*"
"8"
"7" "NC-17": No one 17 and under admitted
"6" "R": Restricted
“5”“—”：
"4" "PG-13": Parents strongly cautioned
"3" "PG": Parental guidance suggested
"2" "一"：
"1" "G": General audience
- If you select level "OFF," you can play all discs.
Changing your password — PASSWORD
You can change your password for parental setting here. Follow the steps below.
1 Press
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "password," then press .
4 Press ENTER
5 Press the number buttons to enter your old password, new password, then new password again to confirm it.
6 Press ENTER
To return to normal play screen, press (SETUP) anytime.
Note
If you forget your registered 4-digit password number, press 5370.
Returning this player to the factory setting
— DEFAULTS
You can return this player to the factory setting except your password (page 26, 27) and parental setting (page 26). Follow the steps below.
1 Press (SETUP).
The main page for setup appears.
2 Press or repeatedly to select "PREFERENCES," then press ENTER.
3 Press or repeatedly to select "DEFAULTS," then press .
4 Press ENTER
"FACTORY SETTINGS LOADED" is displayed at the lower left on the screen.
To return to normal play screen, press SETUP anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Setting the menu display for MP3 files
SMART NAVI
If you have set "SMART NAVI" to "WITH MENU" and play a CD containing MP3 files, the menu display for folder names and MP3 file names appear. You can easily search the desired MP3 file with the "SMART NAVI" menu display.
1 Press
The main page for setup appears.
2 Press or repeatedly to select
3 Press or repeatedly to select
"SMART NAVI," then press
4 Press ↑ or ↓ repeatedly to select "WITH MENU."
5 Press ENTER
"NO MENU" is displayed at the lower left on the screen.
To turn off the menu display for MP3 files, select "NO MENU" in step 4.
To return to normal play screen, press SETUP anytime.
Note
To return to the main page for setup, press ↑/↓/← repeatedly to select "MAIN PAGE," then press ENTER.
Additional Information
Maintenance

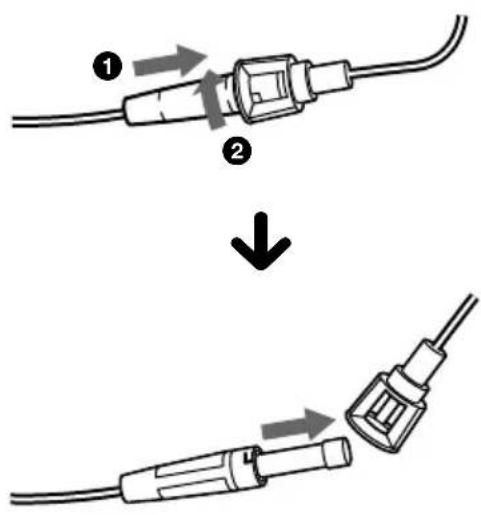

Fuse replacement
When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.
Replacing the lithium battery
When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.
Notes on lithium battery
- Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
- Wipe the battery with a dry cloth to assure good contact.
- Be sure to observe the correct polarity when installing the battery.
- Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of in fire.
Specifications
System
Laser Semiconductor laser
Signal format system PAL
Audio characteristics
Frequency response 20Hz to 20kHz
Signal to noise ratio 90dB (A)
Harmonic distortion 0.03%
Dynamic range 90dB
Wow and flutter below measurable limits
(± 0.001%) WPEAK)
General
Outputs Audio output
Video output
Optical output
Inputs IR input
DC 12V input
Power requirements 12 V DC car battery
(negative earth)
Dimensions
Approx. 189· 70· 243mm
(w/h/d)
Mass Approx. 2.1kg
Operating temperature 0^ to 45^
Supplied accessories Parts for installation and
connections (1 set)
Card remote commander
RM-X135
Operating Instructions (1 set)
Optional equipment Monitor
XVM-R70, XVM-H65
Design and specifications are subject to change without notice.
Troubleshooting
The following checklist will help you remedy problems you may encounter with the player. Before going through the checklist below, check the connection and operating procedures.
General
This player is not turned on.
- Check the connections.
- If you find the connections in order, check the fuse.
If the fuse is blown, replace it with a correctly rated fuse.
If the fuse blows again, consult your nearest Sony dealer. - Press and hold the POWER button on the player until the POWER button lights up in green.
The player may be overheated.
Make sure that the player is completely turned off. Wait until the player cools off, then press the POWER button on the player until the POWER button lights up in green.
The contents of the memory have been erased.
- The power cord or battery has been disconnected.
The power connecting cord is not connected properly.
Stored settings are erased. The fuse has blown. Makes noise when the ignition key is in the ON, ACC, or OFF position.
The leads are not matched correctly with the car's accessory power connector.
The power is continuously supplied to the unit.
The car does not have an ACC position.
Press and hold the POWER button on the player until the green light of the POWER button is turned off.
Disc playback
A disc cannot be loaded.
- Another disc is already loaded.
The disc is forcibly inserted upside down or in the wrong way.
MP3 files cannot be played back.
- Recording was not performed according to the ISO 9660 level 1 or level 2 format, or the Joliet or Romeo convention in the expansion format.
The file extension ".MP3" is not added to the file name. - Files are not stored in MP3 format.
MP3 files take longer to play back than others.
The following discs take a longer time to start playback:
a disc recorded with a complicated tree structure.
a disc to which data can be added.
The sound skips due to vibration.
The player is installed at an angle of more than 15^
The player is not installed in a sturdy part of the car.
Playback functions such as pause are deactivated.
- The RESET button has been pressed.
The disc is ejected.
The sound skips.
Dirty or defective disc.
continue to next page
There is no picture.
- Check that the player is connected securely.
- The connecting cord to the monitor is damaged. Replace it with a new one.
Make sure the monitor is turned on. - Make sure the video input is selected on the monitor to view pictures from the player.
Picture noise appears.
Clean the disc.
Operation
The remote commander does not function.
- Remove any obstacles between the remote commander and the player.
- Use the remote commander closer to the remote control sensor.
- Point the light emitter of the commander at the remote control sensor of the player.
- Replace the battery in the remote if it is weak.
The player does not play from the beginning when playing a disc.
-ResumePlaybackmaybeactivated. Press■againor ejectthe disc.
Depending on the DVD, a TOP menu or a DVD menu may automatically appear on the monitor during playback.
Select the desired menu (page 17).
Depending on the Video CD, the PBC menu display automatically appears on the monitor during playback.
Select the desired menu (page 19).
Playback stops automatically.
The disc may contain an auto pause signal. While playing such a disc, this player stops playback at the signal.
You cannot perform certain functions, such as Stop or Search Playback.
With some discs, you cannot activate these functions.
The language for the sound track cannot be changed during playback of a DVD.
- Multilingual tracks are not recorded on the DVD.
- Changing the language for the track is prohibited on the DVD.
The subtitle language cannot be changed during playback of a DVD.
- Multilingual subtitles are not recorded on the DVD.
- Changing the language for the subtitles is prohibited on the DVD.
The subtitles cannot be turned off during playback of a DVD.
Depending on the DVD, you may not be able to turn the subtitles off.
The angles cannot be changed during playback of a DVD.
- Multi-angles are not recorded on the DVD.
- Change the angles at a scene recorded with multiple angles (page 18).
- Changing the angles is prohibited on the DVD.
The player does not operate properly.
Static electricity, etc., may affect the player's operation.
Make sure that the player is completely turned off. Wait until the player cools off, then press the POWER button on the player until the POWER button lights up in green.
Error display
Error displays
The following indications will be displayed for about 8 seconds.
POWER OFF OVERHEAT
The player may be overheated.
Allow the unit to cool off, then press
on the player again.
WRONG REGION
The region code of the DVD currently in the player does not conform to the player.
Make sure the region code of the DVD and the player (page 5).
The operation cannot be done.
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language Code Language Code Language Code Language
| 1027 Afar 1183 Irish 1347 Maori 1507 Samoan | |||
| 1028 Abkhazian 1186 Scots Gaelic 1349 Macedonian 1508 Shona | |||
| 1032 Afrikaans 1194 Galician 1350 Malayalam 1509 Somali | |||
| 1039 Amharic 1196 Guarani 1352 Mongolian 1511 Albanian | |||
| 1044 Arabic 1203 Gujarati 1353 Moldavian 1512 Serbian | |||
| 1045 Assamese 1209 Hausa 1356 Marathi 1513 Siswati | |||
| 1051 Aymara 1217 Hindi 1357 Malay 1514 Sesotho | |||
| 1052 Azerbaijani 1226 Croatian 1358 Maltese 1515 Sundanese | |||
| 1053 Bashkir 1229 Hungarian 1363 Burmese 1516 Swedish | |||
| 1057 Byelorussian 1233 Armenian 1365 Nauru 1517 Swahili | |||
| 1059 Bulgarian 1235 Interlingua 1369 Nepali 1521 Tamil | |||
| 1060 Bihari 1239 Interlingue 1376 Dutch 1525 Telugu | |||
| 1061 Bislama 1245 Inupiak 1379 Norwegian 1527 Tajik | |||
| 1066 Bengali; Bangla 1248 Indonesian 1393 Occitan 1528 Thai | |||
| 1067 Tibetan 1253 Icelandic 1403 (Afan)Oromo 1529 Tigrinya | |||
| 1070 Breton 1254 Italian 1408 Oriya 1531 Turkmen | |||
| 1079 Catalan 1257 Hebrew 1417 Punjabi 1532 Tagalog | |||
| 1093 Corsican 1261 Japanese 1428 Polish 1534 Setsswana | |||
| 1097 Czech 1269 Yiddish 1435 Pashto; Pushto 1535 Tonga | |||
| 1103 Welsh 1283 Javanese 1436 Portuguese 1538 Turkish | |||
| 1105 Danish 1287 Georgian 1463 Quechua 1539 Tsonga | |||
| 1109 German 1297 Kazakh 1481 Rhaeto-Romance 1540 Tatar | |||
| 1130 Bhutani 1298 Greenlandic 1482 Kirundi 1543 Twi | |||
| 1142 Greek 1299 Cambodian 1483 Romanian 1557 Ukrainian | |||
| 1144 English 1300 Kannada 1489 Russian 1564 Urdu | |||
| 1145 Esperanto 1301 Korean 1491 Kinyarwanda 1572 Uzbek | |||
| 1149 Spanish 1305 Kashmiri 1495 Sanskrit 1581 Vietnamese | |||
| 1150 Estonian 1307 Kurdish 1498 Sindhi 1587 Volapuk | |||
| 1151 Basque 1311 Kirghiz 1501 Sangho 1613 Wolof | |||
| 1157 Persian 1313 Latin 1502 Serbo-Croatian 1632 Xhosa | |||
| 1165 Finnish 1326 Lingala 1503 Singhalese 1665 Yoruba | |||
| 1166 Fiji 1327 Laothian 1505 Slovak 1684 Chinese | |||
| 1171 Faroese 1332 Lithuanian 1506 Slovenian 1697 Zulu | |||
| 1174 French 1334 Latvian; Lettish | |||
| 1181 Frisian 1345 Malagasy 1703 Not specified |
Achtung
CLASS 1 LASER PRODUCT
SUBTITLE 02/32:ENGLISH
5^ , - 1
La lecture commence.
SUBTITLE 02/32:ENGLISH
CLASS 1 LASER PRODUCT
SUBTITLE 02/32:ENGLISH
SUBTITLE 02/32: ENGLISH
LT-RT: theater downmix-stand.
STEREO: stereo downmix-stand.
De disc is vuil of defect.
