Product type	Juice extractor (citrus press)
Brand	Orbegozo
Model	EP 2210
Power supply	230 V, 50 Hz
Juice container capacity	1.0 L
Number of pressing cones	2 (small and large)
Straining sieve	With pulp regulator (3 positions: normal, low, no pulp)
Rotation function	Automatic with direction change by pressing
Maximum usage time	5 minutes, then 2 minutes rest
Cord storage	Integrated with plug holder
Main materials	Plastic, stainless steel (sieve)
Cleaning	Removable parts washable with soapy water; wipe motor unit with damp cloth
Safety	Stop and unplug before cleaning; do not immerse motor unit; do not use if cord damaged
Usage	Domestic use only
After-sales service	Contact: [e-mail]
Compliance	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU

Frequently Asked Questions - EP 2210 Orbegozo

How to use the Orbegozo EP 2210 juicer?

Cut the citrus fruit in half, place the cut side on the cone and press. The appliance starts automatically. Release and press again to change rotation direction and optimize extraction.

What is the maximum capacity of the juice container?

The container can hold up to 1.0 liter of juice.

How to adjust the pulp level in the juice?

The straining sieve has a regulator with 3 positions: normal, low and no pulp. Turn the button A to select the desired level.

Can I use the appliance continuously for a long time?

No, the appliance must not operate for more than 5 minutes at a time. After that, let it rest at least 2 minutes before using again.

How to clean the juicer?

Always unplug the appliance. Wash the jug, sieve, cones and lid with soapy water. Clean the motor unit with a slightly damp cloth, never immerse it in water.

What to do if the power cord is damaged?

Do not use the appliance. Contact an approved technical service or the manufacturer ([e-mail]) for replacement with an equivalent cord.

Can children use this appliance?

Yes, from 8 years under adult supervision. Children must not play with the appliance nor perform cleaning without supervision.

How to store the prepared juice?

Use the jug lid to close the container and place it in the refrigerator. It is recommended to consume the juice quickly. Never store lemon juice in a metal container.

Is the appliance suitable for professional use?

No, this juicer is designed only for domestic use. Do not use it outdoors.

Where can I get a copy of the instruction manual?

You can request a copy by email at [e-mail] or download the manual in PDF format from notice-facile.com.

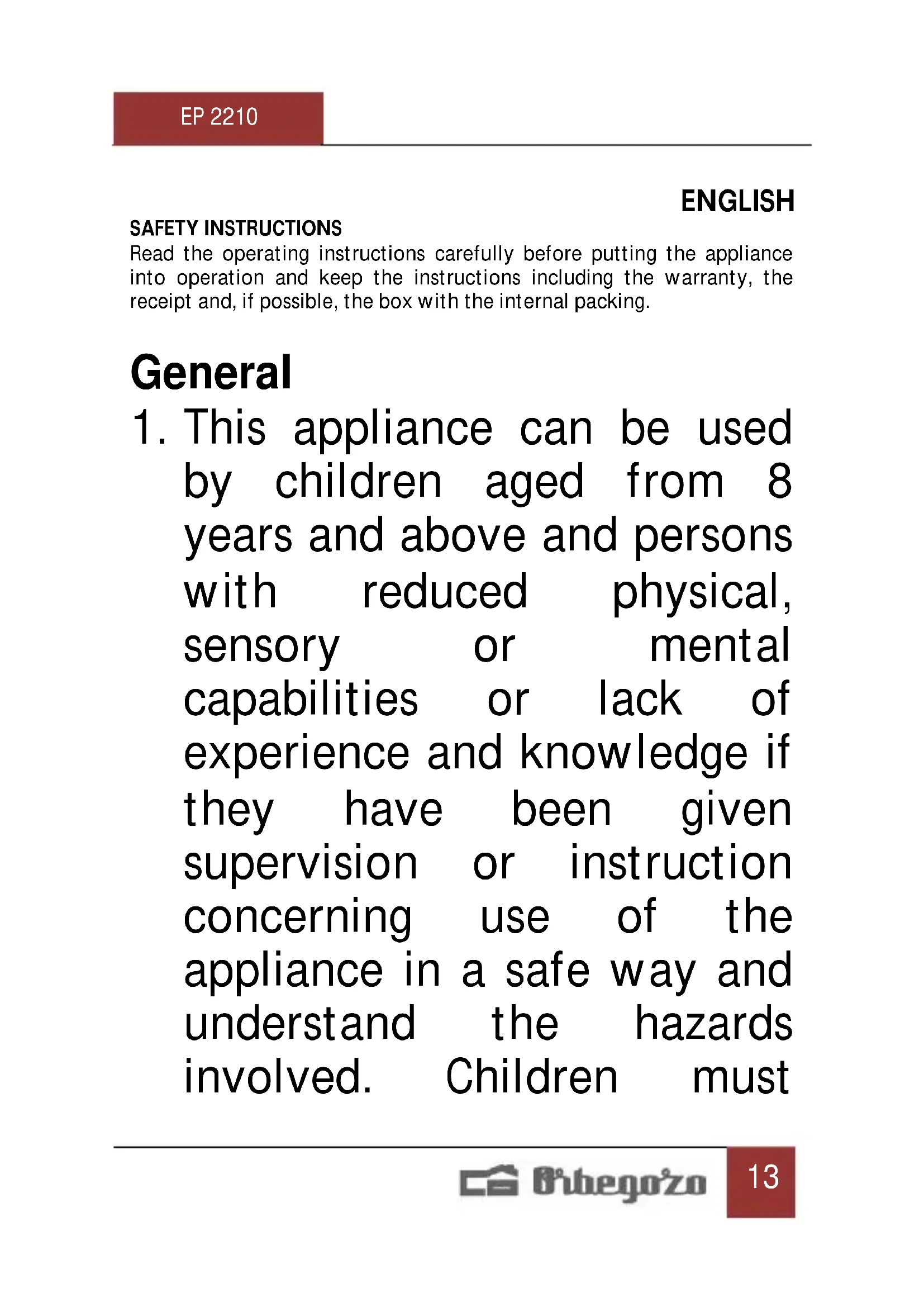

USER MANUAL EP 2210 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must

never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic

bags, boxes, polystyrene etc.) out of their reach.

1. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
2. Never pull on the cord when unplugging.
3. Do not use the unit with a damaged cord or plug, or if it is not working properly.
4. Do not handle the appliance with wet hands.
5. Never immerse the appliance in water or any other liquid.

6. Make sure the appliance has been unplugged before cleaning.

7. This appliance must be installed following the national regulations for electrical installations.

8. This appliance is for household use only.
9. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
10. WARNING: In case of misuse, there is a risk of possible injury.
11. The appliance is designed exclusively for private use and for the envisaged

purpose. This appliance is not for commercial use.

• Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Use only original spare parts.

• Always place the appliance on a flat, stable surface.

• Disconnect the appliance and unplug from power supply if machine is left unattended, of before changing the accessories or nearest parts that move when machine is used, assembled, disassembled or during cleaning.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way

and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children under 8 years.

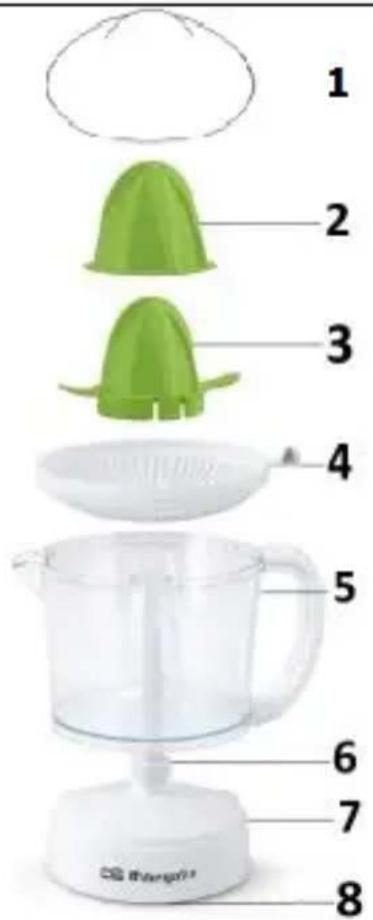

PARTS OF THE PRODUCT

1. Transparent lid
2. Large squeezing cone
3. Small squeezing cone
4. Filter sieve with pulp regulator
5. Juice container
6. Guide mandrel
7. Motor section
8. Cable take-up with plug holder

INITIAL OPERATION

Before using for the first time please clean the machine as described under "Cleaning below.
- Unwind the mains lead on the base and assemble the machine according to the depiction of the individual parts.

USING THE MACHINE

Assembling and releasing the jug

• Assemble the pot by placing it over the guide mandrel and turning it in a clockwise direction until it locks in place.
• Release the jug by turning it through in an anticlockwise direction on the base and lifting.

Replacing and removing the conical press

The small press is placed directly on the drive axle until it is flush with the filter. If you want to use the large cone you must place it on top of the small one.

1. Place the device on a firm and fl at surface. Position it such that it cannot tilt over.
2. Place the jug in the centre of the housing (position the recess in the jug over the drive axle) and turn until tight.
3. Now insert the filter into the jug.
4. Insert the plug in a duly installed 230V / 50Hz socket.
5. Halve the citrus fruit in the middle. Press the fleshy side of one half of the fruit on to the conical press and keep pressed. The machine

starts turning automatically. Results can be improved by releasing the pressure and then pressing again. This changes the direction of rotation.

CAUTION: Do not use the device for more than 5 minutes! In this case, let it stand for 2 minutes.

1. The juice now flows into the container (max. 1,0 l). The flesh of the fruit and the pips remain in the filter.
2. Now take out the jug to pour the juice. You can also place the jug in the refrigerator with the lid closed in order to store the juice.
3. Pull the plug out of the socket after use and clean the device as described below.

Mains lead take-up the mains lead can be wound up on the base.

As you can see in below picture, the filter sieve has 3 positions for pulp filtering: 1) Normal pulp level; 2) Low pulp level and 3) With no pulp. You can change desired level with knob A.

Important

It is recommended to consume juices as soon as possible.
- Never store such juices in metal containers.

CLEANING

• Please remove the mains plug before the device is cleaned.
  Clean the lemon squeezeer every time it is used.
• Clean the juice container, the filter, the two pressing cones and the transparent lid in soap and water.
• Pull the small pressing cone carefully out of the filter strainer in order to clean it. Do not use abrasive or aggressive cleaners.
• Clean the outer motor casing and the wire with a slightly moist cloth and then wipe with a dry cloth.
• Never immerse the housing with motor in water!

After cleaning all the parts you can assemble them as described in "Parts of the product".

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be

collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
