USER MANUAL EP 2000 Orbegozo

White and green fresh juice maker with a green sprout, no visible text or symbols on the device itself.

EP 2000

Sonifer, S.A.

Web: www.orbegozo.com

Made in P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Technical diagram of a kitchen appliance with labeled parts including blender, grater, and pot

INSTRUCCIONES DE USO

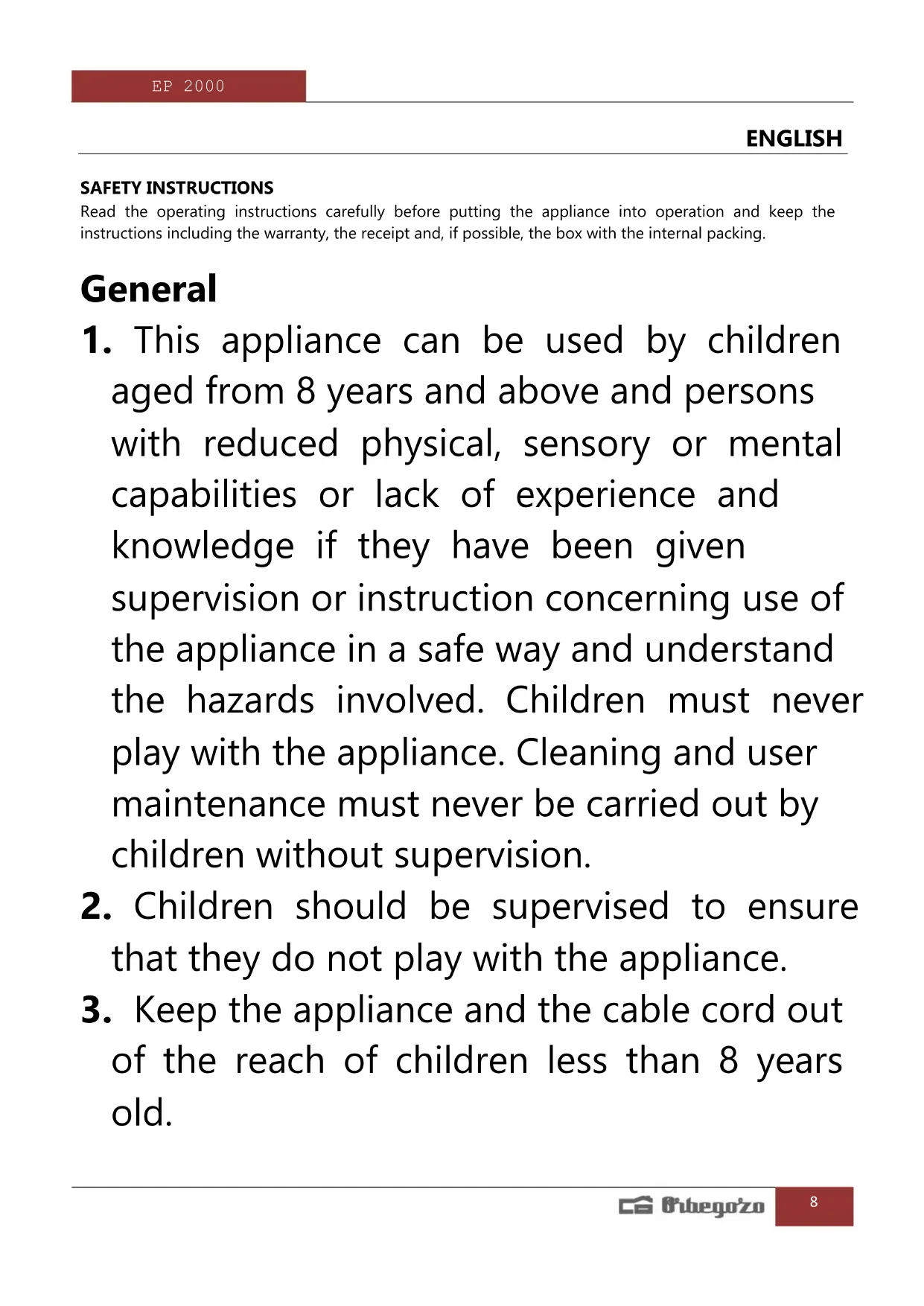

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not for commercial use.

16. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use it outdoors.
17. Do not handle the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
18. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

19. Use only original spare parts.

20. Always place the appliance on a flat, stable surface.

21. Disconnect the appliance and unplug from power supply if machine is left unattended, of before changing the accessories or nearest parts that move when machine is used, assembled, disassembled or during cleaning.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children under 8 years.

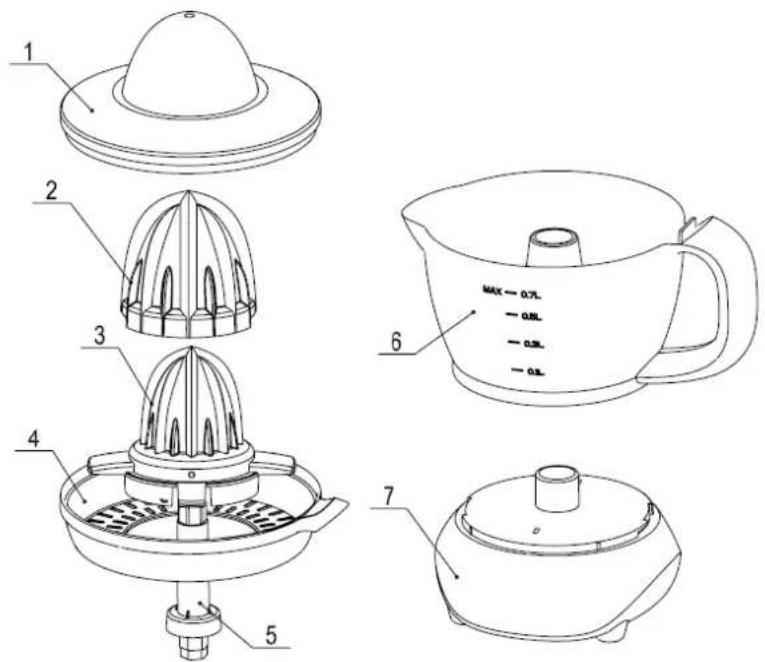

JUICER PARTS

1. Transparent protective cap
2. Cone for oranges
3. Cone for lemons
4. Filter
5. Drive shaft
6. Pitcher
7. Engine base

Technical diagram of a kitchen appliance with labeled parts including a lid, fan, and pot

INSTRUCTIONS FOR USE

1) Fully unwind the cord before plugging it in.
2) Connect the appliance to the electrical network.
3) Cut the citrus fruit(s) to be squeezed in half.
4) Start the device by pushing the piece of citrus downwards, once placed on the juicer cone.
5) To stop the device, simply stop applying pressure to the cone.
6) Remove both the cone and the filter to empty the carafe.
7) Pour the juice from the pitcher into glasses to serve directly.
8) If you squeeze a large amount of citrus, you should periodically clean the filter and remove any remaining pulp.

Cleaning

• Unplug the appliance from the mains before cleaning it.
• Except for the motor base, all parts can be cleaned with neutral detergent and water or in a dishwasher. Rinse well to remove all traces of detergent.
• Clean the motor base with a damp cloth and a few drops of liquid detergent and then dry.
• Do not use solvents, or products with an acidic or basic pH such as bleach, or abrasive products, to clean the device.
• Do not immerse the motor base in water or any other liquid or place it under a running faucet.
• It is recommended to clean the appliance regularly and remove any food residue.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

CONSEILS DE SECURITE

Technical diagram of a kitchen appliance with labeled parts including blender, grater, and water dispenser

MODE D'EMPLOI

Technical diagram of a kitchen appliance with labeled parts including a blender, juicer, and water heater

INSTRUÇÕES DE USO

MAX = 0.7L

1. Con per a llimones
