USER MANUAL EXP 5000 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.
15. The electrical safety of the appliance is guaranteed only if it is connected to an efficient earth, as provided in the electrical safety regulations in force. The manufacturer shall not be held responsible for damage or injury arising from a lack of earth. If in any doubt, contact a professionally qualified person.
16. We do not advise the use of adaptors, or extension plugs or leads. If such items are essential, use only simple or multiple adaptors and extension leads which comply with the safety regulations in force, taking care not to exceed the power limit indicated on the adaptor and/or extension lead.
17. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.
18. Do not let cord hang over edge of table or counter, or touch hot surface.
19. Do not use appliance for other than intended use and place it in a dry environment.
20. Do not leave the coffee maker unattended while it is operating, the appliance cannot be operated by children.
21. Be careful not to get burned by the steam.
22. Do not touch hot surface. Use handles or knobs only.
23. Never use the appliance if the jar shows any signs of cracks. Only use the jar with this appliance. Use carefully as the jar is very fragile.

24. Never use your coffee maker without water in it.

25. Stand the appliance on a table or flat surface.

26. CAUTION: The surface can remain hot during and after use.
27. WARNING: The filling opening must not be opened during use.

IMPORTANT NOTES

• Please have the pressure released before open the top cover at any time and make sure that the steam are completely discharged.
• Please do not touch the high-temperature components (such as high-pressure steam tube, water outlet, top cover, etc.) when using the coffee machine.
• Please, do not use this machine continuously: please, wait for 3 minutes after using it every time before starting it again.

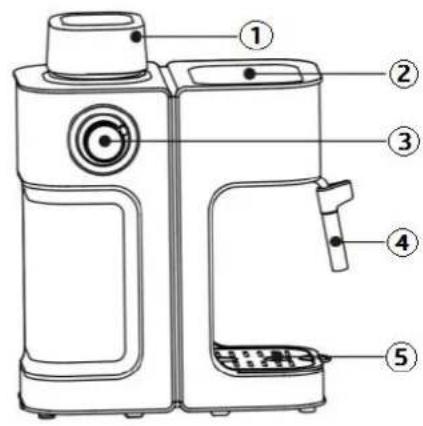

DESCRIPTION

1. Top cover
2. Area for cup warming
   3.Knob
3. Steam tube
4. Water pan
5. Coffee spoon
6. Filter screen
7. Handle of coffee machine
8. Hook for filter screen
9. Coffeepot

USING THE MACHINE FOR THE FIRST TIME

• Remove the packaging and make sure that it is not placed near to children reach.
• Clean the detachable parts following the instructions of the part "Cleaning and Maintenance".
• Plug the device to the power.
• Before making coffee you should use the coffee maker several times only with water (without coffee).

MAKING COFFEE

1. Plug the coffee maker to the mains and switch the control knob to the position of "Pressure Relief/Off" (as shown in pic 1)
2. Unscrew the top cover counterclockwise; use standard coffee pot to add the right amount of water (as shown in pic2), minimum 2 cups and maximum 4 cups.
3. Screw the top cover of the coffee machine to clockwise (as shown in pic. 3).

1. Use the standard coffee spoon to add the right amount of coffee powder (as shown in pic. 4); use the end of the coffee spoon handle to even the coffee power out and compress it tightly. (as shown in pic. 5)

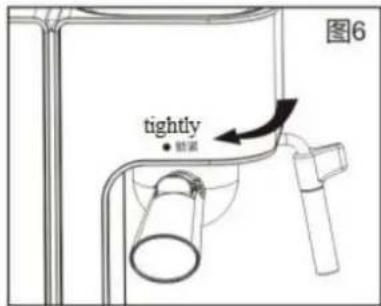

2. Please make the coffee funnel upward aligning with the “INSERT” position of the coffee machine, and switching it to the “LOCK” position according to pic. 6.

1. Put the standard coffee pot on the water pan.
2. Switching on the power: switch the control knob to the position of “” and the indicator light is on. After about 3 minutes, the coffee is flowing out from the funnel.
3. When the coffee reaches the required amount, please, switch the control knob to the "PAUSE" position and the indicator light is off. The machine stops working and the Italian Espresso Coffee making is completed.
4. Switch the control knob to the position of "Pressure relief/Off" and discharge the remained pressure.
5. Machine with automatic power off, in case the user forgets to pull out the power plug after coffee making or milk frothing, the coffee machine will automatically power off two minutes later. If you want to make coffee or froth steam again after automatic power off, you must turn the function knob to "Pressure relief" position to reset and restart using the machine.

MAKING CAPPUCCINO OR OTHER FANCY COFFEE

1. Cappuccino is made of espresso + foamed milk so you need to make espresso at first and the following content mainly describes the process of milk foaming.
2. Switch the control knob to "pressure relief/Off" position, unscrew the top cover to add the right amount of water, and screw the top cover of the coffee machine.

3. Pour the cold milk into a jar. Please, use whole pure and cold milk. As the milk volume will expand 2-3 times after foaming you should select the appropriate jar.

4. Switch the control knob to the position of 和 and the indicator light is on. After 1 minute, the steam tube starts to release the steam. When the steam comes out, firstly, please, spray it to clear away the remaining hot water inside the tube. After seeing the water drops coming out from the tube, switch the knob to the "PAUSE" position.

5. Immerse the top of the steam tube to 1/3 position of the milk and switch the control knob to the position Gradually move the top of the steam tube to the place where is just beneath the milk surface, but it could be not higher than the surface. At this time, there will be a fizzy sound and the milk will be in vortex form in the jar, which means the air is getting into the milk.

6. When the milk foam is rich enough, put the steam tube deep into the milk and make the milk temperature rise to about 66^ and then the milk foaming process is completed. Switch the control knob to "PAUSE" position and then remove the jar with foamed milk.

7. Firstly, pour the espresso coffee into the coffee cup, then the foamed milk into the coffee cup. By now the cappuccino coffee is done. You can also add the right amount of sugar or cocoa powder on top according to your taste.

CLEANING

1. After making the milk foam, the steam tube should be cleaned with a damp cloth in time to avoid the remaining milk attaching to the steam tube.
2. After packing the milk foam, switch the control knob to the position again and clean the steam mouth in case the steam mouth is blocked by the remaining milk.
3. Switch the control knob to the "Pressure relief/Off" position and remove the coffee funnel after the steam is completely discharged. Clean the coffee powder residue.
4. Clean all the removable parts with clean water and make them dry in the air thoroughly.
5. If the is water remaining in the coffee machine, it can be poured out after the steam is discharged completely; it can also be made to flow out of the way from the outlet through the way of making coffee.
6. The coffee machine body part can only be wiped with the damp cloth.

TIPS FOR MAKING COFFEE

• Type of ground coffee recommended for this coffee. By pressure it has recommended average level ground.
• You can make min 2 cups of coffee and max 4 cups in this coffee maker. Permanent filter indicate the minimum and maximum level of coffee powder to prepare coffee.
• It is not necessary to compress a lot the coffee powder in the filter, with a little pressure will be enough.
• It is normal that some steam comes out on occasion by the tube, this will occur when the pressure exceeds 5 bar coffee. This is done by the coffee maker automatically to release pressure for safety, do not worry.
• Use the hook (9) to empty the remains of coffee powder without the permanent filter falls.
• You can warm the cups on area 2, so you will avoid the coffee cools down when you serve it.
• If you overfill the water tank, water can drop by steam tube.

REGULAR CLEANING AND MAINTENANCE

1. To guarantee that you always get a quality coffee, descaling the coffee maker each 2-3 months of use.
2. You can use disincrustant for coffee makers to descaling it (the water and disincrustant ratio should be 4:1). If you don't have disincrustant, you can use citric acid (the water and citric acid ratio should be 100:3)
3. It is not necessary to use coffee powder while you are descending the coffee maker.
4. To clean the whole coffee maker, follow the step for making a cappuccino, so you will clean the coffee outlet and the steam tube.
5. We recommend you make this process 3 times for cleaning well.
6. Make sure the coffee maker cool down for 3 minutes each time you repeat descending process.

TROUBLE SHOOTING

Fault	Cause analysis	Solution
The coffee is spill out from the gap of funnel	There are sundries inside the seal ring.	Clean the sundries inside the seal ring.
	The coffee powder is too fine.	Please replace it with the coffee powder which is relevantly coarse.
	The coffee powder has been compressed too tightly.	Please compress the coffee powder with the strength of 8 pounds (about 9 kg).
	The seal ring is being of aging.	Please contact the authorized service center.
The coffee handle could not be switched to the lock position	The coffee powder amount has exceeded the max scale of the funnel.	Decrease the amount of the coffee powder.
	The coffee powder hasn't be added and the handle could not be switched to the right place.	Please contact the authorized service center.
The machine works normally when making coffee but couldn't make the milk foam	There is no water in the machine.	Add water after releasing the pressure.
	The steam mouth is blocked.	Clean the steam mouth with a clip.
		Add right amount of vinegar into the water tank.

TECHNICAL FEATURES

Model: EXP 5000

Voltage: 220-240V~50/60Hz

Power: 800W

Capacity: 240ml

Pressure: 3.5 bar.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
