Sony Corporation Printed in China

VPL-SW235/SW225 VPL-SX236/SX235/SX226/SX225

© 2014 Sony Corporation

安全のために

Line drawing of a commercial kitchen with steam rising (no text or symbols)

Simple line drawing of a rectangular object with a circular opening, next to a circle with a diagonal line (no text or symbols)

Simple line drawing of a box with smoke and a prohibition symbol (no text or labels)

熱感知器や煙感知器のそばに設置しない

禁止

Simple line drawing of a kitchen appliance with a plate, side bowl, and no text or symbols

Simple line drawing of a block with a diagonal bar and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular block with a shaded side and a circular symbol above (no text or labels)

Illustration of a steam rising from a chimney to a server with smoke, no text or symbols present

Diagram of a spray or dust collector with a stopper and filter array, no text or symbols present

Simple line drawing of a trash bin with a chimney and a bowl, no text or symbols present

Illustration of a cigarette emitting smoke next to a smoking box (no text or symbols)

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

電源コード (1 本)

Line drawing of a multi-pin cable with two connectors and a central connector (no text or symbols)

簡易說明書（本書）（1部）

保証書 (1 部)

取扱説明書（CD-ROM）（1 枚）

Projector Station for Network

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

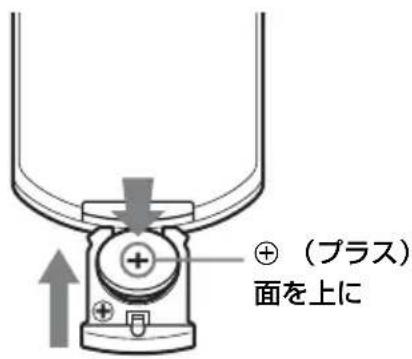

2 リチウム電池をはめ込む。

④ (プラス) 面を上に

3 リチウム電池入れを差し込む。

警告

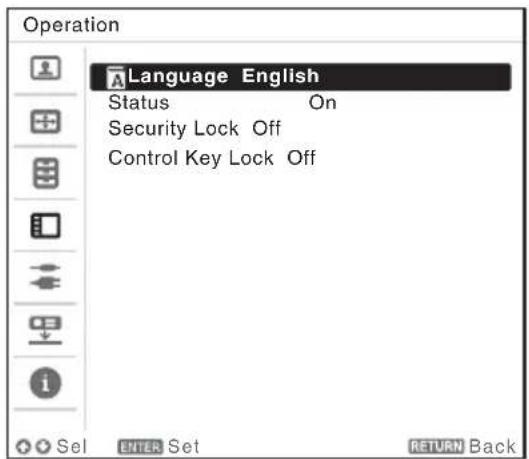

Operation Language English Status On Security Lock Off Control Key Lock Off Sel Sell/Stock RETURN

Technical diagram showing a device's internal structure and its three-step assembly with labeled parts and directional arrows.

ご注意

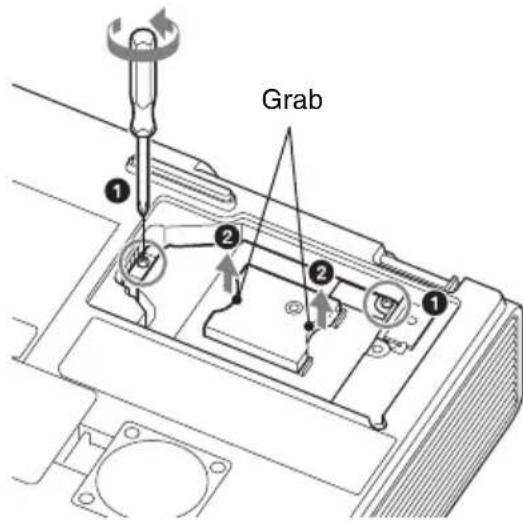

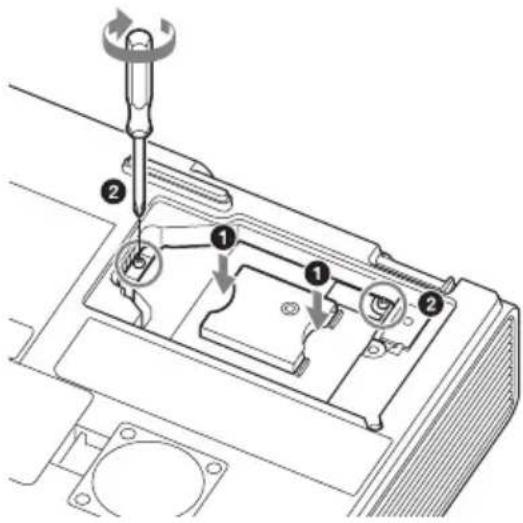

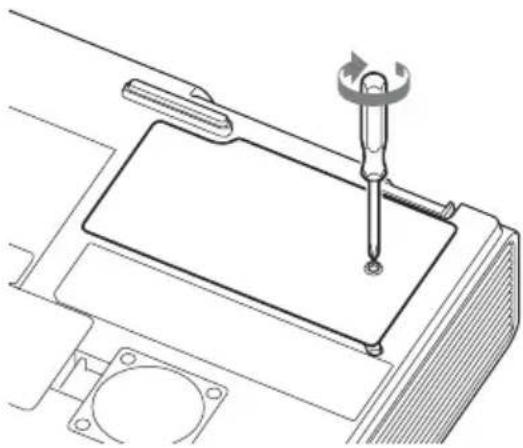

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

ご注意

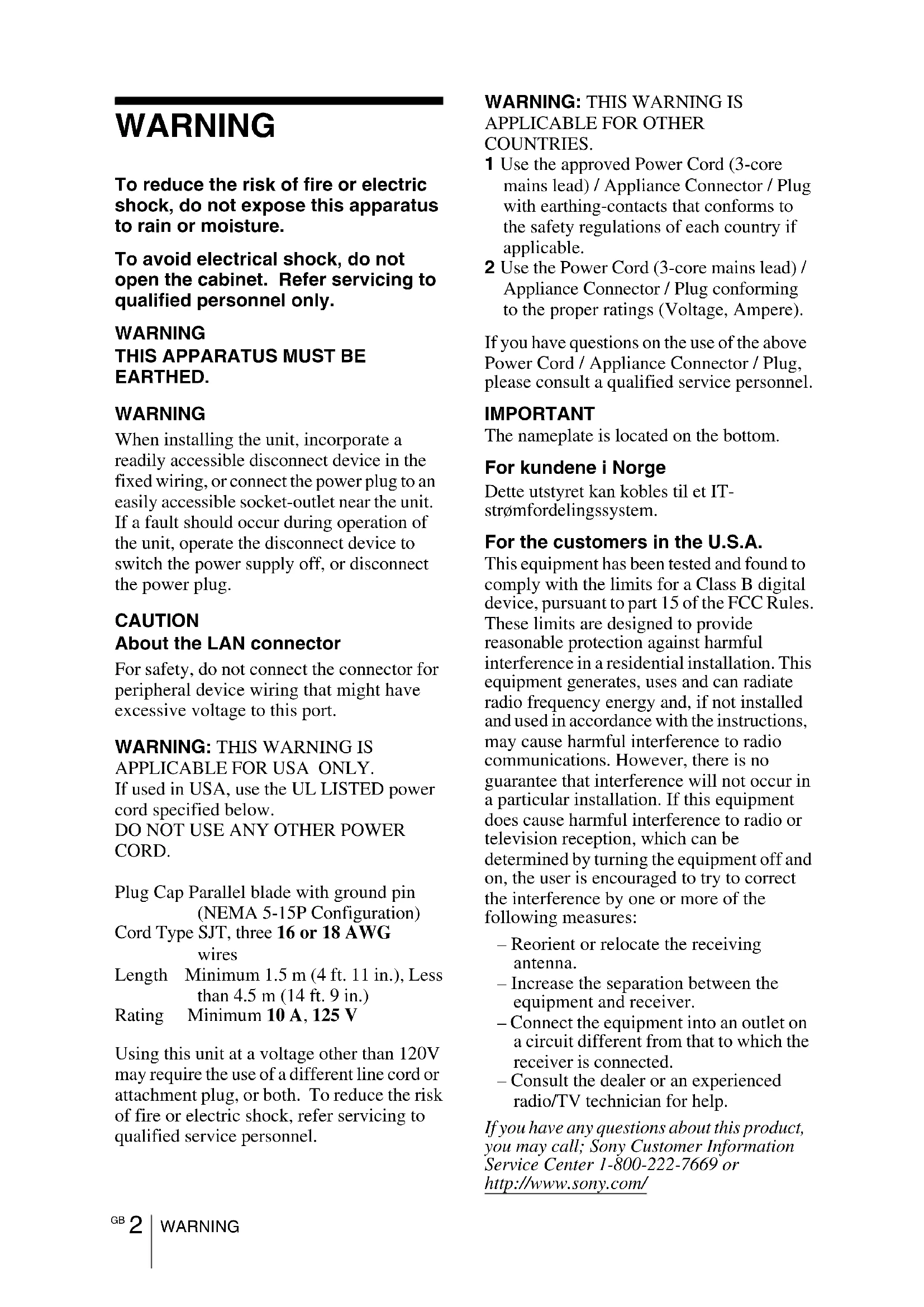

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

THIS APPARATUS MUST BE EARTHED.

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

CAUTION

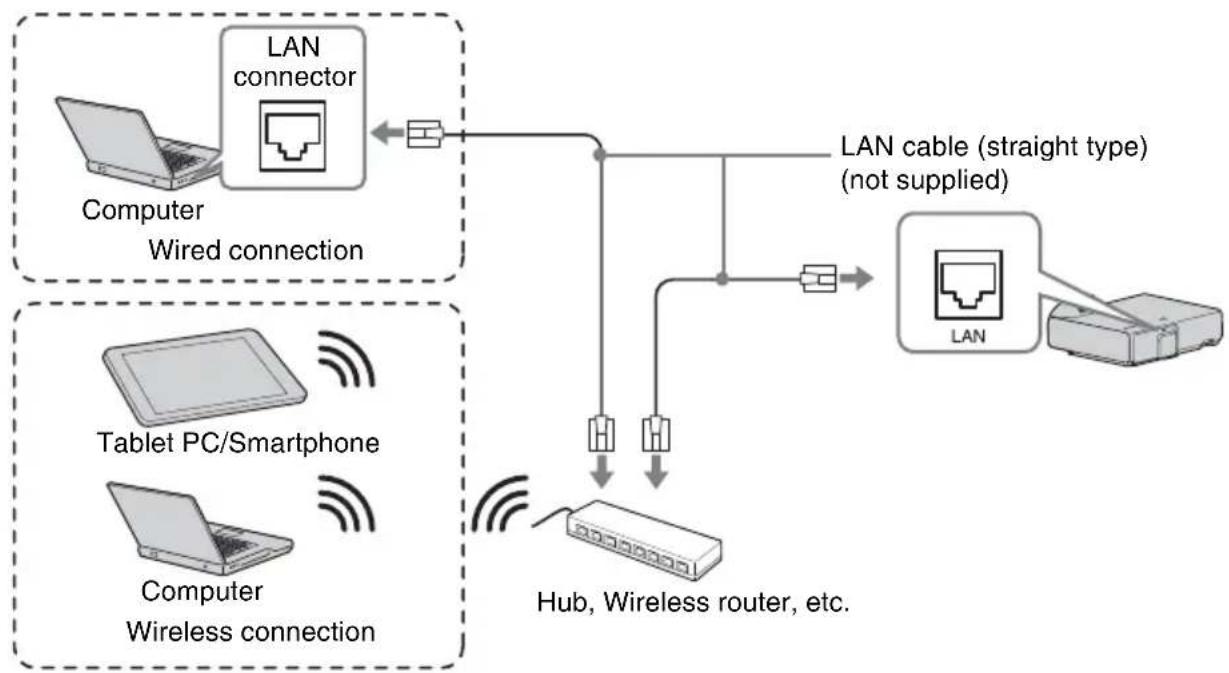

About the LAN connector

For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port.

WARNING: THIS WARNING IS

APPLICABLE FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below.

DO NOT USE ANY OTHER POWER CORD.

Plug Cap Parallel blade with ground pin (NEMA 5-15P Configuration)

Cord Type SJT, three 16 or 18 AWG wires

Length Minimum 1.5 m (4 ft. 11 in.), Less than 4.5 m (14 ft. 9 in.)

Rating Minimum 10 A, 125 V

Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1 Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.
2 Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

IMPORTANT

The nameplate is located on the bottom.

For kundene i Norge

Dette utstyret kan kobles til et IT-strømfordelingssystem.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

If you have any questions about this product, you may call; Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : VPL-SW235

VPL-SW225

VPL-SX236

VPL-SX235

VPL-SX226

VPL-SX225

Responsible party : Sony Electronics Inc.

Address : 16530 Via Esprillo,

San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

CAN ICES-3 (B)/NMB-3(B)

For the customers in Europe

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan.

Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

For the customers in the U.S.A.

SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada

SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/solutions/

Support.do for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Professional Solutions Europe - Standard Warranty and Exceptions on Standard Warranty.

Please visit http://www.pro.sony.eu/warranty for important information and complete terms and conditions.

For the customers in Korea

SONY LIMITED WARRANTY - Please visit http://bpeng.sony.co.kr/handler/BPAS-Start for important information and complete terms and conditions of Sony' limited warranty applicable to this product.

For the customers in Taiwan only

廢電池請回收

For the State of California, USA only

Perchlorate Material - special handling may apply, See

www.dtsc.ca.gov/hazardouswaste/perchlorate

For the Customers in Brazil only DESCARTE DE PILHAS E BATERIAS

- Check that the operating voltage of your unit is identical with the voltage of your local power supply. If voltage adaptation is required, consult with qualified Sony personnel.

- Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified Sony personnel before operating it further.

- Unplug the unit from the wall outlet if it is not to be used for several days.

- To disconnect the cord, pull it out by the plug. Never pull the cord itself.

- The wall outlet should be near the unit and easily accessible.

- The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

- Do not look into the lens while the lamp is on.

- Do not place your hand or objects near the ventilation holes — the air coming out is hot.

- Be careful not to catch your fingers by the front feet (adjustable) when you adjust the height of the unit. Do not push hard on the top of the unit with the front feet (adjustable) out.

- Avoid using an extension cord with a low voltage limited since it may cause the short-circuit and physical incidents.

- Do not catch your finger between the unit and surface of the floor when moving the projector installed on the floor.

- Do not move the projector when it is turned on and the cabinet cover is open.

- Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity, mechanical vibration or shock.

- Never mount the projector on the ceiling or move it by yourself. Be sure to consult with qualified Sony personnel (charged).

- If the ventilation holes are blocked, internal heat builds up, and it may cause a fire or damage the unit. To allow adequate air circulation and prevent internal heat build-up, follow the items below:

- Leave space around the unit (page 6).

Line drawing of a steam machine with smoke and a no-smoking symbol above (no text or labels)

- Avoid using something to cover the ventilation holes (exhaust/intake).

Simple line drawing of a rectangular object with a circular opening, next to a circle with a diagonal line (no text or symbols)

- Do not place the unit on surfaces such as an original packing sheet, soft cloth, papers, rugs, or scraps of paper. The ventilation holes may take in such materials.

Simple line drawing of a smokestack emitting smoke from a tray, with no text or symbols present.

- Do not place any object just in front of the lens that may block the light during projection. Heat from the light may damage the object. Use the picture muting function to cut off the picture.

Simple 3D diagram of a rectangular block with a shaded rectangular cutout, no text or symbols present.

- Do not use the Security bar for the purpose of preventing theft for transporting or installing the unit. If you lift the unit by the Security bar or hang the unit by this bar, it may cause the unit to fall and be damaged, and may result in personal injury.

Simple line drawing of a block with a diagonal bar and a prohibition symbol (no text or labels)

For dealers

- Be sure to secure the cabinet cover firmly when installing to the ceiling firmly.

Safety precautions for installing the unit on a ceiling

• Never mount the projector on the ceiling or move it by yourself. Be sure to consult the store where you purchased the projector or a dedicated installer.
• When installing the unit on a ceiling, be sure to use a safety wire, etc., to prevent the unit from falling. For the installation, be sure to consult the store where you purchased the projector or a dedicated installer.

On Installation

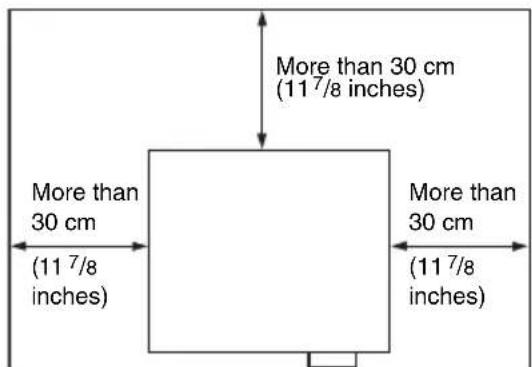

- When installing the unit, leave space between any walls, etc. and the unit as illustrated.

More than 30 cm (11 7/8 inches) More than 30 cm (11 7/8 inches) More than 30 cm (11 7/8 inches)

- Avoid using if the unit is tilted more than 15 degrees horizontally.

15° 15°

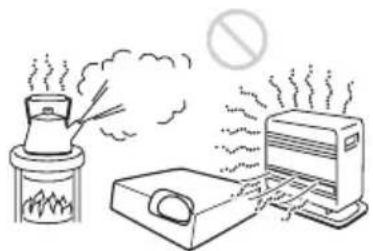

- Avoid using the unit in a location where the temperature or humidity is very high, or temperature is very low.

Illustration of a steam machine emitting smoke next to a steaming stack of steam, with a prohibition symbol above (no text or labels)

- Avoid installing the unit in a location subject to direct cool or warm air from an air-conditioner. Installing in such a location may cause malfunction of the unit due to moisture condensation or rise in temperature.

Diagram showing a ventilation system with a gridded tray, a vent, and a mounted device (no text or symbols)

- Avoid installing the unit in a location near a heat or smoke sensor. Installing in such a location may cause malfunction of the sensor.

Simple line drawing of a trash bin with a chimney and a bowl, no text or symbols present

- Avoid installing the unit in a very dusty or extremely smoky environment. Otherwise, the air filter will become obstructed, and this may cause a malfunction of the unit or damage it.

Illustration of a hand using a tool to clean or exhaust a cigarette next to a box, with no text or symbols present.

• When using the unit at an altitude of 1,500 m or higher, set “High Altitude Mode” to “On” in the Installation menu. Failing to set this mode when using the unit at high altitudes could have adverse effects, such as reducing the reliability of certain components.
• Set “Installation Attitude” on the Installation menu correctly to suit to the Installation angle. Continuing to use the wrong setting may affect component reliability.

On cleaning the lens and the cabinet

• Be sure to disconnect the AC power cord from the AC outlet before cleaning.
• If you rub on the unit with a stained cloth, the cabinet may be scratched.
• If the unit is exposed to volatile materials such as insecticide, or the unit is in contact with a rubber or vinyl resin product for a long period of time, the unit may deteriorate or the coating may come off.
• Do not touch the lens with bare hands.
• On cleaning the lens surface: Wipe the lens gently with a soft cloth, such as a glass cleaning cloth. Stubborn stains may be removed with a soft cloth lightly dampened with water. Never use solvent such as alcohol, benzene or thinner, or acid, alkaline or abrasive detergent, or a chemical cleaning cloth.
• On cleaning the cabinet: Clean the cabinet gently with a soft cloth. Stubborn stains may be removed with a soft cloth lightly dampened with mild detergent solution and wrung, followed by wiping with a soft dry cloth. Never use solvent such as alcohol, benzene or thinner, or acid, alkaline or abrasive detergent, or a chemical cleaning cloth.

On Illumination

To obtain the best picture, the front of the screen should not be exposed to direct lighting or sunlight.

On Heat Dissipation

The temperature of the projector's cabinet may increase during or immediately after use; however, this is not a malfunction.

On Screen

When using a screen with an uneven surface, stripes pattern may rarely appear on the screen depending on the distance between the screen and the unit or the zooming magnifications. This is not a malfunction of the unit.

On Fan

Since the projector is equipped with fans inside to prevent internal temperature from rising, there may be some noise. This is a normal result of the manufacturing process and does not indicate a malfunction. If, however, in a case of abnormal noise, consult with qualified Sony personnel.

On Lamp

The lamp used as a light source contains mercury that has high internal pressure. A high-pressure mercury lamp has the following characteristics:

• Brightness of the lamp will be lowered as the elapse of time used.
• The lamp may break with a loud noise as a result of shock, damage, or deterioration caused by the elapse of time. The lamp may become unlit and may burn out.
• The lamp life varies with individual differences or usage conditions of each lamp. Therefore, it may break or will not light even before the specified replacement time.
• It may possibly break after the replacement time has elapsed. Replace the lamp with a new one as soon as possible if a message displayed on the projected image, even if the lamp normally lights.

For carrying

This unit is precision equipment. When carrying the unit, do not subject the unit to shocks, or fall. It may damage the unit.

On LCD Projector

The LCD projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD projector. This is a normal result of the manufacturing process and does not indicate a malfunction. Also, when you use multiple LCD projectors to project onto a screen, even if they are of the same model, the color reproduction among projectors may vary, since color balance may be set differently from one projector to the next.

On Condensation

If the room temperature where the projector is installed changes rapidly, or if the projector is moved suddenly from a cold to a warm place, condensation in the projector may occur. As the condensation may cause malfunction, be careful in adjusting temperature settings of the air conditioner. If condensation occurs, leave the projector turned on for about two hours before use.

• SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM A FAILURE TO IMPLEMENT PROPER SECURITY MEASURES ON TRANSMISSION DEVICES, UNAVOIDABLE DATA LEAKS RESULTING FROM TRANSMISSION SPECIFICATIONS, OR SECURITY PROBLEMS OF ANY KIND.

• Depending on the operating environment, unauthorized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely.

• Communication content may be unknowingly intercepted by unauthorized third parties in the vicinity of the signals. When using wireless LAN communication, implement security measures properly to protect the communication content.

• From a safety standpoint, when using the unit connected with the network, it is strongly recommended to access the Control window via a Web browser and change the access limitation settings from the factory preset values. Changing the password regularly is also recommended.
• Do not browse any other website in the Web browser while making settings or after making settings. Since the login status remains in the Web browser, close the Web browser when you complete the settings to prevent unauthorized third parties from using the unit or harmful programs from running.

Notes

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

- SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.

- SONY WILL NOT BE LIABLE FOR THE TERMINATION OR DISCONTINUATION OF ANY SERVICES RELATED TO THIS UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY KIND.

Checking the Supplied Accessories

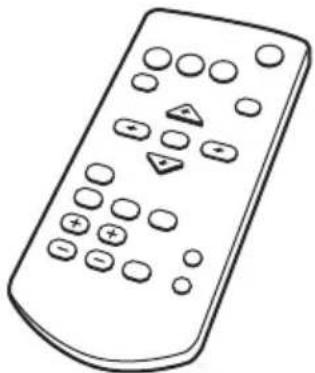

RM-PJ8 Remote Commander (1)

Lithium battery (CR2025) (1)

The battery is already installed. Before using the remote commander, remove the insulation film.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

AC power cord (1)

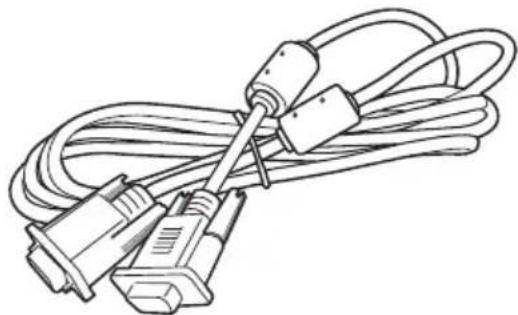

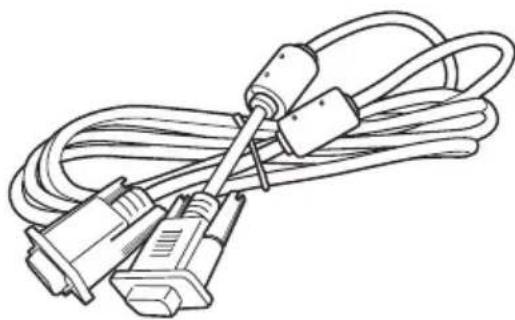

Mini D-sub 15 pin cable (1.8 m) (1)

Line drawing of a multi-pin electrical connector with coiled cable (no text or symbols)

Quick Reference Manual (this manual) (1)

Operating Instructions (CD-ROM) (1)

Projector Station for Network Presentation application (CD-ROM) (1)

Using the CD-ROM Manuals

Insert the supplied CD-ROM into the CD-ROM drive of your computer, and the CD-ROM will start automatically in a few moments. Select the Operating Instructions you want to read. If the CD-ROM does not start automatically, open the “index.htm” file on the CD-ROM.

You must have Adobe Acrobat Reader 5.0 or higher installed in your computer to read the Operating Instructions stored on the CD-ROM.

Installing Projector Station for Network Presentation

1 Close all running applications.

2 Insert the supplied CD-ROM into the CD-ROM drive of the computer.

3 Open the CD-ROM and run the executable file that is appropriate for your OS.

Windows: When the message "User Account Control" is displayed, click "Allow" or "Yes."

4 Follow the on-screen instructions to install the software.

Installing Batteries

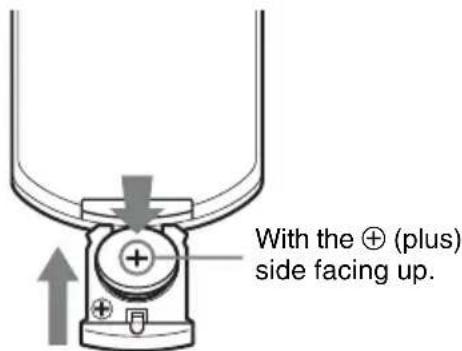

1 Pull out the lithium battery compartment.

Pull out the battery compartment with a stick as shown in the illustration.

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

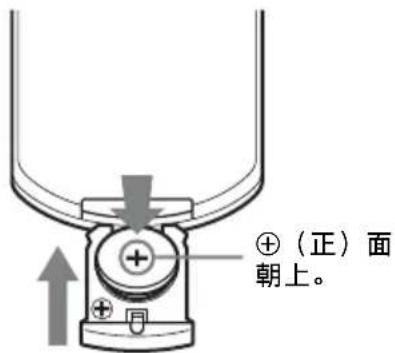

2 Insert a lithium battery.

With the ⊕ (plus) side facing up.

3 Close the lithium battery compartment.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer. When you dispose of the battery, you must obey the law in the relative area or country.

Installing batteries

One lithium battery (CR2025) is supplied for the RM-PJ8 Remote Commander. To avoid risk of explosion, use a lithium battery (CR2025).

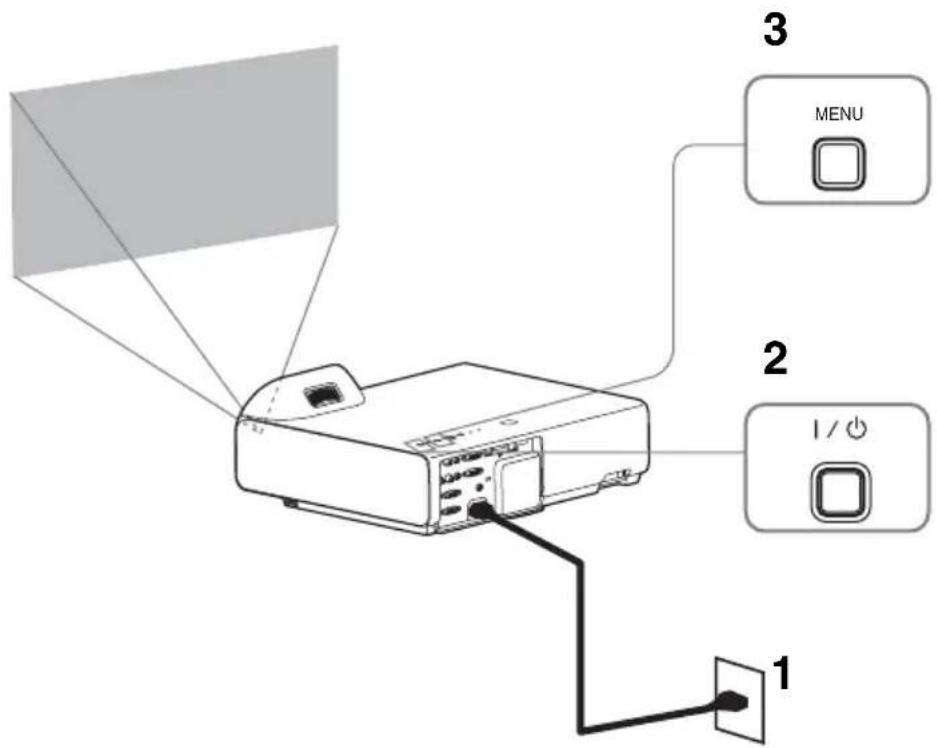

Selecting the Menu Language

The factory setting for the language for displaying menus, messages, etc. is English. To change the on-screen language, proceed as follows:

3 MENU 2 1/0

1 Plug in the AC power cord into a wall outlet.

2 Turn on the projector.

Press the I/⏻ key.

3 Press the MENU key to display the menu.

If the display cannot be properly seen, adjust the focus, size, and position of the projected image (page 16).

4 Select the menu language.

① Press the ↑ or ↓ key to select the Operation ( ) menu then press the ENTER key.

② Press the or key to select "Language (A) then press the ENTER key.

Operation Language English Status On Security Lock Off Control Key Lock Off Sel ENTER Set RETURN Back

③ Press the /// key to select a language, then press the ENTER key.

5 Press the MENU key to turn off the menu screen.

Connecting the Projector

You can connect the projector to external devices with an RGB or HDMI output connector. In addition, you can use the following methods to connect the projector to external devices:

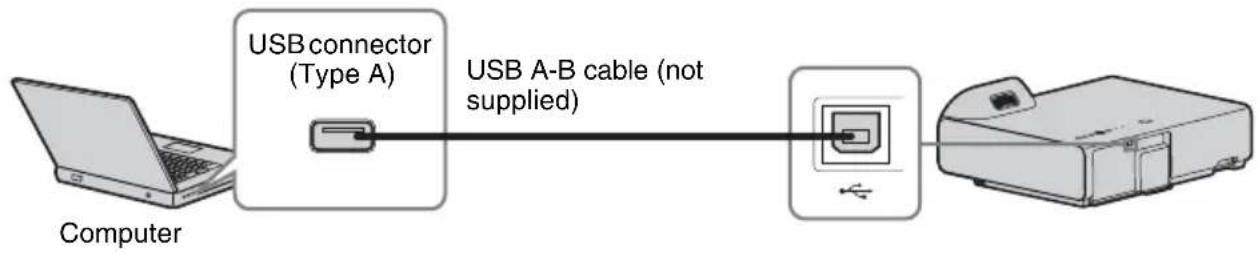

USB connector (Type B) ()

For connecting to a computer with a USB connector (“Playing Video and Audio using USB Connection”).


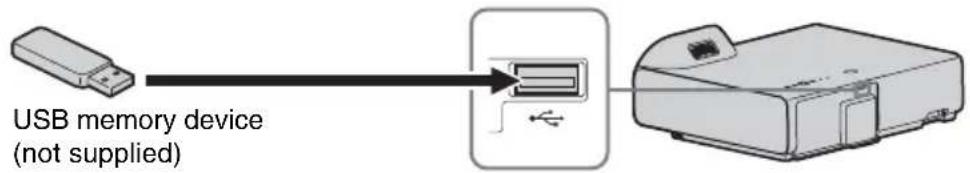

USB connector (Type A) ()

For connecting a USB memory device (“Using USB Media Viewer”).

USB memory device (not supplied)

LAN connector

For connecting to a computer, tablet PC, or smartphone via a hub or router (“Presentation Function via Network”).


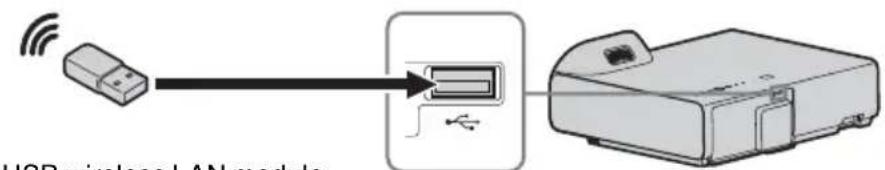

USB connector (Type A) ()

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network”).

Wireless router, access point

Tablet PC/Smartphone

Computer

USB wireless LAN module

USB wireless LAN module IFU-WLM3 (not supplied)

Notes

• Undesignated USB wireless LAN modules do not work.
• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: "Low"), or the AC power cord is unplugged from the wall outlet.
• When wirelessly connecting a tablet PC/smartphone to the projector via USB wireless LAN module IFU-WLM3 (not supplied), set “WLAN Network” to “Access Pt. (Manual)” in the projector’s “WLAN Settings”.
• For connecting to the access point, access to the Web browser, and input the settings for the access point to connect. For details, see “Setting the WLAN Network of the projector”.
• The factory default settings for “Access Pt. (Manual)” are as follows.
  SSID: VPL + MAC address for LAN
  Security Method: WEP(64bit)
  Password: sony1

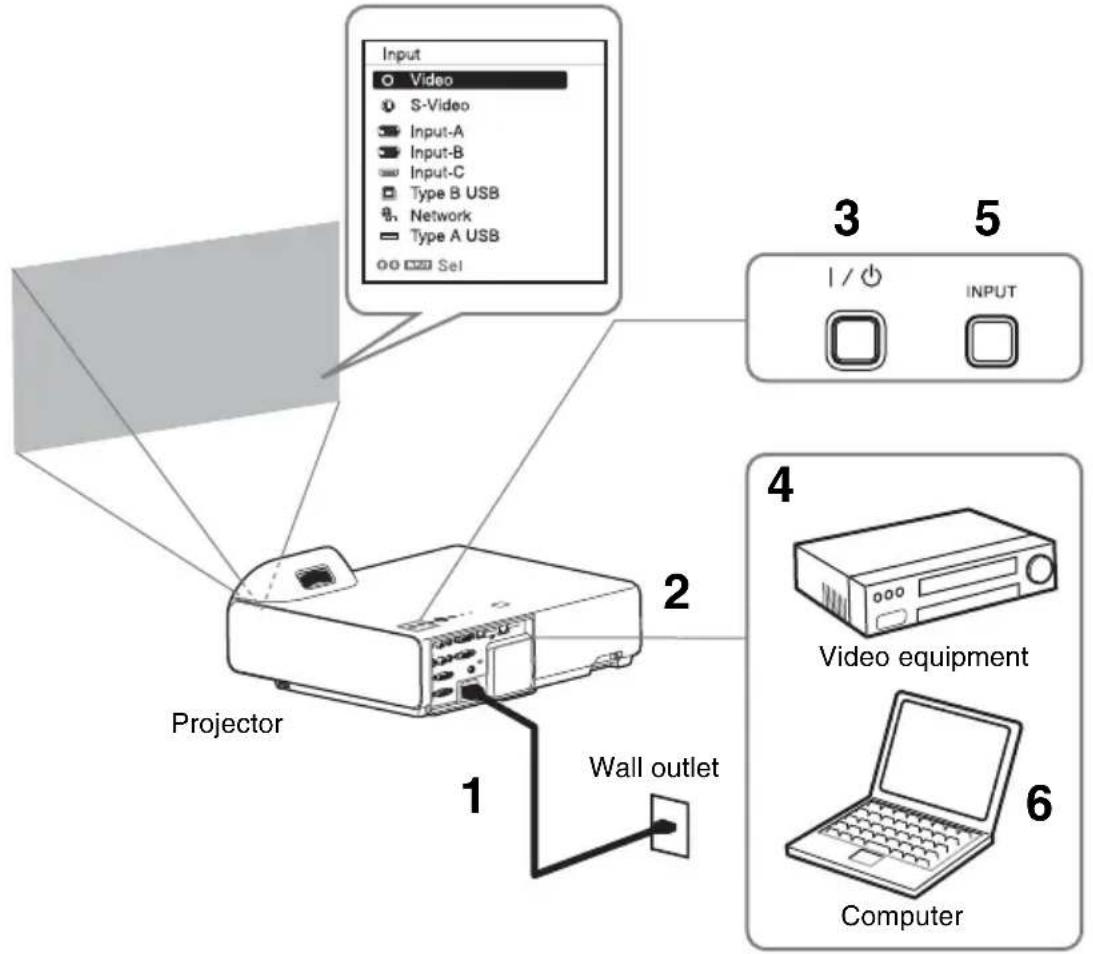

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see “Projection Distance”.

Input Video S-Video Input-A Input-B Input-C Type B USB Network Type A USB See 3 5 1 / ○ INPUT 2 Projector Wall outlet 4 Video equipment 6 Computer

1 Plug the AC power cord into the wall outlet.
2 Connect all equipment to the projector.
3 Press the I/⏻ key to turn on the unit.
4 Turn on the connected equipment.
5 Select the input source. Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the ↑/↓ key to select an image to be projected.

6 When projecting a computer image, switch your computer's output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

To project image files stored in a USB memory device, see “USB Media Viewer”. To play video and audio using USB Connection, see “Playing Video and Audio using USB Connection”. To use Presentation Function via Network, see “Presentation Function via Network”.

7 Adjust the focus, size and position of the projected image (page 16).

Displaying Images or Files Sent from a Tablet PC/ Smartphone

You can project JPEG images, PDF files, etc. stored in a tablet PC/smartphone wirelessly by using a specific application. ^*1

For downloading ^*2 or detailed method of using the application, access the following URL.

http://PWPresenter.pixelworks.com

*1: To use the application, one of the following conditions is required.

- Connected to network where wireless connection can be established (page 12).

- Connected to a wireless network via USB wireless LAN module IFU-WLM3 (not supplied) that is connected to the projector (page 13).

*2: Depending on your Internet connection, a data communication fee for downloading the application may apply.

Adjusting the Projected image

Focus Position
↓
Focus ring	Foot adjust buttonFront feet (adjustable)

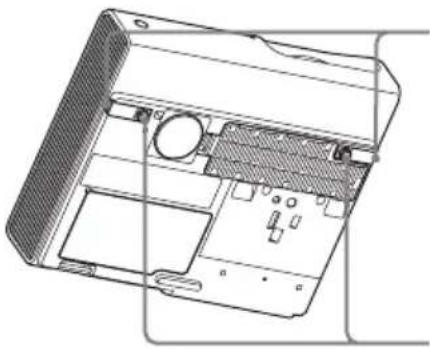

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

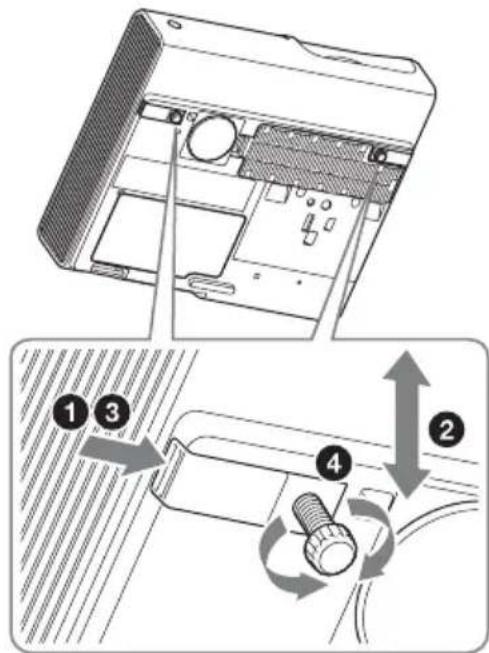

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to adjust the angle.

3 Release the foot adjust buttons.

4 Turn the front feet (adjustable) to set the angle of the projector precisely.

Technical diagram showing a device's internal components and assembly steps, labeled with numbered annotations.

Notes

• Be careful not to let the projector down on your fingers.
• Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu.

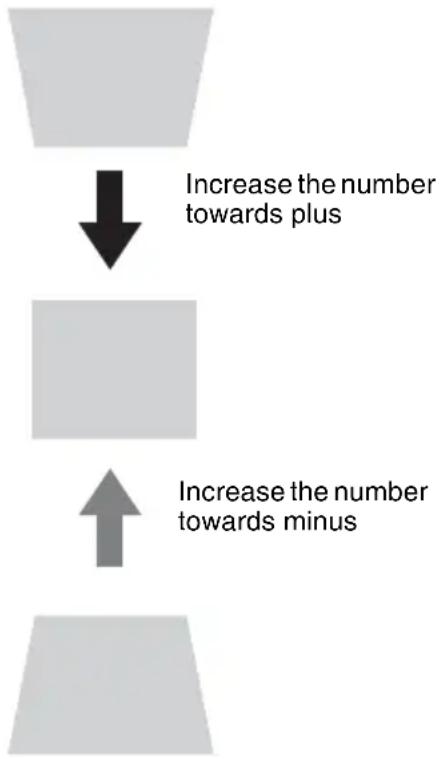

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1 Press the KEYSTONE key on the remote commander or select V Keystone in the Installation menu.
2 Use the /// keys to set the value. The higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN key on the remote commander. Press the PATTERN key again to restore the previous image. You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard or blackboard without using a computer.

Note

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu. If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input.

Turning Off the Power

1 Press the I/⏻ key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the I/⏻ key within 10 seconds again, shutdown is cancelled.

Note

Do not turn off the projector soon after the lamp lights. It may cause a malfunction of the lamp (does not light, etc.).

2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the / key on the unit for a few seconds.

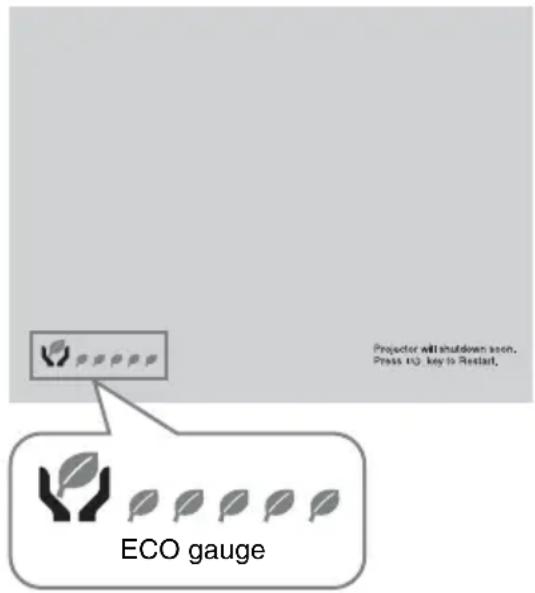

ECO gauge

This gauge indicates the current effectiveness of the projector's ECO function. (For details on the ECO function, see “ECO MODE key” and “ECO”.)

The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

Projector will shutdown soon. Press (13) key to Restart. ECO gauge

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector. If the projector exhibits abnormal status, address the problem in accordance with the table below.

ON/STANDBY indicator

Status Meaning/Remedies
Lights in red The projector is in Standby mode.
Flashes in green • The projector is ready to operate after having been turned on.• The lamp cools after the projector is turned off.
Lights in green The projector's power is on.
Lights in orange The projector is in With No Input (Lamp Cutoff).
Flashes in red The projector is in abnormal status. Symptoms are indicated by number of flashes. Address the problem in accordance with the following. If the symptom is shown again, consult with qualified Sony personnel.
Flashes twice The internal temperature is unusually high. Check the items below.• Check if nothing is blocking the ventilation holes.• Check if the air filter is not clogged (page 23).• Check if the Installation Attitude in the Installation menu is set correctly.
Flashes six times Unplug the AC power cord from a wall outlet. After checking that the ON/STANDBY indicator goes out, plug the power cord to a wall outlet again then turn on the projector.
Other number of flashes	Consult with qualified Sony personnel.

LAMP/COVER indicator

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in accordance with the following.

Flashes twice The lamp cover is not attached securely (page 21).

Flashes three times The temperature of lamp is unusually high. Turn off the power and wait for lamp to cool then turn on the power again. If the symptom is shown again, the lamp may be burnt out. In this case, replace the lamp with a new one (page 21).

Replacing the Lamp

Replace the lamp with a new one if a message displayed on the projected image (page 20). Use an LMP-E212 projector lamp (not supplied) for replacement.

Caution

• The lamp remains hot after the projector is turned off. If you touch the lamp, you may burn your finger. When you replace the lamp, wait for at least an hour after turning off the projector for the lamp to cool sufficiently.
• Do not allow any metallic or inflammable objects into the lamp replacement slot after removing the lamp, otherwise it may cause electrical shock or fire. Do not put your hands into the slot.

Notes

• If the lamp breaks, contact qualified Sony personnel. Do not replace the lamp yourself.
• When removing the lamp, be sure to pull it out straight, by holding the designated location. If you touch a part of the lamp other than the designated location, you may be burned or injured. If you pull out the lamp while the projector is tilted, the pieces may scatter if the lamp breaks any may cause injury.

1 Turn off the projector, and disconnect the AC power cord from a wall outlet.

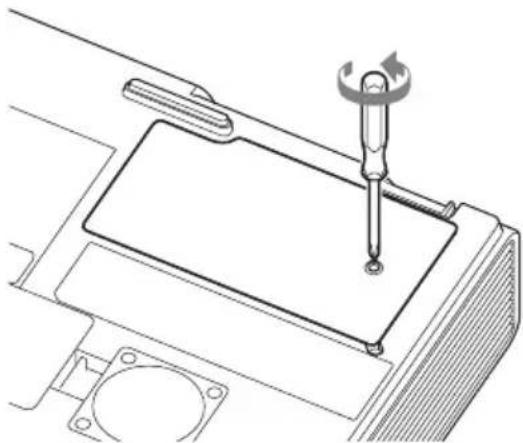

2 When the lamp has cooled sufficiently, open the lamp cover by loosening 1 screw.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

3 Loosen the 2 screws on the lamp (1) then pull out the lamp by its grab (2).

Grab ① ② ② ①

4 Insert the new lamp all the way in until it is securely in place (1). Tighten the 2 screws (2).

Technical diagram showing a mechanical assembly with numbered components and a tool inserted into a component.

5 Close the lamp cover and tighten the 1 screw.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

Note

The power will not turn on if the lamp is not secured properly.

6 Connect the AC power cord to a wall outlet and turn on the projector.

7 Reset the lamp timer for notification of the next replacement time. Select “Lamp Timer Reset” on the Function menu then press the ENTER key. When a message appears, select “Yes” to reset the lamp timer.

Caution

Disposal of the used lamp

For the customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Telecommunications Industry Association (www.eiae.org).

Cleaning the Air Filter

When a message appears on the projected image indicating time for a filter cleaning, clean the air filter (page 20).

If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel.

Caution

If you continue to use the projector even after the message is displayed, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire.

1 Turn off the projector, and disconnect the AC power cord from the AC outlet.

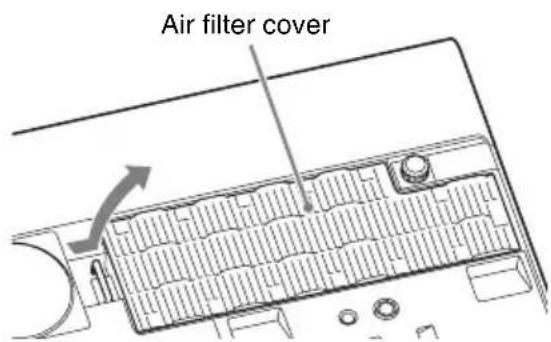

2 Slide out and remove the air filter cover from the unit.

Air filter cover

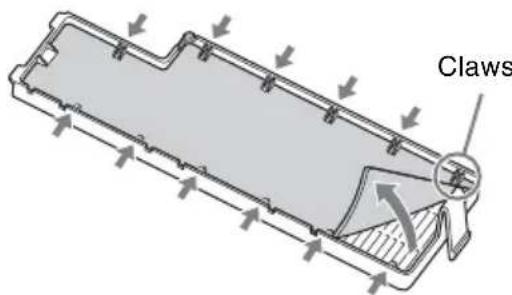

3 Clean the air filter with a vacuum cleaner.

Pull out and remove the air filter cover, and clean it with a vacuum cleaner.

Claws

4 Reattach the air filter cover to the unit.

Note

Be sure to attach the air filter firmly, otherwise it may cause a malfunction.

AVERTISSEMENT

Line drawing of a steam machine with smoke and a prohibition symbol above (no text or labels)

Simple line drawing of a rectangular object with a circular opening and a prohibition symbol (no text or labels)

Simple line drawing of a box with smoke and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular block with a shaded rectangular cutout, no text or symbols present.

Simple line drawing of a block with a diagonal chain and a flat top, no text or symbols present.

Pour les revendeurs

Illustration of a portable stove emitting steam, with a computer and a chimney nearby (no text or symbols)

Diagram showing a filtration or dust removal process with a net, pipe, and container (no text or symbols)

Simple line drawing of a container with a lid and a bowl, no text or symbols present

Illustration of a hand using a tool to clean or exhaust a cylindrical object, with no text or symbols present.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

Line drawing of a cable with two connectors and a terminal connector (no text or symbols)

Application Projector Station for Network Presentation (CD-ROM) (1)

Installation de Projector Station for Network Presentation

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

Operation Language English Status On Security Lock Off Control Key Lock Off i Sel ENTER Set RETURN Back

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or rotation.

Remarques

Projector will shutdown soon. Press #0 key to Restart. Indicateur ECO

Témoins

Technical line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

Technical diagram of a car intake mechanism with labeled parts and tool path

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Remarque

Line drawing of a cluttered cabinet or storage unit with smoke rising (no text or symbols)

Simple line drawing of a rectangular object with a circular opening, next to a circle with a diagonal line (no text or symbols)

Simple line drawing of a box with smoke and a prohibition symbol (no text or labels)

Simple 3D diagram of a rectangular block with a shaded side and a prohibition symbol above (no text or labels)

Simple line drawing of a block with a diagonal bar and a prohibition symbol (no text or labels)

Illustration of a steam machine emitting smoke next to a steaming tower and a computer, with a prohibition symbol above (no text or labels)

Diagram showing a tray with liquid and a container with a handle, emitting exhaust smoke (no text or symbols)

Simple line drawing of a mechanical device with a plate and a bowl, no text or symbols present.

Illustration of a cigarette being smoked or stayed in a box, with no text or symbols present.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

Line drawing of a coiled electrical plug with two connectors (no text or symbols)

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

Operation Language English Status On Security Lock Off Control Key Lock Off i Sel ENTER Set RETURN Back

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or rotation.

Notas

Projector will shutdown soon. Press #0 key to Restart. Indicator ECO

Indicadores

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

Asa ① ② ② ①

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Nota

Line drawing of a mechanical device with smoke and a prohibition symbol above (no text or labels)

Simple line drawing of a rectangular object with a circular opening, next to a circle with a diagonal line (no text or symbols)

Simple line drawing of a box with smoke rising, no text or symbols present

Simple 3D diagram of a rectangular block with a shaded rectangular cutout, no text or symbols present.

Simple line drawing of a block with a diagonal chain and a circular symbol (no text or labels)

Für Händler

Illustration of a portable stove emitting smoke next to a toaster and a printer (no text or symbols)

Diagram of a kitchen sink with gridded air and a circular symbol (no text or labels)

Simple line drawing of a trash bin with a chimney, a bowl, and a prohibition symbol (no text or labels)

Illustration of a cigarette being dispensed from a box with a stop sign (no text or symbols on the diagram itself)

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

Netzkabel (1)

Mini-D-Sub 15-poliges Kabel (1,8 m) (1)

Line drawing of a multi-pin electrical plug with coiled cable (no text or symbols)

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

Operation Language English Status On Security Lock Off Control Key Lock Off i Sel ENTER Set RETURN Back

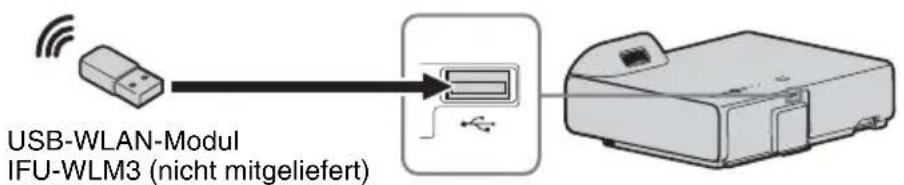

Tablet/Smartphone Computer

Technical diagram showing a device's internal structure and its three-step assembly with labeled parts and directional arrows.

Hinweise

Projector will shutdown soon. Prees 10 key to Restart. ECO-Anzeige

Anzeigen

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Hinweis

Line drawing of a steam machine with smokestacks and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular object with a circular opening, accompanied by a prohibition symbol (no text or labels)

Simple line drawing of a smokestack emitting smoke from a tray (no text or symbols)

Simple 3D diagram of a rectangular block with a shaded vertical slot, no text or symbols present.

Simple line drawing of a block with a diagonal chain and a flat top, no text or symbols present.

Per rivenditori

Illustration of a steam machine emitting smoke next to a portable stove and a computer, with no text or symbols present.

Diagram showing a container with liquid and a stopper, no text or symbols present

Simple line drawing of a kitchen appliance with a plate, lid, and a circular symbol (no text or labels)

Illustration of a hand using a cigarette to exhaust smoke from a trash can, with no text or symbols present.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

Line drawing of a cable with two connectors and a terminal connector (no text or symbols)

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

Operation Language English Status On Security Lock Off Control Key Lock Off i Sel ENTER Set RETURN Back

PC tablet/smartphone Computer

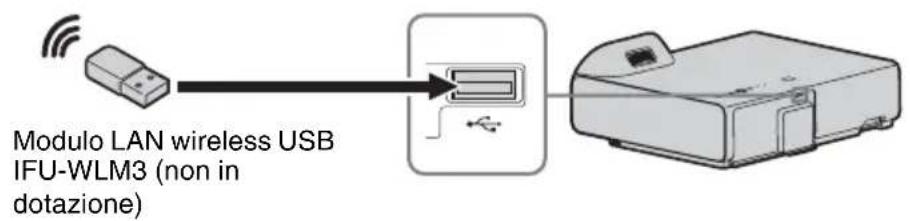

Modulo LAN wireless USB IFU-WLM3 (non in dotazione)

Note

Technical diagram showing a device with labeled parts and directional arrows indicating assembly or rotation steps.

Note

Projector will shutdown soon. Press #0 key to Restart. Indicatore ECO

Spie

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Technical diagram of a car intake mechanism with labeled parts and tool path

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Nota

Architectural floor plan showing room layout and structural elements (no text or labels)

Line drawing of a steam machine with smokestacks and a prohibition symbol above (no text or labels)

Simple line drawing of a rectangular object with a circular opening, next to a circle with a diagonal line (no text or symbols)

Simple line drawing of a smokestack emitting smoke from a tray, with a prohibition symbol above (no text or labels)

Simple line drawing of a rectangular block with a shaded rectangular cutout and a prohibition symbol above (no text or labels)

Simple line drawing of a block with a diagonal bar and a prohibition symbol (no text or labels)

致经销商

Illustration of a portable stove emitting steam, with a computer emitting smoke and a prohibition symbol (no text or labels)

Diagram showing a tray with filter and a container with a handle, emitting smoke or dust (no text or symbols)

Simple line drawing of a trash bin with a stop sign, no text or symbols present

- 勿将本机安装在多尘或多烟雾的环境中。否则，空气滤网会被堵塞，并可能导致本机故障或损坏。

Illustration of a hand using a cigarette to lift a button into a box, with no text or symbols present.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

交流电源线 (1)

Line drawing of a multi-pin electrical connector with coiled cable (no text or symbols)

快速参考手册 （本手册）（1）

使用说明书（CD-ROM）（1）

Projector Station for Network

安装 Projector Station for Network Presentation

1 关闭所有正在运行的应用程序。

Simple diagram of a U-shaped tube with a downward arrow indicating force or pressure, no text or symbols present.

2 插入锂电池。

Operation Language English Status On Security Lock Off Control Key Lock Off SEL ENTER Set RETURN Back

Diagram illustrating a mechanical assembly with numbered steps: first, second, third, and final assembly.

注意

Technical line drawing of a mechanical assembly with a screwdriver and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of the component.

5 关闭投影灯盖并拧紧 1 个螺丝。

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

注意

如果投影灯未正确固定，则无法打开电源。

Line drawing of a portable air conditioner unit with smoke and a no-smoking symbol above (no text or labels)

Simple line drawing of a box with smoke and a prohibition symbol (no text or labels)

Simple 3D diagram of a rectangular block with a shaded rectangular cutout, no text or symbols present.

Simple line drawing of a block with a diagonal bar and a prohibition symbol (no text or labels)

Illustration of a steam machine emitting smoke next to a portable computer, with a prohibition symbol above (no text or labels)

Diagram showing a tray with smoke or dust entering a container, and a prohibition symbol below (no text or labels)

Simple line drawing of a trash bin with a stop sign, no text or symbols present

Illustration of a smoking machine emitting smoke next to a cigarette, with no text or symbols present.

Line drawing of a remote control with buttons and triangular indicators (no text or symbols)

Line drawing of a coiled electrical plug with two connectors (no text or symbols)

Simple diagram of a U-shaped container with a downward arrow indicating downward motion (no text or symbols)

Operation Language English Status On Security Lock Off Control Key Lock Off Sel ENTER Set RETURN Back

Diagram illustrating a mechanical assembly with numbered steps: adding a screw, rotating the nut, and finally adding a bolt.

Примечания

Technical line drawing of a mechanical assembly with a screwdriver inserted into a component (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and a tool inserted into a component.

Technical line drawing of a mechanical assembly with a screwdriver inserted into a rectangular component (no text or symbols)

Примечание
