USER MANUAL SCDXE670 SONY

Super Audio CD Player

Operating Instructions ____ GB

Mode d'emploi FR

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

To prevent fire, do not Cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don't place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquid, such as vases, on the apparatus.

This appliance is classified as a CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

Don't throw a battery, dispose it as the injurious wastes.

About This Manual

The instructions in this manual are for model SCD-XE670.

Conventions

• Instructions in this manual describe the controls on the player.
  You can also use the controls on the remote if they have the same or similar names as those on the player.
  • The following icons are used in this manual:

Indicates that you can do the task using the remote.

Indicates hints and tips for making the task easier.

Features

About the Super Audio CD

• Super Audio CD is a new high-quality audio disc standard where music is recorded in the DSD (Direct Stream Digital) format (conventional CDs are recorded in the PCM format). The DSD format, using a sampling frequency 64 times higher than that of a conventional CD, and with 1-bit quantization, achieves both a wide frequency range and a wide dynamic range across the audible frequency range, and so provides music reproduction extremely faithful to the original sound.
• The Super Audio CD has two types; a 2 channel stereo disc and a Multi-channel disc which holds up to 6 independent channels. The multi-channel characteristic of the Super Audio CD features a speaker allocation system basically similar to the 5.1 channel output of current AV systems.

Features of the player

This player is designed to play back 2-channel and multi-channel Super Audio CDs, and conventional CDs, and provides the following features:

• Mounted with a Discrete Dual Laser Optical Pickup, capable of reading a Super Audio CD or conventional CD depending on the exclusive wavelength.
• Quicker track access performance enabled by an advanced servo mechanism.
• A Multi-Channel Management function that allows you to adjust the multi-channel playback environment according to the allocation and size of your speakers.
• A Super Audio D/A Converter and Direct Digital Sync System, which allows higher-quality sound reproduction.

Others

• A Super Audio CD can mark up to 255 track numbers. This feature applies to SCD-XE670.
• The supplied remote is capable of controlling both the SCD-XE670 and a conventional Sony CD player.

Table of Contents

Parts Identification

Front Panel 4

Rear Panel 4

Remote Control 5

Getting Started

Checking the supplied accessories ...... 6

Inserting Batteries Into the Remote ...... 6

Hooking Up the System 6

Playing CDs

Compatible Disc Types ...... 9

Playing a Disc 10

Using the Display 11

Locating a Specific Track 14

Locating a Particular Point in a Track .... 15

Playing Tracks Repeatedly.... 16

Playing Tracks in Random Order (Shuffle Play).... 17

Creating Your Own Programme (Programme Play).... 18

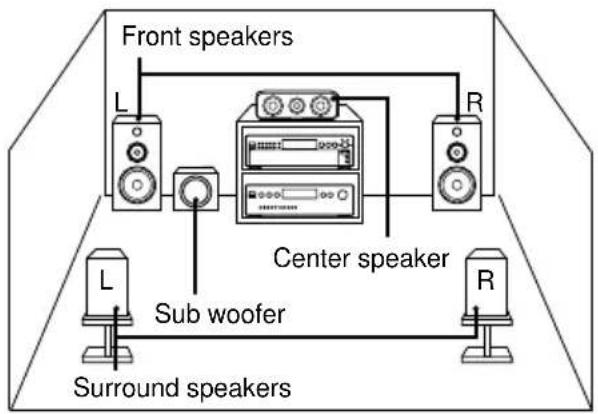

Listening to a Multi-channel Super Audio CD (Multi-channel management function) 19

Additional Information

Precautions 23

Notes on Discs 24

Troubleshooting 25

Specifications 25

Parts Identification

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses ( ) for details.

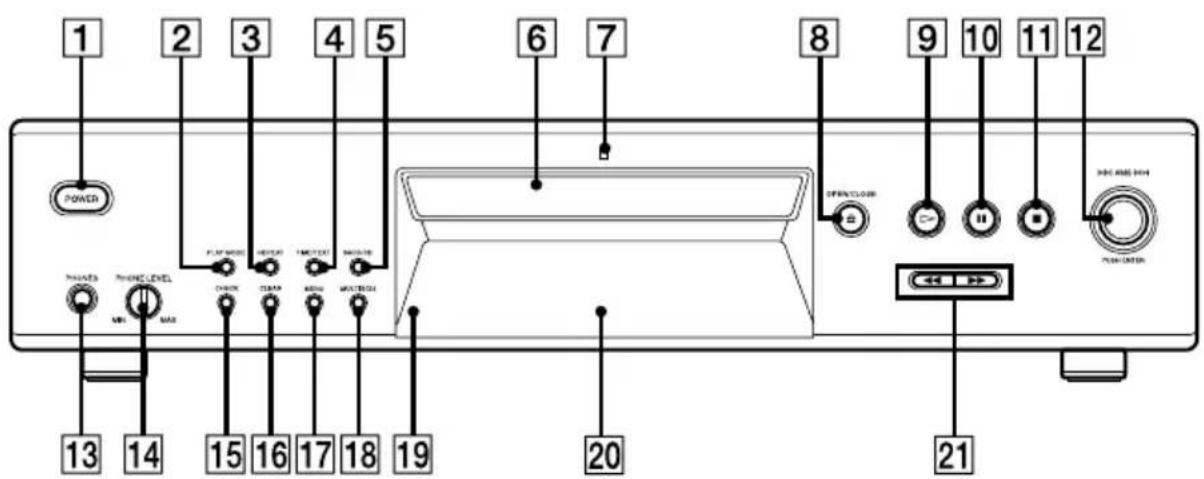

Front Panel

1 2 3 4 5 6 7 8 9 10 11 12 POWER PHONE LEVEL ORANGE STRAW RUNS MOUNTED OPEN/LOCK OPEN/LOCK MAX 13 14 15 16 17 18 19 20 21

CHECK 15 (18)

CLEAR 16 (18)

Disc tray 6 (10)

Display 20 (11)

MENU 17 (10, 20)

MULTI/2CH 18 (9, 11)

Multi-Channel indicator 7

PHONE LEVEL 14 (25)

PHONES jack 13

PLAY MODE 2 (17, 18)

POWER 1 (10)

Remote sensor 19 (6)

REPEAT 3 (16)

SACD/CD 5 (9,11)

TIME/TEXT 4 (11)

BUTTON DESCRIPTIONS

AMS dial 12 (10, 11, 14, 15, 19, 20)

合 OPEN/CLOSE 8 (10, 18)

9 (10, 15, 16, 17, 18)

10 (11)

■ 11 (11, 16, 19)

◀◀/▶▶ 21 (15)

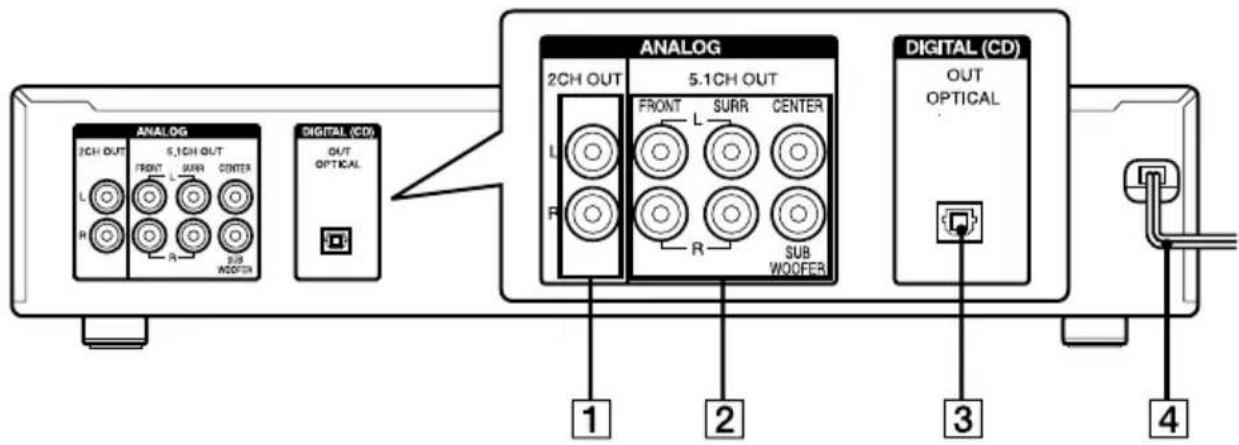

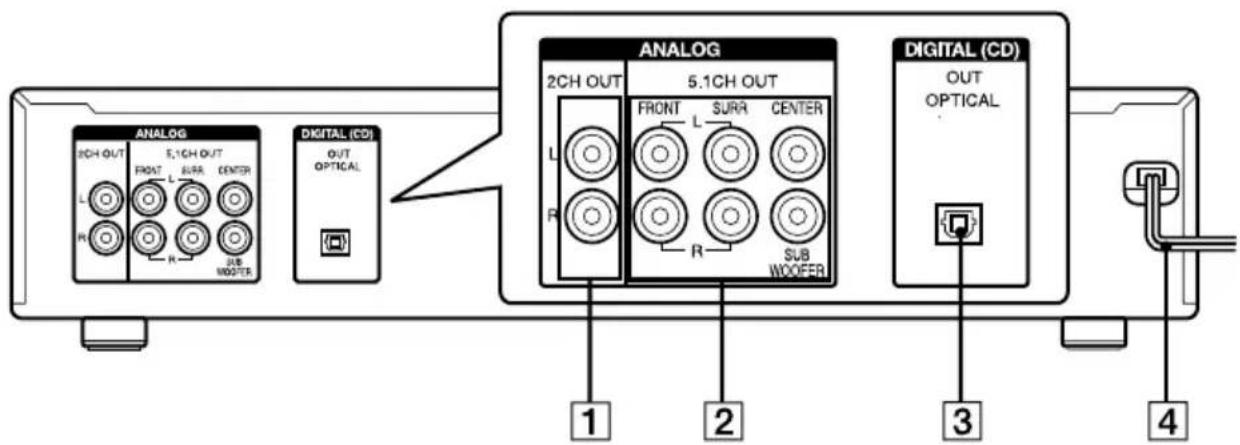

Rear Panel

ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER L R SUB WOOFER DIGITAL (CD) OUT OPTICAL ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER L R SUB WOOFER DIGITAL (CD) OUT OPTICAL 1 2 3 4

ANALOG 2CH OUT L/R jacks 1 (8)

ANALOG 5.1CH OUT jacks 2 (6)

DIGITAL (CD) OUT OPTICAL jack 3 (8)

Mains lead 4 (8)

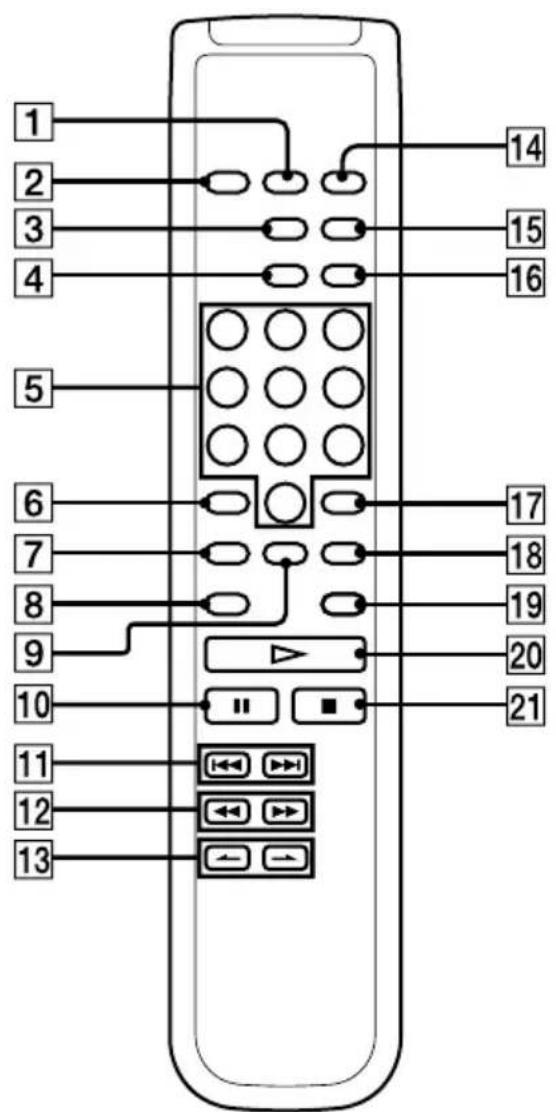

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

A↔B 8 (16)

AMS ◀◀/▶▶11 (14, 15, 17, 22)

CHECK 9 (18)

CLEAR 18 (18)

CONTINUE 2 (17, 18)

DISPLAY MODE 3 (12)

ENTER 17 (22)

INDEX ↩/→ 13 (15)

LEVEL ADJ 19 (22)

MULTI/2CH 16 (9, 11)

Number buttons 5 (14, 18)

PROGRAM 14 (18)

REPEAT 7 (16)

SACD/CD 15 (9, 11)

SHUFFLE 1 (17)

TIME/TEXT 4 (11)

BUTTON DESCRIPTIONS

10 6 (14, 18)

20 (10, 15, 16, 17, 18)

10 (11)

■ 21 (11, 16, 19)

◀◀/▶▶ 12 (15)

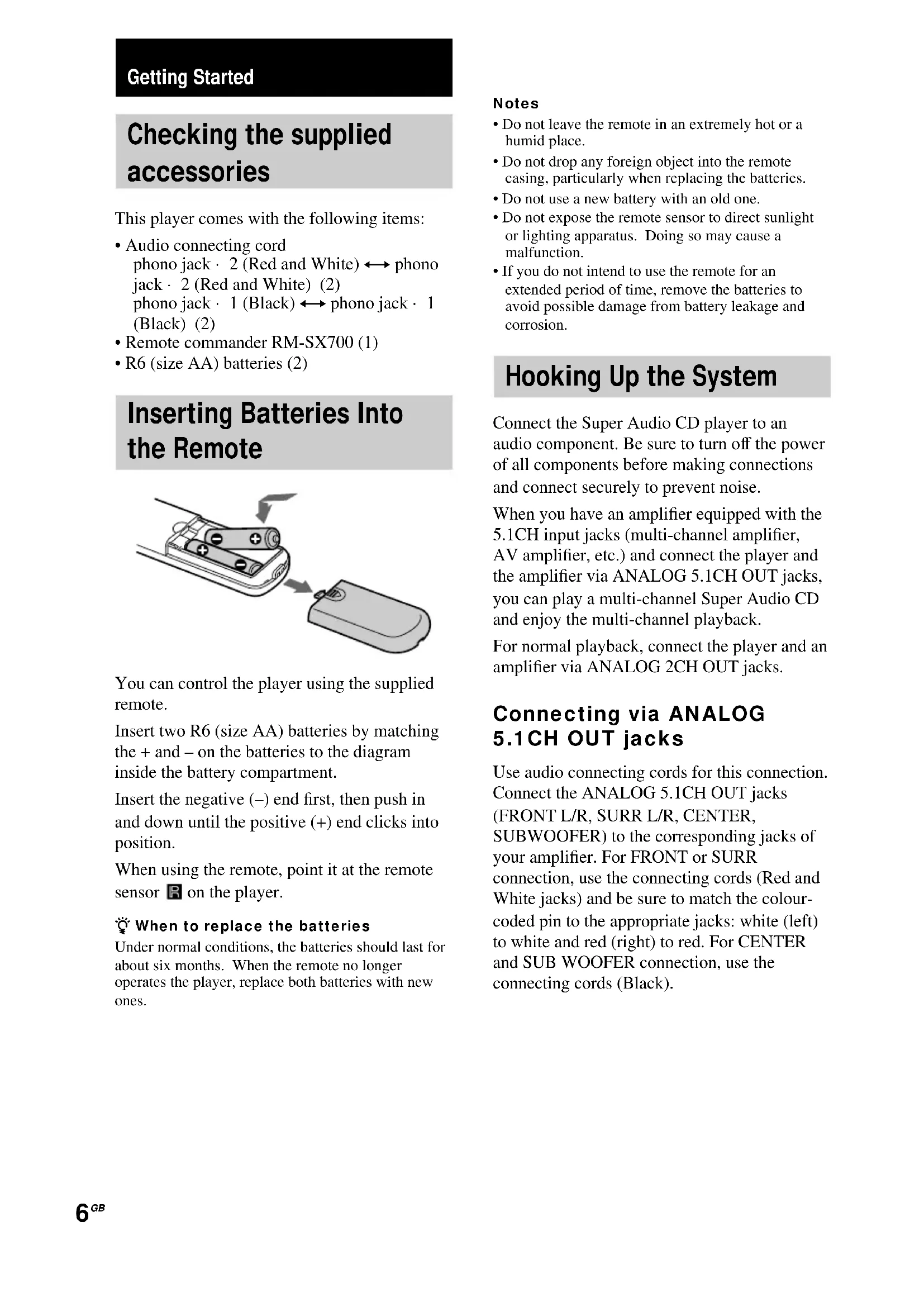

Checking the supplied accessories

This player comes with the following items:

• Audio connecting cord phono jack · 2 (Red and White) ↔ phono jack · 2 (Red and White) (2) phono jack · 1 (Black) ↔ phono jack · 1 (Black) (2)
• Remote commander RM-SX700 (1)
  • R6 (size AA) batteries (2)

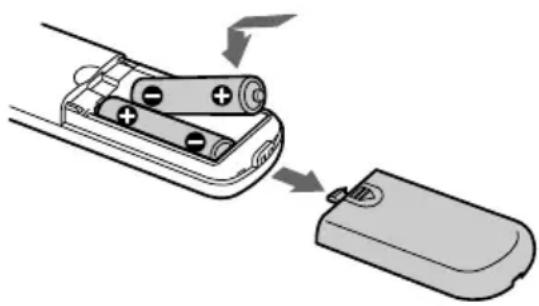

Inserting Batteries Into the Remote

Diagram showing battery charging process with two batteries and a battery casing (no text or symbols)

You can control the player using the supplied remote.

Insert two R6 (size AA) batteries by matching the + and - on the batteries to the diagram inside the battery compartment.

Insert the negative (−) end first, then push in and down until the positive (+) end clicks into position.

When using the remote, point it at the remote sensor R on the player.

When to replace the batteries

Under normal conditions, the batteries should last for about six months. When the remote no longer operates the player, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or a humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Hooking Up the System

Connect the Super Audio CD player to an audio component. Be sure to turn off the power of all components before making connections and connect securely to prevent noise.

When you have an amplifier equipped with the 5.1CH input jacks (multi-channel amplifier, AV amplifier, etc.) and connect the player and the amplifier via ANALOG 5.1CH OUT jacks, you can play a multi-channel Super Audio CD and enjoy the multi-channel playback.

For normal playback, connect the player and an amplifier via ANALOG 2CH OUT jacks.

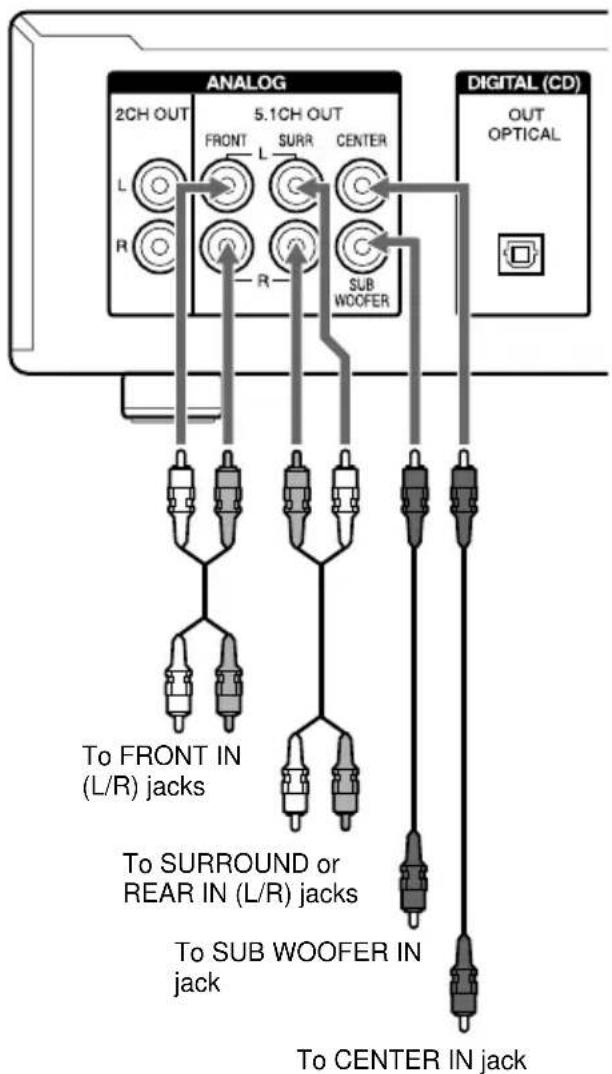

Connecting via ANALOG 5.1CH OUT jacks

Use audio connecting cords for this connection. Connect the ANALOG 5.1CH OUT jacks (FRONT L/R, SURR L/R, CENTER, SUBWOOFER) to the corresponding jacks of your amplifier. For FRONT or SURR connection, use the connecting cords (Red and White jacks) and be sure to match the colour-coded pin to the appropriate jacks: white (left) to white and red (right) to red. For CENTER and SUB WOOFER connection, use the connecting cords (Black).

ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER R R SUB WOOFER DIGITAL (CD) OUT OPTICAL To FRONT IN (L/R) jacks To SURROUND or REAR IN (L/R) jacks To SUB WOOFER IN jack To CENTER IN jack

FRONT or SURR connection

Audio connecting cords (Red and White) (supplied)

White (L) Red (R) Red (B)

CENTER or SUB WOOFER connection

Audio connecting cords (Black) (supplied)

Notes

• When you make the Multi-channel connection, connect the ANALOG 2CH OUT jacks also using another audio connecting cord so that you can play a CD (or SACD) when you set the input selector of your amplifier to CD (or SACD) input.
• During playback of a conventional CD or a 2CH Super Audio CD, the same signal that is output from the ANALOG 2CH OUT jacks is also output from the ANALOG 5.1CH FRONT L/R jacks.
• During playback of a Multi-channel Super Audio CD, the same signal that is output from the ANALOG 5.1CH FRONT L/R jacks is also output from the ANALOG 2CH OUT jacks. (The down mixed signal of the Multi-channel signal is not played back.)
• There are some types of Super Audio CD disc, such as 5CH, 4CH, and 3CH. When you play these disc, the signal does not output from all the jacks of the ANALOG 5.1CH OUT. For details of the playback, see the cover or instructions of the Super Audio CD disc.

Hooking Up the System (continued)

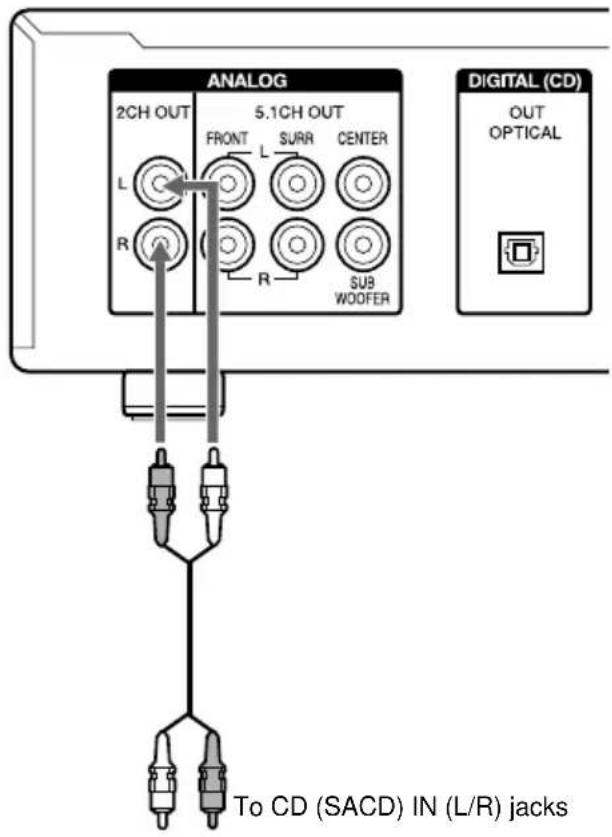

Connecting via ANALOG 2CH OUT jacks

Use an audio connecting cords for this connection. Connect the ANALOG 2CH OUT L/R jacks to the CD (SACD) input jacks of your amplifier. Be sure to match the colour-coded pin to the appropriate jacks: white (left) to white and red (right) to red.

ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER R R SUB WOOFER DIGITAL (CD) OUT OPTICAL To CD (SACD) IN (L/R) jacks

Audio connecting cords (Red and White) (not supplied*)

White (L) Red (R) Red (R)

* If you do not make the ANALOG 5.1 CH connection (page 6), you can use the supplied audio connecting cable for the ANALOG 2CH connection.

Connecting via DIGITAL (CD) OUT OPTICAL connector

Use an optical digital cable for this connection. When connecting the optical digital cable to the DIGITAL (CD) OUT OPTICAL connector, take the cap off the connectors and push the cable plugs in until they click into place.

Be careful not to bend or twist the optical cable.

Optical digital cable (not supplied)

Note

Only the audio signals of conventional CDs can be output from the DIGITAL (CD) OUT OPTICAL connector. Those of the Super Audio CD cannot be output through the DIGITAL (CD) OUT OPTICAL connector.

Connecting the AC power cord

Connect the AC power cord to a wall outlet.

Playing discs

Compatible Disc Types

You can play the following discs with this player.

Depending on the type of disc to be played, select the appropriate indicator by pressing SACD/CD or MULTI/2CH (pages 11).

Classification by the layer configuration

Super Audio CD (single layer disc)

This disc consists of a single HD (high density) layer.

When you play this disc, the player is set to the Super Audio CD playback mode automatically.

HD (Super Audio CD) layer

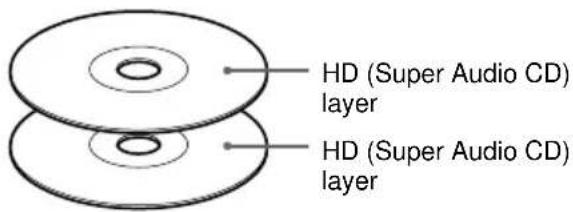

Super Audio CD (dual layer disc)

This disc consists of dual HD layers and is capable of extended play over long periods.

When you play this disc, the player is set to the Super Audio CD playback mode automatically.

Also, as the dual layer disc consists of dual HD layers on one side only, it is not necessary to turn the disc over.

HD (Super Audio CD) layer HD (Super Audio CD) layer

Conventional CD

This disc is the standard format.

When you play this disc, the player is set to the Conventional CD playback mode automatically.

CD layer

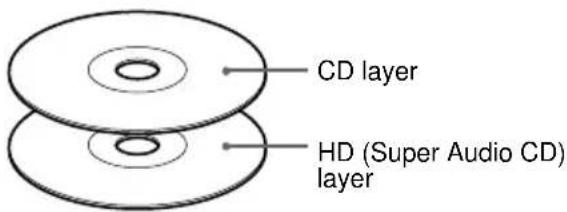

Super Audio CD + CD (Hybrid disc)

This disc consists of an HD layer and a CD layer. Press SACD/CD to select the layer you want to listen to. Also, as the dual layers are on one side, it is not necessary to turn the disc over. You can play the CD layer using a conventional CD player.

CD layer HD (Super Audio CD) layer

Classification by the channel configuration of the Super Audio CD

2 channel Super Audio CD

This disc consists of the 2 channel playback area.

When you play this disc, the player is set to the 2 channel playback mode automatically.

2 channel playback area

Multi-channel Super Audio CD

This disc consists of the multi-channel playback area.

When you play this disc, the player is set to the multi-channel playback mode automatically.

Multi-channel playback area

Compatible Disc Types (continued)

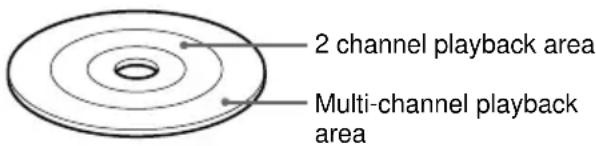

2 channel + Multi-channel Super Audio CD

This disc consists of the 2 channel playback area and the multi-channel playback area.

Press MULTI/2CH to select the playback area you want to listen to.

2 channel playback area Multi-channel playback area

You can select the default playback area (2 channel playback or multi-channel playback area).

1 During stop mode, press MENU.
2 Turn ◀◀◀ AMS▶▶ until “M/2CH SELECT” appears in the display.
3 Press I<>. The current playback area appears.
4 Turn ◀◀AMS▶▶ to select desired playback area, then press ◀◀AMS▶▶.

Incompatible Discs

This player cannot play the following discs. If you try to play them, the error message “TOC Error” or “No Disc” will appear or there will be no sound.

• CD-ROM
  • DVD, etc.

Playing a Disc

The operations for normal play and the basic operations during play are explained below.

1 Turn on the amplifier. Turn down the volume level to the lowest.
2 Select the player position using the input selector on the amplifier.
3 Press POWER to turn on the player.
4 Press △ OPEN/CLOSE to open the disc tray, and place a disc on the tray.

Illustration of hands using a tool to press or install a mechanical component on a base (no text or symbols visible)

With the label side up

5 Press SACD/CD to select the SACD or CD.

Each time you press the button, the SACD or CD appears alternately in the display. Select the type of disc on the tray. For details, see page 9.

6 Press ▷.

Playback starts from the first track. If you want to start playing from a specific track, turn ◀◀◀AMS▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>

7 Adjust the volume on the amplifier.

Basic operations during play

To Press

Stop play ■

Pause play

Resume play after || or ▷ pausing

Locate a succeeding Turn ◀◀◀AMS▶▶ track clockwise

Locate the beginning Turn ◀◀◀AMS▶▶▶ of the current track counterclockwise or a preceding track

Eject the disc ≜ OPEN/CLOSE

If you turn on the player when a disc is already loaded

Playback starts automatically. If you connect a commercially available timer, you can set it to start playing the disc at any time you want.

To select a layer you want to listen to when playing a hybrid disc (page 9)

After you stop play using ■, press SACD/CD repeatedly to light either the "SACD" or "CD."

To select a playback area you want to listen to when playing a 2 channel + Multi-channel Super Audio CD (page 10)

After you stop play using ■, press MULTI/2CH repeatedly to light either the “MULTI CH” or “2 CH.”

Note

During playback, increase the volume level gradually starting from the lowest level. The output from this unit may contain band width that are out of the normal listening range. This may cause damage to the speakers or ears.

Using the Display

The display window shows various information about the disc or track being played. This section describes the current disc information and information that appears for each play status.

Disc information when a disc is loaded

Depending on the disc that is currently loaded, the display shows as follows:

2 channel Super Audio CD

Multi-channel Super Audio CD

or

or

During playback a 5.1 channel Super Audio CD

During playback a 5 channel Super Audio CD

During playback other Super Audio CDs or during stop mode

Conventional CD

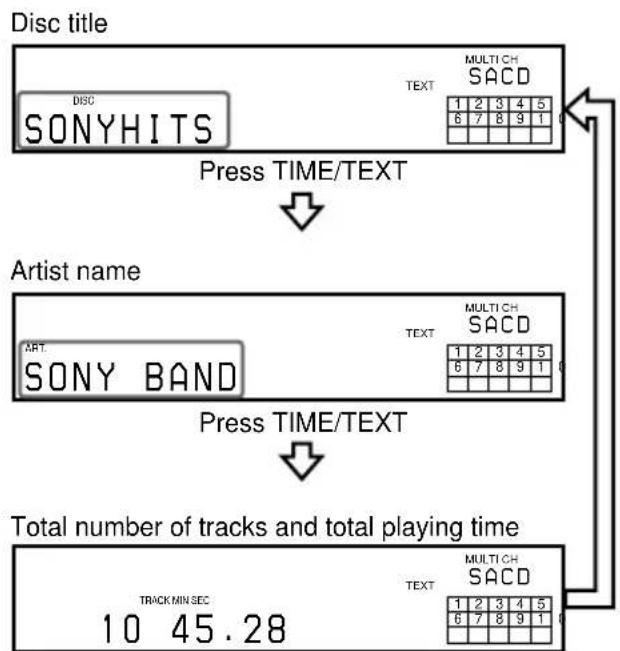

Displaying information while the player is stopped

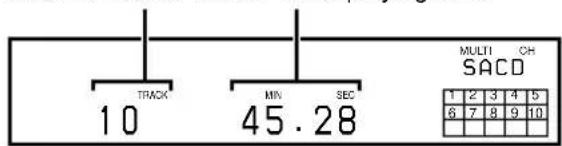

Press TIME/TEXT.

The display shows the total number of tracks and total playing time.

Total number of tracks Total playing time

TRACK 10 MIN SEC 45.28 MULTI CH SACD 1 2 3 4 5 6 7 8 9 10

Using the Display (continued)

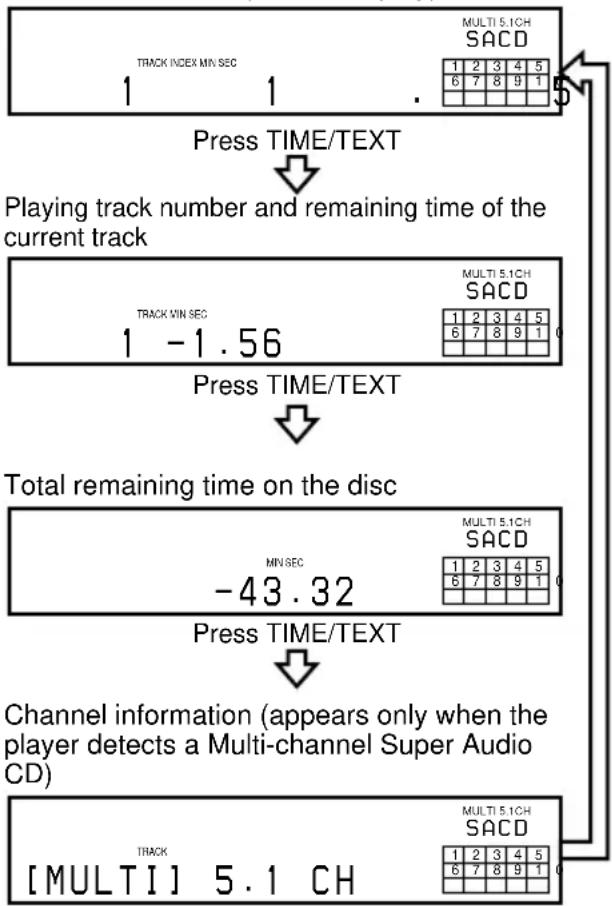

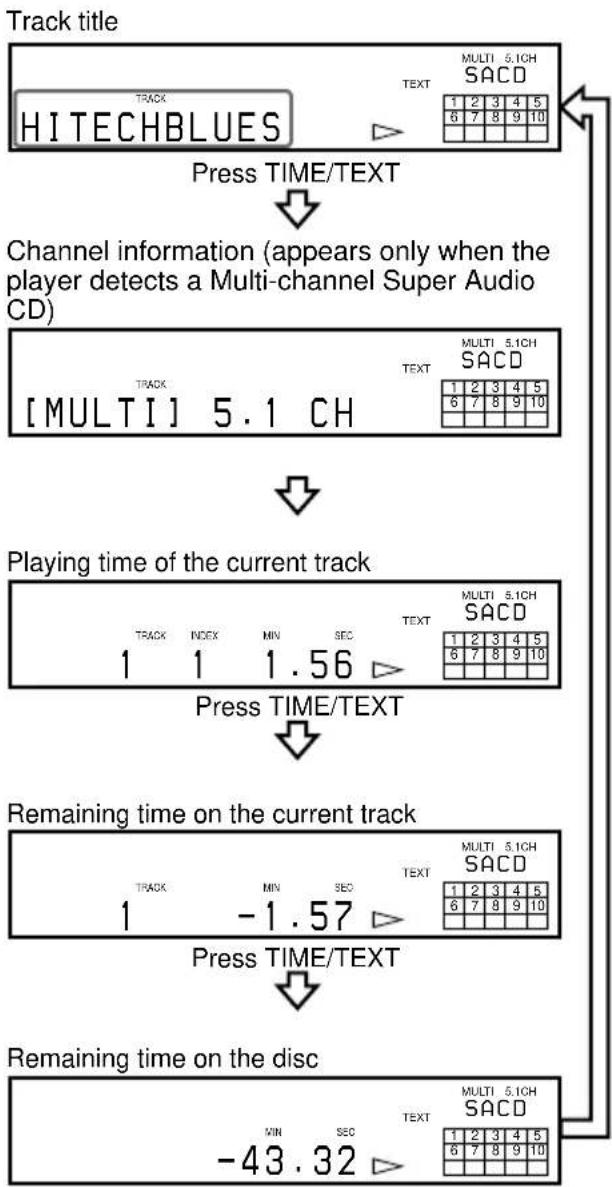

Displaying information while the player is playing

Press TIME/TEXT.

Each time you press the button, the current track number and its elapsed time or remaining time appears, or the total remaining time for the disc appears in the display.

When the player detects a Multi-channel Super Audio CD, the channel information appears before the default display appears.

Playing track number and elapsed playing time of the current track (default display)

Turning off the information in the display

Each time you press DISPLAY MODE on the remote while playing a disc, the display turns off and on alternately.

Even when the display is turned off, the display turns on if you pause or stop play. When you resume play, the display turns off again.

Before you start playing, when you press DISPLAY MODE to turn off the display, "Display Off" appears, and when you press the button to turn on the display, "Display On" appears.

Displaying the information of a TEXT disc

TEXT discs contain information, such as the disc name or artist name, as well as the audio signals. This player can display the disc name, artist name, and current track name as TEXT information.

When the player detects a TEXT disc, “TEXT” appears in the display. If your TEXT disc has several languages, “TEXT” and “MULTI” appear in the display. When you want to check the information in another language, see “Displaying the information of a TEXT disc in other languages” on page 14.

Displaying the information of a TEXT disc in stop mode

Press TIME/TEXT.

Each time you press the button, the disc name or artist name appears in the display. When you select the artist name, "ART." appears in the display.

• Before you start playing

Press TIME/TEXT

Display information of a TEXT disc while playing a disc

The current track name appears. If the disc name has more than 15 characters, the first 14 characters will remain after the name scrolls by in the display.

When the player detects a Multi-channel Super Audio CD, the channel information appears before the playing time of the current track appears.

• While playing a disc

Press TIME/TEXT

Using the Display (continued)

Notes

• The display may not show all the characters, depending on the disc.
• This player can display only the disc name, artist name, and track names from TEXT discs. Other information cannot be displayed.

Displaying the information of a TEXT disc in other languages

You can change the displayed language if the TEXT disc has multi language capacity. When the player detects such a TEXT disc, “TEXT” and “MULTI” appear in the display. Change the language according to the procedures below.

1 Press MENU in stop mode.
2 Turn ◀◆AMS▶▶ until “LANGUAGE” appears in the display.
3 Press ◀AMS▶▶.
The current selected language (English, French, German, etc.) flashes. If the player cannot display the language used in a TEXT disc, “Other Lang” appears in the display.
4 Turn ◀◆AMS▶▶ until the desired language appears in the display.
5 Press ◀AMS▶▶.
After a few seconds, the information appears in the selected language.

Locating a Specific Track

During stop or play mode, you can locate any track to be played.

To locate	You need to
The next or succeeding tracks	Turn AMS clockwise until you find the track. When using the remote, press repeatedly until you find the track.
The current or preceding tracks	Turn AMS counterclockwise until you find the track. When using the remote, press repeatedly until you find the track.
A specific track directly	Turn AMS until you find the track number you want. When using the remote, press or repeatedly until you find the track.

Locating a track directly by entering the track number

Press the number button(s) to enter the track number.

To enter a track number over 11

1 Press >10.
2 Enter the corresponding digits.

To enter 0, press 10/0 instead.

Examples:

• To play track number 30, press >10, then 3 and 10/0.
• To play track number 100, press >10 twice, then 1, and 10/0 twice.

Locating a Particular Point in a Track

You can locate a particular point in a track during play or play pause.

Locating a point while monitoring the sound (Search)

Press and hold ◀◀/▶▶ during play.

You will hear intermittent playback as the disc goes forward or reverses.

When you reach the desired point, release the button.

Locating a point by observing the time indication (High-Speed Search)

Press and hold ◀◀/▶▶ during play pause.

You will not hear the playback sound.

When "Over!!" appears in the display

The disc has reached its end. Press ◀◀◀ or ◀◀◀ to go back.

Note

Tracks that are only a few seconds long may be too short for monitoring. In this case, the player may not search correctly.

Locating a point using the index function (Index Search)

Press INDEX→ or INDEX← repeatedly in play or pause mode.

What is an INDEX?

Some SACD or CD are provided with an index marking system which divides tracks or discs into smaller segments. This is especially useful when you want to locate a certain point within a long track (in classical music for example). The index search function works only when you use a commercially available indexed discs (usually indicated on the label).

Locating a point by setting the start time (Time Search)

1 Press I◄◄/►►I (or turn ◀◄◄AMS►►I) to select the desired track in stop mode.
2 Press and hold ◀◀/▶▶ to set the time to start play while looking at the display.

You can set the time from the beginning of the desired a track when you press ▶▶ at first, and set the time from the end of the desired track backward's when you press

◀◀ at first.

TRACK 5 MIN SEC 2.57 MULTI 5.1CH SACD 1 2 3 4 5 6 7 8 9 10

3 Press ▷.

Play will start at the time search.

Playing Tracks Repeatedly

You can play an entire disc or portions thereof repeatedly. This function can be used with Shuffle Play to repeat all the tracks in random order (page 17), or with Programme Play to repeat all the tracks in a programme (page 18). You can also repeat a specific track or portion within a track.

Note

If you turn off the player or disconnect the mains lead, the player will store the last setting of repeat play (“Repeat All” or “Repeat I”) and recall it the next time you turn on the player. However, the setting of the Repeat A-B Play will be cancelled if you turn off the player or disconnect the mains lead.

Repeating all the tracks on the disc (Repeat All Play)

Press REPEAT once, then press ▷.

"REPEAT" appears in the display and Repeat All Play starts.

The repeat play changes depending on the play mode you select.

When the play mode is	The player repeats
Normal play (page 10)	All the tracks in sequence
Shuffle Play (page 17)	All the tracks in random order
Programme Play (page 18)	All the tracks in the programme in sequence

To stop Repeat All Play

Press ■.

To resume normal play

Press REPEAT repeatedly until “REPEAT” goes off.

Repeating the current track (Repeat 1 Play)

While the track you want to repeat is being played, press REPEAT repeatedly until "REPEAT 1" appears in the display.

Repeat 1 Play starts.

To stop Repeat 1 Play

Press ■.

To resume normal play

Press REPEAT repeatedly until “REPEAT 1” goes off.

Repeating a specific portion within a track (Repeat A-B Play)

You can specify one portion within a track to be played repeatedly. Note that the portion that you specify must be within the boundaries of a single track.

1 While the player is playing, press A←→B at the starting point (point A) of the portion to be played repeatedly.

“REPEAT” appears and “A” flashes in the display.

2 Continue playing the track (or press ▶▶) to locate the ending point (point B), then press A↔B.

"REPEAT A-B" appears and Repeat A-B Play starts.

To stop Repeat A-B Play and resume normal play

Press REPEAT or ■.

You can set a new starting point and ending point during Repeat A-B Play

You can change the current ending point to a new starting point, then specify a new ending point to repeat another portion right after the current portion.

1 During Repeat A-B Play, press A↔B.

The current ending point changes to the new starting point (point A).

"REPEAT" lights up and "A" flashes in the display.

2 Locate the new ending point (point B) and press A↔B.

"REPEAT A-B" lights up and the player starts to repeat the newly specified portion.

When you want to restart from the starting point A, press ▷ during A↔B repeat.

Playing Tracks in Random Order (Shuffle Play)

When you select Shuffle Play, the player plays all the tracks on the disc in random order.

1 Press SHUFFLE on the remote in stop mode.

When you operate on the player, press PLAY MODE repeatedly until “SHUFFLE” appears in the display.

2 Press ▷.

Shuffle Play starts.

“ ^7 ” appears while the player is “shuffling” the tracks. The player will stop after playing all the tracks once.

To resume normal play

Press CONTINUE on the remote.

When you operate on the player, press PLAY MODE repeatedly until “SHUFFLE” disappears from the display.

You can locate tracks during Shuffle Play

Press ◀◀/▶▶I.

Press ▶▶▶ to locate the next track or press ◀◀◀ to locate the beginning of the current track. The player does not go back to tracks which have already been played.

Creating Your Own Programme (Programme Play)

You can pick out the tracks that you like and specify the playback order in a programme containing up to 32 tracks (or 999 min. 59 sec. in total programme time)

1 Press PROGRAM on the remote in stop mode.

“PROGRAM” appears in the display.

When you operate on the player, press PLAY MODE repeatedly until "PROGRAM" appears in the display.

2 Press the number buttons to enter the track number.

If you entered the wrong track number Press CLEAR to erase the track number and reenter the correct track number using the number buttons.

To select a track number over 11

Press >10 (page 14).

When you operate on the player, turn ◀◀◀AMS▶▶ until the track you want appears and push ◀◀◀AMS▶▶ to select the track.

3 Repeat step 2 to enter other tracks.

Each time you enter a track number, the total programme time appears in the display.

4 Press ▷.

Programme Play starts.

To resume normal play

Press CONTINUE on the remote.

When you operate on the player, press PLAY MODE repeatedly until “PROGRAM” disappears from the display.

The programme remains even after Programme Play ends

Press ▷ to play from the beginning of the programme again.

The programme remains even if you stop play.

Note

If you turn off the player, disconnect the mains lead, or press ≜ OPEN/CLOSE, the programme will be erased.

Checking the contents of the programme

Before you start playing or while the player is playing, press CHECK.

Each time you press the button, the track numbers will appear in the display in the programmed order.

When you press CHECK while the player is playing, the track number appears from the next track numbers of the current playing track number.

Changing the contents of the programme

You can change the contents of the programme in stop mode.

To	Do the following:
Erase a track	1Press CHECK repeatedly until the track number you want to erase appears.2Press CLEAR.
Erase from the last track in the programme	Press CLEAR.Each time you press the button, the last track of the programme is erased.
Add a track to the end of the programme	Press ◀◀/▶▶ on the remote to select the track you want to add, then press PROGRAM on the remote. When using the remote, press the number button of the track to be added. When you operate on the player, turn ◀◀AMS▶▶ until the track number you want to add appears, then push ◀◀AMS▶▶.
Erase all tracks	Hold down CLEAR or ■ (for about 2 seconds) until "Prog CLEAR" appears in the display.

Listening to a Multi-channel Super Audio CD (Multi-channel management function)

This player is equipped with a Multi-channel management function that sets the playback mode of the Super Audio CD by the DSD-DSP (built into the player) according to the layout or size of your speaker.

Example of the speaker layout

To set the Multi-channel management:

1 Select the appropriate preset playback mode (2 channel playback or Multi-channel playback).
2 Adjust the output level balance of each speaker (only when you select the Multi-channel playback mode).

Notes

• This features only work when you play the Super Audio CD.
• You may not be able to adjust the output level balance depending on the speaker layout mode that you selected.

Listening to a Multi-channel Super Audio CD (continued)

Selecting 2 channel playback mode

1 Press MENU.
2 Turn ◀◆AMS▶▶ until “2CH SPK MODE” appears in the display.
3 Press ◀AMS▶▶.
The playback mode appears in the display.

Playback Front speakers Sub woofer mode

2CH Direct	Each signal outputs directly from front speakers. No signal outputs from the Sub woofer.
2CH + SW	○	○

4 Turn ◀◆AMS▶▶ until desired mode appears in the display.

5 Press ◀◀◀AMS▶▶.

Note

You cannot operate this function when the player is in the CD or Multi-channel playback mode. Operate this function when the player is in the 2 channel Super Audio CD playback mode, the disc tray is opened, or no discs are in the player.

Selecting Multi-channel playback mode

1 Press MENU.
2 Turn ◀◆AMS▶▶ until “MCH SPK MODE” appears in the display.

3 Press ◀AMS▶▶.

The playback mode appears in the display.

Playback mode	Front speakers	Center speaker
MCH Direct	Each signal outputs directly from each speaker.
5 – Large + SW	Large	Large
5 – Large	Large	Large
5 – Small + SW	Small	Small
FRT – Large +SW	Large	Small
FRT – Large	Large	Small
No – CNTR + SW	Large	—
No – CNTR	Large	—

Playback mode	Surround speakers	Sub woofer
MCH Direct	Each signal outputs directly from each speaker.
5 – Large + SW	Large	○
5 – Large	Large	—
5 – Small + SW	Small	○
FRT – Large +SW	Small	○
FRT – Large	Small	—
No – CNTR + SW	Large	○
No – CNTR	Large	—

About "Large" or "Small" speaker

A “Large” speaker is a speaker that can reproduce bass frequencies plentifully. If you select “Small” for the surround speakers, the bass frequencies will come from the front speakers and/or sub woofer.

For normal use, select “MCH Direct” or set all the speakers to “Large” (ex. “5 – Large + SW,” “5 – Large,” etc.). If the sound is noisy or the Multi-channel playback is not effective while playing a Multi-channel Super Audio CD, change the settings of the speakers concerned to “Small.”

4 Turn ◀◆AMS▶▶ until desired mode appears in the display.

5 Press ◀AMS▶▶.

The output level balance setting display appears.

To set the output level balance, go to Step 4 in “Adjusting the output level balance on the front panel of the player” on page 21 or Step 2 in “Adjusting the output level from the remote” on page 22.

To return to the normal display, press MENU.

Notes

• The Multi-channel management function does not work when you select “MCH Direct” (you cannot set the output level balance of each speaker).
• The front speaker setting is set to “Large” automatically when you set the Sub woofer to “—.”
• When you play a track that does not contain the LFE* signal, the signal for the Sub woofer does not output. Therefore, when you select “MCH Direct,” “5 – Large + SW,” or “No – CNTR + SW,” no signal outputs from the Sub woofer. However, when you select “5 – Small + SW” or “FRT – Large + SW” (when you set the speaker setting to “Small”), the bass frequencies will come from the sub woofer.
  * Low Frequency Enhancement (described as “.1 CH”)

Adjusting the output level balance of each speaker

You can adjust following items with the Multichannel management function:

CNTR BALANCE

The relative output level balance between the front speakers (FRONT L/R) and the center speaker (CENTER)

SURR BALANCE

The relative output level balance between the front speakers (FRONT L/R) and the surround speakers (SURR L/R)

SW BALANCE

The relative output level balance between the front speakers (FRONT L/R) and the sub woofer (SUB WOOFER)

Note

Some adjustment may not work depending on the Multi-channel playback mode that you selected.

Adjusting the output level balance on the front panel of the player

You can adjust the output level balance of each speaker while listening during playback. You can also adjust while listening to the test tone during stop mode.

1 Press MENU.
2 Turn ◀◆AMS▶▶ until “LEVEL ADJUST” appears in the display.
3 Press ◀AMS▶▶.
During playback, go to Step 6.
4 Turn ◀◀AMS▶▶ until “TONE ON” appears in the display.
5 Press ◀AMS▶▶.

The test tone issues from the speakers in sequence with the speaker type appearing in the display.

Listening to a Multi-channel Super Audio CD (continued)

6 Turn ◀◆AMS▶▶ until the desired item appears in the display.

Select the item from “CNTR BALANCE,” “SURR BALANCE,” or “SW BALANCE.”

Note

When you set the Sub woofer to “—” in the Multi-channel playback mode (page 20), “SW BALANCE” does not appear. Similarly, “CNTR BALANCE” or “SURR BALANCE” does not appear when you set the corresponding speaker to “—.”

7 Press ◀AMS▶▶.

The balance adjustment display appears. In stop mode, the test tone is output from the selected speaker.

Example: When you select “SURR BALANCE” during stop mode, the test tone is output from the front speakers and surround speakers.

DISC FRT:__1__:SURR MULTI CH SACD 1 2 3 4 5 6 7 8 9 10

8 Turn ◀◀AMS▶▶ to adjust the output level.

FRT: _:_:⊥_: SURR MULTI CH SACD 1 2 3 4 5 6 7 8 9 10

9 Press ◀AMS▶▶.

The player status returns to Step 6. Repeat Step 6 through 9 for more adjustments.

10 Press MENU after you finish adjusting.

The display returns to the normal display.

Adjusting the output level from the remote

You can adjust the output level of each speaker from the listening position by using the supplied remote.

1 Press LEVEL ADJ during playback or stop mode.

During playback, go to Step 4.

2 Press I◄◄/►►I repeatedly until "TONE ON" appears in the display.

3 Press ENTER.

The test tone issues from the speakers in sequence with the speaker type appearing in the display.

4 Press I◄◄/►►I repeatedly until the desired item appears in the display.

Select the item from “CNTR BALANCE,” “SURR BALANCE,” or “SW BALANCE.”

Note

When you set the Sub woofer to “—” in the Multi-channel playback mode (page 20), “SW BALANCE” does not appear. Similarly, “CNTR BALANCE” or “SURR BALANCE” does not appear when you set the corresponding speaker to “—.”

5 Press ENTER.

The balance adjustment display appears. In stop mode, the test tone is output from the selected speaker.

Example: When you select “SURR BALANCE” during stop mode, the test tone is output from the front speakers and surround speakers.

FRT:.___⊥__:SURR MULTI CH SACD 1 2 3 4 5 6 7 8 9 10

6 Press I◄◄/►►I repeatedly to adjust the output level.

DISC FRT: _ _ : _ : SURR MULTI CH SACD 1 2 3 4 5 6 7 8 9 1 0

7 Press ENTER.

The player status returns to Step 4. Repeat Step 4 through 7 for more adjustments.

8 Press LEVEL ADJ after you finish adjusting.

The display returns to the normal display.

Additional Information

Precautions

On safety

• Caution — The use of optical instruments with this product will increase eye hazard.
• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.
• AC power cord must be changed only at the qualified service shop.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

On power sources

• Before operating the player, check that the operating voltage of the player is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the player.
• The player is not disconnected from the mains as long as it is attached to the mains, even if the player itself has been turned off.
• If you are not going to use the player for a long time, be sure to disconnect the player from the mains. To disconnect the mains lead, grasp the plug itself; never pull the cord.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.
• Do not place the player on a soft surface such as a rug that might block the ventilation holes on the bottom.
• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about an hour until the moisture evaporates.
• During power on, some noise may be heard while the disc is being loaded into the Super Audio CD player. This is not a malfunction.

Precautions (continued)

On adjusting the volume

- Do not turn up the volume too much while listening to a portion with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level portion is played.

On inserting a disc

- You may hear a transmission or a mechanical sound from the player. This indicates that the player is automatically adjusting its internal mechanisms according to the inserted disc.

You may also hear the mechanical sound from the player when you insert a warped disc.

On cleaning

- Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

On transportation

- Be sure to remove the disc on the tray.

- Be sure to close the disc tray.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Notes on Discs

On handling discs

- To keep the disc clean, handle the disc by its edge. Do not touch the surface.

- Do not stick paper or tape on the disc.

- Use only round-shaped discs. If you use a special shaped disc (e.g., star-shaped, heart-shaped, or square-shaped, etc.), the player may be damaged.

- Do not use a disc with a seal attached on such as on a used disc or rental disc.

On keeping discs

- Do not expose the disc to direct sunlight or heat sources such as hot air ducts.

- After playing, store the disc in its case. If you put it on top of another disc without the case, the disc may be damaged.

On placing discs on the disc tray

- Make sure the disc is positioned securely on the tray.

If not, the player or the disc may be damaged.

On cleaning

- If the disc is dirty with fingerprints or dust, it may lessen the quality of the audio out.

- Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out.

Illustration of hands holding a CD or DVD disc with a pen, showing mechanical adjustment (no text or symbols)

- Clean the disc with a soft cloth slightly moistened with water, and remove moisture with a dry cloth.

- Do not use solvents such as benzine, thinner, record cleaners, or anti-static spray.

Notes on CD-R/CD-RW playback

- Discs recorded on CD-R/CD-RW drives may not be played back because of scratches, dirt, recording condition, or the drive's characteristics. Besides, the discs, which are not yet finalized at the end of recording, cannot be played back.

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

There is no sound.

• Check that the player is connected securely.
• Make sure you operate the amplifier correctly.
• When you use the headphones, adjust the volume with PHONE LEVEL.

There is no sound from the DIGITAL (CD) OUT OPTICAL connector.

- The audio signals of the super audio CD cannot be output from the DIGITAL (CD) OUT OPTICAL connector.

The disc does not play.

• There is no disc inside the player.
- The disc is placed upside down on the tray.
- Place the disc on the disc tray with the label side up.
- The disc is placed at an angle. Reload the disc.
- Clean the disc (see page 24).
- Moisture has condensed inside the player. Remove the disc and leave the player turned on for about an hour.
- There is an incompatible disc on the tray (see page 10).

The remote does not function.

• Remove any obstacles in the path of the remote and the player.
• Point the remote at the remote sensor on the player.
• If the batteries in the remote are weak, replace with new ones.

There is no sound from the SUB WOOFER jack.

• Select the playback mode so that the Sub woofer is set to “ ” (page 20).
• When you play a track that does not contain the LFE signal, the signal outputs from the SUB WOOFER jack only when you select “5 – Small + SW” or “FRT – Large + SW” for the Multi-channel playback mode (page 21).

Specifications

When a super audio CD is played

Playing frequency range 2 Hz to 100 kHz Frequency response 2 Hz to 50 kHz (-3 dB)

Dynamic range 103 dB or more

Total harmonic distortion rate 0.0020 % or less

Wow and flutter Value of measurable limit

(±0.001 % W. PEAK) or less

When a CD is played

Frequency response 2 Hz to 20 kHz

Dynamic range 98 dB or more

Total harmonic distortion rate 0.0025 % or less

Wow and flutter Value of measurable limit

(±0.001 % W. PEAK) or less

Output connector

	Jack type	Output level	Load impedance
ANALOG OUT	Phono jacks	2 Vrms (at 50 kilohms)	Over 10 kilohms
DIGITAL (CD) OUT OPTICAL*	Square optical output connector	-18 dBm	Wave length: 660 nm
PHONES	Stereo phone jack	10 mW	32 ohms

*Output only the audio signals of the CD

General

Laser: Semiconductor laser

$$ (\text { S A C D }: \lambda = 6 5 0 \mathrm{nm}) $$

$$ (\mathrm{CD}: \lambda = 7 8 0 \mathrm{nm}) $$

Emission duration: continuous

Power requirements 230 V AC, 50/60 Hz

Power consumption 26 W

Dimensions (w/h/d) 430 · 95 · 285 mm incl. projecting parts

Mass (approx.) 3.9 kg

Supplied accessories

See page 6.

Design and specifications are subject to change without notice.

AVERTISSEMENT

1 2 3 4 5 6 7 8 9 10 11 12 POWER PHONE PHONE LEVEL RUN RUN PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MOUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MUNT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MINT PLAY MNT

Molette ◀◀◀ AMS▶▶ 12 (10, 11, 14, 15, 19, 20)

合 OPEN/CLOSE 8 (10, 18)

9 (10, 15, 16, 17, 18)

10 (11)

■ 11 (11, 16, 19)

◀◀/▶▶ 21 (15)

Panneau arrière

ANALOG 2CH OUT 5.1CH OUT FRONT SURR CENTER L R R SUB MODIFIER DIGITAL (CD) OUT OPTICAL ANALOG 2CH OUT 5.1CH OUT FRONT SURR CENTER L R R SUB MODIFIER DIGITAL (CD) OUT OPTICAL 1 2 3 4

Câble secteur 4 (8)

Prise DIGITAL (CD) OUT OPTICAL 3 (8)

Prises ANALOG 2CH OUT L/R 1 (8)

Prises ANALOG 5.1CH OUT 2 (6)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

A↔B 8 (16)

AMS ◀◀/▶▶11 (14, 15, 17, 22)

CHECK 9 (18)

CLEAR 18 (18)

CONTINUE 2 (17, 18)

DISPLAY MODE 3 (12)

ENTER 17 (22)

INDEX ↩/→ 13 (15)

LEVEL ADJ 19 (22)

MULTI/2CH 16 (9, 11)

PROGRAM 14 (18)

REPEAT 7 (16)

SACD/CD 15 (9, 11)

SHUFFLE 1 (17)

TIME/TEXT 4 (11)

20 (10, 15, 16, 17, 18)

10 (11)

■ 21 (11, 16, 19)

◀◀/▶▶ 12 (15)

Préparation

Diagram showing a battery being inserted into a remote control unit, with no text or symbols present.

Blanc (L) Rouge (R) Blanc (L) Rouge (R)

Blanc (L) Blanc (L) Rouge (R) Rouge (R)

Simple line drawing of a circular ring with a central hole and a pointer (no text or symbols)

Couche HD (Super Audio CD)

Simple line drawing of two stacked circular components with internal rings and two labeled arrows (no text or symbols)

Couche HD (Super Audio CD) Couche HD (Super Audio CD)

CD classique

Simple line drawing of a circular ring with a central hole and a pointer, no text or symbols present.

Couche CD

Super Audio CD + CD (hybride)

Simple line drawing of a circular ring with a central hole and an arrow pointing to it (no text or symbols)

Zone de lecture multicanal

Types de disques compatibles (suite)

Super Audio CD bi-canal + multicanal

Diagram of concentric circular layers with two arrows pointing to the innermost ring (no text or symbols)

Zone de lecture bi-canal

Zone de lecture multicanal

Diagram of a mechanical assembly with hands operating a workpiece on a base (no text or symbols visible)

DISC

FRT:___.1_:SURR

Illustration of a hand holding a circular object with arrows indicating rotation (no text or symbols)

Regler AMS 12 (10, 11, 14, 15, 19, 20)

△ OPEN/CLOSE 8 (10, 18)

9 (10, 15, 16, 17, 18)

10 (11)

■ 11 (11, 16, 19)

◀◀/▶▶ 21 (15)

Rückseite

ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER R SUB WOOFER DIGITAL (CD) OUT OPTICAL ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER R SUB WOOFER DIGITAL (CD) OUT OPTICAL 1 2 3 4

Buchse DIGITAL (CD) OUT OPTICAL 3 (8)

Buchsen ANALOG 2CH OUT L/R 1 (8)

Buchsen ANALOG 5.1CH OUT 2 (6)

Netzkabel 4 (8)

Fernbedienung

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

A↔B 8 (16)

AMS ◀◀◀/▶▶▶ 11 (14, 15, 17, 22)

CHECK 9 (18)

CLEAR 18 (18)

CONTINUE 2 (17, 18)

DISPLAY MODE 3 (12)

ENTER 17 (22)

INDEX ↩/→ 13 (15)

LEVEL ADJ 19 (22)

MULTI/2CH 16 (9, 11)

PROGRAM 14 (18)

REPEAT 7 (16)

SACD/CD 15 (9, 11)

SHUFFLE 1 (17)

TIME/TEXT 4 (11)

Zahlentasten 5 (14, 18)

20 (10, 15, 16, 17, 18)

10 (11)

■ 21 (11, 16, 19)

◀◀/▶▶ 12 (15)

Vorbereitungen

Diagram showing a battery moving from a remote to a compact case, with no text or symbols present.

Diagram of concentric circular layers with two arrows pointing to the outermost ring (no text or symbols)

Illustration of hands using a tool to press or install a circular component on a base (no text or symbols)

Illustration of a hand holding a CD or DVD disc with a circular arrow indicating rotation (no text or symbols)

Dial 12 (10, 11, 14, 15, 19, 20)

合 OPEN/CLOSE 8 (10, 18)

9 (10, 15, 16, 17, 18)

10 (11)

■ 11 (11, 16, 19)

◀◀/▶▶ 21 (15)

Panel posterior

ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER L R SUB WOOFER DIGITAL (CD) OUT OPTICAL ANALOG 2CH OUT 5.1CH OUT FRONT L SURR CENTER L R SUB WOOFER DIGITAL (CD) OUT OPTICAL 1 2 3 4

Cable de corriente 4 (8)

Toma DIGITAL (CD) OUT OPTICAL 3 (8)

Tomas ANALOG 2CH OUT L/R 1 (8)

Tomas ANALOG 5.1CH OUT 2 (6)

Mando a distancia

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

A↔B 8 (16)

AMS ◀◀/▶▶11 (14, 15, 17, 22)

20 (10, 15, 16, 17, 18)

10 (11)

■ 21 (11, 16, 19)

◀◀/▶▶ 12 (15)

Diagram showing battery charging process with two batteries moving from a remote to a closed battery (no text or symbols)

Diagram of concentric circular layers with two arrows pointing to the outermost ring (no text or symbols)

Illustration of hands using a tool to press or install a circular component on a base (no text or symbols visible)

Uso del visor (forts)

Uso del visor (forts)

Notas

Illustration of hands holding a CD or DVD disc with a circular arrow indicating rotation (no text or symbols)

Laser: Laser semiconductor

$$ \begin{array}{l} (\text { S A C D }: \lambda = 6 5 0 \mathrm{nm}) \ (\mathrm{CD}: \lambda = 7 8 0 \mathrm{nm}) \ \text { Duración de la emisión: continua } \ \end{array} $$
