USER MANUAL VDUI5240DSS VIKING

WARNING WARNING - You can be killed or seriously injured if you do not follow these instructions.

WARNING State of California Proposition 65 Warning: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING State of California Proposition 65 Warning: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..3 NOTE

WARNING XXXXXXXXXXXX

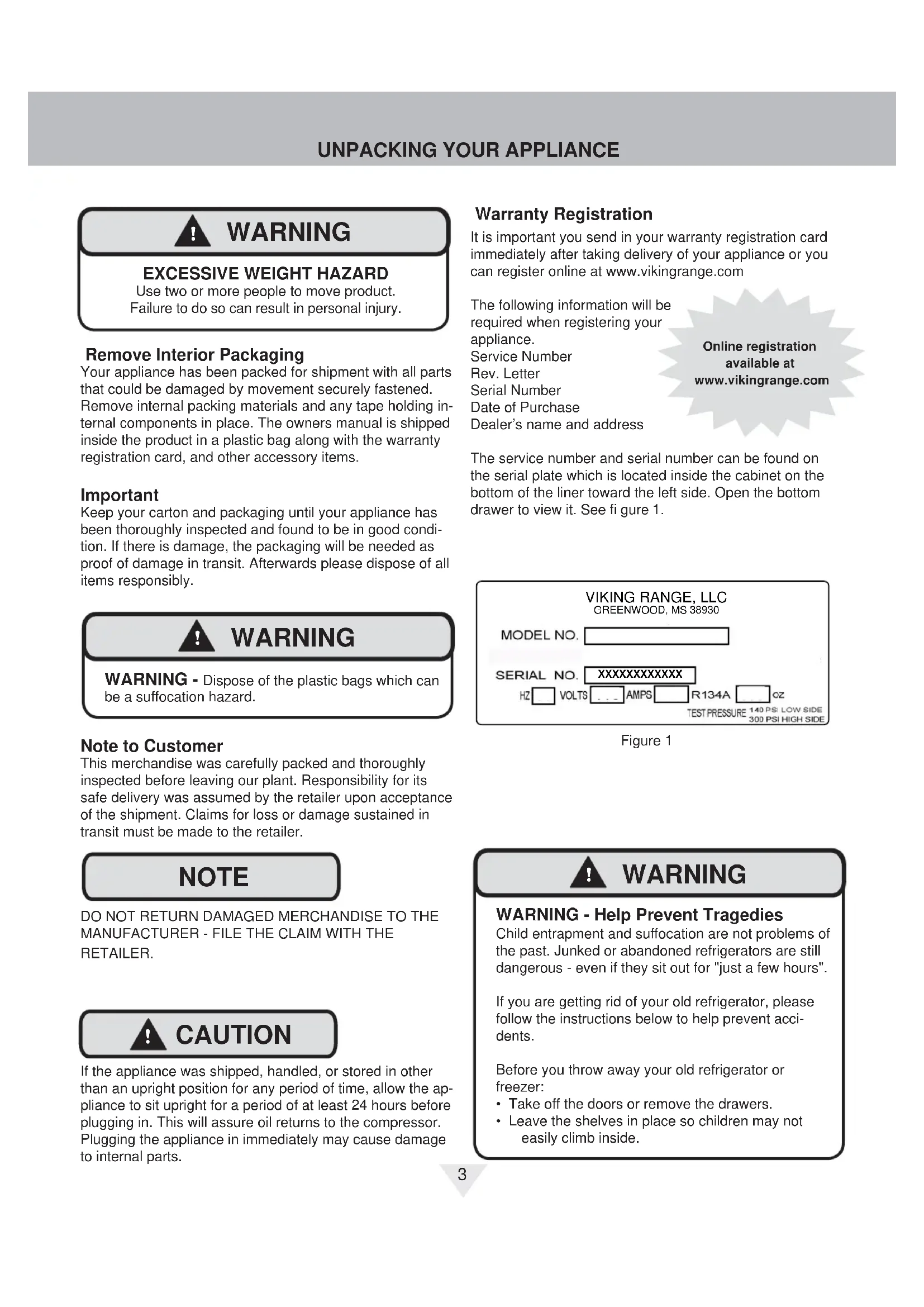

UNPACKING YOUR APPLIANCE

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.Failure to do so can result in personal injury. Remove Interior Packaging Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding in-ternal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items. Important Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condi-tion. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly. Note to Customer This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the ap-pliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.vikingrange.com The following information will be required when registering your appliance.Service NumberRev. LetterSerial NumberDate of PurchaseDealer’s name and addressThe service number and serial number can be found on the serial plate which is located inside the cabinet on the bottom of the liner toward the left side. Open the bottom drawer to view it. See fi gure 1. Warranty Registration Online registration available at www.vikingrange.comFigure 1

WARNING WARNING - Help Prevent Tragedies Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".If you are getting rid of your old refrigerator, please follow the instructions below to help prevent acci-dents.Before you throw away your old refrigerator or freezer:• Take off the doors or remove the drawers.• Leave the shelves in place so children may not easily climb inside.

WARNING WARNING - Dispose of the plastic bags which can be a suffocation hazard.4

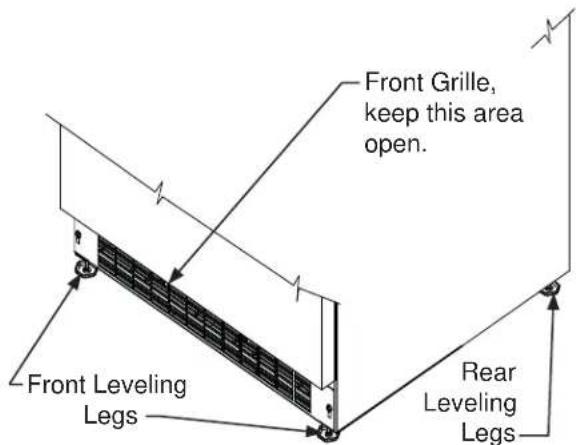

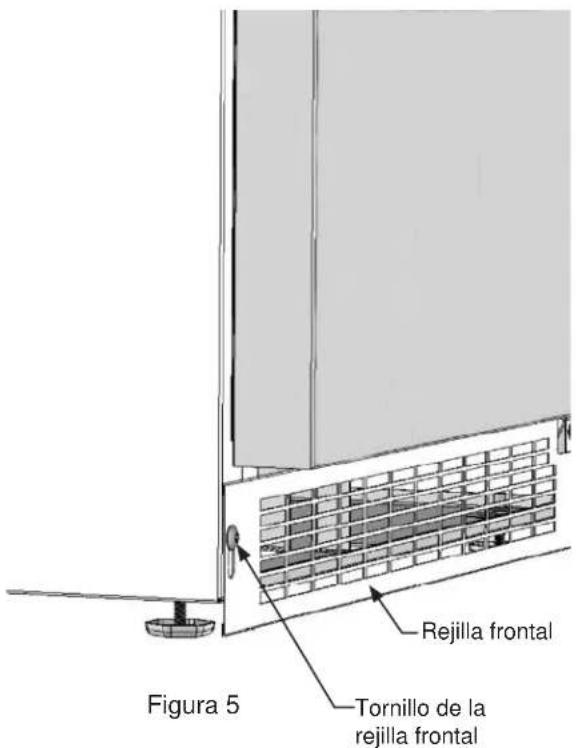

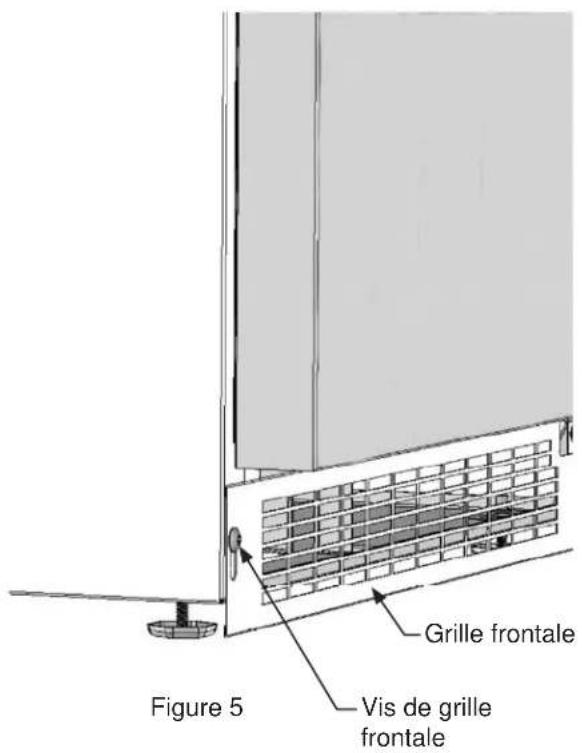

CAUTION Figure 2 Front Leveling Legs Front Grille, keep this area open. Rear Leveling Legs Select Location The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifi cations, the recommended installation location temperature range is from 55 to 100°F (13 to 38°C). Cabinet Clearance Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed. Front Grille Do not obstruct the front grille. The openings within the front grille allow air to fl ow through the condenser heat exchanger. Restrictions to this air fl ow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area to not be obstructed and the grille openings kept clean. Viking Range,LLC does not recommend the use of a custom made grille as air fl ow may be restricted. (See Figure 2). Leveling Legs Adjustable legs at the front and rear corners of the appliance should be set so the unit is fi rmly positioned on the fl oor and level from side to side and front to back. The overall height of your appliance may be adjusted between the minimum, 33

⁄4" (85.7 cm), by turning the leveling leg in (CW ↷) and the maximum, 34

⁄4" (88.3 cm) by turning the leveling leg out (CCW ↶). To adjust the leveling legs, place the appliance on a solid surface and protect the fl oor beneath the legs to avoid scratching the fl oor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly. The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).

I NSTALLING YOUR APPLIANCE5

NOTE Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.

• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.

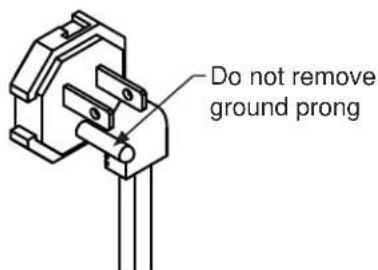

• Do not remove the grounding prong from the power cord. (See Figure 3).

• Do not use an adapter. (See Figure 4).

• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

WARNING Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down. GFCI’s are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances. Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed. Figure 6 Figure 5 Front grille screw Front grille

I NSTALLING YOUR APPLIANCE

Figure 3 Figure 4 Do not remove ground prong6 INSTALLING THE ANTI TIP DEVICE FOR FREESTANDING INSTALLATIONS Step by step instructions for locating the po- sition of the bracket:

1) Decide where you want to place the drawer refrigerator.

Slide it into place, being careful not to damage the fl oor, leaving 1" (2.5 cm) of clearance from the rear wall to allow room for the anti-tip bracket.

2) Raise the rear leveling legs approximately

⁄4" (6 mm) to allow engagement with the anti-tip bracket. Level the unit by adjusting all the leveling legs as required. Turning the leveling leg counterclockwise will raise the unit and clock- wise will lower the unit.

3) Make sure the refrigerator is in the desired location, then

mark on the fl oor the rear and side corner of the cabinet where the anti-tip bracket will be installed. If the installation does not allow marking the rear corner of the cabinet, then make temporary lines on the fl oor marking the front corner of the cabinet, excluding the drawer. Slide the refrigerator out of the way. From the temporary line extend the sidewall line back 21

⁄2" (54.6 cm) as shown in Figure 8.

4) Align the anti-tip bracket to the marks on the fl oor so

the side of the bracket lines up with the side of the cabinet mark, and the "V" notches on the anti-tip bracket line up with the end of the 21

⁄2" (54.6 cm) line (Rear of cabinet line).

5) Fasten the anti-tip bracket to the fl oor using the supplied

screw. (See Figure 8).

6) Slide the cabinet back into position, making sure the rear

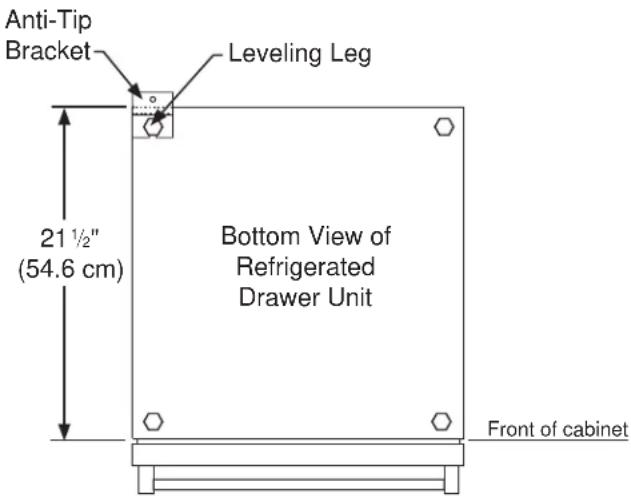

cabinet leveling leg slides under the anti-tip bracket engag- ing the slot. Bottom View of Refrigerated Drawer Unit Anti-Tip Bracket Leveling Leg Front of cabinet

⁄2" (54.6 cm) Figure 7

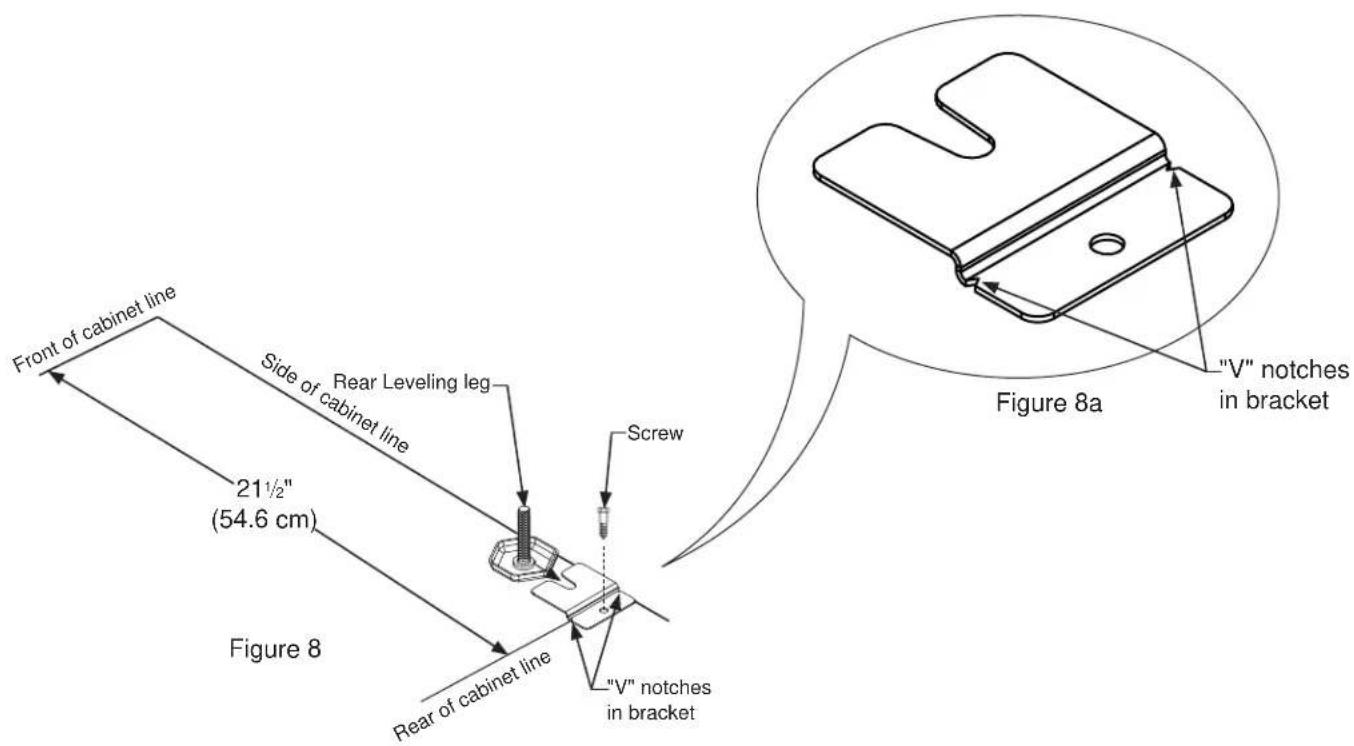

• FOLLOW THE INSTRUCTIONS BELOW Floor Mount Installation The anti-tip bracket is to be located on the fl oor in the left or right rear corner of the refrigerator drawer as shown in Figure 7.

CAUTION NOTE Any fi nished fl ooring should be protected with appropriate material to avoid damage when moving the unit. If installing on a concrete fl oor, concrete fasteners are required, (not included with the anti-tip kit). Anti-Tip Device

WARNING If your refrigerator is not located under a counter top (free standing), you must use an anti-tip device installed as per these instructions. If the refrigerator is removed from its location for any reason, make sure that the device is properly engaged with the anti-tip bracket when you push the refrigerator back into the original location. If the device is not properly engaged, there is a risk of the refrigerator tipping over, with the potential for property damage or personal injury.7 INSTALLING THE ANTI TIP DEVICE FOR FREESTANDING INSTALLATIONS

⁄2" (54.6 cm) "V" notchesin bracket "V" notches in bracket Figure 8 Rear of cabinet line Figure 8a Side of cabinet line Front of cabinet line ScrewRear Leveling leg8 "A" "B" "C" "D" "E"

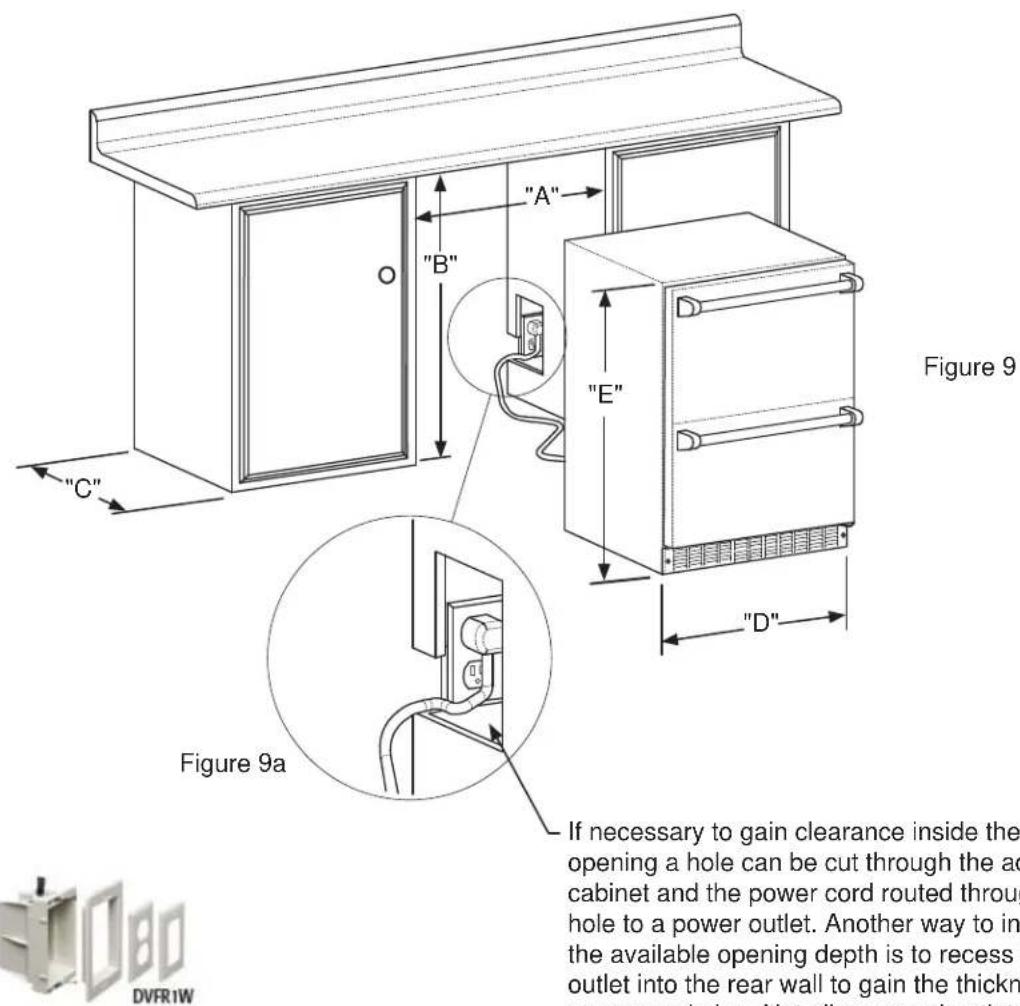

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

MODEL "A" "B" "C" "D" "E" "F" "G" "H" VDUI5240 24" (61 cm) **34" to 35" (86.4 cm to 88.9 cm)

⁄4" (85.7 cm to 88.3 cm)

• Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire drawer "F" dimension plus 1" (2.5 cm) for thickness of power cord plug is required. ** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet. PRODUCT DIMENSIONS Figure 10 If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 10).9 "D" "E" "F" "G" "H" Floor mount anti-tip bracket.PRODUCT DATAMODELELECTRICAL REQUIREMENTS #PRODUCTWEIGHTVDUI5240115V/60Hz/15A130 lbs(59 kg)

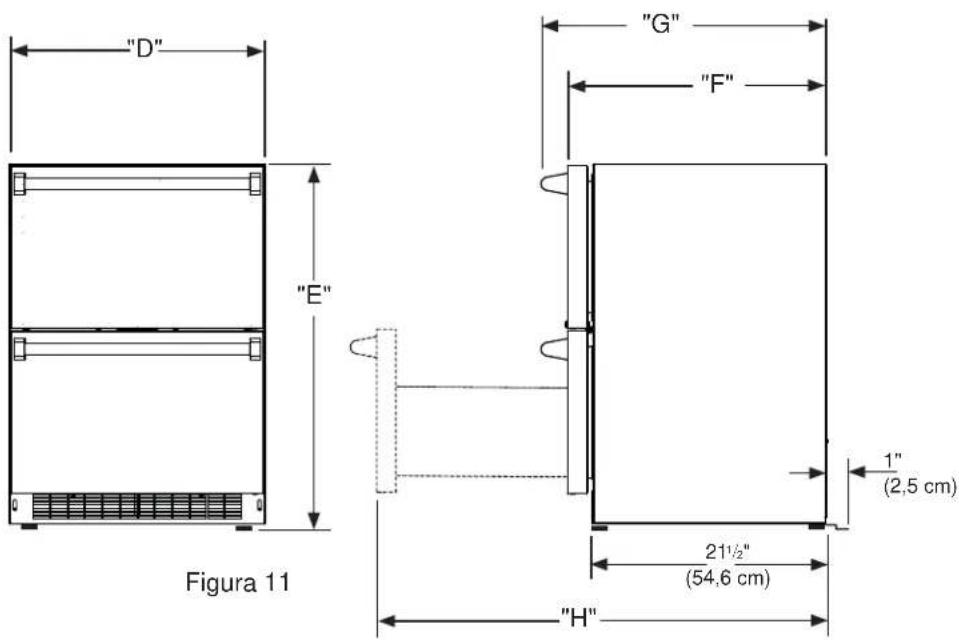

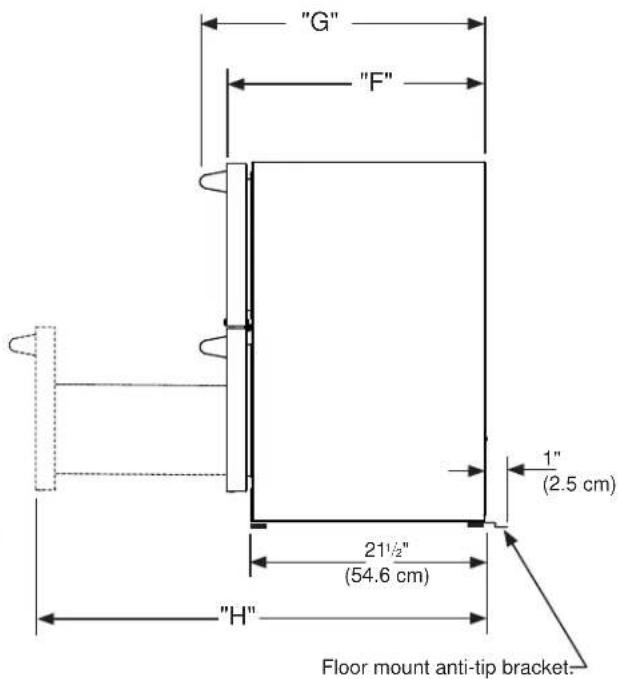

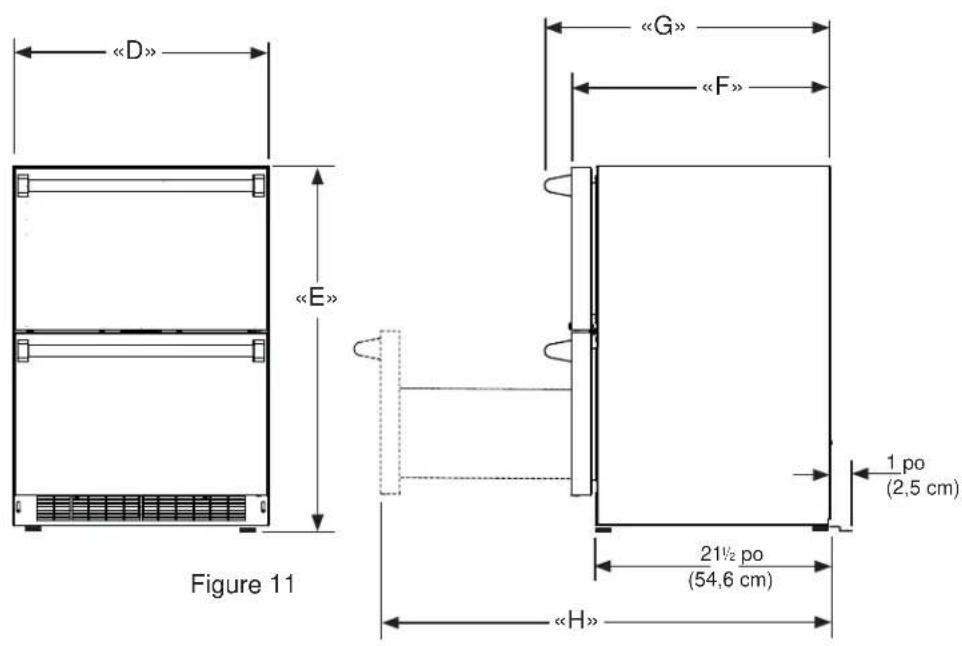

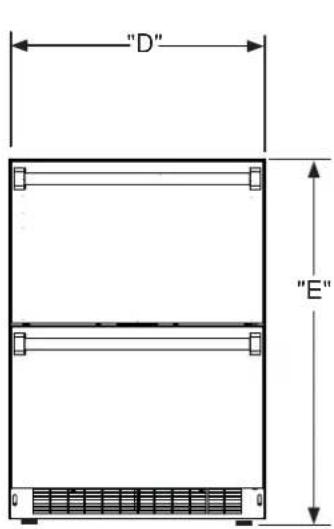

WARNING Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications. Figure 11 PRODUCT DIMENSIONS # A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.10 Power Failure ALARM RESET Temp Minus keypad Temp Plus keypad On/Off keypad Display Area Lock keypad System Status indicators Figure 12 Electronic single zone control Starting your appliance: Plug the appliance power cord into a 115 volt wall outlet. Your appliance is shipped from the factory in the "On" position and will begin start-up of cooling as soon as power is supplied. If the appliance does not start, confi rm that the wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below). The control display is covered with a clear plastic fi lm. This fi lm may be removed by carefully lifting the fi lm at a corner. On initial power up, the control display will indicate a "Power Failure" alarm. This is a normal condition as the appliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the "On/Off" keypad will reset this alarm condition. (See Alarms section on page 12). Turning your appliance ON and OFF: If the appliance is "On", (and out of sleep mode) the temperature will be shown in the display area of the control. To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control. To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds. Sleep mode: If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indicator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 12). To make the following changes to the control settings (turning the appliance ON/OFF, adjusting the temperature, and activating vacation mode), the control must be awake. The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" keypad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP". To wake the display press any keypad. A confi rm tone will sound, and the current storage compartment temperature will be displayed.

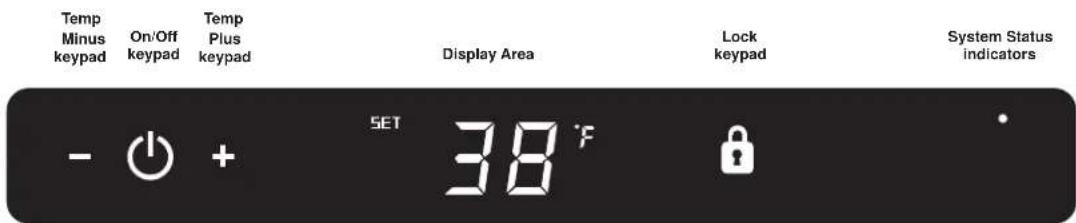

USING YOUR ELECTRONIC CONTROL11

Temperature Sensor Error Codes Sensor Displayed Code Error Description Action to Take Single Zone Temperature Sensor Failed temperature sensor in the single zone compartment. Can lead to unwanted storage temperatures and/or spoiled perishable goods. Call service to have the temperature sensor replaced and remove all perishable goods from compartment to prevent spoilage. Defrost Sensor Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding fl oor. Unplug the power cord immediately and call service to have the defrost sensor replaced. The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ERROR CODE as listed below: Temperature Sensor Error Codes Temperature mode: The temperature mode is preset from the factory in Fahrenheit (°F) but you have the option to change it to Centigrade (°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad. The temperature will now be displayed in Centigrade (°C). Repeat the procedure to change the temperature mode back to Fahrenheit (°F). Control lock: The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" keypad until the display reads "Loc" then immediately release your fi nger from the keypad. The lock icon will fl ash 3-times and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator , and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc" then immediately release your fi nger from the keypad. Adjusting the temperature: To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and fl ash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will time-out in 10-seconds accepting the displayed temperature as the new set-point. The available set-point temperature range for your appliance is 34°F (1.2°C) to 42°F (5.7°C). If you attempt to adjust the temperature outside of this range you will receive an audible notifi cation. When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment temperature to stabilize. When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature. Factors that affect the storage compartment stabilized temperature:

• Changes to temperature setting.

• Room temperature changes.

• Temperature of stored contents. - Loading warm contents. - Cold content load will delay the change to a warmer set-point temperature. - Warm content load will delay the change to a colder set-point temperature.

• Usage, (number and duration of the drawer openings).

• Installation of the appliance in direct sunlight or next to a heat source.

USING YOUR ELECTRONIC CONTROL

NOTE If the control lock is active (illuminated lock icon) the control will have to be unlocked before using the keypad to reset an alarm condition. See page 11 (Control Lock) for instructions for unlocking the control.12 ALARM RESET Power Failure ALARM RESET Temp NOTE Door Ajar Temp Door AjarALARM RESET This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temperature has recovered, as prolonged temperature excursions could spoil perishables.

USING YOUR ELECTRONIC CONTROL

• Power failure - If power to the appliance is inter- rupted the System Status indicator will turn-off and the "Power Failure" indicator will fl ash. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs, it is recommended that you check the condition of any perishables, even if the appliance is operating normally and the temperature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.

• Temperature alarm - If the storage compartment temperature deviates excessively from your set- point temperature for an extended period of time, the "TEMP" indicator will fl ash, and an audible tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "ON/ OFF" keypad. Multiple alarms are possible, i.e.- "Door Ajar" for a prolonged period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate. Alarms: The control will alert you to conditions that could adversely affect the performance of the appliance.

• Door ajar - If a drawer is open, or not closed properly, for more than 5-minutes the System Status OK indicator will turn-off, the "Door Ajar" indicator will fl ash, and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. This alarm condition can be reset by closing the drawer or momentarily pressing the "On/Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists. NOTE The audible alarm can be muted, for each occurrence, by pressing the lock keypad. NOTE The audible alarm can be muted, for each occurrence, by pressing the lock keypad. NOTE NOTE After a high temperature alarm condition, check all perishables to ensure they are safe for consumption. The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit may require service.13

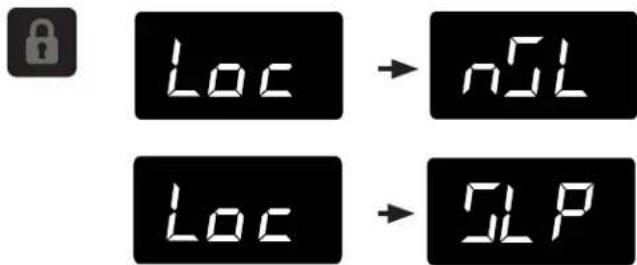

CAUTION To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will fl ash "VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited. A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature. Vacation mode: This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close a drawer at any time to access contents without concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones, or alarms. When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are disabled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacationmode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode.

Light assembly replacement All models use an LED to illuminate the interior of the appliance. This component is very reliable, but should it fail, contact a qualifi ed service technician for replacement of the LED. In the Event of a Power Failure If a power failure occurs, try to correct it as soon as possible. Minimize the number of drawer openings while the power is off so as not to adversely affect the appliance's temperature. Care of Appliance

1. Avoid leaning on the drawer, you may bend the drawer

hinges or tip the appliance.

2. Exercise caution when sweeping, vacuuming or

mopping near the front of the appliance. Damage to the grille can occur.

3. Periodically clean the interior of the appliance as

4. Periodically check and/or clean the front grille as

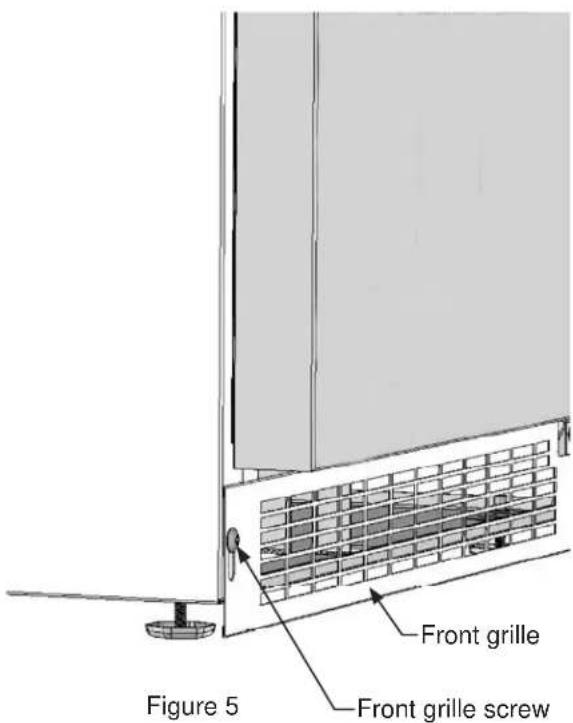

needed. Front Grille Be sure that nothing obstructs the required air fl ow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4). SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water. Cabinet The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners. Interior Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.14 The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance

(cooker, dishwasher, etc.), heating air duct, or other heat sources.

2. Install product out of direct sunlight.

3. Ensure the front grille vents at front of appliance

beneath drawer are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.

4. Plug your appliance into a dedicated power circuit. (Not

shared with other appliances).

5. When initially loading your new product, or whenever

large quantities of warm contents are placed within refrigerated storage compartment, minimize drawer openings for the next 12 hours to allow contents to pull down to compartment set temperature.

6. Maintaining a relatively full storage compartment

will require less appliance run time than an empty compartment.

7. Ensure drawer closing is not obstructed by contents

stored in your appliance.

8. Allow hot items to reach room temperature before

9. Minimize drawer openings and duration of drawer

that meets your personal preference and provides the proper storage for your stored contents.

11. When on vacation or away from home for extended

periods, set the appliance to warmest acceptable temperature for the stored contents.

12. Set the control to the “off” position if cleaning the

appliance requires the drawer to be open for an ex- tended period of time.

ENERGY SAVING TIPS AND OBTAINING SERVICE

If service is required, call your authorized service agency. Have the following information readily available:

• Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at (888) 845-4641 or write to:

PREFERRED SERVICE 111 Front Street Greenwood, Mississippi 38930 USA Record the information indicated below. You will need it if service is ever required. The serial number and model numbers for your refrigerator are located on the upper wall, behind the lighting: Model No. ___________________________________ Serial No. _____________________________________ Date of Purchase ______________________________ Date Installed _________________________________ Dealer’s Name ________________________________ Address _____________________________________

If service requires installation of parts, use only authorized parts to insure protection under the warranty. Keep this manual for future reference.15

CAUTION In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualifi ed service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the units wiring.

• Replace all parts and panels before operating.

WARNING Electrocution Hazard Before You Call for Service If the appliance appears to be malfunctioning, read through this manual fi rst. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualifi ed service technician. TROUBLESHOOTING Problem Possible Cause Remedy Appliance not cold enough (See “Adjusting the temperature" on page 11)

• Control set too warm

• Content temperature not stabilized.

• Excessive usage or prolonged drawer openings.

• Airfl ow to front grille blocked.

• Drawer gasket not sealing properly.

• Adjust temperature colder. Allow 24 hours for temperature to stabilize.

• Allow temperature to stabilize for at least 24 hours.

• Airfl ow must not be obstructed to front grille. See “clearances” on page 4.

• Adjust or replace drawer gasket. Appliance too cold (See “Adjusting the Temperature” on page 11)

• Control set too cold

• Drawer gasket not sealing properly.

• Adjust temperature warmer. Allow 24 hours for temperature to stabilize.

• Adjust or replace drawer gasket. No interior light. • Failed LED light assembly or light switch.

• Contact a qualifi ed service technician. Light will not go out when drawer is closed

• Drawer not activating light switch.

• Appliance not level, level appliance, (See page 4, “leveling legs”)

• Contact a qualifi ed service technician. Noise or Vibration • Appliance not level

• Fan hitting tube obstruction.

• Level appliance, see “Leveling Legs” on page 4.

• Contact a qualifi ed service technician. Appliance will not run. • Appliance turned off

• Power cord not plugged in.

• Turn appliance on. See “Starting your appliance” on page 10.

HOUSEHOLD PRODUCT WARRANTY

REFRIGERATED DRAWERS WARRANTY

TWO YEAR FULL WARRANTY

Refrigerated drawers and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or workmanship in normal residential use for a period of two (2) years from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. *FULL NINETY (90) DAY COSMETIC WARRANTY: Product is warranted to be free from cosmetic defects in materials or workmanship (such as scratches on stainless steel, paint/porcelain blemishes, etc.) for a period of ninety (90) days from the date of original retail purchase or closing date for new construction, whichever period is longer. Any defects must be reported to the selling dealer within ninety (90) days from date of original retail purchase. Viking Range, LLC uses high quality processes and materials available to produce all color fi nishes. However, slight color variation may be noticed because of the inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting, product locations, and other factors. Therefore, this warranty does not apply to color variation attributable to such factors. †FULL NINETY (90) DAY WARRANTY IN “RESIDENTIAL PLUS” APPLICATIONS: This full warranty applies to applications where use of the product extends beyond normal residential use, but the warranty period for products used in such applications is ninety (90) days. Examples of applications covered by this warranty are bed and breakfasts, fi re stations, private clubs, churches, yachts, etc. Under this “Residential Plus” warranty, the product, its components and accessories are warranted to be free from defective material or workmanship for a period of ninety (90) days from the date of original retail purchase. This warranty excludes use of the product in all commercial locations such as restaurants, food service locations and institutional food service locations. SIX YEAR FULL WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. Sealed Refrigeration System Components: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer TWELVE YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in normal household use during the seventh through the twelfth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

TERMS AND CONDITIONS

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty and applies to products purchased and located in the United States, Canada, Mexico and the Caribbean (excluding Cuba, Dominican Republic, and Haiti). Products must be purchased in the country where service is requested. If the product or one of its component parts contains a defect or malfunction during the full warranty period after a reasonable number of attempts by the warrantor to remedy the defect or malfunction, the owner is entitled to either a refund or replacement of the product or its component part or parts. Replacement of a component part includes its free installation, except as specifi ed under the limited warranty. Under the terms of this warranty, service must be performed by a factory authorized Viking Range, LLC service agent or representative. Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. Owner shall be responsible for proper installation, providing reasonable and necessary maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. The return of the Owner Registration Card is not a condition of warranty coverage. You should, however, return the Owner Registration Card so that Viking Range, LLC can contact you should any question of safety arise which could affect you. This warranty gives you specifi c legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction. WHAT IS NOT COVERED BY THIS WARRANTY: This warranty shall not apply to damage resulting from abuse, failure to provide reasonable and necessary maintenance, accident, delivery, negligence, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation, or repair or service of the product by anyone other than an authorized Viking Range, LLC service agency or representative. This warranty does not apply to commercial usage. LIMITATION OF REMEDIES AND DURATION OF IMPLIED WARRANTY OWNER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH ABOVE. VIKING RANGE, LLC IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE, INCLUDING BUT NOT LIMITED TO FOOD OR MEDICINE LOSS, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT OR OTHERWISE. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not apply to you. ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF COVERAGE OF THE APPLICABLE EXPRESS WRITTEN LIMITED WARRANTIES SET FORTH ABOVE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. WARRANTY SERVICE To obtain warranty service, contact an authorized Viking Range, LLC service agent, or Viking Range, LLC, 111 Front Street, Greenwood, Mississippi 38930, (888) 845-4641. Provide model and serial number and date of original purchase or closing date for a new construction. For the name of your nearest authorized Viking Range, LLC service agency, call Viking Range, LLC. IMPORTANT: Retain proof of original purchase to establish warranty period. Specifi cations subject to change without notice.17058187-000B EN Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com (030118)Install / Use & Care MANUAL 5 SERIES Refrigerated Drawers Tiroirs Réfrigérés Gavetas Refrogeradas CVDUI5240 FR-D’installation/d’utilisation et d’entretien ES-De instalación/operación y mantenimiento2-FR REMARQUE

DIMENSIONS DU PRODUIT

DIMENSIONS DU PRODUIT

XXXXXXXXXXXXVIKING RANGE, LLCGREENWOOD, MS 38930
