USER MANUAL MD24TES WOLF

Drawer Microwave Oven

Use and Care Guide

CLEANING, MAINTENANCE, AND MORE

Contents

4 Safety Precautions
6DrawerMicrowaveOvenFeatures
7 Microwave Oven Operation
13 Care Recommendations
14 Troubleshooting
15 Wolf Warranty

Customer Care

The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to page 6 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certified Service Name

Certified Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a Wolf Factory Certified Service provider recommended by our Customer Care Center, or select one from our list of providers available at wolfappliance.com/locator. All Factory Certified Service providers are carefully selected and thoroughly trained by us.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially important.

CAUTION

Indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING

States a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.

IMPORTANT INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the microwave oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the microwave oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: 1) door (bent), 2) hinges and latches (broken or loosened), 3) door seals and sealing surfaces.
• The microwave oven should not be adjusted or repaired by anyone except properly qualified service personnel.

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING

To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, observe the following:

• Read all instructions before using the appliance.
• Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.
• This appliance must be properly grounded. See GROUNDING INSTRUCTIONS in the installation guide.
• Install or locate this appliance only in accordance with the provided installation instructions.
• Some products such as whole eggs and sealed containers (e.g. closed glass jars) are able to explode and should not be heated in this oven.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

IMPORTANT INSTRUCTIONS

• Use this appliance only for its intended use as described in this guide. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
• This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
• HOT CONTENTS CAN CAUSE SEVERE BURNS DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
• Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this product near water (e.g. near a kitchen sink, in a wet basement, or near a swimming pool, or similar locations).
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• When cleaning the appliance sealing surfaces that come together on closing the drawer, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. Refer to Care Recommendations on page 13.
• Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. This could result in very hot liquids suddenly boiling over when the container is disturbed or a utensil is inserted into the liquid.

TO REDUCE THE RISK OF FIRE IN THE OVEN

• Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist ties from paper or plastic bags before placing bag in oven.
• If materials inside the oven ignite, keep oven drawer closed, turn oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm—www.P65Warnings.ca.gov

SAVE THESE INSTRUCTIONS

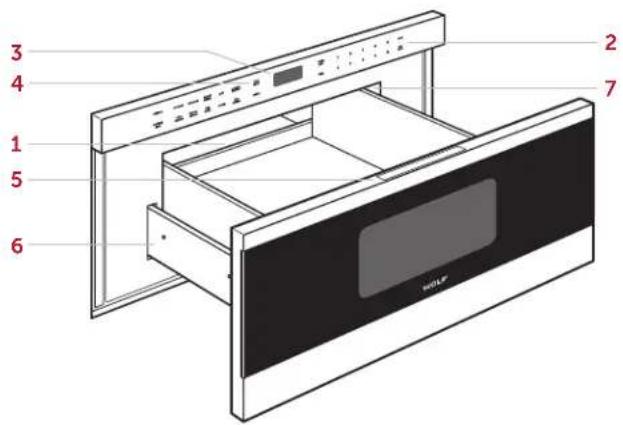

Drawer Microwave Oven Features

FEATURES

1	Product Rating Plate
2	Control Panel
3	Interactive Visual Display
4	One-Touch Printer Opening
5	Menu Label
6	Full-Extension Printer Goggles
7	Interior Lighting

Drawer Microwave Oven

Getting Started

We know you are eager to start cooking, but before you do, please take some time to read this use and care guide. Whether you are an occasional cook or an expert chef, it will be to your benefit to familiarize yourself with the safety practices, features, operation, and care recommendations of your WolfDrawer Microwave Oven.

Clean the oven thoroughly with hot water and mild detergent. Rinse and dry with a soft cloth to remove any residual oil and grease left from the manufacturing process. Refer to Care Recommendations on page 13.

Control Panel

The control panel features touch controls and an interactive visual display. Refer to the illustration below.

CONTROL LOCK

The control lock feature prevents unwanted microwave oven operation.

To lock:

1 Touch Control Lock, then touch Start. "Lock On" appears on the control panel display.

To unlock:

1 Touch Control Lock, then touch Start. "Lock Off" appears on the control panel display.

OPEN/CLOSE

To open or close the drawer, touch Open/Close. Do not push or pull the drawer by hand, except in an emergency.

Oven Operation

CLOCK

The clock must be set or turned off prior to use and after a power outage.

Set clock:

1 Touch Clock.
2 Touch 1.
3 Use the number pads to enter the time of day.
4 Touch Start.

Turn off clock:

1 Touch Clock.
2 Touch 2.
3 Touch Start.

CLOCK STANDBY POWER

The unit is shipped in standby power mode which dims the clock after approximately three minutes of inactivity. The clock illuminates after any touch of the controls or oven use.

TIMER

The timer can be set for a maximum of 99 minutes and 99 seconds. Once a time is set, the countdown appears on the control panel display. The oven chimes, and "End" appears on the display when complete.

Setting timer:

1 Touch Timer.
2 Use the number pads to enter timer duration.
3 Touch Timer to begin.
4 Touch Stop/Clear to cancel.

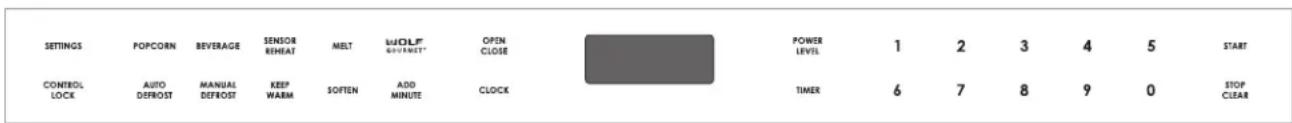

Control panel

Settings

The settings feature allows the user to select individual preferences. Preferences must be reset after a power outage.

AUDIBLE SIGNAL

An audible signal will chime with every touch and upon cook time and timer completion.

To eliminate the signal:

1 Touch Settings twice.
2 Touch Start. "Sound Off" appears on the control panel display.

To restore the signal:

1 Touch Settings twice.
2 Touch Start. "Sound On" appears on the control panel display.

COOK TIME COMPLETION REMINDER

Upon completion, the microwave oven chimes every ten seconds for the first minute; then every three minutes (for one hour) until Stop/Clear is touched.

To eliminate the reminder:

1 Touch Settings three times.
2 Touch Start. "Remind Signal Off" will appear on the control panel display.

To restore the reminder:

1 Touch Settings three times.
2 Touch Start. "Remind Signal On" will appear on the control panel display.

DEMONSTRATION MODE

Demonstration mode allows operation to be demonstrated without power to the microwave oven.

To enter demonstration mode:

1 Touch Settings five times.
2 Touch Start. "Demo On" appears on the control panel display.

To exit demonstration mode:

1 Touch Settings five times.
2 Touch Start. "Demo Off" appears on the control panel display.

Manual Cooking

POWER LEVEL

The microwave oven has ten preset power levels.

To cook manually at 100% power:

1 Use the number pads to enter the desired cook time.
2 Touch Start.
3 Oven chimes and "End" appears on the control panel display when complete.

To cook manually at a power level less than 100% , touch Power Level, then use the number pads to select the desired power level. Refer to the chart below.

POWER LEVEL

Power Level High 100%

Power Level, 9 90%

Power Level, 8 80%

Power Level, 7 Medium High 70%

Power Level, 6 60%

Power Level, 5 Medium 50%

Power Level, 4 40%

Power Level, 3 Medium Low/Defrost 30%

Power Level, 2 20%

Power Level, 1 Low 10%

MULTIPLE SEQUENCE COOKING

The microwave oven can be programmed for up to four automatic cooking sequences, switching from one power level to another automatically (e.g. start at 100% , then switch to 50% power).

To use multiple sequence cooking:

1 Touch Power Level twice, then use the number pads to enter the desired cook time.
2 Touch Power Level, then touch 5, then use the number pads to enter a second cook time.
3 Touch Start.

AUTO START

The microwave oven can be programmed to begin cooking automatically at a designated time of day. The clock must be set to the correct time for auto start to function properly.

To use auto start:

1 Touch Settings four times.
2 Touch Start.
3 Use the number pads to enter the start time.
4 Touch Clock.
5 Use the number pads to enter the cook time. Adjust the power level if necessary.
6 Touch Start.

Manual Cooking

ADD MINUTE

The add minute feature cooks for one minute at 100% by touching Add Minute. Touch multiple times to increase the cook time. Each touch increases the cook time by one minute. This feature cannot be used with sensor cooking settings.

KEEP WARM

The keep warm feature will keep food warm for up to 90 minutes.

To use keep warm:

1 Touch Keep Warm.
2 Use the number pads to enter the desired keep warm time.
3 Touch Start.
4 Touch Stop/Clear to cancel.

POPCORN

The popcorn feature has two options. Follow directions on the control panel display to select the desired option. Use only popcorn packaged for microwave ovens.

To use popcorn:

1 Touch Popcorn once for regular size packages or twice for snack size packages.
2 Touch Start.

MELT

The melt feature will melt butter or chocolate.

To use melt:

1 Touch Melt.
2 For butter: Touch 1 once for 2 tablespoons or twice for 12 cup. For chocolate: Touch 2 once for 1 cup or twice for 1 square.
3 Touch Start.

SOFTEN

The soften feature will soften ice cream or cream cheese.

To use soften:

1 Touch Soften.
2 For ice cream: Touch 1 once for 1 pint or twice for 12 gallon. For cream cheese: Touch 2 once for 3 ounces or twice for 8 ounces.
3 Touch Start.

BEVERAGE

The beverage feature will reheat a beverage or prepare hot water for coffee or tea.

To use beverage:

1 Touch Beverage.
2 To reheat beverage: Touch 1 multiple times to select the amount in 12 cup increments, up to 2 cups. For hot water: Touch 2 multiple times to select the amount in 1 cup increments, up to 6 cups.
3 Touch Start.

Sensor Cooking

WOLF GOURMET

The Wolf gourmet feature detects moisture and humidity from food as it heats and automatically adjusts the cook time and power level. Follow directions on the control panel display to select the desired option. Refer to the Wolf Gourmet Guide on page 12.

To select Wolf Gourmet:

1 Touch Wolf Gourmet, then use the number pads to select the desired food (e.g. 5 for baked potatoes).

2 Touch Start.

SENSOR REHEAT

The sensor reheat feature detects moisture and humidity from food as it reheats, and automatically adjusts the cook time and power level.

To select sensor reheat:

1 Touch Sensor Reheat.

2 Touch Start.

TIME ADJUSTMENT

The time adjustment feature increases or decreases the cook time for sensor cooking settings.

To adjust time:

1 Touch Power Level once for "More" or twice for "Less" time.

Defrost

AUTO DEFROST

The auto defrost feature uses preset settings to defrost select food items. Refer to the Auto Defrost Guide on page

1. For foods not listed, refer to Manual Defrost.

To select auto defrost:

1 Touch Auto Defrost, then use the number pads to select the desired food (e.g. 3 for boneless poultry).
2 Use the number pads to enter weight.
3 Touch Start. After a period of time, the microwave oven will stop so the food can be checked.
4 Open the drawer and turn food over.
5 Repeat until defrost is complete.

MANUAL DEFROST

The manual defrost feature automatically defrosts at 30% power. Food should be turned throughout the process to ensure even defrosting. To defrost at another power level, refer to Power Level on page 9.

To defrost manually:

1 Touch manual defrost.
2 Use the number pads to enter the desired time.
3 Touch Start.

Gourmet Guide

NUMBER FOOD AMOUNT METHOD

1 Fresh Fruit and Vegetables-Quick Broccoli, Brussels Sprouts and Cabbage Cauliflower (florets) Cauliflower (whole) Spinach and Zucchini Baked Apples			Wash and place in a microwave-safe container. Do not add water if the vegetables have just been washed. Cover with a lid for tender veg- etables. Use plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand for 2-5 minutes, covered.
2 Fresh Vegetables—Longer Carrots (sliced) Corn on the Cob Green Beans Winter Squash (diced) Winter Squash (halves)	\( \frac{1}{4}-2\text {lb}\left( {{115}\mathrm{\;g} - {.9}\mathrm{\;{kg}}}\right) \)\( \frac{1}{4} - 2\text {lb}\left( {{115}\mathrm{\;g} - {.9}\mathrm{\;{kg}}}\right) \) 1 medium \( \frac{1}{4} - 2\text {lb}\left( {{115}\mathrm{\;g} - {.9}\mathrm{\;{kg}}}\right) \) 2-4 medium		Place in a microwave-safe container. Add 1-4 tablespoons (15-60 ml) water. Cover with a lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand for 2-5 minutes, covered.
3 Frozen Vegetables	\( \frac{1}{4} - 1\frac{1}{4}\text {lb}\left( {{115}\mathrm{\;g} - {.6}\mathrm{\;{kg}}}\right) \)	Do not add water. Cover with a lid or plastic wrap. After cooking, stir, and let stand for 3 minutes, covered.
4 Frozen Entrees	6-17 oz (170-480 g)	Use for frozen convenience foods. Remove package from the outer wrapping and follow package directions for covering. After cooking, let stand for 1-3 minutes, covered.
5 Baked Potatoes 1-6 medium Pierce. Place in a paper-towel-lined drawer microwave oven. After cooking, remove from the microwave, wrap in aluminum foil, and let stand for 5-10 minutes.
6 Sweet Potatoes 1-6 medium Pierce. Place in a paper-towel-lined drawer microwave oven. After cooking, remove from the microwave, wrap in aluminum foil, and let stand for 5-10 minutes.
7 Ground Meat	\( \frac{1}{4} - 2\text {lb}\left( {{115}\mathrm{\;g} - {.9}\mathrm{\;{kg}}}\right) \)	Use this setting to cook ground beef or turkey as patties or in a cas- serole to be added to other ingredients. Place patties on a micro- wave-safe rack and cover with waxed paper. Place ground meat in a casserole and cover with waxed paper or plastic wrap. When the microwave stops, turn the patties over or stir the meat to break up large pieces. Cover and touch Start. After cooking, let stand for 2-3 minutes, covered.
8 Fish, Seafood	\( \frac{1}{4} - 2\text {lb}\left( {{115}\mathrm{\;g} - {.9}\mathrm{\;{kg}}}\right) \)	Arrange in a ring around a shallow microwave-safe container. Cover with vented plastic wrap. After cooking, let stand for 3 minutes, covered.
9 White Rice	\( \frac{1}{2} - 2\text {cups}\left( {{95} - {380}\mathrm{\;g}}\right) \)	Place the rice in a microwave-safe container and add double the quantity of water (e.g. 1 cup rice and 2 cups water). Cover with a lid or plastic wrap. After cooking, stir, cover, and let stand until all the liquid has been absorbed.
10 Brown Rice	\( \frac{1}{2} - 2\text {cups}\left( {{95} - {380}\mathrm{\;g}}\right) \)	Place the rice in a microwave-safe container and add double the quantity of water (e.g. 1 cup rice and 2 cups water). Cover with a lid or plastic wrap. After cooking, stir, cover, and let stand until all the liquid has been absorbed.

Auto Defrost Guide

NUMBER FOOD AMOUNT METHOD

1	Ground Meat	\( 1/2 - 2\mathrm{{lb}}\left( {{230}\mathrm{\;g} - {1.1}\mathrm{\;{kg}}}\right) \)	Remove any thawed pieces after each audible signal. Let stand for 5-10 minutes, covered.
2	Steaks, Chops	\( 1/2 - 3\mathrm{{lb}}\left( {{230}\mathrm{\;g} - {1.4}\mathrm{\;{kg}}}\right) \)	After each audible signal, rearrange. If there are warm or thawed portions, shield with small flat pieces of aluminum foil. Remove any meat that is almost defrosted. Let stand for 10-20 minutes, covered.
3	Boneless Poultry	\( 1/2 - 2\mathrm{{lb}}\left( {{230}\mathrm{\;g} - {1.1}\mathrm{\;{kg}}}\right) \)	After each audible signal, rearrange the pieces or remove should they become warm or thawed. Let stand for 10-20 minutes, covered.
4	Bone-in Poultry	\( 1/2 - 3\mathrm{{lb}}\left( {{230}\mathrm{\;g} - {1.4}\mathrm{\;{kg}}}\right) \)	After each audible signal, rearrange the pieces or remove should they become warm or thawed. Let stand for 10-20 minutes, covered.
5	Roast	2-4 lb (1.1-1.8 kg)	Start defrosting with the fat side down. After each audible signal, turn over and shield warm areas with aluminum foil. Let stand for 30-60 minutes, covered.
6	Casserole, Soup	1-6 cups (240 ml-1.4 L)	After each audible signal, break apart and remove any defrosted part. At the end, stir well and let stand for 5-10 minutes, covered.

Care Recommendations

CLEANING

Stainless steel	Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel.
Drawer front	Spray glass cleaner on a cloth to clean.
Drawer guides	Remove the food crumbs from the drawer guides. Wipe with a soft dry cloth.
Control panel	Use a spray degreaser to remove fingerprints and food soil. Spray on a cloth before wiping the control panel.IMPORTANT NOTE: Do not spray cleaners directly on the control panel.To lock the control panel before cleaning, refer to page 7.
Interior	Wipe with a soft damp cloth. Do not use abrasive or harsh cleaners or scouring pads. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water. Do not use chemical oven cleaners.
Waveguide cover	Located on the inside top of the microwave interior. Carefully wipe with a soft damp cloth. Do not remove the waveguide cover.

Troubleshooting

The microwave oven does not operate.

• Verify power is on.
• Verify electrical power to the microwave oven and home circuit breaker is on.

Food in the microwave oven is not heating.

• Check controls to verify proper setting.
  The microwave oven is in demonstration mode. Refer to page 8 to cancel.

Time on the display counts down very rapidly.

The microwave oven is in demonstration mode. Refer to page 8 to cancel.

The interior light does not work.

The light bulb is loose or burned out. Contact Wolf Factory Certified Service.

The touch controls will not operate.

• The control panel lock is on. Refer to page 7 to unlock.

The display flashes.

• Power outage. Touch Stop/Clear and reset the clock. If the microwave oven was in use, reset the cooking function.

Radio or TV interference caused by the microwave oven.

• Verify the microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the microwave oven as possible, or check the position and signal of the antenna.

SERVICE

• Maintain the quality built into your product by contacting Wolf Factory Certified Service. For the name of the nearest Wolf Factory Certified Service, check the Product Support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.
• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 3 of this guide.

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.

Wolf Appliance Residential Limited Warranty

FOR RESIDENTIAL USE

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf Factory Certified Service, unless otherwise specified by Wolf Appliance, Inc. Service will be provided during normal business hours.

LIMITED FIVE YEAR WARRANTY

For five years from the date of original installation, Wolf Appliance will repair or replace the following parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and induction generators. If the owner uses Wolf Factory Certified Service, the service provider will repair or replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certified service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certified service or other sources.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMplied OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights that vary from state to state.

To receive parts and/or service and the name of Wolf Factory Certified Service nearest you, contact Wolf Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the Product Support section of our website, wolfappliance.com, email us at customerservice@ subzero.com or call 800-222-7820.

Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects.
Replacement filters for ventilation hood recirculating kits are not covered by the product warranty.

Contenido

Cancery Dano Reproductive www.P65Warnings.ca.gov

OPEN/CLOSE (OUVRIR/FERMER)

KEEP WARM (GARDER AU CHAUD)

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
