USER MANUAL SWK 3000 EDS B2 SILVERCREST

Modern stainless steel kettle with black handle and side arm, accompanied by small food items (no visible text or symbols)

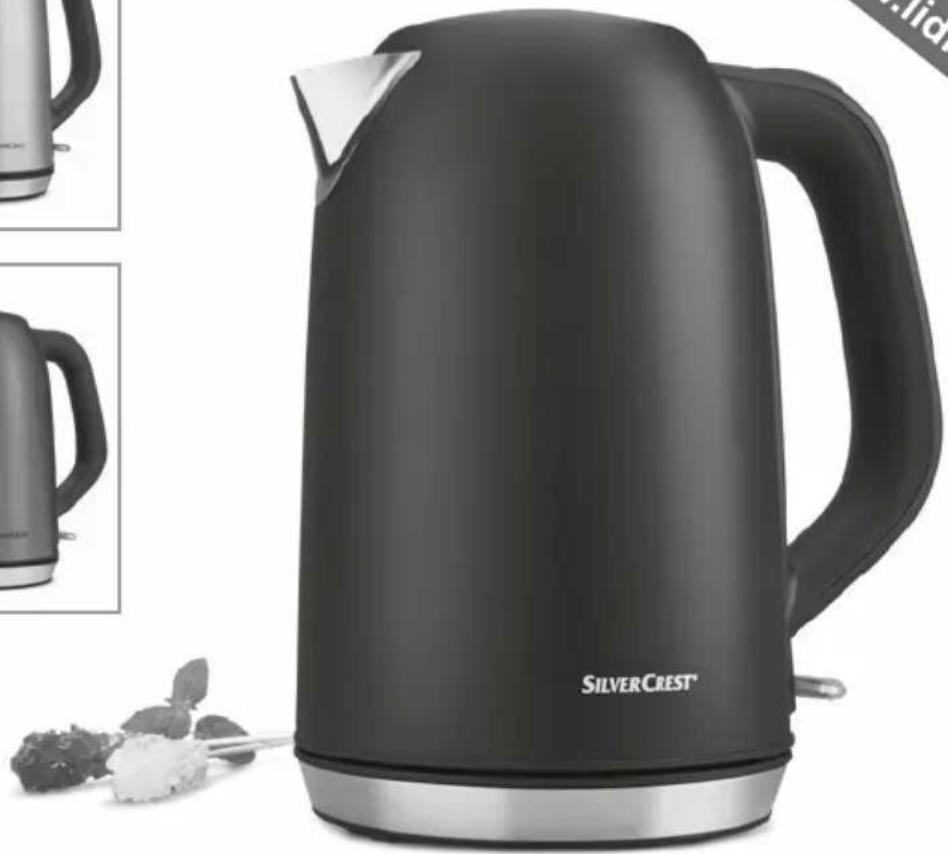

Black and silver kettle with a handle, accompanied by small food items (no visible text or symbols)

Black silver kettle with 'SILVERCREST' branding, displayed against a white background with floral decoration (no text or symbols on the device itself)

www.lidl-service PDF online

WASSERKOCHER

KETTLE

BOUILLOIRE SWKS 2400 G2

DE AT CH

WASSERKOCHER

Bedienungsanleitung

FR BE

BOUILLOIRE

Mode d'emploi

CZ

RYCHLOVARNÁ KONVICE

Návod k obsluze

PT

JARRO ELÉTRICO

Operating instructions

NL BE

WATERKOKER

Gebruiksaanwijzing

ES

HERVIDOR DE AGUA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 15

Diagram of a circular mechanical or electrical component with internal curved structures and directional arrows (no text or symbols)

Abb. 1

Inbetriebnahme

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table of Contents

Introduction....16

Copyright 16

Intended Use 16

Items supplied 17

Operating components....17

Technical data....17

Safety instructions 18

Preparation 20

Unpacking 20

Disposal of the packaging 20

Cable winder 20

Initial use 21

Boiling water 22

Cleaning and Care 23

In the event of scale deposits 24

Inserting/removing the scale filter insert 24

Storage 24

Troubleshooting 25

Disposal of the appliance 25

Notes on the Declaration of Conformity 25

Kompernass Handels GmbH warranty 26

Service 27

Importer 27

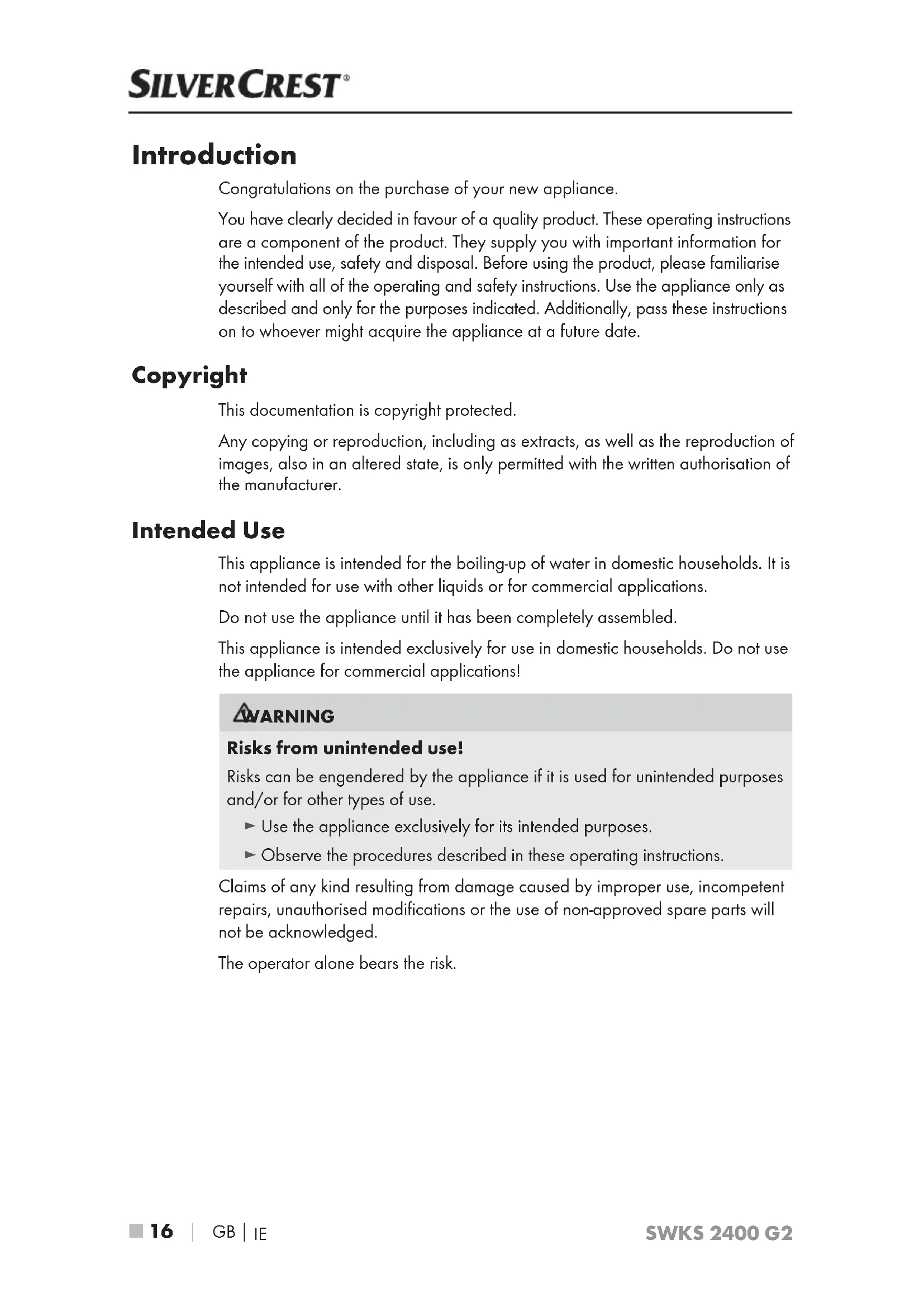

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a component of the product. They supply you with important information for the intended use, safety and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the appliance only as described and only for the purposes indicated. Additionally, pass these instructions on to whoever might acquire the appliance at a future date.

Copyright

This documentation is copyright protected.

Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended Use

This appliance is intended for the boiling-up of water in domestic households. It is not intended for use with other liquids or for commercial applications.

Do not use the appliance until it has been completely assembled.

This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!

WARNING

Risks from unintended use!

Risks can be engendered by the appliance if it is used for unintended purposes and/or for other types of use.

▶ Use the appliance exclusively for its intended purposes.
▶ Observe the procedures described in these operating instructions.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of non-approved spare parts will not be acknowledged.

The operator alone bears the risk.

Items supplied

This appliance is supplied with the following components as standard:

• Kettle
• Scale filter insert
• Base
• Operating Manual

NOTICE

▶ Check the contents to ensure everything has been supplied, and for signs of visible damage.
▶ Do not use the appliance until it has been completely assembled.
▶ If the delivery is incomplete, or it has been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).

Operating components

1 Release button
② Scale
③ ON/OFF switch
4 Base
5 Cable winder
6 Scale filter insert

Technical data

Power supply 220 - 240 V	~, 50/60 Hz
Nominal performance 2000 - 2400 W
Capacity max. 1.7 Liter
	All parts of this appliance that come into contact with food are food-safe.
Protection class	I (⊥ Protective earth)

Safety instructions

• Ensure that the base with the electrical connections NEVER comes into contact with water! Ensure that the base is completely dry before use, especially if it has accidentally become wet.
  ▶ Use the kettle only with the supplied base.
  ▶ Ensure that the power cable never becomes wet or damp during operation. Lay the cable so that it cannot be trapped or otherwise damaged.
  ▶ To avoid risks, arrange for defective plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.
  ▶ After use, ALWAYS remove the plug from the mains power socket. Switching the appliance off is not sufficient, because the appliance is under power for as long as the plug is connected to the power socket.
  Before use check the appliance for signs of visible external damage. Do not put into operation an appliance that is damaged or has been dropped.
  ▶ Repairs should only be carried out by authorized specialist companies or by the Customer Service department. Incompetent repairs can result in significant risks for the user. In addition warranty claims become void.
• Do not allow any liquid to run over the appliance's plug connections.

NEVER submerse the appliance in water or other liquids! You could receive a fatal electric shock if residual liquids come into contact with live components during operation.

⚠ WARNING - RISK OF INJURY!

• Heat water only with the lid closed, otherwise the automatic switch-off cannot function. Boiling water could then spray out over the rim.
  Hot steam clouds may be released. The kettle also becomes very hot during use. It is always best to wear oven mitts when handling the kettle.
• Ensure that the appliance is stood stably and vertically before switching it on. Boiling water can cause an unstable kettle to fall over.
  ▶ Do not open the lid while the water is boiling.
  This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or, in regard to the safe use of the appliance, have been instructed in its use and have understood the potential risks.
  This appliance may be used by children aged 8 years or more if they are supervised or, in regard to the safe use of the appliance, have been instructed in its use and have understood the potential risks. Cleaning and user maintenance tasks should not be carried out by children unless they are aged 8 years or more and are supervised. The device and its connecting cable must be kept away from children younger than 8 years old.
  ▶ Children may not play with the appliance.
• Do not fill the kettle above the MAX mark! Otherwise boiling water may spill out!
  ▶ Do not operate the appliance without the scale filter insert.
  ▶ After use, the surfaces of the heating elements will still have some residual heat.
• Misuse may result in physical injury! Use the appliance only as described in the instructions!

WARNING - PROPERTY DAMAGE!

- Do not use an external timing switch or a separate remote control system to operate the appliance.

▶ Never leave the appliance unsupervised whilst in use.

- Ensure that the appliance, the power cable and the plug do not come into contact with hot plates or open flames.

Preparation

Unpacking

Remove all components of the appliance and the operating manual from the carton.

Remove all packing material.

Disposal of the packaging

The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed according to the regionally established regulations.

NOTICE

If possible, preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can pack the appliance ideally for its return.

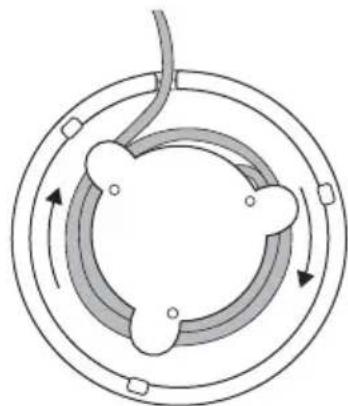

Cable winder

A cable winder ⑤ is arranged on the base ④ of the appliance. This winder allows you to adjust the length of the cable to your local requirements.

CAUTION - PROPERTY DAMAGE!

▶ Always guide the cable through the corresponding recess on the base ④, which is intended for this purpose, in order to ensure stability.

NOTE

▶ Always wind the power cable around the cable winder ⑤ in clockwise direction. This is the only way that you can reduce the length of the cable to a minimum, allowing you to guide the cable through the recess in the base ④ (see fig. 1).

Diagram of a circular mechanical or electrical component with internal flow arrows, no text or symbols present.

Fig. 1

Initial use

WARNING - RISK OF INJURY!

▶ Always and only use freshly drawn mains water in the kettle! Do not consume any water that is not certified as potable. If you do, you are taking a risk with your health!

Before starting the appliance up, make certain that ...

• the appliance, plug and power cable are in a serviceable condition and ...
• all packaging materials have been removed from the appliance.

1) Open the lid by pressing on the release button ①.
2) Fill the appliance with water up to the MAX mark and let it come to a full boil once - as described in the next section.
3) After it has boiled, pour this water away.
4) Rinse the kettle out with clear water.
5) Refill the appliance with water up to the MAX mark, and then bring it to the boil. When done, pour this water away also.
6) Rinse the kettle out with clear water.

The appliance is now ready for use.

Boiling water

▶ Never place the electrical base ④ close to water - this would be a potentially fatal risk!

WARNING - RISK OF INJURY!

▶ Always use freshly drawn water. Do not consume any water that has already stood in the kettle for longer than one hour. Do not reboil water that has cooled down. Always pour old water away. Microbes could have formed in it!

NOTE

▶ Always ensure that the ON/OFF switch ③ is in the "0" position (off) when the mains plug is unplugged and the appliance is standing on the base ④. If not, the device could heat up unintendedly as soon as the mains plug is plugged in again.

1) Lift the kettle off of the base when filling it!
2) Press the release button ① and open the lid.

NOTE

▶ When filling it, hold the kettle upright. This is the only way to read the markings on the scale ② correctly.

3) Fill the jug until the water level is at least at the 0.5 L mark but no further than the MAX mark.
4) First close the lid, then place the kettle on the base ④, so that it sits securely on the base ④.
5) Now insert the plug into the mains power socket.
6) Push the ON/OFF switch ③ downwards (position "I") so that it engages.

WARNING - RISK OF INJURY!

For safety reasons you should not open the lid when the water is boiling or extremely hot. There is a risk of scalding.

7) The light in the ON/OFF switch ③ shows that the appliance is now heating up.
8) As soon as the water is boiling, the appliance will switch off automatically, the ON/OFF switch ③ clicks upwards and the light goes out.

INFORMATION

This appliance is fitted with an overheating protector: if the appliance is switched on accidentally, without any water in the kettle, the appliance automatically switches itself off.
If, for example due to a non-closed lid the appliance boils dry, the appliance switches off automatically.
In such cases first allow the appliance to cool down before using it again.

Cleaning and Care

▶ Before cleaning, ALWAYS remove the plug from the mains power socket! There is the risk of receiving an electric shock!
▶ Do not open any part of the housing. There are no user-serviceable elements inside. An open housing will create the risk of a potentially fatal electrical shock.

NEVER submerse the appliance in water or other liquids! You could receive a fatal electric shock if residual liquids come into contact with live components during operation.

WARNING - RISK OF INJURY!

▶ Let the appliance cool sufficiently before cleaning it. Risk of Burns!

WARNING - PROPERTY DAMAGE!

▶ Do not use abrasive or aggressive cleaning materials. These could attack the upper surfaces and irreparably damage the appliance.

■ Clean the exterior surfaces and the power cable with a slightly damp cloth. Be sure to dry the appliance well before taking it back into use. For stubborn soiling use a mild detergent on the cloth. Ensure that there are no detergent residues in and on the appliance before it is taken back into use.

■ Rinse the inside of the kettle out with clean water.

If there are any deposits in the kettle, wipe out the inside surface with a moist cloth, or use a washing up brush or bottle brush. Then rinse the kettle out with clean water again.

In the event of scale deposits

Scale deposits on the bottom of the appliance lead to increased energy consumption and reduce the service life of the appliance.

Descale the appliance as soon as scale deposits become apparent.

■ Use a descaler designed for household appliances (e.g. for coffee machines). Proceed as detailed in the instructions provided for the use of the decalcifying agent.

■ After descaling, rinse the appliance with lots of clean water.

Inserting/removing the scale filter insert

The spout of the kettle is fitted with a filter insert, which can become clogged with particles or scale over time. To clean the scale filter insert, simply remove it from the appliance.

1) Open the lid.
2) Grip the scale filter insert ⑥ by the strap and pull it out diagonally upwards toward the rear.
3) Clean the scale filter insert ⑥ with a slightly moistened dishcloth and under running water.
4) After cleaning, put the scale filter insert ⑥ back into the appliance by inserting it into the guide rails and gently pushing it into place. Ensure that the scale filter insert ⑥ clicks into place properly.

NOTE

▶ Alternatively, you can remove the scale filter holder by pushing down the upper retaining collar from the front and pulling the filter holder backwards. To reinsert the scale filter holder, push the lower retaining collar into the appropriate recess and let the upper retaining collar click into the housing.
If scale deposits have solidified in the scale filter insert ⑥, place the filter in a water-vinegar solution with a ratio of 6:1 for a few hours. The scale deposits will dissolve. Rinse the scale filter insert ⑥ with plenty of fresh water.

Storage

- Allow the appliance to cool down completely before putting it into storage.

Wind the power cable around the cable winder ⑤ under the base ④.

■ Store the appliance at a dry location.

Troubleshooting

Problem Cause Remedy
The appliance does not function.	The plug is not inserted into a mains power socket.	Insert the plug into a mains power socket.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	In this case, contact Customer Services.
	The appliance is over-heated and the overheating protection is active.	Allow the appliance to cool down.
The ON/OFF switch 3 does not engage.	The kettle is not on the base 4.	Place the kettle on the base 4.
	The appliance is defective.	In this case, contact Customer Services.

Disposal of the appliance

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, consult your local disposal facility.

Notes on the Declaration of Conformity

This appliance complies, in regard to conformance with basic requirements and other relevant regulations, with the EMV Directive 2014/30/EU, as well as the Directive for Low Voltage Devices 2014/35/EU.

The complete original Declaration of Conformity can be obtained from the importer.

CE

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 288411

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction....30

Droits d'auteur 30

Diagram of a circular mechanical or electrical component with internal curved flow arrows (no text or symbols)

Fig. 1

Mise en service

ATTENTION - RISQUE D'ACCIDENT !

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding....44

Auteursrecht 44

⚠WAARSCHUWING - LETSELGEVAAR!

Diagram of a circular mechanical or electrical component with internal flow arrows, no text or symbols present.

Afb. 1

Ingebruikname

⚠ WAARSCHUWING - LETSELGEVAAR!

VAARSCHUWING - LETSELGEVAAR!

VAARSCHUWING - LETSELGEVAAR!

AARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....58

Autorské právo 58

POZOR- HMOTNÉ ŠKODY!

POZOR - HMOTNÉ ŠKODY!

Diagram of a circular mechanical or electrical component with internal flow arrows, no text or symbols present.

Obr. 1

Uvedení do provozu

⚠️VÝSTRAHA - NEBEZPEČÍ ZRANĚNÍ!

POZOR- HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Indice

Introducción....72

Diagram of a circular mechanical or electrical component with internal flow arrows, no text or symbols present.

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Índice

Introdução....86

Diagram of a circular mechanical or electrical component with internal curved flow arrows (no text or symbols)

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones · Estado das informações:

08 / 2017 · Ident.-No.: SWKS2400G2-062017-2
