USER MANUAL H1065L BH FITNESS

Fig.2 Fig.33 Fig.3A Fig.3B

Fig.6 Fig.74 Fig.7A Fig.8

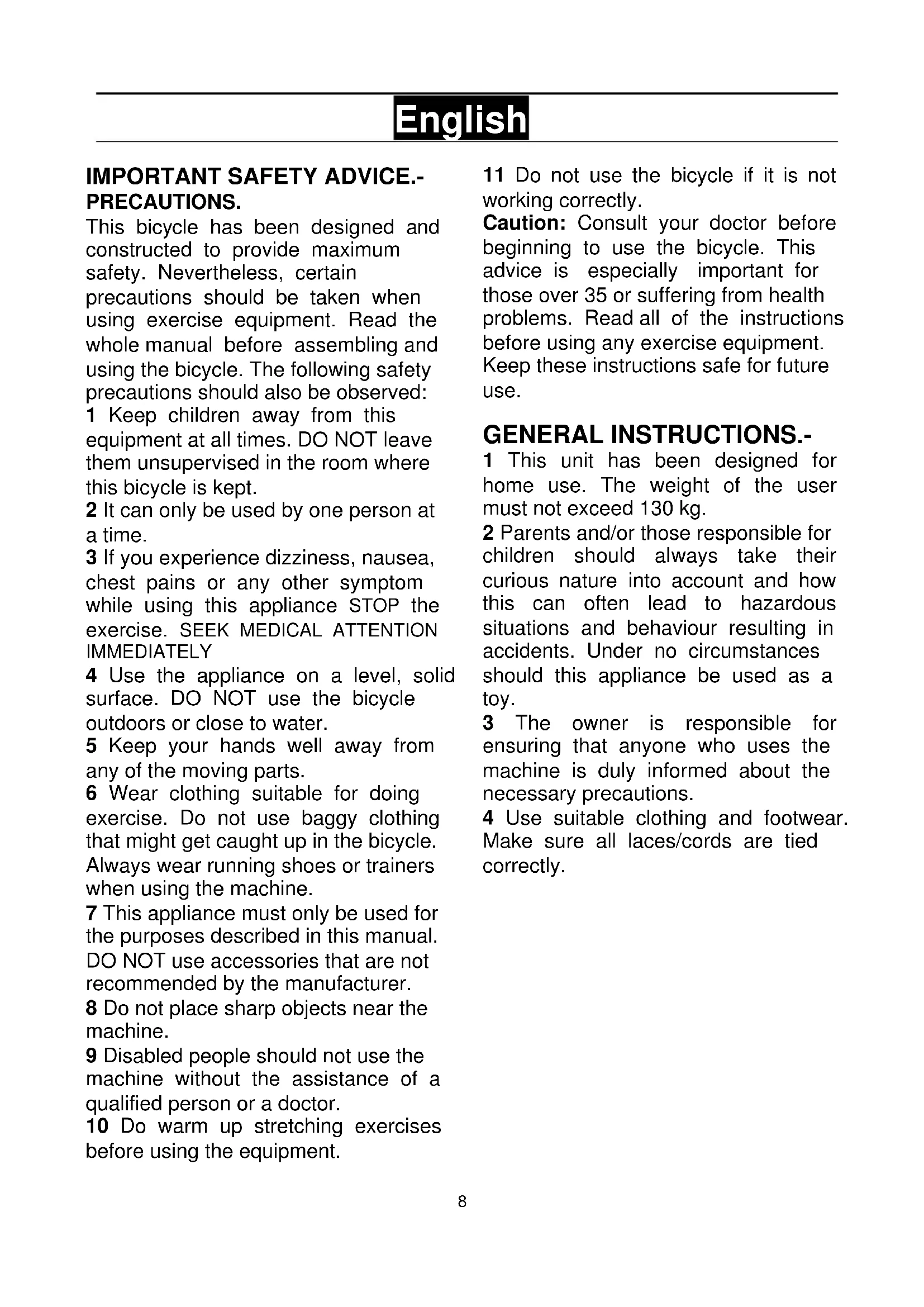

PRECAUTIONS. This bicycle has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the bicycle. The following safety precautions should also be observed: 1 Keep children away from this equipment at all times. DO NOT leave them unsupervised in the room where this bicycle is kept. 2 It can only be used by one person at a time. 3 If you experience dizziness, nausea, chest pains or any other symptom while using this appliance STOP the exercise. SEEK MEDICAL ATTENTION IMMEDIATELY 4 Use the appliance on a level, solid surface. DO NOT use the bicycle outdoors or close to water. 5 Keep your hands well away from any of the moving parts. 6 Wear clothing suitable for doing exercise. Do not use baggy clothing that might get caught up in the bicycle. Always wear running shoes or trainers when using the machine. 7 This appliance must only be used for the purposes described in this manual. DO NOT use accessories that are not recommended by the manufacturer. 8 Do not place sharp objects near the machine. 9 Disabled people should not use the machine without the assistance of a qualified person or a doctor. 10 Do warm up stretching exercises before using the equipment. 11 Do not use the bicycle if it is not working correctly. Caution: Consult your doctor before beginning to use the bicycle. This advice is especially important for those over 35 or suffering from health problems. Read all of the instructions before using any exercise equipment. Keep these instructions safe for future use. GENERAL INSTRUCTIONS.- 1 This unit has been designed for home use. The weight of the user must not exceed 130 kg. 2 Parents and/or those responsible for children should always take their curious nature into account and how this can often lead to hazardous situations and behaviour resulting in accidents. Under no circumstances should this appliance be used as a toy. 3 The owner is responsible for ensuring that anyone who uses the machine is duly informed about the necessary precautions. 4 Use suitable clothing and footwear. Make sure all laces/cords are tied correctly.9

1.- ASSEMBLY INSTRUCTIONS.-

Take the unit out of its box and make sure that all of the pieces are there Fig.1. (1) Main body. (2) Front stabiliser bar. (3) Rear stabiliser bar. (5) Curved washer Φ10.5xΦ25.. (6) Cap nut M-10. (8) Handlebar stem. (13) Flat washer Φ8.5xΦ22. (14) Screw M-8x20. (15) Handlebar. (16) Handlebar bracket. (17) Screw M8. (18) Bracket cover. (19) Handlebar lever. (20) Flat washer M-8. (21) Saddle post knob. (22) Saddle post. (23) Saddle. (24) Monitor. (28) Left pedal. (29) Right pedal.

2. FITTING THE STABILISER BARS.-

Take the rear stabiliser bar (3) and position it on the machine’s rear stand bracket, as shown in Fig.2, inserts bolts (4), fit the curved washers (5) the cap nuts (6) and tighten securely. Take the front stabiliser bar with wheels (2) and position it so that the two red dots (A) line up, as shown in Fig.2, insert bolts (4), fit the curved washers (5) the cap nuts (6), and tighten securely.

3.- FITTING THE HANDLEBAR.-

Bring the handlebar (15) up to the handlebar stem (8), Fig.3, insert the hand-grip cable (26) in through the slot as shown in Fig.3A and Fig.3B, and pull it out through the top of the handlebar stem. Fit the handlebar bracket (16), insert screw (17) and hand tighten, put the washer (20) on and the handlebar lever (19), position the handlebar and tighten gently, then fit the bracket cover (18).

4.- FITTING THE MONITOR.-

Take the monitor (24), remove the four screws (25) from the base, Fig.4, connect the terminal (10), coming out of the monitor (24) with the terminal for the cable (26) coming out of the handlebar stem (8), next plug terminal (30) which is also sticking up from the handlebar stem into terminal (31), position the monitor on the handlebar stem, making sure not to catch any of the cables, and attach it using the four screws (25) removed previously.

5.- FITTING THE HANDLEBAR

STEM.- Hold the handlebar stem (8) and connect the feedback cable terminals (9) and (30), Fig.5. Insert the handlebar stem (8) onto the boss on the main body (1) in the direction of the arrow, making sure not to catch any of the cables. Next, line up the handlebar stem with the holes and fit the 3 Allen screws (14) and the curved washers (13), tighten securely.

6.- ATTACHING THE SADDLE.-

Place the saddle (23) onto the saddle post (22), as shown in Fig.6, bearing in mind that the holes on the saddle post go at the front section of the saddle, position the saddle correctly and tighten nuts (11) securely. Now insert the saddle post into the hole on the main body (1), fit the saddle post knob (21) and adjust the height of the saddle and tighten it into position by turning the saddle post knob (21) clockwise.10

HEIGHT.- Loosen the saddle post knob (21) a little, turning it anticlockwise, and pull it back, Fig.6, adjust the height of the saddle to suit the exercise and then release the knob so that it slots back into one of the holes on the saddle post. Tighten the knob (21) securely by turning it clockwise.

8.- FITTING THE PEDALS.-

The assembly instructions for the pedals must be followed to the letter, fitting these incorrectly could damage the screw thread on either the pedal or the crank. Right and left refer to the position that the user adopts when sitting on the saddle to do the exercises. The right-hand pedal (29), marked with the letter (R), screws onto the right-hand crank, also marked with an (R), in a clockwise direction. Tighten securely, Fig.7. The left-hand pedal (28), marked with the letter (L), screws onto the left-hand crank, also marked with an (L), in an anti-clockwise direction. Tighten securely, Fig.7. Once the pedals have been fitted, insert the end of the pedal clip (A) into the slot on the pedal (B) adjusting it to your footwear on the ledge of the pedal (C), Fig.7A. LEVELLING.- Once the unit has been placed into its final position, make sure that it sits flat on the floor and that it is level. This can be achieved by screwing the adjustable feet (46) up or down, as shown in Fig.8. MOVEMENT & STORAGE.- The unit is equipped with wheels (48) to make it easier to move. The wheels located at the front of your unit make it easier to move it into a chosen position, by lifting the rear of the unit up slightly and pushing it, as shown in Fig.9. Store your unit in a dry place, preferably not subject to changes in temperature. Do not hesitate to get touch with the Technical Assistance Service if you have any queries by phoning customer services (see last page in manual)
