FS 4 - Facial sauna TEAM - Free user manual and instructions

Product type	Facial sauna and inhaler
Brand	TEAM
Model	FS 4
Power supply	230 V AC
Water tank capacity	40 ml (1 dose)
Masks supplied	Sauna mask with steam flow regulator, inhaler mask
Functions	Facial sauna, therapeutic inhalation
Steam flow regulator	Yes, integrated into the sauna mask
Recommended use	Domestic use only, on a flat and clear surface
Maintenance after each use	Empty excess water, dry the inside and edges of the masks, clean the outside with a dry cloth
Descaling	With white vinegar or standard descaler, rinse thoroughly
Measuring accessory	Included to measure 40 ml of water
Disassembly of the inhaler mask	Possible: hold the lower part and turn the upper part clockwise
Safety precautions	Do not immerse, do not use near heat sources or water, unplug before cleaning
Medical advice	Consult a doctor in case of respiratory problems or treatment

Frequently Asked Questions - FS 4 TEAM

How to use the TEAM FS 4 facial sauna?

Fill the measuring cup with a maximum of 40 ml of water, pour into the evaporation tank, place the sauna mask on the device, plug in and press ON (I). Place your face near the edge of the mask and adjust the steam flow if necessary. Close your eyes and relax.

How much water to use?

Do not exceed 40 ml of water (1 dose). Pour the water into the evaporation tank using the provided measuring cup.

How to clean the facial sauna after use?

Unplug the device and wait for it to cool down. Empty excess water, dry the inside and edges of the masks. Clean the outside with a dry cloth. Never immerse the device.

Can I use additives (essential oils)?

Yes, for the inhaler function, you can add scented essences respecting the dosages indicated on their instructions. Only use products specifically designed for inhalation.

What to do in case of limescale deposits in the tank?

Use a standard descaler or white vinegar to remove limescale residues, then rinse thoroughly. Regular maintenance after each use prevents accumulation.

How to correctly assemble the masks?

The sauna mask has a hole at the bottom and the inhaler mask has a ridge on the perimeter for correct positioning on the base of the device. Make sure they are properly in place before use to avoid steam leaks.

Can I use the facial sauna if I have sensitive skin?

Consult your doctor or dermatologist if you have sensitive skin, poor blood circulation, or are undergoing treatment. Avoid using the device on swollen or inflamed areas. Do not hold the device too close to the face for too long.

What to do if the device falls into water?

Immediately remove the plug from the power outlet without putting your hand in the water. Do not reuse the device until it has been checked by a qualified service.

How to adjust the steam flow?

The sauna mask is equipped with a flow regulator. Turn it to adjust the size of the openings: the larger the openings, the greater the amount of steam.

How long does a facial sauna session last?

The instructions do not specify an exact duration. It is advised not to hold the device too close to the face in a static position for too long to avoid burns. Relax and adjust the duration according to your comfort.

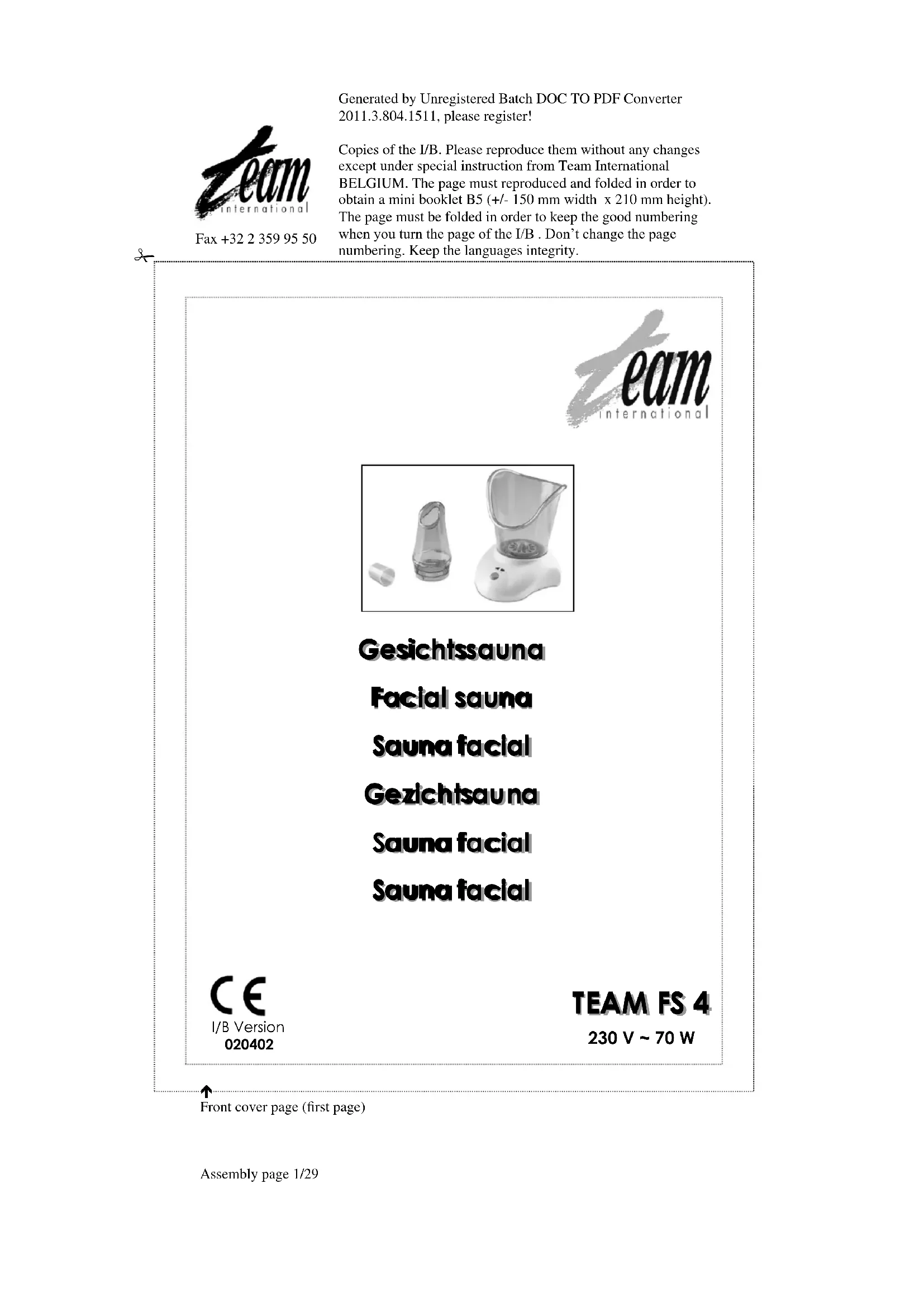

USER MANUAL FS 4 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Gesichtssauna

Facial sauna

Sauna facial

Geichtsauna

Sauna facial

Sauna facial

CE

I/B Version

020402

TEAM FS 4

230 V ~ 70 W

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (^)
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician (^)
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never use the appliance in bath, shower or above a sink filled with water! However, should the appliance happen to fall into the water:
- immediately unplug it
- do not put your hands into the water
make sure your appliance is verified by a competent qualified electrician before using it again.
For your own safety use your appliance on a flat surface to allow a good ventilation around the appliance and around yourself. Do not operate under a linen to increase the efficacy of your facial sauna. The accessories have been worked out for a specific use. They don't need any additive.
The air intake and outgoing openings must never be blocked.
Always make sure your appliance is not wet (water splashes, ...) and never handle it with wet hands.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
To fill in the tank, switch off the appliance and unplug it from the electrical outlet.
Do not touch the unit base with your hands when using, due to hot surface of the base.
Before each use make sure that the accessories are correctly put on the unit to avoid steam leaks.

(^*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

CAUTION

• Consult your physician or your dermatologist if you have any respiratory ailments or other ailments in order to know if you can use this appliance. You can also consult your dermatologist if you have any questions regarding the therapeutic use of the facial sauna.
• Do not use on any part of the body that is anaesthetized because you won't feel the heat and could get burnt.
• If you want to use additives (for example scented essences) for the inhaler function, read carefully the instructions and the recommended measuring out. Do not use products that are not recommended especially for inhalations.
• Do not operate where aerosols (spray) products are being used or where oxygen is being administrated.
• Do not use this appliance if you have sensitive skin areas or poor circulation.
• Never use this product directly on swollen or inflamed skin areas or skin eruptions.
• Never hold this facial steamer close to your face while in one static position for extended periods of time as scalding may occur.

USE

1. Fill the provided measuring cup with the desired water quantity (1). Do not overfill the water tank with more than 40ml of water (1 dose).
2. Pour the water into the evaporation bowl (2).

Remark : if you've just used your appliance and you want to continue the treatment, make sure that the appliance is switched off and then refill evaporation bowl as instructed in 1 and 2.

1. Choose the desired mask (facial steamer or inhaler) and place it on the unit as illustrated in figure (3). A hole in the bottom of the face mask and a rib on the surround of the inhaler allow it to position those accessories on the appliance.
2. Plug into a 230 volt AC household outlet. Push switch to ON (I) position (4). Both green led indicators will go on indicating that the appliance is on.
3. Place your face as close to the rim of the mask as possible. If you feel any discomfort or excessive heat, move your face away from the facial mask to a comfortable distance (5).
4. There is a steam adjustment control knob which by simply turn controls the holes size of the facial mask and the debit. Larger the holes are, bigger the steam quantity in the mask will be (6).

Close your eyes and relax. Let the facial sauna revitalize your skin's natural beauty and radiant glow while it deeply penetrates your pores to cleanse away impurities.

We recommend to breathe normally through your nose when using the inhaler. It is not necessary to breathe deeply.

CLEANING

• Clean your appliance after each use to avoid an accumulation of fats and other deposits such as limestone.
  Always unplug your facial sauna from the electrical outlet and let cool before cleaning.
  Empty excess water and wipe dry the interior of the facial mask and rim.
• Wipe the base with a clean and dry cloth.
• Never use abrasive cleaners to clean your appliance : it could damage the surfaces.
• Do not immerse the appliance in water or any liquid.
  To make the cleaning easier, you can dismantle the inhaler. Therefore hold the bottom firmly and turn the top clockwise.

ATTENTION

All mineral residue must be removed completely from the evaporation bowl after each use. If it should happen despite this precaution, you can use a usual descending agent or white vinegar in order to eliminate those residues. Then you will have to rinse abundantly.

A too important limestone deposit in the evaporation bowl will damage the good functioning of your appliance. The damage caused won't be taken under warranty.

STORAGE

• Place your facial sauna in a convenient, dry location. To avoid breakage, do not wrap the power cord around the unit.
• Do not hang the unit by the power cord. Coil the cord loosely and secure with a twist tie.

MODE D'EMPLOI

LE SAUNA FACIAL PEUT SERVIR D'INHALATEUR À DES FINS THÉRAPEUTIQUES POUR LIBÉRER LES CONDUITS NASAUX ENCOMBRES.

N'UTILISEZ PAS CET APPAREIL COMME UN SUBSTITUT DE TRAITEMENT MEDICAL EN CAS DE TRAITEMENT D'UNE AFFECTION RESPIRATOIRE CONSULTEZ UN MÉDECIN AU PREALABLE.

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

PRECAUTIONS PARTICULIERES

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM FS 4

Deutsch	5
English	8
François	11
Nederlands	14
Espanol	17
Portuguese	20
