Installation and removal (p. 36) Installation, after delivery or transport, is the most important operationfor the correct functioning of your washing machine. Always check:1. That the electric system conforms to regulations;2. That the inlet and draining pipes are connected correctly.Never use hoses that have already been used, always usethe new ones provided with your machine.3. That the washing machine is levelled properly; somethingworth checking to aid the performance of yourwashing machine;4. That the drum's fixing screws have been removed fromthe back of the washing machine;

2. What goes in your washing machine and how

to start it (p. 28) A correct distribution of your laundry is vital to the successfuloutcome of the wash and the life of the washing machine. Learn allthe tips and secrets to dividing your linen: colour, type of fabric.

Guide to understanding labels (p. 31) The symbols on the labels of your garments are easy to understandand equally important for the success of your wash. The guideincludes simple instructions to help you choose the right tempera-ture, wash cycles and ironing methods.

Useful tips to avoid mistakes (p. 32) Years back, our grandmothers were the ones who gave us goodadvice - and in those days synthetic fibres did not exist: washingwas easy. Today, your washing machine offers you helpful adviceallowing you to wash wool even better than an expert laundresswould by hand.

The detergent dispenser (p. 33) How to use the detergent dispenser and the bleach compartment.

Understanding the control panel (p. 29 and 30) Washing machine’s control panel is very simple. It has only a fewessential buttons to help you choose any type of wash cycle,ranging from the most energetic, capable of cleaning a mechanic’soveralls, to the most delicate for wool. Familiarising yourself with itwill help you get the best out of your wash while helping yourwashing machine last longer. It’s easy.

7. Guide to the wash programmes (p. 30)

Herein is an easy table to help you choose the right programme,temperature, detergents and possible additives. Choose the rightprogramme and you will get better results with your wash whilesaving time, water and energy, day after day.

8. Care and maintenance (p. 37)

With just a bit of care, it will repay you with loyalty and devotion.With the necessary upkeep, it will wash for years and years tocome.

Problems and solutions (p. 34 and 35) Before calling a technician, read these pages: immediate solutionsmay be found for a number of problems. If the problem persists,call your local Indesit customer services who will be pleased tohelp. Any failure will be repaired, as soon as possible.

Technical characteristics (p. 35) Herein are the technical features of your washing machine: modeltype number, electric and water specifications, size, capacity,speed of the spin cycle and compliance with Italian and Europeanregulations.

11. Safety for you and your family (p. 38)

Here you will find the necessary safety guidelines, and it isimportant for you to read this section carefully.

Instructions for installation and useWhat goes in your washer? Before washing, you can do a great deal to ensure better results. Divide your garments according to fabric and colour. Read the labels, follow their guidelines. Before washing. Divide your washing accordingto the type of fabric and colourfastness.Empty all pockets (coins, paper,money and small obejects) andensure all loose buttons arerepaired or removed prior toloading. How to eliminate the most common stains Ink and biro Dab with a wad of cotton soaked in methyl alcohol or alcohol at 90°.Tar Dab with fresh butter, rub in turpentine then wash immediately. Wax Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with turpentine or methyl alcohol.Chewing gum Rub in nail polish remover and wipe with a clean rag. Mold Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar, then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately. Lipstick Dab with ether on wool or cotton. Use tricloroetilene for silk. Nail polish Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the garment as the sheet gradually changes colour.Grass Dab with a wad of cotton soaked in methyl alcohol. Starting the washer Starting your washing machinein the right way is important forthe quality of your wash, to helpprevent future problems andenhance life expectancy of yourappliance. Once you haveloaded your washing machineand added the detergenttogether with any fabricconditioner, always check that:1. The door is closed correctly.2. The plug is secured in thesocket.3. The water supply is turned on. Turn the appliance on Press button C (position I). Choose the desired programmeThe programme is selectedaccording to the type of garmentsthat need to be washed. To choosea programme, refer to the table onpage 30. Turn knob A until theselected programme is alignedwith the mark on the knob, set allthe options available (flashing)as indicated on pages 29 and 30(reference ), then pressbutton B (Start/Reset).If you want to interrupt theprogramme in progress, press button B for at least 3 seconds. After installing your new washing machine, start a wash cycle by setting programme "1" at 90 degrees. For more delicate garments: protect underwear, tights and stockings and delicate items by placing them in a canvas pouch Dividing your garments according to fabric and colour, is very important for good results At the end of the wash cycle...Wait for symbol to come offand the word End to appear.Then turn the washing machineoff by pressing on-off button C(O position). You can now openthe washing machine doorsafely. After having removed thefreshly cleaned washing, leavethe door open to allow aircirculation inside the drum.Always disconnect electricity atthe socket and turn off the watersupply.Remember that, in the eventof a power failure, or shouldthe washing machine switchitself off, the programmechosen will remain in itsmemory. The labels say it all. Always look at the labels: theytell you everything about yourgarment and how to wash it inthe best possible way.The table on page 31 shows allmeanings behind thesesymbols. Their recom-mendations are important toachieve better wash results.Instructions for installation and use

Big and small happily together. This washing machine has aspecial electronic control devicefor even distribution: before thespin cycle starts, this deviceallows the garments to positionsthemselves, to minimise noiseand vibrations during the spincycle.mode select

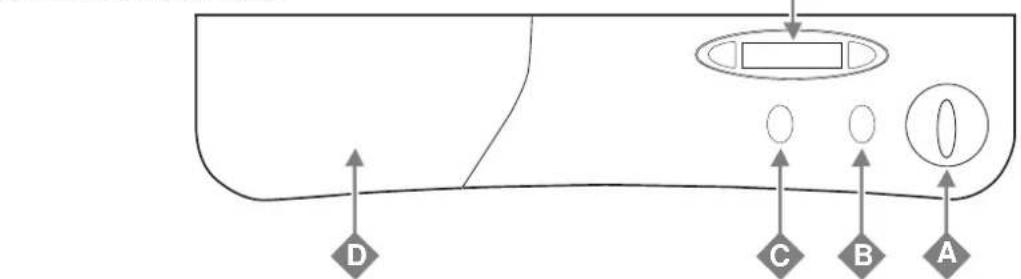

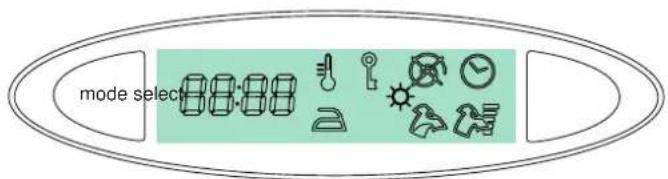

Here I’m in command Understanding the control panel Making the right choice is important. And it’s easy. Programme selector knobUse this knob to select the washprogramme.To select a programme, youshould turn the knob so that thesymbol/number of the desiredprogramme is in line with thepointer on the knob.Start /ResetThis button allows you to startthe selected wash programmeor to interrupt it.If you press it briefly, the buttonfunctions as Start, if you pressit for at least 3 seconds, then itfunctions as Reset. After the Start of the appliance, moving the programmeselector knob will have no effectwhatsoever.On-offWhen button C is pressed, thewashing machine is switchedon, when it is not the machineis switched off.Turning the appliance offdoes not cancel the selectedprogramme.When the appliance is switchedon, all the symbols on the displaylight up for at least 8 seconds,after which only the ones that canbe selected will flash.Detergent dispenserIt is divided into threecompartments:1.Detergent for pre-wash;2. Detergent for the main cycle wash;3. Fabric conditioner.The washing machine isequipped with an extracompartment 4 (provided as anaccessory) for the bleach, to beinserted in compartment 1.DisplayAll the options available aredisplayed on the right-hand side.Use the mode button to selectthe desired option, and the rela-tive symbol will begin flashing.On the left-hand side, the valueor the status (On-Off) of theselected option is displayed, andyou can modify it using theselect button.To access the subsequentoption, press the mode button,otherwise press button B to startthe wash cycle.All the options available are listedbelow.Only options relevant to theselected programme will bedisplayed.Temperature The display indicates the maximumtemperature relating to theprogramme set, which can bereduced by pressing the select button right down to cold wash (Off). This option is available on allwash programmes.Spin Variation The display indicates the maximumspeed relating to the programmeThe detergent dispenser with theadditional bleach compartmentis here.

Instructions for installation and use set, which can be reduced bypressing the select button right down to its total exclusion (Off). During a wash cycle, the selectionof the spin cycle exclusion isindicated by symbol coming on.This option is available on all washprogrammes except for number 11and Drain.Delay Timer This allows you to delay the startof the wash cycle by a minimum of 1 to a maximum of 24 hours by pressing the select button.The enabling of the delayedstart is indicated by the symbol coming on and staying onuntil the wash cycle begins.This option is not available onthe Draining and Spin cycleprogrammes.Easy Ironing This function allows your washing tocome out of the machine withoutcreases, making it much easier to iron.The appliance optimises thewashing conditions according tothe type of fabrics that are beingwashed.It is enabled with programmes 3-5-6-7-8-11 and Rinse cycles. To enable it, press the selectbutton until the On sign comes on. In programmes 6-7-8-11 and Light Rinse cycles, the wash cycle isinterrupted and the washing is leftto soak in water before theappliance is drained. To completethe cycle, press the select button.During a wash cycle, the enablingof this option is indicated bysymbol coming on.Note: It must not be used with theStain Erase option.Stain Erase (see page 33)Thanks to this command, thewashing machine will carry out amore intensive wash thatoptimises the effectiveness of theliquid additives, thus allowing moreresistant stains to be removed.To use this, press the selectbutton until the On sign comes on.During a wash cycle, theselectionof this option is indicatedby symbol coming on.This option is available onprogrammes 2-3-5-6-7-8-10 andRinse cycles.Note: It must not be used with theEasy Ironing option.Wash Intensity This allows you to modify thecharacteristics of the selectedwash programme, according tohow soiled the washing is. Thereare three levels; press the selectbutton to select them. Low Medium High This option is available onprogrammes 1-2-3-5-6-7-8.Perfect RinseThe first washingmachine to eliminate alldetergent residue.Type of fabric and degree of soil Programme Temperature Detergentfor washFabricsoftenerStainErase /BleachLength ofthe cycle(minutes)Description of wash cycleCOTTONExceptionally soiled whites(sheets, tablecloths, etc.)1 90°C

Prewash cycle, wash cycle at 90°C, rinsecycles, intermediate and final spin cyclesExceptionally soiled whites(sheets, tablecloths, etc.)2 90°C Del./Trad. Wash cycle at 90°C, rinse cycles,intermediate and final spin cyclesHeavily soiled whites and fast colours3 60°C Del./Trad. Wash cycle at 60°C, rinse cycles,intermediate and final spin cyclesHeavily soiled whites and fast colours4 40°C

Wash cycle at 40°C, rinse cycles,intermediate and final spin cyclesSlightly soiled whites and delicatecolours (shirts, jumpers, etc.)5 40°C Del./Trad. Wash cycle at 40°C, rinse cycles,intermediate and final spin cyclesSYNTHETICSHeavily soiled fast colour synthetics(baby linen, etc.)6 60°C Delicate Wash cycle at 60°C, rinse cycles, anti-crease or delicate spin cycleSlightly soiled fast colour synthetics(all types of slightly soiled garment)6 40°C Delicate Wash cycle at 40°C, rinse cycles, anti-crease or delicate spin cycleHeavily soiled fast colour synthetics(baby linen, etc.)7 50°C Delicate Wash cycle at 50°C, rinse cycles, anti-crease or delicate spin cycleDelicate colour synthetics(all types of slightly soiled garments)8 40°C Delicate Wash cycle at 40°C, rinse cycles, anti-crease or delicate spin cycleDelicate colour synthetics(all types of slightly soiled garments)9 30°C

Wash cycle at 30°C, rinse cycles, anti-crease or drainingPARTIAL PROGRAMMESRinse cycles Rinse cycles, spin cyclesLight rinse cycles Rinse cycles, anti-crease or drainingSpin cycle Draining and spin cycleLight spin cycle Draining and delicate spin cycleDrain Draining A programme for all seasons What are you washing today? Instructions for installation and use

Class A at 40°C Your washer has a special programme to allow you to obtain optimum results even at low temperatures. By setting programme 4 at a temperature of 40° C, the results you will obtain will be the same as you would normally obtain at 60°C thanks to the washing machine’s action and the length of the wash cycle. Daily wash Your washer has a programme available for the washing of lightly soiled garments in a short amount of time. By setting programme 9 at a temperature of 30°C, you can wash different types of fabrics together (except for wool and silk), with a maximum load of 3 kg. This programmes allows you to save on both time and energy as it only lasts around 30 minutes. We recommend the use of liquid detergent. Important: to cancel the wash programme you have just set, press button B for at least 3 seconds (Start/Reset). Special programmes The data found in the table is purely indicative, and can vary according to the quantity and type of washing, the water system temperature and the room temperature. Special displays (left-hand side of the display):As soon as you switch theappliance on….You can display the remainingamount of time of the last washprogramme selected.Programme lengthDuring the wash cycle, theamount of time left is displayed.Error messageIn the event of a fault, a messageis displayed, (e.g. F-01), whichshould be communicated to theService Centre.End of the programmeAt the end of the programme,the word END is displayed.During the wash cycle….You can view the characteristicsof the programme in progress bypressing the mode button andalso modify them, if need be, bypressing the select button.Door lockedSymbol on indicates that thewashing machine door is lockedto prevent it from being openedaccidentally. To avoid anydamages, you must wait for it tocome off and for the word Endto appear before you open thedoor.Wash Bleaching Ironing Dry cleaning DryingStrongactionDelicateaction High Temp. Low Temperat.Wash at 95°C Bleaching only incold waterHot iron at max200°CDry clean with anysolvent Machine dryableWash at60°C Do not bleachMedium hotironing atmax 150°CDry clean only withperchloride, benzineav., pure alcohol,R111 and R113Do not machine dry Wash at 40°C Iron at max110°CDry clean with av.benzine, pure alcoholand R113 Spread to dryWash at30°C Not ironable Do not dry cleanHang to drywithout spindryingHand washDry on clotheshanger Not washable inwater Understanding labels Learn the meaning of these symbols and you will get better results, your garments will last longer resulting in an improved wash. All over Europe, garment labelscontain messages expressed insmall yet important symbols.Understanding them is veryimportant if you want to getbetter results and treat yourgarments the way they deserveto be treated.These symbols are divided infive different categories andshapes: washing bleaching , ironing , drycleaning and drying . Consult and learn the symbols in this table: they will help you obtain a better wash, treat your clothes properly, and get a better performance out of your washing machine. Useful tips Turn shirts inside out to get better resultsand make them last longer.Always empty pockets of their contents.Look at the label: it will always give you usefuladvice.When loading your washing, try to have a mixtureof large to small items.Make sure you select the righttemperature!

Instructions for installation and use

FUseful tips Never use your washingmachine to wash... torn, frayingor non-hemmed linen. If it isabsolutely neccessary, place it ina bag for protection. Do not washcoloured linen with whites. Watch the weight!For best results, do not exceedthe weight limits stated below(figures show weight of drygarments):- Resistant fabrics:5,5 kg maximum- Synthetic fabrics:2.5 kg maximum- Delicate fabrics:2 kg maximum- Pure new wool:1 kg maximum How to wash almost anything Curtains.Curtains tend to crease a greatdeal. A useful tip to reducecreasing: fold the curtains andplace them in a pillow case ormesh bag. Do not load anythingelse inside the appliance, thiswill ensure that the overallweight does not exceed the halfload. Remember to use thespecific programme 11 whichautomatically excludes the spincycle. Trainers.Once you have removed mudand dirt from trainers, you caneven wash them with jeans orany other tough garments. Donot wash trainers with whites. Quilted coats and anorak.You can wash quilted coats andwind-cheaters, too, if they arepadded with goose or duckdown. Do not load more than2-3 kg and never load 5,5 kg.Repeat rinse once or twiceusing the gentle spin. How much does it weigh?1 sheet 400-500 gr.1 pillow case 150-200 gr.1 tablecloth 400-500 gr.1 bathrobe 900-1,200 gr.1 towel 150-250 gr. Coloured T-shirts, printedones and shirts last longer if turnedinside out before washing.Printed T-shirts and sweatshirtsshould always be ironed inside out. Dungaree alert.Very popular “salopette” typeoveralls have straps with hooksthat can damage the drum of yourwashing machine or othergarments during the wash. Tominimise the risk, place hooks inthe pocket and fasten with safetypins. Holidays: unplug theappliance.It is recommended that youshould unplug the machine fromthe socket and turn off the watersupply. Leave the door ajar toallow air circulation to the drawand the door gasket area. This willprevent unpleasant odours.Instructions for installation and use For best results, werecommend you use aspecific detergent, takingcare not to wash more than1 kg of laundry. WOOL CYCLE Cashmere Gold: As gentle as a hand wash The first Washing Machine to have "The Woolmark Company" recognition. The Cashmere Gold washprogramme has been studiedfor its machine wash ability,which enables washing foreven the most delicate andvaluable of wool or Cashmeregarments.“The Merloni Elettrodomesti-ci wool wash cycle has beentested and approved by TheWoolmark Company forwashing Woolmark garmentslabelled as “hand wash”. Thisis the first gentle action handwash cycle approved by TheWoolmark Company.”M.00221This has been made possiblethanks to the speed of the drumat 90 rpm, even during therinse cycle, thus preventingthe fibres from rubbing.Always use programme 10 withgarments bearing the hand washdrawing; represented by thewashbasin and the hand.To take care of your woollenitems, we recommend you usespecial detergents. EXCLUSIVEYou must follow the dosagerecommendations provided bythe manufacturers when addingdetergent or fabric conditioner.Doses will vary according to thewash load, the water hardnessand how soiled the washing is.Experience will help you selectthe right dosage almostautomatically: it will become yoursecret.Before adding detergent for pre-washing in compartment 1,make sure that the extracompartment for bleach 4 hasnot been inserted.Ensure no overfilling whenadding fabric conditioner incompartment 3.The washing machine automa-tically adds the softener to thewash in each programme.Liquid detergent is poured intocompartment 2 just a fewseconds before starting thewash cycle.In compartment 1:Detergent for pre-washing (powder)In compartment 2:Detergent for washing(powder or liquid)In compartment 3:Additives (softeners, perfumes, etc.)In compartment 4:Bleach and delicate bleach. Useful tips about the detergent dispenser It’s important for a good wash The first secret is the easiest: the detergent dispenser is opened by pull it outwards. Remember that liquid detergentis only designed for washcycles of up to 60 degrees onnon pre-wash items.Special containers are sold withliquid or powder detergents forplacing inside the washingmachine drum, these arepositioned according to theinstructions found in thedetergent boxNever use hand washdetergent, because it may formtoo much foam, which coulddamage the washing machine.Detergents that are specificallyformulated for both hand andmachine wash are anexception.One last secret: when washingwith cold water, always reducethe amount of detergent you use:it dissolves less easily in coldwater than in hot water, so partof it would be wasted. Cutting costs efficiently A guide to environmentallyfriendly and economic useof your appliance.MAXIMISE THE LOAD SIZEAchieve the best use of energy, water, detergent and time by using the recommendedmaximum load size.SAVE up to 50% energy by washing a full load instead of 2 half loads.DO YOU NEED TO PRE-WASH?For heavily soiled laundry only!SAVE detergent, time, water and between 5 to 15% energy consumption by NOTselecting Prewash for slight to normally soiled laundry.IS A HOT WASH REQUIRED?Pretreat stains with stain remover or soak dried in stains in water before washing toreduce the necessity of a hot wash programme.SAVE up to 50% energy by using a 60°C wash programme.BEFORE USING A DRYING PROGRAMME ...SAVE energy and time by selecting the highest suitable spin speed to reduce the watercontent in laundry before using a drying programme.The detergent dispenser can beremoved and cleaned: pull it outwards,as indicated in the figure. Then leave itunder running water for a few minutes.

Instructions for installation and use

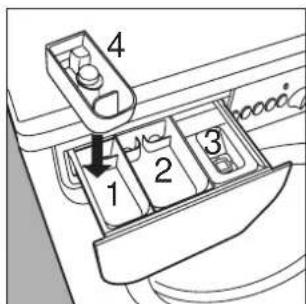

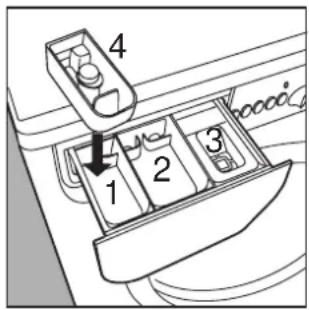

Bleach cycle and stain remover button If bleaching is necessary, theextra case 4 (provided) must beinserted into compartment 1 ofthe detergent dispenser.When pouring in the bleach, becareful not to exceed the "max"level indicated on the centralpivot (see illustration).The use of the additional bleachcontainer excludes thepossibility of using the pre-washcycle. Traditional bleach canonly be used on sturdy whitefabrics, whereas delicatebleach can be used forcoloured fabrics, syntheticsand for wool.You cannot bleach with the“Silk” programme and with the“special programmes” (seepage 30).Should you wish to bleachseparately, pour the bleach intoextra compartment 4, set therinse programme for cottonfabrics or the light rinse for synthetics.When bleaching during anormal wash cycle, pour in thedetergent and additives into thespecial compartments (seetable on page 30), set the desiredprogramme and select the stainerase option.The washing machinefails to fill with water.Is the hose correctlyconnected to the tap?Is there a water shortage ?There could be work inprogress in your building orstreet.Is there sufficient waterpressure? The autoclavemay be malfunctioning.Is the tap filter clean? If thewater is very calcareous, orif work has recently beencarried out on the waterpiping, the tap filter could beclogged with particles anddebris.Is the rubber hose kinked?The tract of the rubber hosebringing water to washingmachine must be as straightas possible. Make sure it isnot squashed or kinked.The washing machinecontinuously fills anddrains water.Is the drain hose positionedtoo low? It must be installedat a height ranging from 60 to100 cm. Is the end of the hoseimmersed in water? Does the wall drainagesystem have a breatherpipe? If the problem persistseven after these checks, turnthe water supply off themachine and call forassistance.If you live on an upper floor ofyour building, there may be aproblem with your drain trap.To solve this problem, aspecial valve must beinstalled. Before calling, read the following Troubleshooting In most cases, when your washing machine fails to work, the problems arisingcan be easily solved without having to call for a technician. Before calling forassistance, always check these points.The washing machinefails to start.Is the plug correctly insertedinto the socket? It could havebeen moved whilst cleaning.Is there electricity in thehouse?A circuit breaker may haveswitched off as a result of toomany electrical appliancesworking at the same time. Ormaybe due to a general failurein your entire area.Is the washing machinedoor closed properly?For safety reasons, thewashing machine cannot workif the door is open or not shutproperly.Is the On/Off buttonpressed?If it is, then a programmed starthas been set.Has the Start/Reset buttonbeen pressed?If it is, then a programmed starthas been set.Is the water supply turnedon? For safety reasons, if thewashing machine does notload water, it cannot start awash cycle. RIGHT WRONG Turn off the watersupply after use.This will eliminatethe possibility ofleakage.Always leave theappliance door ajarto avoid bad odours.Clean theappliance’sexteriors gently.To clean theexteriors and therubber parts of theappliance, alwaysuse a soft clothdipped in warm andsoapy water.Leave the washingmachine plugged in whilecleaning.Even during maintenance,the appliance shouldalways be unplugged.Use solvents andaggressive abrasives.Never use solvents orabrasives to clean theexternal and rubber partsof the washing machine.Neglect the detergentdispenser.It is removable and caneasily be cleaned byleaving it under runningwater.Go on holiday withoutthinking about her.Before leaving, alwaysmake sure that thewashing machine isunplugged and that thewater supply is turned off.Instructions for installation and us

Simple: with the new Indesit technology, you need less thanhalf of it, to get good results on twice as much!This is why you cannot see the water through the door:because there is little, very little of it, to respect theenvironment yet without renouncing maximum cleanliness.And, on top of that, you are also saving electricity. But where did all the water go?ModelWE 12 XDimensionswidth 59,5 cmheight 85 cmdepth 53,5 cmCapacityfrom 1 to 5,5 kgElectricalconnectionsvoltage 220/230 Volt 50 Hzmaximum absorbed power 1850 WWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0,05 MPa (0,5 bar)drum capacity 46 litreSpinning speedup to 1200 rpmControl programs incompliance withIEC regulation 456programme 3; temperature 60°C.carried out with 5 kg load.This appliance conforms with the following E.E.C. directives:- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications Too much foam. Is the detergent appropriate for machine washing? Check whether the definition on its label reads “for machine wash” or “hand and machine wash”, or any other similar wording. Is the correct amount being used? An excessive amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling in the internal parts of the appliance. If, despite all checks, the washing machine fails to function and the problem persists, call your nearest authorised Customer Service Centre, providing the following information: - the nature of malfunction - the model type no. (Mod. ....) - the serial number (S/N ....) This information can be found on the data plate situated at the back of the washing machine. Is there space between the machine and adjacent units? If it is not a built-in model, the washing machine will oscillate a bit during the spin cycle. A few cm of space should therefore be left around it. The washing machine leaks. Is the metal ring of the inlet hose properly attached? Turn off the water supply, unplug the appliance and try tightening its attachment without forcing it. Is the detergent dispenser obstructed? Remove and wash it under tap water. Is the drain hose well attached? Turn off the water supply, unplug the appliance and try tightening its attachment. Is the drain hose kinked? The tract of the drain hose must be as straight as possible. Make sure the drain hose is not squashed or kinked. Is the washing machine’s drain duct clogged? Is there an extension of the drain hose? If so, is it positioned incorrectly, blocking the water flow? Excessive vibration during the spin cycle. Have all transit screws been removed durind instal- lation? See the following page on installation procedures. Has the washing machine been levelled correctly? The levelling of the appliance should be checked periodically. Adjust the feet and check them with a level. The washing machine does not drain or spin. Does the selected programme incorporates water draining? Some programmes stop at the end of the wash cycles and draining will have to be selected manually. Is the “Easy ironing" function -where provided - selected? Complete the programme by pressing the select button. Is the drain pump clogged? To check it, turn off the water supply, unplug the washing machine and follow the instructions on page 37, or call for technical assistance. Technical characteristics Always get assistance from authorised technicians and always insist on original spare parts.

Instructions for installation and useInstructions for installation and use

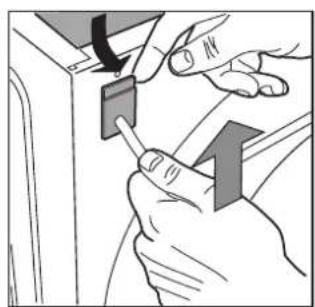

When the new washer arrives Installation and removal Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washing machine. The hook to be used in case the drainhose ends at a height below 60 cm. If the drains hose empties into a tub or sink then fit the plastic gui- de and secure it to the tap. The guide for draining into tubs andsinks. The end of the drain hose must be positioned so that it cannot become submerged. Extensions are unadvisable. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm. In case of wall draining pipes, their efficiency must be checked by a qualified technician. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. After removing the appliance from its packaging, check that it is intact. If in doubt, contact a qualified technician immediately. The inside of the machine is supported, for transportation, by four screws on the back panel. Before using the washing machine, remove the screws, remove the spacers together with the rubber tubes attached to them (keeping all the parts) and use the plastic plugs provided to fill in the holes. Important: Use the cap (provided) to close the 3 holes which housed the stop pin, situated in the right-hand part of the lower back of the washing machine. Levelling The washing machine must be levelled appropriatey in order to guarantee its correct functioning. To level the appliance, the front feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2°. When placed on carpet, make sure the ventilation is not reduced. The front feet are adjustable. Connection to the water mains Water pressure must range within the values indicated on the data plate on the rear of your washing machine. If the water pipes are new or left unused, then before connecting the machine run the water until clear to remove debris. Connect the inlet hose to a cold water tap having a ¾ “ BSP thread. Ensure that the rubber sealing washers are fitted at each end of the inlet hose, with the fitter washer at the tap end.

The rubber gasket . Connect the inlet hose to the threaded connector on the machine rear. Water pipe inlet at the top right. Connecting the drain hose There are two hooks (right or left) on the rear of your washing machine to which the drain hose is to be fixed. Insert the other end in a stand pipe or place it on the edge of a sink or tub avoiding excessive kinks and bending. It should be placed at a height ranging from 60 to 100 cm. If it is necessary to fix the end of the hose at a height below 60 cm from the ground, it must be fixed in the appropriate hook placed on the upper part of the back panel. Warning! The company denies all liability if and when these norms are not respected. Plastic bags, expanded styrofoam, nails and other packaging parts are not children’s toys, and are potentially dangerous. Retain the transit screws, spacers and washers. Should you move house then these should be replaced to support the inside of the machine to prevent damage when transporting the machine. Electric connection Before connecting the appliance to the electric socket, be sure that:

1) the electric socket is able to

sustain the appliance’s maximum power load indicated on the data plate and in compliance with the law;

2) the supply voltage is included

within the values indicated on the data plate;

3) the socket is compatible with

the appliance’s plug. If not, do not use adapters, but replace either the socket or the plug;

4) electric household appliances

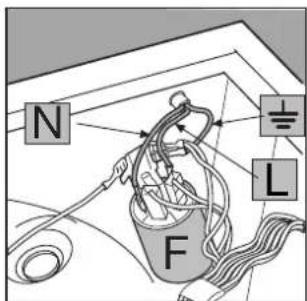

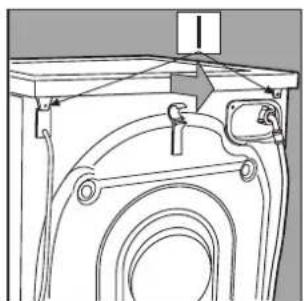

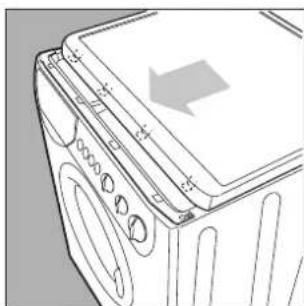

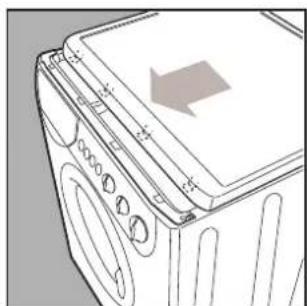

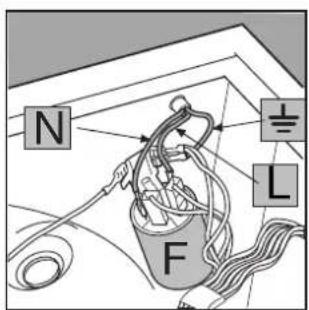

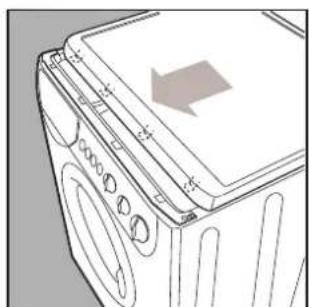

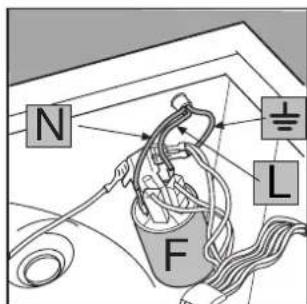

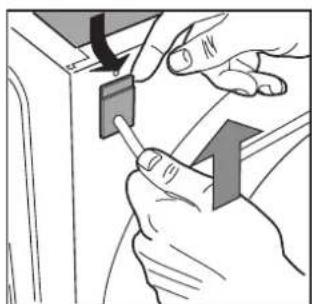

must be equipped with an “earthing” system.Treat your machine well and it will provide many years of trouble free service Easy Care and Maintenance Your washing machine is a reliable companion in life and on the job. It is just as important for you to keep it in shape. Your washing machine isdesigned to provide reliableservice over many years. A fewsimple steps will help to prolongits life and avoid problems. It isadvisable, to turn off water tapswhen the machine is not to beused, this protects the hoses, etc. If the water in your area is toohard, use a deliming product(water is hard if it often leaveswhitish stains around taps ordrains, especially of bath tubs.For more accurate information asto the type of water in yoursystem, call the local waterworks or a local plumber).Pockets must always beemptied removing even pins,badges and any other hardobject.The washing machine exteriorshould be cleaned with a ragdipped in lukewarm water andsoap.Never exaggerate with doses.Normal detergents alreadycontain deliming agents. Only ifthe water is particularly hard,that is, rich in lime content, dowe recommend the use of aspecific product at every wash.A periodical wash cycle with adose of a deliming product,without detergents or washing,may prove useful.Never use too much detergentor additives because this couldcause an excess amount offoam, scaling and possibledamage to the component partsof your washing machine. When in need, check the pump and the rubber hose. The washer comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Smallobjects may accidentally fall into the pump: coins, hair clips, loose buttons and other small items. To avoid possibledamage, they are withheld in an accessible pre-chamber, situated at the lower end of the pump. It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes. Do not forget to empty all pockets: small objects cancause damage to your washer.Attention: Before attempting to examine this pre-chamber, firstensure that the machine has finished its programme and is empty.Unplug the machine, as with any maintenance.To gain access gently ease down the top of the plinth panel situated atthe base of the machine, with a screwdriver etc, to release it. Thenease the top edge forward to allow it to be lifted clear (Fig. 1). Placea shallow dish or tray below the cover of the pre-chamber to catchthe small amount of water present. Release the cover by turning anti-clockwise (Fig. 2). Ensure that the cover is securely replaced.Re-fit the plinth cover by inserting the hooks on its lower edge intothe slots and ease the top edge back into position.The water inlet hose Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washing machine, water pressure is very strong and a cracked tube could easily split open.Fig. 1Fig. 2

Instructions for installation and useYour safety and that of your family Important for the safe use of your washing machine Your washer has been built in compliance withthe strictest international safety regulations. Toprotect you and all your family.Read these instructions and allthe information in this manualcarefully: they are an importantsource, not only of numeroususeful tips, but also of vitalinformation on safety, use andmaintenance.1. the machine should not beinstalled in an outdoorenvironment, not evenwhen a roof shelters thearea, because it may be verydangerous to leave itexposed to rain andthunderstorms.2. It must only be used byadults and exclusively forwashing clothes followingthe instructions provided inthis manual.3. Should it have to be moved,proceed with the help of twoor three people and handleit with the utmost care.Never try to do this alone,because the appliance isvery heavy.4. Before loading the washingmachine, make sure thedrum is empty.5. Never touch the washingmachine when barefoot orwith wet or damp handsor feet.6. Never use extensions ormultiple plugs, which areparticularly dangerous inhumid environments. Thepower supply cable mustnever be bent ordangerously compressed.7. Never open the detergentdispenser while theappliance is functioning;do not use hand washdetergent because theabundance of foam coulddamage its internal parts. How to change the power supply cable The washing machinepower supply cable isspecial and can be purchasedexclusively from authorisedTechnical Service Centres.To replace the cable:1. Make sure that themachine is switched off andunplugged.2. Remove the covering lid byunscrewing the two screws I, andthen pull it towards you [fig. 3].3. Disconnect the wires fromthe radio interferencesuppressor F [fig. 4] noting asto their position (Blue=N wire;Brown=L wire) leaving theearth wire until last . N.B.: letters L, N and the symbol are indicated on theradio interference suppressor.4. Remove the upper part of thecable slightly from the backpanel of the appliance, pull thepower supply cable upwards andtake it out [fig. 5].To connect the new powersupply cable, reverse the pro-cedure.To put the covering lid back on,rest it on the washing machine[fig. 6] and let it slide forwardsuntil the hooks situated on thefront slide into the special slotsformed into the control paneland tighten the screws back on.Fig. 3Fig. 4Fig. 5Fig. 68. Never pull on the supplycable or the washingmachine to disconnect itfrom the wall socket: it isextremely dangerous.9. While the appliance isfunctioning, do not touchthe drain water as it couldreach very hightemperatures. Theappliance door, duringwash cycles, tends tobecome hot; ensure thatchildren do no touch it.Never force the washingmachine door becausethis could damage thesafety lock which preventsaccidental opening when thenachine is working. Allow afew minutes at the end of theprogram for the lock torelease.10. In case of malfunctio-ning,first close the water tapand unplug the appliancefrom the wall socket; donot under anycircumstances touchinternal parts in order toattempt repairs.I only want an authorisedspecialised technician withoriginal Indesit spare parts!
