USER MANUAL DU 7600 IX BOMANN

Installation Page 29

Elimination. Page 35

ENGLISH

Contents

Introduction. Page 36

General Notes. Page 36

Special safety information for this unit ... Page 37

Transport and Packaging . Page 38

Appliance Equipment . Page 39

Installation Page 39

Startup / Operation Page 41

Cleaning and Maintenance.. Page 42

Troubleshooting Page 43

Technical Data Page 43

Disposal Page 44

Spis tresci

Wstep Strona 45

WAARSCHUWING: Brandgevaar!

Verlichting,LED: 1x2,0W

Beschermingsklasse:

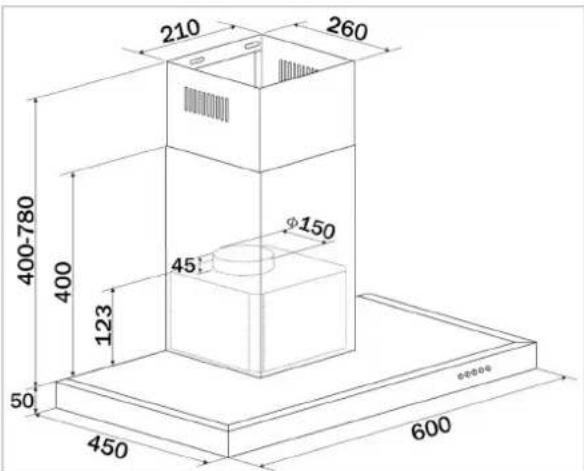

Gewicht / Afmetingen in mm.

Netto gewicht: . 8,0 kg

Éclairage, LED: 1 x 2,0 W

Indice de protection : ............................

Poids net: approx. 8,0 kg

Accessoire disponible

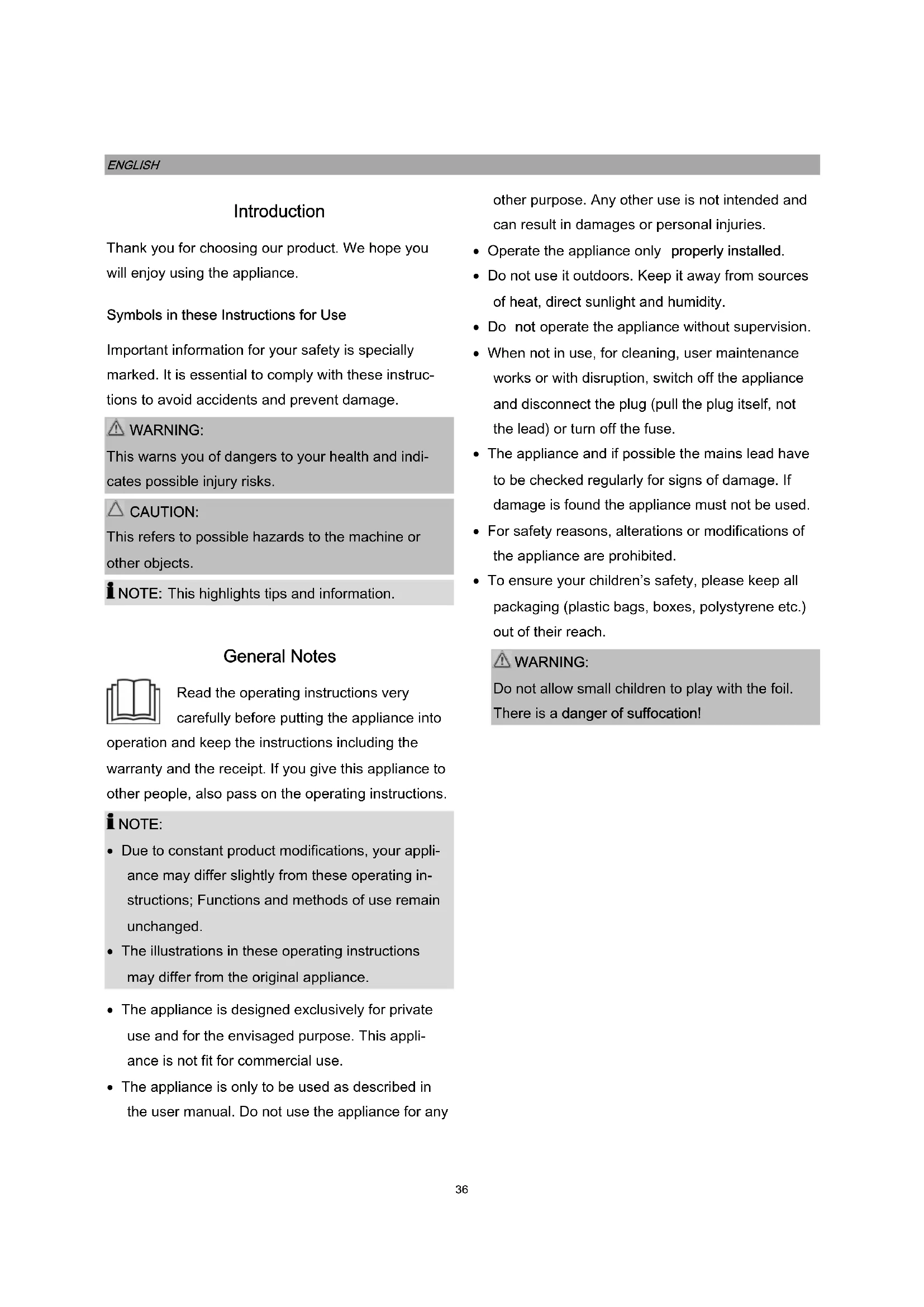

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into

operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

OTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original appliance.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

WARNING:

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Note to your cooking appliance the manufacturer's instructions whether the operation of a cooker hood is allowed above it and possibly what safety distance must be maintained.

For the extraction mode:

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• If the cooker hood and other devices which are powered other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10 ^-5 bar).
• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• The requirements of the competent local authorities must be observed.
• Observe and follow further installation instructions that we give you in the chapter "Installation".
• ATTENTION: Accessible parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.

• Never allow a gas hotplate burning without cookware. Excess heat can damage the cooker hood.

• Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them.

• Do not check the filter condition while operation.
• NEVER use the appliance without fixed aluminum grease filter.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter "Cleaning and Maintenance". There is a risk of fire if cleaning is not carried out according to these instructions.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Transport and Packaging

Transport the appliance

Secure the appliance adequately and protect it from the weather during transport.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, fillers and cardboard packaging.

The packaging materials are environmentally friendly and recyclable. Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.

• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Appliance Equipment

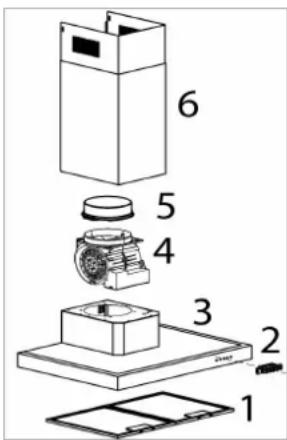

Appliance overview

1 Aluminum grease filter
2 Control panel
3 Housing
4 Motor unit
5 Connecting piece
6 Shaft unit

Delivery scope

2x aluminum grease filter, 1x 2-part chimney shaft, 1x exhaust hose, incl. Installation material and drilling template

This product contains a light source of energy efficiency class G .

Installation

The cooker hood is only intended to be installed over a hob with no more than four hob elements.

There must be a safety distance between the hot-plate of the cooking pot on the hob and the bottom part of the cooker hood:

The distance must be between 65 - 75 cm. For gas appliances, the distance must be at least 65 cm. If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outlet

You can operate the cooker hood in two modes:

Extraction mode

WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odors to the outside.

The extracted air is normally vented vertically. The extracted air can vented through the wall units and the loft floor to the roof ridge.

If there is a conduit under the wall units, the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, activated carbon filter as described under "Installing the activated carbon filter for recirculation mode", must be used.

Activated carbon filter are not supplied. You can order the carbon filter from your dealer or in our online accessories shop, www.bomann-germany.de.

Use the reference number found under "Technical Data".

Assembly

WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock.

CAUTION:

• Before mounting, check that the wall has enough load capacity to bear the cooker hood.
• When drilling the holes in the wall always makes sure that no existing electrical cables or other objects are damaged.
• Make sure that the ventilation slots are clear of obstacles and are not covered.

NOTE: Recommendations for preparation work
- When installing, ask another person to assist.
- Wear protective gloves to prevent injuries from any sharp edges.

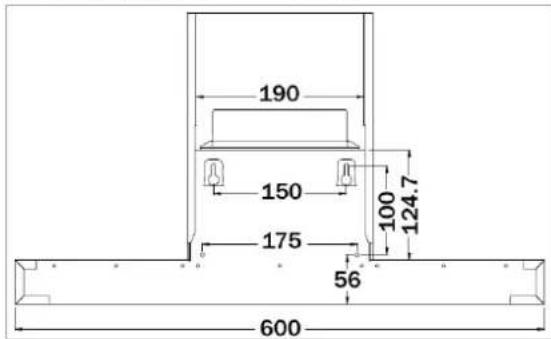

Drilling dimensions unit mm

Fig. 1 Fig. 2

Fig. 3 Fig. 4

Fig. 5

• Determine the position of the cooker hood centrally above the cooking area in accordance with the specified safety distances.

Totally 6x mounting holes with a diameter of approx. 8mm are necessary for the wall mounting. Insert the supplied dowels [Fig. 1].

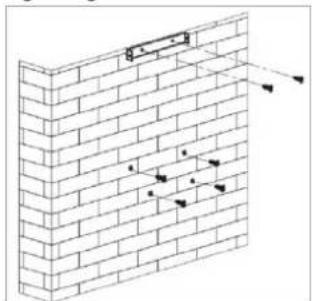

• First, drill the holes for attaching the housing according to the enclosed drilling template. Check the markings with a spirit level!
• Turn in the upper screws 2 × ST4^ 30 ~mm for the suspension of the housing so far that they project approx. 5 ~mm out of the wall.
  Fix the bracket for the upper shaft closure with the screws 2x ST440mm; after determining the extension length of the shaft cover.

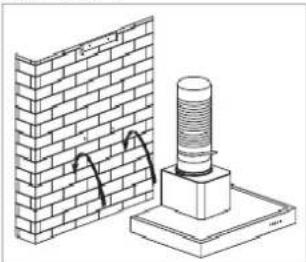

For exhaust mode: Attach a flexible exhaust hose (included in delivery) with an inner diameter of 150mm onto the connecting piece (extraction duct). Secure the hose with the cable tie [Fig. 2].

• Hang up the housing. Check the secure hold and the horizontal position [Fig. 3].

For exhaust mode: Check the correct position of the exhaust hose and connect it with the outlet opening.

• Place the telescoped shaft unit and tighten the lower screws 2 × ST4*30mm through the housing to secure it [Fig. 4].

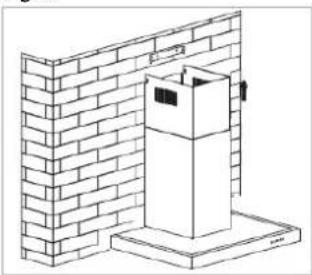

• Pull up the inner shaft and fix the shaft cover laterally to the shaft closure bracket using self-tapping screws 2 × ST4^*8mm [Fig. 5].

Installing the activated carbon filter for recirculation mode

• Remove the aluminum grease filter(s) (see "Cleaning the aluminum grease filter").
• Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter.

Attach carbon filter A and press firmly B.

• Reinstall the aluminum grease filter(s).

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.
• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.

• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

The cooker hood is operated via push buttons:

0 Switch the operation off
Power level low
Power level medium
Power level high
Switch the light on / off

Settings

Power level:

Suitable for cooking on a low flame and for dishes which produce no or little steam to circulate the air around the kitchen.

Power level:

Suitable for normal cooking.

Power level:

Suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

NOTE:

With very strong vapor emission, the fan should continue running after cooking for a few minutes.

Energy saving tips

Information to reduce the environmental effect of cooking (acc. VO (EU) No. 66/2014 appendix I, No. 2)

• The diameter of the pot and pan floors should be according to the size of the cooking zone.
• Use pans and pots with flat floors, uneven floors increase the energy consumption.

• Ensure that there is enough supply air for the operation of the cooker hood.

• Adjust the fan step intensity of the damp evolution of the cooking process.

• To product the optimal effect of the cooker hood, install it according to the installation instructions. Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.
  Clean the filter regularly.
  Control the active carbon filter regularly and renew it as required.
• Switch off the cooker hood after use.
  If your cooker hood has a switch-off delay, activate this function.
• Switch off the lighting after the cooking process.
• We recommend the use of biological cleaners.

Cleaning and Maintenance

WARNING:

• Always turn off the appliance and disconnect from the power supply before cleaning and user maintenance.
• Allow the appliance cool down sufficiently!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

Maintenance of the hood

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.

• The appliance can be used again after everything has dried properly.

• If you use your cooker hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminum grease filter

WARNING: Risk of fire!

Grease residue in aluminum grease filter may ignite at intense heat. Therefore, clean the grease filter regularly!

Depending on model there are one or two grease filters on the appliance. We recommend cleaning the grease filter(s) every month:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the filter in it.
• Then clean with a soft brush, rinse thoroughly with hot water and allow drying.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60^ ). Slight discoloration may occur. This does not affect the function of the grease filter.

Replacing the activated carbon filter

The activated carbon filter prevents odors and must depend on the use but be changed at least every six months.

Order the carbon filter from your dealer or in our online accessories shop, www.bomann-germany.de. Use the reference number found under "Technical Data".

• See "Installing the activated carbon filter for recirculation mode".
• Remove and dispose the old carbon filter.

Replacing the bulb

CAUTION:

Do NOT remove the LED lighting cover! The bulb may only be replaced by an authorized specialist in case of a defect.

WARNING:

• The LED light is very bright and can damage the eyes. Never look directly into the LED light!
• Disconnect the appliance from the power supply and allow the lamps to cool down before changing the lamp. There is a risk of burns!

NOTE:

Order the lamps from your dealer or in our online accessories shop www.bomann-germany.de.

Lamp data:LED max. 1× 2.0W AC 12 V, ILCOSDCode acc.EN61231:DBS-2/30-H-120-33

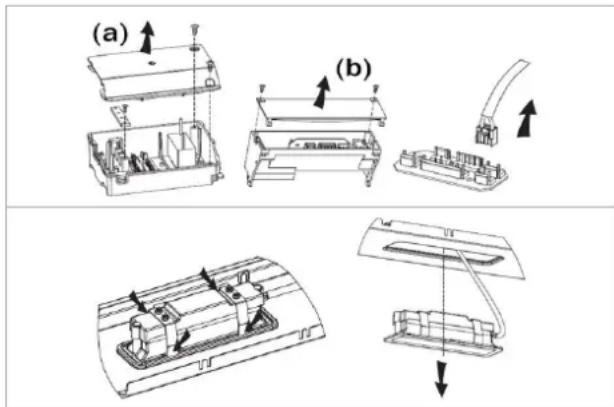

• Remove the grease filter(s). Depending on model (a) or (b): Open the black protective box of the plug-in device and release the plug connection.
• Carefully push the lamp out of the holder through the housing.
• Replace defect LED module and connect the two ends of the plug-in device.
• Insert new lamp properly in the bulb holder.
• Close the protective box with inserted plug-in device. Replace the grease filter(s).

Troubleshooting

Before you contact an authorized specialist

Problem Possible Cause / Solution
Unit is not working or not properly	- Check the power supply. - Check the power level.
Unit is not working efficiently	- Check the power level. - Is the kitchen properly ventilated? - Clean the grease filter(s). - At recirculation mode, check the carbon filter. - Check the air outlet.
Light is not working	- Check the bulb, see “Replacing the bulb”.
Oil is dripping	- Clean the grease filter(s).

NOTE:

If you are still having problems after following steps above, contact your trader or an authorized technician.

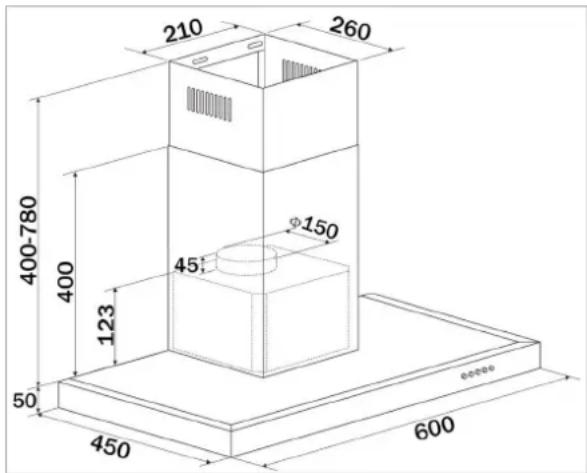

Technical Data

Electrical connection.

Connection voltage: 220-240 V~ / 50 Hz

Connection power: 62 W

Lighting,LED: 1x2.0W

Protection class:

Weight / Dimension in mm.

Net weight: approx. 8.0 kg

Available accessory.

Activated carbon filter for recirculation mode:

KF 573 (Art.-No. 257 300) not supplied

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks if you take the unit out of operation or dispose it.

Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Information for non-destructive disassembly for maintenance purposes

• Please remove the filter and lamps as described in the manual.
  Further steps of disassembly for maintenance are not provided
  If you would like to exchange defective components, please contact our customer service.
• Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

• Check that the unit is disconnected from the power supply before removing all filter from the hood.
• First remove the chimney.
• When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

• For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

• a communal collection point of public waste disposal authorities,

• a dedicated disposal company, offering a return system,
• a resident electric trader, who voluntary withdraws electrical appliances.

Wstep

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie
