USER MANUAL SV5010 Fuave

Modern office desk fan with a metallic stand and four blades, set against a solid teal background (no text or symbols visible)

Front view of a silver desktop fan with visible blades and mounting base (no text or symbols)

Statiefventilator / Table Fan / Ventilateur de table

INHOUD

Veiligheid 01.

Diagram of a vintage desktop fan with labeled parts including stand, fan blade, and base

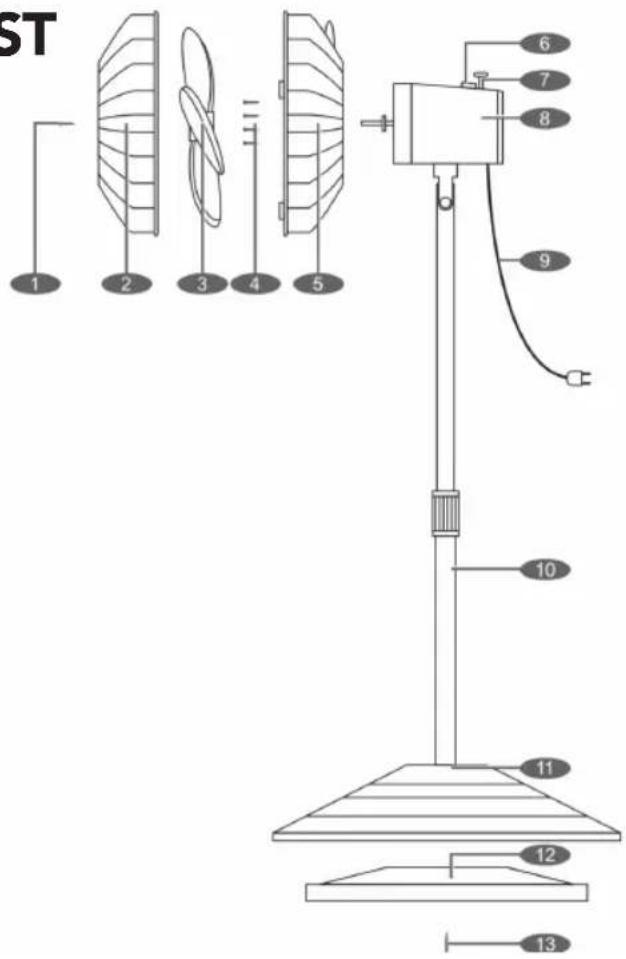

ONDERDELENLIJST

ST 1 2 3 4 5 6 7 8 9 10 11 12 13

1. Screw, nut
2. Front guard
3. Blade
4. Position screw
5. Rear guard
6. Power switch
7. Oscillation Knob
8. Motor
9. Power cord
10. Tube
11. Base
12. Base Addition part
13. Joint screw

MONTAGE VAN DE VENTILATOR

Diagram showing the installation and assembly of a fan with labeled components including fan, motor, and base parts.

Simple black-and-white icon of a trash bin with crossed x-axes and a horizontal bar below (no text or symbols)

INHOUD

Safety 07.

Parts description 08.

Partslist 08.

Before the first use 10.

Use 10.

Cleaning and maintenance 10.

Environment 11.

SAFETY

- This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

- By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Never move the appliance by pulling the cord and make sure the cord can not become entangled.

- The appliance must be placed on a stable, level surface.

- The user must not leave the device unattended while it is connected to the supply.

- This appliance is only to be used for household purposes and only for the purpose it is made for.

- To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

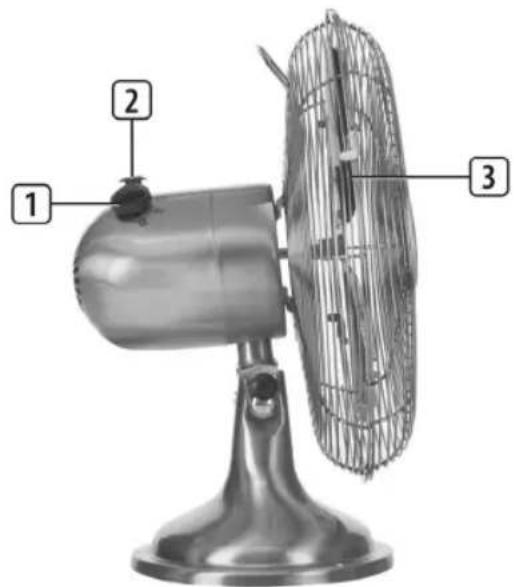

PARTS DESCRIPTION

1. Speed adjustment knob
2. Oscillation knob
3. Fan

Diagram of a vintage office fan with labeled parts: stand, fan blade, and base

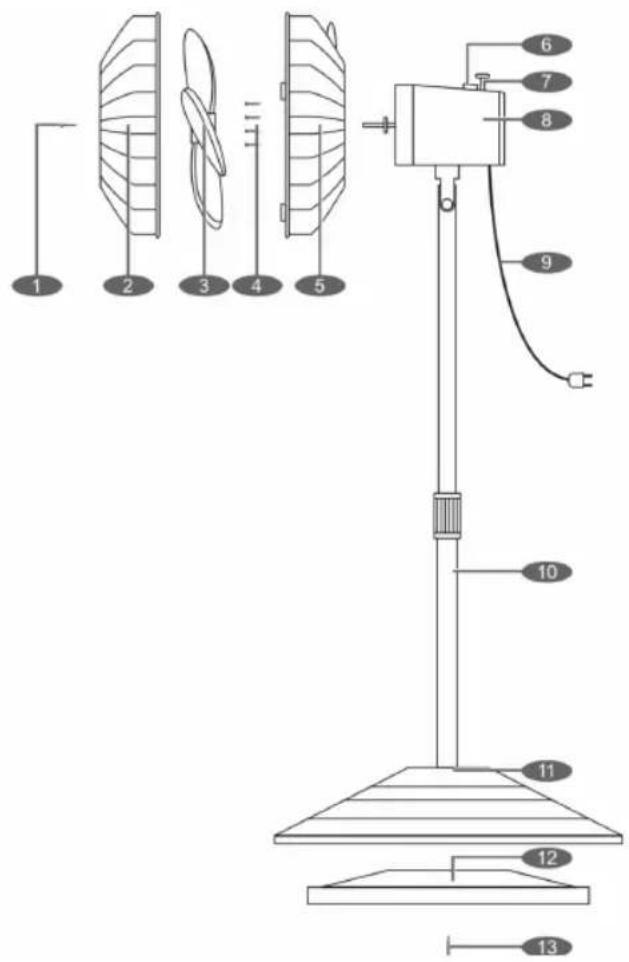

PARTSLIST

1. Screw, nut
2. Front guard
3. Blade
4. Position screw
5. Rear guard
6. Power switch
7. Oscillation Knob
8. Motor
9. Power cord
10. Tube
11. Base
12. Base Addition part
13. Joint screw

Technical diagram of a wind turbine with numbered components and exploded view

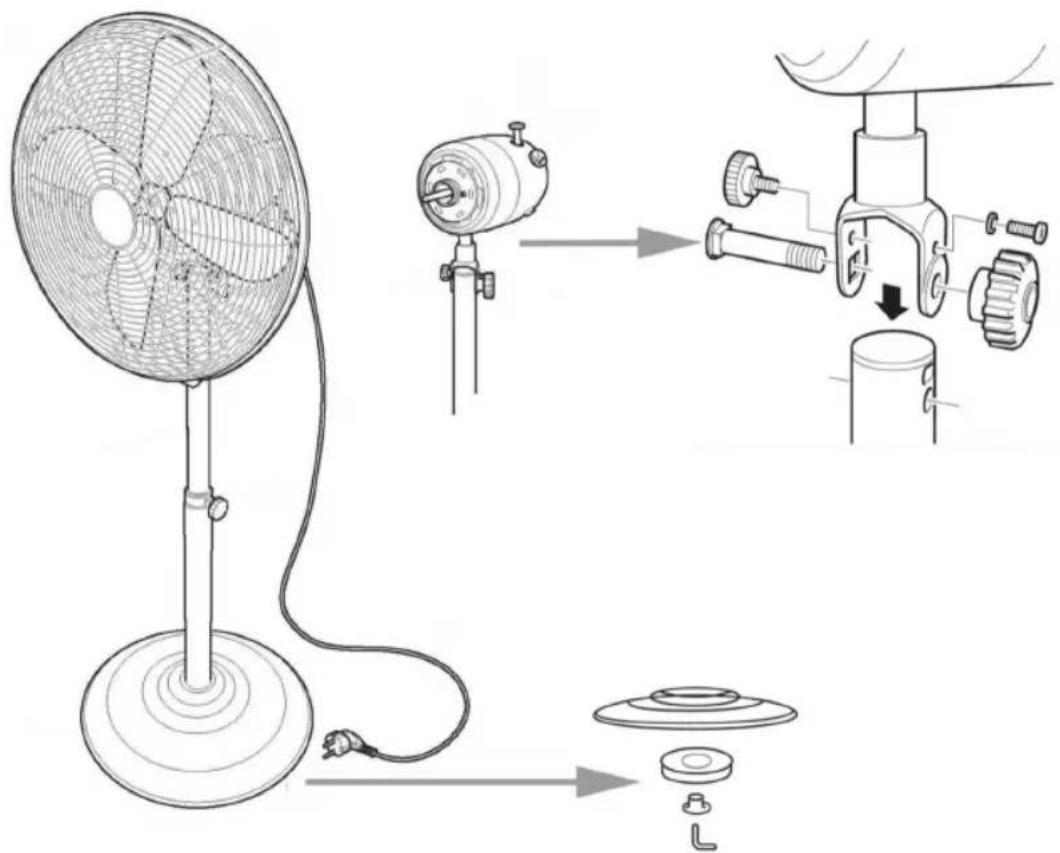

ASSEMBLE THE FAN

- Remove the base nut from the standing pipe. And then insert the standing pipe into the hole of base, put the heavy base under the base. Fit the base nut back to the standing pipe and screw it on firmly.

- Remove the 4 screws from the motor unit.

- Fit the rear fan grill onto the motor unit. Make sure that the 4 holes on the motor match the 4 holes on the rear fan grill. Fit the 4 screws and screw it on firmly.

- Put the blade on the motor unit and carefully tighten the screw.

- Fit the front fan grill onto the rear cage and fix them together using the metal clips. Tighten the small screw.

- Put the motor unit on the top of the standing pipe, screw it well.

Diagram showing the installation and assembly of a fan with labeled parts including fan, motor, and base components.

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V \~ 50-60Hz).

USE

• Set the speed adjustment knob to the desired position.
• To make the fan head oscillate, push down the Oscillation Knob.
• To stop the fan head from oscillating, pull-up the Oscillation Knob.
• The head of the fan can be adjusted up or down, to do this loosen the adjusting knob, adjust the fan to the desired angle, to secure tighten the adjusting knob.

CLEANING AND MAINTENANCE

- Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.

- Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Symbol of a trash bin with crossed handle and weight, no text or numbers present

TABLE DES MATIÈRES

SÉCURITÉ 13.

DESCRIPTION DES PIÈCES 14.

PARTSLIST 14.

ASSEMBLER LE VENTILATEUR 15.

AVANT LA PREMIÈRE UTILISATION 16.

UTILISATION 16.

NETTOYAGE ET ENTRETIEN 16.

ENVIRONNEMENT 17.

SÉCURITÉ

Diagram of a vintage desktop fan with labeled parts including stand, fan blade, and base

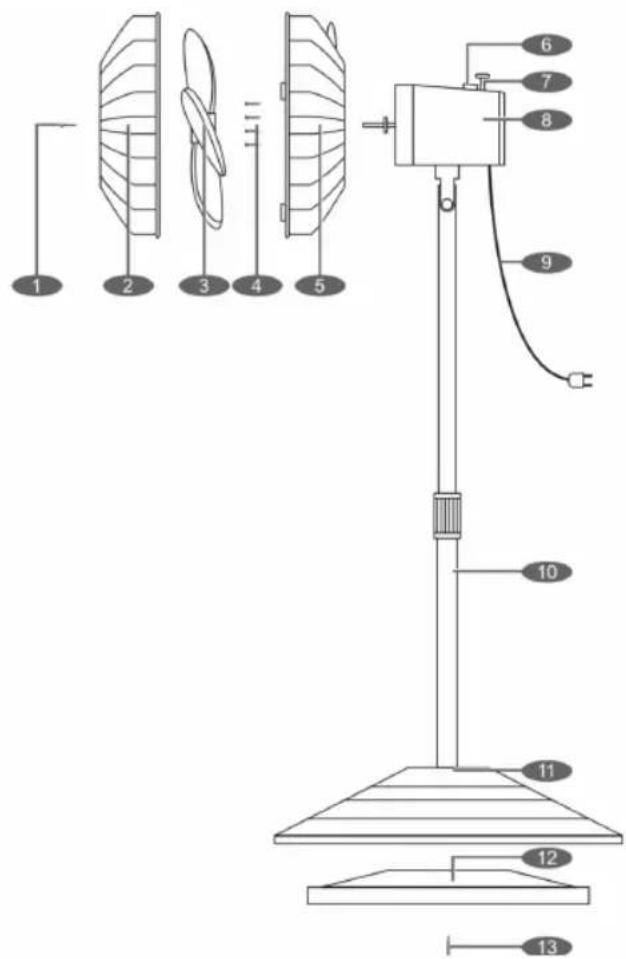

PARTSLIST

1. Screw, nut
2. Front guard
3. Blade
4. Position screw
5. Rear guard
6. Power switch
7. Oscillation Knob
8. Motor
9. Power cord
10. Tube
11. Base
12. Base Addition part
13. Joint screw

Technical diagram of an air fan assembly with numbered components and exploded view

ASSEMBLER LE VENTILATEUR

Diagram showing the installation and assembly of a fan with labeled parts including fan, motor, and base components.

AVANT LA PREMIÈRE UTILISATION

Symbol of a trash bin with no text or numbers present
