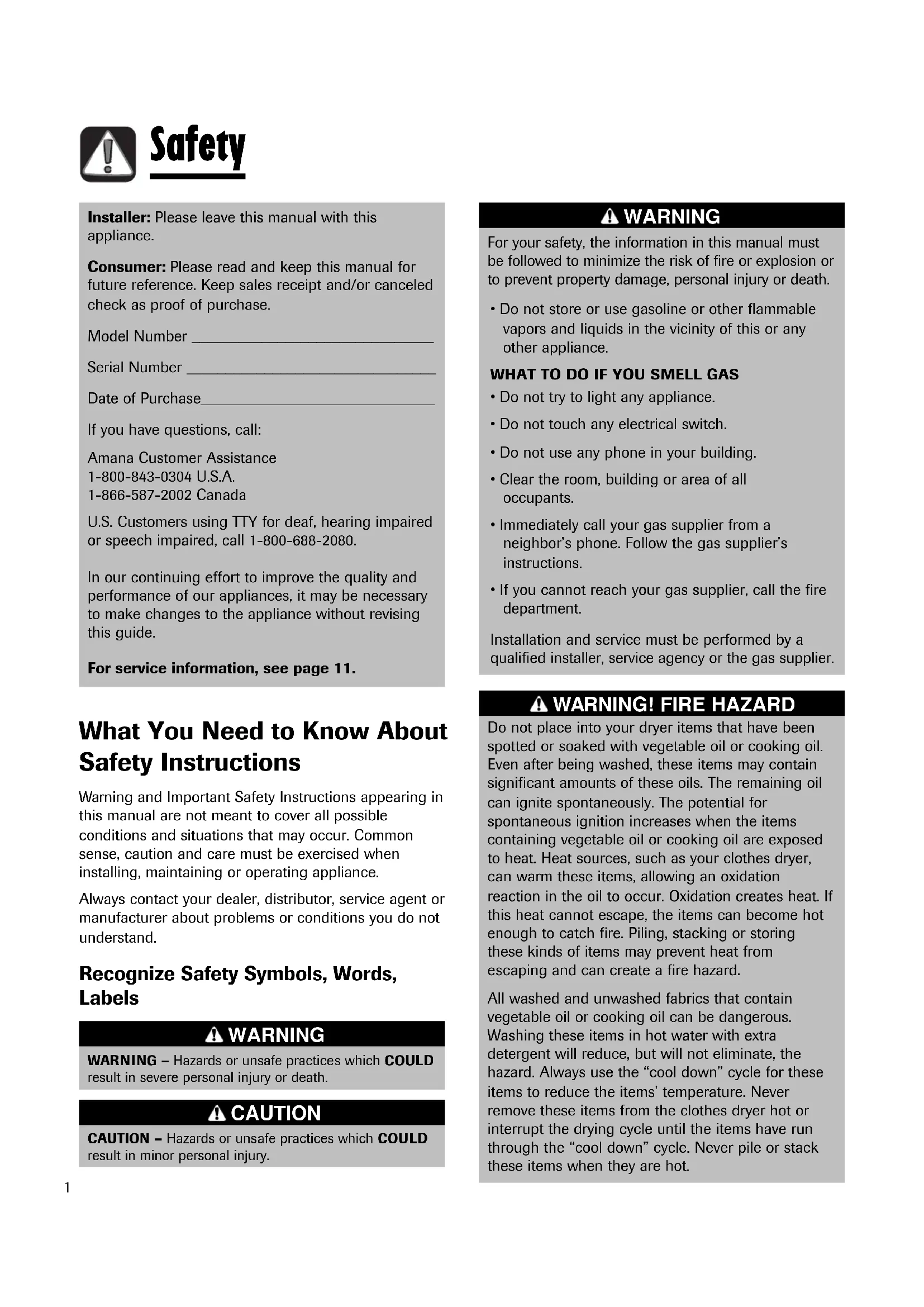

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WARNING! FIRE HAZARD

Do not place into your dryer items that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils. The remaining oil can ignite spontaneously. The potential for spontaneous ignition increases when the items containing vegetable oil or cooking oil are exposed to heat. Heat sources, such as your clothes dryer, can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing these kinds of items may prevent heat from escaping and can create a fire hazard. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing these items in hot water with extra detergent will reduce, but will not eliminate, the hazard. Always use the “cool down” cycle for these items to reduce the items’ temperature. Never remove these items from the clothes dryer hot or interrupt the drying cycle until the items have run through the “cool down” cycle. Never pile or stack these items when they are hot.2

1. Read all instructions before using the appliance.

2. To avoid the possibility of fire or explosion:

a. Do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode. Any material on which you have used a cleaning solvent, or which is saturated with flammable liquids or solids, should not be placed in the dryer, until all traces of these flammable liquids or solids and their fumes have been removed. There are many highly flammable items used in homes, such as: acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes and wax removers. b. Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials must not be dried on a heat setting. Foam rubber materials when heated, can under certain circumstances produce fire by spontaneous combustion.

3. Do not allow children or pets to play on, in, or in

front of the appliance. Close supervision is necessary when the appliance is used near children and pets.

4. Before the appliance is removed from service or

discarded, remove the door to the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will

be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance

or attempt any servicing unless specifically recommended in published user-repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate

static unless recommended for dryer use by the manufacturer of the fabric softener or product. To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow basic safety precautions, including the following: WARNING Gas leaks may occur in your system and result in a dangerous situation. Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install an UL approved gas detector. Install and use in accordance with the manufacturer's instructions. WARNING

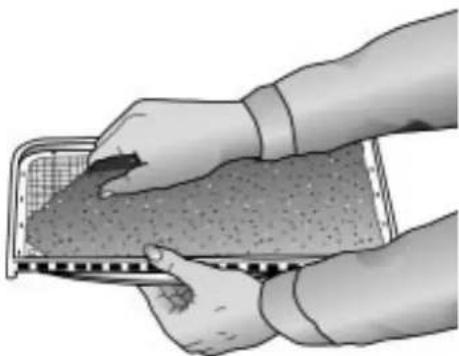

10. Clean the lint screen before or after each load.

11. Keep the area around the exhaust opening and

surrounding areas free from lint accumulation, dust and dirt.

12. The interior of the dryer and exhaust duct should be

cleaned periodically by qualified service personnel.

13. This appliance must be properly grounded. Never

plug the appliance cord into a receptacle which is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

14. Do not sit on top of the clothes dryer.

Important Safety Notice & Warning The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn customers of potential exposures to such substances. Users of this appliance are hereby warned that the burning of gas can result in low–level exposure to some of the listed substances, including benzene, formaldehyde, and soot, due primarily to the incomplete combustion of natural gas or liquid petroleum (LP) fuels. Exhaust ducts should be kept free of obstructions and properly exhausted dryers will minimize exposure. Safety

SAVE THESE INSTRUCTIONS

• Because of continuing product improvements, Maytag reserves the right to change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts or beginning installation.3 Select Temperature To select the correct temperature, turn the temperaturecontrol to one of four choices; Air Fluff, Handwash, NoIron or Regular. Select Extended Tumble if desired, (select models) When using No Iron and Regular cycles, ExtendedTumble helps to reduce wrinkling after the normaldrying cycle. After the Cool Down portion of the cycle,the dryer continues to tumble clothes without heat forapproximately 30 minutes, until the dryer door isopened, or the switch is turned to the OFF position. STEP 1 STEP 2 Select Signal (select models) End of Cycle Signal Shortly before the cycle is complete, an audible signalwill sound. During the Cool Down portion of the NoIron Fabrics cycle, the audible signal will soundintermittently. STEP 3 DRYER TEMPS LOAD TYPEAir FluffTumbles without heat.Used for sensitive loads or items needing freshening.Handwash/LowFor heat-sensitive items labeled “Tumble Dry Low” or “Tumble Dry Warm.”No Iron/MediumFor permanent press, synthetics, lightweight cottons or items labeled “Tumble Dry Medium.”Regular/HighFor sturdy cottons or those labeled “Tumble Dry.” Using the ControlsControl features vary by model.

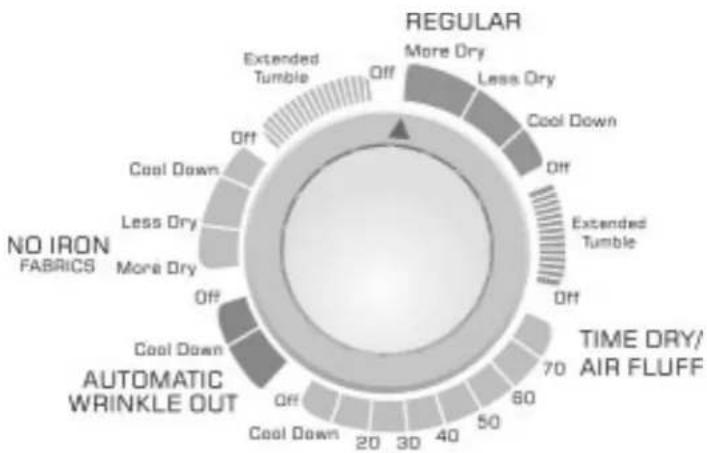

Using the Controls Select Cycle To select a cycle, rotate the control dial to the desired setting. When using an Auto Dry cycle, the control dial should point between “More Dry” and “Less Dry” for most loads. Loads of larger or bulkier size may require the “More Dry” setting to completely dry the load. The “Less Dry” setting is best suited for lightweight fabrics or for leaving some moisture in the clothing at the end of the cycle. Regular The Regular cycle is designed to dry loads such as towels, underwear, t-shirts, jeans, etc. No Iron Fabrics The No Iron Fabrics cycle is designed to dry wrinkle- free cottons, synthetic fabrics, double knits and permanent press fabrics automatically. It minimizes wrinkling by providing an unheated Cool Down period at the end of the cycle. Time Dry/Air Fluff This cycle can be used to regulate the drying time. Use with Air Fluff, Handwash, No-Iron or Regular temperature settings. For timed drying, turn the control dial until the pointer points to the proper time setting in the Time Dry/Air Fluff cycle. STEP 4 Automatic Wrinkle Out The Automatic Wrinkle Out cycle helps remove wrinkles from slightly wrinkled items that may have been sitting in the dryer or laundry basket overnight. The cycle has a short heat setting followed by a five- minute Cool Down. Note

• Using the Air Fluff temperature setting will require a longer drying time. Note

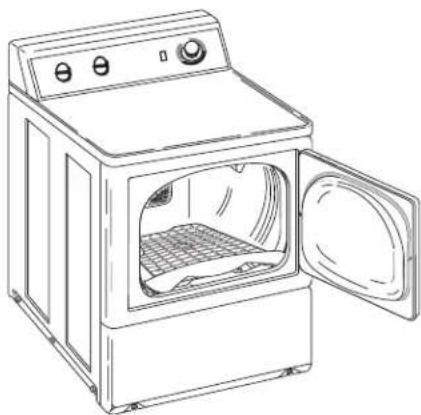

• The dial can be turned in either direction to select a cycle. Once started, the dial will not advance at a specific rate during the Auto Dry cycles. At first the dial may not advance at all. Toward the end of the cycle (when the load begins to dry) the dial will advance at a more regular rate and much more quickly. This is normal operation.5 Press Start Push this button to start the dryer. The dryer door must be shut for the dryer to operate. If the door is opened during the cycle, the Start button must be pushed again to resume the cycle once the door is closed. STEP 5 Using the Controls Accessories Optional Drying Rack Select dryer models are equipped with a Drying Rack. The Drying Rack is useful for drying items that require no tumble drying, such as tennis shoes, sweaters, stuffed toys or other delicate items. Note

• The Drying Rack, part no. 504105, is available when not included with your dryer. See your dealer or call 1-877-232-6771 to order.6 Operating Tips Clean the Lint Filter

• To shorten drying time.

• To operate more energy efficiently. Control Panel Clean with a soft, damp cloth. Do not use abrasive substances. Tumbler Remove any stains such as crayon, ink pen or fabric dye from new items (such as towels or jeans) with an all-purpose cleaner. Then tumble old towels or rags to remove any excess stain or cleaning substance. Once these steps are done, stains may still be visible, but should not transfer to subsequent loads. Load the Dryer Properly

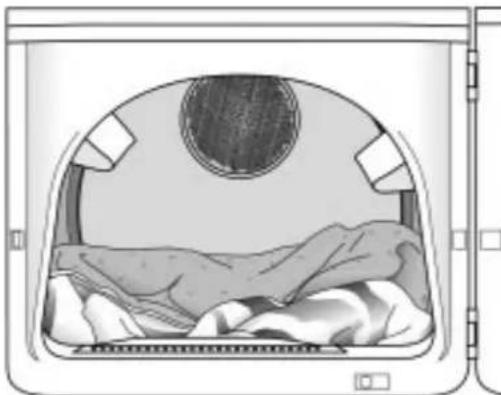

• Place only one washload in the dryer at a time.

• Mixed loads of heavy and lightweight clothes will dry differently. Lightweight clothes will dry, while heavy clothes may be damp.

• Add one or more similar items to the dryer when only one or two articles need drying. This improves the tumbling action and drying efficiency.

• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

• When drying large, bulky items such as a blanket or comforter, it may be necessary to reposition the load during the cycle to ensure even drying. Note

• Do not operate the dryer without the linter filter in place. Cabinet Wipe off any marks with soap and water. Use an appliance wax once a year if desired. Dryer Exhaust System Inspect and clean once a year to maintain optimum performance. The outside exhaust hood should be cleaned more frequently to ensure proper operation. (Refer to the Installation Instructions for more information.) Care & Cleaning7 Reversing the Door Follow these steps to reverse the door:

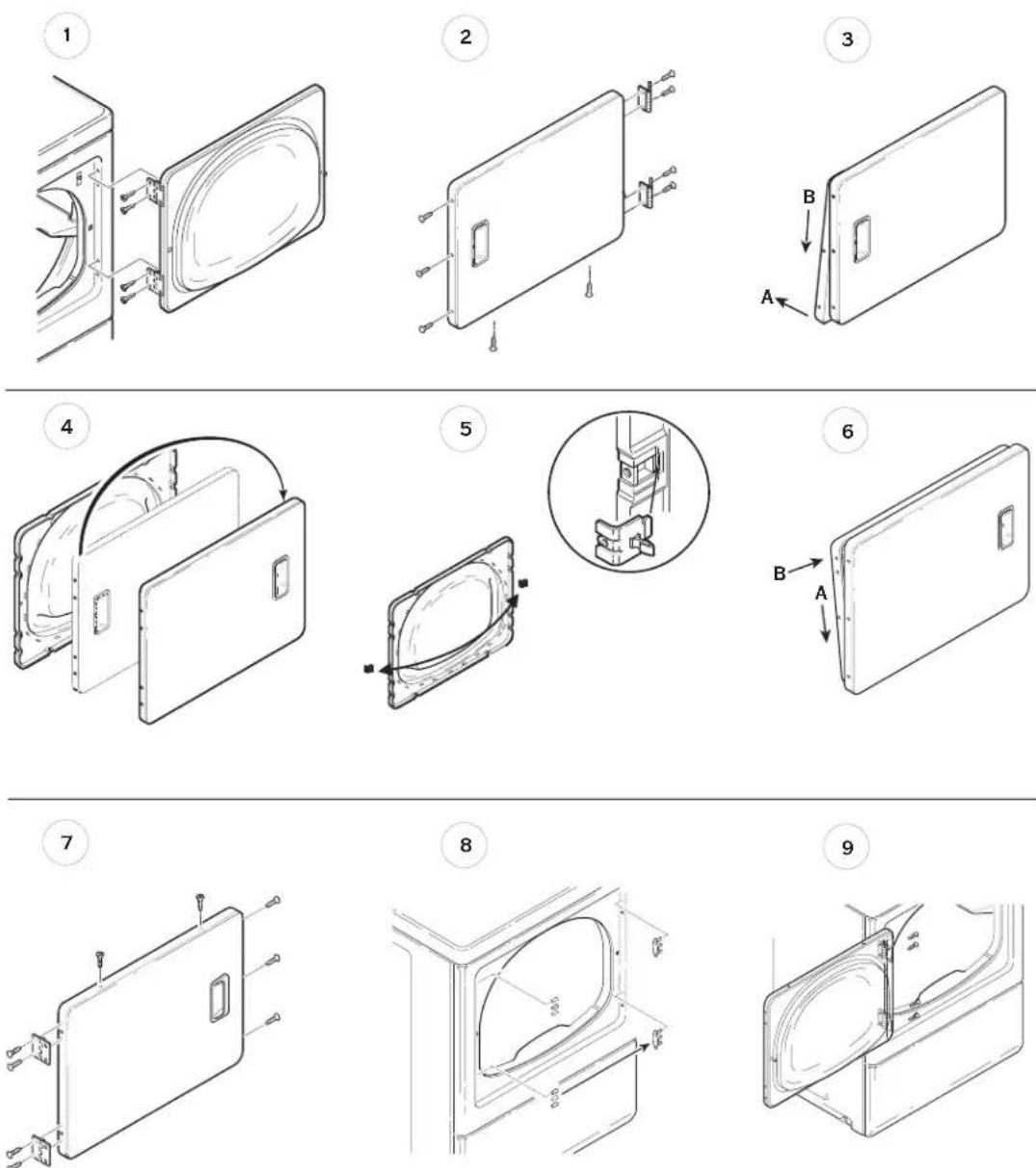

1. Remove four hinge-attaching screws.

2. Remove all nine screws from door and hinges.

3. Pull bottom of door liner out (A), then pull down

(B), removing door liner from door panel.

4. Rotate door panel 180° as shown.

5. Remove door strike from door liner and reinstall on

then push top of door liner into place (B).

7. Reinstall nine screws removed in Step 2.

8. Using screwdriver, remove two door plugs and

reinstall on opposite side of door opening.

9. Reinstall four hinge attaching screws removed in

Read the installation instructions and the use and care guide.

Let your dryer exhaust the air easily.

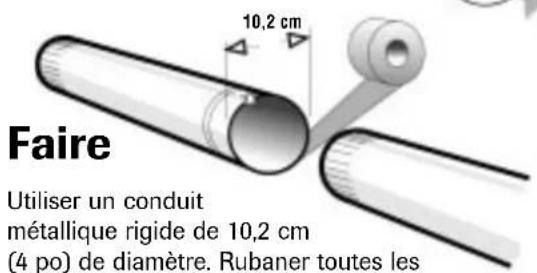

Use 4 inch diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws.

Keep duct runs as straight as possible.

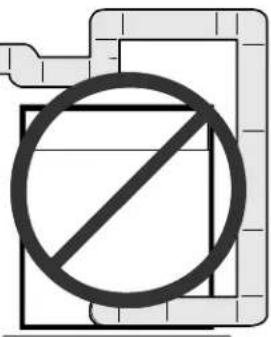

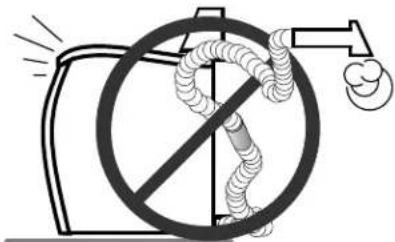

Clean all old ducts before installing your new dryer. Be sure vent flap opens and closes freely. Inspect and clean the exhaust system annually. Don’t Allow crushed or clogged ducts and vent. Don’t Use longer than necessary duct runs with many elbows. Don’t Use plastic, thin foil, or non- metal flexible duct. Don’t Restrict your dryer with a poor exhaust system. Don’t Let a poor exhaust system cause slow drying. Plastic or nonmetal flexible duct presents a potential fire hazard. WARNING Dryer Exhaust Tips9 Troubleshooting For problem laundry solutions (i.e. fabric damage, residue, tangling) and special laundry care procedures, see the enclosed Laundering Tips brochure.

• Be sure the door is shut.

• Is the electrical cord plugged in?

• Has a fuse blown or the circuit breaker tripped?

• Push the Start button again if the door was opened during the cycle.

• Has a fuse blown or the circuit breaker tripped?

• Select a heat setting, not air fluff.

• Check that the gas supply is on for gas dryers.

• Clean the lint filter and exhaust duct.

• Dryer time may have moved into the cool-down portion of the cycle.

• Check all of the above, plus . . .

• Check the exhaust hood outside the house, does it open and close freely?

• Check exhaust system for lint buildup. Ducting should be inspected and cleaned annually.

• Use rigid 4” metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Sort heavy items from lightweight items.

• Large, bulky items like blankets or comforters may require repositioning to ensure even drying.

• Check the washer to be sure it is draining properly to extract water from the load.

• Clothes load is too small to tumble properly. Add a few towels.

• Check the load for objects such as coins, nails, etc. Remove promptly from dryer.

• It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.

• The dryer should be level and installed on a solid floor.

• Be sure the rubber feet are installed on the leveling legs.

• A clicking noise may be the timer advancing.

• It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system.

• This is normal operation for an Auto Dry cycle, especially at the beginning of cycle. Once the load begins to dry, the control knob will start to advance. The rate of advancement will be slow at the beginning of the cycle because there is more moisture in the load. As the load becomes more dry, the control knob will advance more quickly. Doesn’t Run Doesn’t Heat Doesn’t Dry Properly Is Noisy Control Knob Advances Slowly10

• Seams, pockets and other similar heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the “More Dry” setting if desired.

• If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results.

• Household odors such as from painting, varnishing, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler and exhausts it to the outside. When these odors are present in the air, ventilate the room completely before using the dryer. Dries Unevenly Has an Odor For further assistance contact Maytag Services

1. Conditions and damages resulting from any of the

following: a. Improper installation, delivery or maintenance. b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer. c. Misuse, abuse, accidents or unreasonable use. d. Incorrect electric current, voltage or supply. e. Improper setting of any control.

2. Warranties are void if the original serial numbers have

been removed, altered or cannot be readily determined.

4. Products purchased for commercial or industrial use.

5. The cost of service or service call to:

a. Correct installation errors. b. Instruct the user on the proper use of the product. c. Transport the appliance to the servicer.

6. Consequential or incidental damages sustained by any

person as a result of any breach of these warranties. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply. To Obtain Warranty Service To locate an authorized service company in your area, contact the dealer from whom your appliance was purchased; or call Maytag Services

, Amana Customer Assistance. Should you not receive satisfactory warranty service, please call or write: Maytag Services
