USER MANUAL TRO4050B BLACK & DECKER

Please Read and Save this Use and Care Book

Countertop Oven/Broiler

Horno-asador de主義者

Register your product online at www.prodprotect.com/applica,

for a chance to WIN $100,000!

For US residents only

Accessories/Parts (USA/Canada)

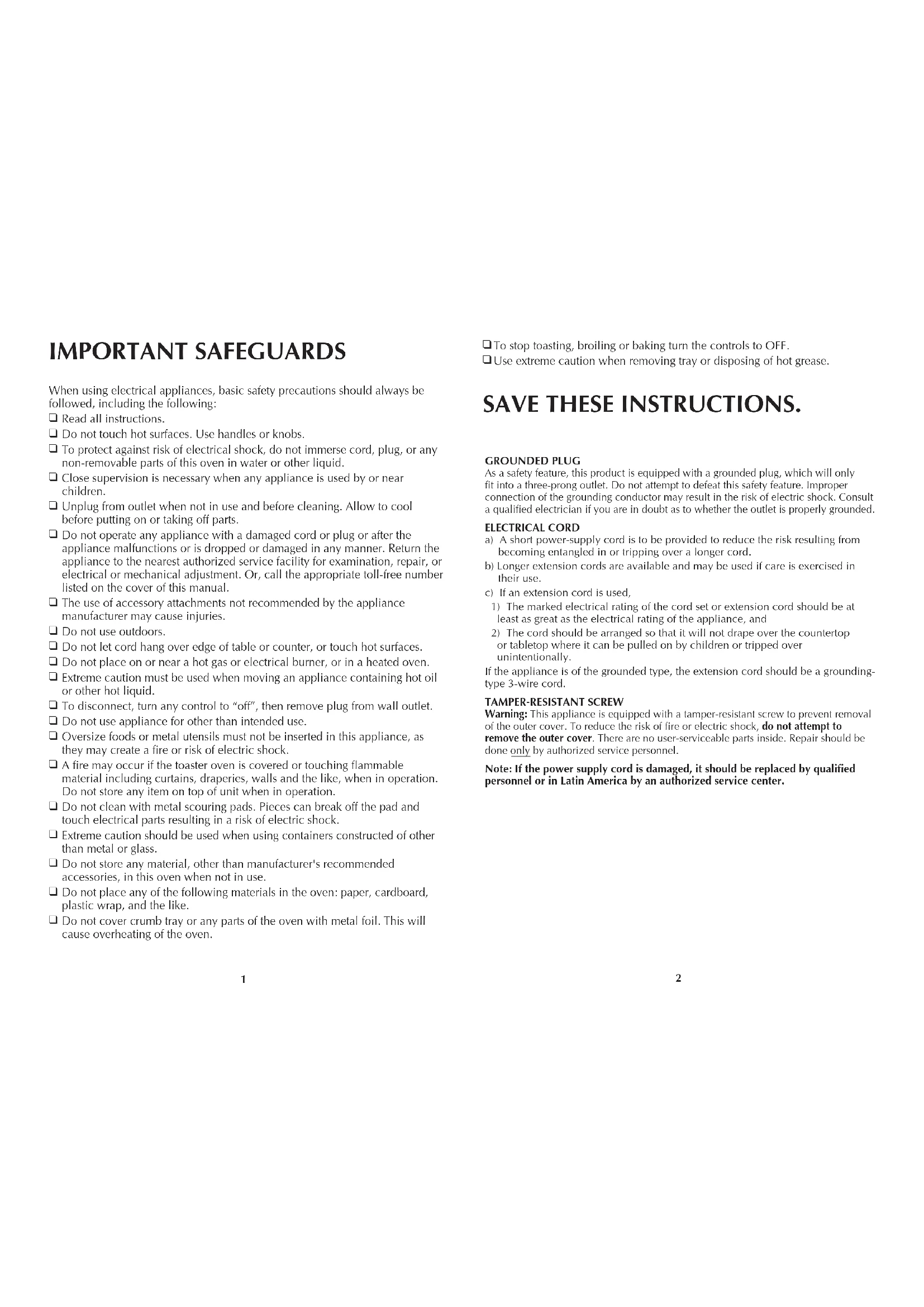

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against risk of electrical shock, do not immerse cord, plug, or any non-removable parts of this oven in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electrical burner, or in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
To disconnect, turn any control to "off", then remove plug from wall outlet.
Do not use appliance for other than intended use.
- Oversize foods or metal utensils must not be inserted in this appliance, as they may create a fire or risk of electric shock.
A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of unit when in operation.
- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts resulting in a risk of electric shock.
Extreme caution should be used when using containers constructed of other than metal or glass.
Do not store any material, other than manufacturer's recommended accessories, in this oven when not in use.
Do not place any of the following materials in the oven: paper, cardboard, plastic wrap, and the like.
Do not cover crumb tray or any parts of the oven with metal foil. This will cause overheating of the oven.

To stop toasting, broiling or baking turn the controls to OFF.
Use extreme caution when removing tray or disposing of hot grease.

SAVE THESE INSTRUCTIONS.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

ELECTRICAL CORD

a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used,

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

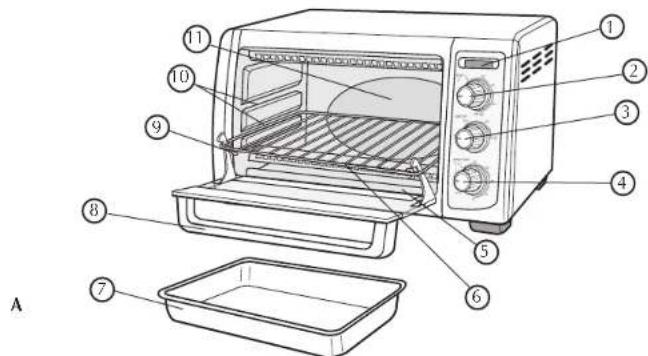

Product may vary slightly from what is illustrated.

1. Power indicator light
2. Temperature control (Part# TRO4050-04)
3. Cooking FUNCTION selector (Part# TRO4050-05)
4. 60-minute TIMER/TOAST shade selector (Part# TRO4500-06)
   † 5. Removable slide-out crumb tray (Part# TRO4050-01)

† 6. Slide rack/boir rack (Part# TRO4050-02)
†7. Bake pan/drip tray (Part# TRO4050-03)
8. Door handle
9. Slide rack support rails
10.Rack slots
11. Extra-deep curved interior
†Consumer replaceable/removable parts

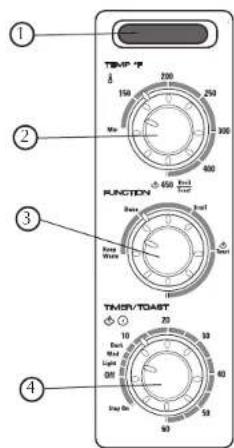

CONTROL PANEL

1. On indicator light
2. Temperature control
3. Cooking FUNCTION selector
4. 60-minute bake TIMER/TOAST shade selector

Important: When using the TIMER/TOAST function, always turn the dial past 20 and then turn back or forward to desired setting.

B

How to Use

This product is for household use only.

GETTING STARTED

• Remove packing materials and any stickers.
• Remove the slide rack and bake pan from oven.
• Wash in sudsy water, or in the dishwasher.
• Replace slide rack in oven.
• Select a location for the unit. Do not place unit under cabinets or too close to the wall to allow heat to flow without damaging counter space.

TOASTING

It is not necessary to preheat the oven forasting.

1. Set temperature control to 450 Broil/Toast position.
2. Open oven door. Insert the slide rack into the bottom slot.
3. Place the toast directly on the slide rack and close the door.
4. Set the cooking FUNCTION selector to Toast.
5. Set the TIMER/TOAST shade selector as desired. For best results, select the medium setting for your first cycle, then adjust lighter or darker to suit your taste. The On indicator light comes on and stays on during the toasting cycle. When toasting is done, the signal bell sounds, the oven automatically shuts off and the On indicator light goes off.

Important: When using the TIMER/TOAST function, always turn the dial past 20 and then turn back or forward to desired setting.

Helpful Tip: for Multiple Toasting Cycles for best results, when making three or more consecutive batches of toast, allow a short cool down period between toasting cycles.

1. Open oven door and using oven mitt or pot holder, slide out rack to remove toast.

Important: Always use an oven mitt or pot holder to remove food from the oven as the door and the slide rack will be hot.

Useful Tips:

• You must turn Off the TIMER/TOAST shade selector if you want to discontinueasting.
• When making more toast immediately after one toasting cycle, set the toast shade selector to a slightly lighter setting.

BAKING

1. Consult the Baking Guide (pages 5 and 6) for the type of food you want to cook.
   Note: For best results, when baking or cooking, always preheat the oven at least 10 minutes at the desired temperature setting.

2. Open oven door. Insert the slide rack into the bottom slot.

3. Set the temperature control to the desired temperature setting.

4. Set the cooking FUNCTION selector to Bake
   Important: You must set the timer or select Stay On for the oven to function.
5. Set the timer to desired number of minutes including preheat time or to Stay On.

Tip: To set the timer to the Stay On setting, if you want to control cooking time or need to cook your food longer than 60 minutes, turn the timer counterclockwise (C).

The On indicator light comes on and stays on during cooking cycle.

The heating elements cycle on and off to maintain the temperature.

Note: Be sure the top edge of the food or container is at least

1 1/2" (3.81cm) away from the upper heating elements.

Important: When using the TIMER/ TOAST function, always turn the dial past 20 and then turn back or forward to desired setting

1. You can cook your food two ways:

In the bake pan placed on the slide rack, (Da) OR
- Directly on the slide rack using the bake pan as a drip tray, inserted in the rack support rails underneath the slide rack (Db).

OR

1. Close oven door.

2. Cook food according to recipe or package instructions and check at minimum time to see if it is done.

3. Once cooking cycle is finished:
4. If the timer was on, the signal bell sounds, the On indicator light goes off and the oven automatically turns off.
5. If the timer was not on, turn the TIMER/TOAST selector from the Stay On position to the Off position. The On indicator light goes off.
6. Open oven door and using oven mitt or pot holder, slide out rack to remove food.

Important: Always use an oven mitt or pot holder to remove food from the oven as the door and the slide rack will be hot.

BAKING GUIDE

Note: When baking foods, use the upper or lower rack position.

FOOD AMOUNT TEMPERATURE/TIME PROCEDURE

Chicken pieces to fit bake pan 375°F (191 °C) Bake until (chicken registers 180°F (82 °C) on meal thermometer.
(1-4 pieces)	45-55 minutes
Ham, lamb, pork chops, fish fillet or steak or steaks)	to fit bake pan	325°F (163 °C) or follow favorite recipe	Bake until done as desired.

FOOD AMOUNT		TEMPERATURE/TIME		PROCEDURE
Cookies (recipe or refrigerated slice & bake, drop or pre-cut)	6-8 cookies	Follow package or recipe directions		Arrange in bake pan and place on top of slide. rack. Bake until
		done and browned as desired.
Biscuits, dinner rolls (recipe or refrigerated)	to fit bake pan	Follow package or recipe directions		Arrange in bake pan and place on top of slide rack. Bake until
		done and browned as desired.
White or sweet potatoes potatoes	1-6 medium	400°F (204 °C)		Wash and pierce potatoes. Place rack.
		1 to 1-1/4 hours directly on slide rack.
Frozen French fries, onion rings, other frozen (breaded and fried foods), frozen snacks	single layer to fit bake pan	Follow package directions		Arrange in bake pan and place on top of slide rack. Check frequently to prevent over
		browning.
Individual frozen pizza		Follow package directions		Place pizza directly on slide
		rack for a crisp crust, or in bake pan for a softer crust.

BROILING

Important: The oven top and side surfaces get hot.

Note: When broiling, preheat oven for 5 minutes.
1. Use the Broiling Guide (page 7) for cooking times
2. Set temperature control to 450 Broil/Toast position. The oven does not need to be preheated for broiling.
3. Insert slide rack into upper slot. Set the cooking FUNCTION selector to Broil.
4. Open oven door and use the bake pan as a drip tray. Insert it under the slide rack on the rack support rails (Db).

Important: You must set the timer or select Stay On for the oven to function.

1. Set the timer to desire number of minutes or to Stay On, if you want to control cooking time or need to cook your food longer than 60 minutes.
2. Place food on the slide rack.

Note: Be sure the top edge of the food or container is at least 112'' (3.81cm) away from the upper heating elements.

Important: Food should not extend beyond the edges of the bake pan to avoid drippings from falling onto the heating elements.

1. The first time you broil an item in this oven, cook according to recipe or package instructions and check at minimum time to see if it is done.

2. When finished broiling.

3. If the timer was on, the signal bell sounds, the On indicator light goes off and the oven automatically turns off.

4. If the timer was not on, turn the TIMER/TOAST selector from the Stay On position to the Off position. The On indicator light goes off.
5. Using an oven mitt or pot holder, slide out broiling rack together with bake pan to remove food.

Important: Always use an oven mitt or pot holder to remove food from the oven as the door and the slide rack will be hot.

BROILING GUIDE

Note: When broiling foods, slide the bake pan/drip tray underneath the slide rack/boil rack using the rack support rails. Insert rack into upper slot. Broiling times are approximate. For best results do not undercook ground beef, fish or poultry.

Crumb Tray

FOOD AMOUNT TIME PROCEDURE
Chicken pieces 1-4 pieces 30-40 minutes Arrange pieces skin-side down; turn after 15-25 minutes. Continue broiling until 170°F (77 °C) on meat thermometer, or juices run clear.
Frankfurters turn frequently.	1-8 frankfurters	8-12 minutes	For uniform browning,
Hamburgers (0,11 kg) each)	1-4 (1/4 lb. continue broiling until	12-18 minutes	Turn after 8 minutes;
145°F (63 °C) on meat thermometer, or done as desired.
Beef steaks (19mm) thick)	1-2 (3/4" continue broiling until	18-25 minutes	Turn after 10 minutes;
145°F (63 °C) on meat thermometer, or done as desired.
Pork chops (19mm) thick)	1-4 (3/4" continue broiling until	20-30 minutes	Turn after 12 minutes;
160°F (71 °C) on meat thermometer.
Fish steaks (26mm) thick)	1-4 (1" easily with a fork	10-18 minutes	Broil until fish flakes
or 145°F (63 °C) on meat thermometer.
Open-faced cheese sandwich bread with tomato and sliced cheese, if desired. Broil until tomato is hot and cheese is melted,	1-4 slices toast bread first. Top	7-10 minutes	For crispier sandwich,

KEEP WARM FUNCTION

1. Set temperature control to Min setting (minimum temperature).
2. Set cooking FUNCTION selector to Keep Warm position.
3. Set the timer to desired number of minutes or to Stay On position.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel. CLEANING YOUR OVEN

Important: Before cleaning any part, be sure the oven is off, unplugged, and cool. Always dry parts thoroughly before using oven after cleaning.

1. Clean the glass door with a sponge, soft cloth or nylon pad and sudsy water. Do not use a spray glass cleaner.
2. To remove the slide rack, open the door, pull the rack forward and out. Wash the slide rack in sudly water or in a dishwasher. To remove stubborn spots, use a polyester or nylon pad.
3. Wash the bake pan in sudsy water or in dishwasher. To minimize scratching, use a polyester or nylon pad.

1. Open oven door and pull out crumb tray (E).

2. Dispose of crumbs and wipe the tray with a dampened cloth, or wash in sudsy water or in the dishwasher.

3. Be sure to dry thoroughly before inserting the tray back into the oven.

Exterior Surfaces

Important: The oven top surface gets hot, be sure the oven has cooled completely before cleaning.

Wipe the top and exterior walls with a damp cloth or sponge. Dry thoroughly.

Cooking Containers

Metal, ovenproof glass or ceramic bakeware without glass lids can be used in your oven. Follow manufacturer's instructions. Be sure the top edge of the container is at least 1^ (2.54 cm) away from the upper heating elements.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit is not heating or stops heating.	Electrical outlet is not working or oven is unplugged.
Second toasting is too dark. Setting	on toast is too dark. If doing repeated loasting in the oven, select a shade slightly lighter than the previous setting.
Moisture forms on the inside of the glass door during toasting.	The amount of moisture differs in different products, whether bread, bagels or frozen pastries.
Food is overcooked or undercooked.	Temperaturc and cook time may need to be adjusted.
There is burnt food odor or smoking when oven is being used.	There are remnants of food in crumb tray or on the walls of the oven.
Heating elements do not seem to be on.	The heating elements cycle on and off during baking.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Electromechanics, S.A.

Call: 76 Bis x Avo.

San Jose, Cosla Rica

Tel.: [phone]

223-0136

Ecuador

San Salvador, Fl Salvador 1. Department of Pediatrics, University of Washington, Seattle, WA 90026

Tel. [phone]

Guatemala

MacParles SA

3a Calle 414 Zona 9

Frente a Lecun

Tel. [phone]

2332-2101

Honduras

ServiTotal

Col. Centro, Cuahtemoc,

Mexico, D.F.

Tel.[phone]

Nicaragua

ServTotal

Tumbam Puerto Boulevard

El Dorado Panama

500 melros al sur.

Tel. [phone]

(507)2360-159

Perú

Servizio Central Fast Service

San Borja, Lima Peru and Borja, Peru

Tel. [phone]

Puerto Rico

Buckeye Service

Jesús P. Piñero #1013

Puerto Nuevo, SJ PR 00920

City Market Nivel Plaza Local

153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

www.applica-latam.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

BLACK & DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Copyright © 2008 Applica Consumer Products, Inc.

Made in People's Republic of China

Printed in People's Republic of China

Importado por:

APPLICA MANUFACTURING, S. DE R. L. DE C. V.

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

Applica Applica Consumer Products, Inc.

R32007/1-8-20E/S/F

Del interior marque sin costo

01 [phone]
