USER MANUAL MX70 BLACK & DECKER

SAVE THIS USE AND CARE BOOK

Spatula Mixer (English, see pg. 2)

Illustration of two black and white power handminder models (no text or symbols on the devices themselves)

U.S.A./CANADA 1-800-231-9786

MEXICO 9-1-800-50833

http://www.householdproductsinc.com

Household Products Limited de

When using electrical appliances, basic safety precautions should always be followed, including the following:

■Please read all instructions.
■To protect against risk of electric shock do not immerse mixer, cord, or plug in water or other liquid.
■Close supervision is necessary when any appliance is used by or near children.
■Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
■Avoid contacting moving parts. Keep hands, hair, clothing, as well as hand-held spatulas and other utensils away from Beaters during operation to reduce the risk of injury or damage to the mixer.
■Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
■The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
■Do not use outdoors.
■Do not let cord hang over edge of table or counter, or contact hot surfaces including the stove.
■Remove Beaters from mixer before washing them.
■Mixing flammable non-food substances may be hazardous.
■Do not operate in the presence of explosive and/or flammable fumes.
■Do not abuse the cord. Never carry the mixer by the cord or yank it to disconnect from an outlet; instead, grasp the plug and pull to disconnect.
■This product is intended for household use only and not for commercial or industrial use.

SAVE THESE INSTRUCTIONS

POLARIZED PLUG

This appliance has a polarized plug—one blade is wider than the other. To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse it. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature by modifying the plug in any way.

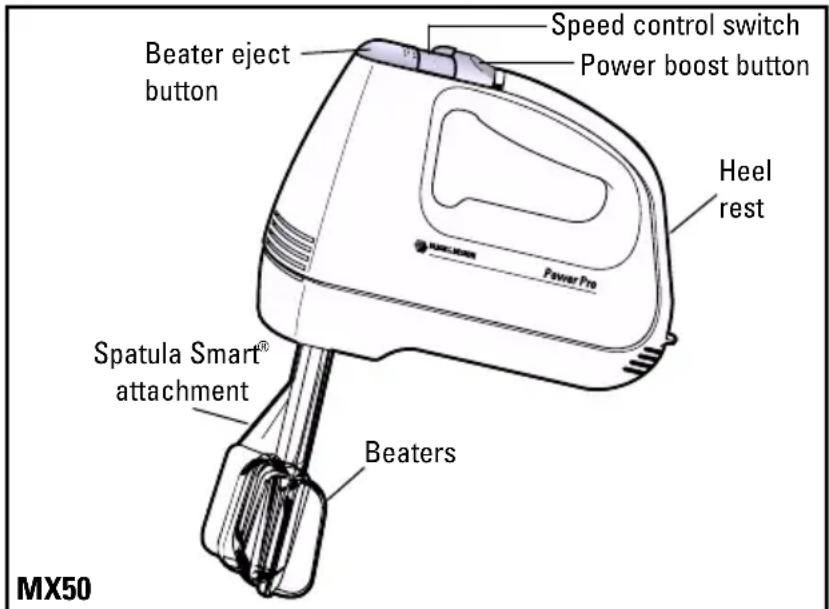

Speed control switch Power boost button Beater eject button Heel rest Spatula Smart® attachment Beaters MX50

How To Use

Line drawing of a hand using a hand mixer device (no text or symbols)

A

1. Be sure the Mixer is "OFF" and unplugged before inserting or removing attachments. Insert each Beater into a hole. You may have to rotate them slightly until they lock into place.

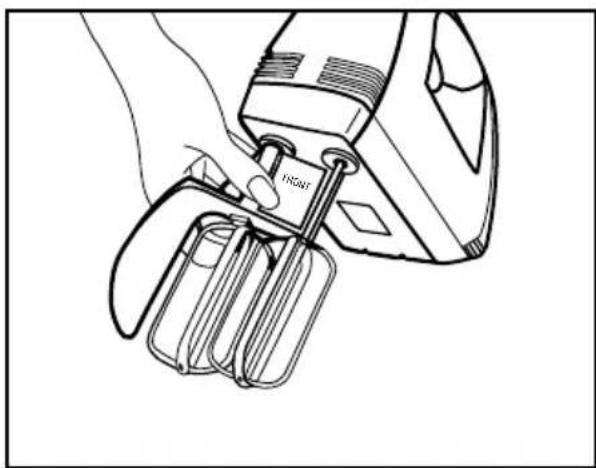

2. To use the Spatula, position the attachment to the right of the Beaters. Weave the top of the Spatula under the left Beater shaft and over the right one. The word "Front" on the Attachment should face out. Snap the Attachment firmly onto the Beater shafts. (A)

Line drawing of a hand mixing ingredients in a bowl using a hand mixer (no text or symbols)

B

1. Use the Spatula Attachment for thin (puddings, brownie mix) to medium batters (cake mixes, muffins, frostings) and for mashed potatoes. It is not recommended when beating egg whites, whipping cream, or using whisks, as it reduces volume. Do not use when mixing thick cookie doughs.

2. If whisks are provided, follow the instructions for inserting/removing Beaters.

Line drawing of a kitchen mixer with bowl and side bowl (no text or symbols)

C

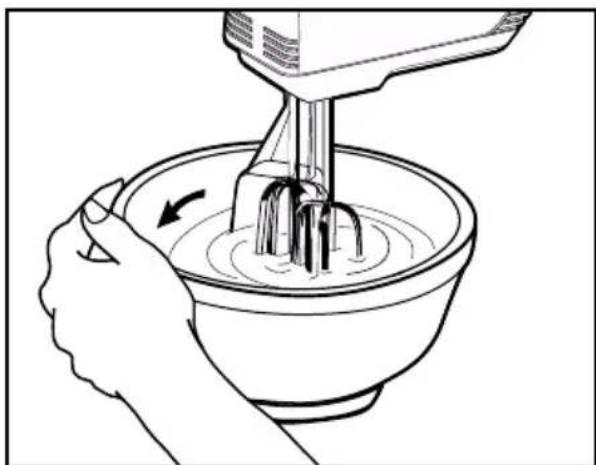

1. As you mix, place the front of the Spatula Attachment against the side of the bowl and move it forward slowly along the side to scrape buildup and blend ingredients back into the Beaters. (B)

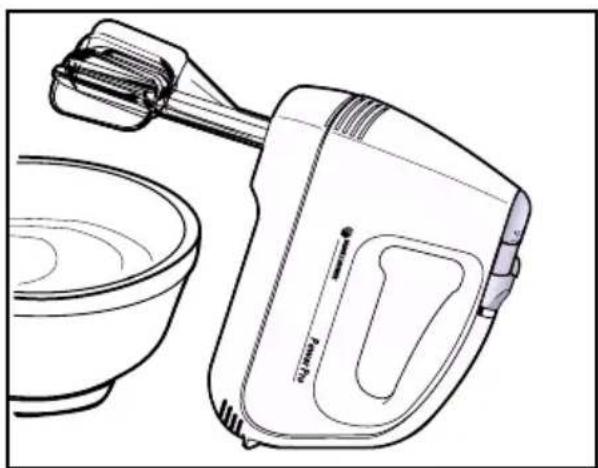

2. To scrape the bowl using a handheld utensil, turn the Mixer "OFF" and place it on its Heel Rest so the Beaters can drain into the bowl. (C)

3. When finished, unplug, and eject the Beaters by pressing the Eject Button or pulling up on the Eject Lever, depending on your specific model.

NOTE: If the Spatula Attachment comes off during use, turn the Mixer "OFF" and unplug before attempting to reattach the Spatula to the Beaters.

POWER BOOST

D

POWER BOOST

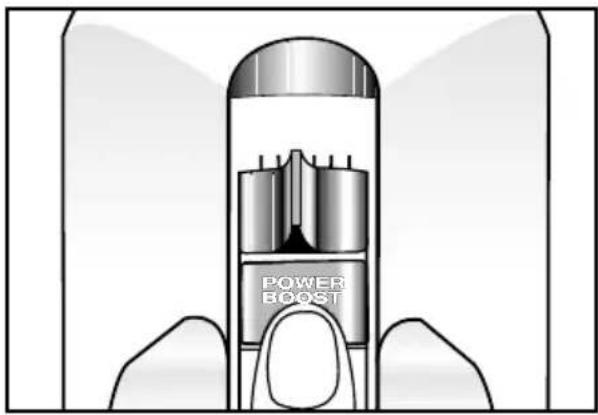

1. The Power Boost Button lets you increase the speed to the maximum power level from any setting. When you feel the Mixer slowing or straining in tough mixing tasks (such as mixing cookie dough), press the Power Boost Button to get maximum performance. (D)

2. When you release the Button, the Mixer will return to the speed setting you were using.

MIXING GUIDE

NOTE: Start mixing at the lowest speed and gradually increase as needed.

SPEED TASK
1 To blend in flour/dry ingredients and liquids for batters and cookie doughs; to stir nuts, chips, raisins into heavy cookie doughs
2 To mix thin batters such as muffins, waffles, pancakes and quick breads; to prepare sauces, puddings.
3 To cream butter and sugar; to beat eggs into batters and cookie doughs; to prepare cake mixes and frostings.
4 To beat whole eggs, frozen desserts; mix light batters.
5 To whip cream, egg whites, mash potatoes, turnips, and squash.

CLEANING

1. Before cleaning, move the Speed Control to "OFF" and unplug the cord. Eject the Beaters and remove the Spatula Attachment, if used.
2. Wash the Beaters, Whisks (if provided), and Spatula attachment in hot, sudsy water or in a dishwasher.
3. The Mixer and the power cord can be cleaned with a damp cloth. Do not immerse the Mixer. For stubborn stains, wipe with a cloth slightly dampened in sudsy water. Follow with a clean, damp cloth. Do not use any abrasive cleanser or pad to clean any part of the Mixer.

STORING THE MIXER

1. For longer life, avoid jerking the cord. To store, coil the cord loosely in loops and secure it with a twist tie. Do not wrap the cord around the mixer.
2. Store the Beaters and Spatula Attachment in the original packaging or in a drawer.

NEED SERVICE?

Service, if necessary, must be performed by a Black & Decker Company-Owned or Authorized Household Appliance Service Center. The Service Center nearest you can be found in the yellow pages of your phone book under "Appliances-Small-Repairing" or you may call the appropriate toll-free number on the cover of this manual.

If mailing or shipping your Mixer, pack it carefully in its original carton or any sturdy carton with enough packing material to prevent damage. Include a note describing the

problem to our Service Center and be sure to give your return address and phone number. We also suggest that you insure the package for your protection.

FULL ONE-YEAR WARRANTY

Household Products, Inc. warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase or receipt as a gift. This warranty does not include damage to the product resulting from accident or misuse. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges prepaid, provided it is delivered prepaid to any Black & Decker Company-Owned or Authorized Household Appliance Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Answers to any questions regarding warranty or service locations may be obtained by calling Consumer Assistance and Information toll free: 1-800-231-9786.

* BLACK & DECKER® is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Line drawing of a hand holding a washing machine with a handle and three cups (no text or symbols)

A

Line drawing of a hand mixing ingredients in a bowl using a mixing fork (no text or symbols)

B

Line drawing of a kitchen mixer with bowl and plate (no text or symbols)

C

Line drawing of a hand using a blender to handle a tray (no text or symbols)

A

Line drawing of a hand mixing ingredients in a bowl using a whisk (no text or symbols)

B

Line drawing of a hand mixer with a bowl and lid (no text or symbols)

C

Listed by Underwriters Laboratories, Inc./NOM Approved

Copyright © 1996-1999 Household Products, Inc.

Pub No. 168633-33-RV03

Product made in People's Republic of China

Printed in People's Republic of China

Enlistado por Underwriters Laboratories, Inc.

Aprobado por NOM

IMPORTADOR - Household Products Limited de México S. de R.L. de C.V.
