USER MANUAL CFS610 Cresta

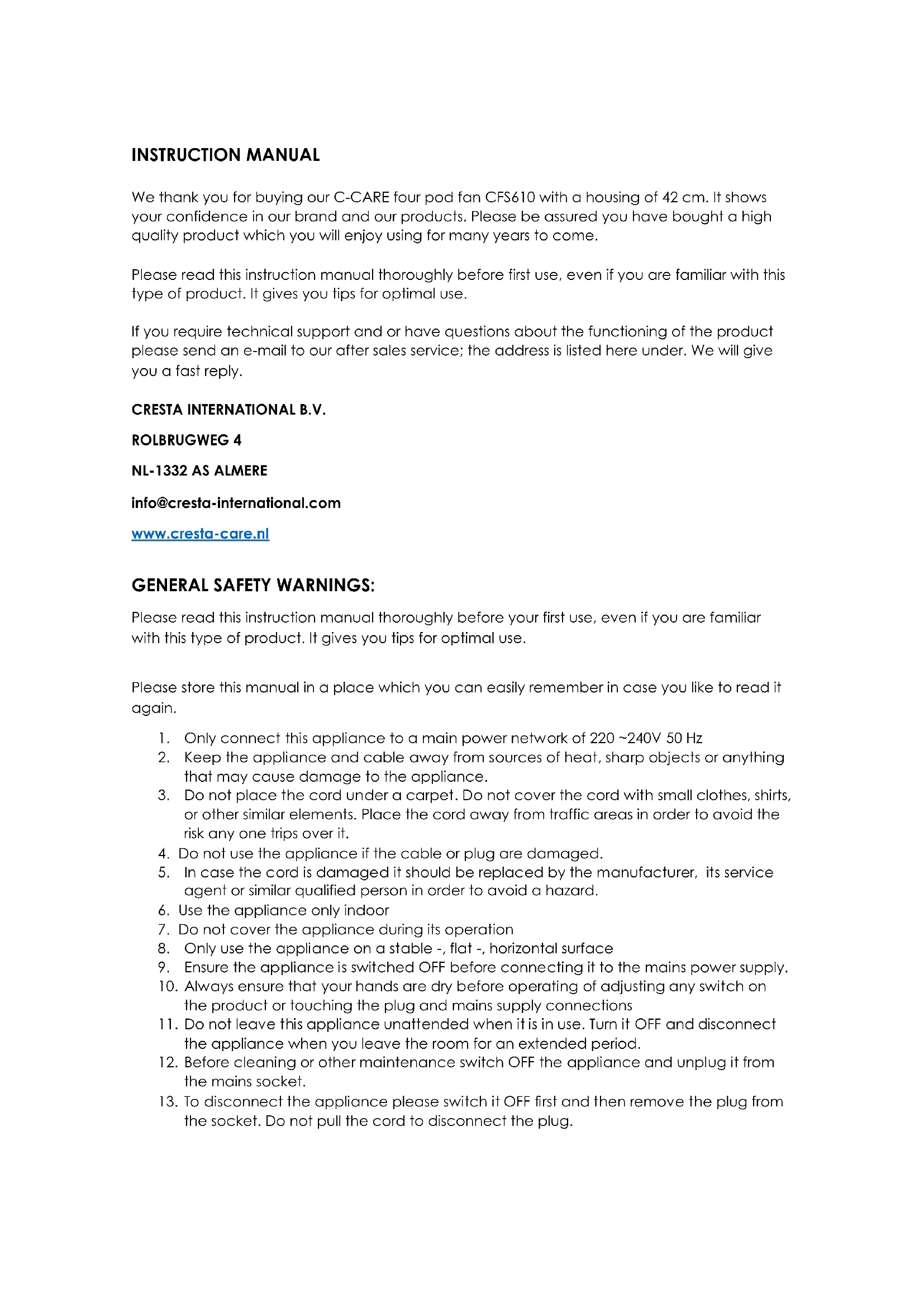

We thank you for buying our C-CARE four pod fan CFS610 with a housing of 42~cm . It shows your confidence in our brand and our products. Please be assured you have bought a high quality product which you will enjoy using for many years to come.

Please read this instruction manual thoroughly before first use, even if you are familiar with this type of product. It gives you tips for optimal use.

If you require technical support and or have questions about the functioning of the product please send an e-mail to our after sales service; the address is listed here under. We will give you a fast reply.

CRESTA INTERNATIONAL B.V.

ROLBRUGWEG 4

NL-1332 AS ALMERE

[e-mail]

www.cresta-care.nl

GENERAL SAFETY WARNINGS:

Please read this instruction manual thoroughly before your first use, even if you are familiar with this type of product. It gives you tips for optimal use.

Please store this manual in a place which you can easily remember in case you like to read it again.

1. Only connect this appliance to a main power network of 220 240V50Hz
2. Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage to the appliance.
3. Do not place the cord under a carpet. Do not cover the cord with small clothes, shirts, or other similar elements. Place the cord away from traffic areas in order to avoid the risk any one trips over it.
4. Do not use the appliance if the cable or plug are damaged.
5. In case the cord is damaged it should be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
6. Use the appliance only indoor
7. Do not cover the appliance during its operation
8. Only use the appliance on a stable -, flat -, horizontal surface
9. Ensure the appliance is switched OFF before connecting it to the mains power supply.
10. Always ensure that your hands are dry before operating of adjusting any switch on the product or touching the plug and mains supply connections
11. Do not leave this appliance unattended when it is in use. Turn off OFF and disconnect the appliance when you leave the room for an extended period.
12. Before cleaning or other maintenance switch OFF the appliance and unplug it from the mains socket.

13. To disconnect the appliance please switch it OFF first and then remove the plug from the socket. Do not pull the cord to disconnect the plug.

14. This appliance is not intended to be used by persons – including children – with reduced physical sensory of mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

15. Children should be supervised to ensure that they do not play with the appliance.
16. Only use the fan as it is described in this manual
17. Do not insert your fingers in the openings of the guard.
18. Never use the fan without the guard. Do not use the fan if the propeller is damaged or cracked.
19. Do not leave your hair, tablecloths, clothes or curtains near all openings of the fan, they may be sucked into the fan and be taken within the internal moving parts, that could cause an injury or damage.
20. Do not use the fan in wet - or damp locations such as bathrooms.
21. Do not operate the fan when it is not mounted on its base or is lying on the side.
22. Make sure the cord is completely extended before use
23. Ensure the fan is switches OFF from the mains supply before removing the guard
24. Always unplug the fan in places where gasoline, paint or other flammable liquids are used or stored.

TECHNICAL SPECIFICATIONS

MODEL CFP410

MAIN SUPPLY 220 - 240 V - 50 Hz

OUTPUT 120W

PROTECTION CLASS

SPEED 3

OPERATION

Speed selection:

Connect to plug to the power socket. Your fan is equipped with 4 operating buttons which you can find on the frontside. Select among 3 fan speeds by pressing the ON/SPEED button or select the OFF button when you want to stop operating the fan.

1. Low speed
   2.Middle speed
2. High speed

ORIENTATION OF THE VENTILATED AIR

You can activate the rotation function by pressing the ROTATION button.

ASSEMBLY OF THE VENTILATOR

PART1

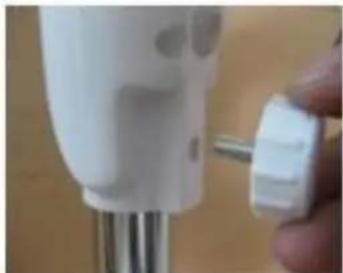

Loosen and remove the four screws from the bars. Then cross one base onto the other tip make sure they interlock.

Slide the Base Decorative Cap down to the bottom of the outer pipe. Make sure the 4 screws are tightly secured.

Insert the rubber feet into the holes of the cross bars, then finish the assembly.

PART2

Loosen and remove the Height Adjustment Collar from the top of the Inner Tube. Pull the Inner Tube out from the Outer Tube to adjust the tube to the desired height and tighten the collar.

PART3

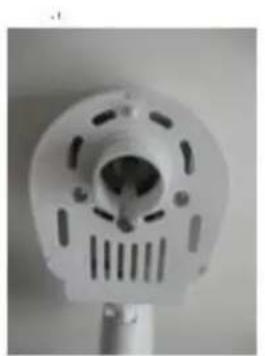

• Unscrew the plastic mounting nut from the front of the motor shaft by rotating it anticlockwise.

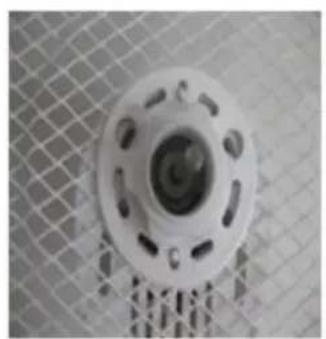

• Position the rear guard against the front of the motor shaft, ensuring the locating pegs on the motor shaft are engaged correctly in the holes of the rear guard.
• Tighten the rear guard Mounting Nut clockwise. DO NOT OVERTIGHTEN IT.

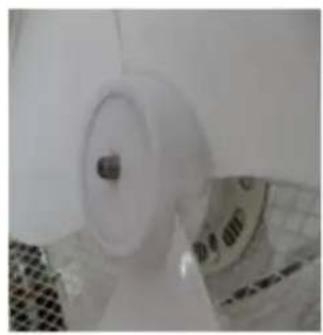

• Push the fan blades onto the motor shaft.
• Tighten the blade cap or nut by turning it anti clockwise.
• Mount the guard grip of the front guard onto the rear guard to ensure them to be fixed together tightly. Insert the screw into the holes in the rims of the guard, ensuring the front guard and rear guard can be reinforced by the screw.

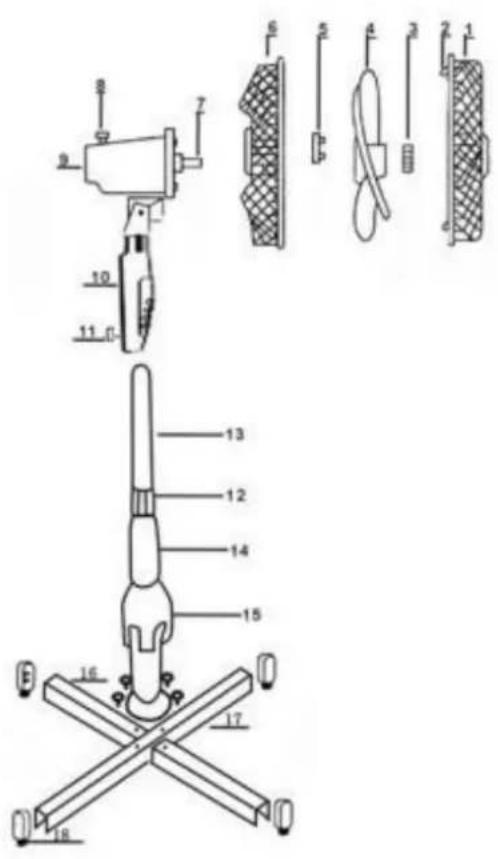

COMPONENTS

1. Front Guard
2. Guard grip
3. Blade gap
4. Fan blades
5. Plastic mounting nut
6. Rear Guard
7. Motor shaft
8. Oscillation knob (alternative)
9. Rear Motor House
10. Switch box
11. Tighten screw
12. Height Adjustment collar
13. Inner pipe
14. Outer pipe
15. Base decorative cap
16. Set screws
17. Cross base
18. Rubber feet

OPERATION

You can operate the fan with both the operating buttons on the appliance or with the remote control which is included.

The remote has 5 operating buttons:

1. ON/SPEED. With this button you switch ON the fan. By pressing repeatedly you can select the fan speed.
2. OFF. With this button you switch OFF the fan.
3. ROTATION. With this button you enable or disable the rotation function of the fan.
4. TIMER. With this button you can set the timer function. Pressing the button once it will program to switch off in half an hour. You can select in steps of 30 minutes to operate the fan up to 4 hours.
5. AUTO. By pressing this button the fan will randomly change its speed.

Except the AUTO button you will find the remaining 4 mentioned buttons also on the front side of the appliance.

CLEANING AND STORAGE.

• Be sure your fan is in the OFF position, preferably unplugged from the socket
• Use only a soft cloth to gently wipe the fan clean
• Do not immerse the fan in water and never allow water to drip into the motor housing.
• Do not use gasoline, paint thinner or other chemicals to clean the fan
• For storage, clean the fan carefully as instructed and store the fan in a cool -1, dry place.

ENVIRONMENT FRIENDLY DISPOSAL

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE – requires that old household electrical appliances should not be disposed of in the normal unsorted municipal waste stream. Old appliances should be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation that when you dispose of the appliance, it should be separately collected. Contact your local authority for information concerning the correct disposal of your old appliance.
