Brand	Lotus
Model	15697
Product type	Quartz wristwatch with chronograph
Movement caliber	FS00 or FS01
Case dimensions	23.7 × 22 mm (3H - 9H)
Total thickness	4.13 mm (FS00) or 4.28 mm (FS01)
Weight	Approx. 55 g (estimated)
Power supply	SR926SW battery (2-year lifespan with 1 hour/day of chronograph use)
Accuracy	±20 seconds per month under normal conditions
Quartz frequency	32,768 Hz
Main functions	Hours, minutes, seconds; calendar (date); 1/1 second chronograph (max 59 min 59 sec); tachymeter
Chronograph adjustment	Reset possible even after battery change
Care and cleaning	Use a soft, dry cloth; avoid water and chemicals
Water resistance	Not specified - avoid prolonged contact with water
Spare parts and repairability	Contact an authorized Lotus watchmaker for any repairs
General information	Comply with WEEE regulations for recycling

Frequently Asked Questions - 15697 Lotus

How to set the time on my Lotus 15697 watch?

Pull the crown to the second position to stop the second hand. Turn the crown to set the hours and minutes. Finally, push the crown back to its normal position.

How to set the calendar (date)?

Pull the crown to the first position, then turn it clockwise to adjust the date. Avoid setting the date between 9PM and 1AM, as it may not change correctly.

How to use the chronograph?

Press button (A) to start and stop the chronograph. The maximum measurable time is 1 hour with 1/1 second precision. Press (B) to reset the hands to zero.

What to do if the chronograph second hand does not return to zero?

Pull the crown to the second position, then press button (A) to position the chronograph second hand to [0]. Continuous pressing accelerates movement. Then set the time and push the crown back.

How to use the tachymeter?

Start the chronograph at the beginning of a 1 km journey. Stop it after exactly 1 km. Read the value indicated by the second hand on the tachymeter scale to get the average speed in km/h.

Which battery does the Lotus 15697 watch use and how to replace it?

The watch uses an SR926SW battery. Replacement must be done by a professional watchmaker to ensure water resistance and proper chronograph function.

Is the watch waterproof?

The manual does not specify a water resistance level. It is advised not to expose it to water or excessive humidity to avoid damage.

How to clean my watch?

Use a soft, dry cloth to wipe the case and bracelet. Avoid contact with solvents, chemicals, or abrasives.

What if the watch runs slow or fast?

Normal accuracy is ±20 seconds per month. If the deviation is larger, the battery may be low or adjustment is needed. Consult a watchmaker.

Where can I find spare parts or get my watch repaired?

Contact an authorized Lotus dealer or a qualified watchmaker. For end-of-life watches, comply with WEEE regulations by depositing them at a collection point.

USER MANUAL 15697 Lotus

Empty white rectangle with black rounded corners (no text or symbols)

CHRONOGRAPH

CALENDAR

ILMFS01

MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
BETRIEBSANLEITUNG
MANUALE DI FUNZIONAMENTO

ILMFSO1

CRONOGRAPH

CALENDAR

■ MANUAL DE INSTRUCCIONES ____ 3
■ INSTRUCTION MANUAL ____ 15
■ MANUEL D'INSTRUCTION ____ 27
■ BETRIEBSANLEITUNG ____ 39
■ MANUALE DI FUNZIONAMENTO ____ 51

LOTUS

LOTUS

ILMFS01

Displays and buttons 16

Setting the time 17

Setting the date ____ 17

Using the chronograph ____ 18

Tachymeter 22

Basic specifications 24

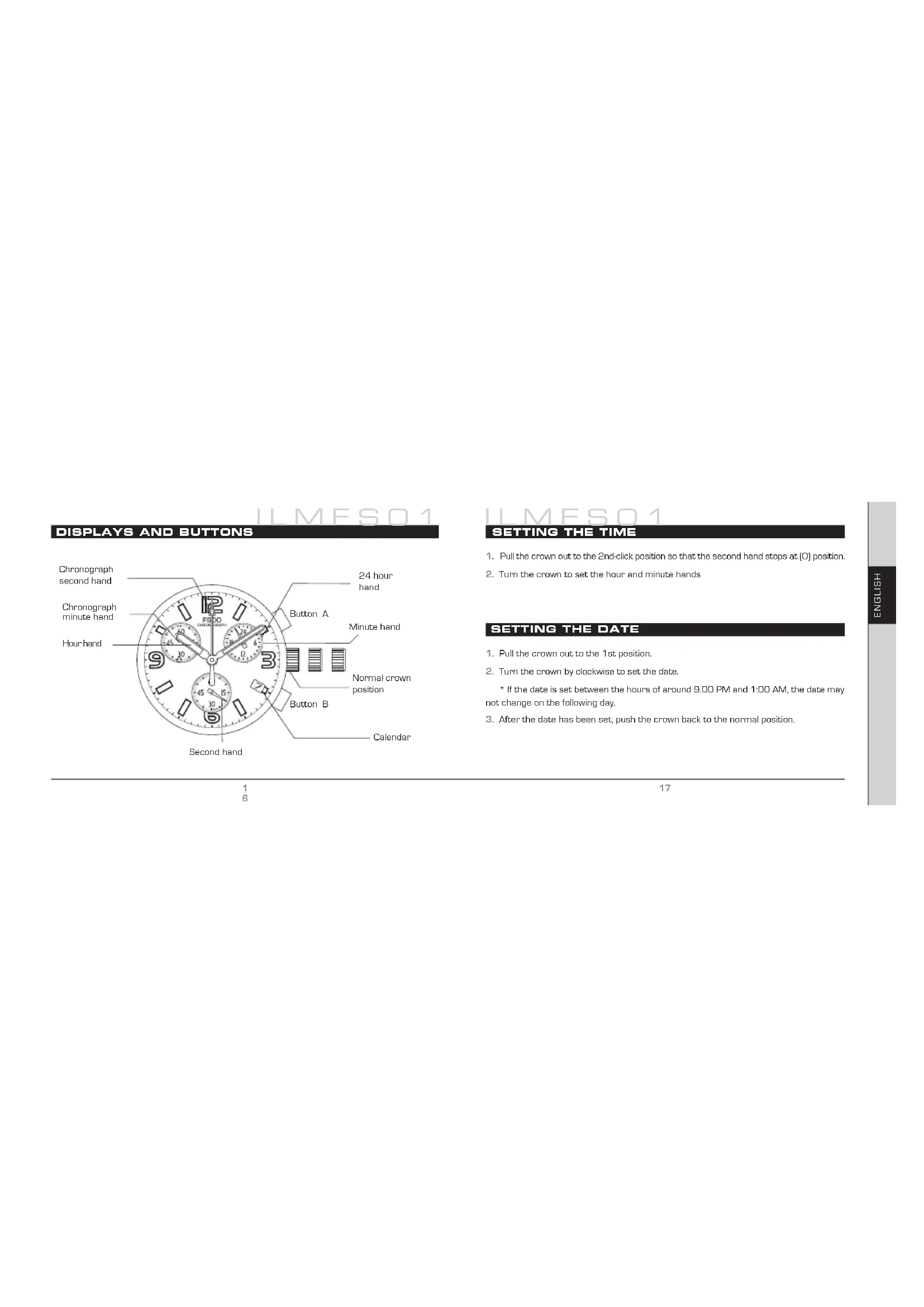

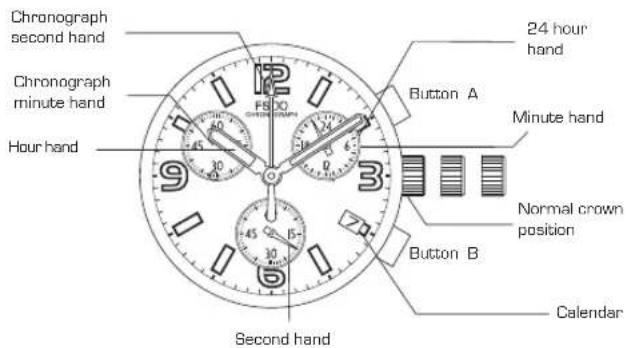

DISPLAYS AND BUTTONS

ILMFS01

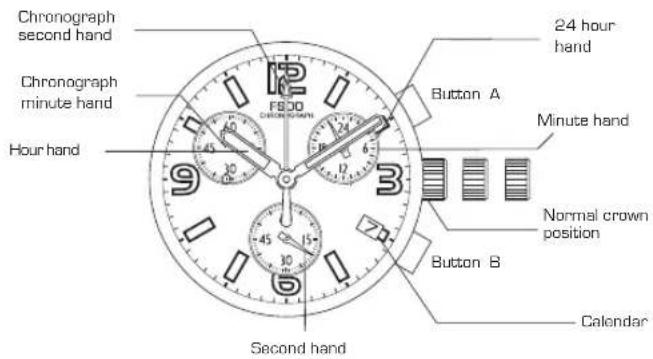

SETTING THE TIME

1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position.
2. Turn the crown to set the hour and minute hands

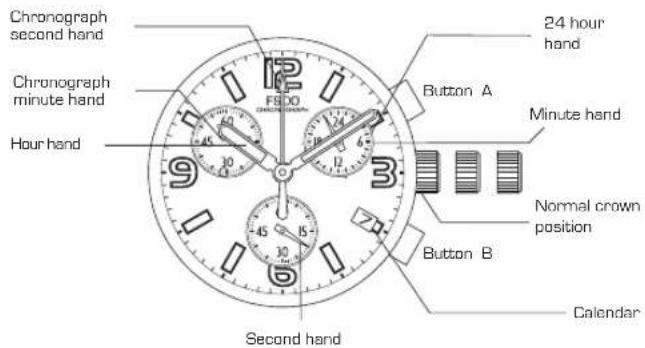

SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown by clockwise to set the date.

* If the date is set between the hours of around 9.00 PM and 1:00 AM, the date may not change on the following day.

1. After the date has been set, push the crown back to the normal position.

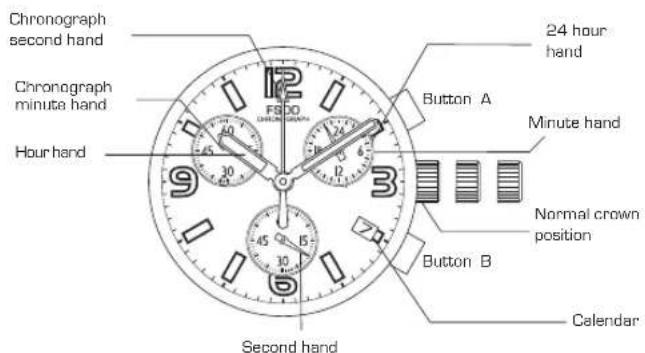

USING THE CHRONOGRAPH

ILMFSO1

USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

(Measuring time with the chronograph)

1. The chronograph can be started and stopped each time button [A] is pressed.
2. To reset, press button (B) and the chronograph second & minute hands return to their (O) positions.

[Chronograph reset, incl. after replacing battery]

USING THE CHRONOGRAPH

This procedure should be performed when the chronograph second hand do not return to the [0] second position after the chronograph has been reset, and including after battery has been replaced.

1. Pull the crown out to the 2nd. position.
2. Press button (A) to set the chronograph second hand to the [O] position.
3. The chronograph hands can be advanced rapidly by continuously pressing button (A).
4. Once the hands have been zeroed, reset the time and return the crown to its normal position. *Do not return crown to normal position while chronograph second hand return to 12:00 [Zero] position.

Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 [zero] position.

ILMFS01

USING THE CHRONOGRAPH

TACHYMETER

ILMFS01

TACHYMETER

• The tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1 Km, the meter can measure the approximate average speed per hour during a journey [up to the maximum measurable range of tachymeter is 60 seconds].
• If the chronograph is started at the same time as measurement, and stopped after 1 Km, the average speed per hour can be determined according to the position of the second hand.
• If the car covers the distance of 1 Km in 45 seconds, the average hourly speed during the journey will be about 80 Km.

BASIC SPECIFICATIONS

Calibre FS00 FS01
Pusher	Slanted Parallel
Ligne Size* mm	10-1/2ø 23,7 x 22 mm (3H-9H)
Date	0
Total height	4.13 mm 4.28 mm
Figure[push button placed angle]
Power cell and life SR626SW 2 years*

* Based on the chronograph being used 1 hour per day

ILMES01

BASIC SPECIFICATIONS

[Time standard]

Type of quartz: Tuning fork type quartz crystal

Frequency: 32.768 Hz.

Accuracy: ± 20 s/month worn under normal circumstances

[Balanceable weight of hand]

Minute hand: Max. 0,4 × N.m

Second hand: Max. 0,035 ∝ N.m

Other small hands: Max. 0,02 ≈ N.m

[Function]

CAL. IFMFS00/01: Chronograph 1/1 sec. basis (Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism (PSRM)

Over-loading Compensation Device (OLCD)

Digital Frequency Control (DFC) for time adjustment

ILMFS01

MANUEL D'INSTRUCTION

CHRONOGRAPHE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products are selectively collected for processing. You may therefore dispose of your quartz watching products at any of our retail outlets or any other authorized collection point. The we collection, processing, rating and recycling of these products helps contribute to regarding the environment and protecting our health.
