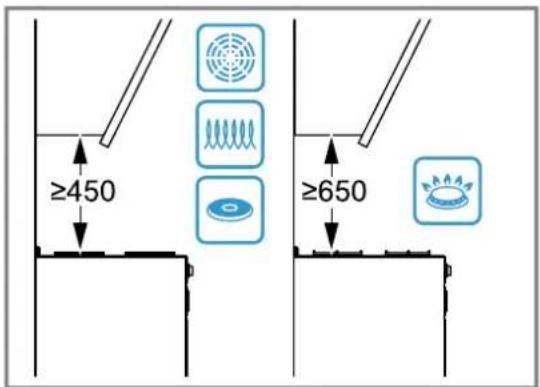

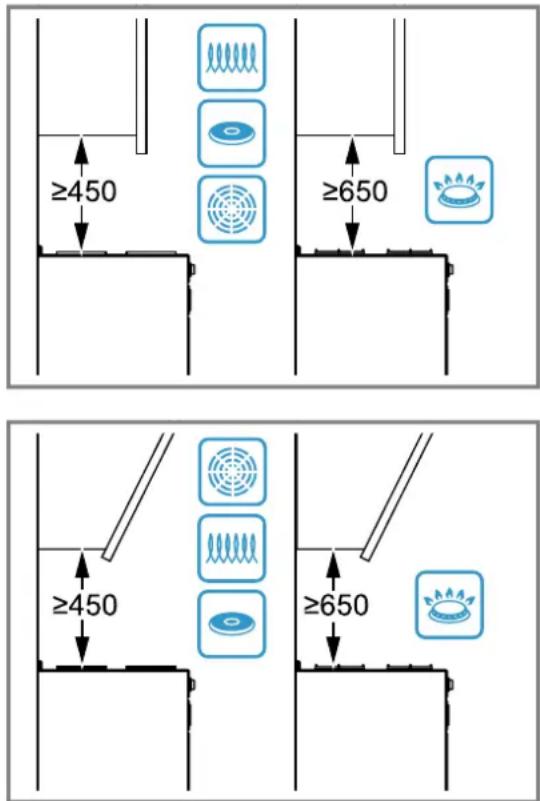

≥450 ≥650

≥450 ≥650

13.4 Sichere Montage

Safety warning illustration showing a hazard symbol and a checkmark for electrical hazard prevention.

Technical diagram showing two views of a structural joint or panel assembly (no text or symbols present)

Pure mechanical assembly diagram without any text, numbers, or symbols

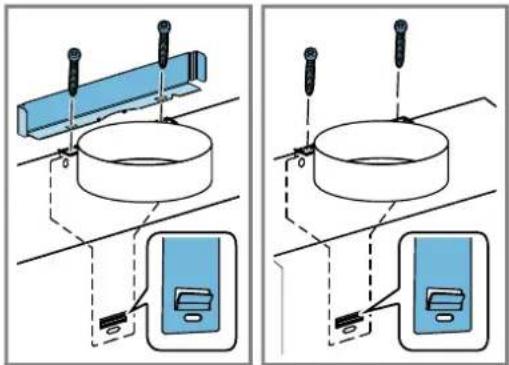

Gerät montieren

Diagram illustrating two steps of a device installation or testing procedure, showing tool placement and connection to a device.

Diagram illustrating two steps of a mechanical assembly or mounting process, labeled with arrows and numbered instructions.

Diagram illustrating a mechanical process with labeled steps 1 and 2, showing a blue component being inserted into a container with directional arrows.

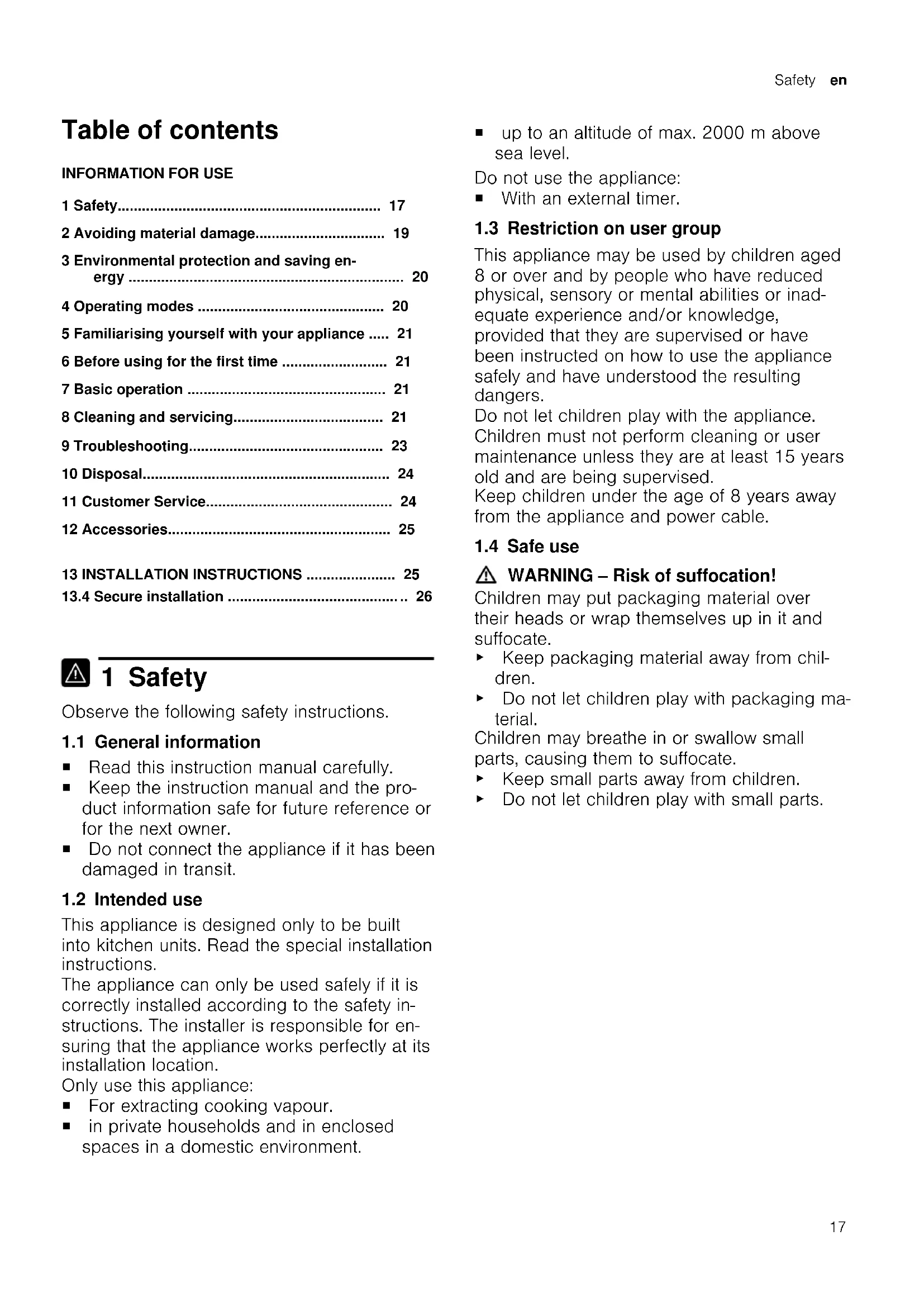

1 Safety.... 17
2 Avoiding material damage.... 19
3 Environmental protection and saving energy 20
4 Operating modes 20
5 Familiarising yourself with your appliance ..... 21
6 Before using for the first time 21
7 Basic operation ...... 21
8 Cleaning and servicing.... 21
9 Troubleshooting.... 23
10 Disposal.... 24
11 Customer Service.... 24
12 Accessories.... 25
13 INSTALLATION INSTRUCTIONS 25
13.4 Secure installation 26

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

This appliance is designed only to be built into kitchen units. Read the special installation instructions.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

Only use this appliance:

■ For extracting cooking vapour.
■ in private households and in enclosed spaces in a domestic environment.

■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ With an external timer.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe use

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.
  Children may breathe in or swallow small parts, causing them to suffocate.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

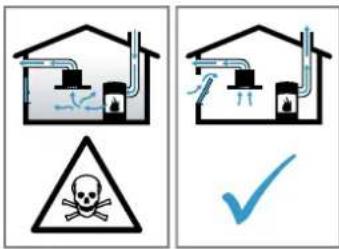

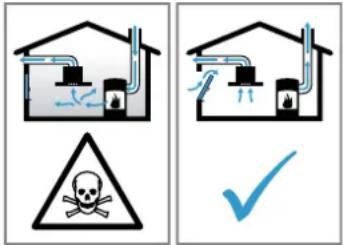

Safety warning illustration showing two house diagrams with a skull and warning symbol, one marked with a checkmark.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.
It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.
In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
▶ Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

⚠ WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Never operate the appliance without a grease filter.

▶ Clean the grease filters regularly.
▶ Never work with naked flames close to the appliance (e.g. flambéing).
- Do not install the appliance near a solid fuel heating appliance (e.g. wood- or coal-burning) unless the heating appliance has a sealed, non-removable cover. There must be no flying sparks.

Hot oil or grease ignites very quickly.

▶ Always supervise hot oil and fat.
▶ Never extinguish burning oil or fat with water. Switch off the cooking zone. Extinguish flames carefully using a lid, fire blanket or something similar.

When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire.

▶ Only operate the gas burners with cookware on them.

Operating multiple gas hobs at the same time generates a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire.

▶ Only operate the gas hobs with cookware on them.
▶ Select the highest fan setting.
▶ Never operate two gas hobs simultaneously on the highest flame for longer than 15 minutes. Two gas hobs correspond to one large burner.
▶ Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok.

⚠ WARNING – Risk of burns!

The accessible parts of the appliance become hot during operation.

▶ Never touch these hot parts.
▶ Keep children at a safe distance.
The appliance becomes hot during operation.
- Allow the appliance to cool down before cleaning.

⚠ WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

▶ Carefully clean the appliance interior. Items placed on the appliance may fall off.
▶ Do not place any objects on the appliance.

Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

▶ Do not make any changes to the electrical or mechanical assembly.

The filter cover may swing out.

▶ Open the filter cover slowly.
▶ Take hold of the filter cover after opening until it no longer swings out.
▶ Close the filter cover slowly.

Risk of injury when opening and closing the hinges.

▶ Keep your hands away from the hinges. The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1).

▶ Do not look directly into the switched-on LED lights for longer than 100 seconds.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ Persons with electronic implants must stand at least 10 cm away from the appliance.

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 24

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

An ingress of moisture can cause an electric shock.

▶ Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.
▶ Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of explosion!

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods.

⚠ WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Clean the grease filters regularly.

⚠ WARNING – Risk of injury!

Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ If the appliance is defective, call Customer Service.
→ "Customer Service", Page 24

⚠ WARNING – Risk of electric shock!

Penetrating moisture may cause an electric shock.

▶ Do not use wet sponge cloths.

2 Avoiding material damage

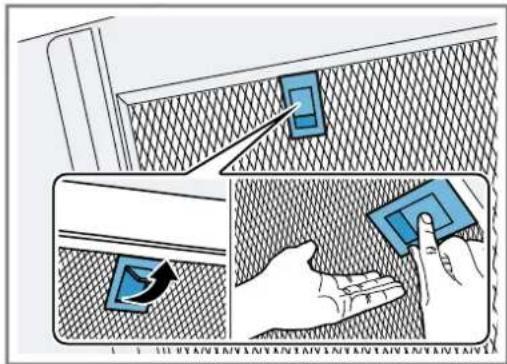

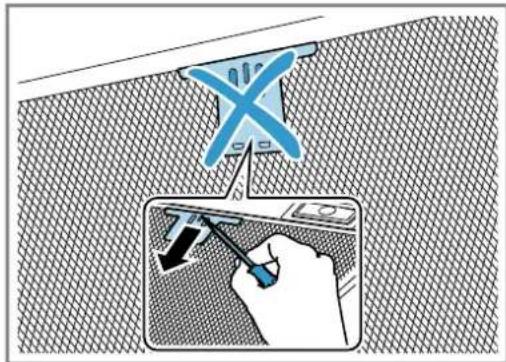

ATTENTION!

Condensate may cause corrosion damage.

▶ To prevent condensation from building up, switch on the appliance during cooking.

If moisture gets into the controls, this may result in damage.

▶ Never clean controls with a wet cloth. Incorrect cleaning damages the surfaces.

▶ Follow the cleaning instructions.

▶ Do not use harsh or abrasive detergents.

• Clean stainless steel surfaces in the direction of the finish only.
  ▶ Never clean controls with stainless steel cleaners.
  Condensation that flows back in may damage the appliance.
  ▶ The air extraction duct must be installed with a gradient of at least 1^ from the appliance.

If you put incorrect stress on the design elements, they may break off.

▶ Do not pull design elements.
- Do not place objects on the design elements or hang objects from them.

There is a risk of surface damage if you do not peel off the protective film.

• Remove the protective film from all parts of the appliance before using for the first time.
  Painted surfaces are easily damaged.
  ▶ Follow the cleaning instructions. → "Cleaning the appliance", Page 22
  ▶ Ensure that the painted surfaces are not scratched.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Adjust the fan speed to the amount of steam produced during cooking.

■ The lower the fan speed, the less energy is consumed.

Only use the intensive mode as required.

If cooking produces large amounts of steam, select a higher fan speed in good time.

■ The odours are distributed around the room less.

Switch off the lighting if it is no longer required.

■ When the lighting is switched off, it does not consume any energy.

Clean or replace the filters at regular intervals.

■ The effectiveness of the filter is retained.

Put the cooking lid on.

■ The cooking vapours and condensation are reduced.

Only use the additional functions if required.

■ Switching off additional functions reduces power consumption.

4 Operating modes

You can use your appliance in air extraction mode or circulating-air mode.

4.1 Air extraction mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

■ If the exhaust air is to be conveyed into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the external wall, a telescopic duct should be used.

4.2 Air recirculation

The air which is drawn in is cleaned by the grease filters and an odour filter, and conveyed back into the room.

To bind odours in air recirculation mode, you must install an odour filter. The different options for operating the appliance in air circulation mode can be found in our catalogue. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from our after-sales service or from the online shop.

→ "Accessories", Page 25

5 Familiarising yourself with your appliance

5.1 Controls

You can use the controls to configure all functions of your appliance and to obtain information about the operating status.

1	Switching the appliance on or off
+	Increasing the fan setting
-	Decreasing the fan setting
∞	Switching the lighting on or off

6 Before using for the first time

Configure the settings for initial start-up. Clean the appliance and accessories.

- When using it in circulating-air mode, set the operating mode.

6.1 Setting an operating mode

Your appliance is set to air extraction mode by default. Note: When using it in circulating-air mode, you require additional accessories.

7 Basic operation

7.1 Switching on the appliance

▶ Press Ⓘ
√ The appliance starts at fan setting 2.

7.2 Switching off the appliance

▶ Press ①

7.3 Selecting a fan setting

▶ Press +or .-

7.4 Switching on intensive mode

If particularly strong odours or vapours develop, you can use intensive mode.

▶ Press + repeatedly until all of the LEDs in the display light up.
√ After approx. six minutes, the appliance automatically switches to a lower fan setting.

7.5 Switching on the lighting

The lighting can be switched on and off independently of the ventilation system.

▶ Press

8 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

8.1 Cleaning products

You can obtain suitable cleaning products from after-sales service or the online shop.

WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.
▶ Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING – Risk of burns!

The appliance becomes hot during operation.

▶ Allow the appliance to cool down before cleaning.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

▶ Do not use harsh or abrasive detergents.
▶ Do not use cleaning products with a high alcohol content.
▶ Do not use hard scouring pads or cleaning sponges.

▶ Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.

- Wash sponge cloths thoroughly before use.

8.2 Cleaning the appliance

Clean the appliance as specified. This will ensure that the different parts and surfaces of the appliance are not damaged by incorrect cleaning or unsuitable cleaning products.

WARNING – Risk of explosion!

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods.

WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.

- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING – Risk of burns!

The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

▶ Carefully clean the appliance interior.

1. Observe the information regarding the cleaning agents.

→ "Cleaning products", Page 21

1. Clean as follows, depending on the surface:

- Clean stainless steel surfaces in the direction of the finish using a sponge cloth and hot soapy water.

- Clean painted surfaces using a damp sponge cloth and hot soapy water.

- Clean aluminium using a soft cloth and glass cleaner.

- Clean plastic using a soft cloth and glass cleaner.

- Clean glass using a soft cloth and glass cleaner.

1. Dry with a soft cloth.

2. Apply a thin layer of the stainless steel cleaning product to stainless steel surfaces using a soft cloth.

You can obtain stainless steel cleaning products from the after-sales service or the online shop.

8.3 Cleaning controls and lights

WARNING – Risk of electric shock!

Penetrating moisture may cause an electric shock.

- Do not use wet sponge cloths.

1. Observe the information regarding the cleaning agents.

→ "Cleaning products", Page 21

1. Clean using a damp sponge cloth and hot soapy water.

2. Dry with a soft cloth.

8.4 Cleaning the magnetic mounting bracket

ATTENTION!

Magnetic mounting brackets may come loose due to improper cleaning.

- Do not use any sharp or pointed objects for the cleaning. - Do not use cleaning fluids that contain adhesives.

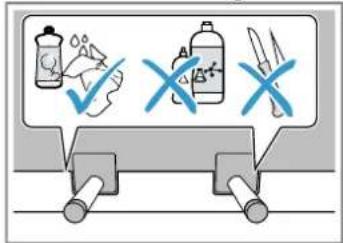

Safety warning illustration showing three items: a bottle, a plastic bottle, and a pencil, all marked with checkmarks and X symbols.

1. Observe the information regarding the cleaning agents.

→ "Cleaning products", Page 21

1. Clean using a damp sponge cloth and hot soapy water.

2. Dry with a soft cloth.

8.5 Removing the grease filter

WARNING – Risk of injury!

Risk of injury when opening and closing the hinges.

- Keep your hands away from the hinges.

The filter cover may swing out.

▶ Open the filter cover slowly.

▶ Take hold of the filter cover after opening until it no longer swings out.

▶ Close the filter cover slowly.

1. Take hold of the filter cover in the centre and open it fully.

2. ATTENTION!

Falling grease filters may damage the hob below.

▶ Grip below the grease filter with one hand.

Open the lock on the grease filter and fold down the grease filter.

Diagram illustrating window frame installation steps with blue square components and directional arrows indicating movement

1. Remove the grease filters from the holders.

To prevent grease from dripping, hold the grease filter horizontally.

8.6 Cleaning grease filters manually

The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months.

WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

- Clean the grease filters regularly.

Requirement: The grease filters have been removed. → "Removing the grease filter", Page 22

1. Observe the information regarding the cleaning agents.
   → "Cleaning products", Page 21
2. Soak the grease filter in hot soapy water. Use special grease solvent for stubborn dirt. You can obtain grease solvents from customer service or the online shop.
3. Use a brush to clean the grease filters.
4. Rinse the grease filters thoroughly.
5. Allow the grease filters to drain.

8.7 Cleaning grease filters in the dishwasher

The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months.

WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

- Clean the grease filters regularly.

ATTENTION!

The grease filters may become damaged if they are squeezed in the dishwasher.

▶ Do not squeeze the grease filters.

Note: When cleaning the grease filter in the dish-washer, light discolouration may occur. This discolouration has no effect on the performance of the metal grease filters.

Requirement: The grease filters have been removed.

→ "Removing the grease filter", Page 22

1. Observe the information regarding the cleaning agents.

→ "Cleaning products", Page 21

1. Place the grease filters loosely into the dishwasher. Do not clean heavily soiled grease filters with utensils.

Use special grease solvent for stubborn dirt. You can obtain grease solvents from customer service or the online shop.

1. Start the dishwasher.

Select a temperature of no more than 70 °C.

1. Allow the grease filters to drain.

8.8 Fitting the grease filters

1. ATTENTION!

Falling grease filters may damage the hob below. ▶ Grip below the grease filter with one hand.

Note: Note the correct position of the grease filter. Insert the grease filter.

1. The lock on the grease filter clicks into place.

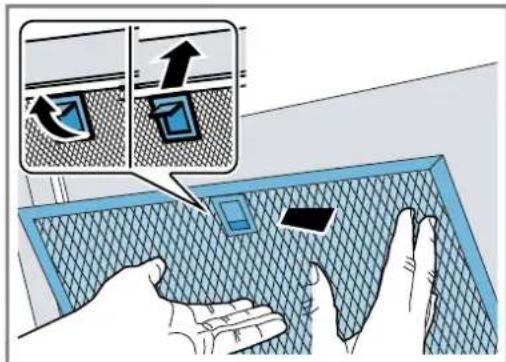

Diagram illustrating a device interaction with a mesh screen, showing hand positioning and directional arrows indicating movement.

1. If the grease filter has been inserted incorrectly, carefully push the lock forwards, remove the grease filter and insert it correctly.

Diagram showing a hand using a screwdriver to clean a wall-mounted device, with a blue X-shaped symbol above the screen.

9 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING – Risk of injury!

Improper repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ If the appliance is defective, call Customer Service.

→ "Customer Service", Page 24

WARNING – Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

9.1 Malfunctions

Fault Cause and troubleshooting

The appliance is not working.	The mains plug of the power cord is not plugged in.► Connect the appliance to the power supply.
	The circuit breaker in the fuse box has tripped.► Check the circuit breaker in the fuse box.
	There has been a power cut.► Check whether the lighting in your kitchen or other appliances are working.
The LED lighting does not work.	Different causes are possible.► Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.► Call the after-sales service.→ "Customer Service", Page 24
The button illumination does not work.	The control unit is faulty.► Call the after-sales service.→ "Customer Service", Page 24

10 Disposal

10.1 Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

11 Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

11.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate can be found:

■ Inside the appliance (remove grease filters for access).
■ On top of the appliance.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

12 Accessories

You can buy accessories from the after-sales service, from specialist retailers or online. Only use original accessories, as these have been specifically designed for your appliance.

Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 24 You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service. www.viva-home.info

Accessories Order number

Standard circulated air set (angled canopy hood)

JZ51AIU0X1

Accessories Order number

Standard no-flue circulated air set (angled canopy hood)	JZ51AIT0X0
Standard odour filter (replacement, angled canopy hood)	JZ51AIA0X0
Clean Air Plus circulated air set (angled canopy hood)	JZ51AI1X6
Clean Air Plus no-flue circulated air set (angled canopy hood)	JZ51AIV1X6
Clean Air Plus odour filter (replacement)	JZ51AIB1X6

13 Installation instructions

Observe this information when installing the appliance.

13.1 Scope of delivery

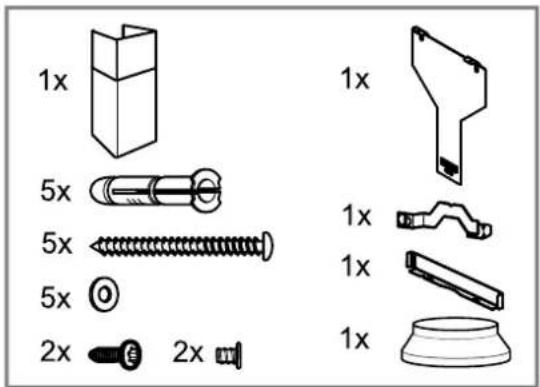

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Two 3D geometric shapes: a rectangular prism and a tilted rectangular prism, both with no text or symbols.

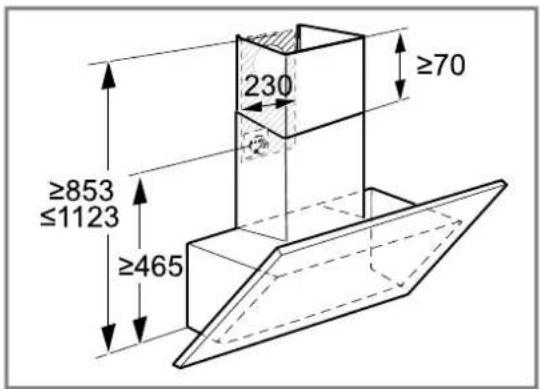

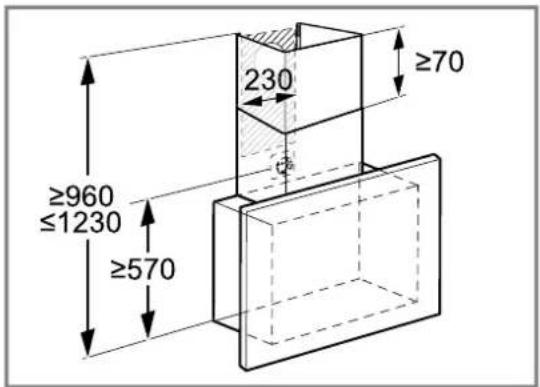

You will find the dimensions of the appliance here

≥960 ≤1230 ≥570 230 ≥70

≥70 230 ≥853 ≤1123 ≥465

13.3 Safety clearances

Comply with the safety clearances for the appliance.

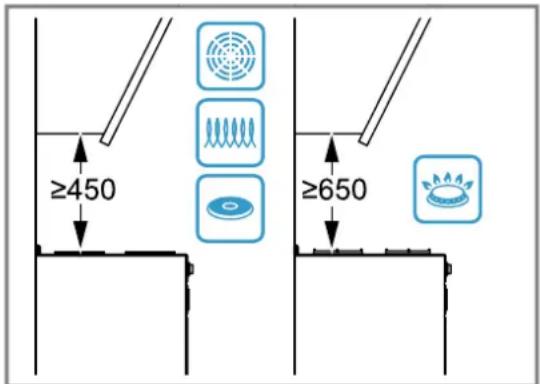

≥450 ≥650 ≥450 ≥650

For Australia and New Zealand the minimum safety clearance above electrical cooktops must be 600 mm.

13.4 Secure installation

Follow these safety instructions when installing the appliance.

WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

Safety warning illustration showing a hazard symbol and a checkmark for electrical hazard detection.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.
It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.
In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
▶ Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

Risk of poisoning from flue gases being drawn back in.

▶ If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch.

Risk of poisoning from flue gases being drawn back in.

• Do not emit the exhaust air into a smoke or exhaust gas flue that is in operation.
• Do not emit the exhaust air into a shaft that is used to ventilate installation rooms for heat-producing appliances.
  If the exhaust air is to be conveyed into a smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

⚠ WARNING – Risk of fire!

Grease deposits in the grease filter may catch fire.

• The specified safety clearances must be complied with in order to prevent a build-up of heat.
• Observe the specifications for your cooking appliances. If the installation instructions for the cooking appliances specify a different clearance, the larger of the two must always be provided for. If gas hobs and electric hobs are operated together, the largest specified clearance applies.
  The appliance must be installed with no more than one side directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50 mm.

The grease deposits in the grease filter may catch fire.

▶ Never work with naked flames close to the appliance (e.g. flambéing).
- Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is present. There must be no flying sparks.

⚠ WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

▶ Wear protective gloves.

The appliance may fall down if it has not been properly fastened in place.

- All fastening components must be fixed firmly and securely in place.

Risk of injury from glass splinters.

▶ Protect the filter cover against impact.
▶ Do not drop the filter cover.
▶ Wear protective goggles during installation. The appliance is heavy.
▶ To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

The appliance is heavy.

• The appliance must not be fitted directly onto plasterboard or similar lightweight materials.
  ▶ To ensure correct installation, you must use a material which is sufficiently stable and suitable for both the structural conditions and the weight of the appliance.

Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

- Do not make any changes to the electrical or mechanical assembly.

The filter cover may swing out.

▶ Open the filter cover slowly.
▶ Take hold of the filter cover after opening until it no longer swings out.
▶ Close the filter cover slowly.

Risk of injury when opening and closing the hinges.

- Keep your hands away from the hinges.

⚠ WARNING – Risk of electric shock!

Sharp-edged components inside the appliance may damage the connecting cable.

- Do not kink or trap the connecting cable. If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 24

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the conditions of Overvoltage Category III and according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.

13.5 General information

Follow these general instructions during the installation.

■ For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
- When discharging the exhaust air, the official and legal regulations, such as the regional building code., must be observed.
■ In order to freely access the appliance for servicing, select an easy-to-reach installation site.
■ The surfaces of the appliance are sensitive. Avoid damaging them during installation.

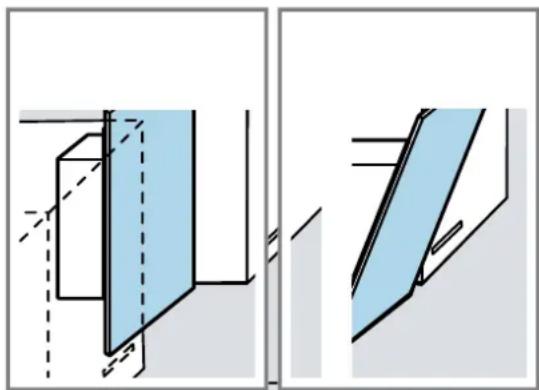

13.6 Installation recommendation

We recommend fitting the appliance such that the lower edge of the glass screen is in line with the lower edges of the adjacent wall-hung cabinets.

Technical diagram showing two views of a structural joint or panel assembly (no text or symbols present)

Maintain the safety clearances to the hob. → Page 26

13.7 Instructions for the electrical connection

In order to safely connect the appliance to the electrical system, follow these instructions.

⚠ WARNING – Risk of electric shock!

It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed.

• The mains plug for the mains power cable must be easily accessible after the appliance is installed.
  If this is not possible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the conditions of overvoltage category III and according to the installation regulations.
  The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.

Sharp-edged components inside the appliance may damage the connecting cable.

• Do not kink or trap the connecting cable.
  ■ The connection data can be found on the rating plate. → Seite 24
  ■ The connecting cable is approx. 1.30 m long.
  ■ This appliance complies with the EC interference suppression regulations.
  ■ The appliance corresponds to protection class 1. You should therefore only use the appliance with a protective earth connection.
  ■ Do not connect the appliance to the power supply during installation.
  ■ Ensure that the protection against contact is guaranteed during installation.

13.8 Information on the installation situation

■ Install this appliance on the kitchen wall.
■ To install additional special accessory parts, observe the enclosed installation instructions.

■ The appliance must be installed with no more than one side directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50 mm.
■ The width of the extractor hood must correspond at least with the width of the hob.
■ To optimally detect the cooking vapours, install the appliance in the middle of the hob.

Air extraction mode

■ If you operate the appliance in air extraction mode, a flue cover must be installed.
Circulating-air mode
■ If you are operating the appliance in circulating-air mode, an optional accessory must be fitted. To do this, refer to the installation instructions provided.
■ For operation in circulating-air mode, the installation of the flue cover is optional.

13.9 Installation

Checking the wall

1. Check whether the wall is horizontal and adequately load-bearing.
   The maximum weight of the appliance is 40 kg.
2. Drill the hole depth in accordance with the length of the screws.
3. Use the enclosed screws and wall plugs.

The enclosed screws and wall plugs are suitable for use with solid brickwork. Use suitable fixing material for other structures, e.g. plasterboard, porous concrete, poroton bricks.

1. Install the appliance with a fixing material which is sufficiently stable and has been adjusted accordingly for both the structural conditions and the weight of the appliance.
2. Check the cut-out area for existing cables of other appliances.

Preparing the wall

1. Observe the information on the installation situation. → Page 28
2. Ensure that there are no electrical wires, gas pipes or water pipes in the area where holes are to be drilled.
3. Cover the hob to prevent damage.

4. Determine the position of the extractor hood and lightly mark where the lower edge of the appliance should be on the wall.

5. Determine the centre of the hob.

6. Comply with the safety clearances for the hob. → Page 26

We recommend fitting the extractor hood such that the lower edge of the glass screen is in line with the lower edges of the adjacent wall-hung cabinets.

1. Place the template against the line drawn on the wall and secure it in place.
2. Mark the positions for the screws.
3. For the installation with the flue cover, separate the template along the marked cut line.
4. Drill the 8 mm diameter holes to a depth of 80 mm for the fastenings.
5. Remove the template.
6. Insert the wall plugs flush with the wall.

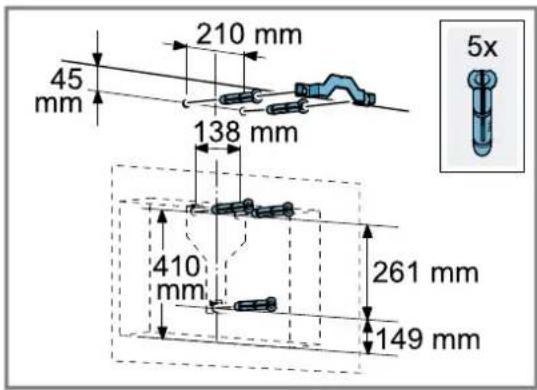

45 mm 210 mm 138 mm 410 mm 261 mm 149 mm 5x

Variant A: Flat extractor hood with flue cover

210 mm 45 mm 138 mm 301 mm 261 mm 40 mm 5x

Variant B: Sloped extractor hood with flue cover

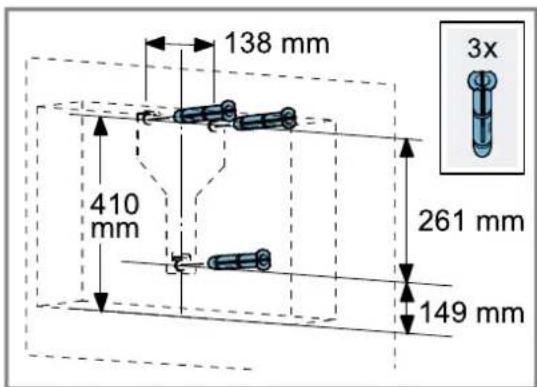

138 mm 410 mm 261 mm 149 mm 3x

Variant A: Flat extractor hood without flue cover

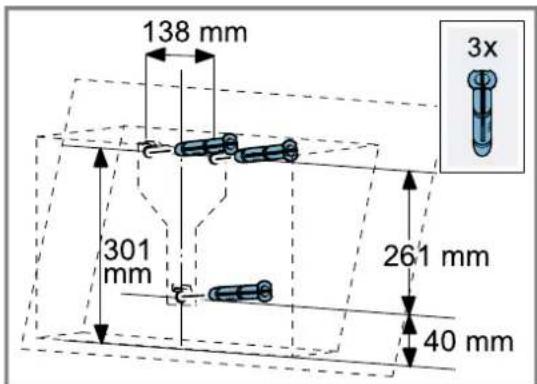

138 mm 301 mm 261 mm 40 mm 3x

Variant B: Sloped extractor hood without flue cover

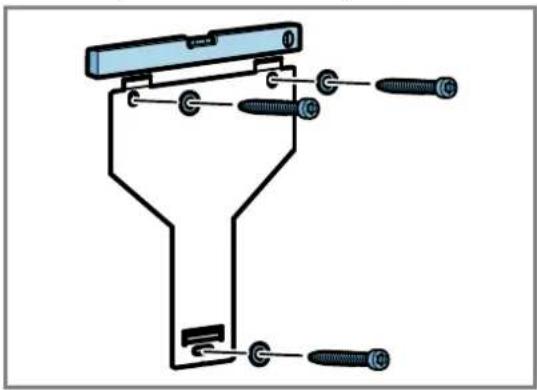

Installing the appliance bracket

1. Screw on the appliance bracket for the extractor hood hand-tight.

2. Use a spirit level to align the appliance bracket horizontally and screw it firmly in place.

Mechanical assembly diagram showing a lever mechanism with two screws and a handle (no text or labels)

Installing the appliance

1. Remove the protective film from the rear.
2. Once the appliance is installed, fully remove the protective film.
3. Hook the appliance into the appliance bracket in such a way that it clicks firmly into place.
4. To align the appliance, slide the appliance to the right or to the left as required.
5. Tighten the safety screws.

Diagram illustrating two setups for installing a device, showing top-down and side-view views with labeled components.

When you install a flue cover, install the bracket and hold it in place while screwing it in tight.

Piping

Air extraction mode

■ If you operate the appliance in air extraction mode, a flue cover must be installed.

Circulating-air mode

If you are operating the appliance in circulating-air mode, an optional accessory must be fitted. To do this, refer to the installation instructions provided.

■ For operation in circulating-air mode, the installation of the flue cover is optional.

Note: If you are using an aluminium pipe, smooth the connection area beforehand.

We recommend the piping with an exhaust air pipe diameter of 150 mm.

Establishing the exhaust air connection (exhaust pipe, 150 mm diameter)

1. Secure the exhaust pipe to the air pipe connector.
2. Establish the connection to the exhaust air opening.
3. Seal the joints.

Establishing the exhaust air connection (exhaust pipe, 120 mm diameter)

1. Secure the reducing connector to the air-pipe connector.
2. Secure the exhaust pipe to the air pipe connector.
3. Establish the connection to the exhaust air opening.
4. Seal the joints.

Installing the flue duct

WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

▶ Wear protective gloves.

WARNING – Risk of electric shock!

Sharp-edged components inside the appliance may damage the connecting cable.

• Do not kink or trap the connecting cable.
• Screw the retaining bracket for the flue duct to the wall.
• To separate the flue ducts, remove the adhesive tape or the flue duct from the protective packaging.
• Remove any protective foil from both flue ducts.

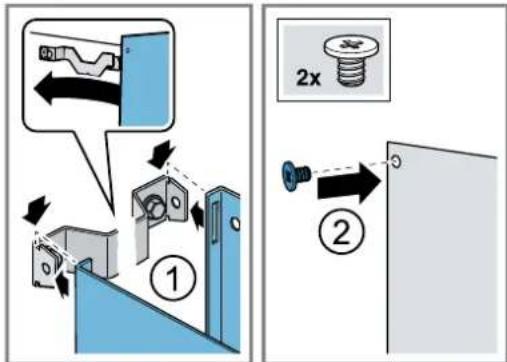

• Use the 2 screws to screw the upper flue duct to the sides of the retaining bracket.

Diagram illustrating two steps of door repair: first shows a tool interacting with a door, second shows a 2x bolt being inserted into a door.

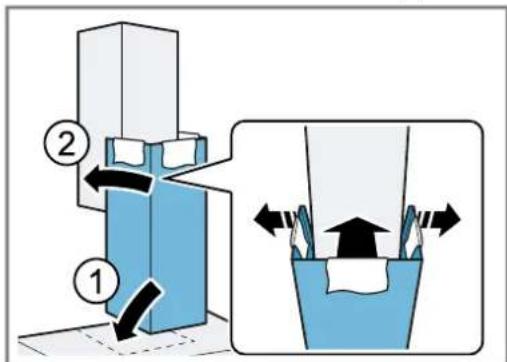

1. Note: To prevent scratches, lay soft towels over the edges of the outer flue duct to protect the surface. Place the lower flue duct on the appliance and pull it slightly apart. ①

2. Put the lower flue duct over the upper flue duct.②

Diagram illustrating a mechanical process with labeled parts and directional arrows indicating movement or force.

1. Clip the lower flue duct onto the lower retaining bracket. Ensure that the connecting cable is not trapped.

2. Carefully remove the towels.

Table des matières

MANUEL D'UTILISATION

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

Safety warning illustration showing incorrect and correct compliance with water bottles and a checkmark

Diagram illustrating a window installation procedure with blue square tiles and a hand holding a package, showing steps to remove or replace.

Diagram illustrating a device's screen transition with labeled components and directional arrows

Diagram showing a hand using a screwdriver to clean or repair a device, with a blue X-shaped component above it.

9 Dépannage

Two 3D geometric shapes: a rectangular prism and a tilted rectangular prism, shown in isometric view (no text or symbols)

≥450 ≥650

≥450 ≥650

Safety warning illustration showing a hazard symbol and a checkmark for hazard prevention.

Technical diagram showing two views of a structural joint or panel assembly (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with multiple screw fasteners (no text or labels)

Monter l'appareil

Diagram illustrating two setups for installing a device, showing top-down and side-view views with labeled components.

Diagram illustrating two steps of a door repair or mounting process: first shows a mechanical component being inserted, second shows a 2x bolt being inserted into a door.

Diagram illustrating a mechanical press or lifting process with labeled steps 1 and 2, showing directional arrows and component placement.

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op vergiftiging!

Safety warning illustration showing two scenarios: one with a house and smoke, another with a skull and exhaust valve, both marked with a blue checkmark.

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op explosie!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op explosie!

⚠ WAARSCHUWING – Kans op letsel!

Safety warning illustration showing correct and incorrect actions for cleaning a bottle, with checkmark and cross symbols indicating compliance or failure.

⚠ WAARSCHUWING – Kans op letsel!

Diagram illustrating window frame installation steps with blue square components and a hand holding a small object.

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op brand!

Diagram illustrating a device's screen transition process with labeled UI elements and directional arrows

Diagram showing a hand using a screwdriver to clean a wall-mounted device, with a blue X symbol above the device.

⚠ WAARSCHUWING – Kans op letsel!

Two 3D geometric shapes: a rectangular prism and a tilted rectangular prism, shown in isometric view (no text or symbols)

≥450 ≥650

≥450 ≥650

13.4 Veilige montage

⚠ WAARSCHUWING – Kans op vergiftiging!

Safety warning illustration showing a house with water flow and a skull symbol, alongside a blue checkmark indicating inspection.

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

Technical diagram showing two views of a structural joint or panel assembly (no text or symbols present)

Pure mechanical assembly diagram without any text, numbers, or symbols

Apparaat monteren

Diagram illustrating a device installation or cleaning procedure with labeled components and directional arrows

⚠ WAARSCHUWING – Kans op letsel!

Diagram illustrating a mechanical assembly or mounting process with labeled components and directional arrows indicating movement.

2x ②

Diagram illustrating a mechanical press or lifting process with labeled components and directional arrows indicating movement.

Valid within Great Britain:

Imported to Great Britain by

Nobilia GB Ltd.

Kingsway Business Park

OL16 4UG Rochdale

Great Britain

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

9001640883

030404

de, en, fr, nl
