Product Type Automatic mechanical chronograph wristwatch
Brand Zenith
Model Defy El Primero 21 Swizz Beatz (49.9003.900476.R591)
Movement Caliber El Primero 9004, certified chronometer
Movement Diameter 32.80 mm (14 ¼ lignes)
Movement Height 7.90 mm
Number of Components 293
Number of Jewels 53
Barrels 2 (one for the watch, one for the chronograph)
Power Reserve (watch) 50 hours
Frequency (watch) 36,000 alternations/hour (5 Hz)
Power Reserve (chronograph) Approximately 50 minutes
Frequency (chronograph) 360,000 alternations/hour (50 Hz)
Winding Unidirectional automatic for the watch, manual for the chronograph via the crown

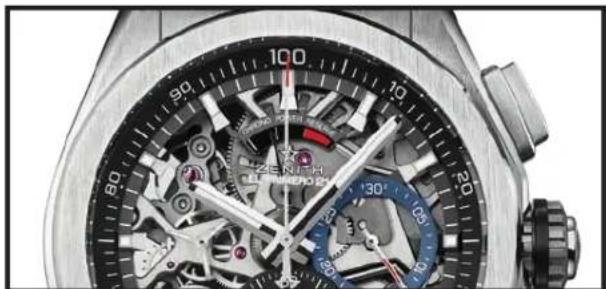

Main Functions Hours, minutes, seconds; 1/100th second chronograph; 30-minute counter at 3 o'clock; chronograph second at 6 o'clock; chronograph power reserve at 12 o'clock
Certification Chronometer (Timelab, ISO 3159 standard)
International Warranty 2 years, extendable to 3 years with online registration
Recommended Service Overhaul every 5 years by a Zenith authorized service center
Power Source Automatic mechanical (self-winding movement)

Frequently Asked Questions - Defy El Primero 21 Swizz Beatz 49.9003.900476.R591 ZENITH

How to wind the watch?
When the watch has stopped, turn the crown in position 0 (flush against the case) in the counterclockwise direction about 72 turns for a full wind. Daily wear of the watch (at least 12 hours per day) ensures automatic winding via the oscillating weight.

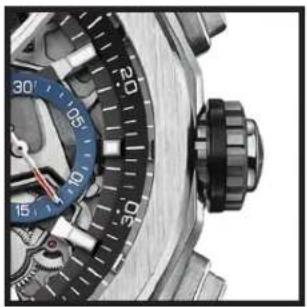

How to set the time?
Pull the crown to position 1 (first click). Turn it in the desired direction to adjust the time. Then push the crown back to position 0.

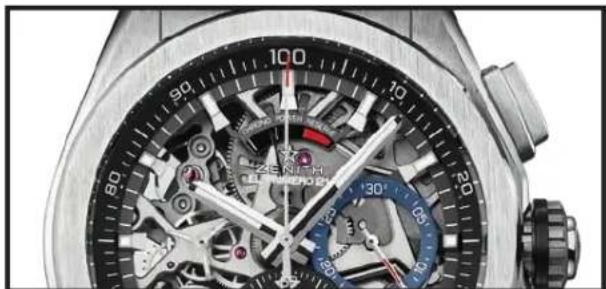

How to use the chronograph?

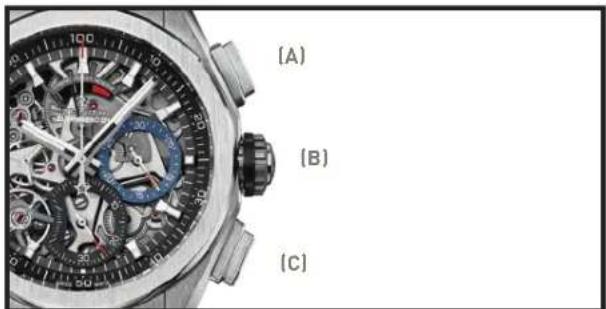

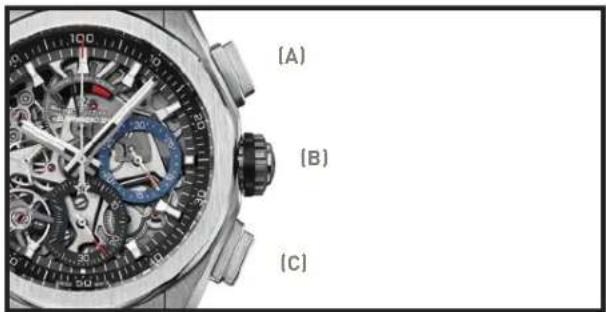

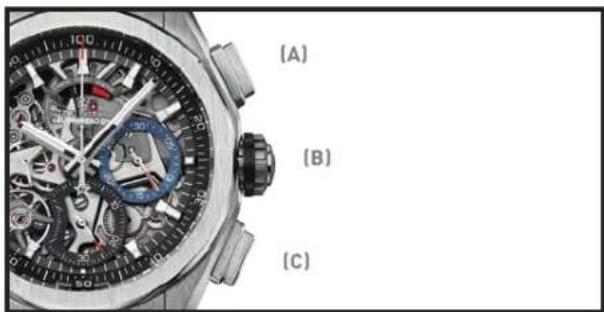

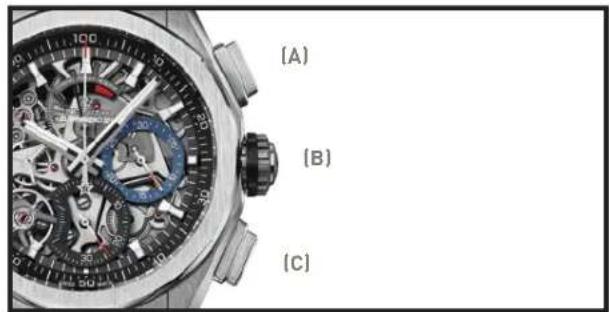

Press the pusher (A) to start and stop the timing. Once stopped, press the pusher (C) to reset the hands to zero. The chronograph has a power reserve of approximately 50 minutes.
How to wind the chronograph?
With the crown in position 0, turn it in the clockwise direction about 25 turns until the chronograph power reserve hand (at 12 o'clock) indicates the maximum. This winds the barrel dedicated to the chronograph.
What is the power reserve of the watch?
The watch has a power reserve of approximately 50 hours. The chronograph power reserve is approximately 50 minutes and is displayed on the dial at 12 o'clock.
What to do if the watch stops?
If the watch is not worn enough, it may stop. Manually wind the crown about 72 turns and wear it at least 12 hours per day to maintain automatic winding.
How to maintain my watch?
Zenith recommends an overhaul every 5 years at an authorized service center. Avoid violent shocks, water (if not specified) and magnetic fields. Clean the case and bracelet with a soft cloth.
What is the warranty of the watch?
The watch is covered by a 2-year international warranty against any manufacturing defects. An additional year is offered by registering on the website www.zenith-watches.com within 60 days of purchase.
What to do if the chronograph does not reset to zero correctly?
Before each timing, check that the hands are at zero. If necessary, perform a reset by firmly pressing the pusher (C). If the problem persists, contact a Zenith authorized service center.
Can I wear my watch while playing sports?
The watch is designed for daily use, but avoid activities with violent shocks. The mechanical movement is sensitive to impacts. For sports use, make sure the watch is securely fastened.
