0000BookDH25DL.indb10000BookDH25DL.indb1 2017/12/0116:42:482017/12/0116:42:482 English power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.

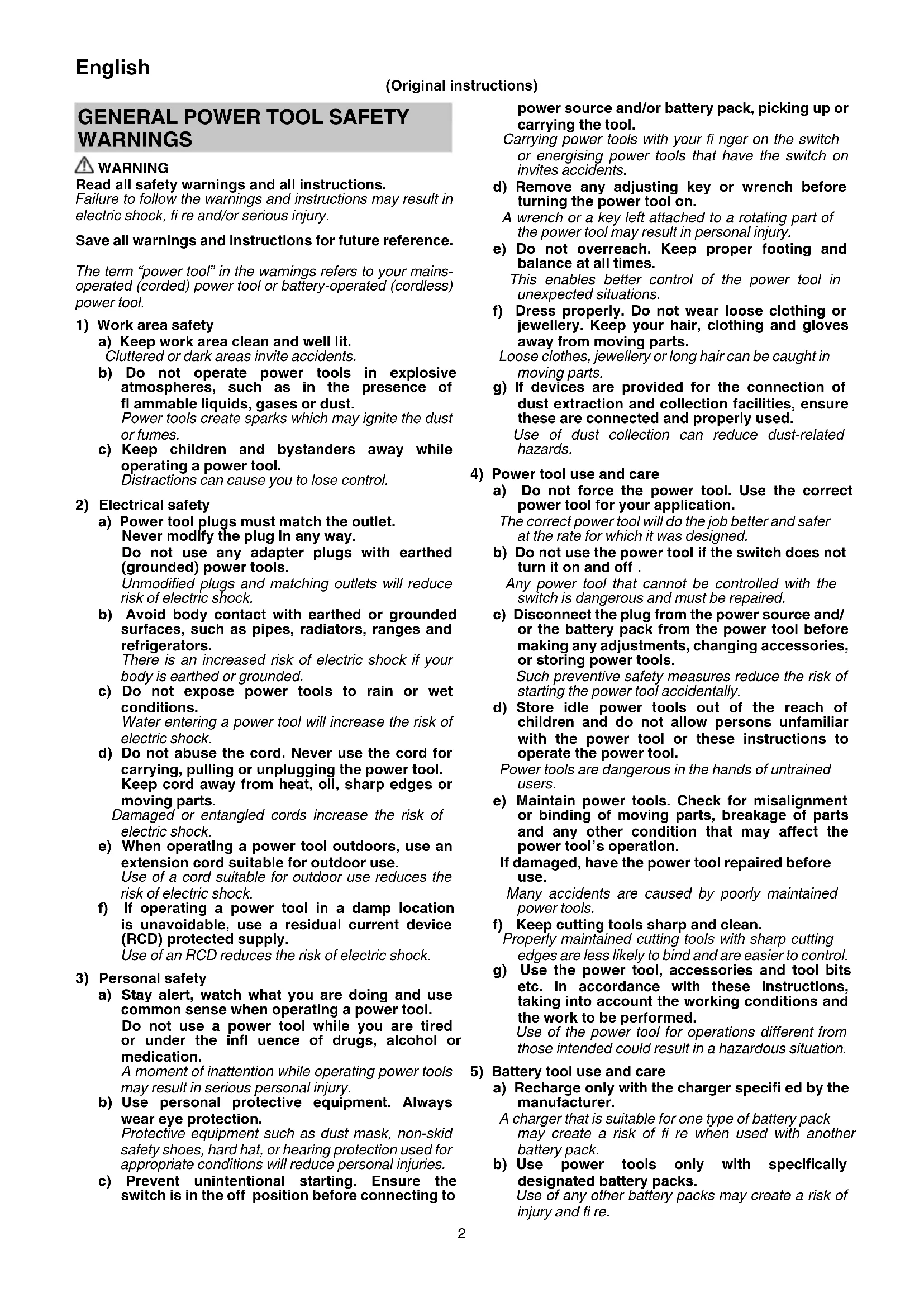

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to (Original instructions) 0000BookDH25DL.indb20000BookDH25DL.indb2 2017/12/0116:42:492017/12/0116:42:493 English c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

Exposure to noise can cause hearing loss.

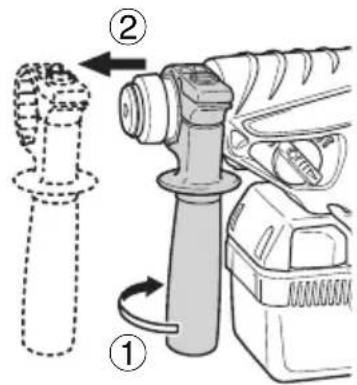

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Do not allow foreign matter to enter the hole for

connecting the rechargeable battery.

2. Never disassemble the rechargeable battery and

3. Never short-circuit the rechargeable battery.

Shortcircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

4. Do not dispose of the battery in fi re. If the battery is burnt,

5. When using this unit continuously, the unit may overheat,

leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

6. Do not insert object into the air ventilation slots of the

charger. Inserting metal objects or infl ammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

7. Bring the battery to the shop from which it was purchased

as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

8. Before starting to break, chip or drill into a wall, fl oor or

ceiling, thoroughly confi rm that such items as electric cables or conduits are not buried inside.

9. Ensure that the power switch is in the OFF position. If the

battery is installed while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

10. Do not touch the bit during or immediately after

operation. The bit becomes very hot during operation and could cause serious burns.

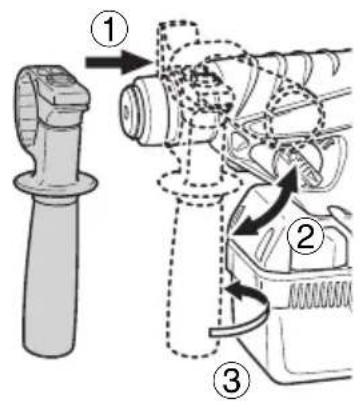

11. Always hold the body handle and side handle of the

power tool fi rmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

12. Wear a dust mask

Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

13. Make sure that the battery is installed fi rmly. If it is at all

loose it could come off and cause an accident.

14. To prevent accidents, make sure to turn the switch off

and pull out the battery before changing accessories, storing, carrying or when not using the tools.

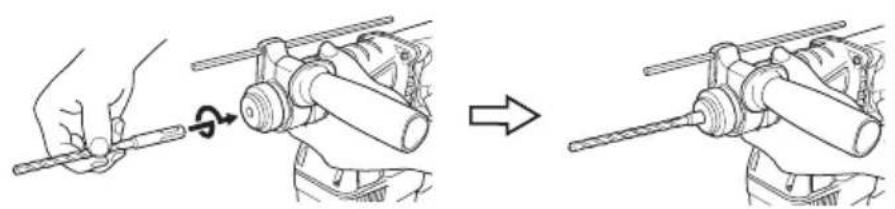

15. Mounting the drill bit

○ To prevent accidents, make sure to turn the switch off and pull out the battery. ○ When using tools such as bull points, drill bits, etc., make sure to use the genuine parts designated by our company. ○ Clean the shank portion of the drill bit. ○ Check the latching by pulling on the drill bit.

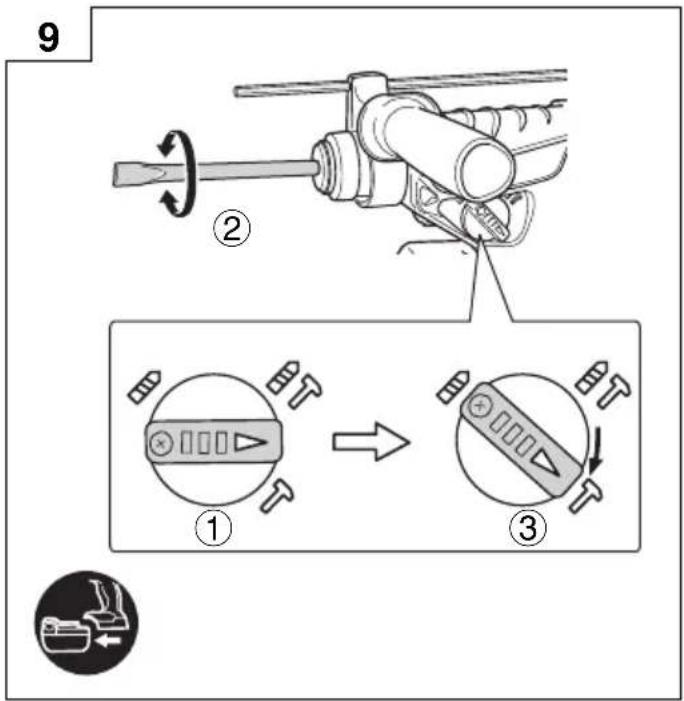

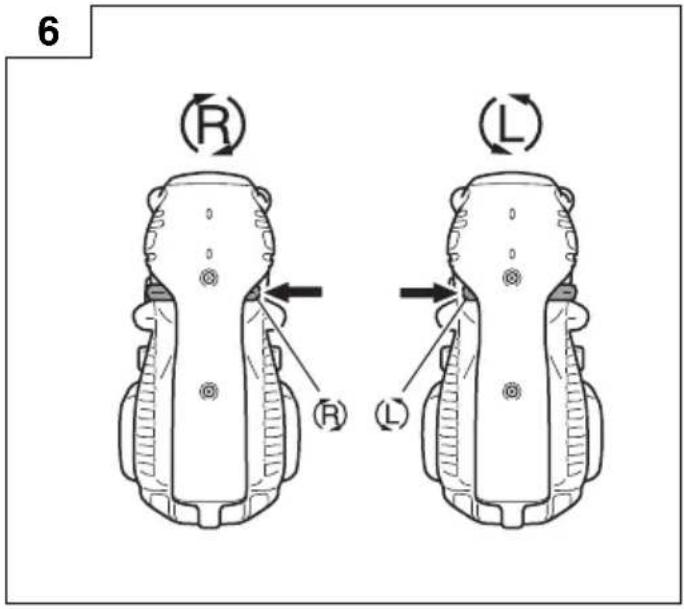

16. Operate the change lever only when the motor is at a

full stop. Operating the change lever while the motor is running may cause the tip tool to unexpectedly rotate and result in an accident. (Fig. 7)

17. Rotation + hammering

When the drill bit touches construction iron bar, the bit will stop immediately and the rotary hammer will react to revolve. Therefore fi rmly tighten the side handle, hold the body handle and side handles.

○ To drill wood or metal material using the drill chuck and chuck adapter (optional accessories). ○ Application of force more than necessary will not only expedite the work, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition. ○ Drill bits may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion. ○ Do not attempt to drill anchor holes or holes in concrete with the machine set in the rotation only function. ○ Do not attempt to use the rotary hammer in the rotation and striking mode with the drill chuck and chuck adapter attached. This would seriously shorten the service life of every component of the machine.

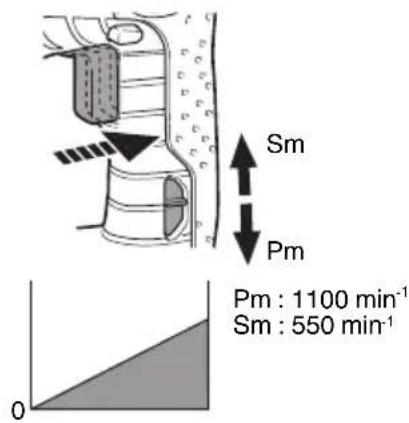

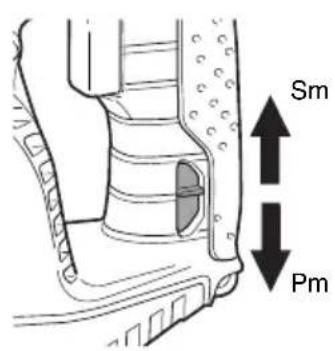

19. Selecting the Power / Save mode

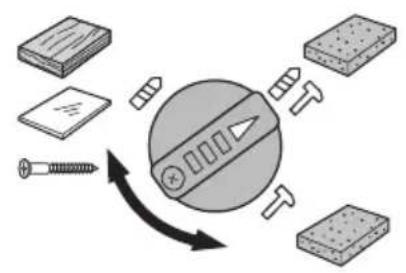

○ The hammering force of the hammer can be increased or decreased to conform with intended usage, by operating the shift knob as per Fig. 11. Adjust the force to match the usage intended. ○ Do not drill holes in wood with the “SAVE“ mode. There is a likelihood that the motor will burn out because it can easily lock up due to the low power.

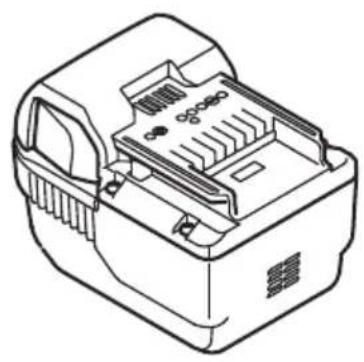

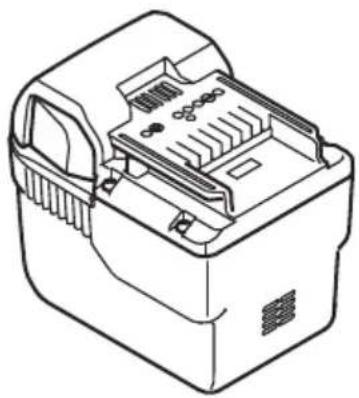

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such a case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again. 0000BookDH25DL.indb30000BookDH25DL.indb3 2017/12/0116:42:492017/12/0116:42:494 English

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

battery. ○ During work make sure that swarf and dust do not fall on the battery. ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery. ○ Do not store an unused battery in a location exposed to swarf and dust. ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or

high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fi re. When storing the lithium ion battery, obey surely the rules of following contents. ○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case. ○ To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen. SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. DH25DL / DH25DAL / DH36DL / DH36DAL: Cordless Rotary Hammer Read all safety warnings and all instructions. Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. V Rated voltage

No-load speed Bpm Full-load impact rate

Weight Concrete Steel Wood Wood screw Hammering only function Rotation only function Rotation and hammering function Switching ON Switching OFF Disconnect the battery Clockwise rotation Counterclockwise rotation Pm Power mode Sm Save mode STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed on page 158. Standard accessories are subject to change without notice. 0000BookDH25DL.indb40000BookDH25DL.indb4 2017/12/0116:42:492017/12/0116:42:495 English APPLICATIONS Rotation and hammering function ○ Drilling anchor holes ○ Drilling holes in concrete ○ Drilling holes in tile Rotation only function ○ Drilling in steel or wood (with optional accessories) ○ Tightening machine screws, wood screws (with optional accessories) Hammering only function (Model DH25DAL and DH36DAL only) ○ Light-duty chiselling of concrete, groove digging and edging. SPECIFICATIONS The specifi cations of this machine are listed in the Table on page 158. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. Table 1 Indications of the pilot lamp The pilot lamp lights or blinks in red. Before charging Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Charging impossible Flickers Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Malfunction in the battery or the charger The pilot lamp lights in green. Overheat standby Lights Lights continuously Battery overheated. Unable to charge. (Charging will commence when battery cools) (2) Regarding the temperatures and charging time of the battery The temperatures and charging time will become as shown in Table 2. Table 2 Charger Battery UC36YRSL Charging voltage V 25.2 36 Type of battery Li-ion Weight kg 0.7 Temperatures at which the battery can be recharged 0oC – 50oC Charging time for battery capacity, approx. (At 20oC)

60 (14 cells) 60 (10 cells

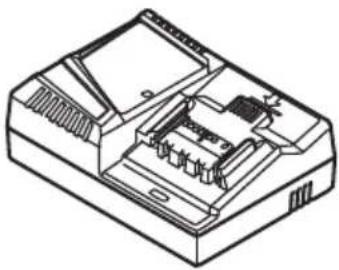

CHARGING Before using the power tool, charge the battery as follows.

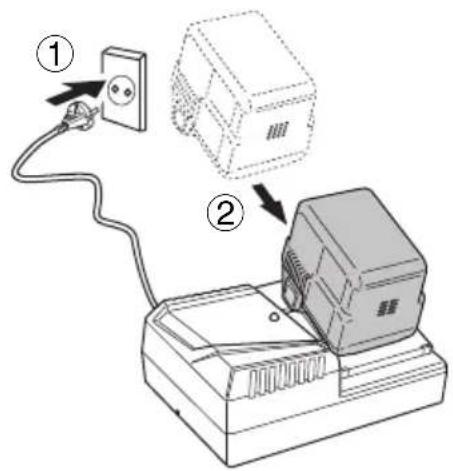

1. Connect the charger’s power cord to a receptacle.

When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1-second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 2.

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red (At 1-second intervals). (See Table 1) (1) Pilot lamp indication The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery. 0000BookDH25DL.indb50000BookDH25DL.indb5 2017/12/0116:42:502017/12/0116:42:506 English NOTE The charging time may vary according to temperature and power source voltage.

4. Disconnect the charger’s power cord from the

5. Hold the charger fi rmly and pull out the battery.

NOTE After charging, pull out batteries from the charger fi rst, and then keep the batteries properly. CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green. In such a case, fi rst let the battery cool, then start charging. ○ When the pilot lamp fl ickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. ○ Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with UC36YRSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

MOUNTING AND OPERATION

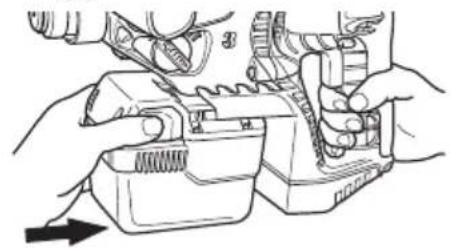

Action Figure Page Removing and inserting the battery

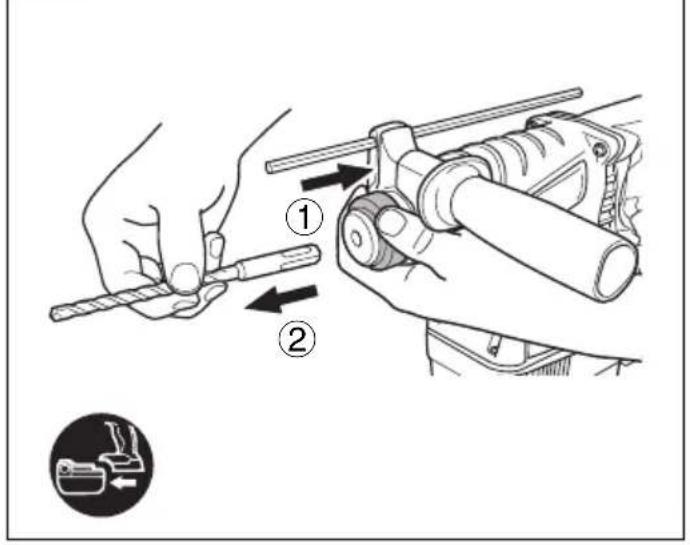

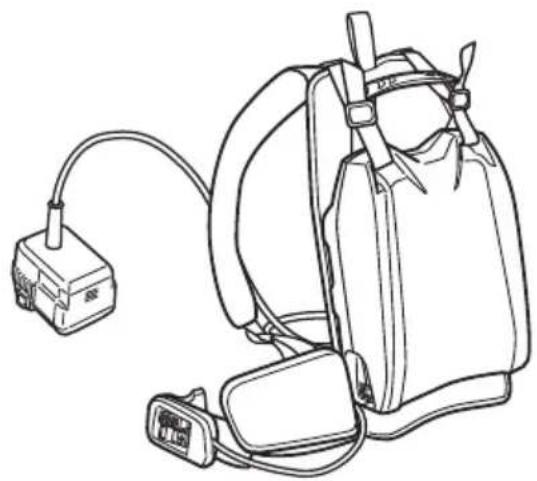

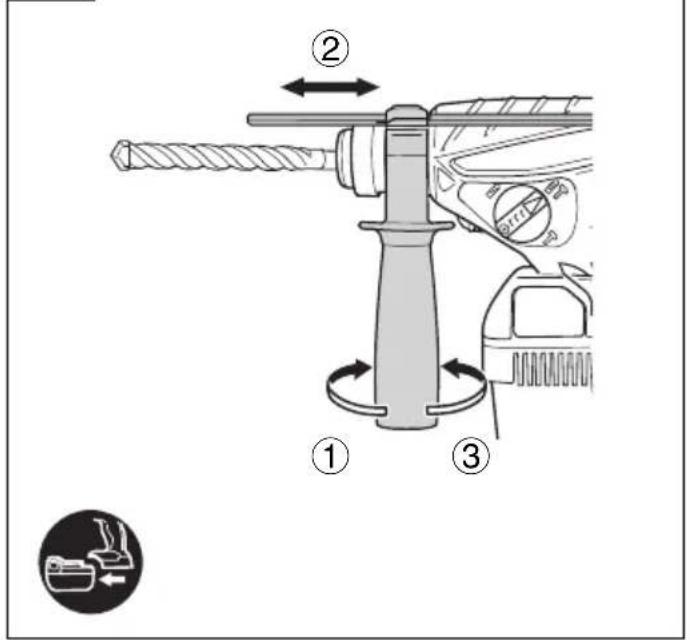

Inserting SDS-plus drilling tools 4 159 Removing SDS-plus drilling tools 5 160 Selecting rotation direction 6 160 Selecting the operating mode 7 160 Adjusting the drilling depth 8 160 Changing the chisel position 9 160 Selecting the Save/Power mode 10 161 Switch operation 11 161 Selecting accessories* ― 162

• For detailed information regarding each tool, contact a HiKOKI authorized service center. LUBRICATION Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for grease replacement when any grease is leaking form loosened screw. Further use of the rotary hammer despite the grease shortage causes damage to reduce the service life. CAUTION A specifi c grease is used with this machine, therefore, the normal performance of the machine may be badly aff ected by use of diff erent grease. Please be sure to let one of our service centers to undertake replacement of the grease.

MAINTENANCE AND INSPECTION

CAUTION Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Inspecting the tool

Since use of as dull tool will degrade effi ciency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

Store the power tool in a place in which the temperature is less than 40°C and out of reach of children. NOTE Make sure that the battery is fully charged when stored for a long period (3 months or more). The battery with smaller capacity may not be able to be charged when used, if stored for a long period. NOTE Storing lithium-ion batteries. Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). GUARANTEE We guarantee HiKOKI Power Tools in accordance with statutory/country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. 0000BookDH25DL.indb60000BookDH25DL.indb6 2017/12/0116:42:502017/12/0116:42:507 English Information concerning airborne noise and vibration The measured values were determined according to EN60745 and declared in accordance with ISO 4871. Measured A-weighted sound power level: 103 dB (A) Measured A-weighted sound pressure level: 92 dB (A) Uncertainty K: 3 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined according to EN60745. [DH36DAL] Hammer drilling into concrete: Vibration emission value

[DH25DAL] Hammer drilling into concrete: Vibration emission value

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Cordless Rotary Hammer, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.

A. Nakagawa Corporate Offi cer
