26010 - Coffee grinder KORONA - Free user manual and instructions

Brand	KORONA
Model	26010
Product type	Electric coffee grinder
Use	Private household
Max. bean capacity	40 g
Power supply	220 - 240 V ~ 50/60 Hz
Dimensions (approx.)	12 x 12 x 22 cm
Weight (approx.)	0.5 kg
Housing material	Plastic
Blade material	Stainless steel
Control type	Push button (Pulse function)
Continuous operation time (CO-Time)	30 seconds
Operating cycles	3 cycles of 30 s with 1 min pause, then rest for 60 min
Safety features	Safety switch (lid), overheat protection
Maintenance and cleaning	Clean with a damp cloth and a soft brush; do not immerse in water
Warranty	2 years
After-sales service	KORONA Service, Am Steinbach 9, 59872 Meschede, Germany; [e-mail]

Frequently Asked Questions - 26010 KORONA

How to use the KORONA 26010 coffee grinder?

Fill the bowl with coffee beans (max 40 g). Position the lid correctly, plug in the appliance, and press the On/Off button in pulses of a few seconds (no more than 30 seconds continuously). Release to stop.

Can I grind more than 40 g of coffee at once?

No, the maximum capacity is 40 g. Do not exceed this amount to avoid overloading the motor.

How long can I operate the grinder continuously?

The continuous operation time (CO-Time) is a maximum of 30 seconds. After 3 cycles of 30 seconds (with a 1-minute pause in between), let the appliance cool down for about 60 minutes.

How to clean the coffee grinder?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. Use a soft brush or a dry cloth to remove coffee residues inside. The lid can be washed in warm water with a mild detergent.

Can I grind foods other than coffee beans?

No, this appliance is designed only for grinding coffee beans. Do not process hard foods like nuts, ice, or chocolate.

What to do if the appliance does not start?

Check that the lid is correctly positioned: the appliance has a safety switch that prevents starting if the lid is not in place. Also ensure the plug is connected.

Can I use the coffee grinder with an external timer?

No, the appliance is not designed to operate with an external timer or a separate remote control system.

What is the required power supply voltage?

The appliance operates on a voltage of 220-240 V ~ 50/60 Hz. Check that the local voltage matches before plugging in.

How to store the appliance after use?

Store the coffee grinder in a clean, dry place out of reach of children. Wrap the power cord around the storage provided under the appliance.

Where can I get my KORONA coffee grinder repaired?

For any repairs, contact KORONA after-sales service at: KORONA Service, Am Steinbach 9, 59872 Meschede, Germany, or by email at [e-mail].

USER MANUAL 26010 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for grinding a small amount of coffee beans. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

! General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
  Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

if the cord is damaged.
in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.
- Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Only use the appliance for its intended purpose (grinding coffee beans) and as described in this manual.
• Place the appliance on an even and heat resistant surface.
• Before switching on the appliance, make sure that the lid is properly secured onto the motor block.
• Never touch the rotating parts/blades with your hair and/or other objects when using the appliance. This could lead to serious injuries and/or damage to the appliance.
• If the cutting knife should experience any problems during operation, switch off the appliance, disconnect it from the mains and remove the blockage.
• Never let the appliance run empty.

• Never process any hard foods, e.g. nuts, ice, chocolate, etc

• Do not add any liquid.

• If necessary, only remove the coffee powder with a soft brush. Appliance must be switched off.
• Do not expose the appliance to direct sunlight and do not use it in the vicinity of heat generating appliances.
• Keep the appliance out of the reach of children.
  CO-Time: 30 seconds

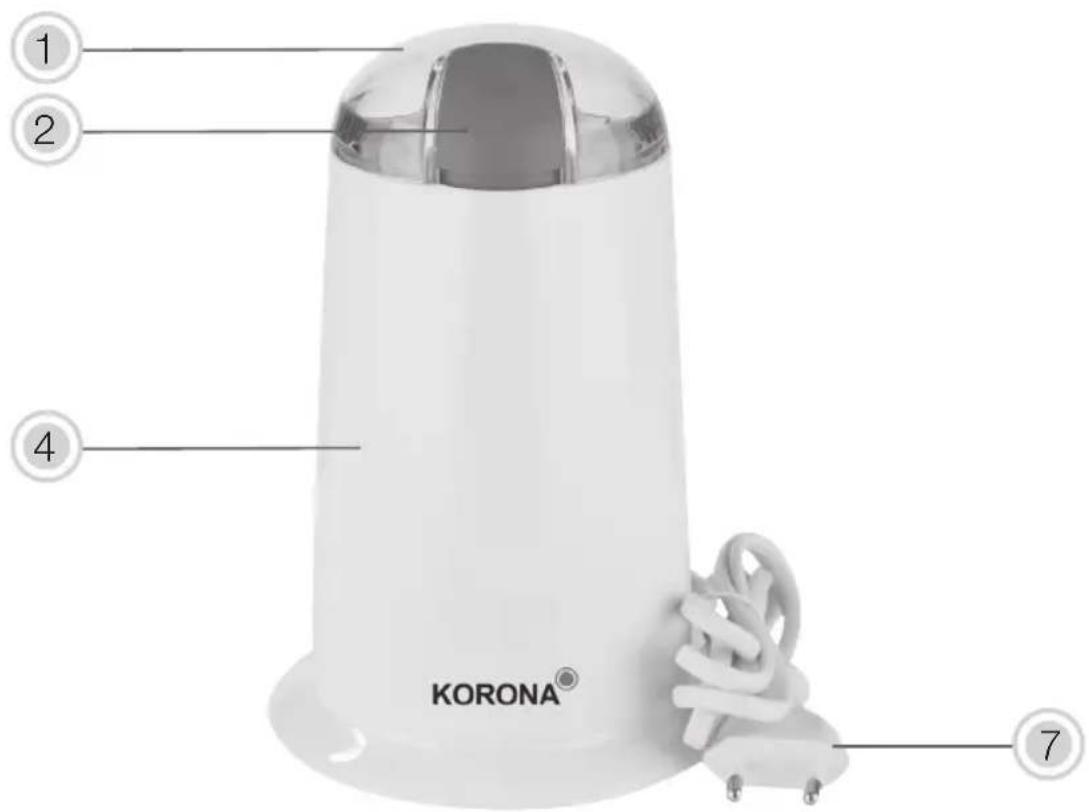

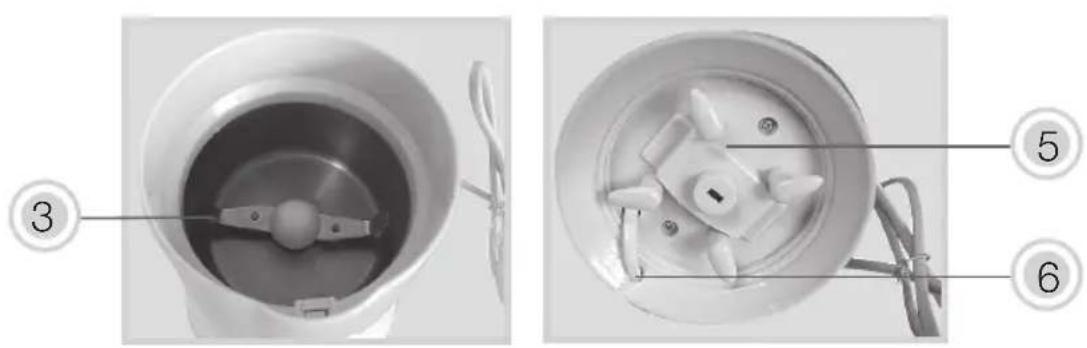

Product Description

1. Lid
2. On/Off Switch
3. Blade assembly
4. Motor block
5. Cord storage
6. Cable guide
7. Power cord and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
• Place the appliance onto an even and heat resistant surface.
• Fully unwind the power cord (7) and make sure that the power cord (7) is clamped into the cable guide underneath the appliance.
• Clean the appliance as specified under "Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

Your Coffee Grinding can be used to grind small amounts of coffee beans (max. 40g).

Never touch the rotating parts/blades with your hands

and/or other objects when using the appliance. This could lead to serious injuries.

Tip: Grind your coffee as closely to brewing as possible in order to get the full flavor of your beans!

• Remove the lid (1) from the motor block (4) and fill it up with coffee beans (max. 40g).
• Put the coffee beans into the coffee grinder (max to the edge of the stainless steel rim).

• Place the lid (1) onto the motor block (4) and make sure that it is securely engaged. If the lid (1) is not positioned, the appliance cannot be switched on. The on/off button (2) should be facing towards you.

• Connect the power plug (7) to a properly installed socket.

• To start the grinding process, briefly press down the on/off (2) button for several seconds in a row (pulse function), but no longer than 30 seconds at a time.
• If during the grinding process, coffee starts to accumulate at the rim of the appliance, shake the appliance gently and wait for the coffee powder to fall back inside. Then continue with the grinding process.
• Once the grinding process is complete and/or the coffee powder meets your requirements, release the on/off button (2) of the appliance and disconnect it from mains.
• Shake the appliance gently and remove the lid.
• The coffee power can be removed by using a soft brush.

The coffee powder quality is influenced by the quantity of coffee beans added and the length of folding. The longer you grind the coffee beans, then the coffee powder.

Attention: The appliance is equipped with a pulse

switch which does not engage. Once the on/off button released the appliance switches off, automatically.

Warning: DO NOT operate the appliance longer than

30 seconds (CO-time) at a time. After a 3 times 30 seconds use with a 1 minute rest between each cycle. Afterwards, the coffee grinder should be allowed to cool down for approx. 60 minutes.

Safety Switch

! Safety Switch: This appliance has an integrated safety switch and can only be switched on when the lid is properly positioned onto the motor unit.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the motor block in water. Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents. Remove coffee powder residue inside the appliance with a soft brush or a dry cloth.

The lid can be cleaned in warm water using some dishwashing detergent, rinse it afterwards and dry it thoroughly.

! Cleaning and user maintenance shall not be made by children without supervision.

The blade assembly is extremely sharp. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special on points for disposal or your local dealer.

Your Coffee Grinding 26010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V ~ 50 / 60 Hz

Rated Power: 140 W

Max. Capacity: 40 g

CO-Time: 30 seconds

Protection Class: II

CO-Time: The CO-Time (Continuous Time) describes the time how long an appliance may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Subject to change without notice!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
