USER MANUAL EC 129 HITACHI

Technical line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

WARNING

Improper and unsafe use of this compressor can result in death or serious bodily injury!

This manual contains important information about product safety.

Please read and understand this manual before operating the compressor.

Please keep this manual available for others before they use the compressor.

AVERTISSEMENT

IMPORTANT INFORMATION ....3

MEANINGS OF SIGNAL WORDS ....3

SAFETY

IMPORTANT SAFETY INSTRUCTIONS

FOR USE OF THE COMPRESSOR ....4

REPLACEMENT PARTS 6

GROUNDING INSTRUCTIONS ....7

EXTENSION CORD 7

Page

SERVICE AND REPAIRS 13

PARTS LIST 38

TABLE DES MATIÈRES

Français

Page

INFORMATIONS IMPORTANTES ....14

SIGNIFICATION DU VOCABULAIRE DE SIGNALISATION ....14

SÉCURITÉ

CONSIGNES DE SÉCURITÉ IMPORTANTES

POUR L'UTILISATION DU COMPRESSEUR .....15

PIÈCES DE RECHANGE ....17

INSTRUCTIONS DE MISE À LA TERRE .....18

CORDON DE RALLONGE 18

Page

UTILISATION ET ENTRETIEN

NOM DES PIÈCES ....20

SPECIFICATIONS 21

ACCESSOIRE 21

APPLICATIONS 21

Read and understand all of the operating instructions, safety precautions and warnings in the Instruction Manual before operating or maintaining this compressor.

Most accidents that result from compressor operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the compressor and in this Instruction Manual.

Never use this compressor in a manner that has not been specifically recommended by HITACHI, unless you first confirm that the planned use will be safe for you and others.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE COMPRESSOR

⚠ WARNING: Death or serious bodily injury could result from improper or unsafe use of compressor. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

Never place your hands, fingers or other body parts near the compressor's moving parts. Never insert your fingers or other objects into the housing's ventilator. Such an action invites the danger of injuries or electric shocks.

2. NEVER OPERATE WITHOUT ALL GUARDS IN PLACE.

Never operate this compressor without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety features, be sure to replace the guard or safety features before resuming operation of the compressor.

3. ALWAYS WEAR PROTECTION.

Risk of injury. Always wear ANSI Z87.1 safety glasses or equivalent eye protection. Compressed air must never be aimed at anyone or any part of the body. Use ear protection as air flow noise is loud when draining.

4. PROTECT YOURSELF AGAINST ELECTRIC SHOCK.

Prevent body contact with grounded surfaces such as pipes, radiators, ranges and refrigeration enclosures. This compressor must be properly grounded. Never operate the compressor in damp or wet locations. To reduce risk of electric shock, do not remove cover.

5. DISCONNECT THE COMPRESSOR.

Always disconnect the compressor from the power source and remove the compressed air from the air tank before servicing, inspecting, maintaining, cleaning, replacing or checking any parts.

6. AVOID UNINTENTIONAL STARTING.

Do not carry the compressor while it is connected to its power source or when the air tank is filled with compressed air. Be sure the knob of the pressure switch in the "OFF" position before connecting the compressor to its power source.

7. STORE COMPRESSOR PROPERLY.

When not in use, the compressor should be stored in indoor dry place. Keep out of reach of children. Lock-out the storage area.

8. KEEP WORK AREA CLEAN.

Cluttered areas invite injuries. Clear all work areas of unnecessary tools, debris, furniture, etc.

9. CONSIDER WORK AREA ENVIRONMENT.

Risk of electric shock. Don't expose compressor to rain. Don't use compressor in damp or wet locations. Keep work area well lit and well ventilated. Risk of fire or explosion. Do not carry and operate the compressor or any other electrical device near the spray area. Do not use compressor in the presence of flammable liquids or gases. Compressor produces sparks during operation. Never use compressor in sites containing lacquer, paint, benzine, thinner, gasoline, gases, adhesive agents, and other materials which are combustible or explosive. In order to avoid damaging this compressor, do not allow the unit to be tilted more than 10° when operating.

10. KEEP CHILDREN AWAY.

Do not let visitors contact compressor extension cord. All visitors should be kept safely away from work area.

11. DRESS PROPERLY.

Do not wear loose clothing or jewelry. They can be caught in moving parts. Wear protective hair covering to contain long hair.

12. DON'T ABUSE CORD.

Never yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.

13. MAINTAIN COMPRESSOR WITH CARE.

Follow instructions for lubricating. Inspect cords periodically and if damaged, have repaired by authorized service center. Inspect extension cords periodically and replace if damaged.

14. OUTDOOR USE EXTENSION CORDS.

When compressor in used outdoors, use only extension cords intended for use outdoors and so marked.

15. STAY ALERT.

Watch what you are doing. Use common sense. Do not operate compressor when you are tired. Compressor should never be used by you if you are under the influence of alcohol, drugs or medication that makes you drowsy.

16. CHECK DAMAGED PARTS AND AIR LEAK.

Before further use of the compressor, a guard or other part is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, air leak, and any other conditions that may affect its operation.

A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this Instruction Manual.

Have defective pressure switches replaced by authorized service center.

Do not use compressor if switch does not turn it on and off.

17. NEVER USE COMPRESSOR FOR APPLICATIONS OTHER THAN THOSE SPECIFIED.

Never use compressor for applications other than those specified in the Instruction Manual.

18. HANDLE COMPRESSOR CORRECTLY.

Operate the compressor according to the instructions provided herein. Never allow the compressor to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

19. KEEP ALL SCREWS, BOLTS AND COVERS TIGHTLY IN PLACE.

Keep all screws, bolts, and covers tightly mounted.

Check their conditions periodically.

20. KEEP MOTOR AIR VENT CLEAN.

The motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.

21. OPERATE COMPRESSOR AT THE RATED VOLTAGE.

Operate the compressor at voltages specified on their nameplates.

If using the compressor at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and burn out the motor.

22. NEVER USE A COMPRESSOR WHICH IS DEFECTIVE OR OPERATING ABNORMALLY.

If the compressor appears to be operating unusually, making strange noises or vibration, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

23. DO NOT WIPE PLASTIC PARTS WITH SOLVENT.

Solvents such as gasoline, thinner, benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

24. USE ONLY GENUINE HITACHI REPLACEMENT PARTS.

Replacement parts not manufactured by Hitachi may void your warranty and can lead to malfunction and resulting injuries. Genuine Hitachi parts are available from your dealer.

25. DO NOT MODIFY THE COMPRESSOR.

Do not modify the compressor. Always contact the Hitachi authorized service center any repairs. Unauthorized modification may not only impair the compressor performance but may also result in accident or injury to repair personnel who do not have the required knowledge and technical expertise to perform the repair operations correctly.

26. PUSH THE KNOB OF THE PRESSURE SWITCH TO OFF WHEN THE COMPRESSOR IS NOT USED.

When the compressor is not used, push the knob of the pressure switch OFF, disconnect it from the power source and open the drain cock to discharge the compressed air from the air tank.

To reduce the risk of burns, do not touch tubes, heads, cylinder and motors.

28. DO NOT DIRECT AIR STREAM AT BODY.

Risk of injury, do not direct air stream at persons or animals.

Never use compressed air for breathing or respirators.

29. DRAIN TANK.

Risk of bursting. Water will condense in the air tank. If not drained, water will corrode and weaken the air tank causing a risk of air tank rupture. Drain tank daily or after 4 hours of use.

To drain tank open valve slowly and tilt compressor to empty accumulated water.

30. DO NOT STOP COMPRESSOR BY PULLING OUT THE PLUG.

This could result in damage to the unit.

Use the "ON/OFF" knob of pressure switch.

31. MAKE SURE THE COMPRESSOR OUTLET PRESSURE IS SET LOWER THAN THE MAXIMUM OPERATING PRESSURE OF THE TOOL.

Too much air pressure causes a hazardous risk of bursting. Check the manufacturer's maximum pressure rating for air tools and accessories. The regulator outlet pressure must never exceed the maximum pressure rating.

32. DO NOT ATTEMPT TO OPERATE THIS COMPRESSOR WITHOUT FIRST ADDING OIL TO THE CRANKCASE.

The compressor is shipped without oil in the crankcase.

Serious damage can result from even limited operation unless filled with oil and broken in correctly. Make sure to closely follow initial prior to operation procedures.

SAFETY — Continued

33. THE SAFETY VALVE MUST WORK PROPERLY.

Risk of bursting. Before starting the compressor pull the ring on the safety valve to make sure the valve moves freely. If the safety valve does not work properly, over-pressurization may occur, causing air tank rupture or an explosion.

34. USE OF THIS PRODUCT WILL EXPOSE YOU TO CHEMICALS KNOWN TO THE STATE OF CALIFORNIA.

Use of this product will expose you to chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Avoid inhaling vapors, and wash hands after using.

REPLACEMENT PARTS

When servicing use only identical replacement parts.

Repairs should be conducted only by a Hitachi authorized service center.

SAFETY — Continued

GROUNDING INSTRUCTIONS

This compressor should be grounded while in use to protect the operator from electric shock. The compressor is equipped with a three-conductor cord and three-prong grounding type plug to fit the proper grounding type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Never connect the green (or green and yellow) wire to a live terminal. If your unit is for use on less than 150 volts, it has a plug that looks like that shown in sketch (A) in Figure on the right. An adapter, see sketches (B) and (C), is available for connecting sketch (A) type plugs to two-prong receptacles. The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground, such as a properly grounded outlet box.

NOTE: The grounding adaptor, sketch (C), is prohibited in Canada by Canadian Electrical Code Part 1. Therefore, the instructions for its use are not applicable in Canada.

We recommend that you never disassemble the compressor or try to do any rewiring in the electrical system. Any repairs should be performed only by HITACHI Service Centers or other qualified service organizations. Should you be determined to make a repair yourself, remember that the green colored wire is the "grounding" wire. Never connect this green wire to a "live" terminal. If you replace the plug on the power cord, be sure to connect the green wire only to the grounding (longest) prong on a 3-prong plug.

If in doubt, call a qualified electrician and have the receptacle checked for ground.

Ground Blade Cover of Grounded Outlet box (A)

Cover of Grounded Outlet box (B)

EXTENSION CORD

Use only three-wire extension cords that have three-prong grounding-type plugs and three-pole receptacles that accept the compressor's plug. Replace or repair damaged cord.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table shows the correct size to use depending on cord length and name plate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

MINIMUM GAGE FOR CORD SETS

	Total Length of Cord in Feet (Meter)
	0 – 25	26 – 50	51 – 100	101 – 150
	(0 – 7.6)	(7.9 – 15.2)	(15.5 – 30.5)	(30.8 – 45.7)
Ampere Rating AWGMore Not MoreThan Than
0 – 618161614
6 – 10	18	16	14	12
10 – 12	16	16	14	12
12 – 16	14	12		Not Recommended

SAFETY — Continued

WARNING:

Avoid electrical shock hazard. Never use this compressor with a damaged or frayed electrical cord or extension cord. Inspect all electrical cords regularly. Never use in or near water or in any environment where electric shock is possible.

SAVE THESE INSTRUCTIONS AND MAKE THEM AVAILABLE TO OTHER USERS OF THIS TOOL!

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the compressor.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own compressor.

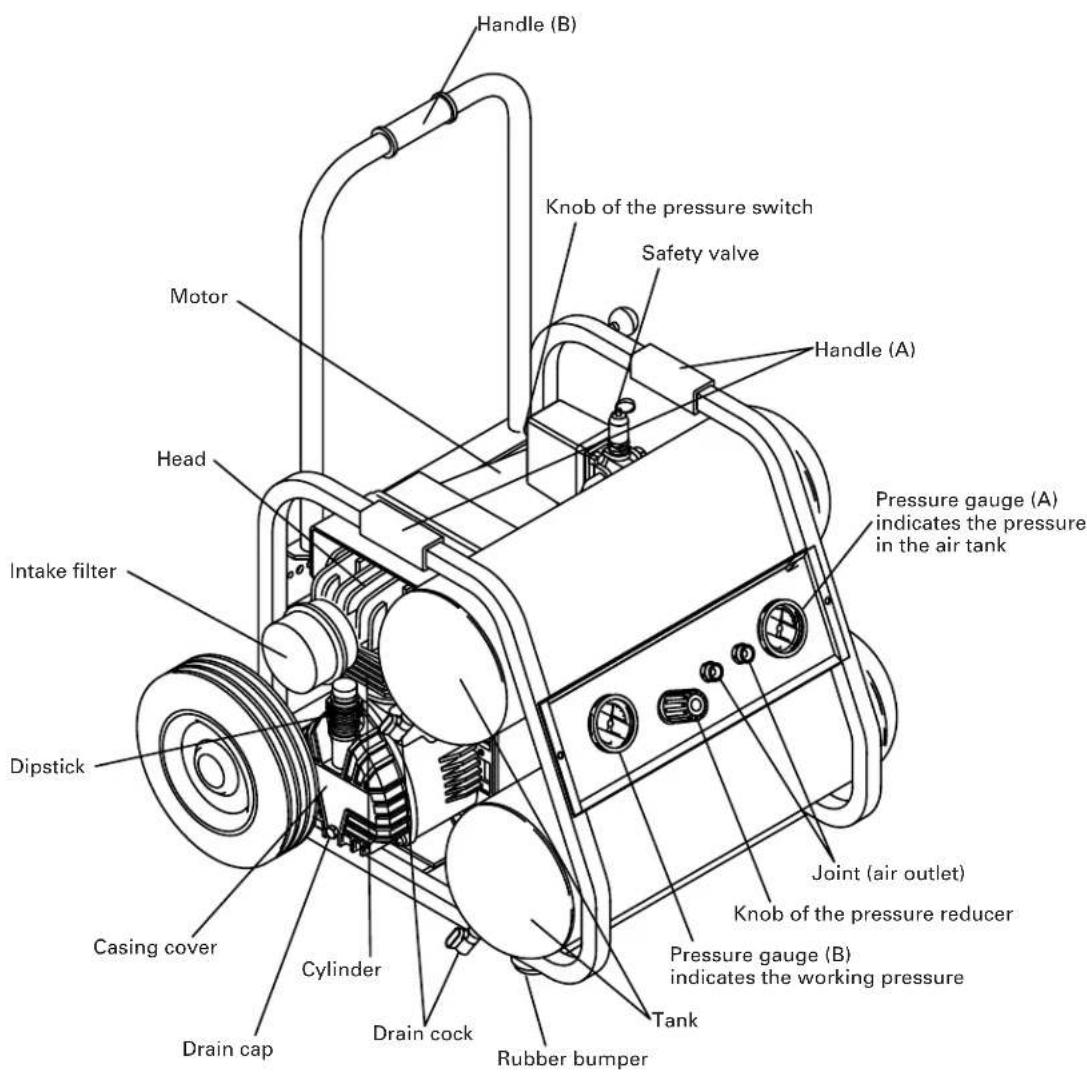

NAME OF PARTS

Handle (B) Knob of the pressure switch Safety valve Handle (A) Motor Head Pressure gauge (A) indicates the pressure in the air tank Intake filter Dipstick Joint (air outlet) Knob of the pressure reducer Casing cover Cylinder Drain cap Drain cock Tank Pressure gauge (B) indicates the working pressure Rubber bumper

Fig. 1

SPECIFICATIONS

Model EC129
Motor Single-Phase, Induction Motor
Power Source Single-Phase, 120V AC 60Hz
Output Power		2.5 HP(1.8 KW)
Current 15.0 A
Tank Capacity		5 gal.(18.9 ltr)
Maximum Pressure		125 PSI(8.6 bar)
Free Air Delivery	at 40 PSI 6.0 CFM(2.8 bar) (170 ltr/min)
	at 90 PSI 4.7 CFM(6.2 bar) (133 ltr/min)
	at 100 PSI 4.4 CFM(6.9 bar)	(125 ltr/min)
Lubrication Oil

ACCESSORY

WARNING: Accessory other than these shown below can lead to malfunction and resulting injuries.

STANDARD ACCESSORY

Dipstick 1

APPLICATIONS

○ Air source of the pneumatic nailer and stapler.

WARNING: Never use compressor for applications other than compressor for pneumatic nailer and stapler.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

2. Power switch

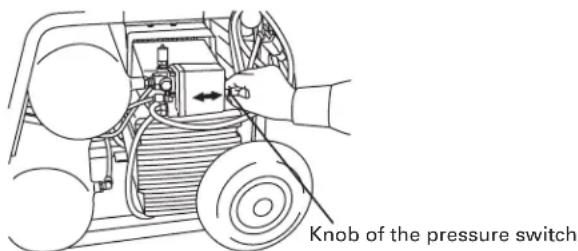

Ensure that the knob of the pressure switch is in the "OFF" position (Fig. 2). If the plug is connected to a receptacle while the knob is in the "ON" position, the compressor will start operating immediately and can cause serious injury.

Knob of the pressure switch

Fig. 2

3. Extension cord

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity (refer page 7). The extension cord should be kept as short as practicable.

WARNING: Damaged cord must be replaced or repaired.

4. Confirm the power receptacle

If the power receptacle only loosely accepts the plug, the receptacle must be repaired. Contact the nearest electric store for repair service. If such a faulty receptacle is used, may cause overheating, resulting in a serious hazard.

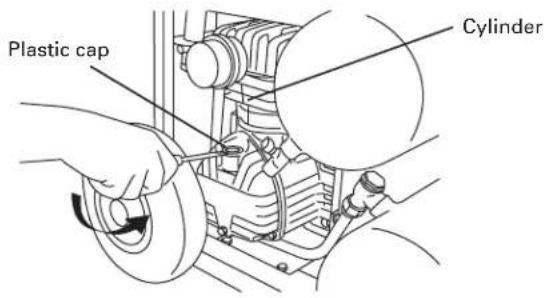

1. Dipstick insertion and oil level check Use a screwdriver or similar tool to remove the plastic cap on the lower part of the cylinder (Fig. 3).

Plastic cap Cylinder

Fig. 3

Insert the accessory dipstick all the way to the bottom. Remove the dipstick and make sure the oil level is within the range of the dipstick notches (Fig. 4).

Air vent Dipstick MAX. MIN.

Fig. 4

WARNING: Drain tank to release air pressure before removing the dipstick.

WARNING: Make sure air vent in dipstick is free from debris. If air vent is blocked pressure can build in crankcase causing damage to compressor and possible personal injury.

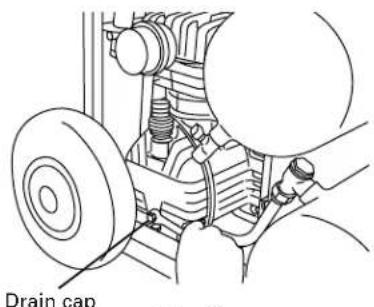

When the oil volume is insufficient, refer to the section "Oil change-oil topping off" on page 13 for a description of how to supply the oil.

1. Air coupler installation Screw in the air coupler to the joint (Refer to Fig. 1 and Fig. 7). The screw size of the joint is 3/8". Use an air coupler which has the same screw size.

2. Right running position Position the compressor on a flat surface or one with an inclination of 10^ at the most, in a well ventilated area away from atmospheric agents and not in explosive areas.

⚠️ CAUTION: In order to avoid damaging the compressor, do not allow the unit to be tilted more than 10^ when operating.

1. Correct placement of the compressor

NOTE: When operating or storing the compressor, set 4 rubber bumpers downward on the floor. (Refer to Fig. 1)

1. Temperature Operating temperatures are between 32°F and 104°F (0°C and 40°C).

CAUTION: Never operate in temperatures below 32°F (0°C) or above 104°F (40°C).

TRANSPORT

Push the knob of the pressure switch to "OFF" and disconnect it from the power source before move the compressor. Transport the compressor in the correct manner.

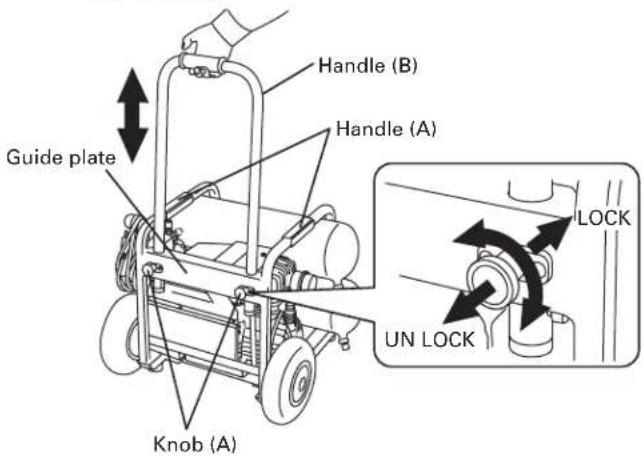

The compressor has 2 handles (A) for carrying and a handle (B) for pulling.

(1) Keep one hand on a handle (A) and sliding handle (B) out, and lock the handle (B) with the two knobs (A) on the guide plate (Fig. 5). Pull up handle (B), to move the knob (A) towards the direction for locking, and the handle (B) will lock. If the handle (B) does not lock, turn the knob (A) to lock it.

Guide plate Handle (B) Handle (A) Knob (A) LOCK UN LOCK

Fig. 5

CAUTION: Before transporting the compressor, move the handle (B) up and down, and verify that it (B) is locked.

CAUTION: Do not lean on the sliding handle, when it is extended.

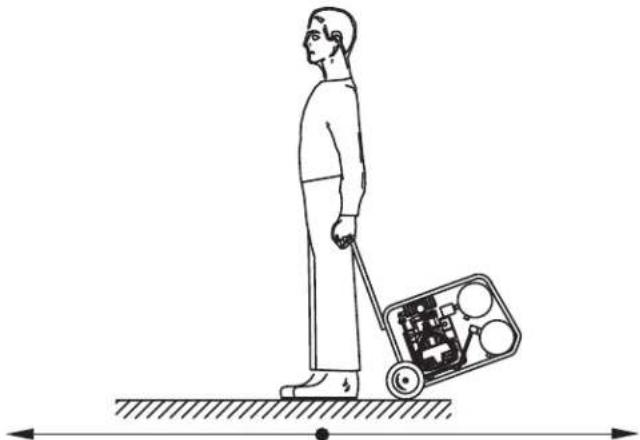

(2) Pull the compressor as shown, do not push the unit. (Fig. 6)

Line drawing of a person pushing a wheeled cart with internal components, standing on a horizontal axis (no text or symbols)

Pull, ok Fig. 6 Push, no

CAUTION: Do not use the handle (B) to lift and carry unit.

Do not push unit by handle (B). Only use handle (B) to pull unit.

NOTE: Use the handle (A) to lift or carry the unit.

(3) After transporting the compressor, unlock the handle (B) and slowly lower it (B). Pull the knob (A), and turn it ninety degrees to unlock the handle (B).

OPERATION

1. Start up

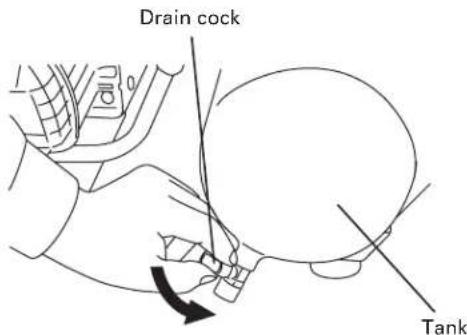

(1) Open the drain cock located at the lower part of the tank (Refer to Fig. 8).
(2) Insert the plug into the receptacle.
(3) Start the compressor by pulling the knob of the pressure switch to "ON" (Refer to Fig. 1 and Fig. 2).
(4) Close the drain cock.

WARNING: Do not stop or start the compressor by use of the plug. Always use "ON/OFF" knob located on the pressure switch.

The operation of the compressor is automatic and is controlled by the pressure switch which stops it when the pressure in the air-tank reaches the maximum level and restart it when the air pressure drops during use to the restart level.

The motor of the compressor is fitted with a thermal protection with manual reset (push-button), which stops the compressor when the temperature is too high. Should this be tripped, the compressor will restart only if reset is done.

2. Adjustment of working pressure

Unlock the knob of the pressure reducer pulling it up, adjust the pressure to the required level by turning the knob clockwise to increase and counterclockwise to decrease.

A pressure gauge (B) is provided to know when the required pressure is reached, lock the knob by pushing it down firmly (Refer to Fig. 7).

When adjusting the pressure, check and make sure that a pressure gauge for the tank has the pressure level that is higher than that of the pressure to be adjusted.

It is also imperative that you make adjustment by slowly starting up the pressure from the level that is lower than the pressure to be adjusted.

WARNING: Check the manufacturer's maximum pressure rating for nailers, staplers and accessories. Compressor outlet pressure must be regulated so as to never exceed the maximum pressure rating of the nailers, staplers and accessories.

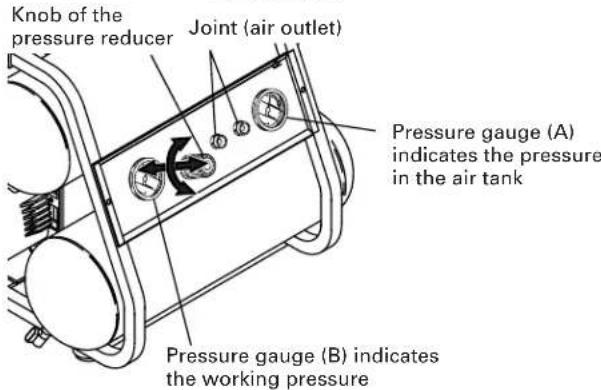

Knob of the pressure reducer Joint (air outlet) Pressure gauge (A) indicates the pressure in the air tank Pressure gauge (B) indicates the working pressure

Fig. 7

3. Shutdown

(1) Push the knob of the pressure switch to "OFF" (Refer to Fig. 1 and Fig. 2).
(2) Unplug the plug from power source.
(3) Open the drain cock located at the lower part of the tank (Fig. 8).

Drain cock Tank

Fig. 8

4. About the thermal protector

The thermal protector operates to stop the motor when a problem such as a motor overload, etc., occurs. If the motor should stop during operation, proceed as follows.

(1) Push the pressure switch knob to the "OFF" position and disconnect the plug from the receptacle (Fig. 2).

(2) If the extension cord does not conform to the specifications given on page 7 replace with an extension cord such as that shown on page 7. If the capacity of the power supply is insufficient, increase the power supply capacity to remove the cause of a flow of excessive current (over-current).
(3) Wait approximately 5 minutes, then press the reset switch of the thermal protector (Fig. 9).
(4) Open the drain cock and confirm that the pressure gauge (A) indicates 0 PSI (0 bar) (Refer to Fig. 7 and Fig. 8).
(5) Follow steps (2) to (4) in 1. Start up on page 12 and restart. If the motor still stops during operation, please contact the service center.

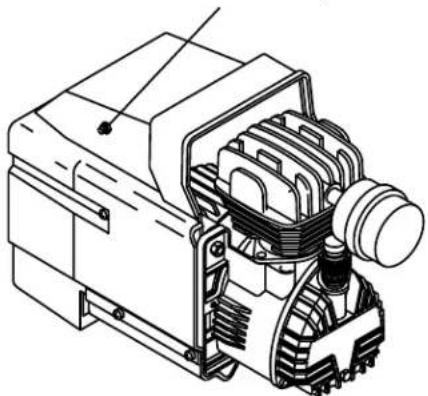

Reset switch of thermal protector

Technical line drawing of an electric motor or generator assembly (no text or symbols visible)

Fig. 9

MAINTENANCE

WARNING: Disconnect the compressor from the power source and remove the compressed air from the air tank before performing the maintenance operations. Allow the compressor to cool before performing the maintenance operations.

1. Cleaning the intake filter

Remove the intake filter (Refer to Fig. 1) every 50 hours or once a week and clean the inside of the intake filter and the filter element with compressed air (Fig. 10).

WARNING: Never clean filter element with a flammable liquid or solvent.

CAUTION : Do not operate without the intake filter.

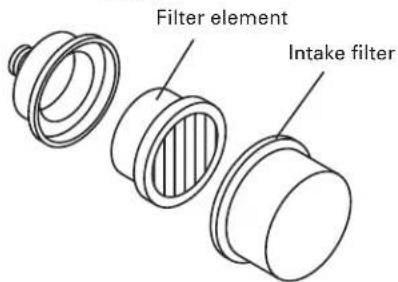

Filter element Intake filter

Fig. 10

NOTE: Replace the filter element when it becomes dirty.

2. Draining tank

Drain tank daily or after 4 hours of use. Open drain fitting and tilt compressor to empty accumulated water (Refer to Fig. 8).

3. Oil change-oil topping off

CAUTION: Overfilling with oil will cause premature compressor failure. Do not overfill.

(1) Within the first 50 hours of operation, completely replace the oil of the pumping element. Unfasten the oil drain cap on the casing cover, drain all the oil, and screw the cap back on (Refer to Fig. 1 and Fig. 11).

Drain cap

Fig. 11

Pour oil into the hole of the dipstick. To the level indicated on the dipstick (Refer to Fig. 4). For oil replacement, follow the table below.

OIL TYPE

SAE 5W50 SYNTHETIC OIL For both summer and winter use SAE 10W40 MULTI-GRADED OIL For warm weather use only

(2) Check the oil level of the pumping element every 50 hours or once a week.
(3) Change the oil every 300 working hours or every 6 months.

SERVICE AND REPAIRS

All quality compressors will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES

Line drawing of a person pushing a wheeled cart with internal components, standing on a horizontal axis (no text or symbols)

Tirer, correct Fig. 6 Tirer, non

Technical line drawing of an electric motor assembly (no text or symbols)

Fig. 9

ENTRETIEN

Line drawing of a person pushing a wheeled cart with internal components (no text or symbols)

Tirar, ok Fig. 6 Tirar, no

⚠ PRECAUCIÓN:

Technical line drawing of an electric motor or generator assembly (no text or symbols visible)

Fig.9

MANTENIMIENTO

Exploded view diagram of a mechanical device with numbered components and labeled parts

Item No.	Code No	Part Name Q'ty Reference No.
1 88	4-770 Handle (B)	1 5140540008
2 88	4-771 Rubber handle	1 7280100000
3 88	4-772 Knob (A)	2 7018720000
4 88	4-773 Tank	1 5157220008
5 88	4-774 Seeger	2 7040190000
6 88	4-775 Wheel	2 7260250000
7 88	2-610 Discharge tap (Drain cock)	2 7130440000
8 88	1-503 Infeed cable	1 7328620000
9 88	4-434 Joint	2 7080970000
10 88	4-421 Rubber (Rubber bumper)	4 7360010000
11 88	4-776 Non return valve	1 7190090000
12 88	4-777 Infeed tube	1 7231910000
13 88	2-611 Pressure switch	1 7250640000
14 88	1-680 Joint	1 7084240000
15 88	1-496 Tube	1 7230010000
16 88	1-493 Safety valve	1 7192270000
17 88	1-513 Plug	1 7090070000
18 88	1-505 Joint	1 7081140000
19 88	1-504 Blocking nut	1 7023040000
20 88	1-573 Washer	4 7030190000
21 88	1-496 Tube	1 7230010000
22 88	4-778 Instrumental panel	1 5166650008
23 88	4-430 Pressure gauge	2 7110410000
24 88	1-509 Joint	2 7085790000
25 88	1-666 Screw	9 7012240000
26 88	4-432 Joint	2 7080240000
27 88	1-678 Joint	1 7085170000
28 88	4-433 Joint	1 7080780000
29 88	4-779 Nut	4 7021040000
30 88	1-510 Pressure reducer	1 7100120000
31 88	4-435 Mainfold	1 7196950000
32 88	1-683 Screw	4 7011050000
33 88	4-780 Joint	1 7084030000
34 88	1-496 Tube	1 7230010000
35 88	4-451 Tube	1 7230080000
36 88	4-782 Base	1 5011940008
37 88	1-410 Screw	4 7012290000
38 88	4-784 Intake filter	1 7210800000
39 88	1-473 Gasket	1 7078460000
40 88	1-604 Screw	2 7011030000
41 88	1-595 Screw	3 7013090000
42 88	4-785 Joint	1 7085020000
43 88	4-454 Start valve	1 7196220000
44 88	4-786 Head	1 7570020000
45 88	4-787 Gaskets	1 4083290000
46 88	4-440 Valve plate	1 7459530000
47 88	1-419 Washer	2 7030020000
48 88	4-788 Valve	1 4081040000
49 88	1-490 Set of valves	1 4081010000
50 88	4-789 Cylinder	1 7575190000
51 88	1-489 Nut	2 7020070000
52 88	4-781 Rubber handle	2 7280120000
53 88	1-559 Piston rings	1 4080020000
54 88	1-567 Piston	1 7220020000
55 88	1-560 Piston pin	1 7050020000
56 88	1-463 Ring	2 7041010000
57 88	1-561 Con rod	1 5050150008
58 88	4-790 Thermal protector	1 7410760000
59 88	4-791 Capacitor	1 7310620000
60 88	4-792 Housing	1 7151700000
61 88	4-450 Drain cap	1 7011430000
62 88	4-793 Screw	1 7011090000
63 88	4-794 Washer	1 7038020000

Item No.	Code No	Part Name Q'ty Reference No.
64	884-795 Fan		1 720	0060000
65	884-796 Tension rod		2 701	5130000
66	884-444 Screw		1 701	3060000
67	882-585 Cover		1 511	0061008
68	881-478 Bearing		1 706	0010000
69	884-797 Motor		1 401	3310000
70	884-798 Rotor		1 509	0370008
71	881-566 Stud bolt		2 701	5020000
72	884-448 Crank case		1 507	0320008
73	881-474 Smin ring		1 707	1020000
74	881-466 Bearing		1 706	0060000
75	884-799 Crankshaft		1 504	1190008
76	881-468 Seeger 1 7040040000
77	881-469 Dipstick		1 718	1060000
78	881-470 Carter cover (Casing cover)		1 765	0020000
79	884-800 Knob (B)		2 710	1670000
80	884-801 Joint 1 7088260000
81	884-802 Rubber		2 736	0040000
82	881-401 Nut		4 702	1010000
83	884-803 Cover		1 516	5060008
84	884-804 Spacer		2 701	5430000
85	882-618 Nut		4 702	2400000
86	881-604 Screw		2 701	1030000
87	884-806 Insert		4 701	8110000
88	884-809 Nut		2 702	0150000
89	881-419 Washer		2 703	0020000
90	884-807 Screw		2 701	8730000

Parts are subject to change without any obligation on the part of HITACHI due to improvements.

Issued by

Hitachi Koki Co., Ltd.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome,

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

6395 Kestrel Road

Mississauga ON L5T 1Z5
