About This Manual

How This Manual Is Organized

This manual contains several sections:

• The Overview section describes the features and functionality, including a description of how to set it up and operate the control panel.
• The Operation section describes how to operate and get the best performance out of each component.
• The Cleaning and Maintenance section describes how to clean and maintain your appliance.
  The Service section includes troubleshooting tips and your Warranty.

Before using your appliance, be sure to read this manual. Pay special attention to the Important Safety Instructions located at the beginning of the manual.

Safety

Important Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

Important Safety

Instructions

Fire Safety · Always have a working smoke detector near the kitchen.

• WARNING - TO REDUCE THE RISK OF A GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

• In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.
• Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.
• WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENTOFARANGETOPGREASEFIRE, OBSERVETHE FOLLOWING:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off theburner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.

• Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the oven.
• Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

Child Safety

• When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
• Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. This can damage the appliance, and the unit may tip over, potentially causing severe injury.
• Do not allow children to use this appliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.
• CAUTION - Items of interest to children should not be stored in an appliance, in cabinets above an appliance or on the backsplash. Children climbing on an appliance to reach items could be seriously injured.

Proper Installation and Maintenance

• Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.
• This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded outlet. Refer to Installation Instructions for details.
• This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Warranty. If you have any questions, contact the manufacturer.
• Do not store or use corrosive chemicals, vapors, flammable or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.
• Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer.
• Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.
• CAUTION: Grease left on filters can remelt and move into the vent.

Operation

Before Using the Appliance for the First Time

A Note about Drafts: Drafts across the range or cooktop will reduce the effectiveness of the hood. Such drafts should be prevented when possible. The best job of

ventilation in the kitchen is done when the only air currents are those created by the blower itself

Operation

Control (Panel)

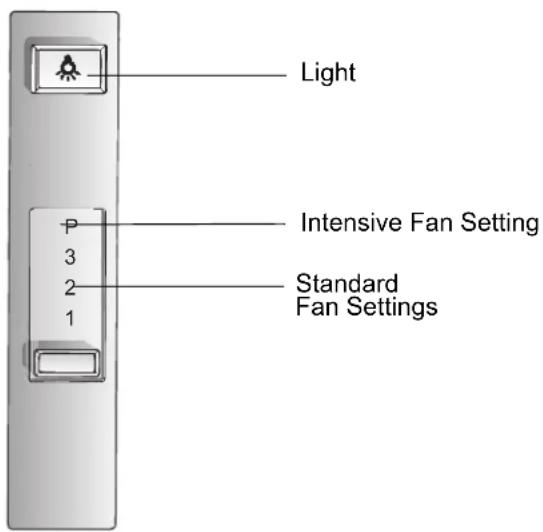

Figure 1: Control

Getting the Most out of Your Appliance

Tips (For Best Results)

The blower should be turned on for about five minutes before cooking in order to establish air currents upward through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will be carried outside instead of drifting into other rooms. Use the low speeds for normal use and the higher speeds for strong odors or fumes.

Cleaning and Maintenance

Cleaning

WARNING - Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.

Cleaning and Maintenance

Daily Cleaning Wipe with soapy water, rinse and dry.

Cleaning Guidelines

Avoid these cleaners DO NOT use the following!

• Abrasive Pads such as those made from steel wool SOS®, Brillo® or plastic mesh.
• Abrasive cleaners such as Comet®, Ajax® and Zud®.
• Flammable products such as gasoline or kerosene.

Filters

CAUTION: To avoid fire hazard, keep filters clean. Grease left on filters can remelt and migrate along the vent path.

Aluminum Filter

Removable aluminum filters must be cleaned when they collects grease. When used over a wok or other high grease application, more frequent cleaning may be required. They can be cleaned with soap and water or in the dishwasher. When clean in the dishwasher, slight discoloration may occur.

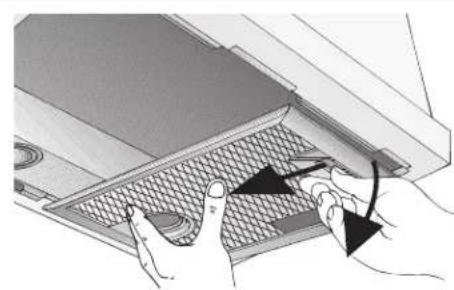

Figure 2: Aluminum Filter Removal - Step 1

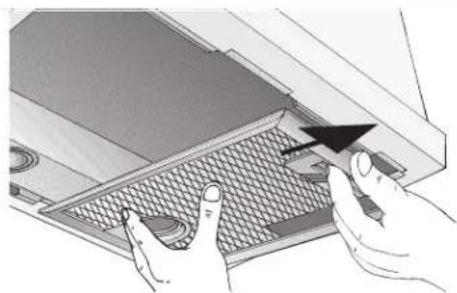

Figure 3: Aluminum Filter Removal - Step 2

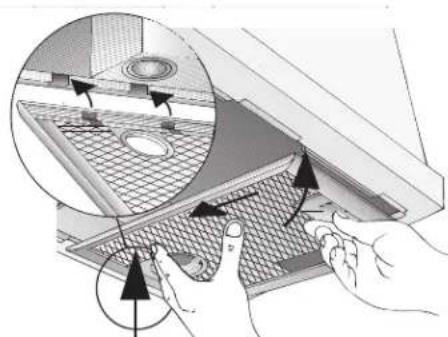

Figure 4: Aluminum Filter Removal - Step 3

Table 1: Cleaning Chart

Part or Surface Suggested Technique Notes
Plastic (Buttons) Wipe with sudsy water or household cleaners such as Fantastic® or Formula 409®, rinse well and dry with a clean soft cloth to avoid water marks.
Stainless Steel	Wipe and dry stainless steel in the same direc-tion as the grain. Avoid using too much pres-sure, which may mar the surface. To remove fin-ger prints and give added shine, use clean-ers such as Stainless Steel Magic®.	Do not allow any cleaning compounds to remain in contact with stainless steel for extended periods.
Glass Use warm soapy water and/or a mild window cleaner.

Maintenance

Lights CAUTION: Turn power off at breaker before removing a damaged bulb.

Do not touch the bulbs immediately after use. The bulbs will remain hot for several minutes.

• WARNING: Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.

• The lenses (if equipped) must be in place when using the appliance.

• The lenses (if equipped) serve to protect the light bulb from breaking.
• The lenses (if equipped) are made of glass. Handle carefully to avoid breaking. Broken glass could cause an injury.

Light Bulb Replacement Use a 12V halogen bulb (max. 20Watt) with a two pin, G4 base.

Note: DO NOT touch a new halogen bulb with your fingertips. Grasp the bulb through a clean paper towel or facial tissue. The oils from your skin can reduce the longevity of the bulb.

Use a small flathead screwdriver (or your fingernail) to remove the lens.

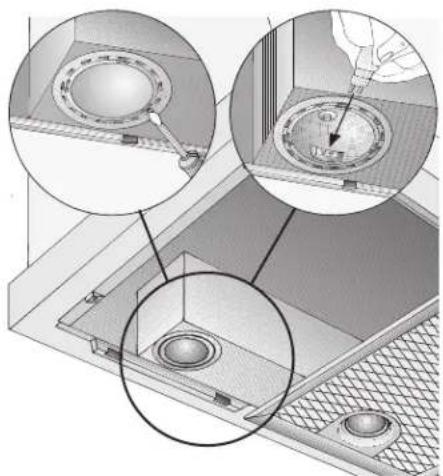

Figure 5: Light Bulb Replacement

Pull damaged bulb straight out from the socket to remove. Press pins in bulb base straight into socket until fully seated. Snap lens back into place.

Do not use cooktop while hood is disassembled, to ensure adequate ventilation.

Service

Before Calling Service

Use the suggestions in the chart below before calling for service to avoid service charges.

Troubleshooting Chart

Table 2: Troubleshooting

Problem Suggested Solution
Noise during operation Some noise is normal do to vibration and air movement. Excessive noise could indicate one of the following: 1. Ductwork is too small / undersized 2. Ductwork is too large / oversized 3. Ductwork is loose 4. Transition is too small or is loose 5. Wood screws are not fully tightened 6. Loose screws in trim parts, etc. Check Installation Instructions to verify that ductwork is the proper size. Tighten screws.
Noise when unit is off	Backflow flap on outside of duct wall cap moves with the wind. This is normal.

Table 2: Troubleshooting

Problem Suggested Solution
Fan motor does not work	1. Power supply is insufficient 2. Electrical wiring is incorrectly connected See Installation Instructions for further information
Lights hum A slight hum is normal
Hood trips breaker	1. Electrical wiring is incorrectly connected 2. Circuit is not sufficient. See Installation Instructions for further information

How to Obtain Service or Parts

Product Data Plate

To reach a service representative, see the contact information at the front of the manual. Please be prepared with the information printed on your product data plate when calling.

The data plate shows the model and serial number. Refer to the data plate on the appliance when requesting service. It is located on the frame near the drawer. Open the drawer to view it.

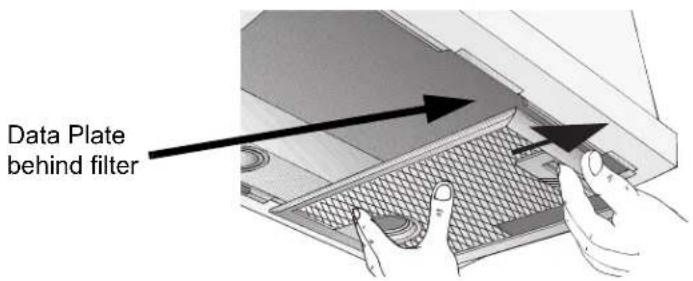

Figure 6: Data Plate Location

Warranty

General Information

The warranties provided by BSH Home Appliances Corp. in this Statement of Limited Warranty apply only to the BSH Ventilation Hood ("hood") and Internal Blower sold to you, the first using purchaser, provided that the hood and blower were purchased (1) for your use and not for resale and (2) in the United States or Canada and is located in the country of purchase. As used in this Statement of Limited Warranty, the term "Date of Installation" shall refer to the earlier of the date the hood and internal blower are installed or ten (10) business days after the date the hood and internal blower are sold to the first using purchaser, the warranties stated herein apply only to the first using purchaser and are not transferable.

Standard Limited Warranty

Standard Limited Warranty BSH warrants that its hood and internal blower are free from defects in materials and workmanship for a period of twelve (12) months from the Date of Installation. During the warranty period, BSH or its authorized service center will repair or replace, at its sole option, any hood or internal blower that proves to have been defective under conditions of normal use without charge. All removed parts and components shall become the property of BSH, at BSH's option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts.

Other Conditions of the Limited Warranties

Other Conditions of the Limited Warranties The warranties provided in this Statement of Limited Warranty exclude defects or damage resulting from (1) use of the hood or internal blower in other than its normal and customary manner (commercial use of the hood or internal blower shall not be deemed normal or customary), (2) misuse, abuse, accidents or neglect, (3) improper operation, maintenance, installation or unauthorized service, (4) adjustment or alteration or modification of any kind, (5) a failure to comply with applicable state, local, city, and county electrical and/or building codes and (6) external forces such as floods, fires, acts of God or other circumstances beyond BSH's control. Also excluded from this warranty are scratches and damages on external surfaces and exposed parts of the hood and internal blower on which the serial numbers have been altered, defaced of removed. To the extent allowed by law, this warranty sets out your exclusive remedies with respect to products covered by it, whether the claim arises in contract or tort (including strict liability and negligence) or otherwise. BSH will not be liable for consequential or incidental damages, losses, or expenses. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTY. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS WARRANTY IS EFFECTIVE. No attempt to alter, modify, or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

How to Obtain Warranty Service

How to Obtain Warranty Service To obtain warranty service for the hood or internal blower, you should contact the nearest BSH authorized service center or the BSH Customer Support Call Center, 5551 McFadden Avenue, Huntington Beach, CA 92649, 800/944-2904. Please have your model number and serial number when you call. They are printed on the inside left panel of the hood and the bottom of the internal blower.

Notice To California Owners

NOTICE TO CALIFORNIA OWNERS If your hood or internal blower needs warranty service and there is no authorized BSH service center reasonably close to you, you may notify the BSH reseller from whom you purchased the hood or internal blower. If the BSH reseller fails to repair or replace the defective parts, or partially refund your purchase price (where applicable), you may have the hood or internal blower repaired at any large appliance repair shop or center and you will be reimbursed for all reasonable expenses provided the costs are substantiated in writing and the work performed is covered by this warranty. BSH shall not reimburse any repair costs hereunder which exceed the depreciated value of the hood or internal blower.
