USER MANUAL HUI54452UC BOSCH

Register youroppliance and jointhe Bosch

family of perks:

b Bosch-home.com/us/ mybosch

Hood

HUI54452UC

[en-us] Use and Care Manual Hood 2

1 IMPORTANT SAFETY INSTRUCTIONS 3

1.1 Safety definitions 3
1.2 General information 3
1.3 Safe use 3
1.4 Child safety 5
1.5 Proper installation and maintenance 6
1.6 State of California Proposition 65Warnings 6

2 Preventing material damage 7

3 Environmental protection and energy-saving 7

3.1 Disposal of packaging 7
3.2 Saving energy 7

4 Operating modes 7

4.1 Exhaust-air mode 7
4.2 Air recirculation mode 7

5Familiarizing yourself with your appliance 8

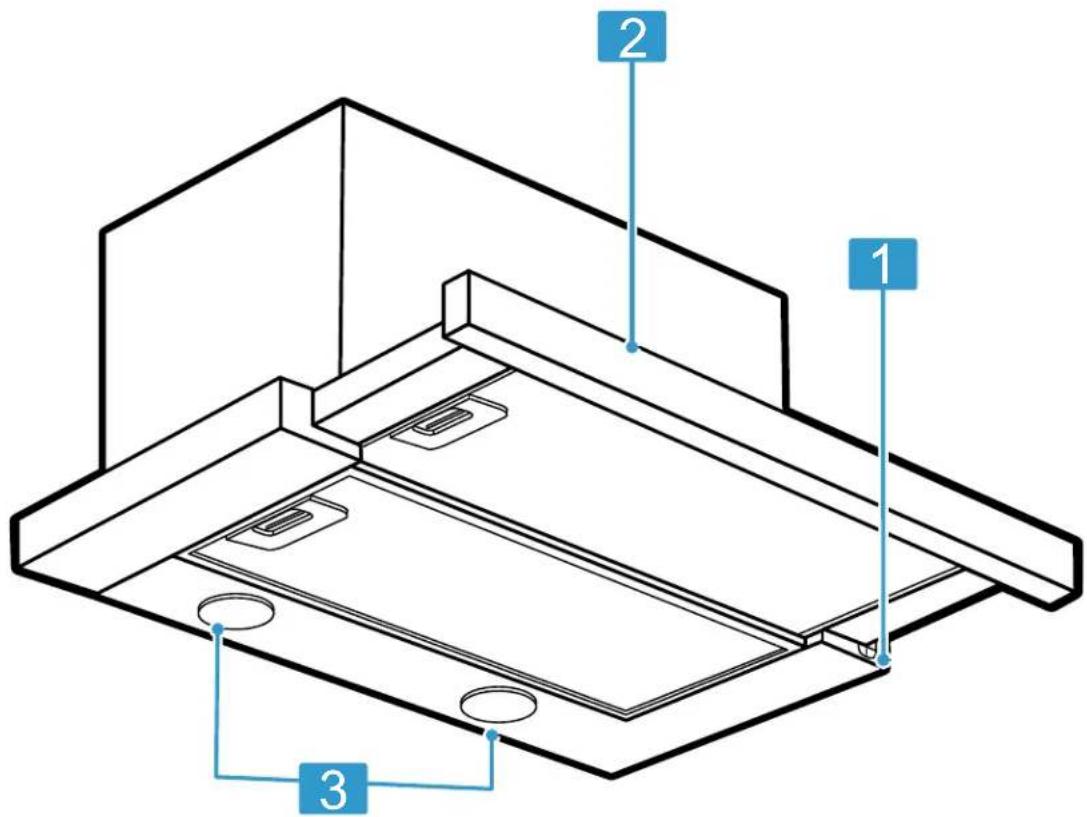

5.1 Appliance 8

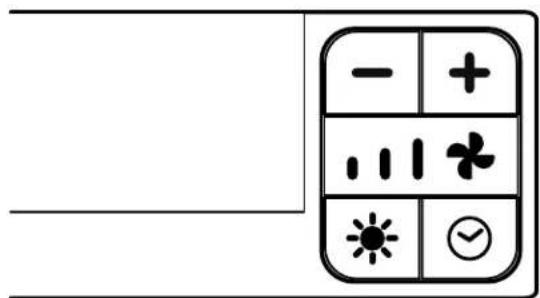

5.2 Controls 8
5.3 Basic Operation 9

6 Cleaning and maintenance. 9

6.1 Cleaning agents 9
6.2 Cleaning the appliance 10

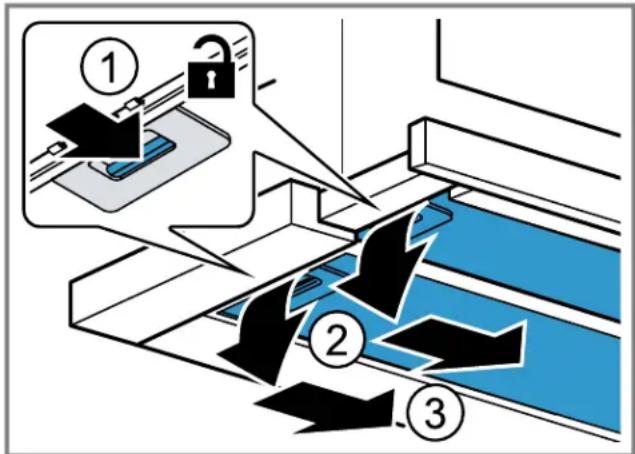

6.3 Removing grease filter 10
6.4 Fitting the grease filters.. 10
6.5 Optional odor filter replacement 10

7 Troubleshooting 11

8 Accessories. 11

9 Disposal 11

9.1 Disposal of your old appliance 11

10 Customer Service 11

10.1 Model number (E-Nr.) and production number (FD) 12

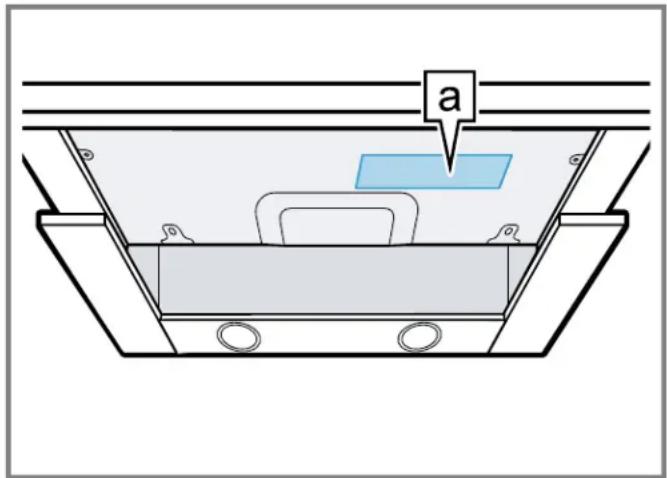

10.2 Rating plate location 12

11 STATEMENT OF LIMITED PRODUCT WARRANTY. 12

11.1 What this warranty covers & Who it applies to.... 12
11.2 How long the warranty lasts 12
11.3 Repair/replace as your exclusive remedy. 12
11.4 Out of warranty product.. 13
11.5 Warranty exclusions 13
11.6 Obtaining warranty service 14
11.7 Product information.. 14

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

Read all of the instructions carefully before using the appliance. In order to reduce the risk of fire, electric shocks and personal injuries when using the appliance, follow the basic safety precautions, including the following safety instructions.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observation of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

Here you can find general information about this manual.

Please read this manual carefully.
- Observe the safety instructions and warnings.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
- Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.

This appliance is intended for use up to a maximum height of 6,560 feet (2000 meters) above sea level.

1.3 Safe use

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable.

Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons.
- When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

CAUTION

For General Ventilating Use Only.

Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE

• Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat.
  Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.
  Do not flambé food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé) under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!.

A fire could occur during cooking.

Always have a working smoke detector near the kitchen.
- Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Do Not Use Water on Grease Fires.
Smother fire or flame or use dry chemical or foam-type extinguisher.

There is a risk of fire, if cleaning is not carried out in accordance with the instructions in the section on cleaning and maintenance Page 9. Grease deposits in the grease filter can ignite.

Clean the grease filter at least every two months or more often if necessary.
- Never operate the appliance without the grease filter. Grease deposits in the grease filter can catch fire.
- Never work with a naked flame near the appliance (e.g. flambéing).
Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no flying sparks.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooktop may become damaged or catch fire.

• Only operate the gas burners with cookware on them. During simultaneous use of multiple gas burners, a great deal of heat is created. A ventilation device located above it can become damaged or catch fire.
• Never use two gas burners together at maximum heat for longer than 15 minutes.
  One large burner with over 17,000 BTU/hr (5 kW) (wok) is equal to the wattage of two gas burners.

Operating several gas burners at the same time gives rise to a great deal of heat. The ventilation appliance may become damaged or catch fire.

The ventilation appliance must only be combined with gas burners that do not exceed the maximum total output of 61,000 BTU/hr (18 kW). If 41,000 BTU/hr (12 kW) is exceeded, the local regulations concerning room ventilation, room size, and combination with ventilation devices in exhaust and recirculating operation must be followed.

Hot oil and fat catch fire fast.

Never leave hot oil and fat unsupervised.
Never extinguish a fire with water.
Switch off the cooking position.
- Suffocate flames carefully with a lid, a fire blanket or similar.

WARNING

The accessible parts get hot during operation.

Never touch hot parts.
- Keep children away.

Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.

WARNING

Do not operate any extractor hood with a damaged cord or plug.

• Discard fan or return to an authorized service facility for examination and/or repair.

Do not run cord under carpeting.

• Do not cover cord with throw rugs, runners, or similar coverings.
  Do not route cord under furniture or appliances.
• Arrange cord away from traffic area and where it will not be tripped over.

WARNING

Items placed on the appliance may fall down.

• Do not place any objects on the appliance. Storage in or on Appliance - The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.
  Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units.
  The appliance is specifically designed for use when heating or cooking food.

This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING.

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - You may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

Based on "Kitchen Fire Safety Tips" published by NFPA.

WARNING

Flames can be drawn into the ventilation system.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

WARNING

The light emitted by LED lights is very dazzling, and can damage the eyes.

Do not look directly into the switched-on LED lights for longer than 100 seconds.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

Moisture intrusion may cause an electric shock.

• Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

"Customer Service", Page 11

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

WARNING

To avoid risk of injury from a damaged appliance or power cord, observe the following.

• Never operate a damaged appliance.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet.
  If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the breaker in the circuit breaker box.
• Call Customer Service. Page 11

WARNING

While cooking food items, small amounts of certain byproducts, such as particulate matter / soot, can be released. To minimize exposure to these substances:

Always ensure proper ventilation by using an appropriate ventilation fan or hood vented to the outside and/or an open window.
Always operate the unit according to the instructions in this manual.

WARNING

Overheated materials can cause fire or burns and may produce potentially harmful smoke or fumes.

To prevent overheating, turn ventilation hood ON when heating grease, fats or frying using medium to high heat settings.
Avoid heating empty pots and pans.
Do not allow pans to boil dry.
Do not allow aluminum foil, plastic, paper, or cloth to come in contact with a hot surface element, burner, or grate.

WARNING

To avoid risk of fire, do not leave the cooktop unattended while in use. Unattended cooking can lead to fire hazards, property damage, and injury. Always supervise cooking, especially when using high heat with oils and fats.

Boilovers may cause smoking and greasy spillovers may ignite.

1.4 Child safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

Do not allow children to use this appliance unless closely supervised by an adult.

Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance.

CAUTION

Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance.

Children climbing on the appliance to reach items could be seriously injured.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

Remove all tape and packaging before using the appliance.

• Destroy the packaging after unpacking the appliance.
• Dispose of packaging in an environmentally responsible manner.
  Never allow children to play with packaging material.

1.5 Proper installation and maintenance

WARNING

In the event of a malfunction, it might become necessary to turn off the power supply.

• Have the installer show you the circuit breaker or fuse. Mark it for easy reference.

To avoid electrical shock hazard, before servicing the appliance, turn power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

Proper Installation - Improper installation or grounding can cause electric shock.

This appliance must be properly installed and grounded by a qualified technician.
Connect only to properly grounded outlet.
Refer to installation instructions for details.

User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual.

• Improper installation, service or maintenance can cause injury or property damage.
  Refer to this manual for guidance.
  All other servicing should be referred to an authorized service provider.

WARNING

Hidden surfaces may have sharp edges.
Use caution when reaching behind or under appliance.

WARNING

Malfunctions can cause injuries.

Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized service provider.

WARNING

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

Safe operation is possible provided that the under pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).
This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

CAUTION

Grease left on filters can remelt and move into the vent.

WARNING

Avoid carbon monoxide poisoning - Provide adequate air intake so combustion gases are not drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as cooktops and ovens.

WARNING

To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

1.6 State of California Proposition 65Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Preventing material damage

NOTICE:

Condensation may cause corrosion damage.

• To prevent condensation from building up, switch on the appliance during cooking.
  If moisture gets into the controls, this may result in damage.
• Never clean controls with a wet cloth. Incorrect cleaning damages the surfaces.
  Follow the cleaning instructions.
• Do not use harsh or abrasive cleaning agents.
  Clean stainless steel surfaces in the grain direction only.
• Never clean controls with stainless steel cleaners. Condensation that flows back in may damage the appliance.
• To prevent condensate from returning, fit the exhaust air pipe with a 1^ gradient from the appliance.

There is a risk of surface damage if you do not peel off the protective film.

• Remove the protective film from all parts of the appliance before using for the first time.

3 Environmental protection and energy-saving

3.1 Disposal of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Clean or replace the filters at the specified intervals, or as frequently as needed.

The effectiveness of the filters is retained.
Switch off the lighting if you no longer require it.
- When the lighting is switched off, it does not consume any energy.
Put the cooking lid on.
The cooking vapors and condensation are reduced.
Only use the additional functions if required.
- Switching off additional functions reduces power consumption.

4 Operating modes

You can use your appliance in exhaust air mode or circulating air mode.

4.1 Exhaust-air mode

The air that is drawn in is cleaned by the grease filters and conducted to the outside via a duct system.

The air must not be discharged into a flue that is used for exhaust fumes from appliances burning gas or other fuels (not applicable for recirculation appliances).

If the exhaust air is to be conducted into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the responsible area heating inspector.
If the exhaust air is conducted through the outer wall, a telescopic wall box should be used.

4.2 Air recirculation mode

The air which is drawn in is cleaned by the grease filters and an odor filter, and conveyed back into the room.

To bind odors in air recirculation mode, you must install an odor filter. The different options for operating the appliance in air recirculation mode can be found in our catalog. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from Customer Service, or from the online shop.

"Accessories", Page 11

When used in recirculation mode, To Reduce the Risk of Fire and Shock, use only Charcoal filter Model HVREC5UC.

5 Familiarizing yourself with your appliance

5.1 Appliance

Here you can find an overview of the parts of your appliance.

1 LED lights
2 Filter pull-out
3 Control panel

5.2 Controls

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Turn the fan down

+	Turn the fan up
·	Switch on lighting
⊗	Fan run-on

5.3 Basic Operation

Filter pull-out

Pulling out the filter drawer

Note: The appliance starts with the functions that were set when the drawer was closed.

• Hold the filter drawer by the middle and pull it out.
• The control panel is accessible and the appliance is ready for operation.

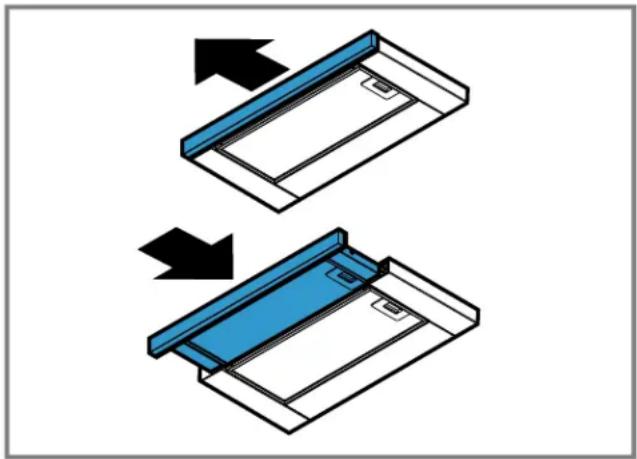

Pushing the filter drawer in

Note: The ventilation is switched off when the drawer is closed, the light stays on.

• Hold the filter drawer by the middle and push it in.

Turn on the fan

Note: Always adjust the fan strength to meet current conditions. If there is a large build-up of steam or fumes, select a high fan setting.

1. Press+
2. The current ventilator settings are indicated by a bar on the display panel.
3. Press+or to change the ventilator settings.

Turn off the fan

Press repeatedly until the ventilator switches off.

Switching on intensive mode

For especially strong odor or vapor, use the intensive mode.

• Press+while the appliance is at ventilation setting 3.
  ^+ is displayed.
  After 5 minutes, the electronics automatically turn the appliance down to ventilation setting 2.

Switching off intensive mode

Press the until the required setting is reached.

Switching on lighting

The lighting can be switched on and off independently of the ventilation.

Press

Saturation notification

The saturation of the metal grease filter or of the active carbon filter is indicated on the display panel.

Grease filter: Ventilator setting 3 and intensive setting blink in alternation.
- Odor filter: Ventilator setting 3 and intensive setting blink simultaneously.

If you have not yet done so, the metal mesh grease filters should be cleaned or the activated carbon filter changed now.

For instructions on how to clean the metal grease filters, refer to the section

"Cleaning and maintenance", Page 9.

Resetting the saturation displays

Press and hold

Switching over the display for circulating-air mode

For circulating-air mode, the electronic control display must be switched over accordingly:

Requirement: The extractor hood must be connected and switched off.

1. Press+ and -simultaneously until ventilator settings 1 and 2 light up briefly on the display panel..
2. To switch the electronic control display back to exhaust air mode repeatedly press the button combination.

Display ventilator setting 1 lights up briefly

6 Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

6.1 Cleaning agents

You can obtain suitable cleaning products from Customer Service or the online shop.

NOTICE:

Unsuitable cleaning agents may damage the surfaces of the appliance.

Do not use strong or abrasive cleaning agents.
- Do not use cleaning agents with a high alcohol content.
Do not use hard scouring pads or cleaning sponges.
- Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.
- Wash sponge cloths thoroughly before use.

6.2 Cleaning the appliance

Clean the appliance as specified. This will ensure that the different parts and surfaces of the appliance are not damaged by incorrect cleaning or unsuitable cleaning products.

WARNING

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminum parts in the interior of the appliance may cause explosions.

• Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminum parts, e.g. grease filter on extractor hoods.

WARNING

Moisture intrusion may cause an electric shock.

Before cleaning, pull out the power plug or switch off the circuit breaker in the circuit breaker box.

• Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

WARNING

The appliance becomes hot during operation.

• Allow the appliance to cool down before cleaning.

WARNING

Components inside the appliance may have sharp edges.

Clean the appliance interior carefully.

1. Observe the information regarding the cleaning agents.
2. Clean as follows, depending on the surface:

Clean stainless steel surfaces in the direction of the finish using a sponge cloth and hot soapy water.
- Clean painted surfaces using a damp sponge cloth and hot soapy water.
- Clean aluminum using a soft cloth and glass cleaner.
- Clean plastic using a soft cloth and glass cleaner.
- Clean glass using a soft cloth and glass cleaner.

1. Dry with a soft cloth.
2. Apply a thin layer of the stainless steel cleaning product to stainless steel surfaces using a soft cloth.

You can obtain stainless steel cleaning products from customer service or the online shop.

6.3 Removing grease filter

1. NOTICE: Falling grease filters may damage the cooktop below.

Grip below the grease filter with one hand.

Open the lock and fold down the grease filter. While doing this, place your other hand under the grease filter.

1. Note: Grease can accumulate in the bottom of the grease filter. Do not hold the grease filter at an angle, otherwise grease will drip out.

Take the grease filter out of the holder.

1. Clean the filter.
2. After removing the filters, carefully clean the inside of the appliance.

6.4 Fitting the grease filters

NOTICE:

Falling grease filters may damage the cooktop below.

Grip below the grease filter with one hand.

1. Insert the grease filters.
2. Fold the grease filters upwards and engage the locks.
3. Ensure that the locks engage.

6.5 Optional odor filter replacement

For more information about the odor filter see installation instructions.

The odor filter cannot be cleaned. It must be replaced every 4-6 months, depending on hood usage.
- Do not rinse or put the odor filter in an automatic dishwasher.

7 Troubleshooting

You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair visits.

WARNING

To avoid risk of injury from improper repairs, observe the following.

• Only qualified technicians or authorized service providers should perform repairs.

If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury.
Only genuine spare parts may be used to repair the appliance.
If the appliance has an issue, call Customer Service.

Issue Cause and troubleshooting

The appliance is not working. The plug for the power cord is not plugged in.

Connect the appliance to the power supply.

The circuit breaker in the circuit breaker panel has tripped.
Check the breaker panel.

There has been a power failure.

• Check whether the lighting in your kitchen or other appliances in the room are working.

The LED lighting does not work. Various causes are possible.

• Burnt out LED lights may be replaced by the appliance manufacturer, their Customer Service or a qualified technician (electrician) only.
  Call
  "Customer Service", Page 11.

8 Accessories

Accessories are available from Customer Service, specialist retailers or online. You should only use original accessories as they are specially designed for your appliance.

Accessories are appliance-specific. When purchasing, always check for compatibility with your appliance model number (E no.). Page 12

You can find out which accessory is available for your appliance in our catalog, the online shop or the Customer Service.

www.bosch-home.com

Accessories Order number

Odor filter HVREC5UC

9 Disposal

9.1 Disposal of your old appliance

Environmentally compatible disposal allows valuable raw materials to be recycled.

1. Unplug the appliance from the power supply.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally responsible manner.

Information about current disposal methods can be obtained from your specialist dealer or local authority.

10 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.

Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.

If you contact Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance.

The LED light sources are available as a spare part and should only be replaced by an authorized service provider. USA:

1-800-944-2904

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

10.1 Model number (E-Nr.) and production number (FD)

You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Making a note of your appliance's details and the

Customer Service telephone number will enable you to find them again quickly.

10.2 Rating plate location

You can find the rating plate of your appliance:
- Inside the appliance (remove grease filters for access).

Rating plate

11 STATEMENT OF LIMITED PRODUCT WARRANTY

11.1 What this warranty covers & Who it applies to

The limited warranty provided by BSH Home Appliances ("Bosch") in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you ("Product"), provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
• New at retail from a BSH authorized dealer or directly from BSH (not a display, "as is", or previously returned model), and not for resale, or commercial use.
  Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to register your Product; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

11.2 How long the warranty lasts

Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

11.3 Repair/replace as your exclusive remedy

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch's sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch).

Nevertheless, taking your product to be serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty. Also, using third-party parts will not void this warranty.

Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an

authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Further, to the extent you have installed the Product in a difficult-to-access location or have otherwise installed temporary or permanent fixtures that create barriers to accessing or removing the Product, Bosch will not incur any liability for, or have responsibility, for work or costs associated with moving the Product or otherwise creating access to the Product in order to repair or replace it. All such costs shall be your sole responsibility.

11.4 Out of warranty product

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

11.5 Warranty exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings).
• Adjustment, alteration or modification of any kind.
• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
  Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
  Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing.

• Removal and replacement of trim or decorative panels that interfere with servicing the Product.

• Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Bosch before service is performed.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooding, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BOSCH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

11.6 Obtaining warranty service

To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair.

11.7 Product information

For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation.

Model number (E-Nr.)

Production number (FD)

Date of delivery

Table des matieres

1 IMPORTANTES CONSIGNES DE SECURITE 16

www.bosch-home.com/us/owner-support/get-support

www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

Discounts for filters, cleaners, accessories & parts
- Easy access to manuals & appliance specifications
- Easy access to part lists
- Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH

HOMEAPPLIANCES

SERVICE

Looking for help?

You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your Model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2024 BSH Home Appliances Corporation
