USER MANUAL DCM580 BLACK & DECKER

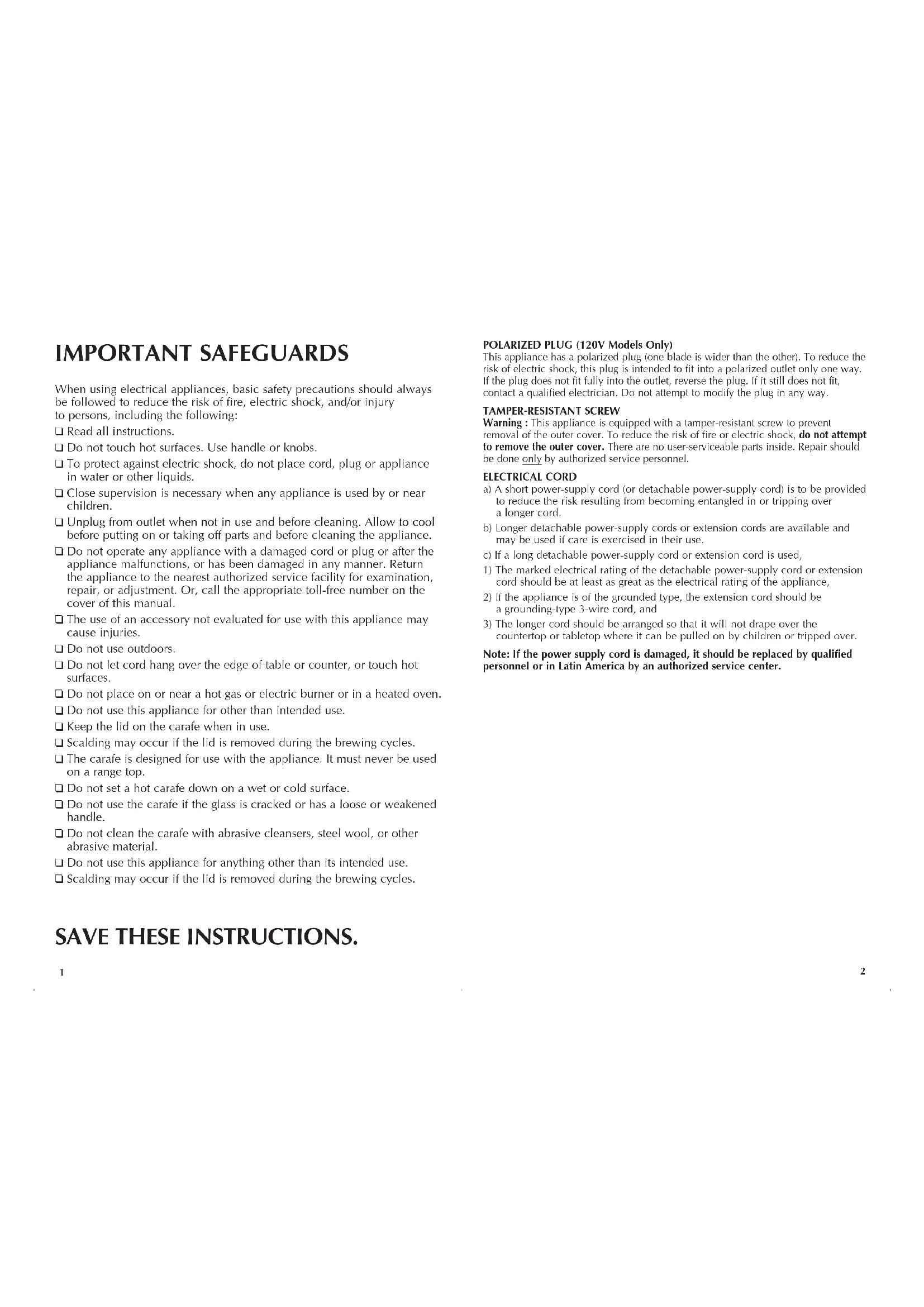

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.

To protect against electric shock, do not place cord, plug or appliance in water or other liquids.

Close supervision is necessary when any appliance is used by or near children.

Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.

The use of an accessory not evaluated for use with this appliance may cause injuries.

Do not use outdoors.

Do not let cord hang over the edge of table or counter, or touch hot surfaces.

Do not place on or near a hot gas or electric burner or in a heated oven.

Do not use this appliance for other than intended use.

Scalding may occur if the lid is removed during the brewing cycles.

The carafe is designed for use with the appliance. It must never be used on a range top.

Do not set a hot carafe down on a wet or cold surface.

Do not use the carafe if the glass is cracked or has a loose or weakened handle.

Do not clean the carafe with abrasive cleansers, steel wool, or other abrasive material.

Do not use this appliance for anything other than its intended use.

Scalding may occur if the lid is removed during the brewing cycles. SAVE THESE INSTRUCTIONS. POLARIZED PLUG (120V Models Only) This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. ELECTRICAL CORD a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension

cord should be at least as great as the electrical rating of the appliance,

2) If the appliance is of the grounded type, the extension cord should be

a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the

countertop or tabletop where it can be pulled on by children or tripped over. Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center. DCM580BPub1000002860R2 9/11/06 11:43 AM Page 24 How to Use This appliance is intended for household use only. GETTING STARTED

1. Remove all stickers, packing material, and literature.

2. Wash all parts as instructed in the Care and Cleaning section.

3. Pour cold water up to 5-cup level mark in the water

reservoir (A). Brew it through as instructed in "BREWING," but do not add coffee grounds to the paper filter. When done, turn off the coffeemaker and discard the water from the carafe. BREWING

1. Lift water reservoir lid (B). Use water markings

on carafe to fill water reservoir with cold water to desired level.

2. Place a paper filter or permanent gold tone filter

into the brew basket. Add ground coffee, (we recommend one heaping tazblespoon for every cup) (C). Close the cover.

3. Place carafe on the "Keep Hot" plate and plug

4. Press "ON/OFF" and the indicator light comes on, or

for delayed brewing, see "SETTING THE CLOCK/TIMER & AUTO-BREW" (D). You don’t have to set the clock if you want to brew coffee right away.

5. Replace the carafe on the "Keep Hot" plate when

not serving to keep coffee hot.

6. Press "ON/OFF" to turn off unit (E).

The coffeemaker will keep coffee warm for 2 hours before it automatically shuts off.

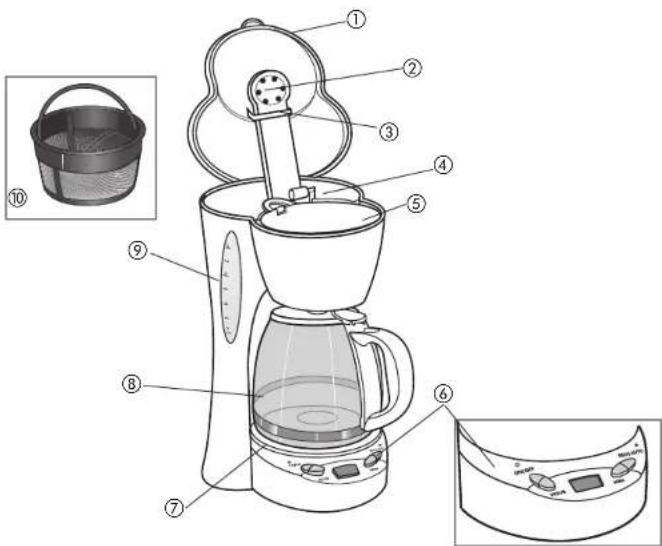

Product may vary slightly from what is illustrated.

1. Water reservoir and brew basket lid

†5.Removable brew basket (Part #177547-00)

9. Water level window

10. Permanent gold tone filter (Models DCM580 and DCM580B) (Part #177549-00)

†Consumer replaceable/removable parts

Plug in unit, clock flashes 12:00 a.m. until correct time is set. The coffeemaker works without setting the clock.

1. To set current time of day: Press the HOUR button,

little dot in the top left corner of the display indicates the "p.m." time. Press the MIN button. Once set, clock continues to keep time unless coffeemaker is unplugged or a power failure occurs. Clock can only be reset when in the flashing mode (F).

2. To set the Auto-Brew time: Press the PROG/AUTO

button and the light near the PROG/AUTO button starts flashing indicating it is being programmed. Press the HOUR, then MIN buttons to set the time you’d like coffee to automatically begin brewing (for example 7:15 a.m.). Press the HOUR and MIN buttons to 7:15 a.m. Make sure the PM indicator light is not lit. When finished, press the PROG/AUTO button a second time (hold the button down a few seconds) until the PROG/AUTO light stops flashing and stays on to show the timer is activated.

3. Prepare the coffeemaker for brewing as instructed in "BREWING" but don’t turn

the clock returns to the current time of day, press PROG/AUTO to reactivate the timer. To automatically brew coffee again at the same preset auto-on time, prepare coffeemaker for brewing again and press the PROG/AUTO button. Note: The Auto-Brew function can be canceled at any time by pressing the PROG/AUTO button a second time or by pressing the OFF button twice. The PROG/AUTO light goes out. Care and Cleaning This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Be sure the unit is off and cooled. Open the water reservoir and brew basket

lid, remove the brew basket (lift straight up), and discard the paper filter/grounds. Clean as follows: brew basket, carafe, permanent gold tone filter and carafe lid are all top rack dishwasher-safe; or they may be hand washed in warm, sudsy water. See below for carafe care. The coffeemaker’s exterior, control panel area and "Keep Hot" plate may be cleaned with a soft damp cloth. Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.

2. To clean inside of water reservoir and brew basket lid,

open the lid allowing it to rest in the open position. Pull water showerhead out from under the guide, wipe surfaces with a damp cloth, then place water showerhead under guide and close the cover (G). Carafe Care A damaged carafe may result in possible burns from a hot liquid. To avoid breaking:

• Do not allow all liquid to evaporate from the carafe while on the "Keep Hot" plate or heat the carafe when empty.

• Discard the carafe if chipped, cracked, or damaged in any manner.

• Never use abrasive scouring pads or cleansers; they will scratch and weaken the glass.

• Do not place the carafe on or near a gas or electric burner, in a heated oven, or in a microwave oven.

• Avoid rough handling and sharp blows. Mineral Deposits and Clogging Mineral deposits left by hard water can clog your coffeemaker. Cleaning is recommended every 3 months. Excessive steaming or a prolonged brewing cycle is a sign that a cleaning is needed. The frequency of flushing out deposits is affected by your usage and water hardness. During cleaning, more steaming occurs than when brewing coffee and steam emissions are possible.

1. Pour white vinegar into water reservoir up to 2-cup level on water window.

Add cold water up to 5-cup line.

2. Put a paper filter in the brew basket and close the lid. Set empty carafe on the

3. Turn on coffeemaker and let half the cleaning solution brew into carafe (till

water level goes down to around "2"). Turn off coffeemaker and let it soak for at least 15 minutes to soften the deposits.

4. Turn on coffeemaker and brew remaining cleaning solution into carafe.

5. Turn off coffeemaker, empty carafe and discard soiled filter.

6. Fill reservoir with cold water to 5-cup line, replace empty carafe, then turn on

coffeemaker for a complete brew cycle to flush out remaining cleaning solution. You may have to repeat this to eliminate the vinegar smell/taste.

7. Wash the brew basket and carafe as instructed in "CLEANING."

• Any defect in material or workmanship; provided; however, Applica’s liability will not exceed the purchase price of the product. For how long?

• One year after the date of original purchase. What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?
