Product Type	Backpack
Brand	Vaude
Model	Roomy 17+3
Category	Cycling backpack (VAUDE Bike)
Capacity	17 L (expandable to 20 L with volume extension)
Hydration system	Compartment compatible with hydration reservoir; hose outlet in flap or zipper
Shoulder strap adjustment	F.L.A.S.H. system: Velcro strap for continuous length adjustment
Carrying adjustment	Shoulder straps, load adjustment straps, lumbar belt (approx. 80% of weight on hips)
Helmet holder	Integrated, several variants: hooks, straps, net, flap depending on model
Rear light attachment	Strap or cutout to attach a blinking light (also present on rain cover)
Tool/pump compartment	Front pocket with additional loop for pump
Rain cover	Integrated in a zipped compartment at the bottom of the bag; cutouts for the lumbar belt
Volume extension	Allows increasing internal volume by 3 to 5 L
Map pocket	Flat pocket on the front of the bag
Moab interior compartment	Triple access for separate storage of important gear (on Moab series)
Protection attachment	Use of lateral compression straps to attach protections (on All Mountain models)
Care and cleaning	Hand wash with lukewarm water and mild soap; avoid bleach
Safety	Compatibility with a blinking rear light for better visibility

Frequently Asked Questions - Roomy 17+3 Vaude

How to adjust the shoulder strap length on a VAUDE Roomy 17+3 backpack?

Use the F.L.A.S.H. system: open the Velcro strap under the back system, adjust the shoulder strap length by pulling or pushing, then close the Velcro. The strap ends should reach just below the chest.

How to adjust the carrying system for comfortable wear?

1. Lightly pull on the shoulder straps and load adjustment straps. 2. With shoulders raised, close and tighten the lumbar belt (it should rest on the upper edge of the hip bone). 3. Loosen the shoulder straps until 80% of the weight rests on the hips, then retighten slightly for stabilization.

How to use the integrated helmet holder?

Depending on the model: Variant 1: hook the helmet straps onto the hooks. Variant 2: thread each strap end through the provided loops. Variant 3: attach the included helmet net to the four corners. Variant 4: slide the helmet into the integrated flap and close the clips.

How to attach a blinking rear light to the backpack?

Clip the light's holder onto the woven strap or the cutout provided at the bottom of the backpack. The rain cover also has a strap for this.

Where is the hydration system compartment and how to route the hose?

The compartment is located near the back. The hose outlet is either on the side under the flap (models with flap) or above the shoulder straps (models with zipper).

How to use the volume extension?

The volume extension increases the internal space by approximately 3 to 5 L. Simply unzip or unfold the extension provided for this purpose (depending on the model).

How to pack heavy items for good balance?

Place heavy items (gear, tent, provisions, water) in the middle of the backpack and close to the back. Light items (clothing) at the bottom, top, and sides. Use the bottom compartment for the sleeping bag.

How to attach lateral protections (knee pads, etc.)?

On All Mountain models, use the lateral compression straps to secure the protections. Wrap the straps around the protections and tighten.

Where is the rain cover and how to install it?

The rain cover is stored in a zipped compartment at the bottom of the backpack. Take it out and put it over the backpack. The lower cutouts go around the lumbar belt.

How to clean my Vaude Roomy 17+3 backpack?

Hand wash with lukewarm water and mild soap. Do not use bleach or harsh chemicals. Let it air dry, away from direct sunlight.

USER MANUAL Roomy 17+3 Vaude

bike hardWare backpacks

deuTsch. 1
ENGLISH 9
Français. 17
iTaliano 25
espaNol. 33
中文 41

INHALT

General Instructions 9

How to pack your backpack correctly. 9

Hydration system. 10

F.L.A.S.H. strap length adjustment 11

Carrying system settings and adjustment. 12

Features 13

Helmet carriers. 13

Features 13

Blinker holder. 14

Tool compartment / Pump compartment 14

Rain cover. 15

Volume expansion 15

Map compartment / Inner compartment Moab....16

Securing protective gear. 16

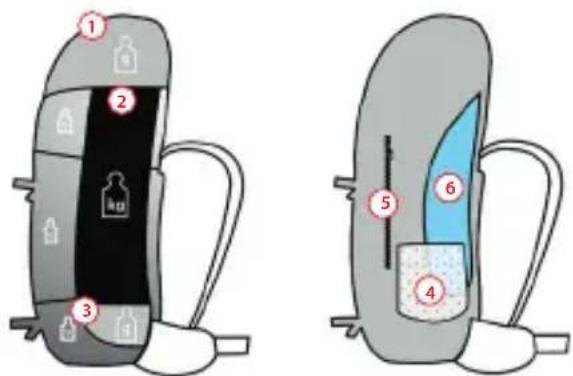

GENERAL INSTRUCTIONS HOW TO PACK YOUR BACKPACK CORRECTLY

The rule of thumb is to make sure the loaded pack's center of gravity lies directly above your own. Heavy items should therefore be packed as close to your back as possible.

1. Lid Compartment: small, lightweight items of gear that need to be close at hand, e.g. mobile phones, GPS, compass.

ENGLISH

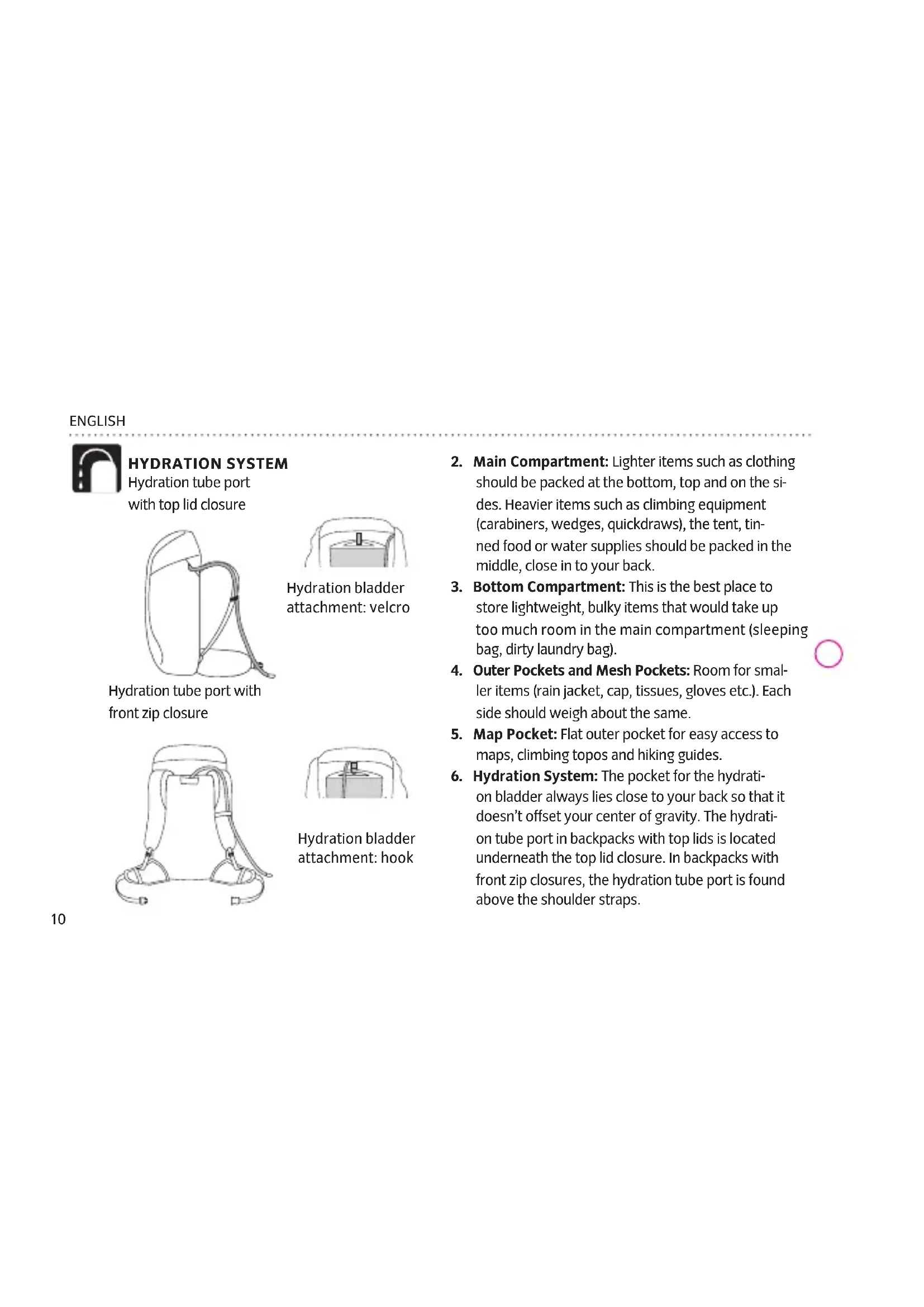

HYDRATION SYSTEM

Hydration tube port with top lid closure

Hydration tube port with front zip closure

Hydration bladder attachment:velcro

Hydration bladder attachment: hook

1. Main Compartment: Lighter items such as clothing should be packed at the bottom, top and on the sides. Heavier items such as climbing equipment (carabiners, wedges, quickdraws), the tent, tinned food or water supplies should be packed in the middle, close in to your back.
2. Bottom Compartment: This is the best place to store lightweight, bulky items that would take up too much room in the main compartment (sleeping bag, dirty laundry bag).
3. Outer Pockets and Mesh Pockets: Room for smaller items (rain jacket, cap, tissues, gloves etc.). Each side should weigh about the same.
4. Map Pocket: Flat outer pocket for easy access to maps, climbing topos and hiking guides.
5. Hydration System: The pocket for the hydration bladder always lies close to your back so that it doesn't offset your center of gravity. The hydration tube port in backpacks with top lids is located underneath the top lid closure. In backpacks with front zip closures, the hydration tube port is found above the shoulder straps.

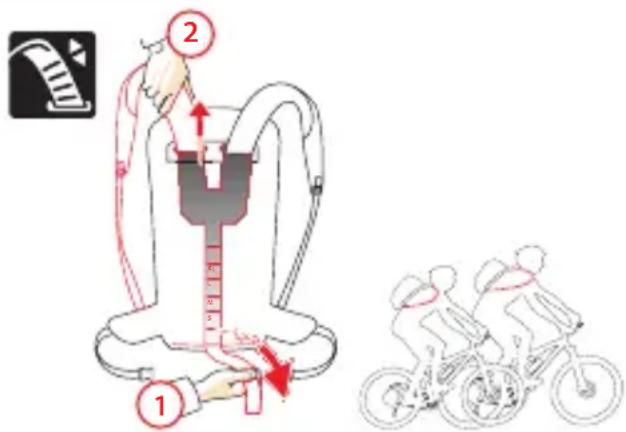

f.l.a.s.h. straP lenGth adJustment

Some VAUDE Bike backpacks are equipped with the F.L.A.S.H. strap length adjustment system. Every person has an individual back length and shape, and this strap system can be adjusted to optimally fit any upper body proportions: the backpack fits as if it were custom tailored.

For an optimal fit, the end of the shoulder strap should be just below the chest (see figure).

adJustment: You can adjust the length of the shoulder straps quickly and conveniently to any body size using the Velcro strip at the rear of the back system. By opening the Velcro, you release the shoulder strap lock (1). Pull out the shoulder strap or push it in to adjust its length (2). When the shoulder straps are the ideal length, close the Velcro again. Mark the position on the outer side of the Velcro to correct the shoulder strap length in future.

Quick Guide

ENGLISH

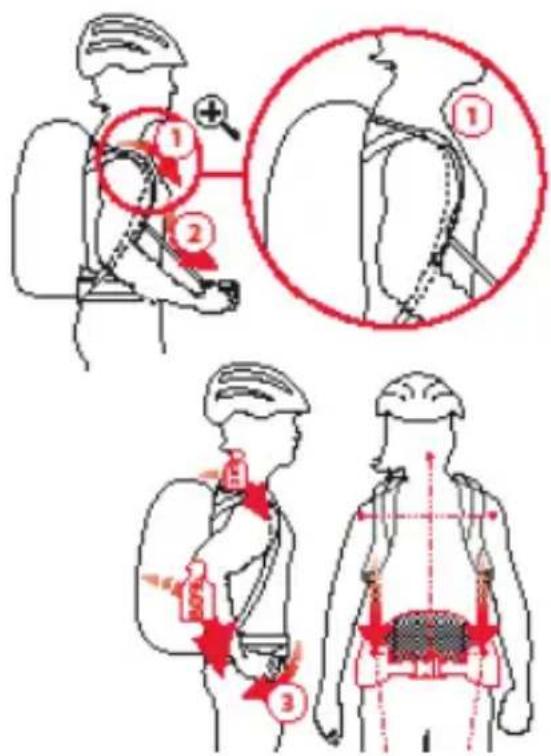

carrYinG sYstem settinGs and adJustment

If your VAUDE Bike backpack is equipped with strap length adjustment, adjust it first.

Shoulder the packed backpack and adjust as follows:

1. Gently tighten the shoulder straps and load adjustment straps (1 and 2). The ladder-lock buckles and the load adjustment straps must be positioned between your collar bone and the bony prominence at the top of your shoulder blade.

2. Lift your shoulders, then close and pull the hip belt to create a snug fit (3). The hip belt must ride on the upper edge of your pelvic bone. Your hips should bear approx. 80% of the load.

3. Loosen the shoulder straps until all of the weight is resting on your hips. Gently tighten the shoulder straps again to stabilize the backpack on your shoulders.

FEATURES

HELMET CARRIERS

Every VAUDE Bike backpack is equipped with a helmet carrier. We use a few different systems.

Variant 1: Brackets with hooks allow you to hook the helmet chin band to the backpack, or you can loop the straps behind the brackets and close them.

Variant 2: Use the two loops on the upper section of the backpack as the helmet carrier. To do this, simply open the helmet chin band, thread each side through a loop and close the chin band again.

Variant 3: Fasten the helmet net included to the two loops on both the upper and lower sections of the backpack. To do this, place the helmet on the backpack, place the net on top of it and put the plastic hooks through the loops.

Variant 4: Integrated helmet straps provide room for cross country and full face helmets. To use them, re

QUICK GUIDE

ENGLISH

lease the two buckles on the upper section of the backpack, push the helmet into the pocket and close the buckles again. For full face helmets, simply loop the straps and buckles through the chin guard, close them again and pull them tight.

Blinker holder

Every VAUDE Bike backpack is equipped with a blinker holder in the lower section. You can either clip the blinker to the attached piece of webbing or a cutout in the material. There is also a piece of webbing for this on the lower section of the rain cover.

tool comPartment / PumP comPartment

Some VAUDE Bike backpacks are equipped with extra tool compartments. Applied to the front of the backpack, they provide you with quick, convenient access to key tools. An extra loop even keeps larger pumps firmly in place.

raincoVer

Every VAUDE Bike backpack is equipped with a rain cover. It is located in a zip compartment under the floor of the backpack. To allow the rain cover to enclose the backpack as completely as possible, it has small cutouts on the bottom for the carrier system hip fins.

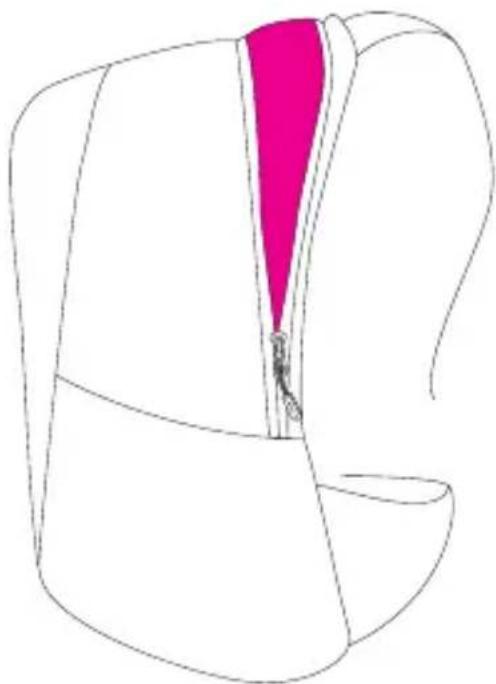

Volume exPansion

Some VAUDE Bike backpacks have a volume expansion function that enlarges the backpack by approx. 3-5 l.

ENGLISH

maP comPartment / inner comPartment moaB

The touring backpacks in the VAUDE Bike collection are equipped with an easy-access map compartment at the front. Use it to store your maps securely.

The backpacks in the Moab series have an extra 3-way inner compartment. In it, you can stow key pieces of equipment separately from the main compartment.

securinG ProtectiveVe Gear

With some of the All Mountain backpacks in the VAUDE Bike collection, you can use the compression straps at the sides to secure your protective gear.
