USER MANUAL S2 EZVIZ

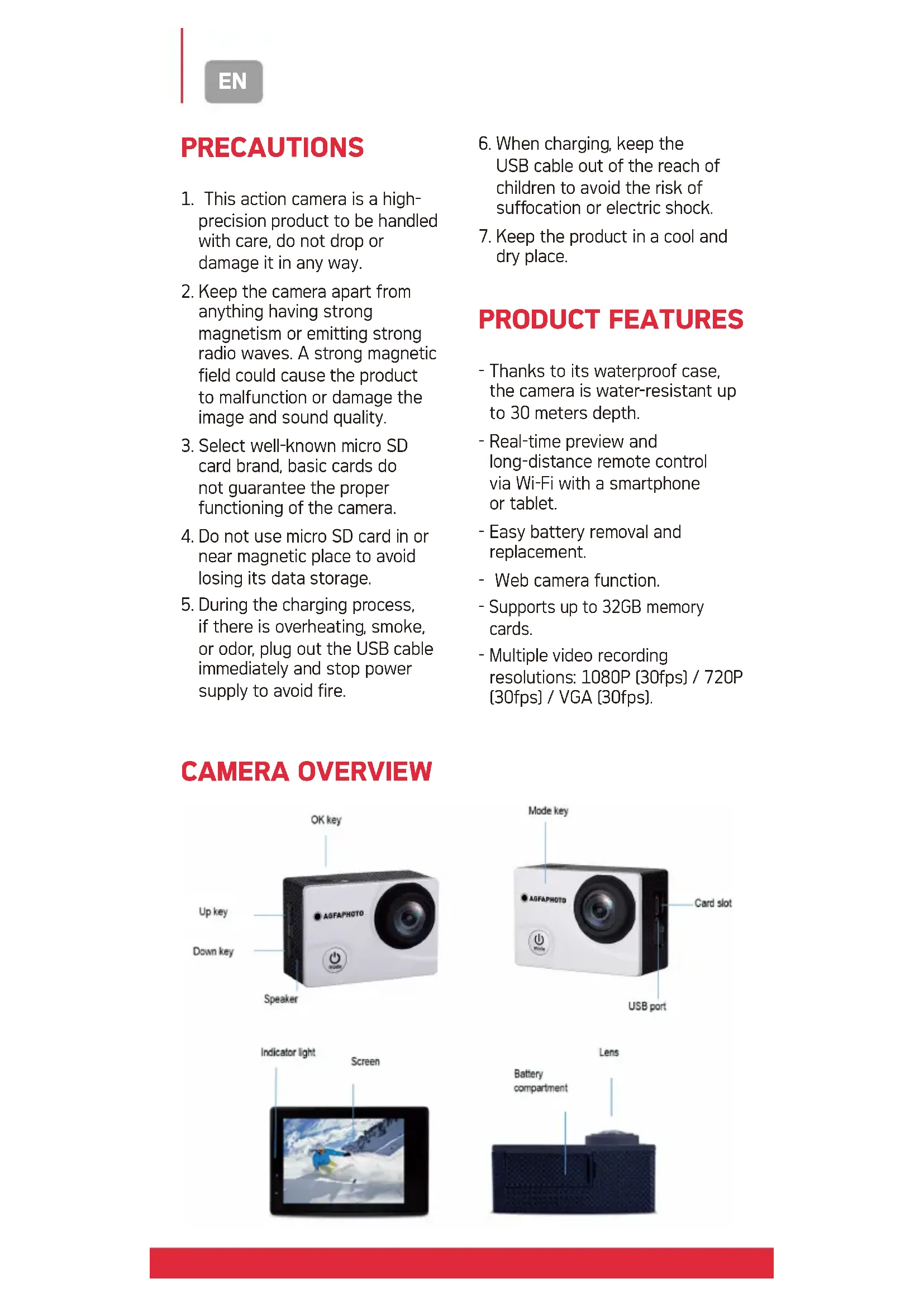

1. This action camera is a high-

precision product to be handled with care, do not drop or damage it in any way.

2. Keep the camera apart from

anything having strong magnetism or emitting strong radio waves. A strong magnetic field could cause the product to malfunction or damage the image and sound quality.

3. Select well-known micro SD

card brand, basic cards do not guarantee the proper functioning of the camera.

4. Do not use micro SD card in or

near magnetic place to avoid losing its data storage.

5. During the charging process,

if there is overheating, smoke, or odor, plug out the USB cable immediately and stop power supply to avoid fire.

6. When charging, keep the

USB cable out of the reach of children to avoid the risk of suffocation or electric shock.

7. Keep the product in a cool and

dry place. PRODUCT FEATURES - Thanks to its waterproof case, the camera is water-resistant up to 30 meters depth. - Real-time preview and long-distance remote control via Wi-Fi with a smartphone or tablet. - Easy battery removal and replacement. - Web camera function. - Supports up to 32GB memory cards. - Multiple video recording resolutions: 1080P (30fps) / 720P (30fps) / VGA (30fps). CAMERA OVERVIEWEN INSTRUCTIONS

1. Inserting a micro SD card

You cannot use the camera without first inserting a micro SD card in the corresponding slot on its left side. Preferably choose a well-known brand micro SD card with up to 32GB storage capacity having been formatted on a computer before use. Note: basic memory cards do not guarantee the proper functioning of the camera.

2. Installing and removing the

battery A. Pull the battery cover out. B. In accordance with the direction of the positive and negative symbols marked on the battery, insert the battery into the slot with the correct polarity until it is well seated. C. A battery icon will show up at the top right of the screen indicating the charging level status. Note: To remove the battery, pull its slot cover out and gently extract it by catching the little tab.

A. Plug in the camera with the USB cable to a computer or a power adapter for charging. B. The camera can also be charged in a car by plugging it into a USB car charger. Note: Photo and video shooting are possible while camera charging.

A. To switch on the camera, press the Power key for about 3 seconds until the screen lights up. B. To shut down the camera, press the Power key for about 3 seconds until the screen turns off.

Once the camera is on, short press the Mode key (same the Power one) to successively switch from a mode to another: video / photo / playback / setting menu. 5.1. Video mode A. First press the Mode key (same as the Powe r one) until moving to video mode (first mode to appear on the screen as it is the default one). B. Then press the OK key to start recording and press it again to stop. C. The yellow spot icon in the upper left of the screen will blink yellow indicating that recording is in progress. 5.2. Photo mode A. First press the Mode key (same as the Power one) until moving to photo mode. B. Then press the OK key to take a picture. 5.3. Playback mode A. First press the Mode key (same as the Power one) until moving to playback mode. B. Press the Up/Down keys to select a video or a photo. C. Then press the OK key to play or display the selected file in full screen.EN 5.4. Setting menu A. First press the Mode key (same as the Power one) until moving to setting mode and access to the setting menu. B. Press the Up/Down keys to select the setting you want to modify. C. Press the OK key to enter the sub-menu. D. Select one of the setting options and press the OK key again to confirm your choice.

The camera can be connected in Wi-Fi to Android or iOS smartphone or tablet by following these steps: A. First install the GoPlus Cam application on your smartphone/ tablet via Google Play Store for Android or App Store for iOS. B. Turn on the camera and press the Wi-Fi key (also the Up key). C. The Wi-Fi logo will then appear on the screen in blue with the AGFA_xxxxxxxxxxxx SSID (Wi-Fi name with a 12-digit random serial number) and the PWA2 (password) 12345678. D. Enter the Wi-Fi settings of your smartphone/tablet and search the camera Wi-Fi SSID to connect it. E. Open GoPlus Cam application on your smartphone/tablet to control the camera remotely and download videos or photos taken this way directly on your device. 6.1. Wi-Fi SSID setting A. First press the Mode key (same as the Power one) until moving to setting mode and access to the setting menu. B. Press the Down key until selecting the Wi-Fi SSID setting and then press the OK key to show the name of the Wi-Fi network. C. When a letter/figure is in green, it means you can change it by scrolling through the different characters with the Up/Down keys. D. Once the right character is selected, press the OK key to confirm your choice and move to next character. E. Finally, press twice the Mode key to exit and return to video mode. 6.2. Wi-Fi password setting A. First press the Mode key (same

the Power one) until moving to setting mode and access to the setting menu. B. Press the Down key until selecting the Wi-Fi PASSWORD setting and then press the OK key to show the password of the Wi-Fi network. C. When a letter/figure is in green, it means you can change it by scrolling through the different characters with the Up/Down keys. D. Once the right character is selected, press the OK key to confirm your choice and move to next character. E. Finally, press twice the Mode key to exit and return to video mode. 6.3. Wi-Fi power off Shortly press the Up key to turn off the Wi-Fi connection.EN SPECIFICATIONS LCD screen

Lens A + grade high-resolution wide-angle lens Languages English/French/German/Spanish/Italian/ Portuguese/Dutch/Polish/Czech/ Hungarian/Russian Video resolution 1080FHD (1920 x 1080) 30fps 720P (1280 x 720) 30fps MVGA (848 x 480) 30fps Video format AVI Photo format JPG Photo resolution 12M (2032 x 3024) 10M (3648 x 2736) 8M (3264 x 2448) 5M (2592 x 1944) 3M (2048 x 1536) 2M (1920 x 1080) 1.3M (1280 x 960) Memory card Micro SDHC, Class 10 or above Photo mode Single shot/self-timer (3/5/10/20 seconds) USB

Power supply 3.7V rechargeable Li-ion battery Dimensions

59.27 x 41.13 x 29.28 mm

Note: Certain practices or environments may affect the proper operation of the camera. Occasional breakdowns are so likely to occur after sustained activity. If this happens, remove the battery and wait for it to cool before reinserting it into the camera. The camera should reset automatically after this handling.FR PRÉCAUTIONS
