Dock Pro 60 USB-C 4K Station with Game+ Mode

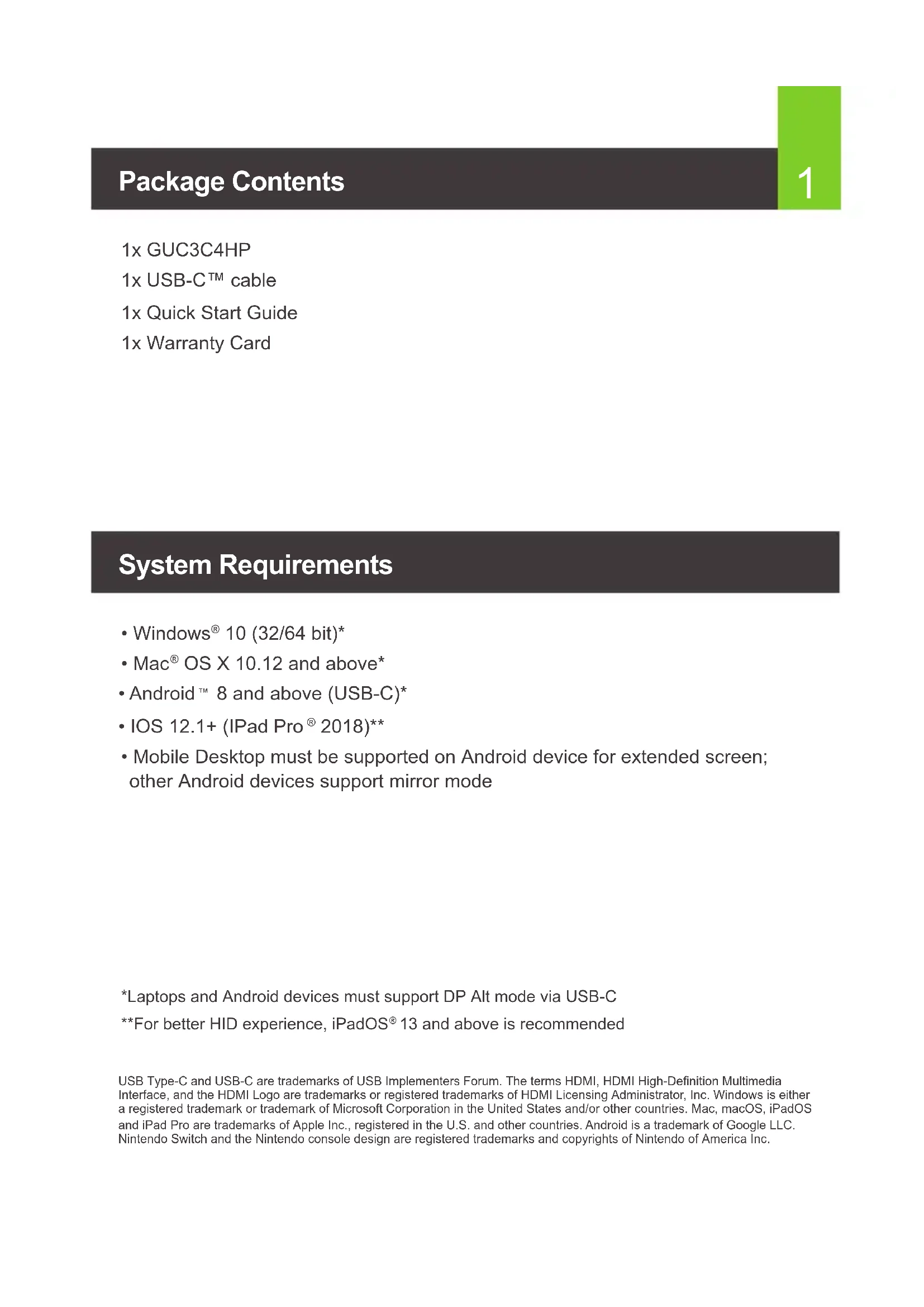

• Windows® 10 (32/64 bit)*
  • Mac® OS X 10.12 and above*
• Android ^TM 8 and above (USB-C)*
• IOS 12.1+ (IPad Pro® 2018)**
• Mobile Desktop must be supported on Android device for extended screen; other Android devices support mirror mode

*Laptops and Android devices must support DP Alt mode via USB-C

**For better HID experience, iPadOS® 13 and above is recommended

USB Type-C and USB-C are trademarks of USB Implementers Forum. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Mac, macOS, iPadOS and iPad Pro are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google LLC. Nintendo Switch and the Nintendo console design are registered trademarks and copyrights of Nintendo of America Inc.

Product Overview

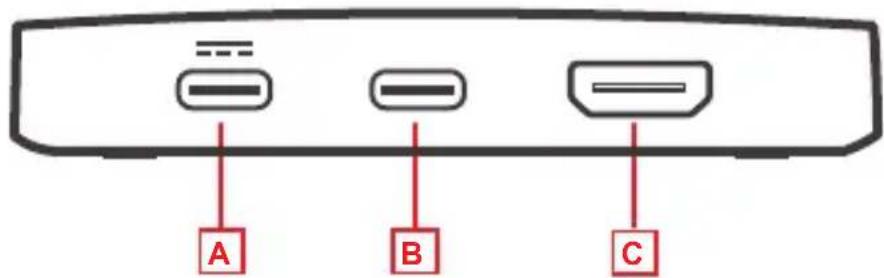

A. USB-C port (Power Delivery Pass-Through)*
B. USB-C port for the host
C. HDMI ^TM port (up to 4K)**

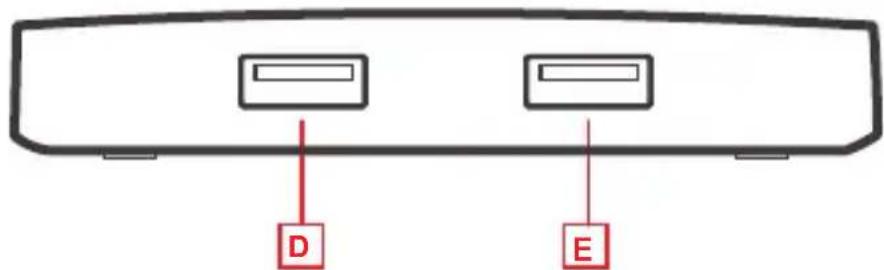

D. USB-A 3.1 Gen 1 port for Keyboard, mouse or peripherals***
E. USB-A 2.0 port for Keyboard, mouse or peripherals****

Front

A B C

Back

D E

Hardware Installation

Please follow steps below to ensure the optimal performance:

Android/Windows/Mac Installation

STEP 1

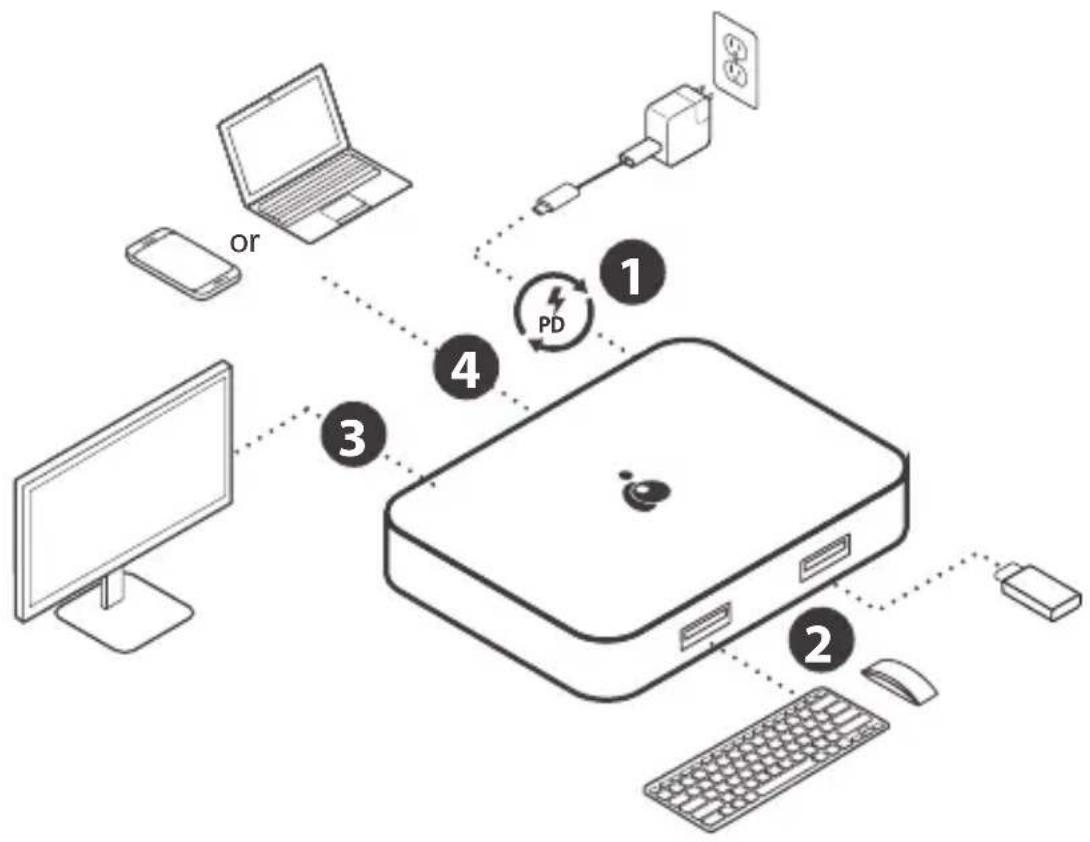

Turn on host computer/Smartphone. Connect power supply to Power Delivery Pass-Through port.

STEP 2

Connect external devices to appropriate ports as needed. (refer to product overview for ports call out)

STEP 3

Connect external HDMI display to HDMI port.

STEP 4

Connect USB-C cable to host USB-C port on GUC3C4HP. Connect other end of USB-C cable to host device (PC/MAC/Android). The screen may flicker when recognizing the new devices.

Nintendo Switch® Installation

STEP 1

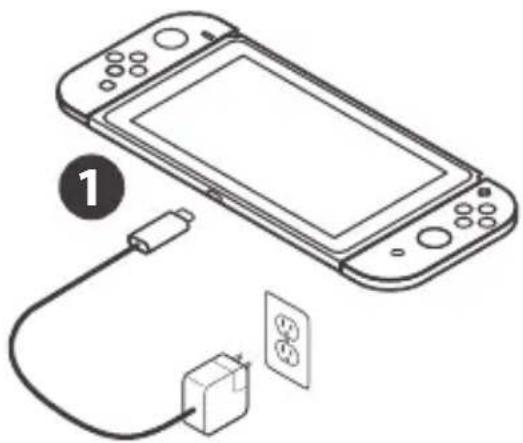

Connect Nitendo Switch USB-C power adapter directly to the NS(Nintendo Switch) to initiate charging.*

STEP 2

Connect other USB peripherals to their respective ports.**

STEP 3

Connect HDMI display to GUC3C4HP.

Line drawing of a handheld device connected to a battery and a small circuit board (no text or symbols)

STEP 4

Disconnect NS power adapter from NS. Connect NS power adapter to Power Delivery Pass-Through port on GUC3C4HP.

STEP 5

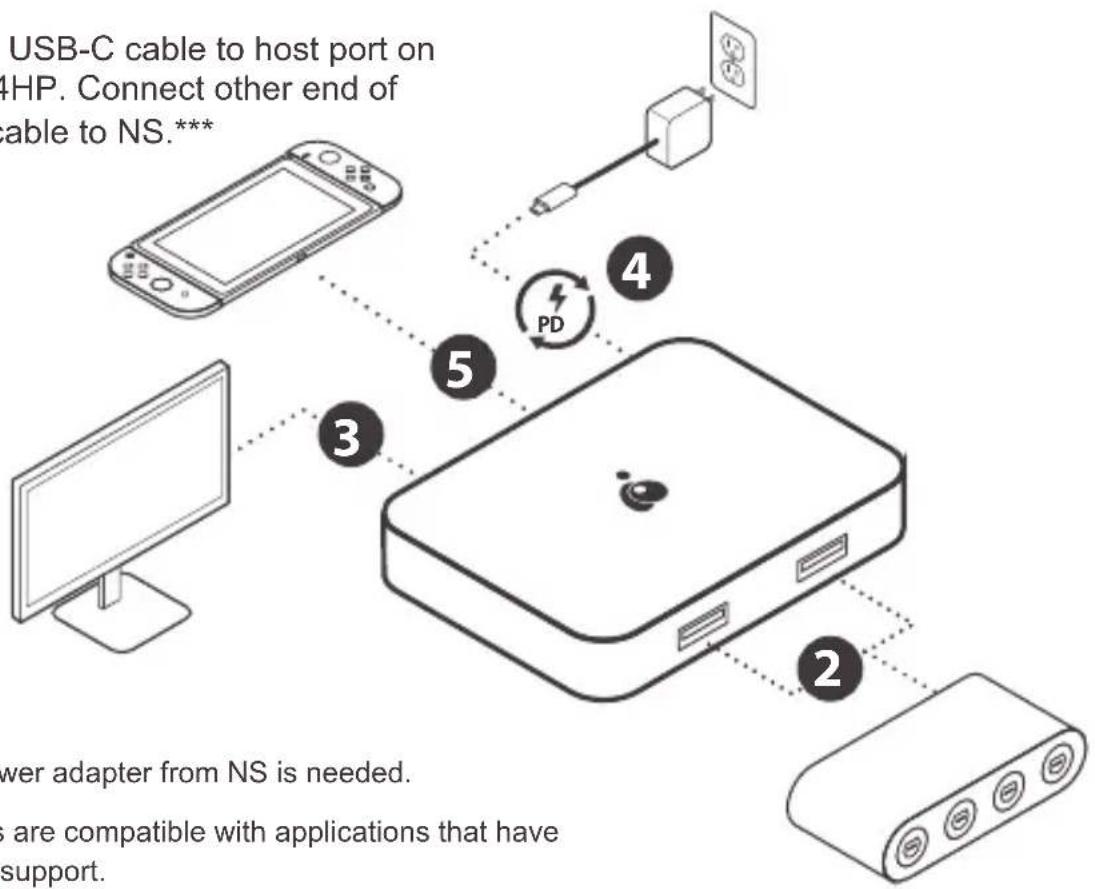

Connect USB-C cable to host port on GUC3C4HP. Connect other end of USB-C cable to NS.***

*Original power adapter from NS is needed.

**Keyboards are compatible with applications that have keyboard support.

***If initially no video is detected, disconnect and reconnect USB-C cable from NS or press the home button on the console.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com
